Products Description
Application:
The HCT4 turret slitter is Raloyal another innovation, widely used for the soft flexible packing materials such as PE/PP/PET/BOPP/PVC, Composite membrane and other coiled cylindrical material,etc.
And HCT4 still be suitable for Labels and Adhesive sticker.Such as art paper labels,tire labels,pe/pp labels,etc.
And HCT4 still be suitable for Labels and Adhesive sticker.Such as art paper labels,tire labels,pe/pp labels,etc.
Advantage:
1.Equipped 7 servo motors, to enable the machine slitting, rotating and rewinding accuracy.
2.Automatic loading,automatic knife cutting,4 shaft turret non-stop,all the automation boost the efficiency and reduce the labor force.
3.Dual-turret roll change non-stop for quick cycle time.
4.Shaftless unwind assure the loading safely and efficiently.
5.Laminating and peeling function can be selectable,Meet your production needs.
6.The machine operates at high speed, and the mechanical speed can reach 500m/min.
Technical Parameter
Device Parameter | ||||||
NO. | Parameter items | Parameter index | Unit | |||
1. | Material thickness range | 0.012-6.00 | mm | |||
2. | Effective width of equipment | 1300/1600 | mm | |||
3. | Unwinding diameter | Φ1200 (MAX) | mm | |||
4. | Rewinding diameter | Φ600 (MAX) | mm | |||
5. | Mechanical speed | 500 | m/min | |||
6. | Unwinding the paper core | 3（Φ76） | Inch(mm) | |||
7. | Winding the paper core | 3（Φ76） | Inch(mm) | |||
8. | Cutting width | The narrowest 15 | mm | |||
9. | Strip width | The narrowest 5 | mm | |||
10. | Total power | About 30 | Kw | |||
11. | Supply voltage | AC 380±5% | V | |||
12. | Equipment size | L4400*W4200*H2100 | mm | |||
13. | Unloading rack area | L1550*W500 | mm | |||
14. | Equipment weight | ≈6300 | Kg | |||
Main configuration of the equipment | ||||||||
NO. | Component name | Component model | Amount | Brand | ||||
1. | Correction device | ultrasound | 1set | Bat | ||||

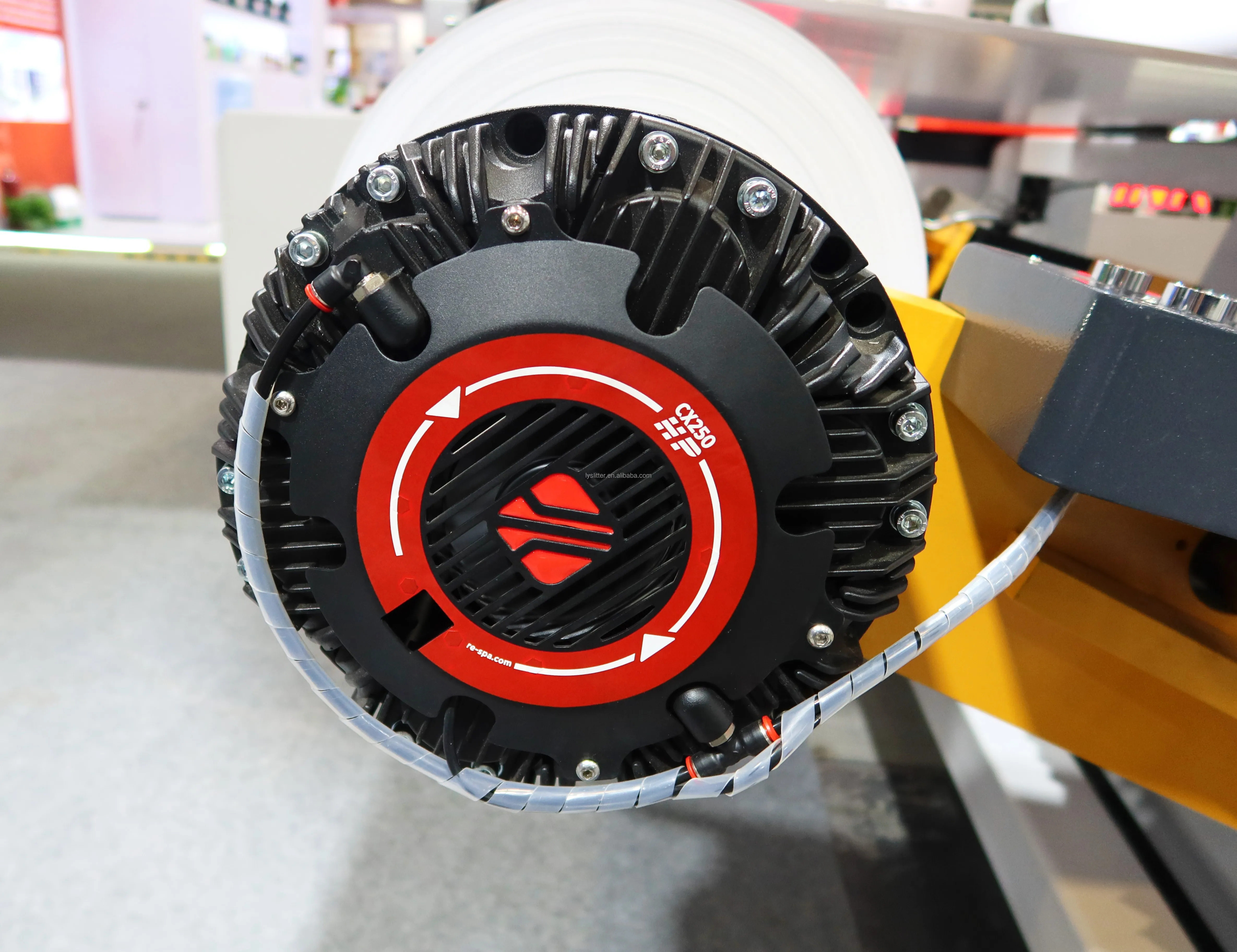

2. | Unwind brake | air brake | 1set | RE/Italy | ||||
3. | Unwind motor | BS15-150430FNZ | 1set | Danma / Shanghai | ||||
4. | Built-in encoder | E-40S8-200-3-N-24 | 1stick | Otonix | ||||
5. | Linear Guides | 1set | Shangying/Taiwan | |||||
6. | Traction motor | BS15-150430FNZ | 1set | Danma / Shanghai | ||||
7. | Winding motor | BS15-150430FNZ | 1set | Danma / Shanghai | ||||
8. | Variable frequency drive | 4stick | Yaskawa / Japan | |||||
9. | Touch screen | MT Series | 1stick | Weilun / Taiwan | ||||
10. | PLC and its modules | 1set | Siemens | |||||
11. | Cylinder and solenoid valve | 1set | SMC/ Japan | |||||
12. | Bearing | 1set | NSK/ Japan | |||||
13. | Trimming fan | 1.5kw | 1set | Wenzhou | ||||
14. | Precision Regulator | IR2020-02 | 1set | SMC/ Japan | ||||
15. | Electronically controlled proportional valve | ITV205 | 1set | Festo/Germany | ||||
16. | Static elimination device | 1400 Specification | 2set | Shanghai yan ping | ||||
17. | Traction roller | rubber roller | 1stick | |||||
18. | Traction pressure roller | steel rod | 1stick | |||||
19. | Aluminum guide roller | Surface blasting and anti-sticking | 1set | |||||
20. | Rubber roller | Silica gel | 1set | |||||

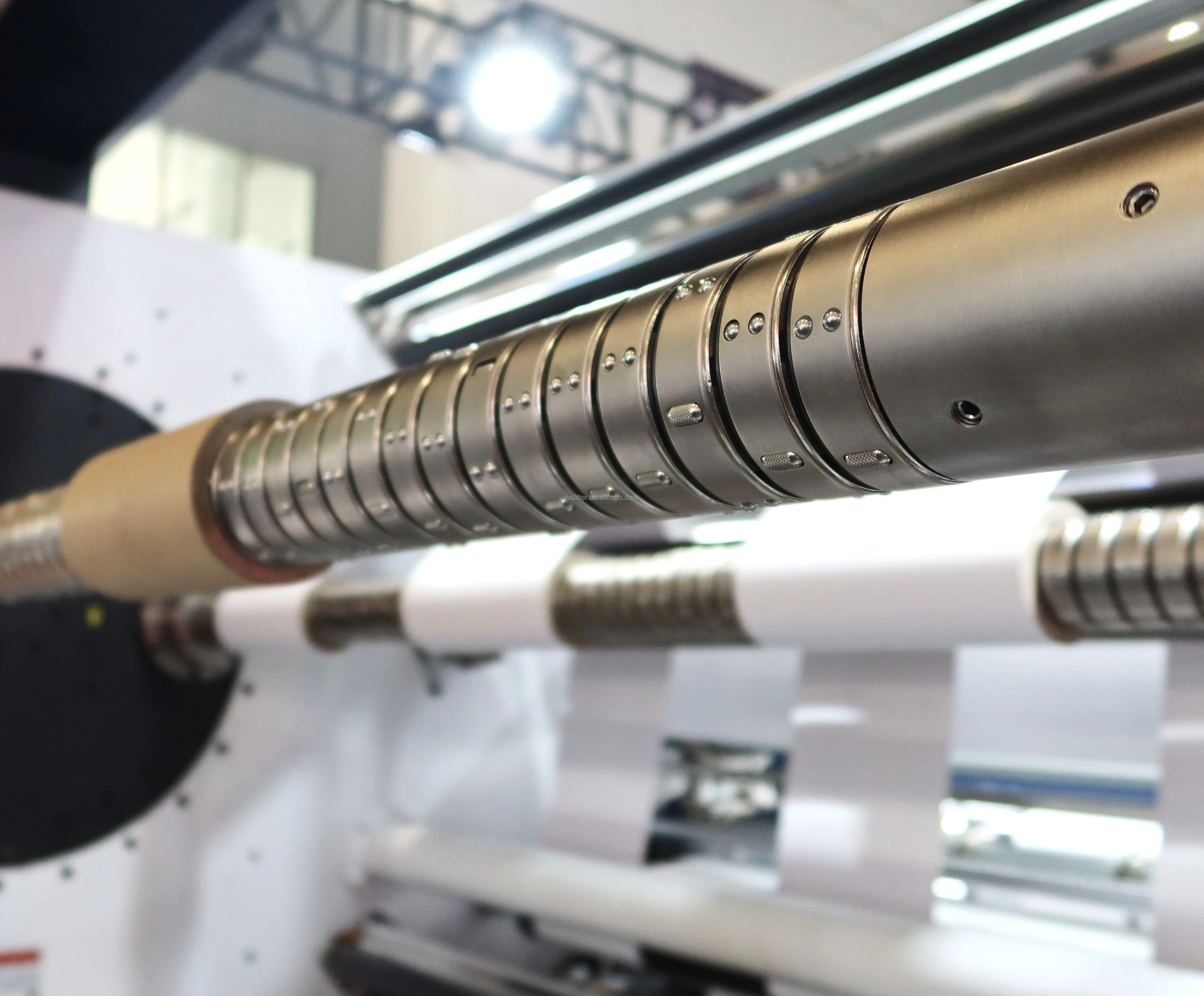

21. | Rewinding roller | 3 inch air differential shaft | 5stick | |||||
22. | Synchronous belt, wheel · | 1set | ||||||

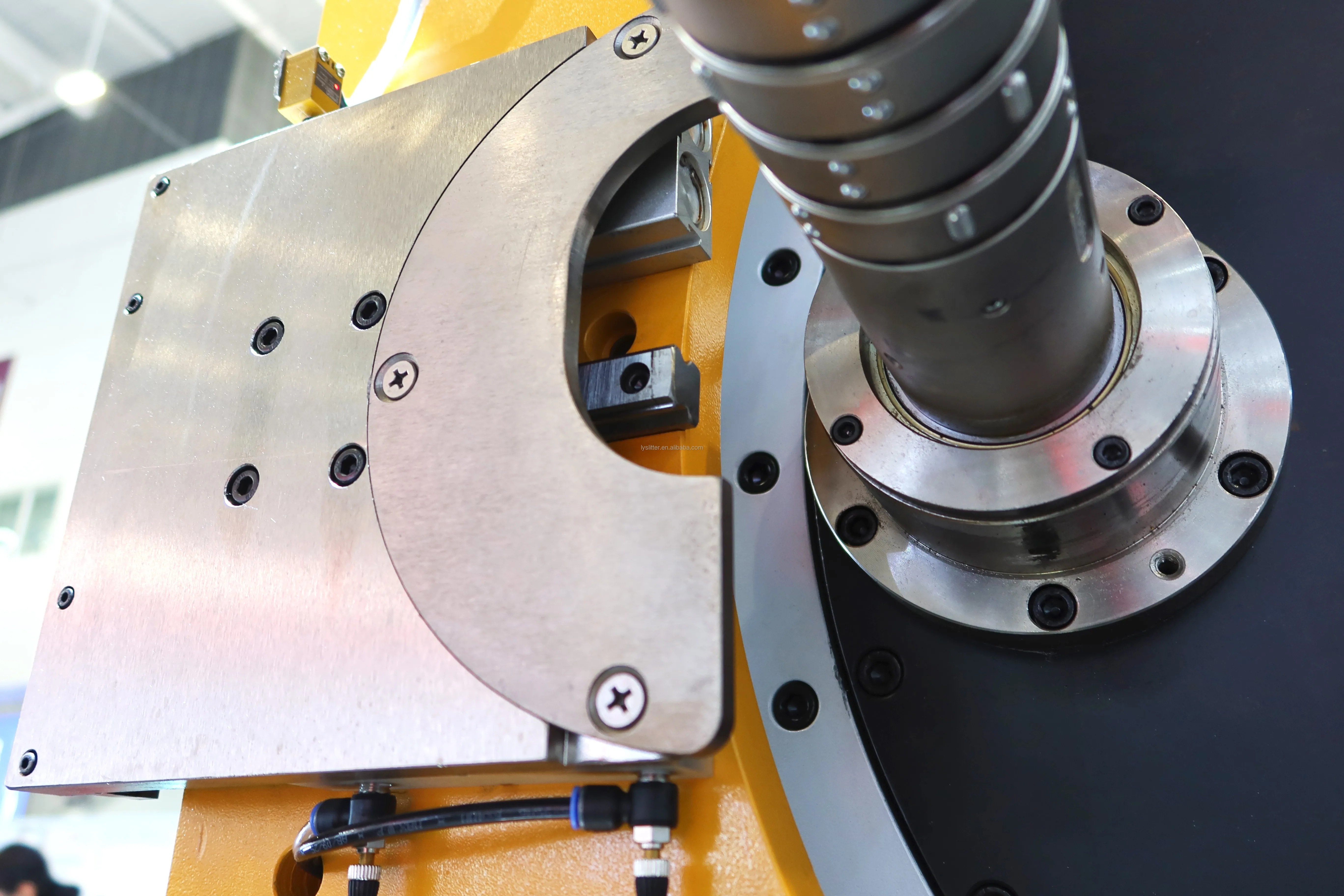

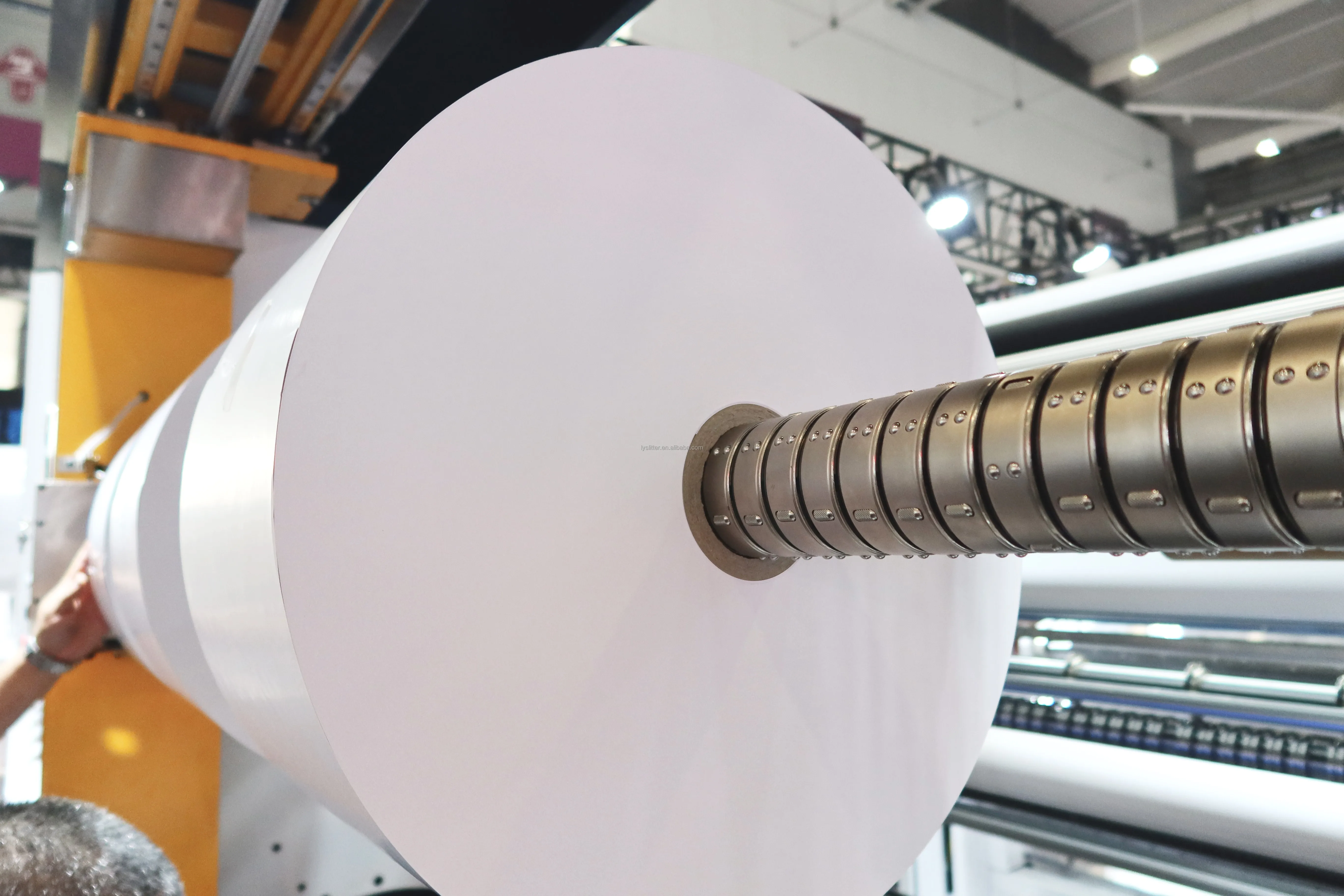

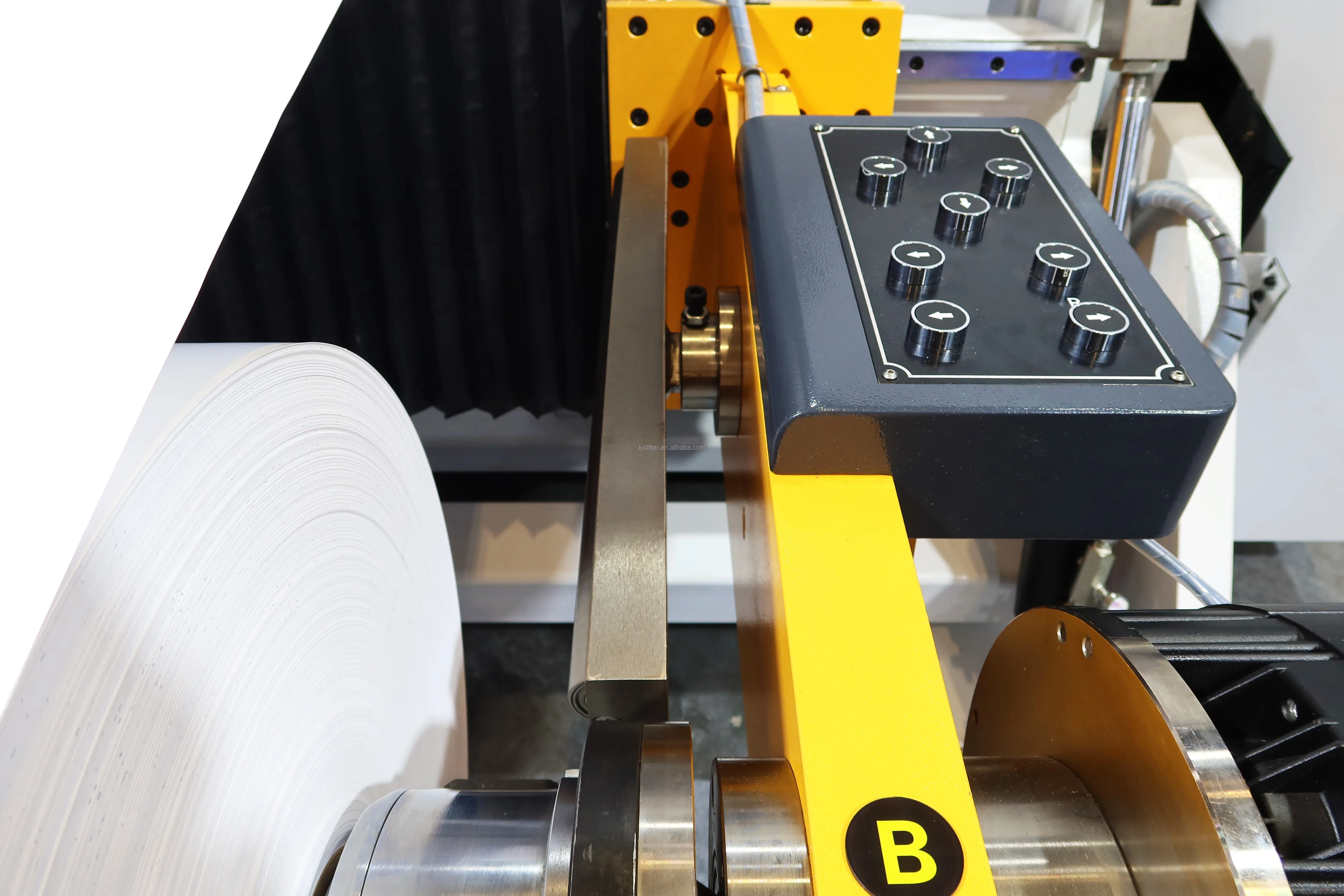

Details Images
Successful Cases and Customer Feedback
The global famous label packing company we have cooperated are：
Why Choose Us
1. Quality Control
Incoming Quality Control
Our quality team will inspect the incoming parts before storage by sampling.
Process Quality Control
Our quality team will pick the first pcs of each kind part to inspect before assembly and also inspect randomly on site.
Outgoing Quality Control
Our quality team will inspect the machine’s appearance, features and characteristic etc. before delivery to meet and exceed
client’s expectation.
client’s expectation.
2. Our Service
Pre-Sales Service
Inquiry and consulting support.
Sample material testing support.
Lead the customer to visit our factory if required..
After-Sales Service
12 months guarantee, life-long time technic maintenance and support.
Online Guidance support.
Spare parts supports.
24 Hours * 7 days service online.
24 Hours * 7 days service online.
Global service center
Exclusive Agencies
√ Middle East: Egypt, Saudi Arabia, Iraq, Yemen, Libya, Oman Pre-sales and after-sales service
4. Packing & Delivery
5. Certifications
Company Profile
COMPANY PROFILE
Ruian Loyal Machinery Co.,Ltd located in Ruian city, southeast of China, specializing in the slitting machine, die cutting
machine, printing machine making for more than 10 years in the application of label /flexible packing /electric protector film/new
energy and paper industry. RaLoyal have been always devoted to provide a global solution to the demands of markets in constant
development with competitive and tailored equipment including the latest solutions in innovation, technology and sustainability
for customers. We have set agent in Germany,Venezuela, which can provide immediate technical support available to minimize the
waiting time for customers.
We deeply believe that Raloyal will become your loyal partner and supplier once we have a chance to start the cooperation!
machine, printing machine making for more than 10 years in the application of label /flexible packing /electric protector film/new
energy and paper industry. RaLoyal have been always devoted to provide a global solution to the demands of markets in constant
development with competitive and tailored equipment including the latest solutions in innovation, technology and sustainability
for customers. We have set agent in Germany,Venezuela, which can provide immediate technical support available to minimize the
waiting time for customers.
We deeply believe that Raloyal will become your loyal partner and supplier once we have a chance to start the cooperation!
Exhibitions
FAQ
Related Products
Похожие товары
Маленькая Флексографская печатная этикетка полностью вращающаяся машина для резки с перемоткой
791 879,20-905 004,80 ₽
A5 Высококачественная машина для резки бумаги с высоким качеством
3 224,08-3 393,77 ₽
Электрический трафарет для резки в продаже
Высокое качество Автоматическая Перемотка продольная резка машина для нетканого материала

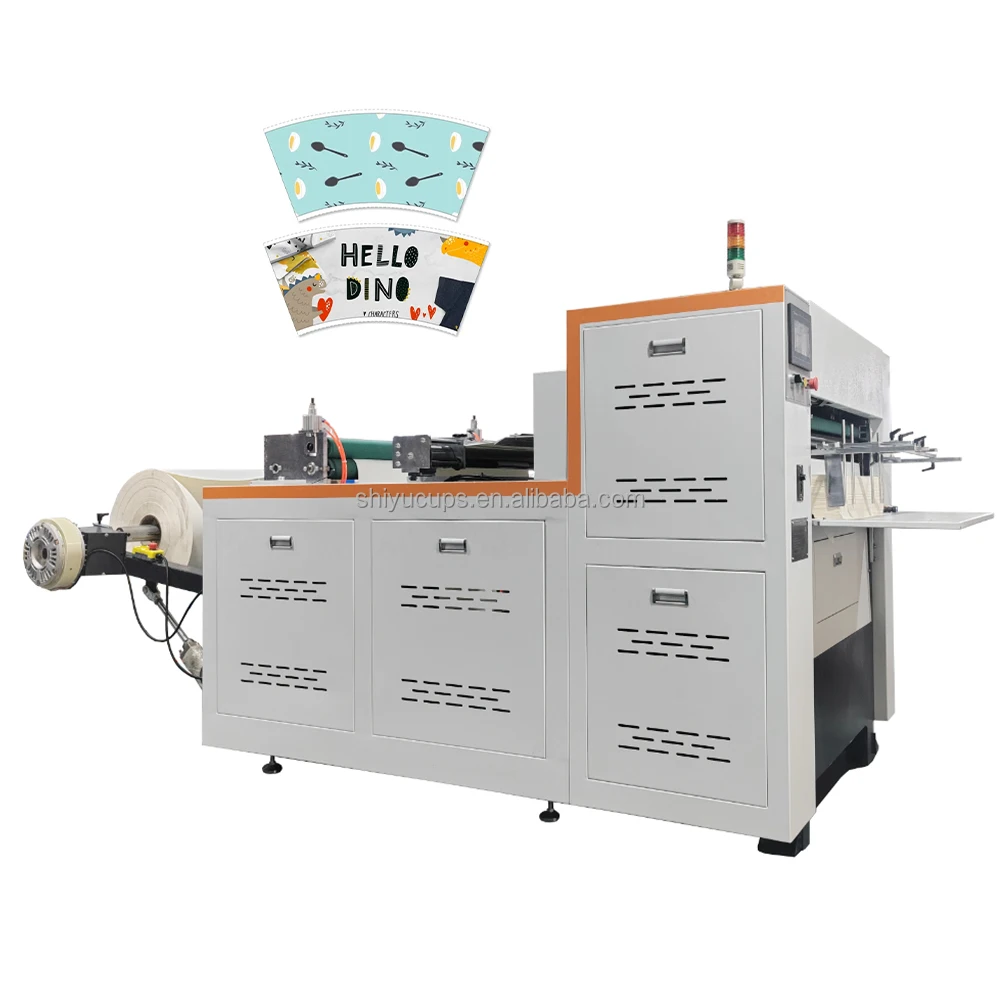

Высокоскоростной автоматический 850 950 мм рулон для листовой бумаги коробка чаша вентилятор машина резки бумажных стаканчиков
