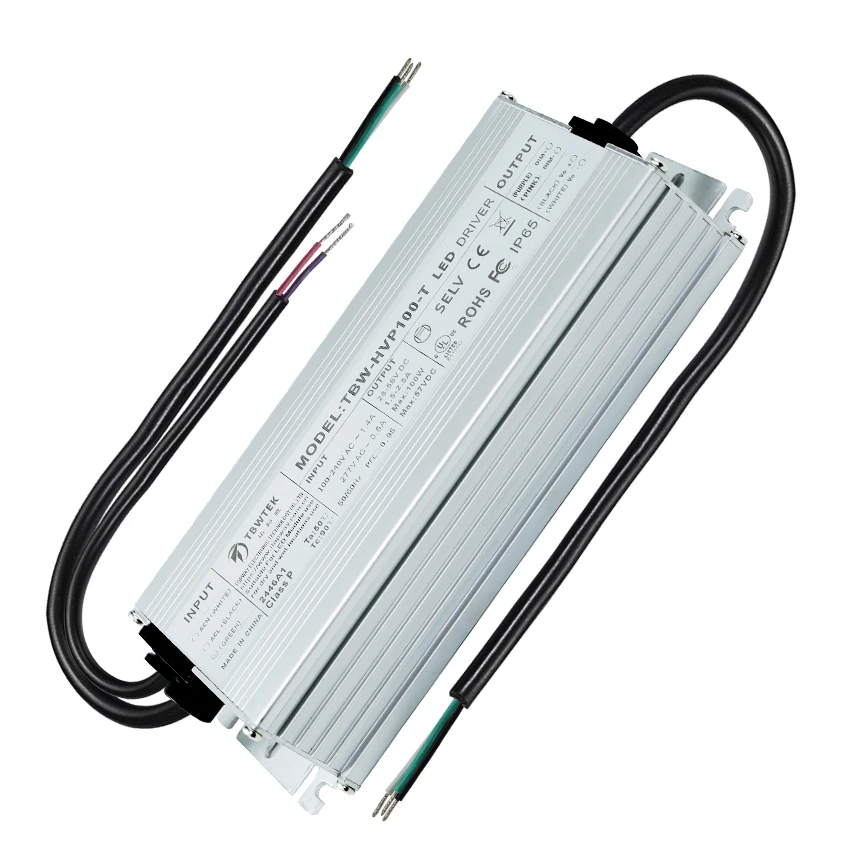

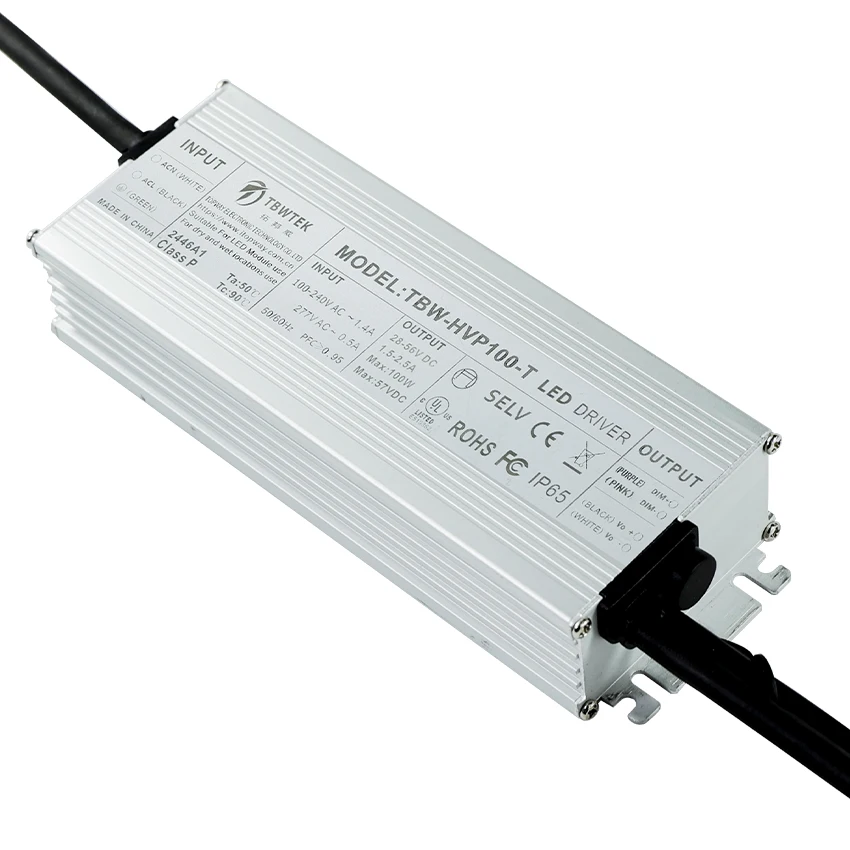

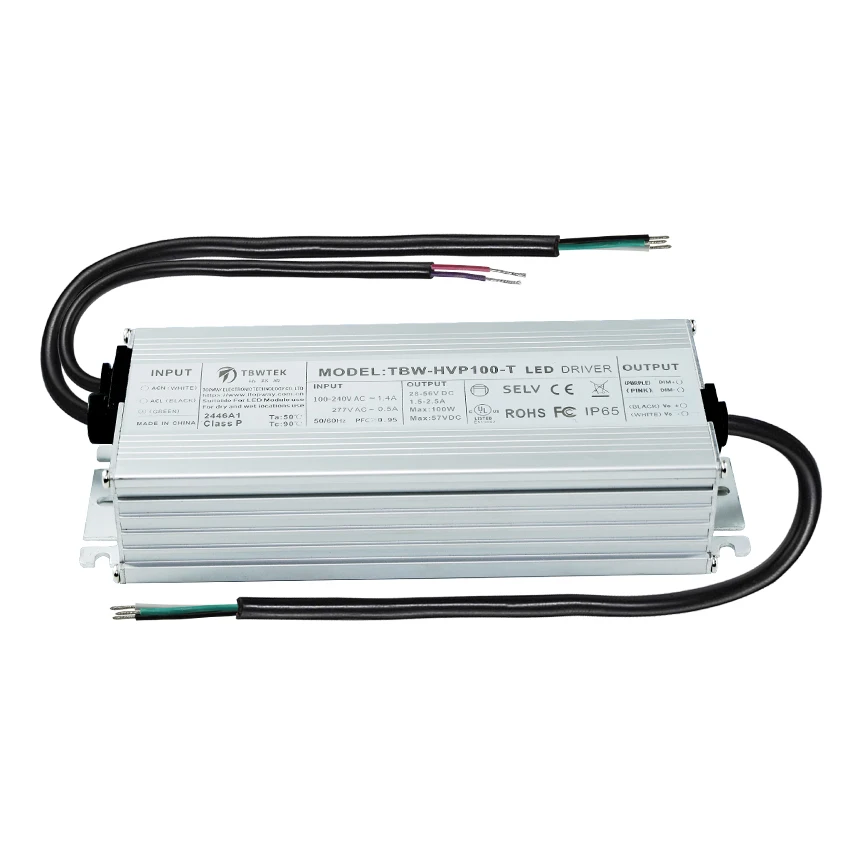

UL CE Universal Input Voltage 100V-227V PFC High Power Factor IP67 Waterproof LED Power Supply 100W LED Driver For Flood Light
Products Description
Item | Led Driver 100w |
Model | TBW-HVP100 |
Watts | 100W |
Input | 100-277V |
Output | 28-56V 1.5-2.5A 50-90V 1-1.8A |

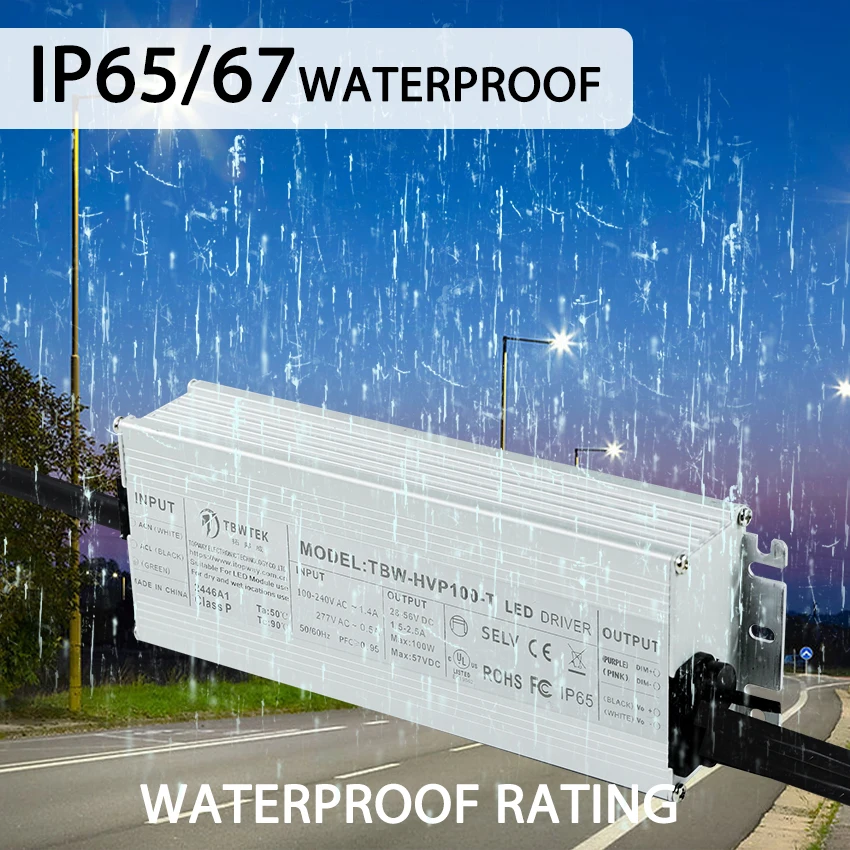

Waterproof | IP65/IP67 |
Efficiency | 90% |
PFC | >0.95 |
Warranty | 5years |
Notes:
Features:
Ultra High Efficiency (Up to 90.0%)
Full Power at Wide Output Current Range (Constant Power)
Adjustable Output Current (AOC)Isolated 0-10V/PWM/3-Timer-Modes Dimmable
Dim-to-Off with Standby Power
Minimum Dimming Level with 5% or 10% Selectable
Maximum Dimming Level with 9V or 10V Selectable
Always-on Auxiliary Power: 12Vdc, 250mA
Input Surge Protection: DM 6kV, CM 10kV
All-Around Protection: IUVP, IOVP, OVP, SCP, OTP
IP66 / IP67 and U* Dry / Damp / Wet Location
5 Years Warranty
Description:
The TBW-LFA series is a 30-1500W constant-current, dimming and IP65/IP67 rated LED driver that operates from 100-277Vac input with excellent power factor. Created for many lighting applications including high mast, sports, UV-LED, aquaculture and horticulture,etc. It provides an auxiliary voltage and dim-to-off functionality for powering low voltage, wireless controls. The dimming control supports 0-10V PWM RX
Function: 3-in-1 dimming function (0-10V, PWM, external resistor), RJ11 network port, plus DC12V300mA auxiliary source output
-T=3 in 1 Dimming: 0- 10v /PWM / Resistor
-D=3 in 1 Dimming+12V/300mA auxliary source
-Z =RJ11/RJ14 netwoek port +knob dimmer +12v aux source
Ultra High Efficiency (Up to 90.0%)
Full Power at Wide Output Current Range (Constant Power)
Adjustable Output Current (AOC)Isolated 0-10V/PWM/3-Timer-Modes Dimmable
Dim-to-Off with Standby Power
Minimum Dimming Level with 5% or 10% Selectable
Maximum Dimming Level with 9V or 10V Selectable
Always-on Auxiliary Power: 12Vdc, 250mA
Input Surge Protection: DM 6kV, CM 10kV
All-Around Protection: IUVP, IOVP, OVP, SCP, OTP
IP66 / IP67 and U* Dry / Damp / Wet Location
5 Years Warranty
Description:
The TBW-LFA series is a 30-1500W constant-current, dimming and IP65/IP67 rated LED driver that operates from 100-277Vac input with excellent power factor. Created for many lighting applications including high mast, sports, UV-LED, aquaculture and horticulture,etc. It provides an auxiliary voltage and dim-to-off functionality for powering low voltage, wireless controls. The dimming control supports 0-10V PWM RX
Function: 3-in-1 dimming function (0-10V, PWM, external resistor), RJ11 network port, plus DC12V300mA auxiliary source output
-T=3 in 1 Dimming: 0- 10v /PWM / Resistor
-D=3 in 1 Dimming+12V/300mA auxliary source
-Z =RJ11/RJ14 netwoek port +knob dimmer +12v aux source
Watts | Model | Input Voltage | Output Voltage | Output Current | PFC | Efficiency |
30W | TBW-LFA301-T | 100-277V | 28-52V | 0.5-0.9A | 0.95 | 87% |
50W | TBW-LFA501-T | 100-277V | 28-52V | 0.8-1.5A | 0.95 | 88% |
60W | TBW-LFA601-T | 100-277V | 28-52V | 1-1.8A | 0.95 | 88% |
80W | TBW-LFA801-T | 100-277V | 28-56V | 1.5-2.3A | 0.95 | 88% |
100W | TBW-LFA100-T | 100-277V | 28-56V | 1.5-2.5A | 0.95 | 89% |
50-80V | 1-1.8A | 0.95 | 89% | |||
150W | TBW-LFA150-T | 100-277V | 28-56V | 2.1-4.2A | 0.95 | 90.5% |
55-90V | 1.5-2.5A | 0.95 | 91% | |||
200W | TBW-LFA200-T | 100-277V | 28-56V | 3.0-5.6A | 0.95 | 92% |
55-90V | 3.0-5.6A | 92.5% | ||||
100-150V | 1-2A | 93% | ||||
160-220V | 0.6-1.2A | 93% | ||||
240W | 100-277V | 28-56V | 3.5-6.7A | 0.95 | 92.5% | |
28-56V | 2.5-4A | 92.5% | ||||
100-150V | 1.5-2.4A | 93% | ||||
100-150V | 0.8-1.3A | 93% | ||||
320W | 100-277V | 28-56V | 5.0-8A | 0.95 | 93% | |
55-90V | 3-5.5A | 93% | ||||
100-150V | 1.8-3.2A | 93.5% | ||||
100-150V | 1.2-2.1A | 93.5% | ||||
400W | TBW-LFA400-T | 100-277V | 28-56V | 5-8.9A | 0.95 | 94.5% |
500W | TBW-LFA500-T | 100-277V | 28-56V | 6-11.5A | 0.95 | 94.5% |
650W | TBW-LF650-T | 100-277V | 28-56V | 7.5-15A | 0.95 | 94.5% |
730W | TBW-LFA730-T | 100-277V | 28-56V | 8.5-17A | 0.95 | 95% |
800W | TBW-LFA800-T | 100-277V | 28-56V | 9-18A | 0.95 | 95% |
1000W | TBW-LFA1000-T | 185-277V 100-277V | 28-56V | 10-20A | 0.95 | 96% |
1200W | TBW-LFA1200-T | 185-277V | 42-56V | 12.5-25A | 0.95 | 95% |
1500W | TBW-LFA1500-T | 185-277V | 42-56V | 15-30A | 0.95 | 96% |
Other Power | ||||||||
UV led power supply: TBW-UV | ||||||||
UV led power supply: TBW-UV-H | ||||||||
Constant Current: TBW-LFA | ||||||||
Constant Voltage: TBW-HYGP | ||||||||
