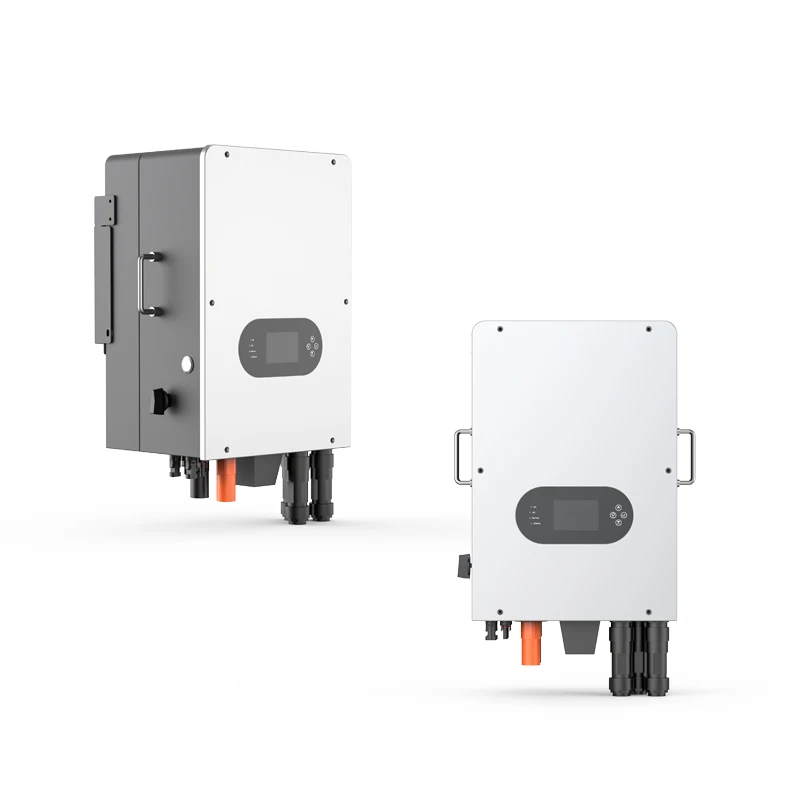

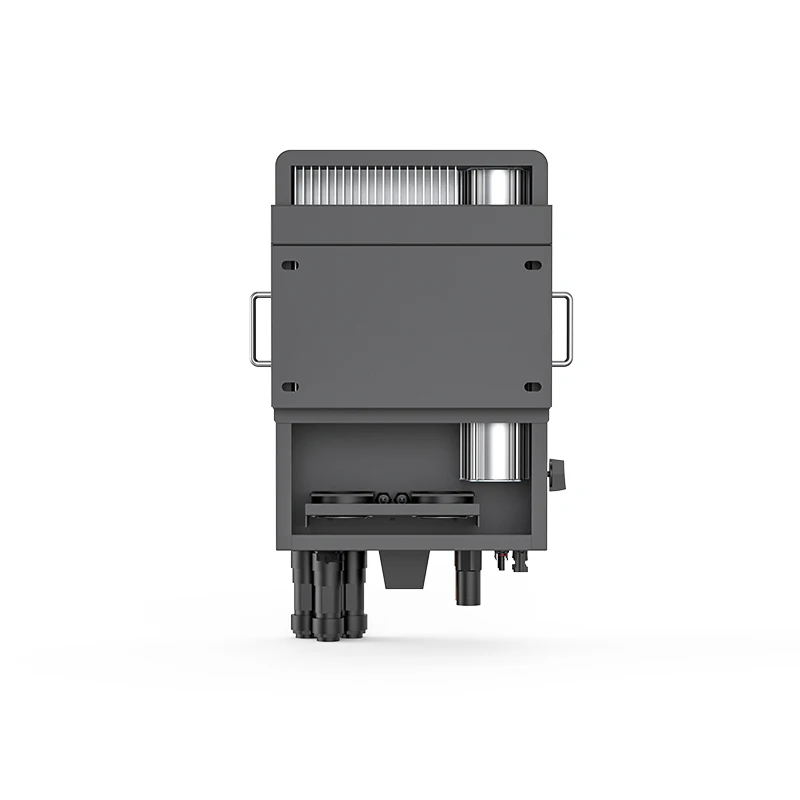

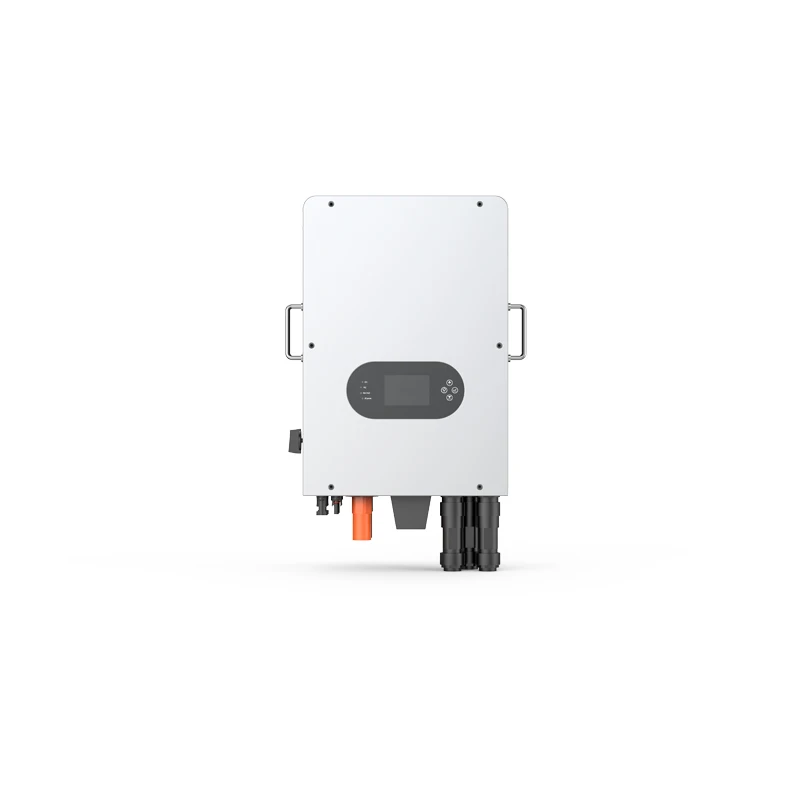

Новейший китайский завод микро инвертор выключенный от сети солнечный на вне Гибридные солнечные инверторы преобразователи
275,00-285,00 $
Китайский поставщик 24 В 48 однофазный частотный инвертор солнечный цена 6 кВт 8 Гибридный для дома
- Категория: >>>
- Поставщик: Guangdong Npp New Energy Co. Ltd.Guangdong Ltd.
Сохранить в закладки 1601358676872:
Описание и отзывы
Характеристики
Why Choose US:
1. Stable inventory, shipped within a week；
2. One-stop purchase, Drop-shipping service；
3. OEM, ODM service,Meet personalized customization；
4. Ensure that each piece undergoes capacity testing；
5. Match voltage & internal resistance before shipment；
Notice:
If you think the shipping cost is too expensive, please contact us and we will give you the maximum discount based on the
actual situation Please Send Inquiry!
actual situation Please Send Inquiry!

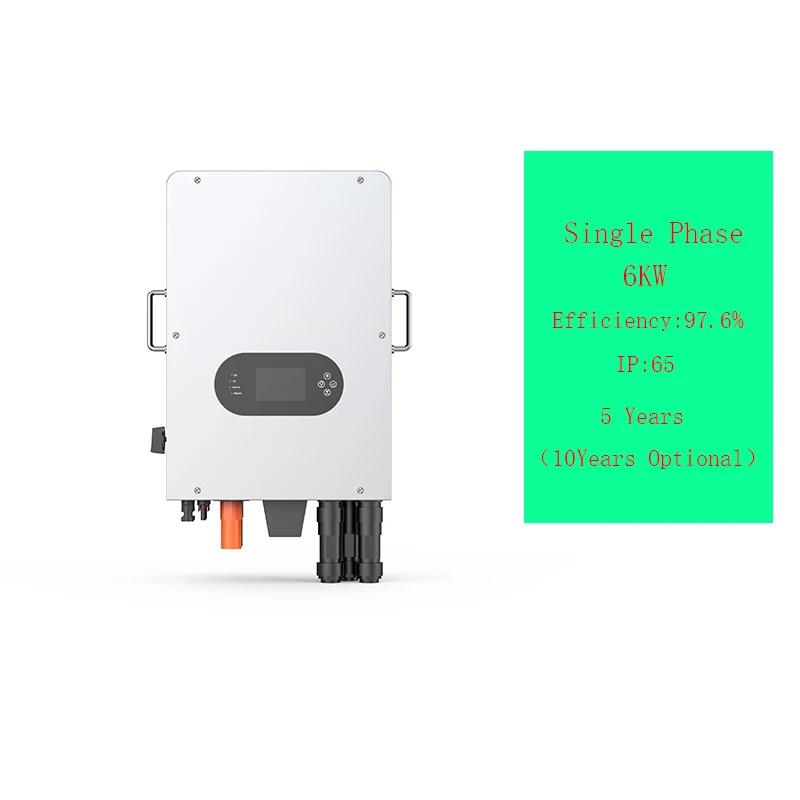

Model | NPP01-SPM-602G-EU |
Max. DC Input Power (W) | 7800 |
Rated PV Input Voltage (V) | 370 (125~500) |
Start-up Voltage (V) | 125 |
MPPT Voltage Range (V) | 150-425 |
Full Load MPPT Voltage Range (V) | 200-425 |
Max. DC Input Current(A) | 13+13 |
Max. PV Isc(A) | 22+22 |
No.of MPPT Trackers | 2 |
No.of Strings per MPPT Tracker | 1+1 |
Rated AC Output Power (W) | 6000 |
Max AC Output Power (W) | 6600 |
AC Input/Output Rated Current(A) | 27.3/26.1 |
Max.AC Input/Output Current(A) | 30/28.7 |
Max.Continuous AC Passthrough (A) | 40 |
Peak Power (off grid) | 2 times of rated power, 10 S |
Power Factor | 0.8 leading - 0.8 lagging |
AC Output Frequency and Voltage | 50/60Hz; 220/230Vac |
Grid Type | Single Phase |
Total Harmonic Distortion (THDi) | <3% (of nominal power) |
DC Current Injection | <0.5% (Rated Current) |
Battery Type | Lead-acid or Lithium-ion |
Battery Voltage Range (V) | 40~60 |
Max. Charging Current (A) | 135 |
Max. Discharging Current (A) | 135 |
External Temperature Sensor | Yes |
Charging Curve | 3 Stages / Equalization |
Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
Max. Efficiency | 0.976 |
Euro Efficiency | 0.965 |
MPPT Efficiency | 0.99 |
Surge Protection | DC Type II/AC Type II |
Over Voltage Category | DC Type II / AC Type III |
Grid Regulation | IEC61727/IEC 62116,EN 50549-1 |
Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2 |
Operating Temperature Range (℃) | -40-60℃, >45℃ Derating |
Cooling | Smart Cooling |
Noise (dB) | ≤50 dB |
Communication with BMS | RS485; CAN |
Monitoring mode | WIFI，APP |
Weight (kg) | 24 |
Size (W x H x D mm) | 346Wx506Hx255D(Excluding connectors and brackets) |
Protection Degree | IP65 |
Installation Style | Wall-mounted |
Warranty | 5 Years （10Years Optional） |
Specification
Product Description
Company Profile
NPP Power is a Chinese high-tech enterprise providing customized home battery backup power supply solutions and products for special lithium solar battery systems for global users. We have 4 factories in China and 1 overseas factory in Vietnam. To build a global manufacturing, marketing, and after-sales service network, NPP Power established overseas offices in Europe, America, and Africa.
To better serve and listen to clients’ demands, NPP Power also annually attends overseas exhibitions.We have passed ISO9001, ISO14001, ISO45001, CE, EMC, CQC, TLC, SGS, UN38.3, and MSDS certifications.
Core Products: Lithium solar Battery for Energy Storage Power Station, LiFePO4 Technology in VRLA Container, LiFePO4 Technology for Telecom, Base Station, Cabinet Power, E-Vehicles, OEM Pack, Portable Power Station, etc.
To better serve and listen to clients’ demands, NPP Power also annually attends overseas exhibitions.We have passed ISO9001, ISO14001, ISO45001, CE, EMC, CQC, TLC, SGS, UN38.3, and MSDS certifications.
Core Products: Lithium solar Battery for Energy Storage Power Station, LiFePO4 Technology in VRLA Container, LiFePO4 Technology for Telecom, Base Station, Cabinet Power, E-Vehicles, OEM Pack, Portable Power Station, etc.
Packing & Delivery
FAQ
Q1: Are the batteries GRADE- A, brand NEW?
Yes, GRADE A+quality.the QRcode is intactBrand new
Q2: Are you factory?
NPP Power has five manufacturing plants, four in China and one in Vietnam. To build a global manufacturing, marketing, and after-sales service network, NPP Power established overseas offices in Europe, America, and Africa.To better serve and listen to clients’ demands, NPP Power also annually attends overseas exhibitions.
Q3: How to proceed with an order?
A: Firstly, providing your requirements or applications, then we will provide battery solution and quote accordingly.
Secondly, confirming the order and do the deposit for it, then we will arrange the production.
Q4: how can we guarantee quality?
The mature quality supervision team manages the scientific testing system. We have Core-engineers with energy storage industry producing experience for more than 20 years. Ensure battery safety, long cycle life service, and environment friendly
Q5: Can you provide OEM and ODM service?
Yes, We are a professional lithium Battery manufacture with factory, which produce all kind of high quality Ebike
lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.
Yes, GRADE A+quality.the QRcode is intactBrand new
Q2: Are you factory?
NPP Power has five manufacturing plants, four in China and one in Vietnam. To build a global manufacturing, marketing, and after-sales service network, NPP Power established overseas offices in Europe, America, and Africa.To better serve and listen to clients’ demands, NPP Power also annually attends overseas exhibitions.
Q3: How to proceed with an order?
A: Firstly, providing your requirements or applications, then we will provide battery solution and quote accordingly.
Secondly, confirming the order and do the deposit for it, then we will arrange the production.
Q4: how can we guarantee quality?
The mature quality supervision team manages the scientific testing system. We have Core-engineers with energy storage industry producing experience for more than 20 years. Ensure battery safety, long cycle life service, and environment friendly
Q5: Can you provide OEM and ODM service?
Yes, We are a professional lithium Battery manufacture with factory, which produce all kind of high quality Ebike
lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.
Похожие товары
Soalrthon Жилая гибридная солнечная система 5.6kw 5.6kva 5600w солнечный инвертор
373,20 $
10 кВт промышленный коммерческий трехфазный гибридный солнечный инвертор 3 фазы
310,00 $

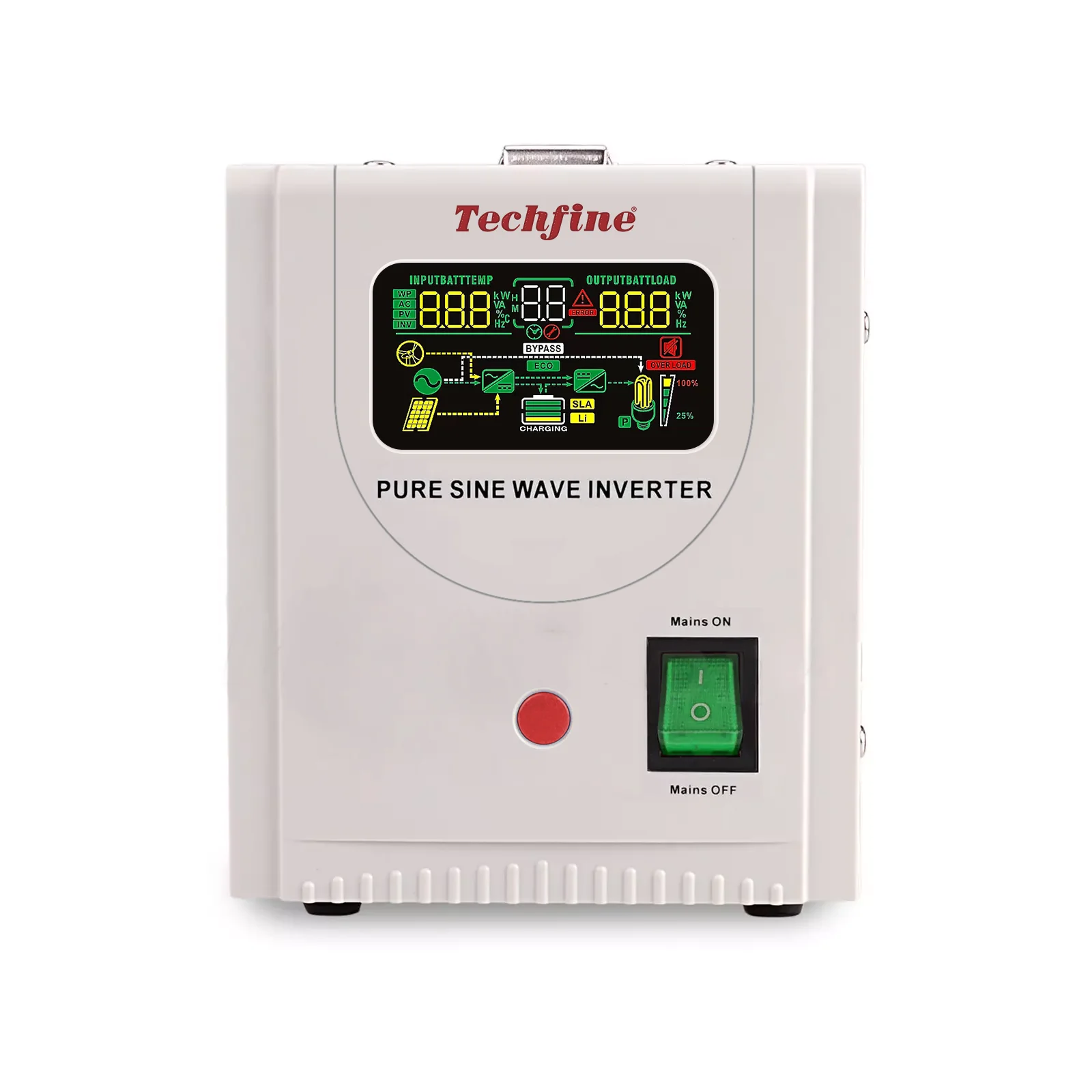

Techfine ups солнечный инвертор 3 кВА Инверторное зарядное устройство для аккумулятора немодулированного синусоидального сигнала
122,00-167,00 $

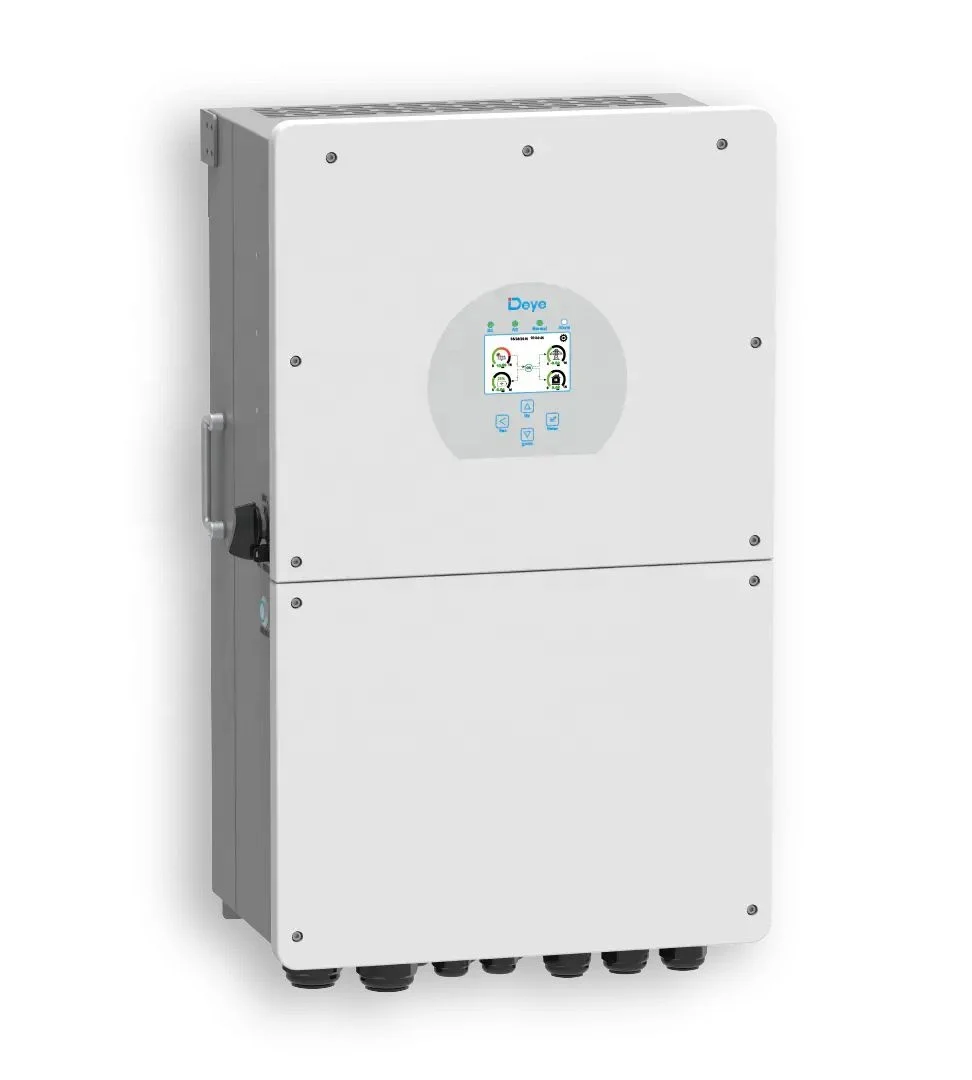

Deye для домашнего хранения энергии Lifepo4 батареи Литиевый инвертор 12 кВт 14 SUM-16K-SG01LP1-EU Солнечный
