Product Description

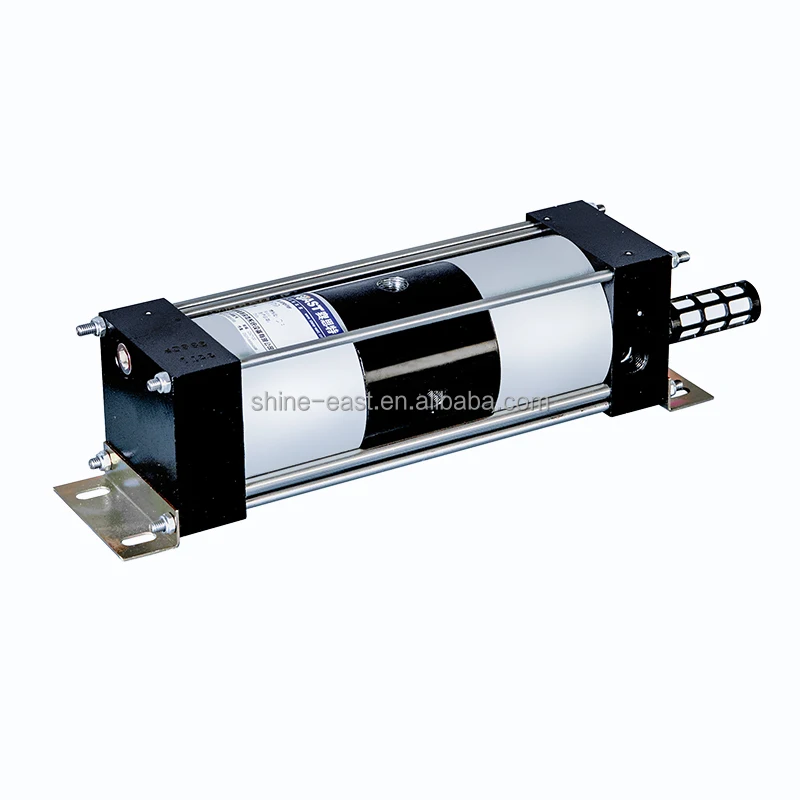

Pneumatic air booster pump
MPV02 Air pressure booster pump
SHINEEAST air amplifiers are suitable for the compression of pressurized air. The units are capable of increasing normal pressure of 4 bar or 6 bar to the desired final pressure; they are operated with normal shop air and are provided with variety of amplification ratios.
SHINEEAST air amplifiers are available in 4 sizes: MPV02, MPV04, GPV02 and GPV05. The air Amplifiers are suitable for the compression of pressurized normal shop air and are provided with a variety of application ratios. The units are capable of pressurized to twice, four times, and max. five times of the normal shop air. Provide for operating pressure up to 40 bar and flow up to 1,350L/min.
All Air Amplifiers are provided with an air control unit comprising of a filter, pressure regulator with pressure gauge and an air shut-off valve.
The desired operation pressure can be preset by the means of the air control unit in correspondence with the different pressure ratios.
As the design of the SHINEEAST air amplifiers is a simple, safe and economic mode of operation, so the expenditures for an in-house high–pressure system or a separate decentralized compressor plant can be saved.
We can also offer you a choice between a standard air Amplifier and a Station or a customized solution.
SHINEEAST air amplifiers are available in 4 sizes: MPV02, MPV04, GPV02 and GPV05. The air Amplifiers are suitable for the compression of pressurized normal shop air and are provided with a variety of application ratios. The units are capable of pressurized to twice, four times, and max. five times of the normal shop air. Provide for operating pressure up to 40 bar and flow up to 1,350L/min.
All Air Amplifiers are provided with an air control unit comprising of a filter, pressure regulator with pressure gauge and an air shut-off valve.
The desired operation pressure can be preset by the means of the air control unit in correspondence with the different pressure ratios.
As the design of the SHINEEAST air amplifiers is a simple, safe and economic mode of operation, so the expenditures for an in-house high–pressure system or a separate decentralized compressor plant can be saved.
We can also offer you a choice between a standard air Amplifier and a Station or a customized solution.
Product Presentation
Type | MPV02 | ||||||
Pressure ration | 2:1 | ||||||
Air drive pressure | 3-8 bar | ||||||
Air drive connection | ZG 3/8 | ||||||
Air inlet connection | NPT 3/8 | ||||||
Air outlet connection | NPT 3/8 | ||||||
Our Advantages
Pneumatic air booster pump advantages:
* Rugged construction
* No heat,flame or spark risk
* No airline lubricator required eliminating oily exhaust
* High quality seals,long life service
* No electrical power and installations are required
* Specific pressure ratio for customized solution
* Zero energy consumption after final pressure is attained
* Low cost with simple,safe and economic mode of operation
* Standard and custom systems available
* No heat,flame or spark risk
* No airline lubricator required eliminating oily exhaust
* High quality seals,long life service
* No electrical power and installations are required
* Specific pressure ratio for customized solution
* Zero energy consumption after final pressure is attained
* Low cost with simple,safe and economic mode of operation
* Standard and custom systems available
Related product
MPV04 air amplifier
Pressure ratio: 4:1
GPV02 air amplifier
Pressure ratio: 2:1
GPV05 air amplifier
Pressure ratio: 5:1
Certificate
Company Introduction
Shandong Shineeast Fluid Control Systems Co., Ltd., founded in 2001, is a professional manufacturer of highly engineered fluid and gas handling equipment designed to generate, store and control high pressure gases and liquids.
In addition to offering a comprehensive range of air driven liquid pumps, air pressure boosters, air driven gas boosters, high pressure valves, fittings and accessories, pneumatic power packs and hydraulic presses, pressure test machines, valve and pipe fittings test equipment, finishing pumps and related equipment, gas cylinder test equipment and the oil and gas field special controls and test equipment, we customize and build pneumatic power packs and test equipment. Our main manufacturing locations are fully registered to ISO9001 and CE.
Our products are widely used in industry, machine tool industry, diesel engine industry, aerospace industry, automobile
manufacturing, household electrical appliances, industrial electronics industry, shipbuilding industry, petrochemical industry, oil and gas field, CNG vehicle conversion industry, pressure test industry and other fields.
In addition to offering a comprehensive range of air driven liquid pumps, air pressure boosters, air driven gas boosters, high pressure valves, fittings and accessories, pneumatic power packs and hydraulic presses, pressure test machines, valve and pipe fittings test equipment, finishing pumps and related equipment, gas cylinder test equipment and the oil and gas field special controls and test equipment, we customize and build pneumatic power packs and test equipment. Our main manufacturing locations are fully registered to ISO9001 and CE.
Our products are widely used in industry, machine tool industry, diesel engine industry, aerospace industry, automobile
manufacturing, household electrical appliances, industrial electronics industry, shipbuilding industry, petrochemical industry, oil and gas field, CNG vehicle conversion industry, pressure test industry and other fields.
Packing&Shipping
Carton box: pumps
Wooden case: System equipment
FAQ
Q1: How to Select Air Driven Pumps/Systems?
A1: in order to choose appropriate pump and send you the accurate quotation. we need to know your requirement for the outlet pressure,flow rate and testing medium. To give you professional service,our customer service is 7*24 hours online.
Q2: Are You Factory?
A2: Yes, Our Factory founded in 2001, is a professional manufacturer of highly engineered fluid and gas handling equipment designed to store and control high pressure gases and liquids. we provide various kinds of pneumatic and hydraulic pumps,systems and solutions.
Q3: Troubleshooting, Maintenance&Repair Guide and Videos Available?
A3: To assist customers who perform product maintenance,we offer a troubleshooting, maintenance& repair guide that includes diagnostic charts and videos designed to help customers quickly pinpo-int problems and solutions,and solve common issues encountered with routine maintenance.
Q4: How to Realize One-to-One Customization?
A4: Send us your design drawings,or inform us the function that you want to achieve,our engineers will evaluate the practicability and then design accordingly.
Q5: How long is the warranty?
A5: 13 Months
Q6: How long is the lead time?
A6: Standard product we will deliver within 10-15 days.
A1: in order to choose appropriate pump and send you the accurate quotation. we need to know your requirement for the outlet pressure,flow rate and testing medium. To give you professional service,our customer service is 7*24 hours online.
Q2: Are You Factory?
A2: Yes, Our Factory founded in 2001, is a professional manufacturer of highly engineered fluid and gas handling equipment designed to store and control high pressure gases and liquids. we provide various kinds of pneumatic and hydraulic pumps,systems and solutions.
Q3: Troubleshooting, Maintenance&Repair Guide and Videos Available?
A3: To assist customers who perform product maintenance,we offer a troubleshooting, maintenance& repair guide that includes diagnostic charts and videos designed to help customers quickly pinpo-int problems and solutions,and solve common issues encountered with routine maintenance.
Q4: How to Realize One-to-One Customization?
A4: Send us your design drawings,or inform us the function that you want to achieve,our engineers will evaluate the practicability and then design accordingly.
Q5: How long is the warranty?
A5: 13 Months
Q6: How long is the lead time?
A6: Standard product we will deliver within 10-15 days.
