25 тонный автокран QY25K5D хорошая цена для продажи с высокой эксплуатационной эффективностью

Сохранить в закладки 1601358968268:


Цена:70 000,00-87 000,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description






Specification


item
value
Max. Lifting Height
48.5m
Engine Brand
SINOTRUK
Place of Origin
China
Jiangsu
Warranty
1 Year
Hydraulic Cylinder Brand
Famous brand
Hydraulic Pump Brand
Famous brand
Hydraulic Valve Brand
Famous brand
Core Components
Pressure vessel, motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
Weight (KG)
32500kg
Rated Lifting Moment
1250/1200-1600N.m/(r/min)
Brand Name
Top brand
Application
Span
UNIQUE SELLING POINT
High operating efficiency
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Engine rated power
235/2200kw(r/min)
Max. net power/rpm
232/2200kw/(r/min)
Wheel base
4425+1350mm
Outline size
12780 2500 3400mm


Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile






EVANGEL Industrial (Shanghai) Co., Ltd. is a leading Chinese construction machinery exporter, affiliated with Evangel International Machinery Limited, located in the downtown of Shanghai City. Since our company was founded, we persistently introduce excellent Chinese construction machinery to international markets, such as XCMG, SANY, ZOOMLION, CATERPILLAR, HYUNDAI, LIUGONG, LONKING, SEM, SDLG, SHANTUI, CHANGLIN, HELI, etc. We make more international customers know and approbate Chinese machinery, and gradually build up friendship with industrial customers all over the world.

Our strengths are as follows:
(i) Ten years professional experience in international trading and rich knowledge in construction machinery & heavy equipment industry, which enable us to turn customer inquiries into final products and export them to numerous countries and regions without barriers;
(ii) Proactive and high educated sales team with international vision, speaking fluent multiple languages, such as English, Spanish, Portuguese, Russian, Arabic and French etc.;
(iii) Strong long term dealership from various top manufacturers, assuring that all our products are original brand new ones with competitive price;
(iv) Excellent logistics services (by sea, air, railway or road), ensuring timely delivery of consignments all over the world;
(v) Comprehensive after-sales service, including one-year warranty, spare parts supply, installment and maintenance, training and technical advice;
(vi) Expertly managed ERP system and coordinated quality control system to satisfy various project requirements.

EVANGEL has passed the international quality management system of ISO9000, CE, SGS, UL and other products certification. Our export revenue increases constantly every year, and our products have already entered 118 countries across the continents of Africa, Middle East, South America, Oceania, Middle Asia, Southeast Asia, and East Europe. We sincerely hope to cooperate, develop together and build a good future with you. EVANGEL, your genuine and professional partner in China!


Product Description






Specification


Dimension
Unit
QY25K5D
Overall length
mm
12780
Overall width
mm
2500
Overall height
mm
3400
Weight
Total weight in travel
kg
32500
1st axle load
kg
7300
2nd axle load
kg
12600
3rd axle load
kg
12600
Power of engine
Engine model
SC9DF300.1Q5
Engine rated power
kW/(r/min)
221/2200
Engine rated torque
N.m/(r/min)
1250/1400
Specifications in Travel
Max. travel speed
km/h
80
Min. turning diameter
m
22
Min. ground clearance
mm
250
Approach angle
°
10
Departure angle
°
13
Max. grade ability
%
40
Fuel consumption for 100km
L
≈30
Main performance
Max. rated total lifting capacity
t
25
Min. rated working radius
mm
3000
Turning radius at counter-weight
m
3.36
Max. lifting torque
kN.m
1005
Base boom
m
10.5
Fully extended boom
m
41
Fully extended boom+jib
m
48.5
Longitudinal outrigger span
m
5.14

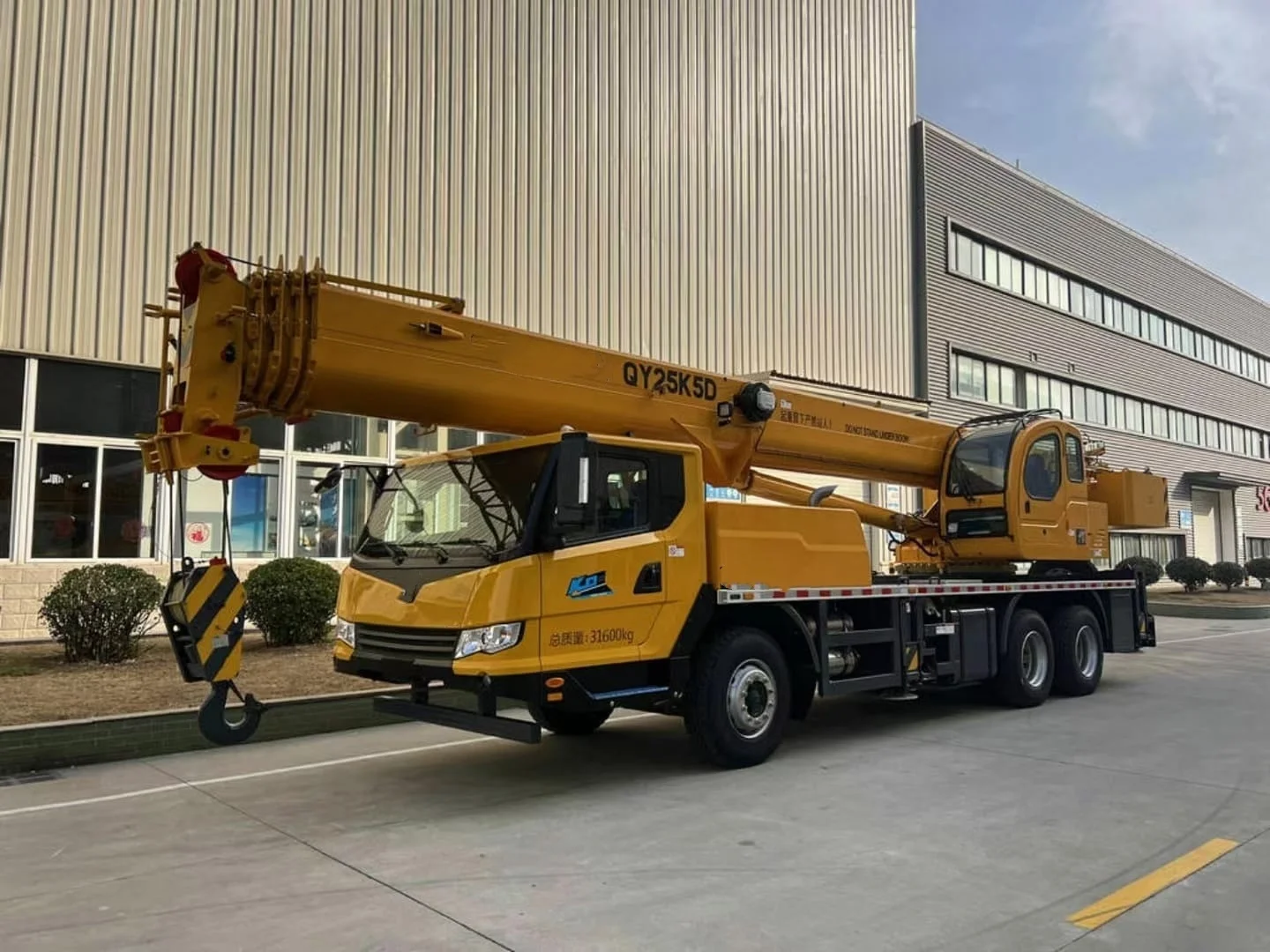

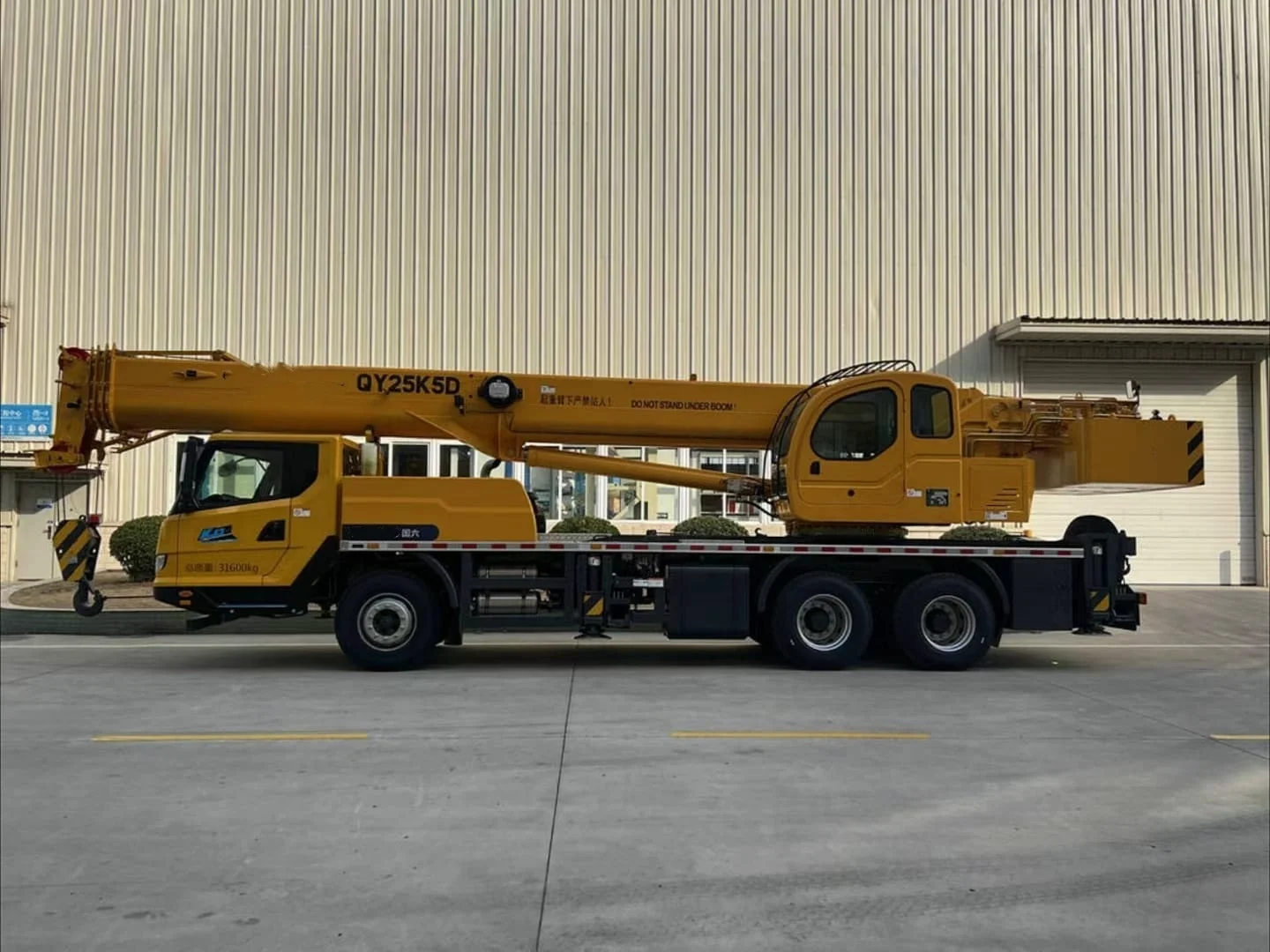

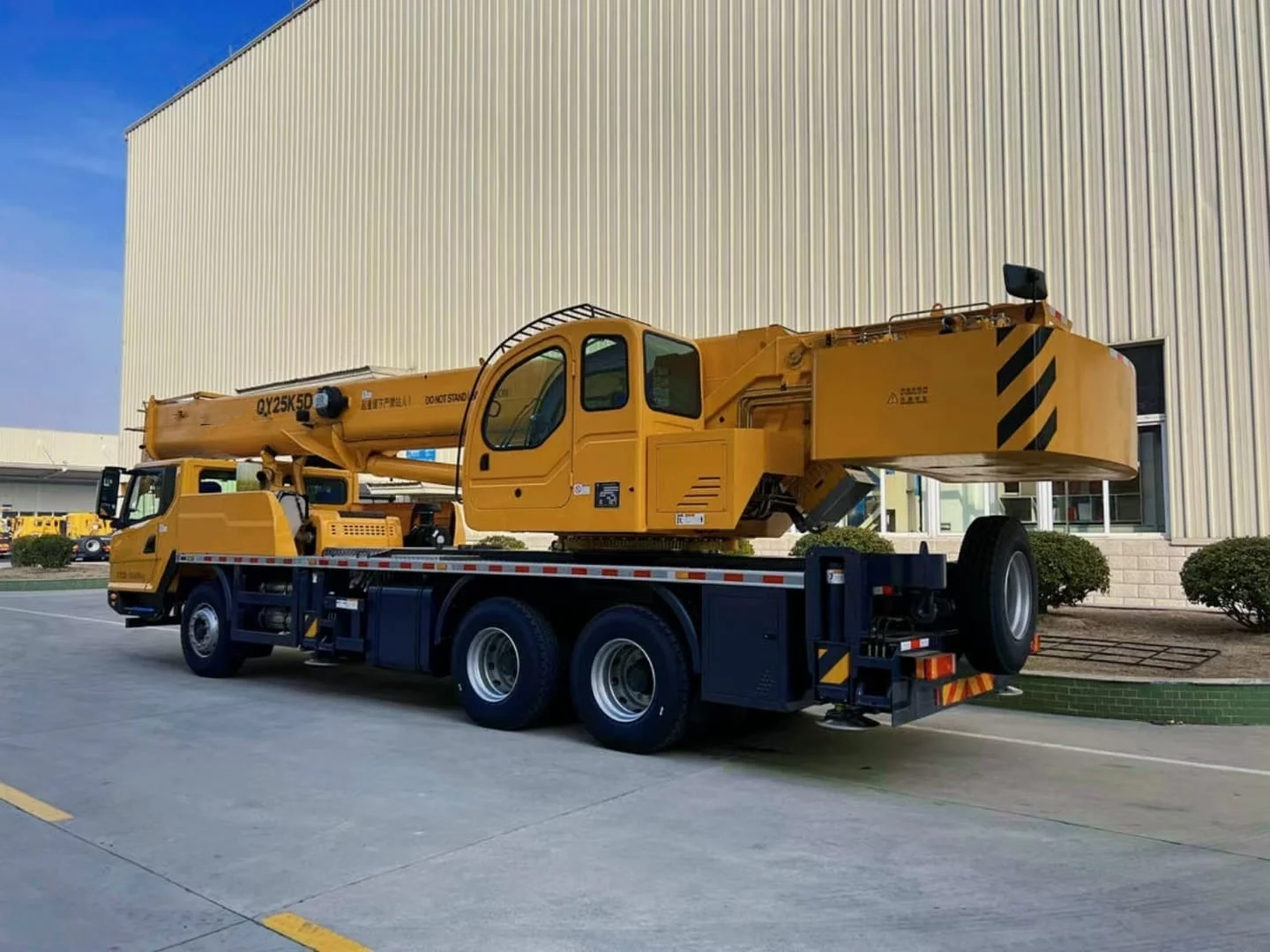

QY25K5D TRUCK CRANE
1. Specialized boom of octagonal cross section has features of light deadweight, better strength and strong lifting capacity.
2.Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing
capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.
3. Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts and have reliable performance.
4. Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.
5. Ferrule-type compression joints are used for pipeline, have features of reliable connection, better tightness and less leakage.


Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
