Products Description

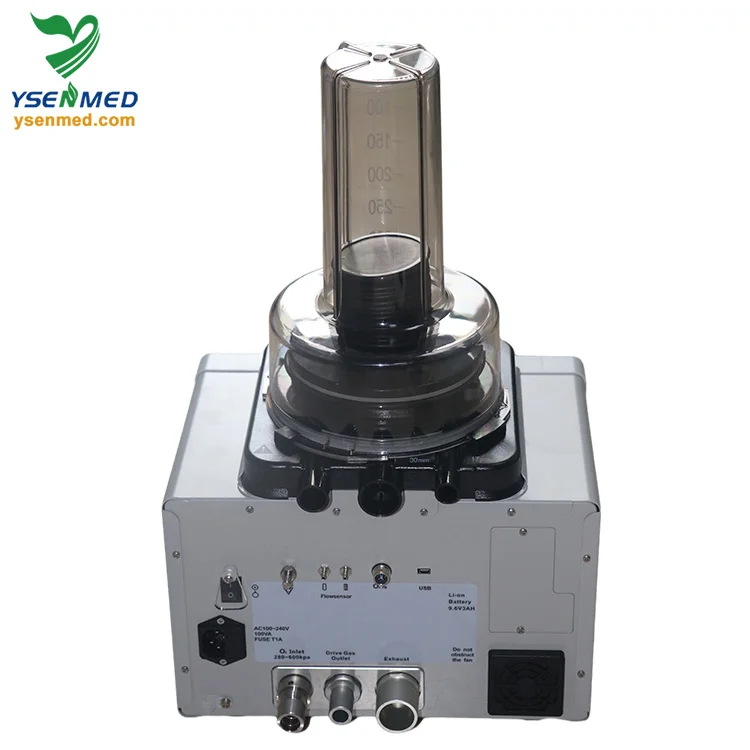

YSAV-R80V Veterinary Anesthesia Ventilatory
Feature:
Specially user for animal,anesthesia ventilator,could widely apply in vet hospital,animal R&D institute,university laboratory,animal clinic，animal zoo,etc,it can match any brand anesthesia machine to use
Compact and salve the space.
Light and easy to move,save animal hospital cost.
automatically Calculation by weight to the other parameter
With breathing mode PCV mode, achieve the breathing automatically,
Assure the animal more comfortable.

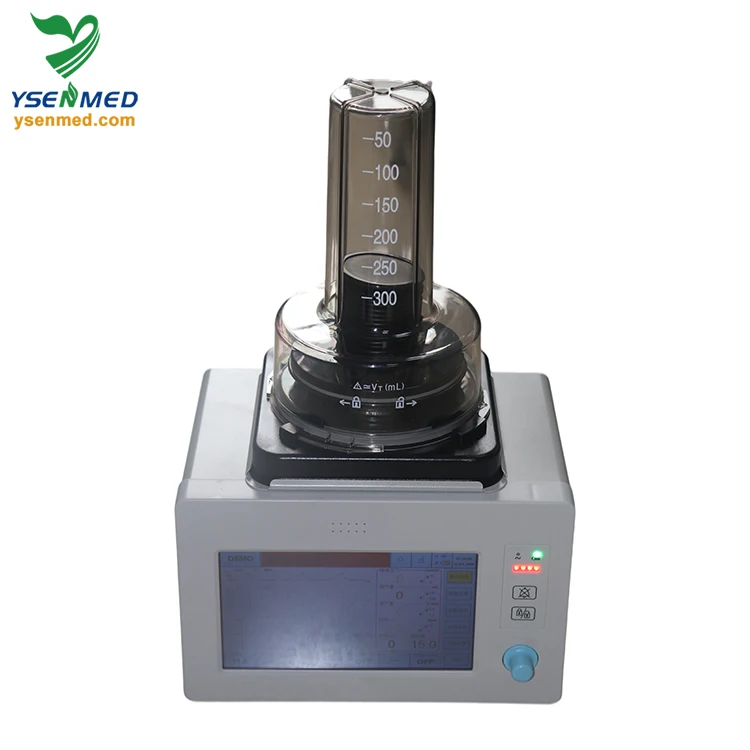

With big animal bellow and small animal bellow,specially for animal use
The gas source pipeline take the high precious gas source,no leakage forever.

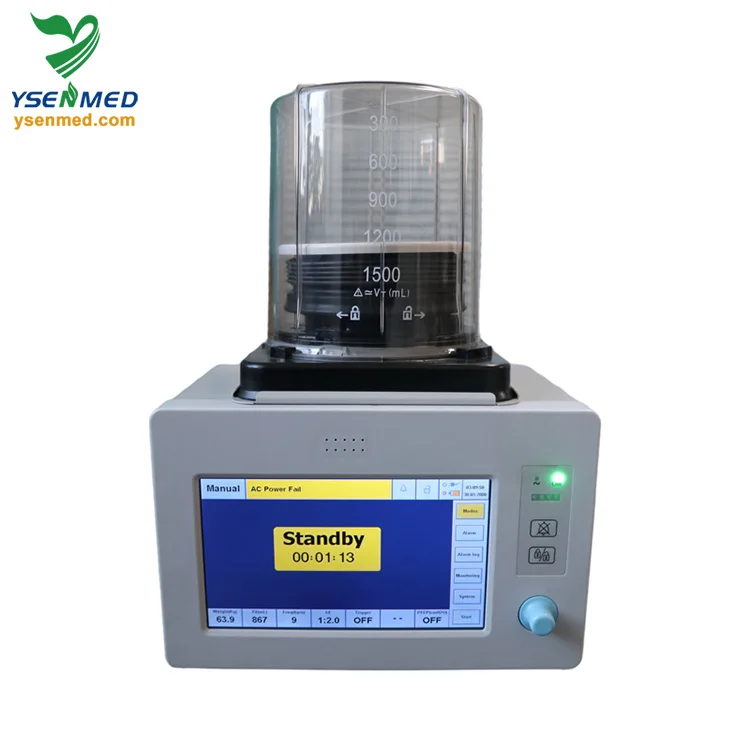

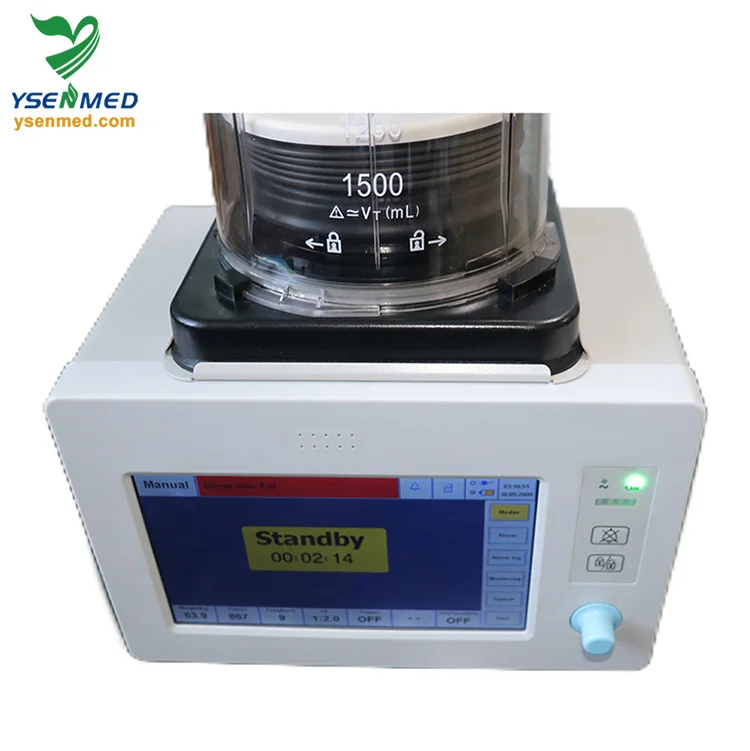

HD TFT Touch screen,perfect technology,touch at key to Set parameter ,very easy and simple to operate.
Build in battery could continue two more hours in case of power failure
Matching with different brand veterinary anesthesia machine
Specially user for animal,anesthesia ventilator,could widely apply in vet hospital,animal R&D institute,university laboratory,animal clinic，animal zoo,etc,it can match any brand anesthesia machine to use
Compact and salve the space.
Light and easy to move,save animal hospital cost.
automatically Calculation by weight to the other parameter
With breathing mode PCV mode, achieve the breathing automatically,
Assure the animal more comfortable.
With big animal bellow and small animal bellow,specially for animal use
The gas source pipeline take the high precious gas source,no leakage forever.
HD TFT Touch screen,perfect technology,touch at key to Set parameter ,very easy and simple to operate.
Build in battery could continue two more hours in case of power failure
Matching with different brand veterinary anesthesia machine
Basic description | ||||
Parameter | Description | |||
Display | 9 inch TFT, with touch screen. | |||

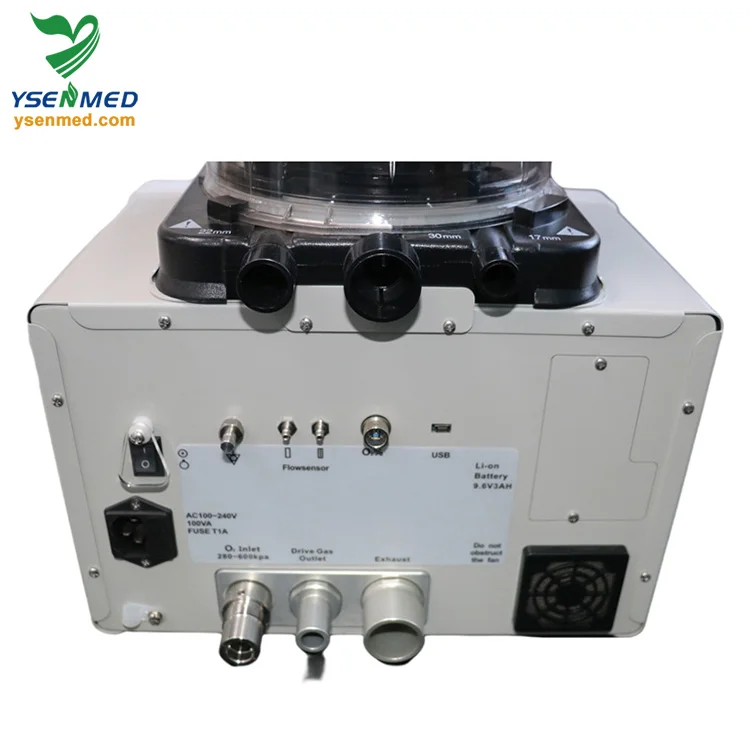

Drive gas | Gas type | O2 or Air | ||
Inlet pressure | 280-600 kPa. | |||
Max flow | ≤ 120 L / min. | |||
Operating Mode | VCV,PCV,SPONT,Manual，Demo | |||
Waveform | Waveform: Pressure,Flow-rate,Volume Loop:PV loop, PF loop,FV loop | |||
Safety Pressure | System pressure does not exceed 6 KPa. | |||
Battery Type | Li-ion,work time more than 2 hours | |||
Parameters setting range | ||
Parameter | description | |
Tidal volume | Range: 20 - 1500ml; Increment: 1 mL; | |
Respiratory rate | Range: 1 ~ 100 bpm; | |
Inspiratory time | Range: 0.1 ~ 10.0 s | |
Respiratory ratio | Range: 9.9:1 to 1:9.9 | |
Percentage of inspiratory pause | Range: 0 to 50% | |
PEEP | Range: OFF, 3 ~ 20 cmH2O | |
Pressure Support | Range: 0 ~ 60 cmH2O | |
Pressure Control | Range: 5 ~ 60 cmH2O | |
Flow trigger | Range: 0.5 ~ 20L/min | |
Pressure Trigger | Range: -1 ~ -20 cmH2O | |
PSV Insp Termination Level | 25%. | |
Monitored parameters | ||
Parameter | Description | |
Inspiratory tidal volume | Range: 0 ~ 2500 mL | |
Expiratory tidal volume | Range: 0 ~ 2500 mL | |
Minute ventilation | Range: 0 ~ 60 L / min | |
Spontaneous minute ventilation | Range: 0 ~ 60 L / min | |
Respiratory rate | Range: 0 ~ 100 bpm | |
Spontaneous breathing frequency | Range: 0 ~ 100 bpm | |
Respiratory ratio | Range: 9.9:1 to 1:9.9 | |
Peak airway pressure | Range: 0 ~ 100 cmH2O | |
Mean airway pressure | Range: 0 ~ 100 cmH2O | |
PEEP | Range: 0 ~ 100 cmH2O | |
Inspiratory plateau pressure | Range: 0 ~ 100 cmH2O | |
FiO2(optional) | Range: 15 to 100% | |
Alarm settings | ||||
Alarm type | Range | |||
Tidal volume | High | 0 ~ 2000 mL, OFF | ||
Low | 0 ~ 1500 mL | |||
Minute ventilation | High | 1 ~ 99 L | ||
Low | 0 ~ 98 L | |||
Respiratory rate | High | 1 ~ 100bpm | ||
Low | 0 ~ 99 bpm | |||
FiO2(optional) | High | 19 ~ 100% | ||
Low | 18 ~ 99% | |||
Airway pressure | High | 6 ~ 99 cmH2O | ||
Low | 0 ~ 9 8 cmH2O | |||
FiCO2 (optional) | High | 0.1 to 13.3%; | ||
Low | 0 to 13.2% | |||
Continuous Positive Airway Pressure | Airway pressure greater than (PEEP +15) cmH2O, 15 s sustained when an alarm is triggered. | |||
Negative pressure alarm | Airway pressure is less than (-10) cmH 2 O. | |||
Apnea alarm | Setting time is 10 ~ 60 s, in increments of 1 s. | |||
Gas deficiency alarm | Gas pressure is less than 280 kPa. | |||
AC power failure alarm | The mains breaks down or the power cord disconnects | |||
Low battery alarm | Alarm battery time is 20 min. | |||
Alarm battery is exhausted | Alarm battery time is 10 min. | |||
Silent Alarm | ≤ 120 s | |||
O2 sensor failure | FIO2 <15% Vol; | |||
→You can click here to inquiry for more information!
Recommend Products
Company Profile
Guangzhou Yueshen Medical Equipment Co., Ltd. (hereinafter referred to as Ysenmed), compounded with the R&D and sale of medical device, is a professional supplier of medical equipment, especially in the field of medical x-ray machine.
Headquartered in Guangzhou, "Ysenmed" covers the business of medical imaging, laboratory equipment, operation room equipment, gynaecology & neonatal equipment, dental equipment, hospital furniture, and other medical equipment. Based on mutual trust & good service, our mission is to provide the most cost-effective medical equipment for hospitals and clinics around the world.
In 2006, we exported 125 sets of medical x-ray machine to Congo at one time, setting a record of exporting medical x-ray machine to foreign countries. In 2008, the same customer ordered another 150 x-ray units and 800 sets of surgical instruments. So far, we have established good cooperation with customers from 160 countries globally.
"Ysenmed" insists on the idea of "Reputation First, Customers Foremost", which is the aim of our after-sale service. We have established a good after-sale service team, providing powerful backup force to our customers. In recent years, we have been granted the "Nationwide Medical Device After-sale Service Advanced Unit".
Guangzhou Yueshen Medical Equipment Co., Ltd. is committed to be the your trustworthy supplier and exporter in the field of medical equipment.
Buy medical equipment, please choose Ysenmed!
Headquartered in Guangzhou, "Ysenmed" covers the business of medical imaging, laboratory equipment, operation room equipment, gynaecology & neonatal equipment, dental equipment, hospital furniture, and other medical equipment. Based on mutual trust & good service, our mission is to provide the most cost-effective medical equipment for hospitals and clinics around the world.
In 2006, we exported 125 sets of medical x-ray machine to Congo at one time, setting a record of exporting medical x-ray machine to foreign countries. In 2008, the same customer ordered another 150 x-ray units and 800 sets of surgical instruments. So far, we have established good cooperation with customers from 160 countries globally.
"Ysenmed" insists on the idea of "Reputation First, Customers Foremost", which is the aim of our after-sale service. We have established a good after-sale service team, providing powerful backup force to our customers. In recent years, we have been granted the "Nationwide Medical Device After-sale Service Advanced Unit".
Guangzhou Yueshen Medical Equipment Co., Ltd. is committed to be the your trustworthy supplier and exporter in the field of medical equipment.
Buy medical equipment, please choose Ysenmed!
FAQ
Q1：Are you manufacture?
Yes, we are the leader manufacturer in GuangZhou, China. Welcome to visit our company.
Q2：What's your main products?
YSENMED covers the business of medical imaging, OT room equipment, clinical lab instrument, hospital furniture, dental
equipment,neonatal equipment, medical sterilizer, veterinary medical equipment, etc.
Q3: Can I get your price list?
Yes, sure. In order to send you our available offered price, please choose the products and let us know the product model and requirement in detail.
Q4: What's your payment policy?
For the sample, our payment is 100% TT: For the buik order, our payment is 30% T in advance, 70% balance should be paid 7 working days before delivery.
Q5: Can I get your products with our logo and design?
Most of products are OEM or ODM with your logo and brand.Any other question, please feel free to contract us through 7*24H online service or send us inquiries by mail.
Yes, we are the leader manufacturer in GuangZhou, China. Welcome to visit our company.
Q2：What's your main products?
YSENMED covers the business of medical imaging, OT room equipment, clinical lab instrument, hospital furniture, dental
equipment,neonatal equipment, medical sterilizer, veterinary medical equipment, etc.
Q3: Can I get your price list?
Yes, sure. In order to send you our available offered price, please choose the products and let us know the product model and requirement in detail.
Q4: What's your payment policy?
For the sample, our payment is 100% TT: For the buik order, our payment is 30% T in advance, 70% balance should be paid 7 working days before delivery.
Q5: Can I get your products with our logo and design?
Most of products are OEM or ODM with your logo and brand.Any other question, please feel free to contract us through 7*24H online service or send us inquiries by mail.
→You Can Click Here back to home for more information!
Похожие товары

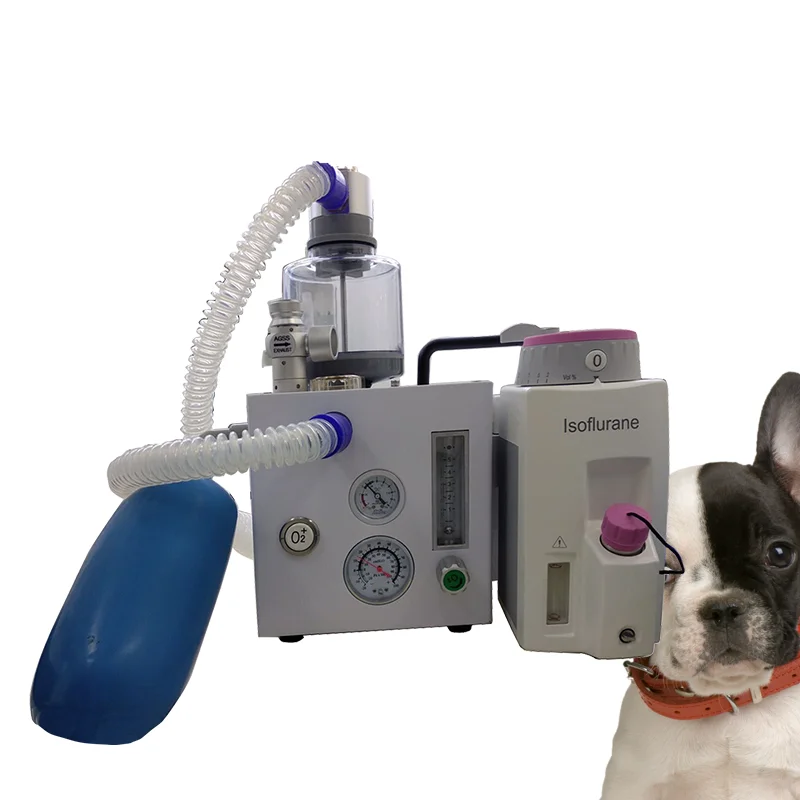

Veta 5 / 3 Mindray медицинский анестезирующий аппарат для животных
Набор зубных рашпилек премиум-класса: набор деревянных ручек из 3 предметов ветеринарные инструменты
25,00-30,00 $

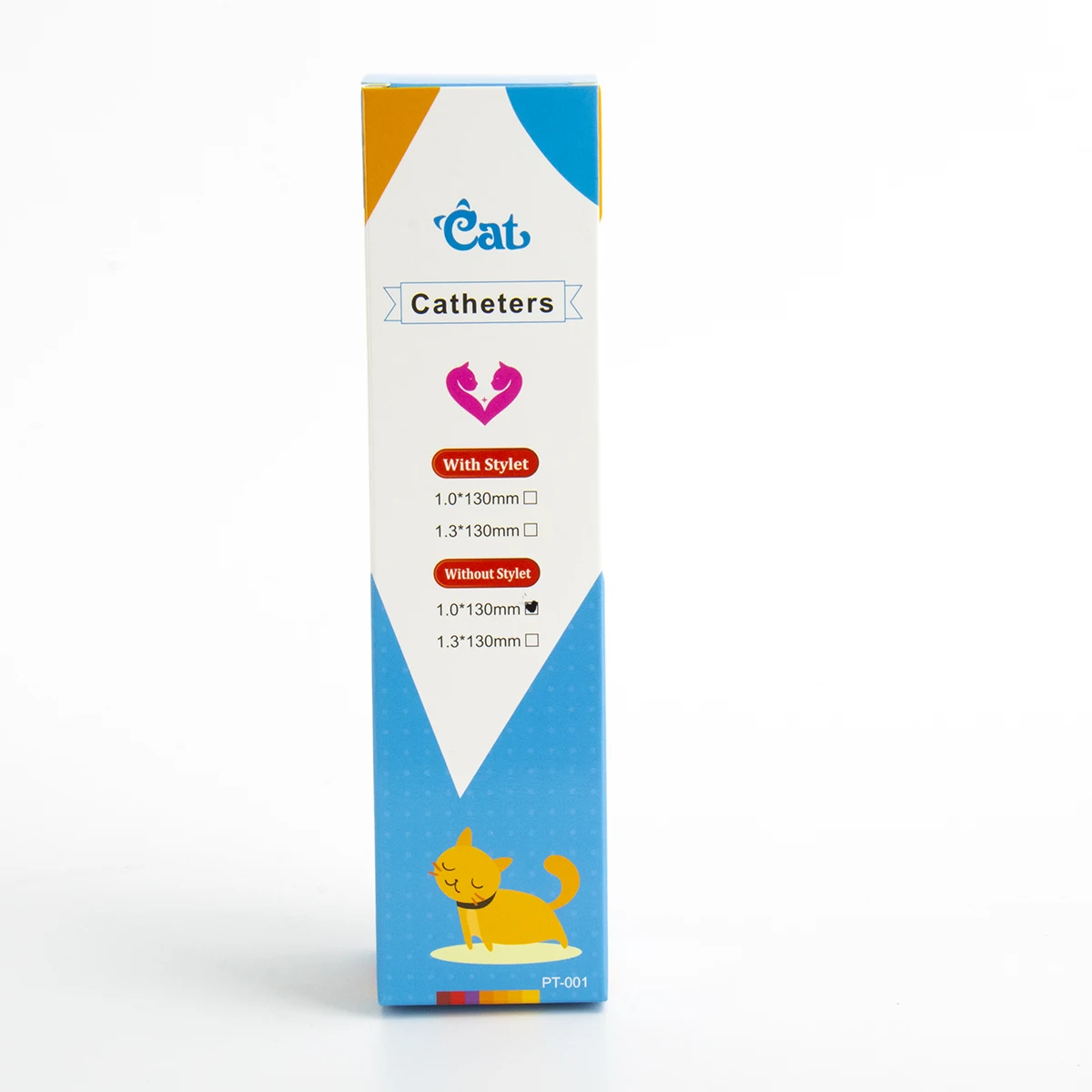

Медицинские расходные материалы 1 0*130 мм мочевой катетер cat от производителя

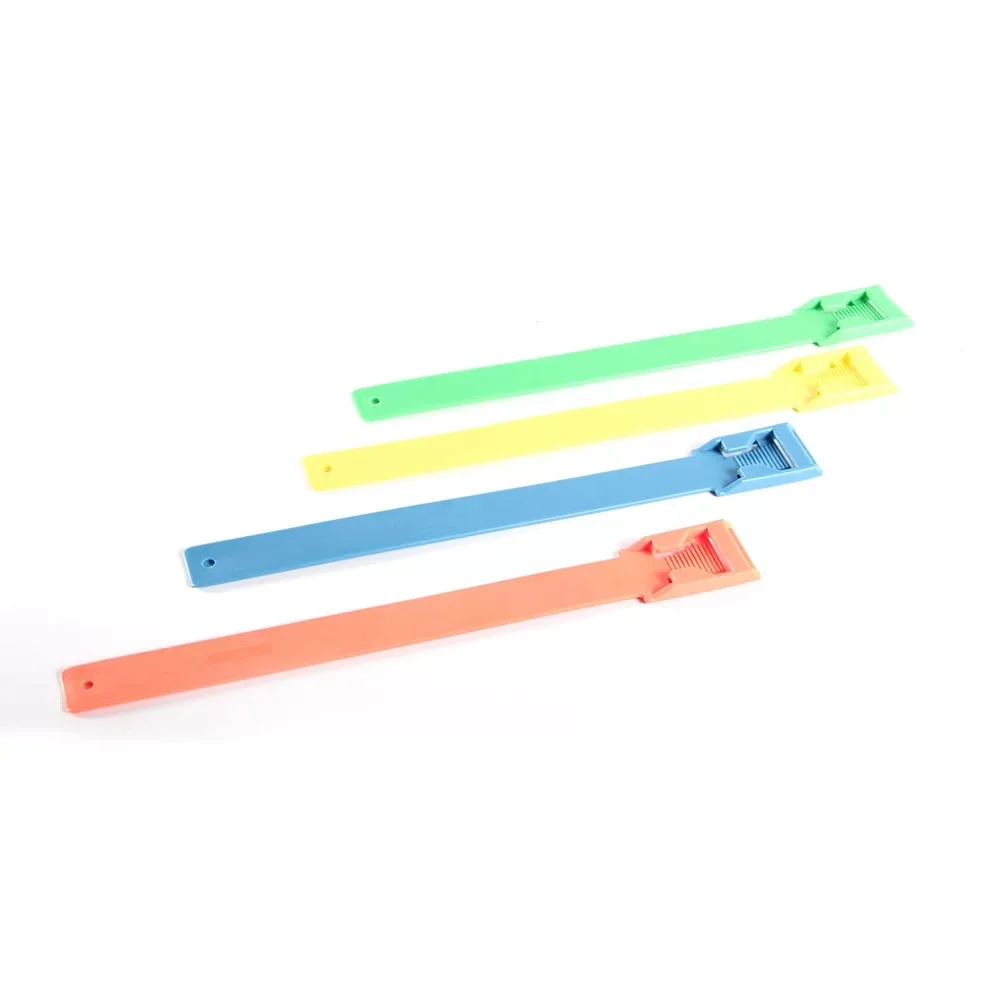

Новое поступление маркировочные ножки пластиковые для крупного рогатого скота коровы
0,99-1,99 $

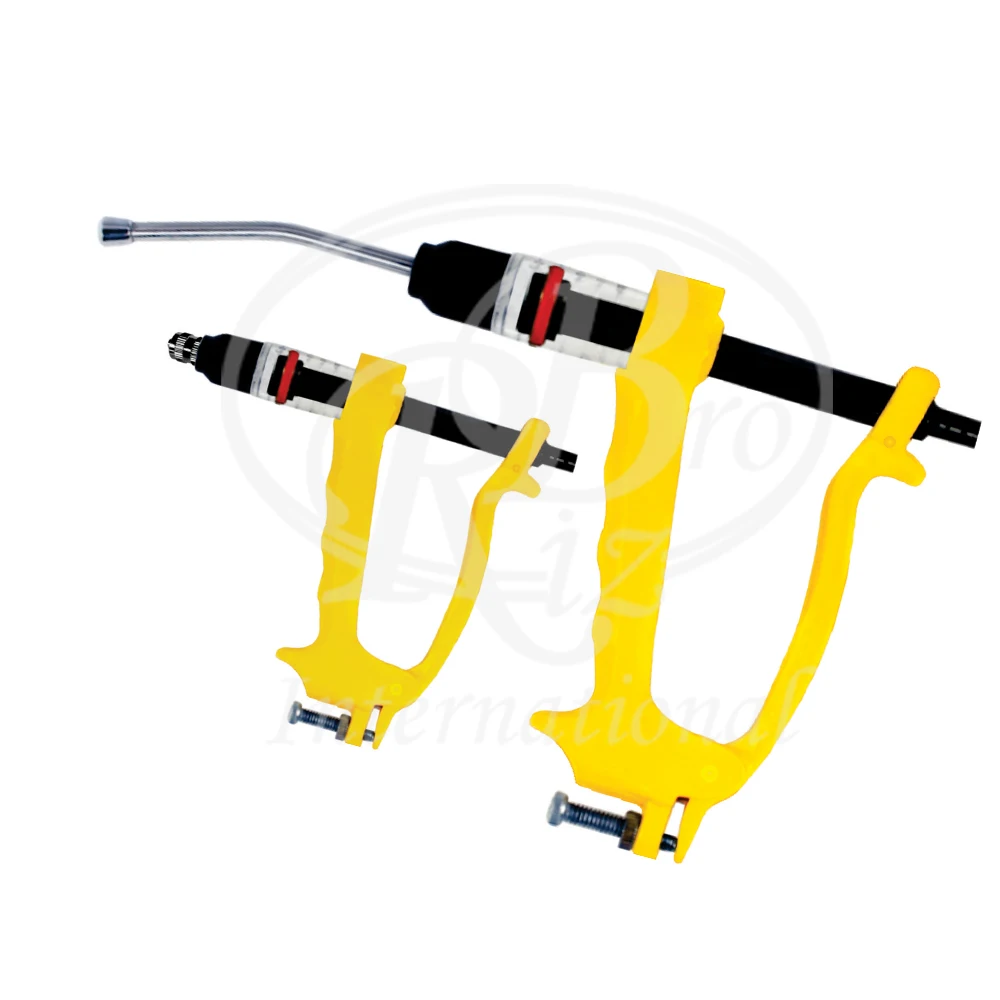

Shamplex автоматический пластиковый дринчер регулируемая дозировка винтов и сопло из нержавеющей стали с прозрачной трубкой 40 дюймов

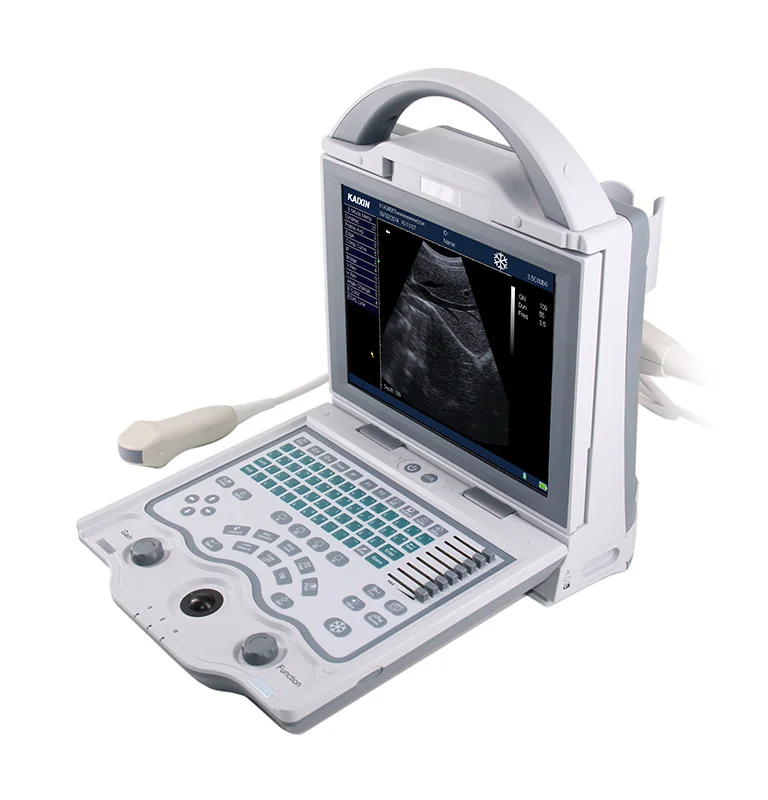

Портативный цифровой ультразвуковой аппарат для животных/KX5600 Vet ветеринарный B-режим сканер животных ферм KX5600
