6 head Automatic Neoden SMT Mounter SMD Pick and Place Machine PCBA Equipment Close Loop Grinding Screw Servo Motor NeoDen9
Specification
Model | NeoDen9 | ||||||
Nozzle Qty | 6 nozzles | ||||||
Reel Tape Feeder Qty(Max) | 53 (Electric / Pneumatic) | ||||||
IC Tray Feeder Qty | 20 | ||||||
Placement Area | 460*300mm | ||||||
MAX Mounting Height | 16mm | ||||||

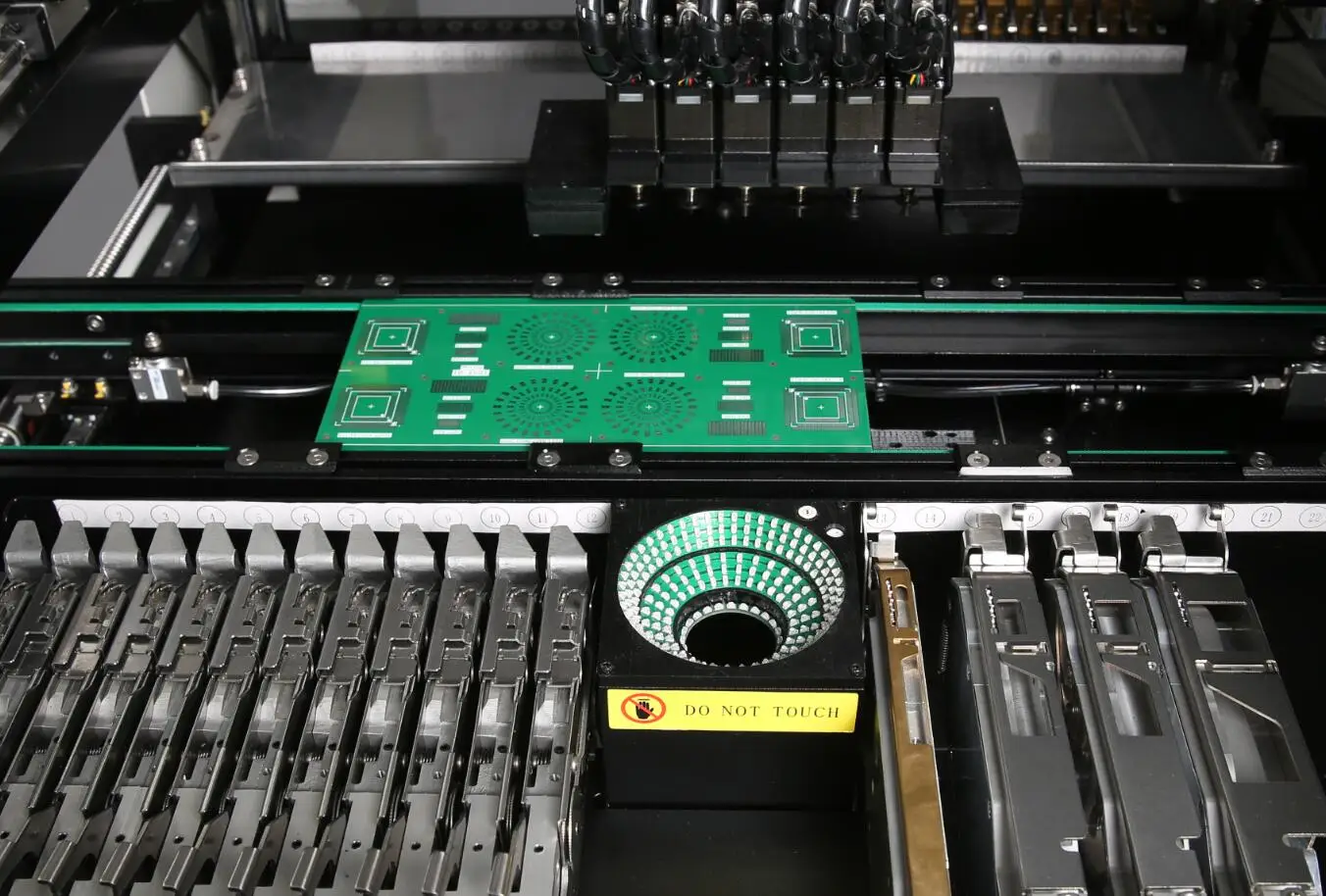

PCB Fiducial Recognition | High Precision Mark Camera | ||||||
Component Recognition | High Resolution Flying Vision Camera System | ||||||
XY Motion Feedback Control | Closed loop control system | ||||||
Repeat Position Accuracy | ±0.01mm | ||||||

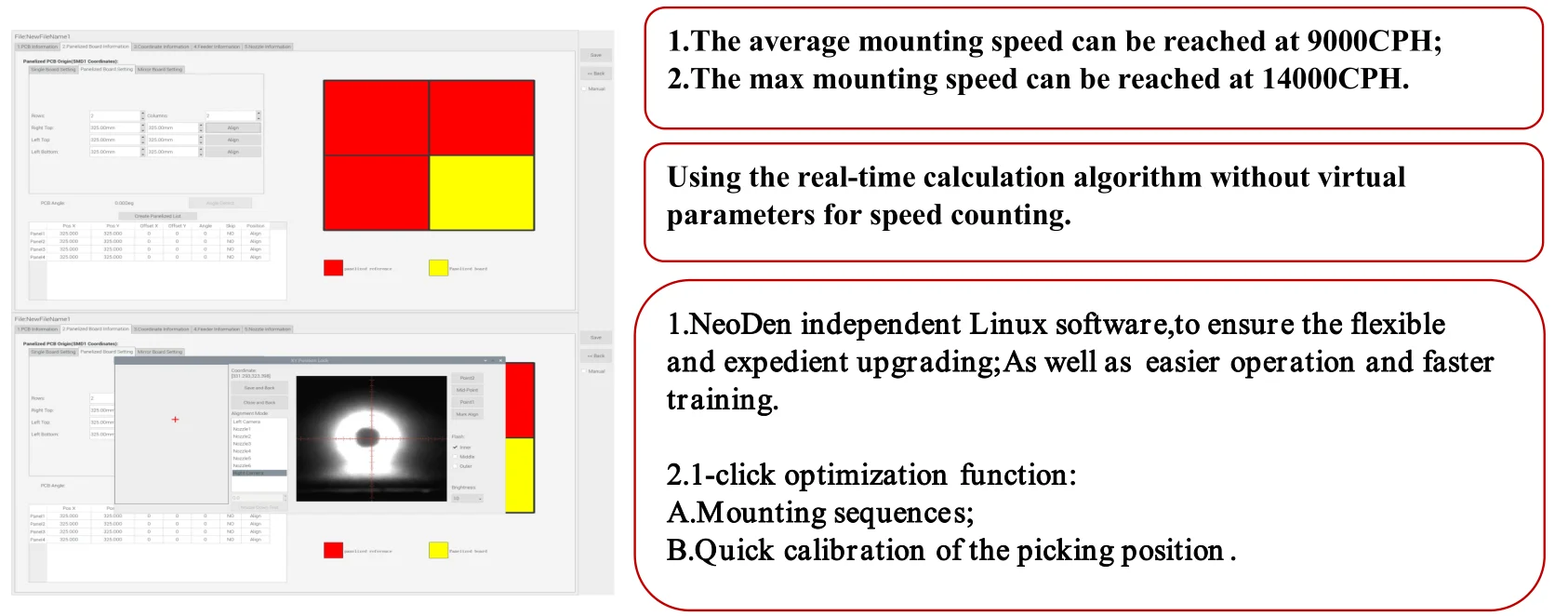

Maximum Mounting Speed | 14000CPH | ||||||
Average Mounting Speed | 9000CPH | ||||||
X-axis-Drive Type | WON Linear Guide / TBI Grinding Screw C5 - 1632 | ||||||
Y-axis-Drive Type | WON Linear Guide / TBI Grinding Screw C5 - 1632 | ||||||
Compressed Air | >0.6MPa | ||||||
Input Power | 220V/50HZ(110V/60HZ Alternative) | ||||||
Machine Weight | 500KG | ||||||
Machine Dimension | L1220mm*W800mm*H1350mm | ||||||
Product Description

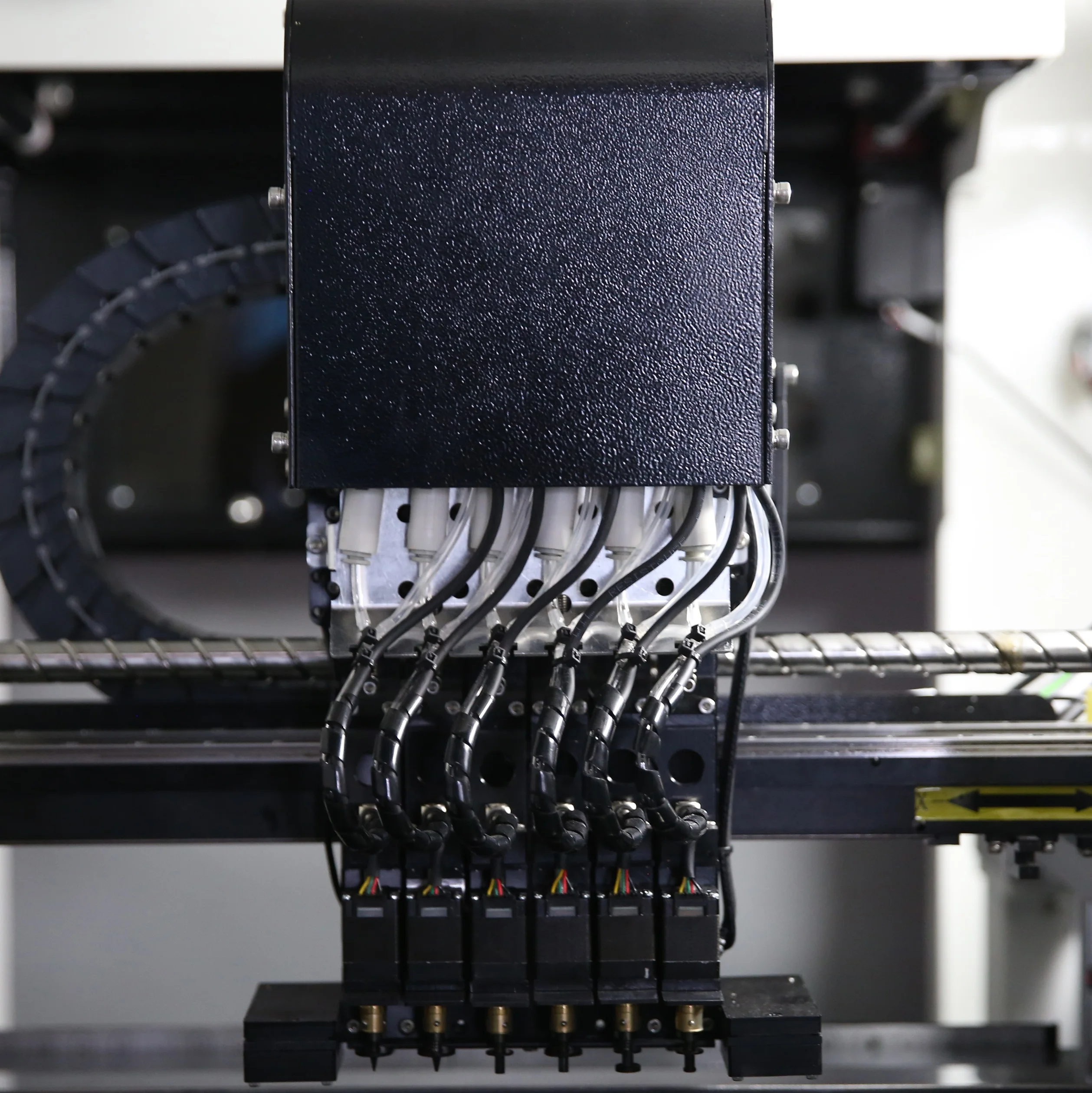

NeoDen9 is a ball screw pick and place machine with 6 simultaneous pick-up heads, max 53 tape reel feeder capacity, max 14000CPH placement rate, which is suitable for scale pcb assembly production with fast speed and high accuracy. The width of the machine is 80cm, which can enter most doors.
smt pick and place machine price smt machine small pick and place machine smt equipment pick place machine

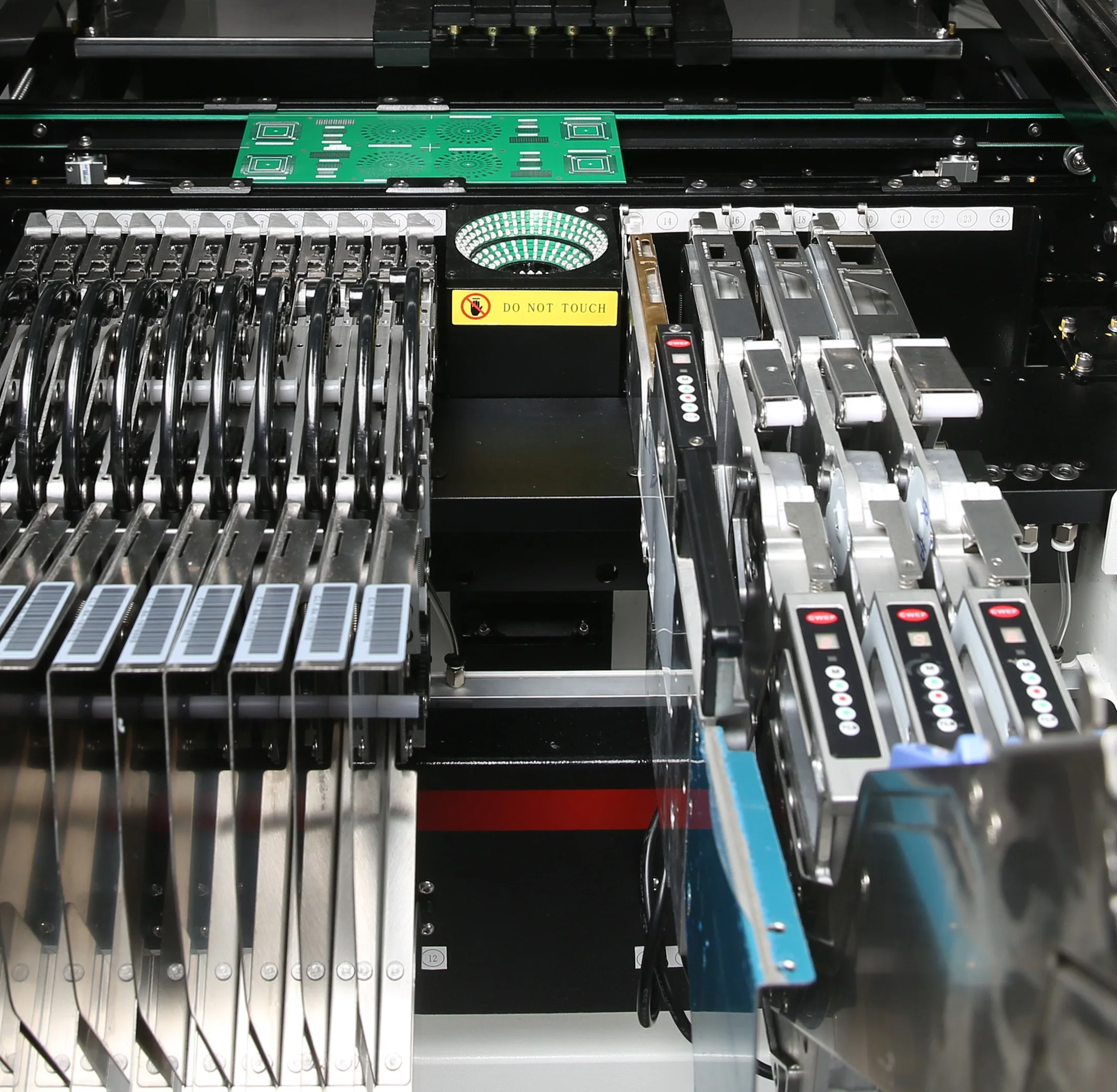

It supports both electric feeder and pneumatic feeder.
The cost of electric feeder is higher, but for 0201 component, you need to select electric feeder.
The cost of pneumatic feeder is lower, you can select it for normal assembly work.
The feeder size: 8mm/ 12mm/ 16mm/ 24mm/ 32mm/ 44mm/ 56mm.
pick and place machine for sale pick and place smt machine pcb pick and place machine smt placement machine
Applicable components: 0201, 0402, 0603, 0805, 1206, 1210, SOP, SSOP, SOC, QFP, QFN, BGA, 3538, 4148 diode, 3535 ball shape LED, 5050 etc.
pick and place machine smt automatic pick and place machine pick and place robot project pick machine pnp machine
smt pick and place machine price smt machine small pick and place machine smt equipment pick place machine
It supports both electric feeder and pneumatic feeder.
The cost of electric feeder is higher, but for 0201 component, you need to select electric feeder.
The cost of pneumatic feeder is lower, you can select it for normal assembly work.
The feeder size: 8mm/ 12mm/ 16mm/ 24mm/ 32mm/ 44mm/ 56mm.
pick and place machine for sale pick and place smt machine pcb pick and place machine smt placement machine
Applicable components: 0201, 0402, 0603, 0805, 1206, 1210, SOP, SSOP, SOC, QFP, QFN, BGA, 3538, 4148 diode, 3535 ball shape LED, 5050 etc.
pick and place machine smt automatic pick and place machine pick and place robot project pick machine pnp machine
Application industry: household appliances industry, auto electronics industry, power industry, LED industry, security,
instruments and meters industry, communication industry, intelligent control industry, internet industry of things, etc.
instruments and meters industry, communication industry, intelligent control industry, internet industry of things, etc.
used smt pick and place machine smt pick and place equipment pick and place tool pick and place robotic arm
Highlights
SMT Line
Placement Effect
Related Products
About Us
「About NEODEN」
Zhejiang NeoDen Technology Co., Ltd. has been manufacturing and exporting various small pick and place machines since 2010. Taking advantage of our own rich experienced R&D, well trained production, NeoDen wins great reputation from the world wide customers.
With global presence in over 130 countries, the excellent performance, high accuracy and reliability of NeoDen PNP machines make them perfect for R&D, professional prototyping and small to medium batch production. We provide professional solution of one-stop SMT equipment.
In our global Ecosystem, we collaborate with our best partners to deliver a more closing sales service, high professional and efficient technical support.
We believe that great people and partners make NeoDen a great company and that our commitment to Innovation, Diversity and Sustainability ensures that SMT automation is accessible to every hobbyist everywhere.
Payment & Shipping
FAQ
Q1: Do you provide software updates?
For customers who buy our machine, we can offer free upgraded software for you.
Q2: Does our machine need air supply?
We have vacuum pumps inside the machine, it does not need air supply.
Q3: This is the first time I use this kind of machine, is it easy to operate?
We have English user manual and guide video to teach you how to use the machine. If you still have question, pls contact us by email/skype/phone etc for online service.
Q4: How about the warranty?
We have 2 years warranty for NeoDen4, K1830, NeoDen9, In6, IN12 and 1 year for all other models with lifetime after-sale support.
Q5: How can I buy machine from you?
(1) Consult us on line or by e-mail;
(2) Negotiate and confirm the final price, shipping, payment method and other terms;
(3) Send you the proforma invoice and confirm your order;
(4) Make the payment according to the method put on proforma invoice;
(5) We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping;
(6) Send your order via express or by air or by sea.
For customers who buy our machine, we can offer free upgraded software for you.
Q2: Does our machine need air supply?
We have vacuum pumps inside the machine, it does not need air supply.
Q3: This is the first time I use this kind of machine, is it easy to operate?
We have English user manual and guide video to teach you how to use the machine. If you still have question, pls contact us by email/skype/phone etc for online service.
Q4: How about the warranty?
We have 2 years warranty for NeoDen4, K1830, NeoDen9, In6, IN12 and 1 year for all other models with lifetime after-sale support.
Q5: How can I buy machine from you?
(1) Consult us on line or by e-mail;
(2) Negotiate and confirm the final price, shipping, payment method and other terms;
(3) Send you the proforma invoice and confirm your order;
(4) Make the payment according to the method put on proforma invoice;
(5) We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping;
(6) Send your order via express or by air or by sea.
If you have any questions, welcome to contact us!
