Products Description


Factory Sales Educational Instrument Electronic Control Engine Integrated Test Bench for Student



Product overview:

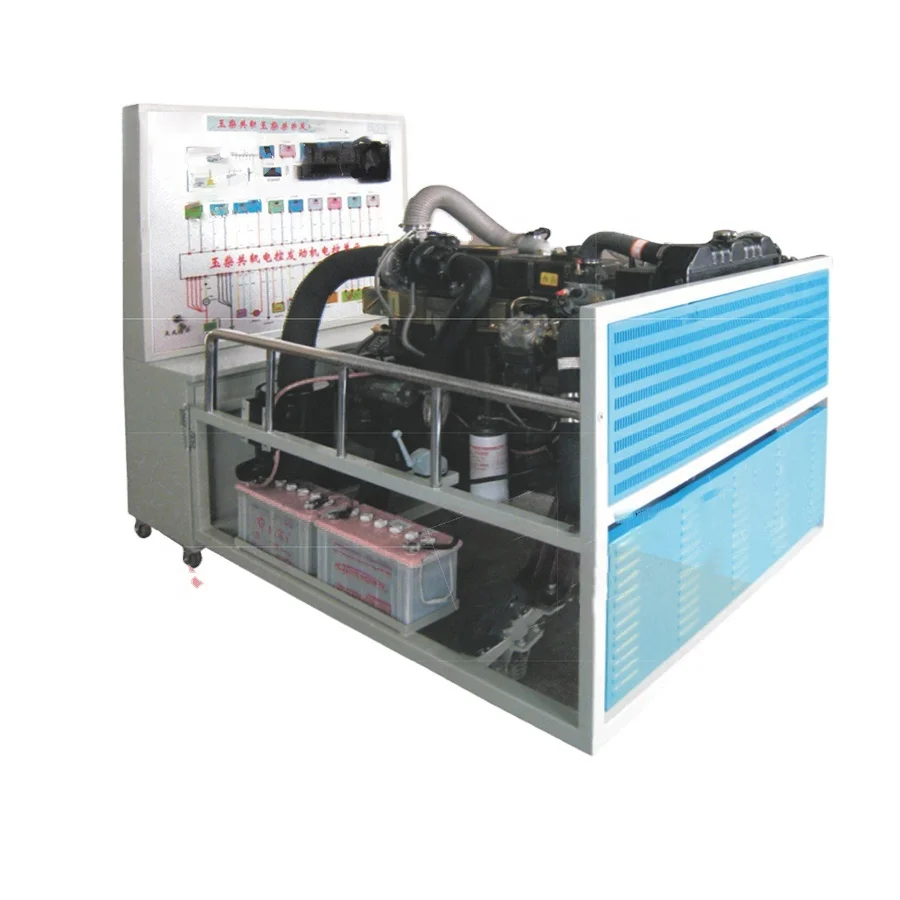

The training platform selects the composition structure of the Toyota 2JZ-GE electronic control engine electronic control system which can dynamically display different engine working conditions. It is used in the training and practice teaching of automobile engine construction and maintenance in middle and higher vocational and technical schools and automobile training institutions, which can meet the teaching needs of the structure composition, working principle, fault setting and diagnosis of electronic
control engine.
Main component:
Toyota 2JZ-GE generator assembly, electronic control unit, instrument, battery, power main switch, fuel tank, diagnostic seat,fuel pressure gauge, vacuum pressure gauge, fault setting and troubleshooting system, mobile bench, computer engraving color schematic panel, signal detection area corresponding to the engine computer pin, supporting instructions and training instructions.
Main functions:
1, the engine works normally, runs smoothly, and truly reflects the structure and working process of the EFI gasoline engine;
2, a pressure gauge is installed on the panel of the test bench to display the fuel pressure;
3, the digital table shows the voltage change value of various sensors;
4. a vacuum pressure gauge is installed on the panel of the test bench to display the intake vacuum pressure;
5, the injector pulse and throttle opening change value are displayed by LED lights, clear and clear;
6, there is a complete electric control system schematic and detection terminal carved on the panel of the experimental platform, which can detect various sensors, actuators and other signal parameters such as voltage, resistance, frequency, etc.;
7, the training platform is equipped with a diagnostic seat, which can be connected to special or general automotive decoder, and the engine electronic control system can read the fault code, clear the fault code, read the data stream and other engine self-diagnosis functions;
8, fault setting function, manual fault setting switch, intelligent multi-function integrated machine system or intelligent fault setting assessment system can be selected according to the user (equipped with communication interface and network interface) ;
9, after setting the fault, students can use special instruments to judge and troubleshoot the fault, and check the location and content of the set fault point; 10, can make other models according to customer requirements.
Production process:

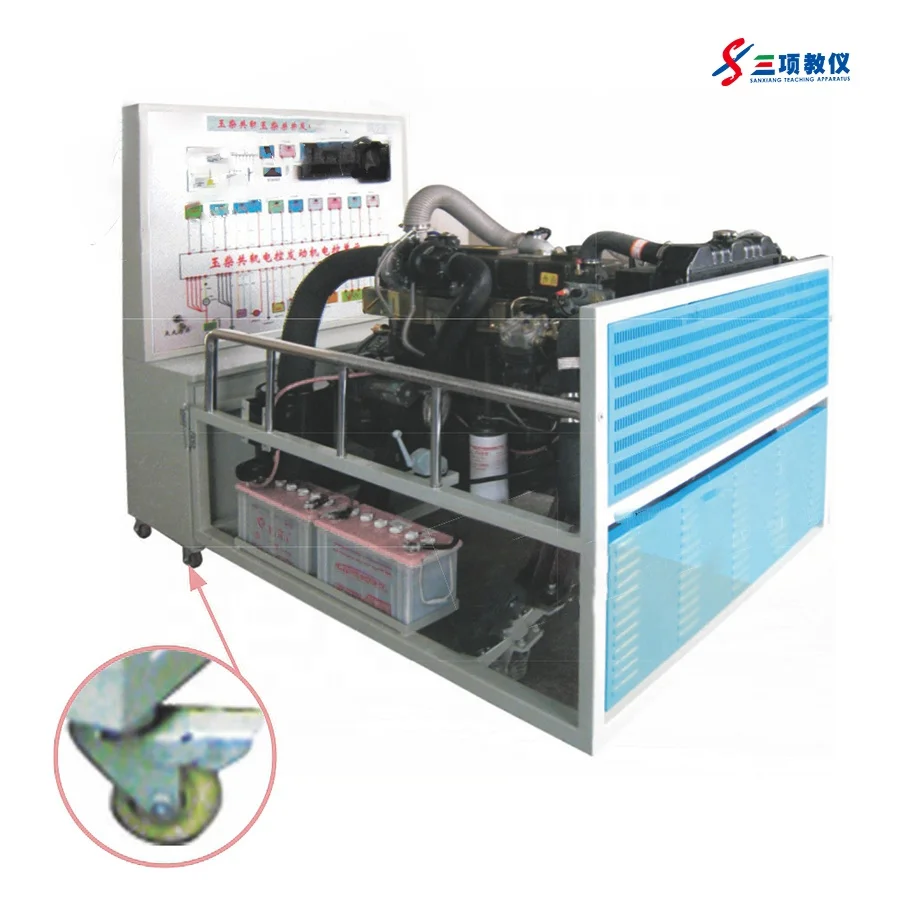

1, nylon universal caster: diameter 75mm, width 35mm, with locking universal caster moving device, easy to move, easy to teach;
2,the platform selection of international high-quality steel structure welding, high-grade automobile high temperature paint treatment, beautiful and durable;
3, the back of the iron cabinet with a lock and open maintenance door, durable, convenient equipment maintenance;
4, the panel iron is stamped, the use of high-grade automotive paint high temperature paint treatment,
beautiful and durable;
5, the whole test platform is divided into two parts, convenient transportation and equipment migration;
6,install safety protection nets for rotating components;
7, support material: 50*50*3mm;
8, overall size: 1500*1000*1800mm.


Products Show




item
value
Place of Origin
China
Guangdong
Brand Name
Sanxiang
Model Number
GZSX-C009
Product name
Toyota 2JZ-GE electronic control engine integrated test bench
Application
School Classroom
Function
Learning
Type
Teaching Instrument
Material
Customized
Color
White-blue
Size
1500*1000*1800mm
MOQ
1 Set
Warranty
1 Year
Package
Wooden Box


Company Profile




Guangzhou Sanxiang Teaching Instrument Co., Ltd is a production enterprise specialized in research, development, production and sales of teaching instruments, and an enterprise producing all series of teaching instruments for industrial field, engineering technology, technique training as well as practical training. The company has more than 8 years experience in researching and manufacturing teaching instruments for vocational teaching. Integrating strong assets and professional technology, it is also a pioneering enterprise developing toward the direction of being more professional, younger and humanized.

With powerful production ability, the company has provided standardized practical training & experiment and evaluation & appraisal instruments covering auto, electromechanical, digital control, automation and information series(working type).The company sets up well-organized sales and after-sale service network to timely offer passionate, rapid technique support and maintenance service to customers.

The company is also a member of many national-level associations including China Association of Staff and Workers Education and Vocational Training and China Educational Instrument & Equipment Association, etc. Its products are products designated by the Auto Vocational Skill Contest in the Second National Skills Contest of Technician Colleges, and products designated by the Vocational Skills Contest for Guangdong higher Vocational Colleges. It passes through ISO9001:2008 international quality system accreditation. Dominant products in Guangzhou Sanxiang Teaching Instrument Co., Ltd cover practical training Instruments in auto, electromechanical, digital control, automation and information series.

While keep improving in product quality, Guangzhou Sanxiang Teaching Instrument Co.,Ltd also pays more efforts to enhance after-sale service. It can produce professional training teaching instruments according to the teaching needs of colleges. Aiming at product reliability, flexibility, safety and user satisfaction, the company will continue to offer better products and excellent service to colleges in every provincial city. The company is young full of vigor and hope. Along with modern education developing, it will march toward modernization and professionalization with first-class products and service.


                          Our Workshop

                            Our Factory




                            Our Warehouse


                              Our Leader




Malaysian students come to study
Employees work hard


The Certifications




The Patent




Packing & Delivery


Packing  :  1set/carton  10set/container.

Delivery   : 3-30 days after customer place an order fastener bags+cartons+pallets according to customer ' s requirement.

PS:Customer comments will be considered or take, protect the goods from damage will be primary condition.





FAQ


1. Who are we?
We are based in Guangdong, China, start from 2004,sell to South Asia(24.00%),Eastern Asia(10.00%),Southeast Asia(10.00%),South America(8.00%),Oceania(8.00%),Western Europe(7.00%),Eastern Europe(7.00%),Southern Europe(7.00%),Northern Europe(7.00%),North America(4.00%),Mid East(4.00%),Africa(4.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?

New energy series,Engine and Gearbox Bench,Teaching Board,Automobile Electrical Training Bench,Automobile Air Conditioning System

4. Why should you buy from us not from other suppliers?

We were established in 2004 that have 20 years of R&D experience and a strong production capacity of about 500 products per day. Our products are cost-effective, it is popular all over the world. Meanwhile, we have always been many traders solid backing

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DEQ;
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
