Products Description

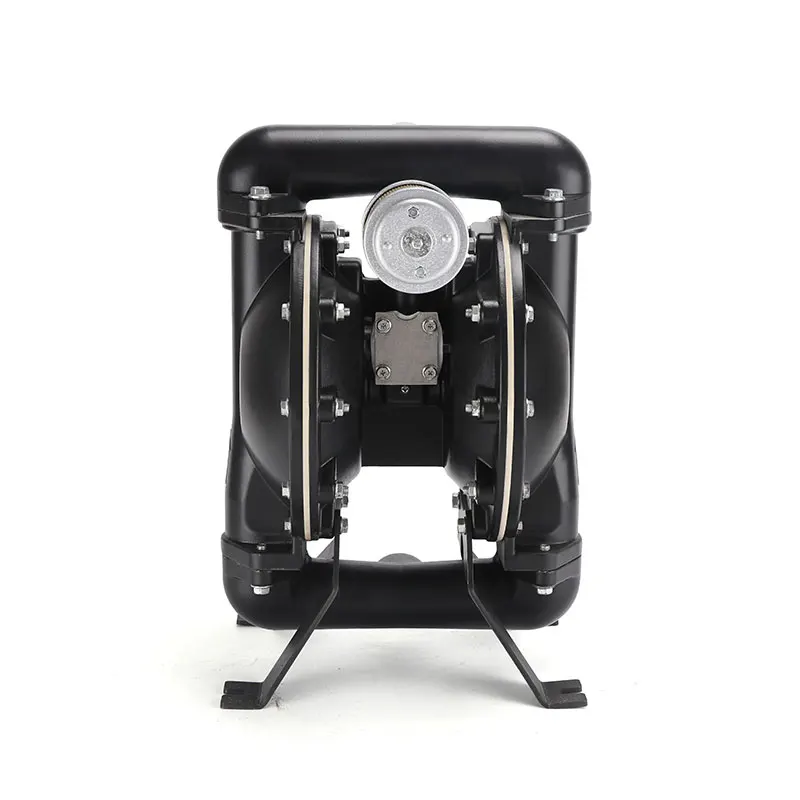

Product name | Air-operated diaphragm pump |
Application | Commercial Buildings, wastewater treatment, Water Treatment Solutions, air operated pump, pneumatic diaphragm pump, Explosion-proof pump, Alcohol pump, Dust pump, sludge pump, liquid pump, wine pump, Corrosive liquid pump, Sulfuric acid pump, Lye pump, Viscous liquid pump, Lime emulsion pump, filter press feeding pump, Plastic air driven diaphragm pump, Stainless steel air driven diaphragm pump, Cast steel air driven diaphragm pump, Cast iron air driven diaphragm pump, PP air pneumatic diaphragm pump, Plastic air pneumatic diaphragm pump, Aluminum alloy air pneumatic diaphragm pump, Cast iron air pneumatic diaphragm pump, air driven pneumatic diaphragm pump, Plastic air driven pneumatic diaphragm pump, Aluminum alloy air driven pneumatic diaphragm pump, Cast steel air driven pneumatic diaphragm pump, Cast iron air driven pneumatic diaphragm pump, Plastic air operated pneumatic diaphragm pump, Stainless steel air operated pneumatic diaphragm p, Cast iron air operated pneumatic diaphragm pump |
Structure | Diaphragm Pump |
Feature | High Wear Resistant |
MOQ | 1PC |
Details Images

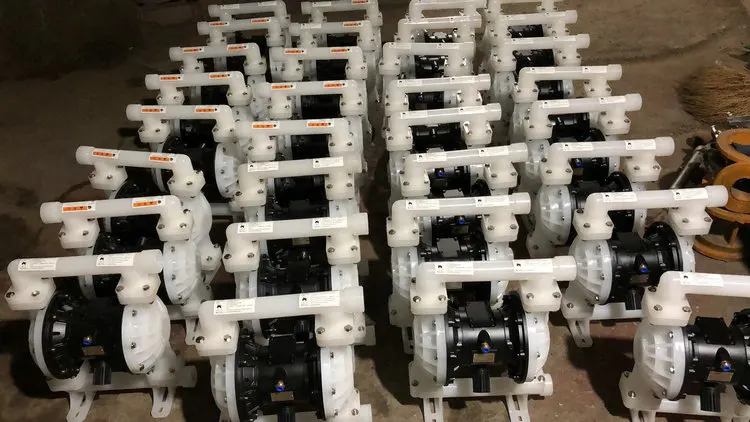

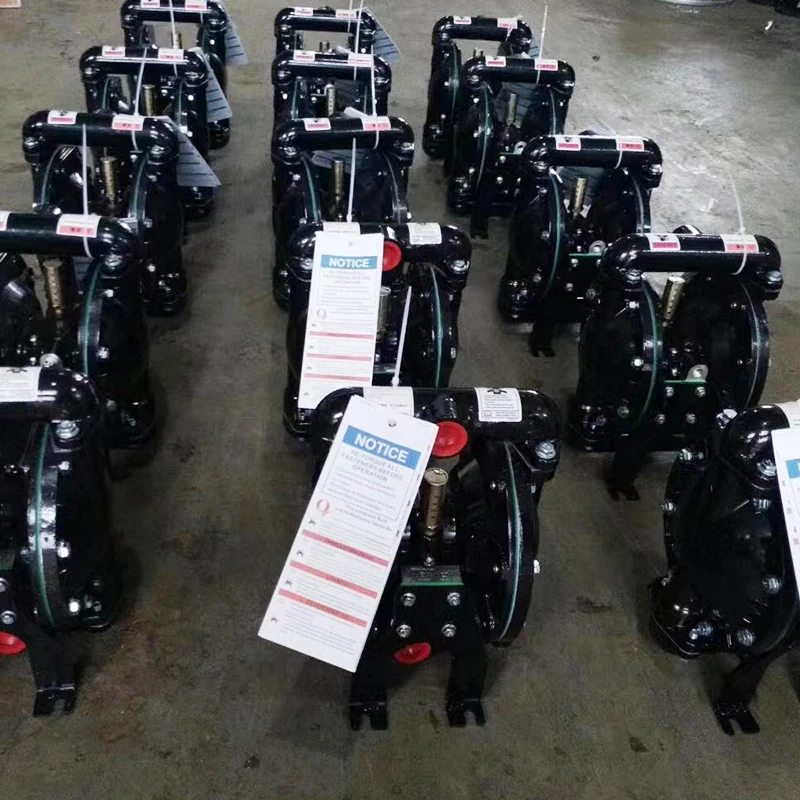

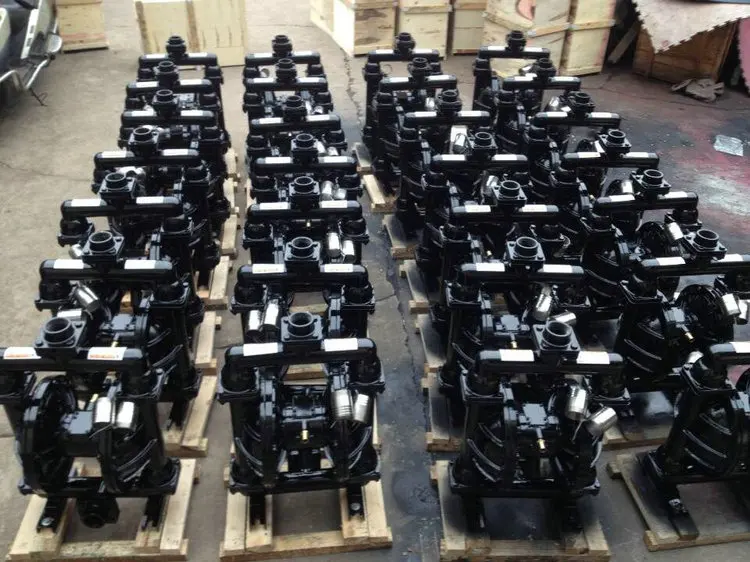

The pumps which we produce
Model | In/outlet (inch) | Max particle diameter (mm) | Air inlet size (inch) | Max flow rate (l/min) | Max head (m) | Max Air press(bar) |
MK06/10 | 1/4", 3/8" | 1.6 | 1/4" | 27 | 70 | 7 |
MK15/20 | 1/2", 3/4" | 2.5 | 3/8" | 57 | 84 | 8.4 |
MK25 | 1" | 4 | 1/2" | 157 | 84 | 8.4 |
MK40 | 1 1/2" | 5 | 1/2" | 358 | 84 | 8.4 |
MK50 | 2" | 6 | 1/2" | 587 | 84 | 8.4 |
MK80 | 3" | 9.4 | 3/4" | 1060 | 84 | 8.4 |
Stainless Steel Pump features
1. High temperature wax casting. Smooth surface and good appearance.
1. High temperature wax casting. Smooth surface and good appearance.
2. Four bolts connection design, good seal and good dry
suction.
suction.
3. Origin stainless steel color. Adopt pickling and electrolytic processing.
4. Stainless steel 304 /316 pump size from 1/2" to 3".
4. Stainless steel 304 /316 pump size from 1/2" to 3".
Aluminum Pump features
1. Precision casting, smooth surface and good appearance.
1. Precision casting, smooth surface and good appearance.
2. Three section manifold, Flexible installation. Also can change to be 4 ports pump.
3. Four bolts connection design, good seal and good dry suction.
4. Aluminum pump size from 1/2" to 3". Pump with black EPOXY coating.
4. Aluminum pump size from 1/2" to 3". Pump with black EPOXY coating.
Plastic Pump features
1. PP pump in PP-H material, wearing resistance, chemical resistance much better than PP.
2. The pump with PP center block, be full plastic pump, excellent chemical resistance.
3. Four bolts connection design, good seal and good dry suction.
4. PP and PVDF pump size from 1/4" to 3".
5. The bolts of plastic pump are of Stainless steel 304.
6. Three section manifold, Flexible installation. Also can change to be 4 ports pump.
4. PP and PVDF pump size from 1/4" to 3".
5. The bolts of plastic pump are of Stainless steel 304.
6. Three section manifold, Flexible installation. Also can change to be 4 ports pump.
PP center block: excellent chemical resistance
1. Aluminum center block poor chemical resistance will be corroded.
2. PP center block chemical resistance much better than Aluminum center block.
3. Our PP center block be one-piece design, strong and durable.
4. Can supply PP center block for the pump from 1/4" to 3".
4. Can supply PP center block for the pump from 1/4" to 3".
Aluminum center
block
Diaphragm plate: one-piece design
1. Aluminum plate and stainless steel plate adopt one-piece precision casting, can avoid the leakage.
1. Aluminum plate and stainless steel plate adopt one-piece precision casting, can avoid the leakage.
2. Plastic plate increase thickness, insert with stainless steel block. The whole plastic plate strong and durable. Even under high working pressure and high temperature, also can working well.
Diaphragm: longer life time
1. Our raw material, Hytrel from Dupont, Santoprene from Exxon, PTFE from Daikin and Saint-Gobain etc. 2. Increase the height of
the diaphragm's arch portion, ensure to reduce the force to the diaphragm edge portation and avoid the diaphragms been pull out.3.
Center place with O-ring design, enhance seal performance.
1. Our raw material, Hytrel from Dupont, Santoprene from Exxon, PTFE from Daikin and Saint-Gobain etc. 2. Increase the height of
the diaphragm's arch portion, ensure to reduce the force to the diaphragm edge portation and avoid the diaphragms been pull out.3.
Center place with O-ring design, enhance seal performance.
Air valve of PP center block
1. Modular design, simple structure. Few moving parts, easily maintain.
1. Modular design, simple structure. Few moving parts, easily maintain.
2. Plastic parts material to be improved acetal material,
excellent wearing resistance and good self-lubricating.
excellent wearing resistance and good self-lubricating.
3. The whole air valve can directly disassemble from the pump. Repair the air valve, no need to open the pump.
Packing: carton and plywood case
1. Small size pump be carton with foam.
1. Small size pump be carton with foam.
2. LCL Shipment, small size cartons will be put into big size plywood case.
3. Big size or heavy pump directly use plywood case.
Our pump in worldwide,pumps are widely used in petroleum, chemical, paint, ceramics, mining, food and beverage,
pharmaceutical, paper,electronics, textile, construction, automotive, furniture, environmental protection, water treatment etc!
pharmaceutical, paper,electronics, textile, construction, automotive, furniture, environmental protection, water treatment etc!
Company Profile
Our Factory
Certifications
Pckaging & Logistics
FAQ
1.Q: Could you help me to find the product which I can't find on your website?
A: Yes, please feel free to send us the picture for the product you want，we will work with you to find satisfied product.
2.Q: How is the quality?
A:All goods will be shipped before checking the quality and we will send pictures to you for checking,also we have quality inspection and you can pay by Trading Assurance via which Alibaba will get involved in the quality control as a third party.
3.Q: How about you after-service？
A: The quality of our products is guaranteed and we are honest in doing business. If you have any problems with the product, please contact us in time and we will solve it for you within 12 hours.
4.Q:What shipping way can I choose?
A: We can send EMS,DHL,UPS,FedEx,sea ect. You can choose the way you need.
A: Yes, please feel free to send us the picture for the product you want，we will work with you to find satisfied product.
2.Q: How is the quality?
A:All goods will be shipped before checking the quality and we will send pictures to you for checking,also we have quality inspection and you can pay by Trading Assurance via which Alibaba will get involved in the quality control as a third party.
3.Q: How about you after-service？
A: The quality of our products is guaranteed and we are honest in doing business. If you have any problems with the product, please contact us in time and we will solve it for you within 12 hours.
4.Q:What shipping way can I choose?
A: We can send EMS,DHL,UPS,FedEx,sea ect. You can choose the way you need.
Похожие товары
FUSITE 2k диспенсер винтовой клапан/scv с различным соотношением/visoctec /teaha
3 200,00-3 280,00 $
Китайский Электрический насос RANNUO Pompe 3 дюйма 220 В из нержавеющей стали
39,00 $
Оптовая цена 650 л/с GWFB-650Z безмасляный воздух/Водяной молекулярный насос полупроводниковый/лазерный/светодиодный турбо-молекулярный вакуумный
5 845,00-5 949,00 $
LYB-2000 насос для перекачки сжиженного нефтяного газа 2 'с лопастным насосом двигателя
1 380,00 $
TWH 2 5 CFM 1/4HP одноступенчатый вакуумный насос для электроники
25,00-35,00 $
Горизонтальный шламовый насос с высоким расположением уплотнения износостойкие запасные части компонент наполнителя 8x6 дюймов
3 560,00 $

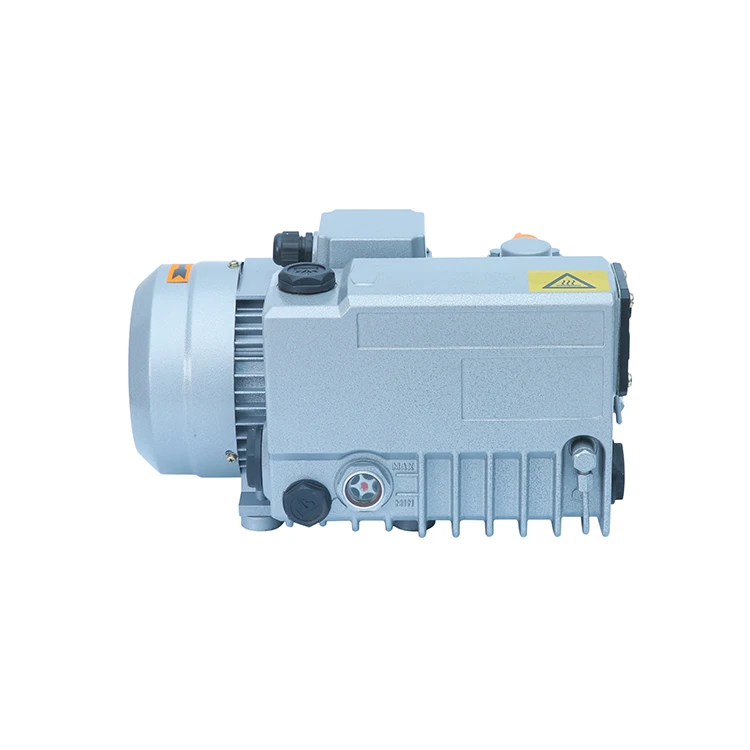

Смазанный маслом вакуумный насос SV016
