Низкое потребление PSA кислородный генератор 80 нм 3/ч промышленного использования азота газогенератор
10 000,00 $
Генератор кислорода CAS для добычи золота и увеличения скорости выщелачивания влияют на цену
- Категория: >>>
- Поставщик: CAN GAS SYSTEMS COMPANY LIMITEDCAN LIMITED
Сохранить в закладки 1601359672870:
Описание и отзывы
Характеристики
Product Description
High purity PSA Oxygen Generator 99.5%
CAN GAS turnkey PSA oxygen generator machine aquires oxygen by separating oxygen directly from the atmosphere and deliver it to application with an oxygen generator. Only electricity is consumed, without material consumption.
CanGas® HP CAPO series PSA oxygen machine 99.5%
CAN GAS HP CAPO series PSA oxygen generator generate up to 99.5% purity oxygen directly from compressed air. CAN GAS PSA Oxygen Generators are serving various industries for their competitive advantages in economy and usage, they are: Cutting&welding, hospitals, glass and ampoule making, aquaculture, paper and pulp, water treatment, ozone generation, etc.
Application: CAN GAS Onsite Oxygen Gas Generators for Oxy-Acetylene Cutting
CAN GAS Onsite Oxygen Gas Generators builds oxygen gas generators that are durable, dependable, and affordable. Oxy-acetylene welding or cutting is also known as oxy-fuel welding (OFW). This process depends on using a unique combustion of oxygen (O2) and acetylene, where the two are combined in appropriate proportions inside a mixing chamber. A high-heat flame is then produced between 5800 °F to 6300 °F for different operations, including brazing, braze welding, pre-/post-heating, surfacing, bending, and straightening. Versatility is added with accessories such as multi-flame heating nozzles and cutting attachments. OFW also entails welding various metals such as carbon steel, low alloy steels, aluminum, cast iron, and magnesium.
High purity oxygen generators can be used in some welding processes that require a higher concentration of oxygen than what is typically found in ambient air (which is approximately 21% oxygen).
For example, in oxy-fuel welding and cutting processes, a fuel gas (such as acetylene) is combusted with a stream of oxygen to create a high-temperature flame that can be used to melt and cut metal. In these processes, a high purity oxygen generator can be used to provide a reliable and cost-effective source of oxygen for the combustion reaction.
The oxygen generator works by selectively adsorbing nitrogen from compressed air using a bed of zeolite adsorbent material. This leaves behind a stream of high-purity oxygen that can be used in the welding process. The oxygen can be delivered to the welding torch through a network of pipes and valves, and can be adjusted to the desired flow rate and pressure.
For example, in oxy-fuel welding and cutting processes, a fuel gas (such as acetylene) is combusted with a stream of oxygen to create a high-temperature flame that can be used to melt and cut metal. In these processes, a high purity oxygen generator can be used to provide a reliable and cost-effective source of oxygen for the combustion reaction.
The oxygen generator works by selectively adsorbing nitrogen from compressed air using a bed of zeolite adsorbent material. This leaves behind a stream of high-purity oxygen that can be used in the welding process. The oxygen can be delivered to the welding torch through a network of pipes and valves, and can be adjusted to the desired flow rate and pressure.
The use of a high purity oxygen generator in welding processes can offer several advantages, including improved combustion efficiency, higher flame temperature, and better control over the welding process. However, it is important to use caution when working with high-purity oxygen, as it can be a fire hazard and can cause combustion when it comes into contact with certain materials. Proper safety procedures should always be followed when using high-purity oxygen in welding processes.
Another application of high purity oxygen generators in welding is in plasma cutting. Plasma cutting involves the use of a plasma arc, which is created by passing a stream of gas (usually a mixture of oxygen and an inert gas like argon or nitrogen) through a nozzle and ionizing it with an electric arc. The resulting plasma can be used to cut metal.
In plasma cutting, a higher concentration of oxygen in the gas mixture can lead to a hotter, more efficient plasma arc, which can result in faster and cleaner cuts. A high purity oxygen generator can be used to provide the necessary concentration of oxygen for the plasma cutting process.
In addition to welding, high purity oxygen generators can also be used in other applications that require high concentrations of oxygen, such as medical oxygen therapy, industrial processes, and aerospace applications.
Overall, high purity oxygen generators offer a reliable and cost-effective solution for applications that require a high concentration of oxygen. However, it is important to use caution and follow proper safety procedures when working with high-purity oxygen, as it can be a fire hazard and can cause combustion when it comes into contact with certain materials.
Oxygen generators are used for increasing the gold production because they can improve the efficiency and yield of the gold extraction process by reducing the consumption and toxicity of cyanide, a chemical that is used to dissolve gold from the ore. Oxygen generators can also enhance the oxidation and dissolution of gold and other metals, as well as the destruction of excess cyanide, improving the quality and safety of the gold extraction process.
Gold ore leaching is a process that involves dissolving gold from the ore using a solvent, such as cyanide. Oxygen generators are devices that produce oxygen gas from the air using a technology called pressure swing adsorption (PSA). They are used for gold ore leaching to enhance the oxidation and dissolution of gold, as well as to reduce the consumption and toxicity of cyanide. Oxygen generators can improve the efficiency and yield of gold recovery by increasing the rate and extent of the leaching reaction.
Specification
Model | Capacity（Nm³/h） | Purity(%) | Pressure（MPa） | Dimensions（mm） | ||||
CAPO HP-3 | 3 | 99.5 | 0.3-0.8 | 1200*1000*1840 | ||||
CAPO HP-5 | 5 | 1350*1200*2050 | ||||||
CAPO HP-10 | 10 | 2000*1900*2350 | ||||||
CAPO HP-15 | 15 | 2000*1300*2400 | ||||||
CAPO HP-20 | 20 | 2200*1500*2700 | ||||||
CAPO HP-30 | 30 | 2300*1550*3200 | ||||||
CAPO HP-40 | 40 | 2300*1550*3500 | ||||||
Others could be customizable. | ||||||||
Model | O2 flow (Nm3/h) | O2 refilling speed (cylinders/day) | PSA O2 generator outlet pressure | Cylinder refilling pressure | O2 purity | |||||
CFS HP-3 | 3 | 12 | Standard 5bar Bypass for direct oxygen supply to user | 10-30Mpa customizable | 99.5% | |||||
CFS HP-5 | 5 | 20 | ||||||||
CFS HP-10 | 10 | 40 | ||||||||
CFS HP-15 | 15 | 60 | ||||||||
CFS HP-20 | 20 | 80 | ||||||||
CFS HP-25 | 25 | 100 | ||||||||
CFS HP-30 | 30 | 120 | ||||||||
CFS HP-35 | 35 | 140 | ||||||||
CFS HP-40 | 40 | 160 | ||||||||
Note: Assuming oxygen cylinder volume is 40 liters, filling pressure is 150bar, and 24 working hours per day. | ||||||||||
Customized models and specifications are available. | ||||||||||
Other Pressure vessels standard is customized, such as ASME, AS, PED | ||||||||||
Working Principle
Certificates
Exhibition
References
Equipment case
Company Profile
CANGAS Systems Company Limited, identified as the Beijing Key High-Tech Corporation, is one of the initial companies involved in air separation industry. CANGAS is committed to continuously providing core value to customers in all industries. With production base of 27,000.00 square meters, 15 national patents and ISO9001 Certificate, ISO13485, ISO45001, ISO14001, CE certificate, ASME certificate, GHOST certificate, CANGAS has been an integration of R&D, design, manufacture, sales, service. Over the past 20 years, CANGAS has successfully provided over 4000 sets of air separation systems for many industries in over 90 countries and regions.
CANGAS Systems Company Limited have a range of PSA oxygen generator, PSA nitrogen generator, PSA Oxygen purifier, PSA nitrogen purifier, hydrogen generator, VPSA oxygen generator, VSA oxygen generator, Membrane oxygen generator, Membrane nitrogen generator, and argon generator, etc, and are widely used in industries of petroleum, oil & gas, chemicals, electronics, metallurgy, coals, pharmaceuticals, aerospace, autos, glass, plastics, food, medical treatment, grain, mining, cutting, welding, new material, etc. With years research in air separation technology and rich solution experiences in various industries, CANGAS sticks to providing our clients with more reliable, more economical, more convenient professional gas solutions.
By now we have supplied CANGAS® systems for clients including GE USA, WILMAR International Singapore, DEGUSSA Group Germany, SAMSUNG Korea, ORION Korea, China Petrol, Sinopec, etc. CANGAS have built up a global distributor system covering Russia, Bangladesh, Indonesia, USA, Philippines, Australia, Pakistan etc.
CANGAS Systems Company Limited have a range of PSA oxygen generator, PSA nitrogen generator, PSA Oxygen purifier, PSA nitrogen purifier, hydrogen generator, VPSA oxygen generator, VSA oxygen generator, Membrane oxygen generator, Membrane nitrogen generator, and argon generator, etc, and are widely used in industries of petroleum, oil & gas, chemicals, electronics, metallurgy, coals, pharmaceuticals, aerospace, autos, glass, plastics, food, medical treatment, grain, mining, cutting, welding, new material, etc. With years research in air separation technology and rich solution experiences in various industries, CANGAS sticks to providing our clients with more reliable, more economical, more convenient professional gas solutions.
By now we have supplied CANGAS® systems for clients including GE USA, WILMAR International Singapore, DEGUSSA Group Germany, SAMSUNG Korea, ORION Korea, China Petrol, Sinopec, etc. CANGAS have built up a global distributor system covering Russia, Bangladesh, Indonesia, USA, Philippines, Australia, Pakistan etc.
Services
Warranty: PERIOD of warranty is 18 months after shipment or 12 months after commissioning, whichever occurs first. It is responsible for CANGAS to analysis, answer breakdowns for users all through the working life of CANGAS oxygen generator. Engineer can be sent on-site for free after-service service if necessary. Please refer to Warranty terms for more information.
Installation & Commissioning & Training: CANGAS service engineer is available to instruct the installation and start up of this plant (6 days at job site with service fee or remotely).If job site service is needed the buyer should prepare flights, accommodation, food and local transportation for CANGAS service engineer.
Installation & Commissioning & Training: CANGAS service engineer is available to instruct the installation and start up of this plant (6 days at job site with service fee or remotely).If job site service is needed the buyer should prepare flights, accommodation, food and local transportation for CANGAS service engineer.
FAQ
1. What's the order to have an oxygen or nitrogen generator plant ?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Contract confirmation---provide correct contract details.
d. Payment terms
e. Production
f. Shipping
g. Installation and commissioning
h. Conducting routine after sales support
2. How to get a prompt quotation of Oxygen or Nitrogen Generator?
When you send the inquiry to us, please kindly send it with below technical information.
a. O2 flow rate: _____Nm3/hr( or How many cylinders/ liquid do you consume per day(24hours))
b. O2 purity: _____%
c. O2 discharge pressure: _____Bar
d. Voltages and Frequency : ______V/___PH/___HZ
e. Application:
f. Project Location:
g. Job site altitude___, ambient temperature___
h. Machine room availability Y/N
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Contract confirmation---provide correct contract details.
d. Payment terms
e. Production
f. Shipping
g. Installation and commissioning
h. Conducting routine after sales support
2. How to get a prompt quotation of Oxygen or Nitrogen Generator?
When you send the inquiry to us, please kindly send it with below technical information.
a. O2 flow rate: _____Nm3/hr( or How many cylinders/ liquid do you consume per day(24hours))
b. O2 purity: _____%
c. O2 discharge pressure: _____Bar
d. Voltages and Frequency : ______V/___PH/___HZ
e. Application:
f. Project Location:
g. Job site altitude___, ambient temperature___
h. Machine room availability Y/N
Related Products
Accessories
1. Air compressor
Air compressor from Atlas Copco, a international famous brand, best manufacturer of air compressor in the world, is adopt in all CANGAS air separation products to provide best in-time after-sales service to customers all around the world since they have service center in more than 200 countries even though the performance is best and reliable with low maintenance and minimum repair rate. And CANGAS is proud to announce that we granted as OEM partner of Atlas Copco at the begining of 2015.
2. Refrigerate Air dryer
Refrigerate Air dryer with best, reliable performance from Parker Hannifin, also known as Dominic Hunter, a international famous brand, best manufacturer of refrigerate air dryer in the world, is adopt in all CANGAS air separation products to achieve best
pre-treatment for the compressed air.
3. Self-clean pre-filter and heavy-duty pre-filter
Self-clean pre-filter from HANFILTER and heavy-duty pre-filter from Atlas Copco with high efficiency and reliable performance is adopt for jobsites with bad working conditions.
4. Desiccant air dryer
Desiccant air dryer made by CANGAS with high efficiency and reliable performance is adopt if the user has strict requirement on
dew-point of product gas.
5. Air filters
treatment for compressed air is very important to the air separation plants. Online compressed air filters made by Parker Hannifin and CANGAS are adopt to remove oil, dust, water in the compressed air.
Desiccant air dryer made by CANGAS with high efficiency and reliable performance is adopt if the user has strict requirement on
dew-point of product gas.
5. Air filters
treatment for compressed air is very important to the air separation plants. Online compressed air filters made by Parker Hannifin and CANGAS are adopt to remove oil, dust, water in the compressed air.
6. CANGAS CAQ series activated carbon
CANGAS CAQ series activated carbon with high efficiency of oil removal for pre-treatment of compressed air is optional.
7. CANBUS smart control and WI-control system
To achieve easy monitoring, operating and controlling of the whole system, CANBUS smart control and WI-control system made by CANGAS are at customer's option.
8. Product gas filter
Odor, dust, oil, bacteria removal filters made by Parker Hannifin will be adopt for product gas treatment to meet customer's
requirements.
9. Instruments
Product gas analyzer for purity from CHANGAI, digital flowmeter and SMC/CKD pressure transmeter are standard accessaries. Dew-point analyzer, glass flowmeter, H2 analyzer, CO2 analyzer, etc. are optional.
CANGAS CAQ series activated carbon with high efficiency of oil removal for pre-treatment of compressed air is optional.
7. CANBUS smart control and WI-control system
To achieve easy monitoring, operating and controlling of the whole system, CANBUS smart control and WI-control system made by CANGAS are at customer's option.
8. Product gas filter
Odor, dust, oil, bacteria removal filters made by Parker Hannifin will be adopt for product gas treatment to meet customer's
requirements.
9. Instruments
Product gas analyzer for purity from CHANGAI, digital flowmeter and SMC/CKD pressure transmeter are standard accessaries. Dew-point analyzer, glass flowmeter, H2 analyzer, CO2 analyzer, etc. are optional.
10. Oxygen and nitrogen boosters
To achieve high delivery pressure or to fill bottles, booster of piston type and diagram with stable performance type are at
customers' choice. Imported high efficiency boosters with super high working pressure from RIX USA and BAUER Germany are also
available.
customers' choice. Imported high efficiency boosters with super high working pressure from RIX USA and BAUER Germany are also
available.
11. Gas filling device and oxygen backup system
Gas filling device for oxygen and nitrogen will be adopt to fill oxygen/nitrogen bottles. Filling pressure and quantity of filling nuzzles are customizable. Manual type and auto type are both available. Oxygen backup system will be adopt if needed.
12. Gas purification device
If SO2, CO, CO2, etc. are not wanted in the product gas, corresponding gas purification device will be adopt.
13. Others
Oxygen bottles, vaporizer, Liquid nitrogen tank, membrane modules for N2 or O2 production, special gas analyzer, special gas purification device, etc. are all available from CANGAS if necessary.
12. Gas purification device
If SO2, CO, CO2, etc. are not wanted in the product gas, corresponding gas purification device will be adopt.
13. Others
Oxygen bottles, vaporizer, Liquid nitrogen tank, membrane modules for N2 or O2 production, special gas analyzer, special gas purification device, etc. are all available from CANGAS if necessary.
Похожие товары
LUOMING газовая высокопроизводительная система генератора кислорода PSA с двигателем 220 В технология наполнения цилиндров двигателя PLC
8 500,00-9 500,00 $
Мини 380 Напряжение PSA N2 оборудование для генерации газа 20 л/ч Генератор жидкого азота
3 000,00 $
Электролизная машина для экологически чистого водородного щелочного водяного раствора от 5 кВт до 500 YUGONG
68 000,00 $

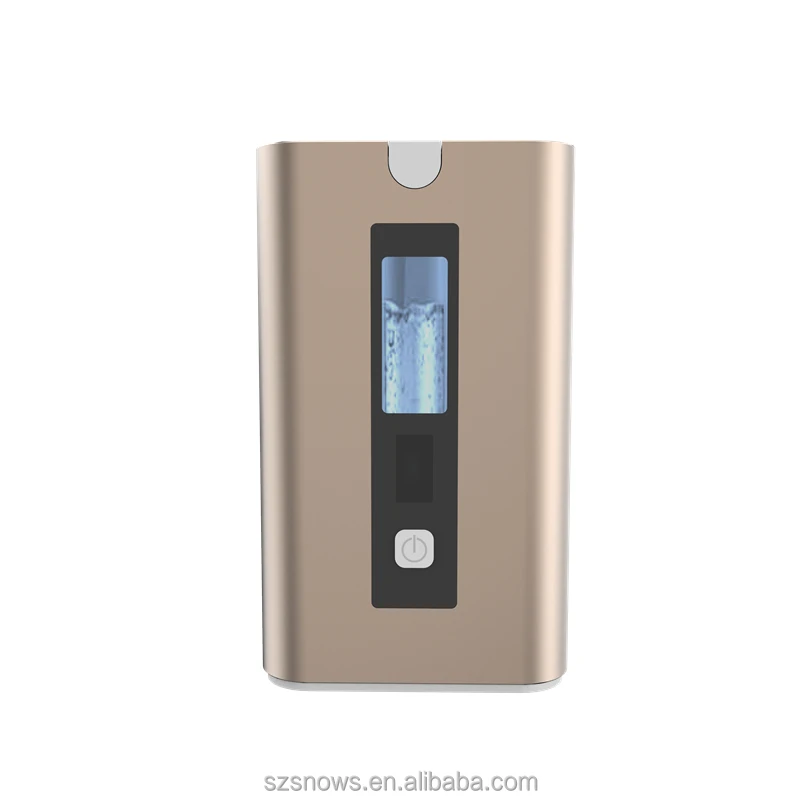

Снег портативный электролиз чистой воды 150 мл/мин водородная Ингаляционная машина
320,00-480,00 $
Генератор водорода электролиза воды потребления низкой мощности

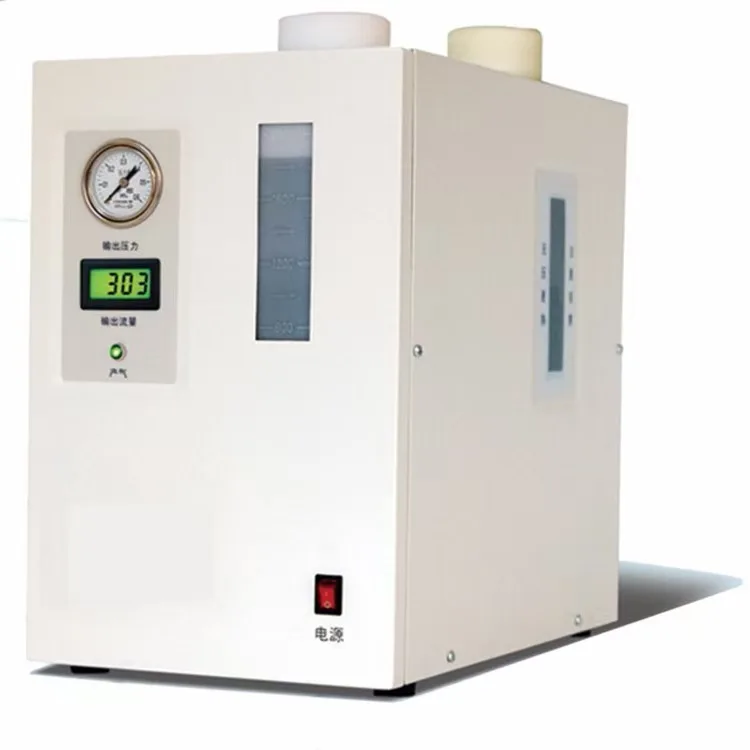

99.999% чистого лабораторного использования GC-FID пламени газа gc генератор водорода
790,00-850,00 $

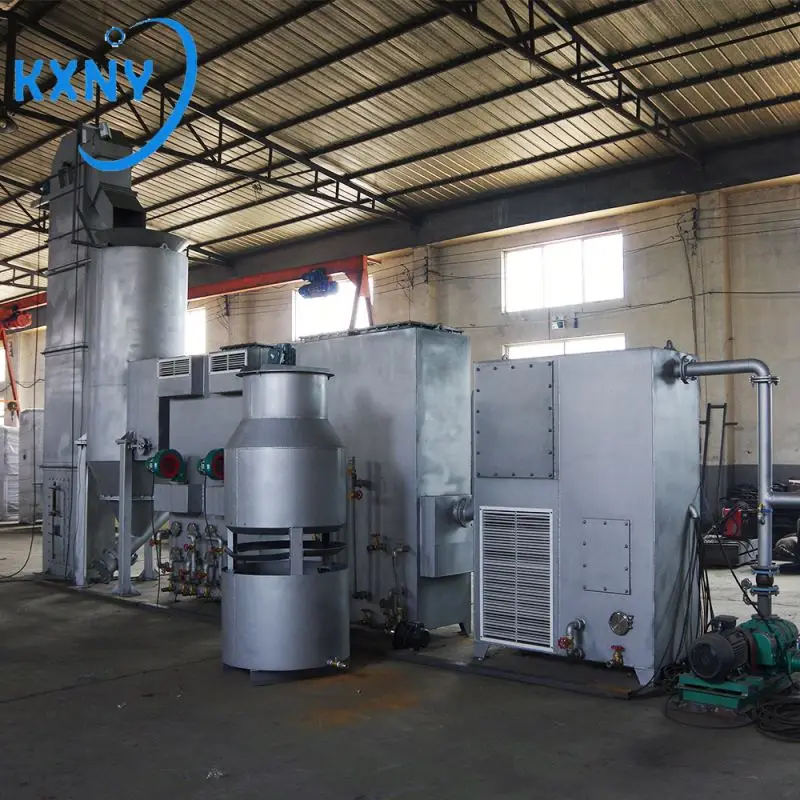

Биомассы газификатор генератор плита
