В продаже стальной шарик калибра 68 4 763 мм 9 5 кованый
750,00 $
Высококачественная шаровая мельница для шлифования липких материалов с высоким содержанием влаги
- Категория: >>>
- Поставщик: Prominer (shanghai) Mining Technology Co. Ltd.Prominer Ltd.
Сохранить в закладки 1601359686541:
Описание и отзывы
Характеристики
Products Description

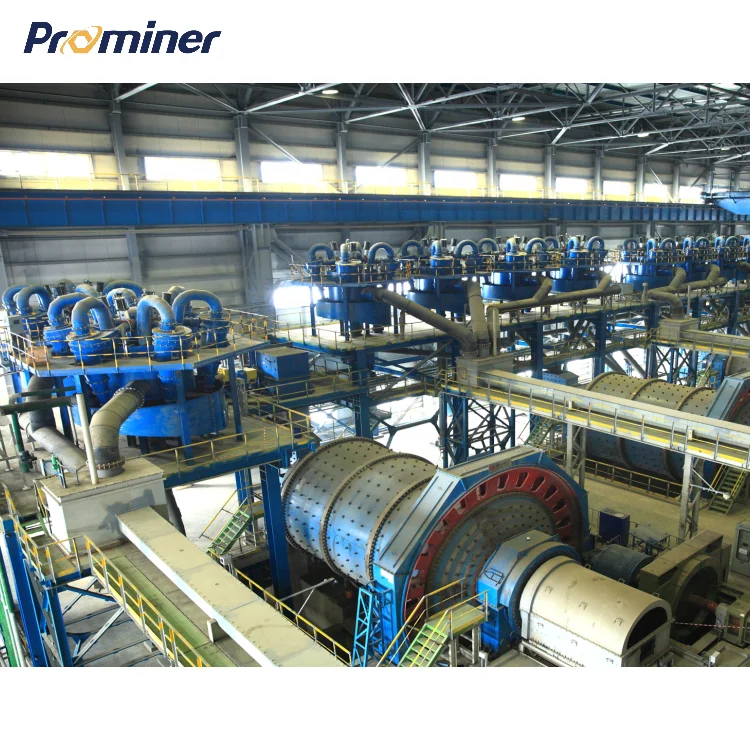

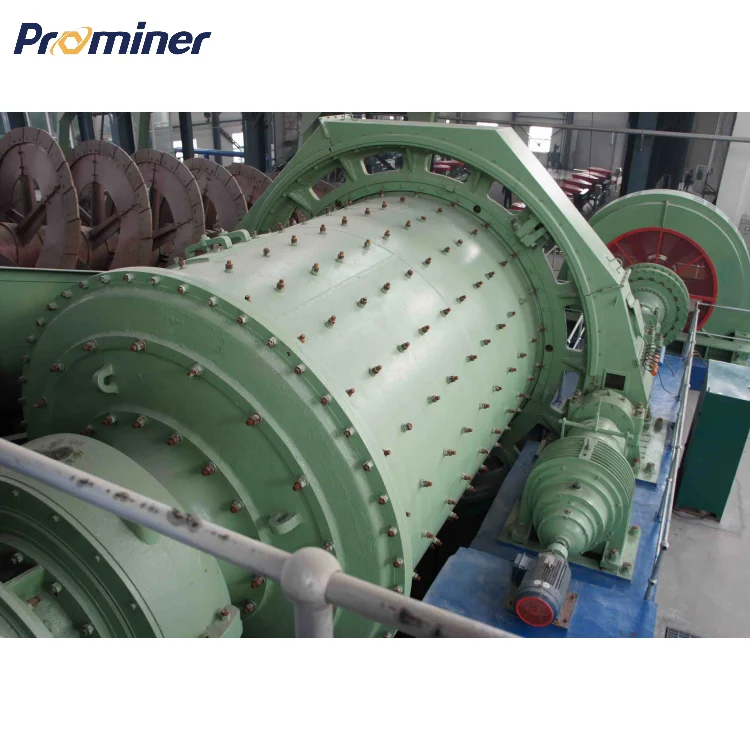

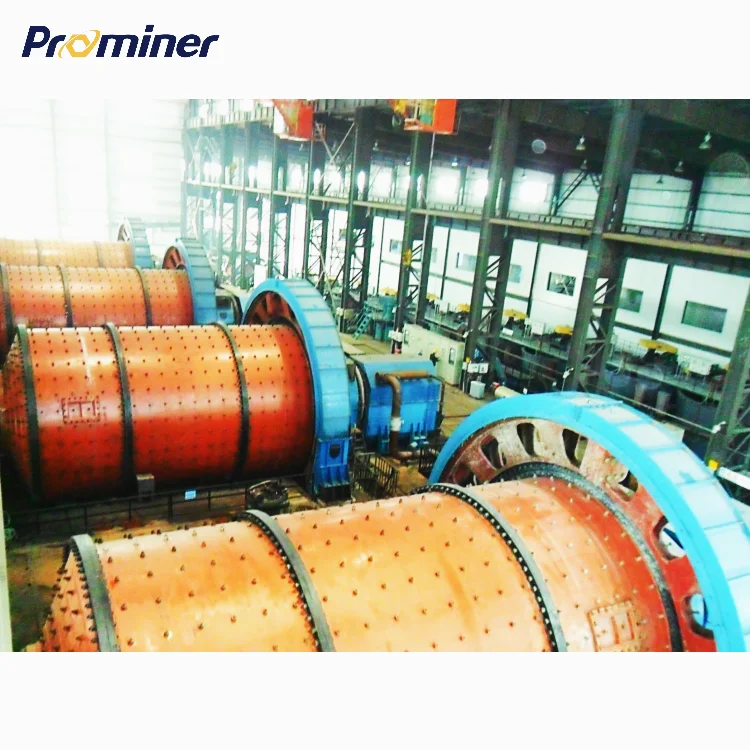

Ball mill is widely used in mineral processing, power, building material and chemical industry. It is the key equipment for grinding after the crushing process. It help to reduce the mineral into target fineness and reach sufficient liberation rate. The preparation work done by the ball mill is for help the mineral processing plant reach higher recovery rate and concentrate grade.
Application:

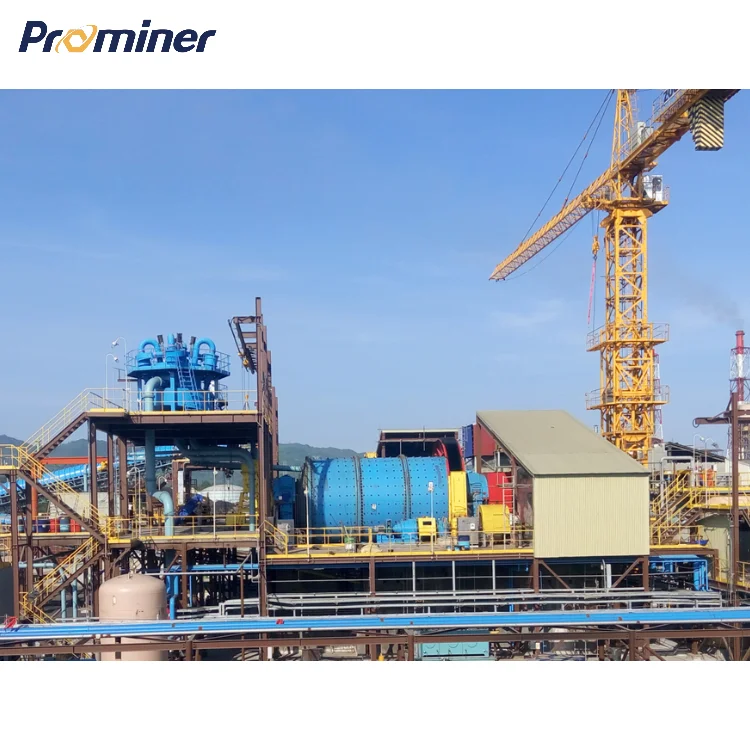

As primary and secondary grinding system for gold CIL plant, flotation plant, Iron ore magnetic separation plant and primary grinding system for natural graphite project.
Feeding Trolley:
Our ball mill can be equipped with feeding trolley which make the maintenance easier. Feeding trolley is with special reduction motor drive
Walking along the track
Walking along the track
Feeding & Discharge Cap:
Split type design make the bushing easy to install and remove.
Endurable material with longer service
life
life
Light weight make easier maintenance.
Babbitt Bearing:
Touch type temperature sensor can ensure the maintenance work in time.
Hydrostatic lubrication make the bearing with longer service life.
Seal fatliquoring system is available.

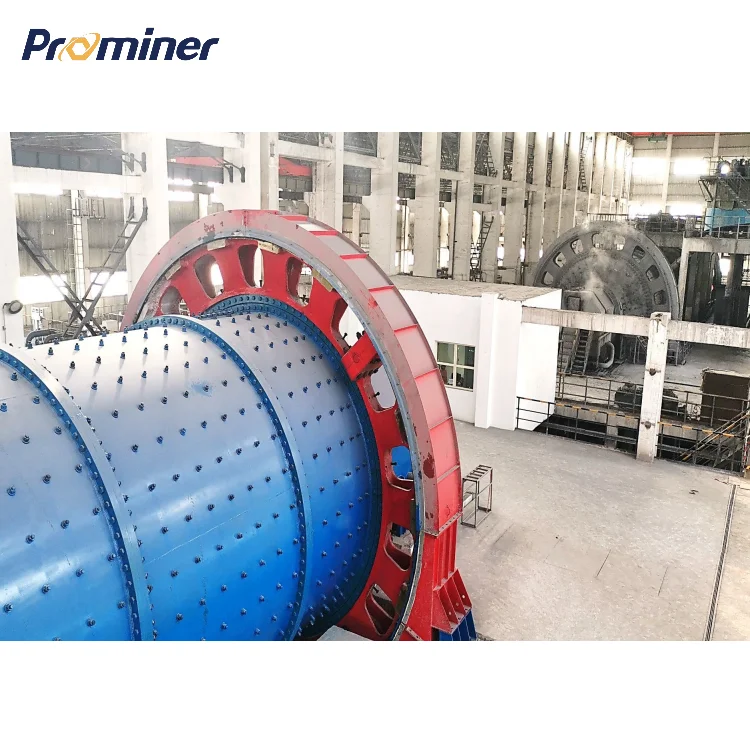

Big Gear :
High strength wear-resistant material ZG35Cr1Mo after heat treatment.
Tooth surface hardness 228~269HBW.
Ultrasonic and magnetic particle detection has to be taken.
Pinion:
High strength and quality material 17Cr2Ni2Mo after heat treatment.
Tooth surface hardness: 57~62HRC
Ultrasonic and magnetic particle detection has to be taken.
SKF Bearing and labyrinth sealing\ttechnology.
Lifting Device:
Lifting device is necessary item for larger model ball mill and SAG mill. It make the maintenance work much easier. For the small model is optional device.
Big Gear Shell:
Big gear shell is necessary for the protecting the gear and it is working together with the spraying lubrication device.
Low Speed drive device:
It is helpful for ball mill and sag mill maintenance work like replacing the liner plate.
Trommel Screen:
Trommel Screen is made of wear resistant flat\tsteel welded sieve plate and wear resistant rubber lining.
Product Paramenters
Model | Shell Size | Volume | Ball Load | R-Speed | Power | Output Size | Capacity | Remark |
D×L(mm) | (m3) | (t) | （r/min） | (kw) | (mm) | (t/h) | ||
MQG2136 | 2100×3600 | 11 | 19 | 23.8 | 210 | 0.3-0.0074 | 29-6.5 | 380V |
MQG2430 | 2400×3000 | 12.2 | 25 | 22.8 | 250 | 0.3-0.0074 | 38-7.5 | 380V |
MQG2436 | 2400×3600 | 14.6 | 30 | 22.8 | 280 | 0.3-0.0074 | 42-8.5 | 380V |
MQG2445 | 2400×4500 | 18.2 | 37 | 22.8 | 400 | 0.3-0.0074 | 55-10.5 | 6-10KV |
MQG2721 | 2700×2100 | 10.7 | 24 | 21.7 | 280 | 0.3-0.0074 | 84-8.5 | 6-10KV |
MQG2730 | 2700×3000 | 15.3 | 32.5 | 21.7 | 355 | 0.3-0.0074 | 120-10 | 6-10KV |
MQG2736 | 2700×3600 | 18.4 | 39 | 21.7 | 400 | 0.3-0.0074 | 145-12 | 6-10KV |
MQG2740 | 2700×4000 | 20.5 | 43 | 21.7 | 450 | 0.3-0.0074 | 159-13 | 6-10KV |
MQG2745 | 2700×4500 | 23 | 50 | 21.7 | 500 | 0.3-0.0074 | 180-15 | 6-10KV |
MQG3245 | 3200×4500 | 32.8 | 65 | 18.6 | 710/800 | 0.3-0.0074 | 235-29 | 6-10KV |
MQG3254 | 3200×5400 | 39.2 | 81.6 | 18.6 | 800/1000 | 0.3-0.0074 | 280-35 | 6-10KV |
MQG3645 | 3600×4500 | 40.8 | 88 | 17.3 | 1000 | 0.3-0.0074 | 259-29 | 6-10KV |
MQG3650 | 3600×5000 | 45.3 | 96 | 17.3 | 1120 | 0.3-0.0074 | 288-35 | 6-10KV |
MQG4040 | 4000×4000 | 45 | 82 | 16.4 | 1000 | 0.3-0.0074 | 230 | 6-10KV |
MQG4050 | 4000×5000 | 57 | 161 | 16.4 | 1250 | 0.3-0.0074 | 270 | 6-10KV |
MQG4560 | 4500×6000 | 85 | 162 | 15.42 | 2000 | 0.3-0.0074 | 285 | 6-10KV |
Manufacturing Technique
Heat Treatment
Rough Casting Parts Match
Machining Work of SAG Mill Big Gear
Quality Control
Quality Inspection
Quality Inspection
Finished Parts of SAG Mill Big Gear
SAG Mill Gear Ready to Pack
Finished Parts of SAG Mill Gear
Machining Work of Ball Mill Big Gear
Machining Work of Ball Mill Cap
Machining Work of Ball Mill Ring
Machining Work of Ball Mill Cap
Ball Mill Drum Aligning
Title goes here.
Assembly Testing of SAG Mill
Assembly Testing of Ball Mill
Assembly Testing of Ball Mill
Packaging & Transport
Bulk Item Shipment
Bulk Item Package
Bulk Item Package
Palletizing Package
Iron Box Package
Export Wooden Packing
Vehicle Transport
Truck Transport
Truck Transport
Our Service
Civil Work Construction Supervision
Prominer can provide the civil work construction supervision service for mineral processing project.
Foundation Building Guidance
According to the project's demand, we can send civil engineer to guide our client's team to build the foundation.
Workshop Building Construction
We can also dispatch our team to undertake the civil work construction for mineral processing project.
Site Survey Service
Before starting the engineering design work, Prominer will send our engineer to do the site survey work for every mineral processing project.
Sampling Guidance Service
For getting the representative sample for lab test work, we can send our engineer to assist our client to do the sampling drilling work.
Equipment Erection Guidance Service
During the equipment installation stage, Prominer will send our engineer to the site for providing equipment erection guidance service.
Ball Mill Erection Guidance
We send our engineer to provide the ball mill erection service at site for our South Africa Client's project for processing gold, cooper ore.
Equipment Erection Service
We send our team to undertake the project erection and commissioning service for our Colombia client for lead and zinc flotation plant.
Erection Supervision Service
Some client also appoint our team to provide the project supervision service to ensure the correct erection and good performance.
Installation Team for EPC Project
We have sent our team to Sudan to do the installation and commissioning work for gold CIL plant. Our team enjoy our new year holiday at site.
On Site Training Service
During the commissioning stage of gold and copper flotation plant in Tanzania, the client's team joint together with our team to lear how to operate the equipment.
Operation & Maintenance Service
According to our client's demand, we can also leave our team to provide the operation service after project acceptance for our mineral processing project.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2016,sell to South Asia(40.00%),South America(30.00%),Africa(10.00%),Southeast Asia(10.00%),North America(5.00%),Mid East(5.00%).
We are based in Shanghai, China, start from 2016,sell to South Asia(40.00%),South America(30.00%),Africa(10.00%),Southeast Asia(10.00%),North America(5.00%),Mid East(5.00%).
There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Ball Mill, Vibrating Screen, Grinding Mill, Anode Granulator, Belt Conveyor
4. why should you buy from us not from other suppliers?
Focus on providing the complete solution for anode material production and mineral processing include gold, Iron, lead, zinc,cooper, quartz, graphite and kaolinite.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Ball Mill, Vibrating Screen, Grinding Mill, Anode Granulator, Belt Conveyor
4. why should you buy from us not from other suppliers?
Focus on providing the complete solution for anode material production and mineral processing include gold, Iron, lead, zinc,cooper, quartz, graphite and kaolinite.
Have ability to provide consultancy service, lab test, pilot test, EPC and OM service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP,FCA,CPT,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Russian
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP,FCA,CPT,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Russian
