15 кГц непрерывный генератор ультразвуковая сварочная система для масок пластиковая
799,00-1 699,00 $
20 кГц 2000 Вт пластиковая Сварка интеллектуальный цифровой ультразвуковой генератор со сварочным рожком
- Категория: >>>
- Поставщик: Dongguan Jieda Ultrasonic Equipment Technology Co. Ltd.Dongguan Ltd.
Сохранить в закладки 1601359694297:
Описание и отзывы
Характеристики
Product Description
Ultrasonic welding is to convert the 50/60 Hz current into 15, 20 KHz electrical energy through the ultrasonic generator. The converted high-frequency electrical energy is again converted by the transducer into a mechanical motion of the same frequency, which is then transmitted to the welding head by a set of amplitude-changing rod devices. The welding head transmits the vibration energy received to the joint of the workpiece to be welded, where the vibration energy is converted into heat energy by friction, melting the plastic. Ultrasonic waves can be used not only to weld hard thermoplastics, but also to process fabrics and films.
Ultrasonic generator role is to convert electricity into high-frequency alternating current signals matching the ultrasonic transducer, to promote the transducer will be converted into mechanical vibration of the electrical signal.
A complete set of ultrasonic equipment is composed of ultrasonic generator, ultrasonic transducer and ultrasonic die.
A complete set of ultrasonic equipment is composed of ultrasonic generator, ultrasonic transducer and ultrasonic die.
Specification
Ultrasonic frequency: | 20KHz 15KHz |
Ultrasonic power: | 2000-4200W |
Welding mode: | Trigger/Time/Energy Mode |
Working power supply: | AV220V /50Hz |
Overall dimension: | 300*345*120 |
Net weight: | 4.6KG |
Ultrasonic equipment generally use ultrasonic frequency of 15KHz, 20KHz, 28KHz
20K ultrasonic welding system
20KHz is used in non-woven composite perforation machine, plastic bag machine, garment accessories processing, non-woven mask machine, trademark cutting and labeling machine and so on.
15K ultrasonic welding system
15KHz is used for ultrasonic plastic welding machine on and special equipment.
Product advantages:
1. The ultrasonic generator can monitor the working frequency and power of the high-power ultrasonic system.
2. Able to adjust various parameters in real time according to different requirements of users: such as power, amplitude, running time and so on.
3. Frequency fine-tuning: adjust the frequency so that the ultrasonic transducer is always working in the best state, the efficiency is maximized, the adjustment range of 2%.
4. Automatic frequency following: once the equipment has completed the initial setup, it can operate continuously without the need to adjust the generator.
5. Amplitude control: When the load changes during the transducer work, the driving characteristics can be automatically adjusted to ensure that the tool head gets a stable amplitude.
6. System protection: when the system works under unsuitable operating environment, the generator will stop working and alarm display to protect the equipment from damage.
7. Amplitude adjustment: the amplitude can be increased or decreased instantly during the working process, the amplitude setting range: 0%~100%.
8. Automatic frequency tracking: the working frequency of the welding head can be determined automatically and stored.
2. Able to adjust various parameters in real time according to different requirements of users: such as power, amplitude, running time and so on.
3. Frequency fine-tuning: adjust the frequency so that the ultrasonic transducer is always working in the best state, the efficiency is maximized, the adjustment range of 2%.
4. Automatic frequency following: once the equipment has completed the initial setup, it can operate continuously without the need to adjust the generator.
5. Amplitude control: When the load changes during the transducer work, the driving characteristics can be automatically adjusted to ensure that the tool head gets a stable amplitude.
6. System protection: when the system works under unsuitable operating environment, the generator will stop working and alarm display to protect the equipment from damage.
7. Amplitude adjustment: the amplitude can be increased or decreased instantly during the working process, the amplitude setting range: 0%~100%.
8. Automatic frequency tracking: the working frequency of the welding head can be determined automatically and stored.
Range of applications
Ultrasonic electric box can serve in various fields of various industries and bring higher efficiency to production.
Toy industry, stationery and toys industry, electronics industry, food industry, automotive industry, clothing industry, etc..
Toy industry, stationery and toys industry, electronics industry, food industry, automotive industry, clothing industry, etc..

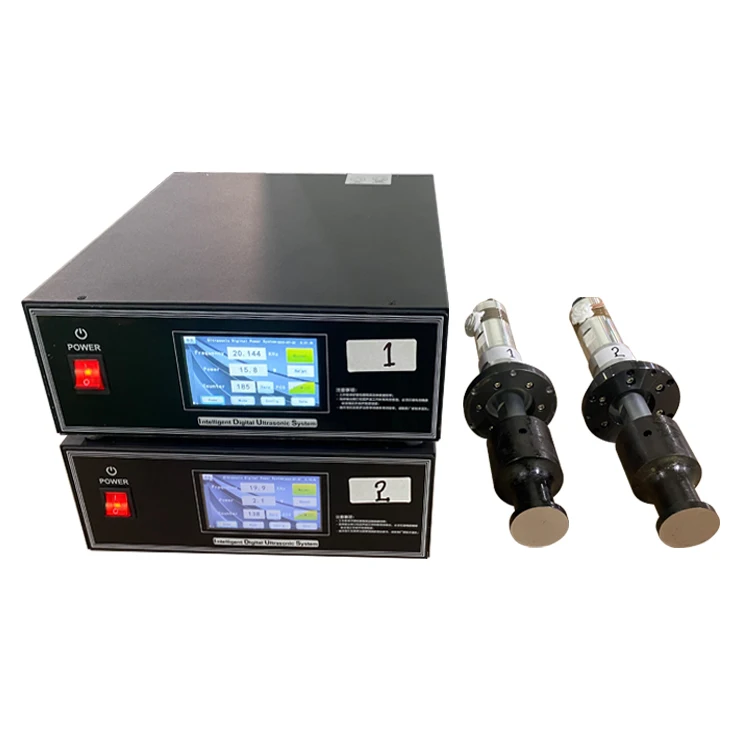

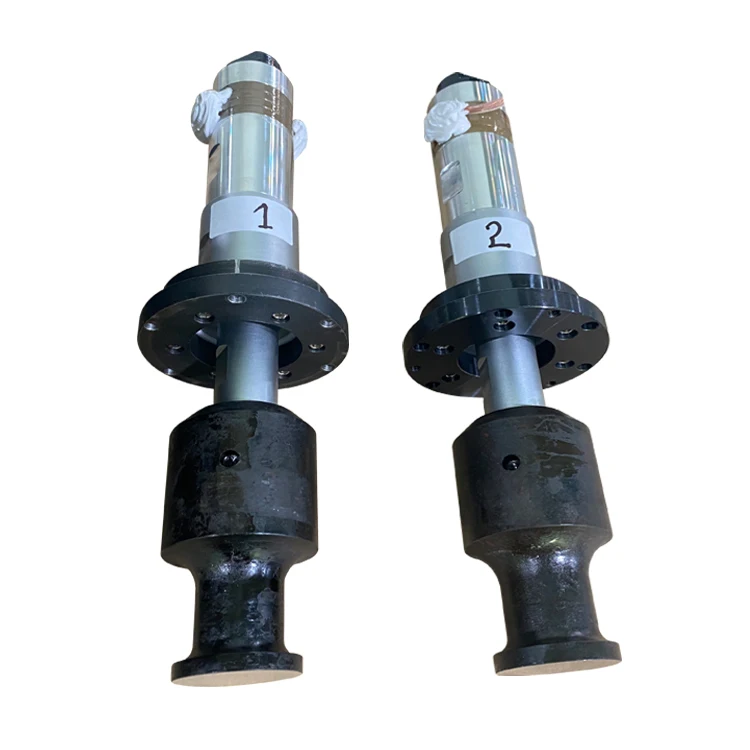

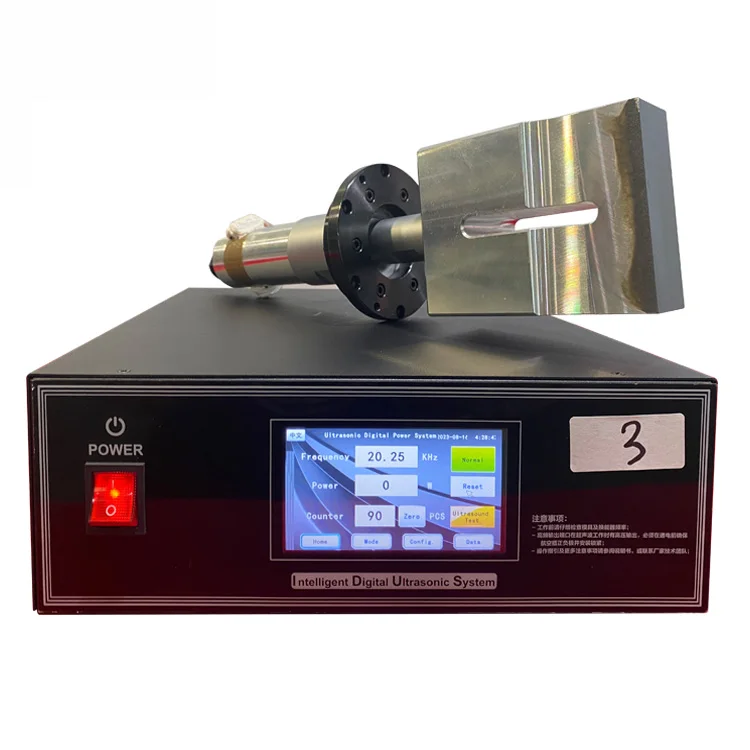

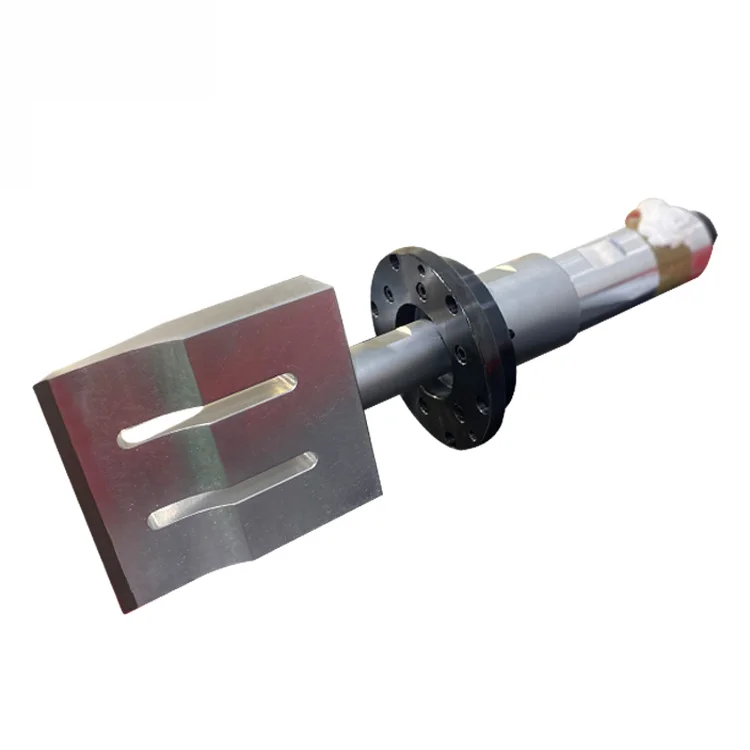

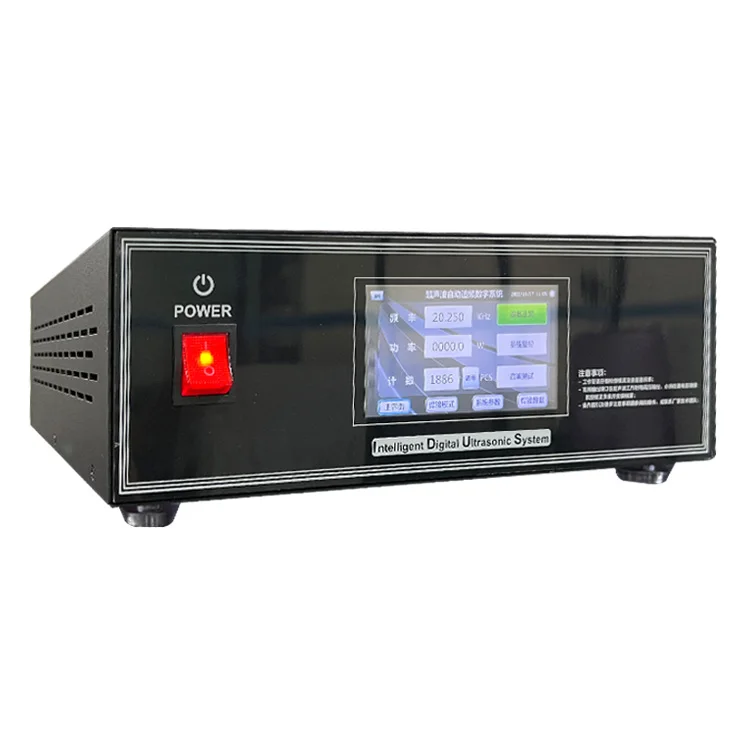

Product real shot
Company Profile
Started a business in 2006, the predecessor of Jieda was a self-employed division for manufacturing and repairing ultrasonic generators, ultrasonic converters and ultrasonic sonotrodes. In 2010,Dongguan Jieda Ultrasonic Equipment Co., Ltd. was formally established. It has successfully grown into an expert company specializing of ultrasonic technology with R & D, production, sales and service. We mainly produce ultrasonic cutting system, ultrasonic metal welding machine, ultrasonic rubber/silicone cutting equipment, ultrasonic plastic welding machine, ultrasonic generators , transducers. Also we service our customers by designing and manufacturing various types of ultrasonic titanium cutter blades , sonotrode /horns and other related machine etc. As well as providing ultrasonic system spare parts supplying services. Our team of well-trained and seasoned professionals is committed to deliver excellent customer service. Due to the advantages of ultrasonic technology, ultrasonic cutting and welding processes are widely used in a variety of industries. We at Jieda pride ourselves in our knowledge and expertise in ultrasonic technology, and our high quality products and excellent service are particularly appreciated by our customers from various industries, including medical & hygiene industry, automotive industry, food industry, electronic industry, textile industry, etc.
FAQ
1. Which products can these titanium blades cut through?
- Our ultrasonic slicing blade is suitable for a variety of foods, including baked goods, frozen items, and snacks. Additionally, it can be utilized to cut composite materials such as silica gel, rubber, resin,etc.
2. Do you have it in stock?
- Usually we have common product in stock except for some non-standard requirements.
3. Could you please design and make it for our special requirements?
- Yes, Of course.We can do it. We have professional engineers who can design and customize for customers’ specific needs.
4. How much is it?
- Could you please tell us what your details requirement is? Such as size, your product material,quantity etc.
5. How we can pay for it?
- 100% T/T in advance for small order. 50% T/T in advance as deposit , 50%T/T balance before shipment for large orders.
6. Delivery time ?
- Within 5 sets we could send by Express, if the total weight more than 60KG, we suggest to use sea freight lcl or by airfreight.
7. How about the warranty ?
- The Generators and transducers are guaranteed for 1 year with none human damage. And the cutting blades are guaranteed for 6 months except for wear and tear because they are consumables.
2. Do you have it in stock?
- Usually we have common product in stock except for some non-standard requirements.
3. Could you please design and make it for our special requirements?
- Yes, Of course.We can do it. We have professional engineers who can design and customize for customers’ specific needs.
4. How much is it?
- Could you please tell us what your details requirement is? Such as size, your product material,quantity etc.
5. How we can pay for it?
- 100% T/T in advance for small order. 50% T/T in advance as deposit , 50%T/T balance before shipment for large orders.
6. Delivery time ?
- Within 5 sets we could send by Express, if the total weight more than 60KG, we suggest to use sea freight lcl or by airfreight.
7. How about the warranty ?
- The Generators and transducers are guaranteed for 1 year with none human damage. And the cutting blades are guaranteed for 6 months except for wear and tear because they are consumables.
