150-200TPH дешевая цена вольфрамовый оловянный сепаратор установка для восстановления после промывки
3 250,00-9 600,00 $
Высокого извлечения большой и маленький оксид колтан сурьмы хром золото алмаз минеральная олово медь марганцевая руда гравитационный встряхиватель стол
- Категория: >>>
- Поставщик: Jiangxi Henghong International Mining Machinery Co. Ltd.Jiangxi Ltd.
Сохранить в закладки 1601360249623:
Описание и отзывы
Характеристики
Product Overview
Main Features
High recovery ratio, High concentration ratio
Easy installation and operation
Deck constructed of fiber glass
Seven different decks to choose
Deck constructed of fiber glass
Seven different decks to choose
Adjustable stroke length and speed.
There are different models for you to choose and meet your capacity request.
High Recovery Large and Small Oxide Coltan Antimony Chrome Gold Diamond Mineral Tin Copper Manganese Ore Gravity Shaking Table
Jiangxi Henghong mining machinery is devoting to provide turnkey solution with worldwide clients for mineral processing plant including research, design, manufacture,installation and commissioning, personnel training, after-sale service and management of processing plant. Up to now, we have developed five major product lines: they are mining crushing machine, mining milling machine,mining classifying separator, mining flotation machine and the mining gravity separator. When you find us, you find one best mining machinery manufacturer.

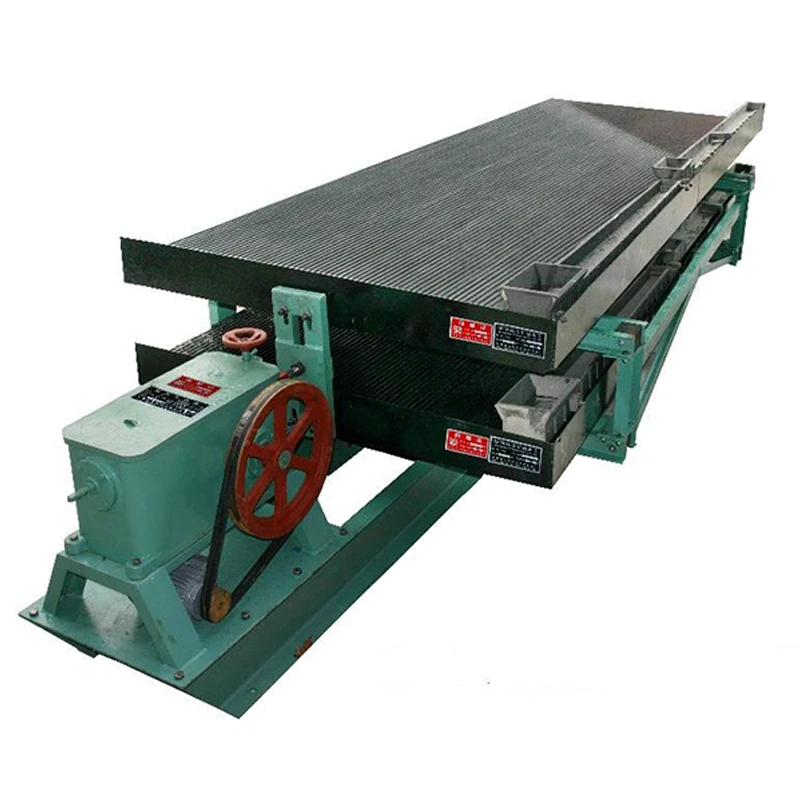

Gravity Shaking Table Introduction
Shaking table is one of the main equipment of gravity concentration,It can be used to deal with many kinds of metal ores,such as rough selection, elaborate selection, and scavenging. It also can select and sort coarse sand (2-0.5mm), fine sand(0.5-0.074mm), slime (-0.074mm) and other different particle sizes.What is more, shaking table can be used for sorting iron,manganese ore and coal. When dealing with tungsten, tin and other minerals,its effective recovery size is 2-0.02 mm. 40/60/88/120 riffles available.
Shaker table can not only be used as an independent beneficiation machine, but it often works with jig separator machines, centrifugal concentrators, sluice box, flotation equipment, magnetic drum separator, spiral classifier, and other ore dressing equipment.
Laboratory Shaking Table
6S Shaking Table
Gemini Shaking Table
Product Parameters
Model | 6S4450x1855x1546 | LY3000x1620x1360 | LY2100*1050*850 | LY1100*500*430 |
Storke (mm) | 8-22 | 6-30 | 12-38 | 9-17 |
Times of Stroke (t/min) | 210-350 | 210-320 | 250-460 | 280-460 |
Cross Slope (°) | 1-4 | 0-10 | 0-8 | 0-10 |
Feed Size (mm) | 2-0.074 | 2-0.074 | 2-0.074 | 2-0.074 |
Feed Density (%) | 15-30 | 10-30 | 10-30 | 10-30 |
Water Consumption (t/h) | 0.5-6 | 0.3-1.5 | 0.2-1.0 | 0.1-0.5 |
Capacity (t/h) | 0.6-2.5 | 0.4-1.5 | 0.3-0.8 | 0.05-0.2 |
Power (kw) | 1.1 | 1.1 | 1.1 | 0.55 |
Weight (kg) | 800 | 500 | 350 | 150 |
Working Principle
Gravity Shaking Table Working Principle: Shaking table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.
This machine is composed of three parts: head of shaking table, surface of shaking table, as well as bearing and adjusting gradient.
1. Head of shaking table: This is eccentric connecting-rod type mechanism. The motor drives the eccentric shafts to rotate and the connecting rod to move up and down. When the connecting rod pushes down the toggle plate compression spring, the pull rod drives the table surface to move in the direction of table head. When the connecting rod pushes it upward, it, through the spring tension, drives the table surface to move in the opposite direction. When they are linked, the rotating motion of eccentric shaft is changed into horizontal alternating differential motion of table surface.
2. Shaking table for gold table surface: It is mainly composed of vibrating roof, steel skeleton, glass fiber reinforced plastics and wear-proof surface, feed water tank, feed chute, and draw bar. The table surface adopts steel skeleton FRP composite structure. That is, glass fiber reinforced plastics are pasted on steel skeleton to form a solid glass fiber reinforced plastic surface. Its above uses abrasion-proof materials to make surface and riffle (notch groove).
3. Bearing and Adjusting Gradient Mechanism: Shaker table for gold The bearing and adjusting gradient mechanism is mainly composed of shaking support plate, adjusting seat board, saddle seat, and adjusting screw rod. The shaking support plate enables the table surface to make arc forward and backward alternating movement on vertical plane. The shaking support plate and shaking box are fixed on the adjusting seat board with gripping channel steel. When hand wheel regulating screw rod is used to get the adjusting seat board to rotate on the saddle seat, the Transverse gradient of table surface can be adjusted.
This machine is composed of three parts: head of shaking table, surface of shaking table, as well as bearing and adjusting gradient.
1. Head of shaking table: This is eccentric connecting-rod type mechanism. The motor drives the eccentric shafts to rotate and the connecting rod to move up and down. When the connecting rod pushes down the toggle plate compression spring, the pull rod drives the table surface to move in the direction of table head. When the connecting rod pushes it upward, it, through the spring tension, drives the table surface to move in the opposite direction. When they are linked, the rotating motion of eccentric shaft is changed into horizontal alternating differential motion of table surface.
2. Shaking table for gold table surface: It is mainly composed of vibrating roof, steel skeleton, glass fiber reinforced plastics and wear-proof surface, feed water tank, feed chute, and draw bar. The table surface adopts steel skeleton FRP composite structure. That is, glass fiber reinforced plastics are pasted on steel skeleton to form a solid glass fiber reinforced plastic surface. Its above uses abrasion-proof materials to make surface and riffle (notch groove).
3. Bearing and Adjusting Gradient Mechanism: Shaker table for gold The bearing and adjusting gradient mechanism is mainly composed of shaking support plate, adjusting seat board, saddle seat, and adjusting screw rod. The shaking support plate enables the table surface to make arc forward and backward alternating movement on vertical plane. The shaking support plate and shaking box are fixed on the adjusting seat board with gripping channel steel. When hand wheel regulating screw rod is used to get the adjusting seat board to rotate on the saddle seat, the Transverse gradient of table surface can be adjusted.
Our Workshop
Product Configuration

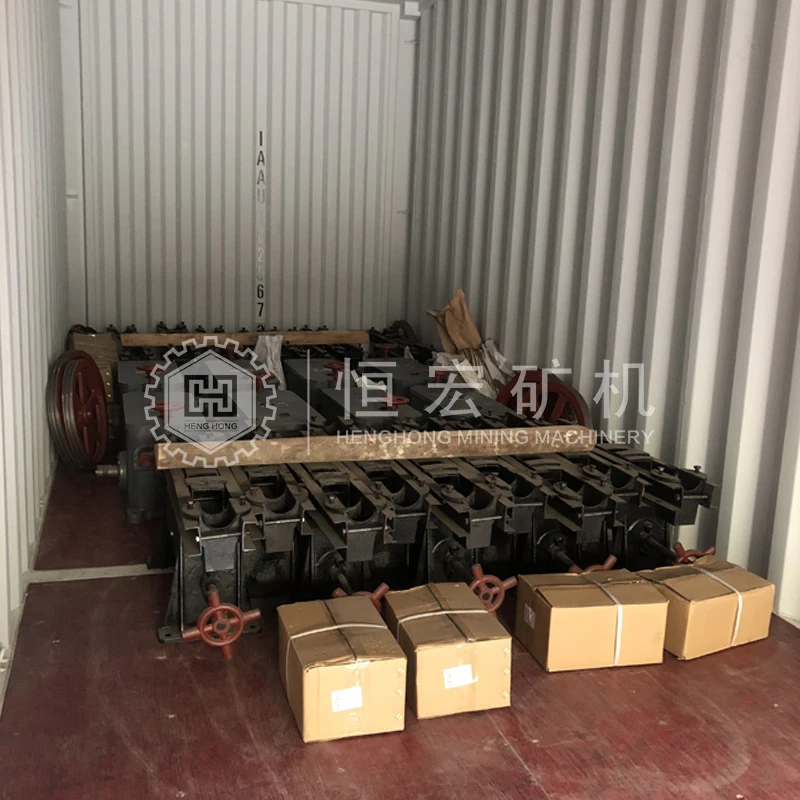

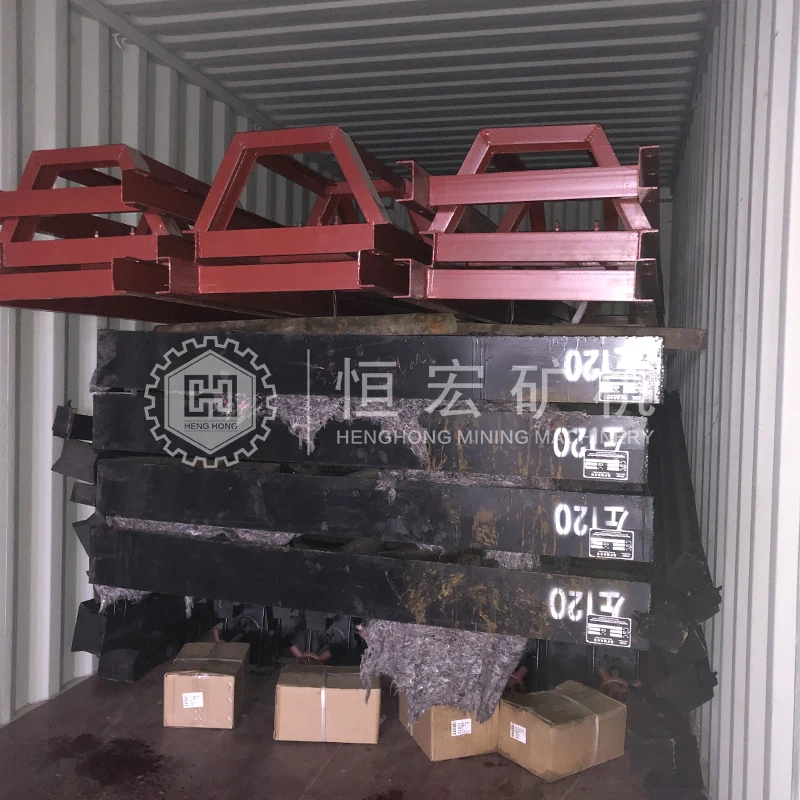

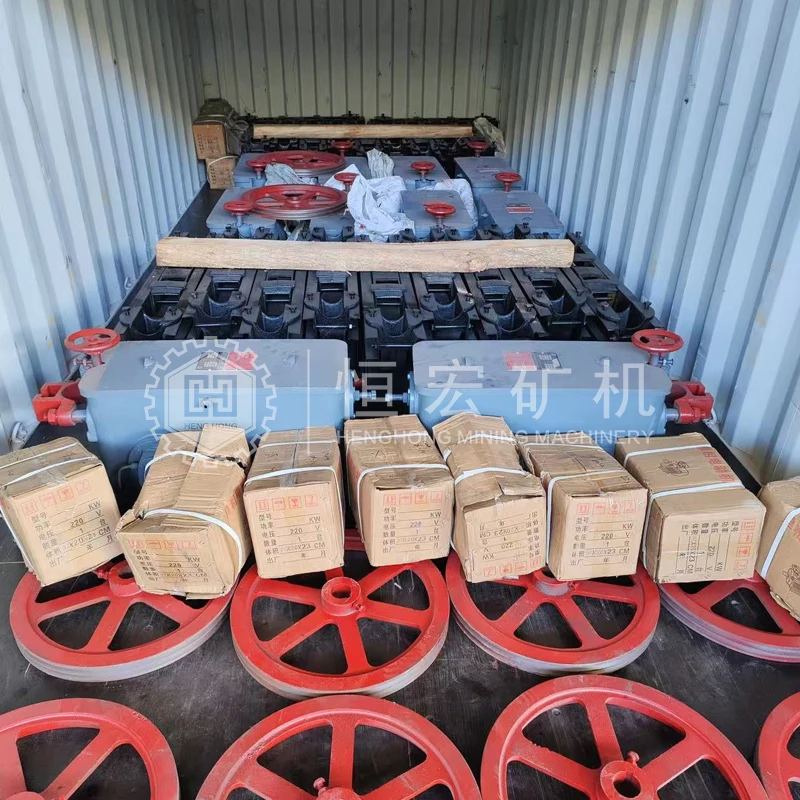

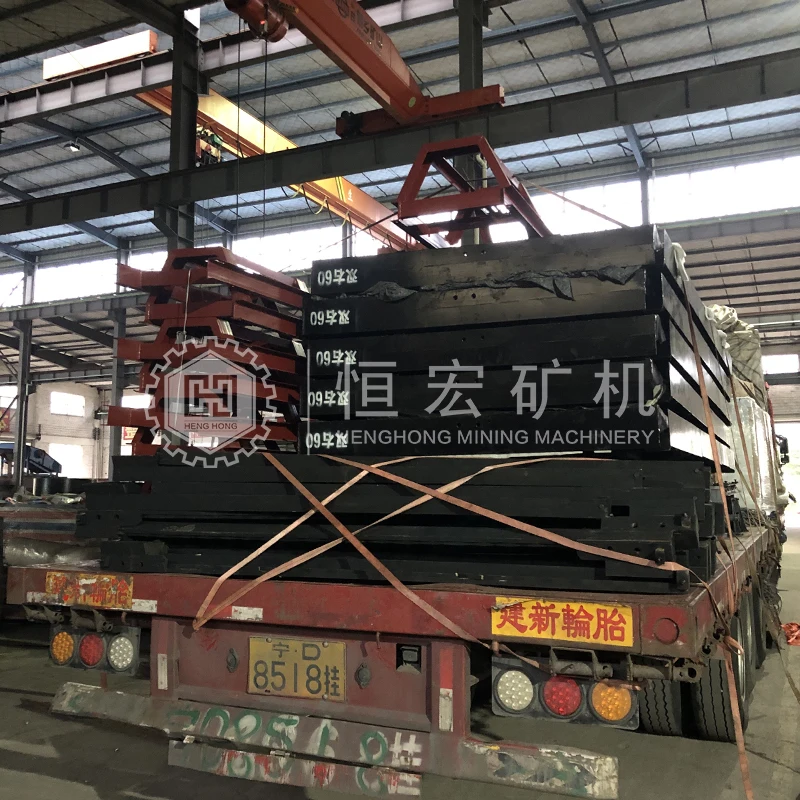

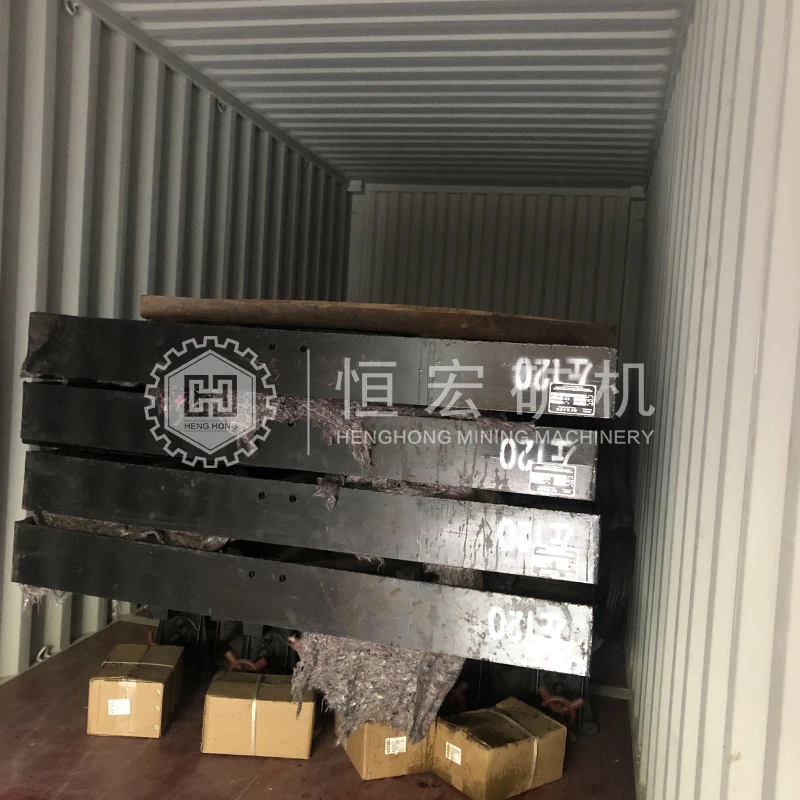

Packing & Delivery
Shipping Way:
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity (LCL or FCL), container have 20GP/40GP/40HQ etc;
※ Other ways as customer requested (such as the buyer can arrange their own cooperated forwarder to pick up the goods from our factory).
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity (LCL or FCL), container have 20GP/40GP/40HQ etc;
※ Other ways as customer requested (such as the buyer can arrange their own cooperated forwarder to pick up the goods from our factory).

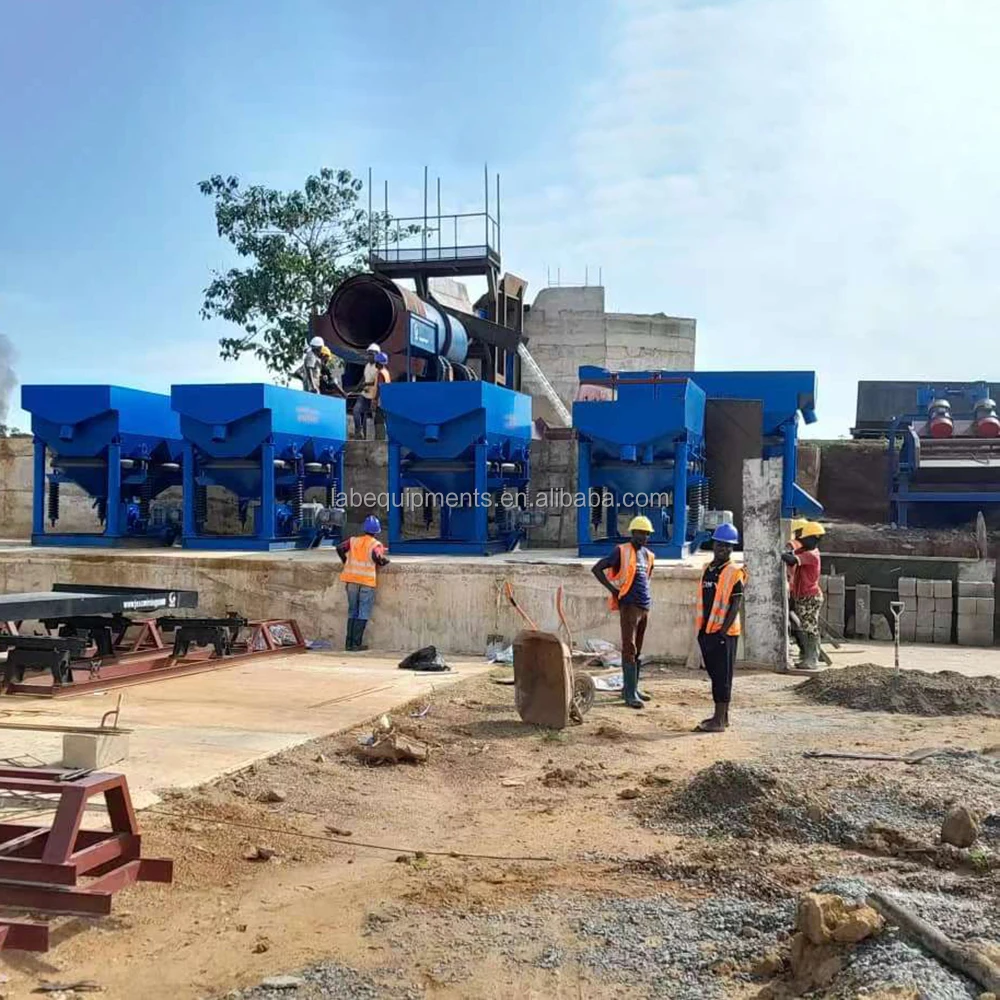

Successful Project
Shaker Table Project in Malaysia
Shaker Table Project in Zimbabwe
Shaker Table Project in Peru
Shaker Table Project in Thailand
Shaker Table Project in Mexico
Shaker Table Project in Indonesia
Shaker Table Project in Sudan
Shaker Table Project in Mongolia
Shaker Table Project in Australia
Popular Products You May Like
FAQ
Q1: Are you manufacturer or trade company?
A1: We are original manufacturer with One-stop service has more than 40 years history in China.
Q2: What's your major products?
A2: Our products have been sold to all over the world, they are ball mill, wet pan mill, jaw crusher, hammer crusher, shaking table, centrifugal concentrator, jig machine, spiral chute, flotation machine, magnetic separator, sand washing machine, gold smelting furnace, belt conveyor, slurry pump etc.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site.
#2 We have engineer in Southeast Asia and Africa, we can supply 7*24 service.
Q4: What about after-sale service?
A4: 18 months warranty for all kinds of products.
Q5: How long is your delivery time?
A5: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q6: What about the payment method?
A6: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
A5: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q6: What about the payment method?
A6: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q7: How to get the free solution and quotation?
A7: Please send inquiry to us on Alibaba, or please scan and add us as below picture, our sales manager will contact you ASAP.
Похожие товары

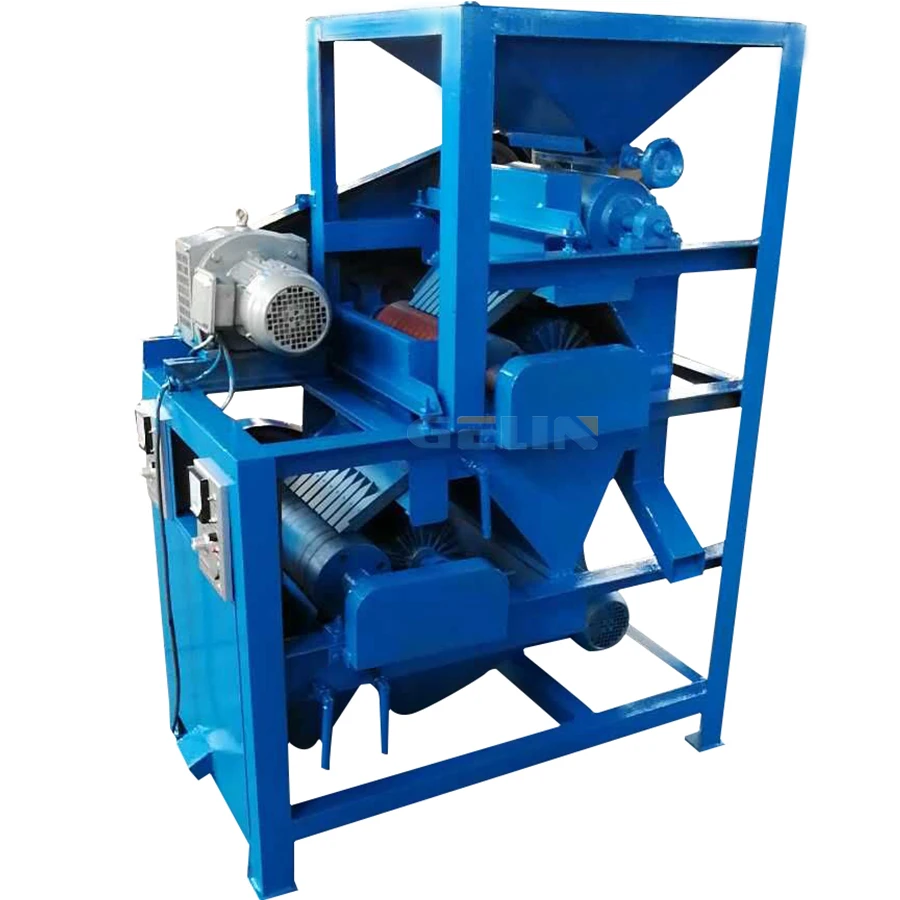

Машина для разделения моназита сухого типа
7 900,00 $
Оборудование для добычи золота гравитационный сепаратор серебряной медной оловянной вольфрамовой алюминиевой железной руды продажи
5TPH JXSC заводская установка для разделения олова 12000GS магнитный сепаратор цена
4 550,00-12 000,00 $
6s гравитационный сепаратор золотой концентратор встряхиватель для минеральной меди тантал колтан олово хром
1 500,00-2 400,00 $

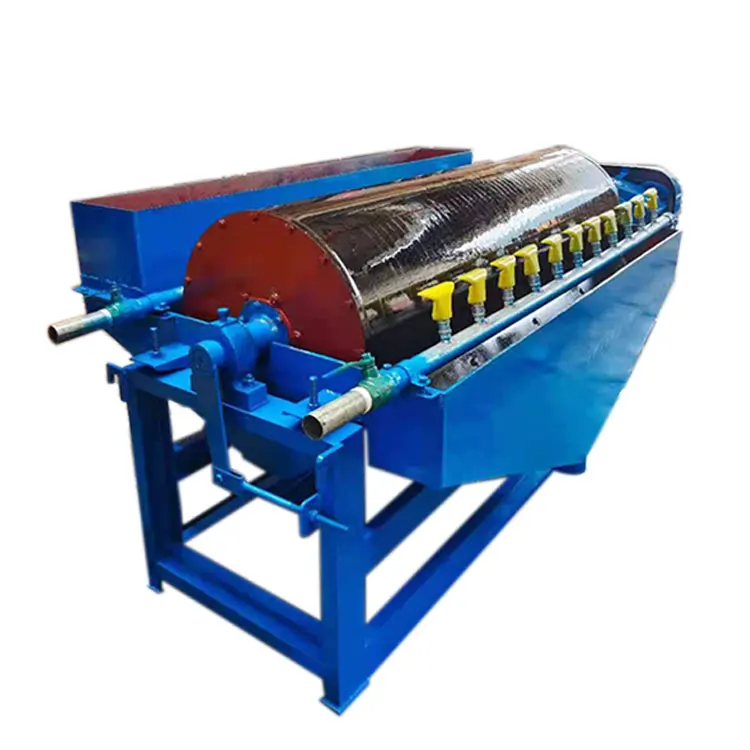

Неодимовый Магнитный барабан 400*600 600*900 магнитный сепаратор для оловянной руды распродажа
2 590,00-2 995,00 $

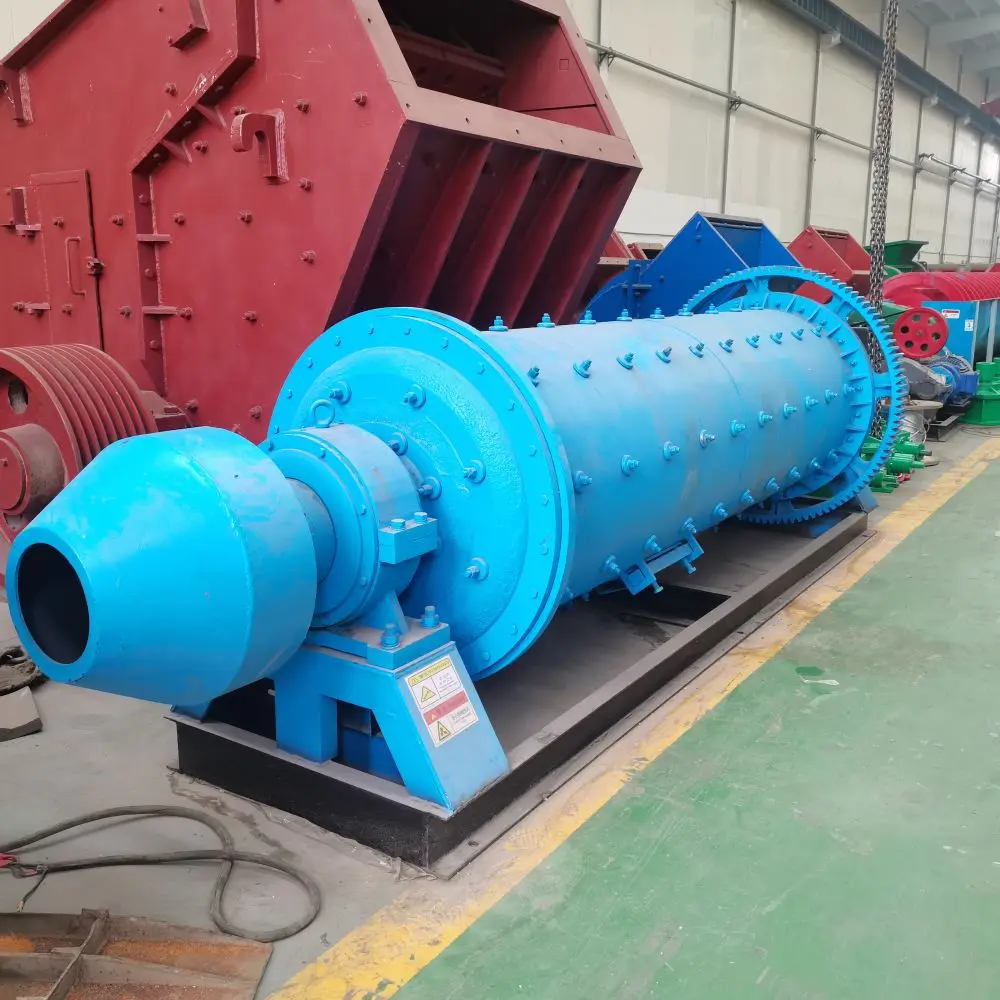

Китайский производитель прямые продажи небольшой шаровой мельницы 0612 0918 0930 1224 медной золотой руды шлифовальный станок
2 500,00-2 800,00 $

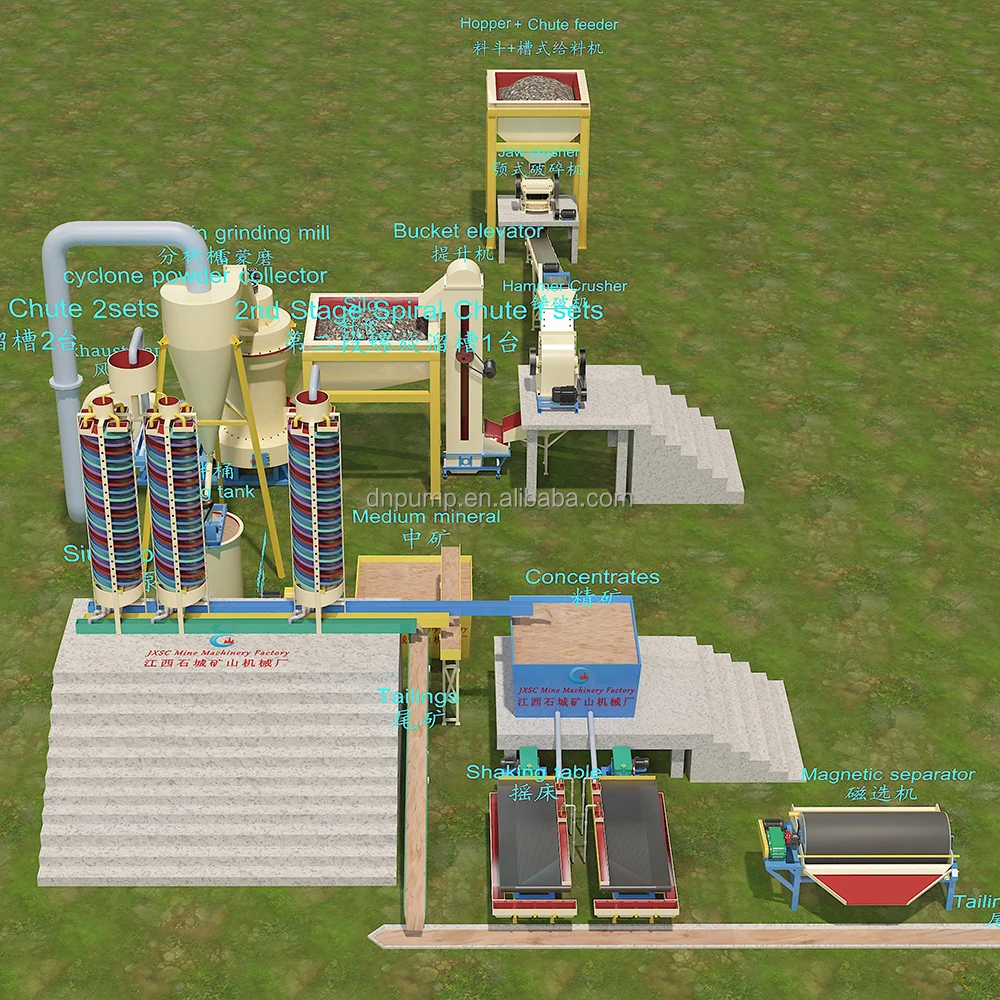

Оборудование для концентрации минералов 500TPD малогабаритный завод по переработке меди
