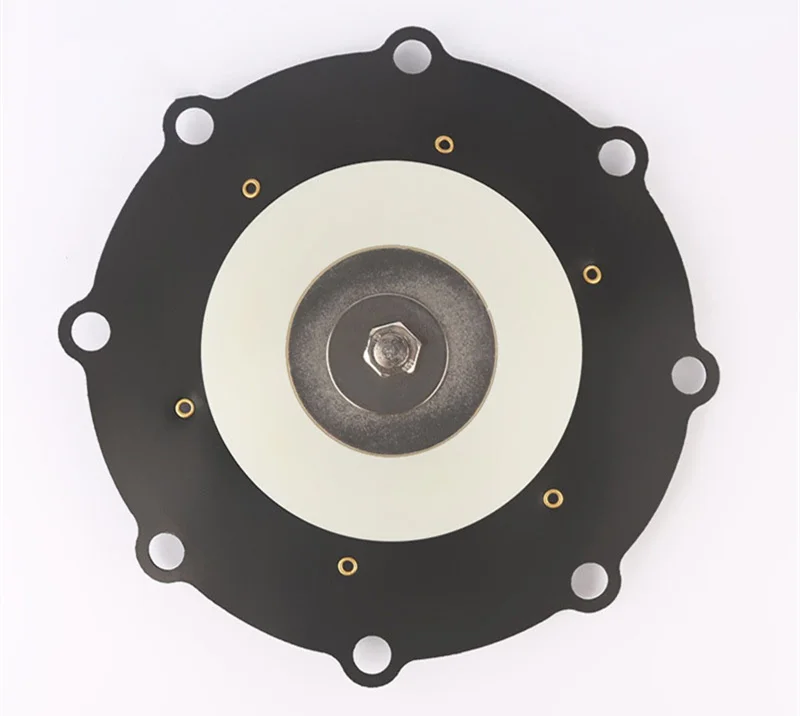

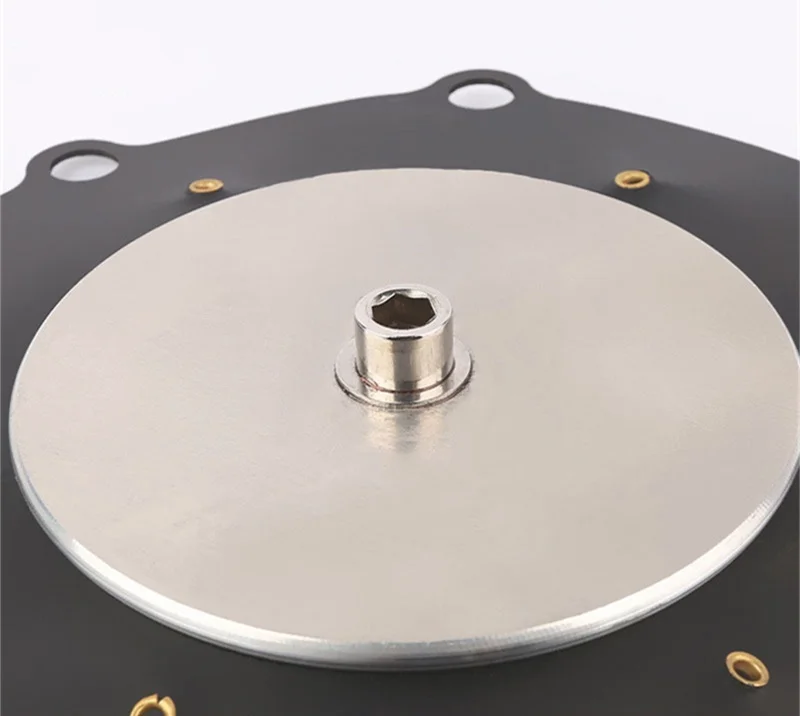

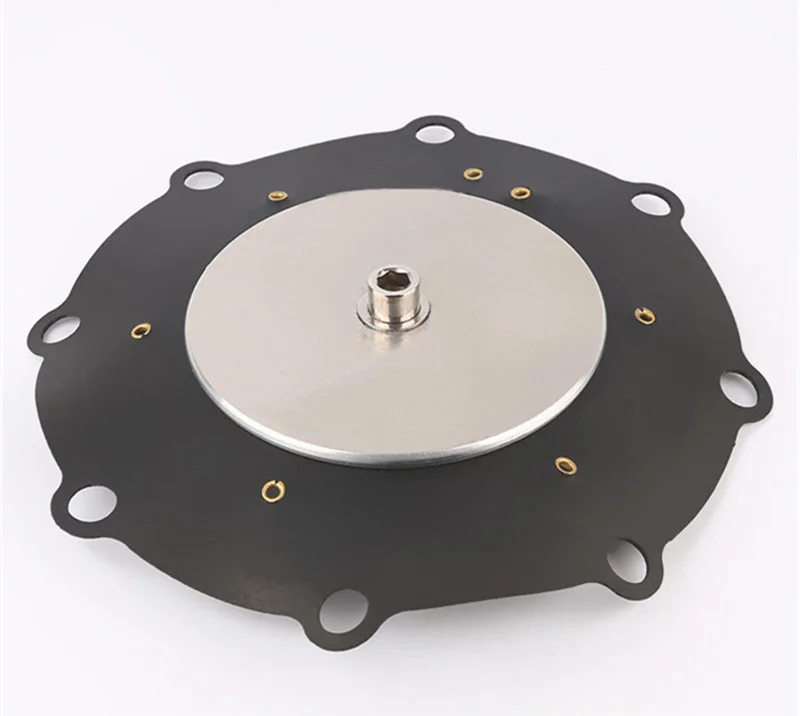

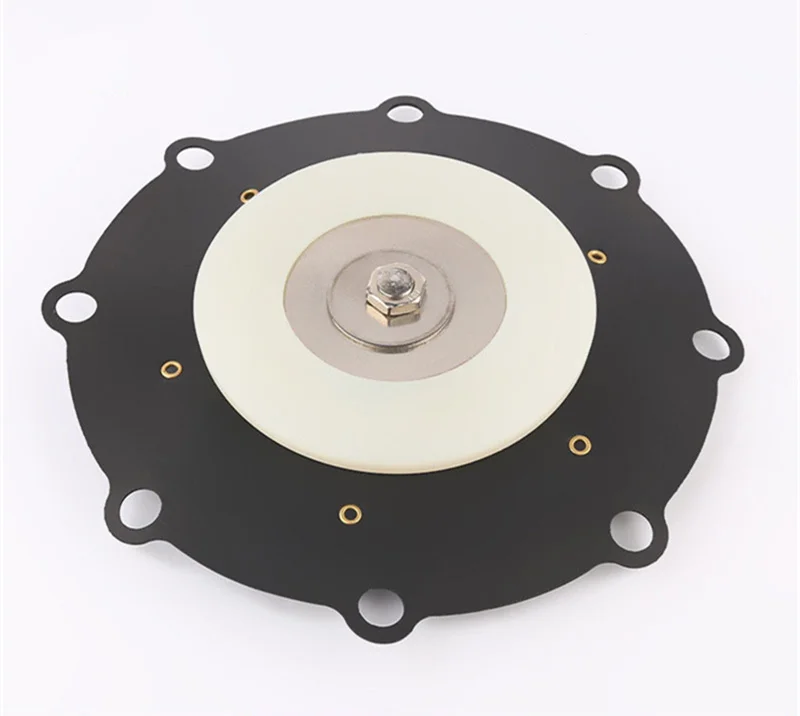

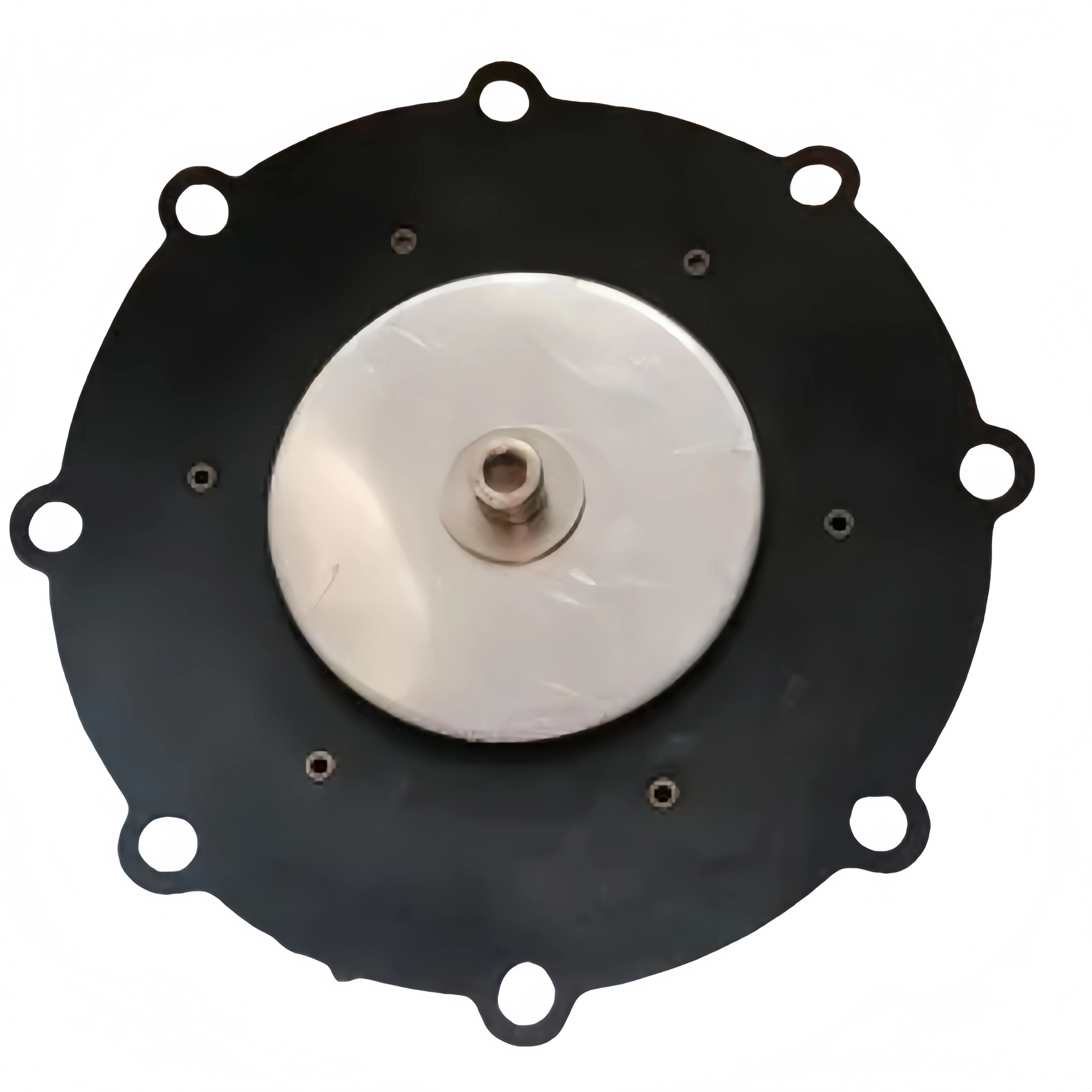

Диафрагма для импульсного клапана C113968968 SCR353G230 SCR353G235 пневматическая Управляющая структура поддерживаемые детали
38,00-40,00 $
Диафрагма C140746 C140745 для импульсного клапана SCR353A230 SCR353A235 Тип АсКо 3 дюймов 5 мембрана
- Категория: >>>
- Поставщик: Qingdao Star Machine Technology Co. Ltd.Qingdao Ltd.
Сохранить в закладки 1601360321904:
Описание и отзывы
Характеристики
Basic Info
The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.
The pulse valve diaphragm is typically made of flexible and durable material like rubber or synthetic elastomers. It consists of a diaphragm disc that seals the valve body and a stem or armature attached to it. When the valve is in a resting state, the diaphragm covers the valve orifice, blocking the airflow.
The pulse valve diaphragm is typically made of flexible and durable material like rubber or synthetic elastomers. It consists of a diaphragm disc that seals the valve body and a stem or armature attached to it. When the valve is in a resting state, the diaphragm covers the valve orifice, blocking the airflow.
Good adhesion and tensile strength to ensure the sealing of the diaphragm
ensure the flexibility of the diaphragm
Good corrosion resistance, can be used normally in compressed air containing oil, water and other components
Pulse Valve Port Size | Pulse Valve Model No | Diaphragm Model No | Diaphragm Material |
3/4'' | SCG353A043 SCG353G043 SGG353A043 | C113444 | TPE, NBR, FKM |
1'' | SCG353A044 SCG353G044 SGG353A044 | ||
3/4'' | SCG353-052 SCG353G052 SGG353-052 | ||
1'' | SCG353-053 SCG353G053 SGG353-053 | ||
1 1/2'' | SCG353A047 SCG353G047 SGG353A047 | C113827 | NBR, FKM |
SCG353A065 SCG353G065 SGG353A065 | |||
2'' | SCG353A050 SCG353G050 SGG353A050 | C113685, C113686 | |
2 1/2'' | SCG353A051 SCG353G051 SGG353A051 | ||
3'' | SCG353D060 SCG353G060 | C123432, C123433 | |
3'' | SCXE353.060 SCR353G060 | C113928 | |
3'' | SCR353A230 SCR353G230 | C113968968, C140746 | |
3 1/2'' | SCR353A235 SCR353G235 | C113968968, C140745 | |
3/4'' | G353A041 | C113443 | TPE, NBR, FKM |
1'' | G353A042 | ||
3/4'' | G353-055 | ||
1'' | G353-056 | ||
1 1/2'' | G353A045 | C113825 | NBR, FKM |
G353-066 | |||
G353A046 | C113826 | ||
G353A063 | |||
2'' | G353A048 | C113684 | |
2 1/2'' | G353A049 |
International Express, Air, Sea and other Delivery Methods Can Be Selected to Delivery
Application in Industrial
Working with Qingdao Star Machine Technology Co.,ltd. for dust collection needs is as easy as requesting a quote. Once in touch with our sales team, our dedicated representative will work with you from start to finish, gain a deep understanding of your needs, and provide the best solutions to the problems you face. Qingdao Star Machine Technology Co.,ltd. will not waste your time.
We respect your position in the market and provide honest, up-front information that saves you time, cost, and peace of mind.
Qingdao Star Machine Technology Co.,Ltd. are here to make sure that you get the best experience possible while we provide solutions for your industrial dust collection needs. That’s what makes us the best dust collector manufacturer in the world. We actually care about your success. Whether you need dust collector filter bags, valves, or a whole new system, we have you covered. Contact us today to start a conversation.
We respect your position in the market and provide honest, up-front information that saves you time, cost, and peace of mind.
Qingdao Star Machine Technology Co.,Ltd. are here to make sure that you get the best experience possible while we provide solutions for your industrial dust collection needs. That’s what makes us the best dust collector manufacturer in the world. We actually care about your success. Whether you need dust collector filter bags, valves, or a whole new system, we have you covered. Contact us today to start a conversation.
Why Choose Us
Once in touch with Star Machine China sales team, our dedicated representative will gain a deep understanding of your needs, and provide the best solutions to the problems you face. We respect your position in the market and provide honest, up-front information that saves you time, cost, and peace of mind.
We work pro-actively with you to offer expert advice and product recommendations in order to end up with a most cost effective product available for your specific application. The clients we serve worldwide range from end users to distributors and OEMs. Our OEM replacements can be substituted wherever necessary and suitable for both repair and new assemblies.
