Ace Grade Cloth Screen Belt Press Juice Belt, Media For Food Industry, Filter Suppliers
22 Years Of Experience. Reasonable Price And Best Service, CE Certificated Products. Fast delivery in 7–15 days. Please contact us for the offer.
Video
Products Description
Description:

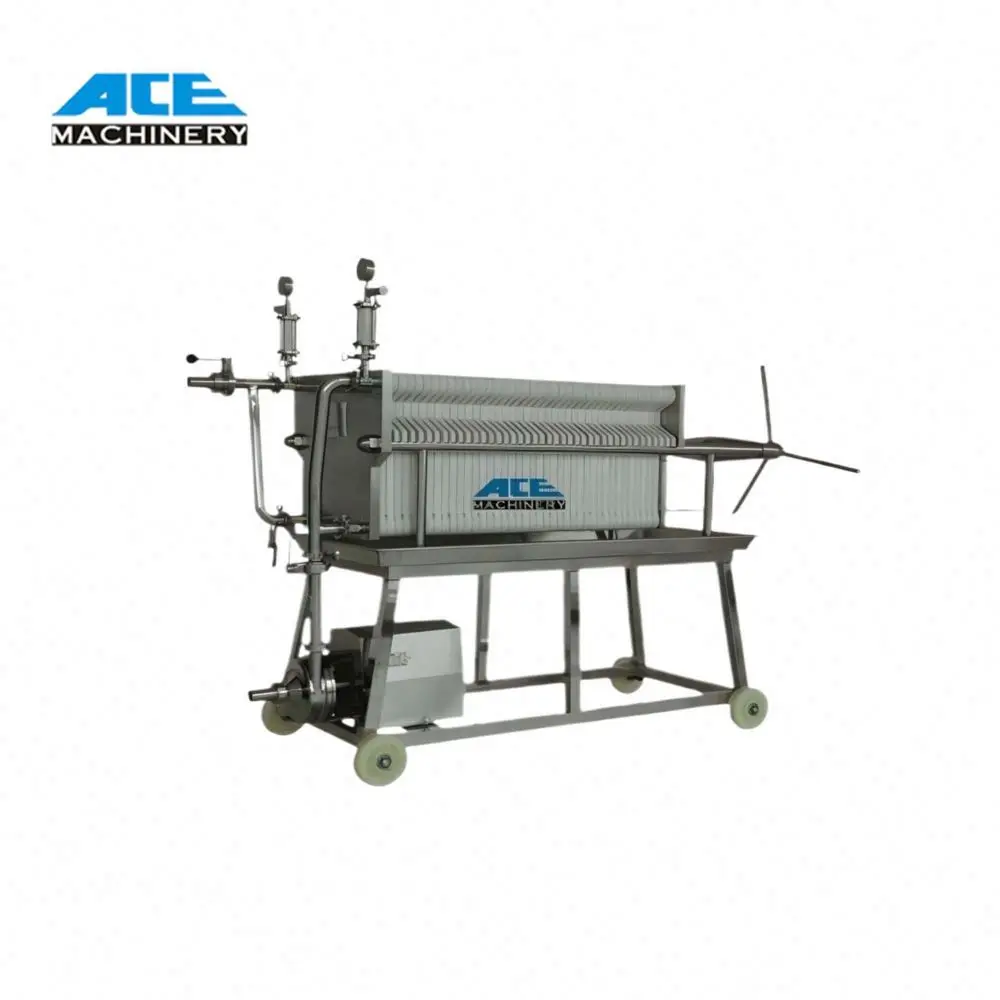

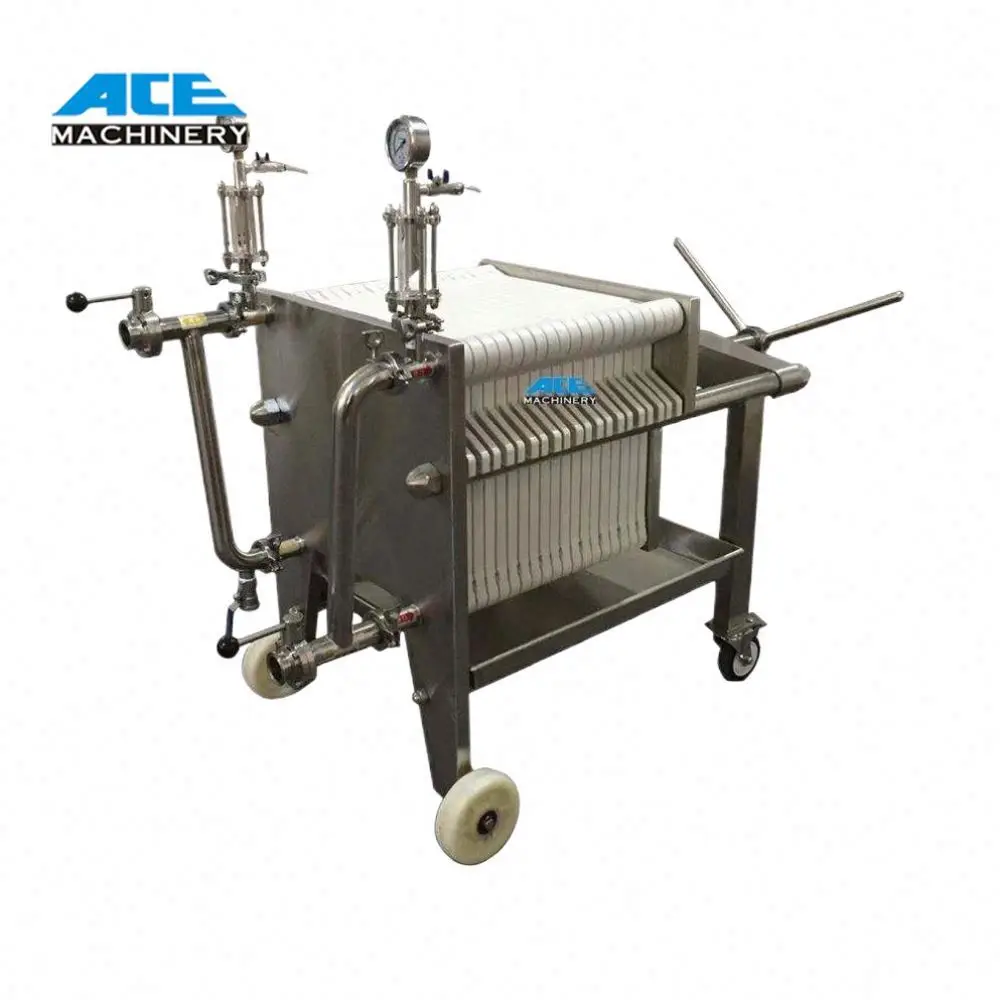

Our stainless steel multilayer plate and frame filter is for fine filtering. Its surface is polished, has seals, and normally used together with S.S. feeding pump, so it’s usually used for following industries: laboratory, fine chemicals, medicine, food, maple syrup, chemical, beer, wine, oil, etc.
If you are working in the food industry, you must, will need it. This plate and frame filter a full stainless steel one, health and safety. Even the feed pump, you can choose a stainless steel one.
If you are working in the food industry, you must, will need it. This plate and frame filter a full stainless steel one, health and safety. Even the feed pump, you can choose a stainless steel one.
Working principle
When the crude oil is pumped into the filtering machine, under the different pressure in and outside the machine, the crude oil goes through the filtering cloth and come out from the pipe under the filter plate, while the oil dregs remains on the surface of the filtering cloth, thus realizing the filtering process.
Charcteristic Of Plate Filter
The filter is made of S.S. 304 or S.S. 316L as your requirement, which are features of corrosion-resistant and long life-span.
The filter plates use screw thread structure. It can change filtering media (if it uses filter membrane, it can even remove the bacteria) according to your material and your technical requirements (primary filtration / medial fine filtration/ fine filtration).
The layers can be added or decreased to your actual capacity.
The filter works under pressure without leakage and the filtrate is very clean.
It can be used as multilevel filtering devices: the first level uses rough filtering media. The second level can use fine media, so that it can improve the filtering effect and efficiency.
All seals are made of silica rubber, which can endure high temperature and no toxicity, no leakage.
The filter plates use screw thread structure. It can change filtering media (if it uses filter membrane, it can even remove the bacteria) according to your material and your technical requirements (primary filtration / medial fine filtration/ fine filtration).
The layers can be added or decreased to your actual capacity.
The filter works under pressure without leakage and the filtrate is very clean.
It can be used as multilevel filtering devices: the first level uses rough filtering media. The second level can use fine media, so that it can improve the filtering effect and efficiency.
All seals are made of silica rubber, which can endure high temperature and no toxicity, no leakage.
Filter plate Material: | White High Strength Reinforced Polypropylene (PP) or Stainless steel 304 | |
Frame Material | 304 Stainless Steel | |
Valve Material: | 304/316 Stainless Steel | |
Seal Ring: | White Silicone Rubber (other special materials can be customized) | |
Frame size: | 300mm * 300mm (Can be customized) | |
single filter volume | < 1L | |
Use Pressure | <0.3MPa | |
Use Temperature: | <70 Temperature | |
We can customize the equipment according to customer requirements. | ||

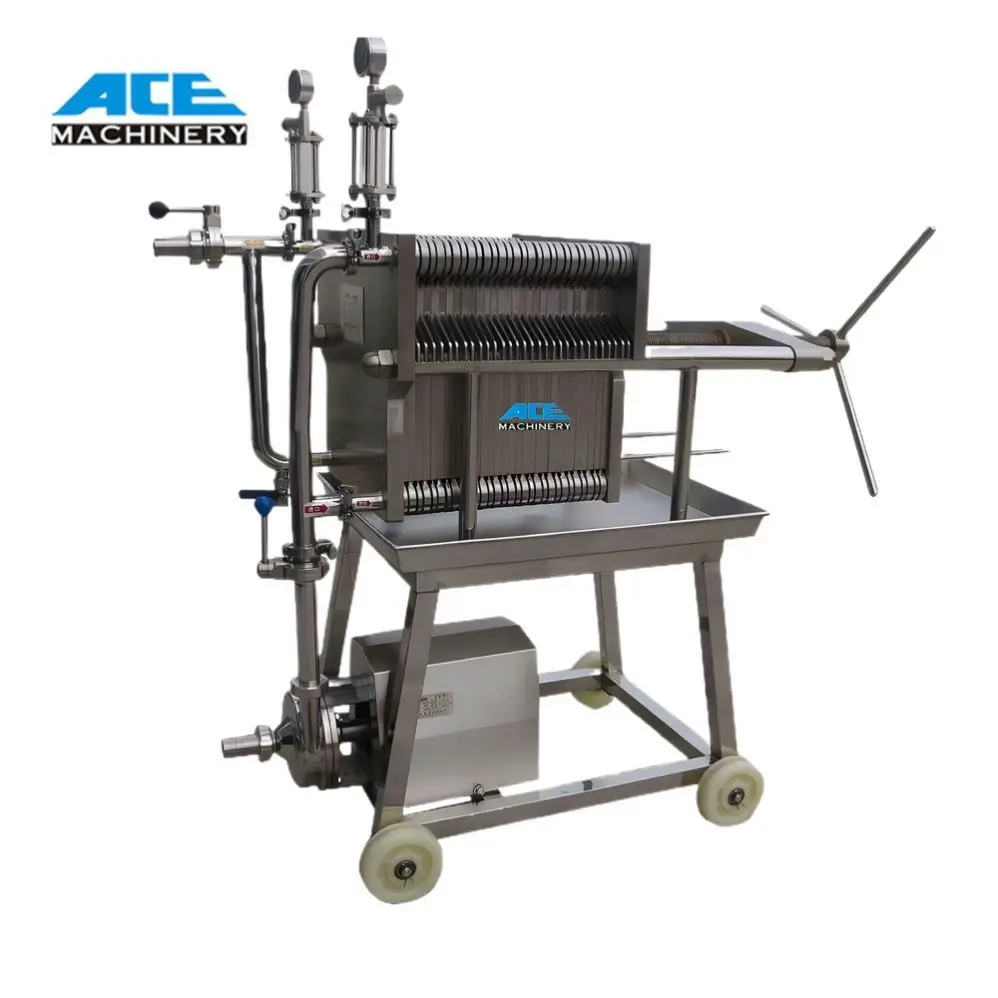

Structure:
1. Pressure gauge;2. Sampling valve;3. Sight cup;4. Liquid outlet;5. Vent valve;6. Feed port
7. Feed pump;8. Thrust plate;9. Filter plate;10. Filter frame;11. Pressing plate;12. Hand wheel screw
13. Cardboard support rod;14. Liquid tray;15. Universal wheel
7. Feed pump;8. Thrust plate;9. Filter plate;10. Filter frame;11. Pressing plate;12. Hand wheel screw
13. Cardboard support rod;14. Liquid tray;15. Universal wheel

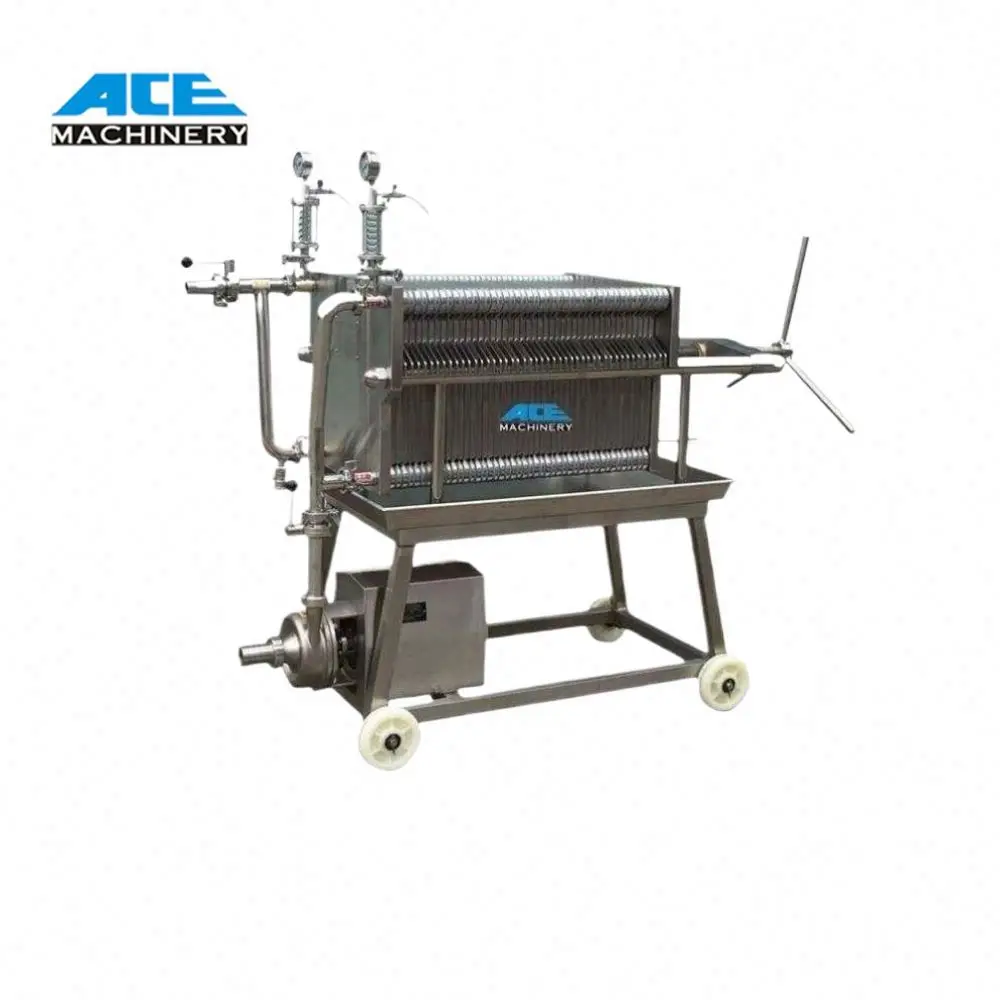

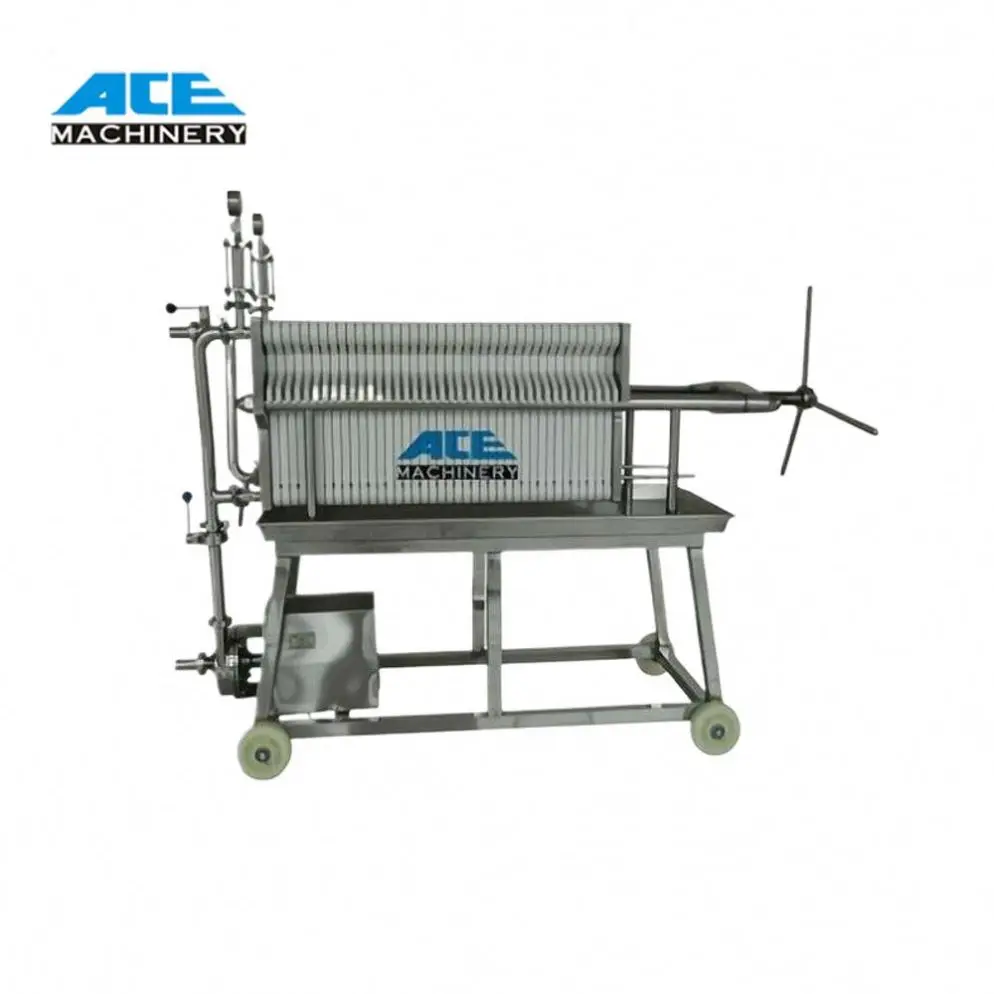

Details Images
We are experienced in the whole packing and shipping process,and we will be responsible for any damage made during shipping and send clients replacements for free.
* Sufficient inner protection with different materials, including bubble bag, foam board and others.
* Qualified wooden package or carton for different products or as customer require
* Strict packing process to ensure the safety and completeness of the goods
* Sufficient inner protection with different materials, including bubble bag, foam board and others.
* Qualified wooden package or carton for different products or as customer require
* Strict packing process to ensure the safety and completeness of the goods
FAQ
Q | Are you trade or manufacturer? | ||||||
A | We are a factory with an international sales company specialized in support for global distributors. | ||||||
Q | Can you provide instant technical consulting services? | ||||||
A | We are able to discuss technical details and offer suggestions over the phone in English. You can get the answers in minutes, instead of days. | ||||||
Q | What's the difference between Ready-To-Ship and Customized products? | ||||||
A | Some of RTS standard products are in stock and ready to ship in 2-3 days. We can also quick design and make the drawings for customer requirements, then begin the production. | ||||||
Q | What is the payment terms? | ||||||
A | We accept Alibaba Trade Assurance Order, also can T/T and L/C. | ||||||
Q | How to choose the shipment way? | ||||||
A | It is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers) | ||||||
Q | How about the after-sales service? | ||||||
A | Fast after-sales support. Our products have a one-year warranty and free permanent consulting services. | ||||||
