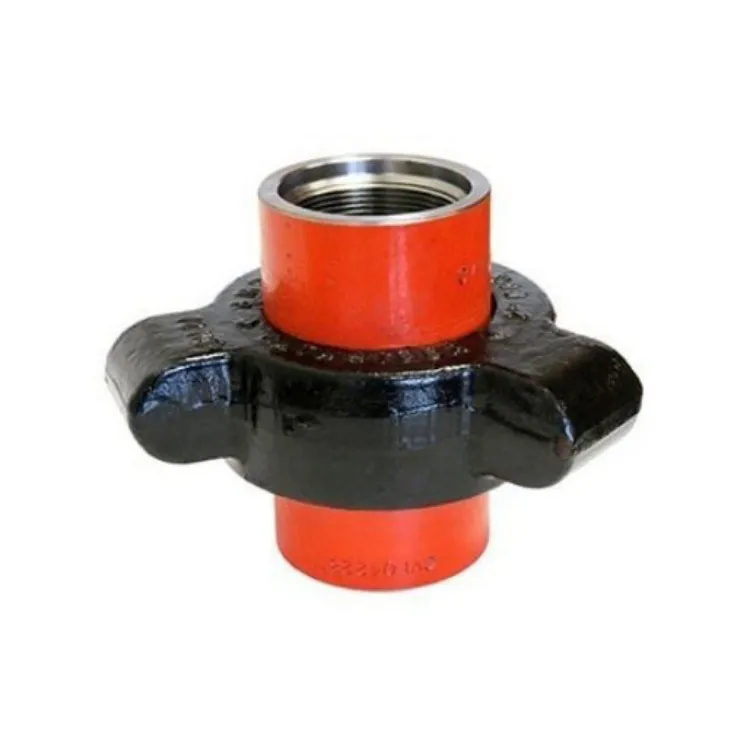

High Performance Drilling Tools Fig Hammer Union for Sale
Products Description

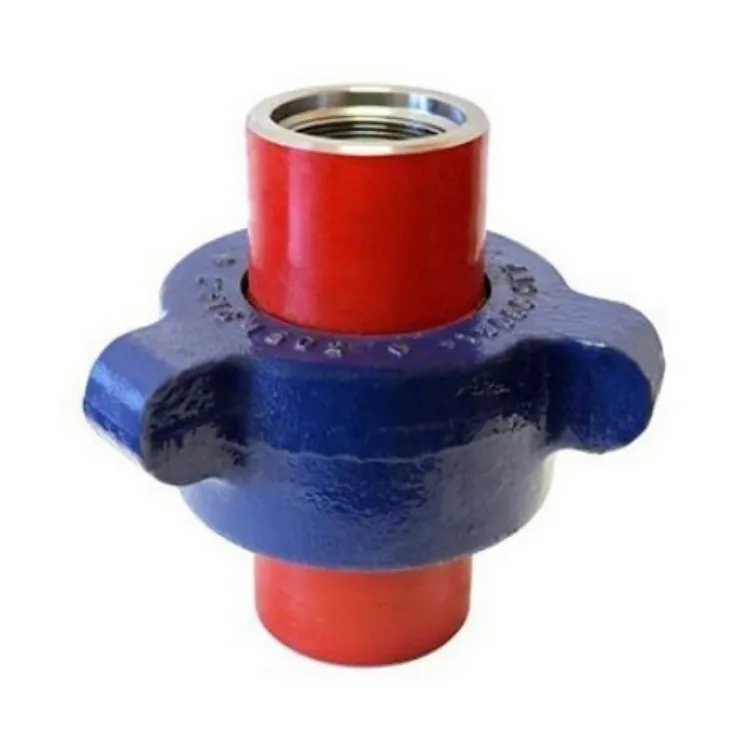

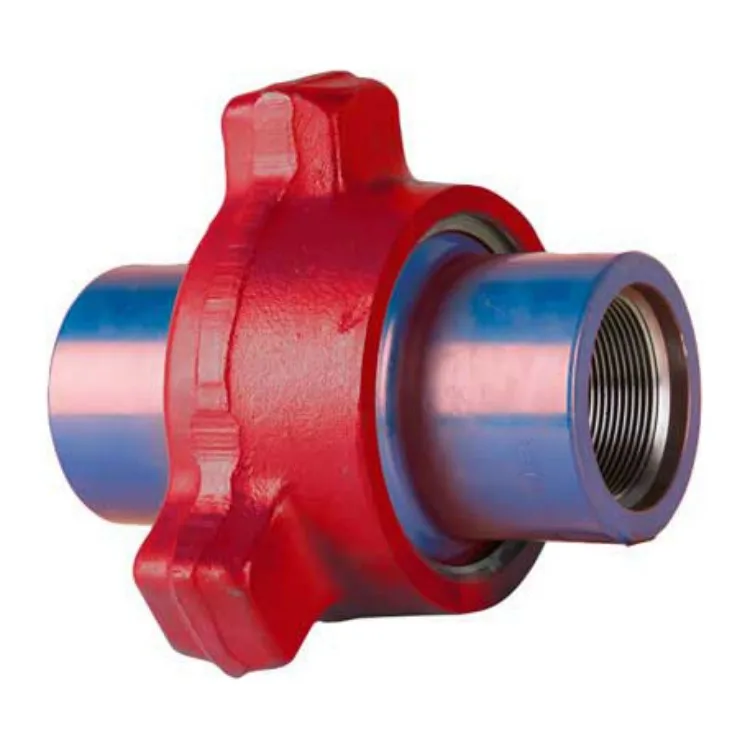

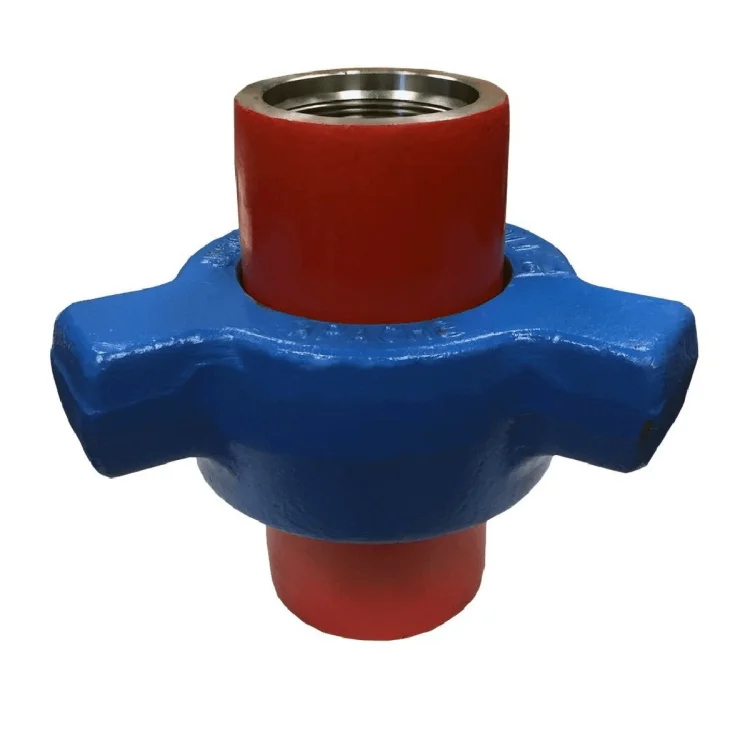

1. Hammer Unions are high-pressure threaded or welded connections with two halves a threaded female half and a wing male half with swivel nut that fit together and seal upon turning and then hammering the nut half together with the threaded half.For easy identification,unions with different pressure ratings will be painted in different colors,and there are evident marks indicating size,connecting mode and pressure ratings.
2. Seal rings are made of quality rubber compound which greatly enhance load-bearing capacity and sealing performance and protect connectors from erosion.Different pressures and applications have different sealing method.Wherever they are,wing nuts and right ACME will ensure quick installation or dismantling without special tools.
3. Hammer union is used to connect kinds of manifold and lines. It can be divided into three types: threaded connection hammer union, welded hammer union, anti-hydrogen sulfide hammer union.
4. As a kind of oilfield drilling equipment, its size can be from 1 inch to 4 inch, cold working pressure from 7 Mpa to 140Mpa(1000psi-20000psi),1"-6" and CWP of 1000psi-20,000psi unions are available.
4. As a kind of oilfield drilling equipment, its size can be from 1 inch to 4 inch, cold working pressure from 7 Mpa to 140Mpa(1000psi-20000psi),1"-6" and CWP of 1000psi-20,000psi unions are available.
The API 6A and 16C cetification, prevent H2S union according to the NACE standard MAr0175.
Hammer Union Features
1.Models of threaded connection hammer unions: fig 100, fig 200, fig 206, fig 207, fig 211, fig 400, fig 600, fig 602, fig1002, fig1003, fig 1502, fig1502, fig2002, fig2202. 2.Size: 1/2" - 12"
3.Working Pressure: 500PSI - 20000PSI Fig No.:Fig 50, Fig 100, Fig 206, Fig1002, Fig 1502 etc End
4.Connections: Line Pipe/Threaded(TxT), Butt Weld(BW), NPTS
5.Shape: Equal or Reducing
Specification
Figure No. | Cold working | Test | Cold working | Test |
100 | 1000 69 | 1500 103 | N/A | N/A |
200 | 2000 138 | 3000 207 | N/A | N/A |
206 | 2000 238 | 3000 207 | N/A | N/A |
207 | 2000 138 | 3000 207 | N/A | N/A |
400 | 2500 172 | 3750 259 | 2500 172 | 3750 259 |
400 | 4000 276 | 6000 414 | 4000 276 | 6000 414 |
602 | 6000 414 | 9000 621 | 6000 414 | 9000 621 |
1002 | 10000 690 | 15000 1034 | 7500 517 | 11250 776 |
1003 | 10000 690 | 15000 1034 | 7500 517 | 11250 776 |
1502 | 15000 1034 | 22500 1551 | 10000 690 | 15000 1034 |
1505 | 15000 1034 | 22500 1551 | 10000 690 | 15000 1034 |
2002 | 20000 1379 | 30000 2068 | N/A | N/A |
2202 | N/A | N/A | 15000 1034 | 22500 1551 |
Packing&Shipping
Standard shipping packing
Company Profile
Dongying LINK Petroleum Equipment Co.Ltd
Dongying LINK Petroleum Equipment Co.Ltd, is a professional equipment manufacturer , sales and service provider focusing on the oil and gas industry.
We provide many types of drilling equipment, as well as corresponding accessories and services,including cementing and drilling tools, handing tools, mud pump parts, valves, solid control and well control equipment, etc. All products are certified to international standards API, ensuring reliability and safety under extreme conditions.
We try our best to provide high-quality, high-performance petroleum equipment, and we are very glad to establish a long-term business relationship with you. If you are interested in any of our products, please feel free to contact us for more information.
We provide many types of drilling equipment, as well as corresponding accessories and services,including cementing and drilling tools, handing tools, mud pump parts, valves, solid control and well control equipment, etc. All products are certified to international standards API, ensuring reliability and safety under extreme conditions.
We try our best to provide high-quality, high-performance petroleum equipment, and we are very glad to establish a long-term business relationship with you. If you are interested in any of our products, please feel free to contact us for more information.
Customer Photos
Certifications
Factory Equipment
FAQ
Q1:How to get an accurate quotation?
A1: You should offer concrete technical requirements, drawings, pictures and so on, then our engineers will provide solutions and quotations in time.
Q2. How about your MOQ?
A2: Min order quantity is different depending on your quantity.
Q3. How about your delivery time?
A3: The specific delivery time depends on the items and the quantity of your order. And also our price is based on products and order quantity.
Q4. How about the Payment terms?
A4: Generally, T/T, 30% deposit in advance +70% balance before shipment.
Q5: How about your after-sales service?
A5:As a manufacturer, we accept goods return or replace for quality problem. Backup skillful and experienced sales team would help you get an efficient solution.
A1: You should offer concrete technical requirements, drawings, pictures and so on, then our engineers will provide solutions and quotations in time.
Q2. How about your MOQ?
A2: Min order quantity is different depending on your quantity.
Q3. How about your delivery time?
A3: The specific delivery time depends on the items and the quantity of your order. And also our price is based on products and order quantity.
Q4. How about the Payment terms?
A4: Generally, T/T, 30% deposit in advance +70% balance before shipment.
Q5: How about your after-sales service?
A5:As a manufacturer, we accept goods return or replace for quality problem. Backup skillful and experienced sales team would help you get an efficient solution.
Похожие товары

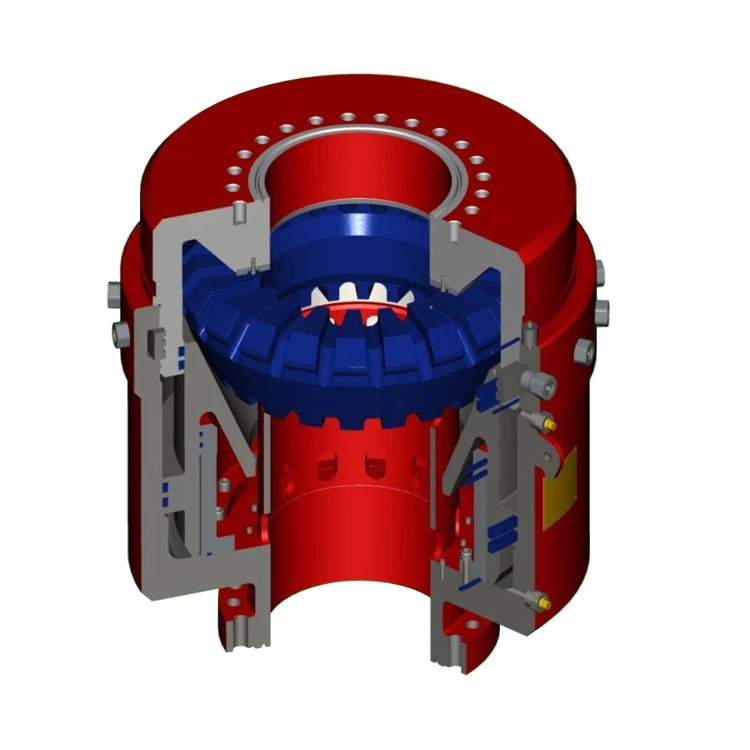

API 16A 13 5/8 дюйма 5000 фунтов на квадратный дюйм кольцевая буровая установка для бурения скважин
517 для бурения скважин на воде 14 3/4
4 500,00 $
2.01.06.6513 для Sandvi Atlas Cop Epiro оптовая продажа высококачественных исправных и оригинальных запасных частей майнинга
3,89-4,99 $
Лидер продаж 2023 осушение полезная система обсадных труб симметричное сверло с перегрузкой по низкой цене сделано в Китае
Карбид вольфрама
2,00-6,00 $
Высококачественный измерительный манометр с высокой точностью
140,00-150,00 $

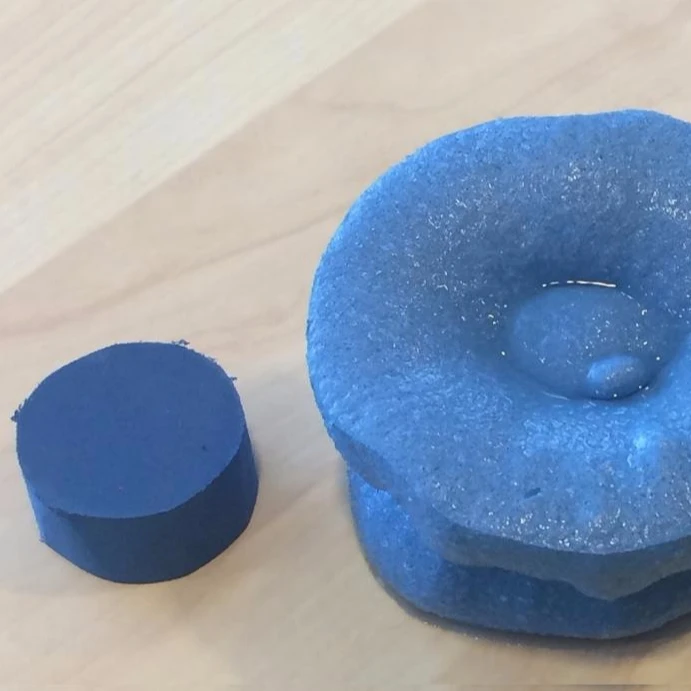

Водная/масляная отечная резина для упаковщика
