Лидер продаж 2023 мобильная бетоносмесительная установка YHZS50 цена на продажу
23 193,00 $

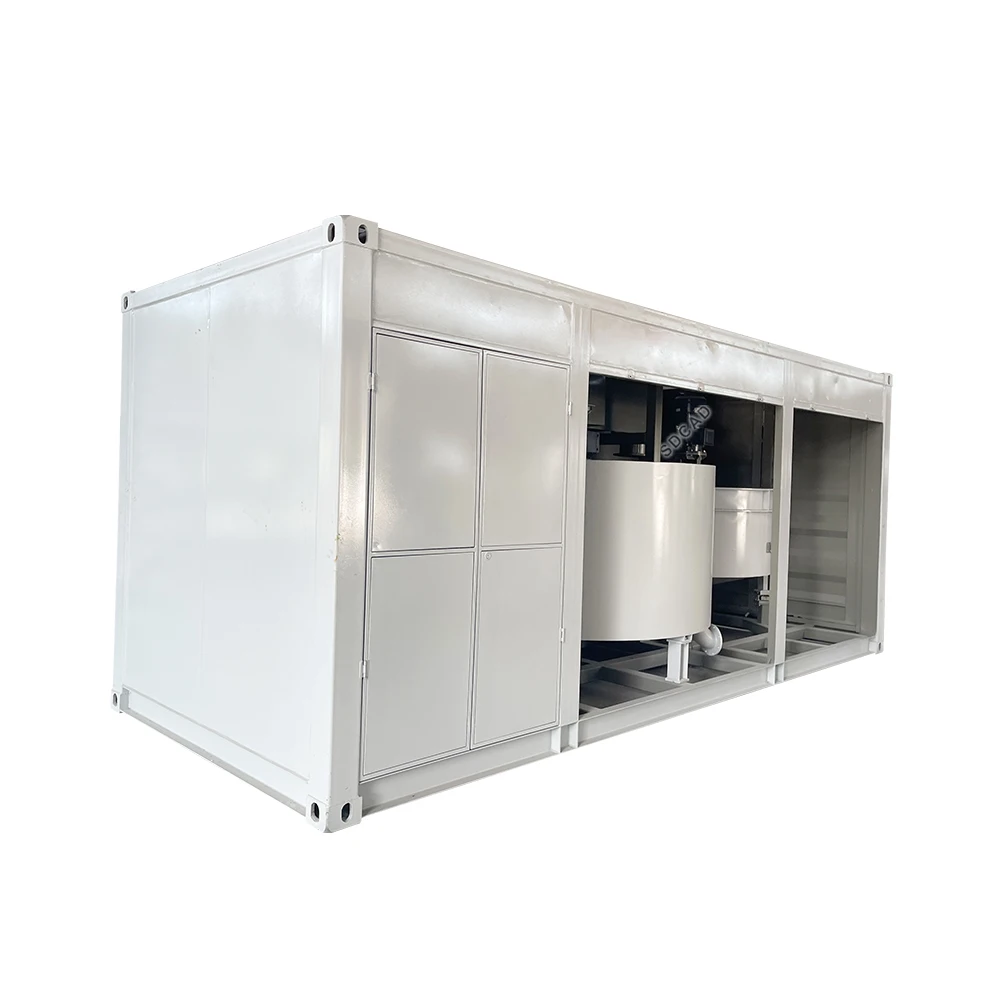

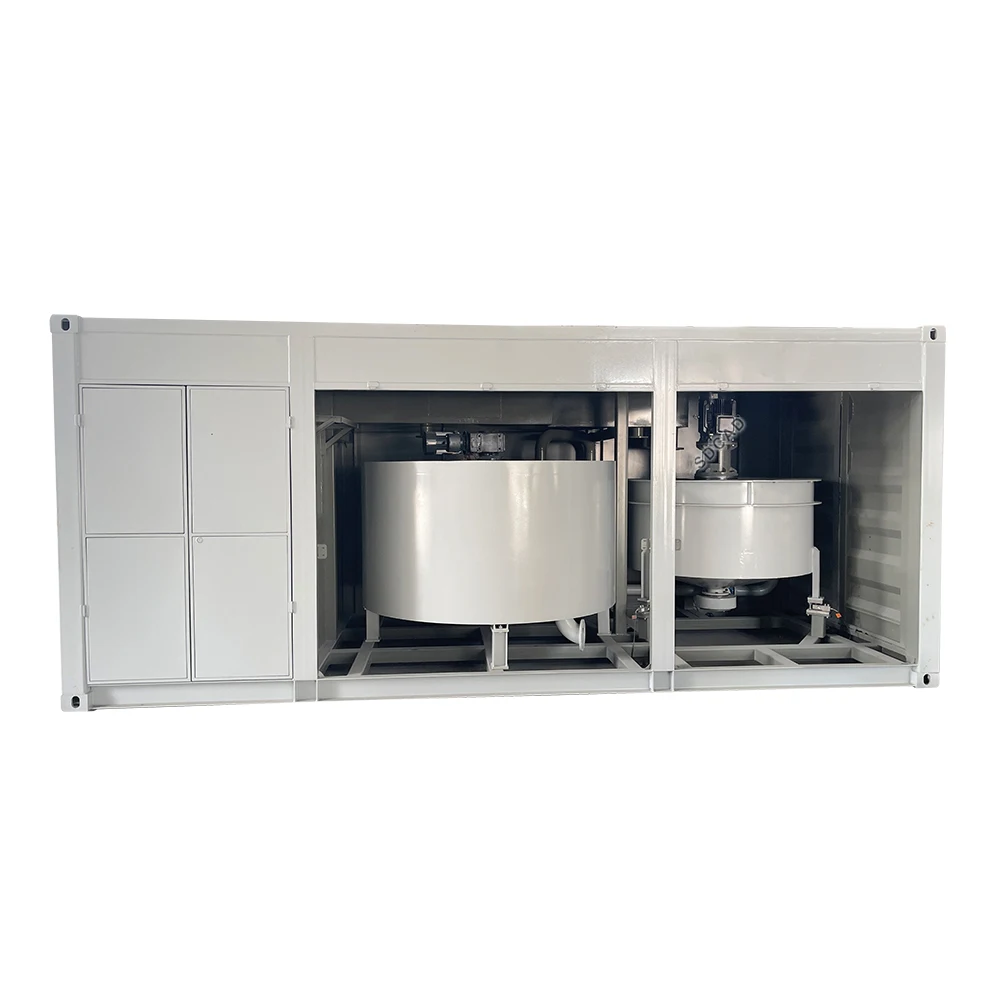

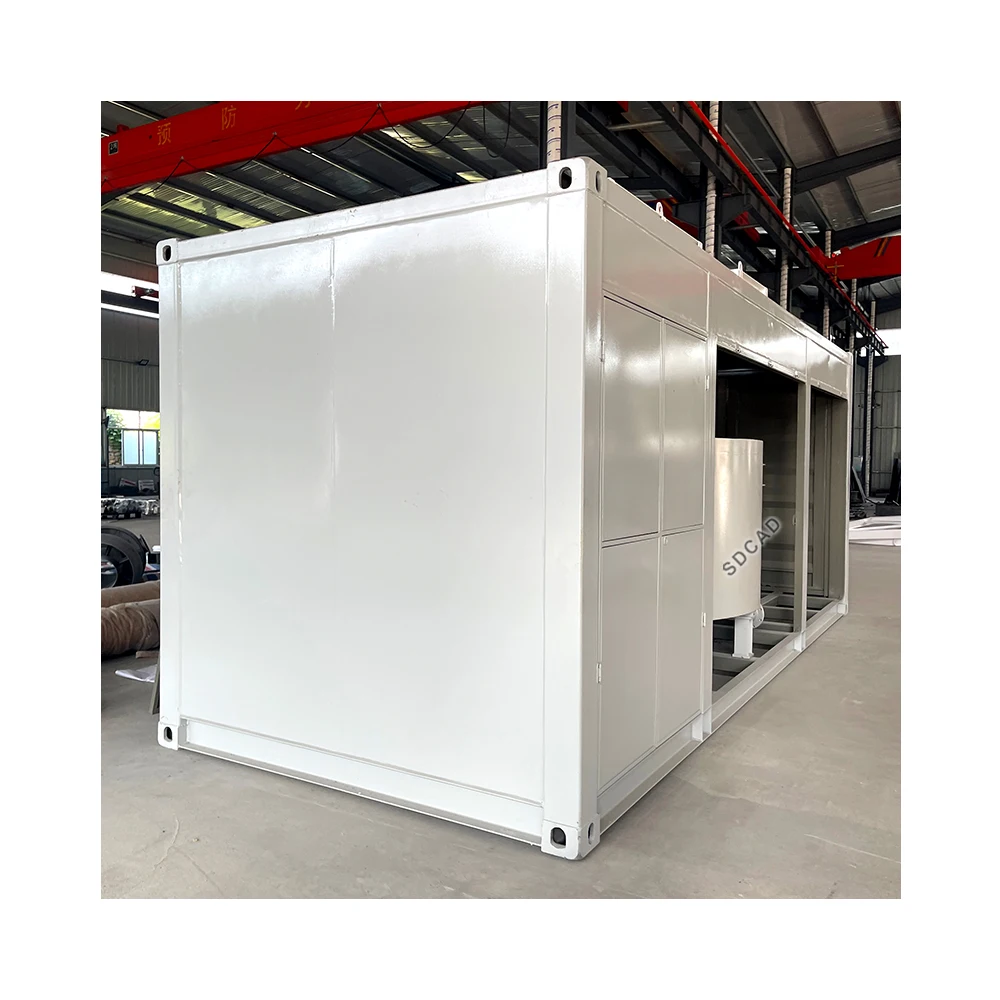

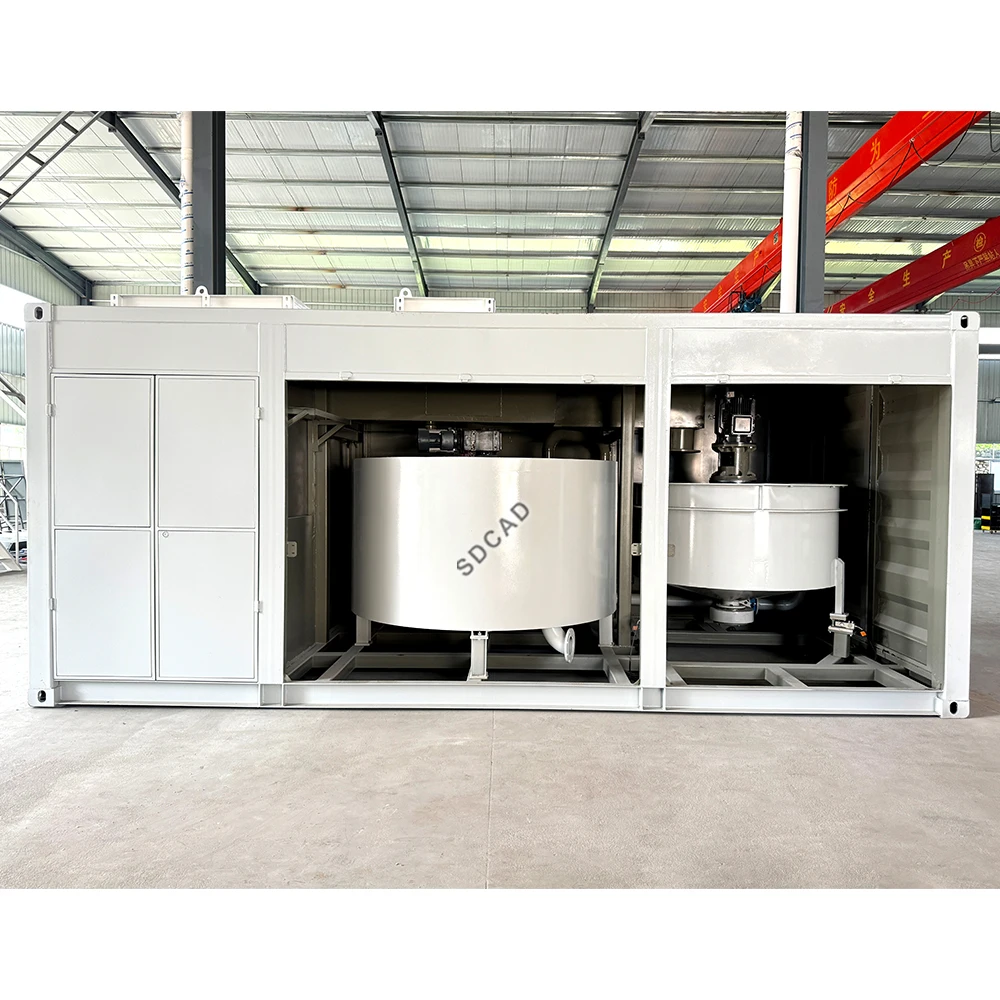

Смесительная установка для раствора впрыска воды и цемента
- Категория: >>>
- Поставщик: Shandong Cad Industry Machinery Equipment Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601361155428:
Описание и отзывы
Характеристики
Product Overview
Grout Mixing Plant
Grout mixing station is a grout mixing and pumping system designed to fit inside a shipping container making it highly portable and easy to transport between job sites. This type of equipment is commonly used in construction and civil engineering projects to mix and inject cement grout and other materials to strengthen soil or concrete structures.
Grout mixing stations, Our container type grout mixing stations feature containerized design, making them easy to transport, install and use, and can meet various on-site requirements, as well as be used in conjunction with other equipment. can adapt to a variety of complex const.
Grout mixing stations, Our container type grout mixing stations feature containerized design, making them easy to transport, install and use, and can meet various on-site requirements, as well as be used in conjunction with other equipment. can adapt to a variety of complex const.
Product Show
• Grout Plants range includes different sizes equipment with production.
• The continuous mass transfer between the two zones ensures maximum possible homogeneity of the mixture.
• Absolutely minimal sedimentation of the mixture.
• High mixing capacity due to short mixing time.
• Lowest possible use of raw materials.
• Operator cabin with full automatic control panel board.
• The continuous mass transfer between the two zones ensures maximum possible homogeneity of the mixture.
• Absolutely minimal sedimentation of the mixture.
• High mixing capacity due to short mixing time.
• Lowest possible use of raw materials.
• Operator cabin with full automatic control panel board.
Mixing water ,cement and Bentonite with Ce and ISO Certificated

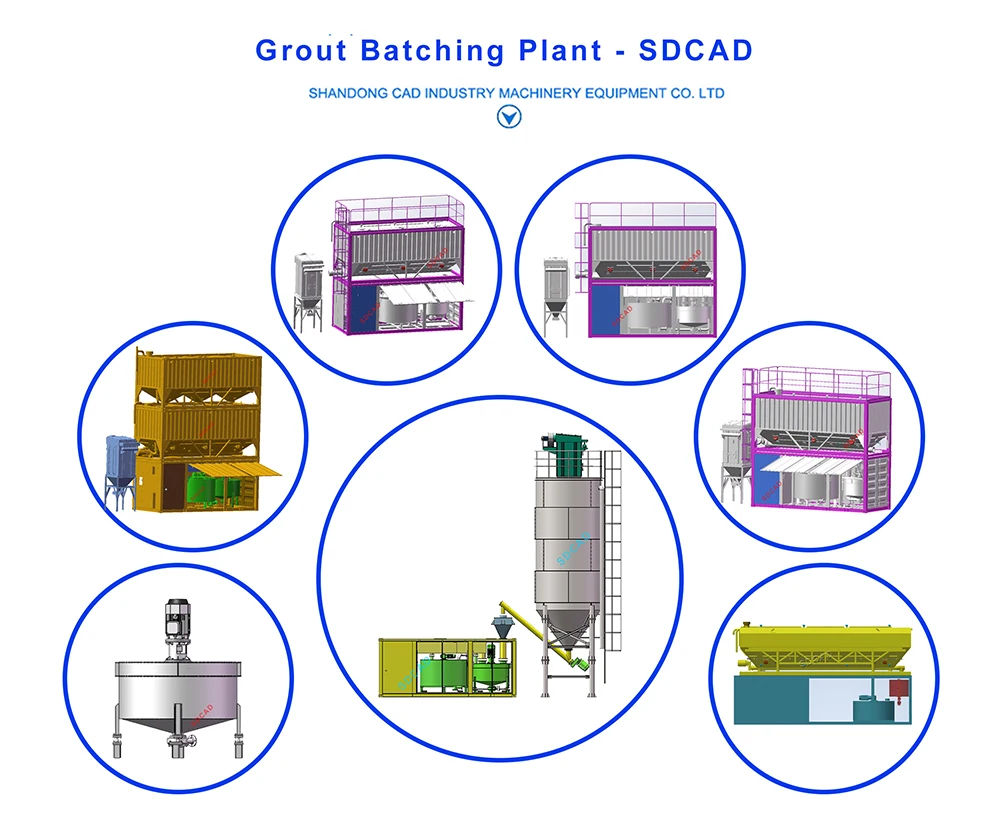

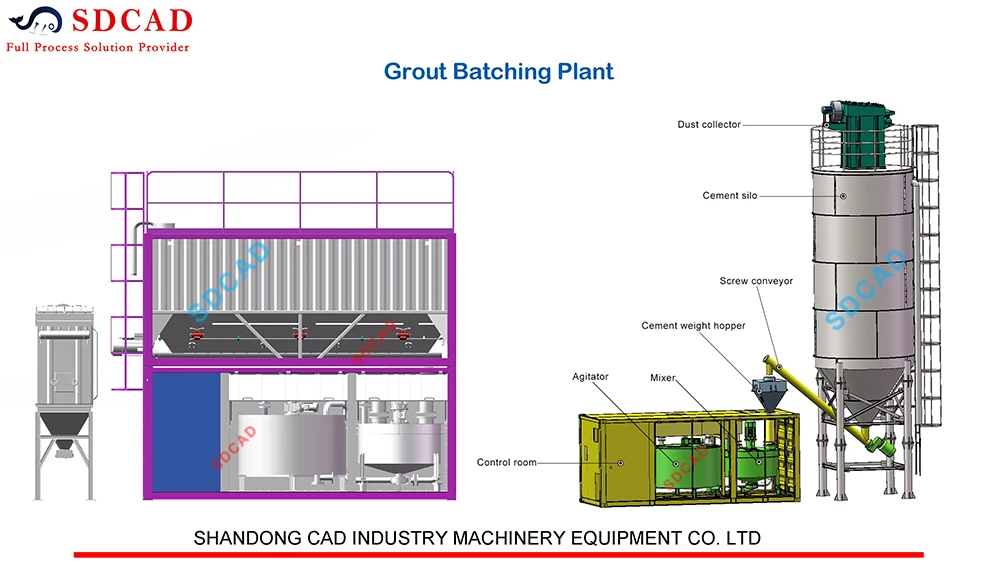

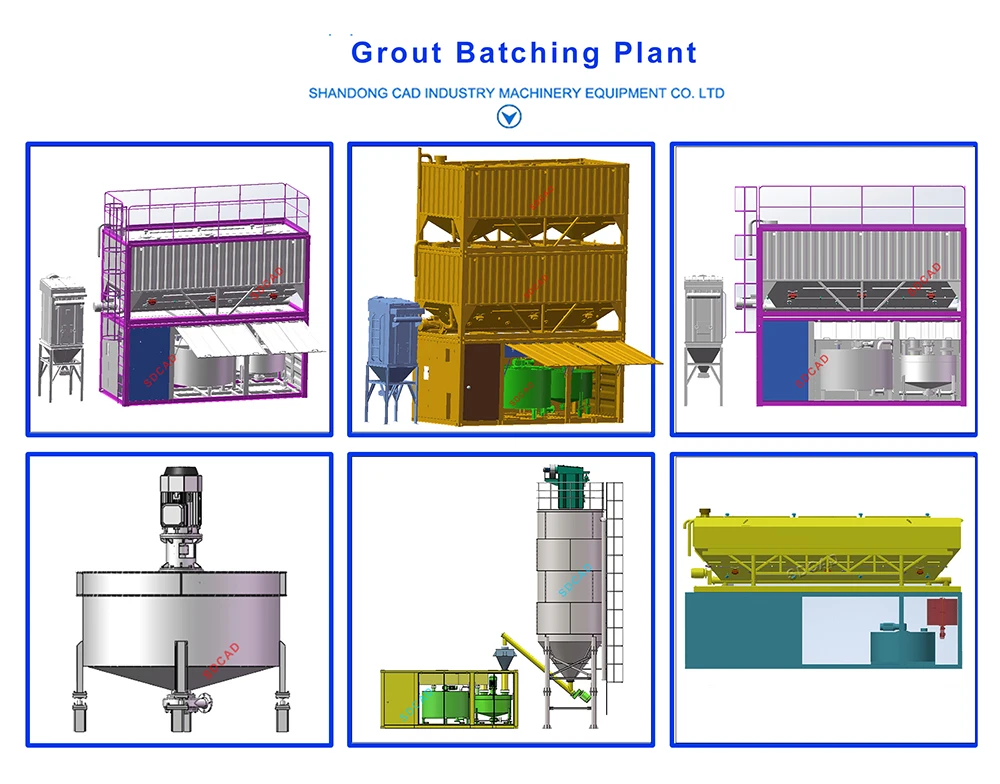

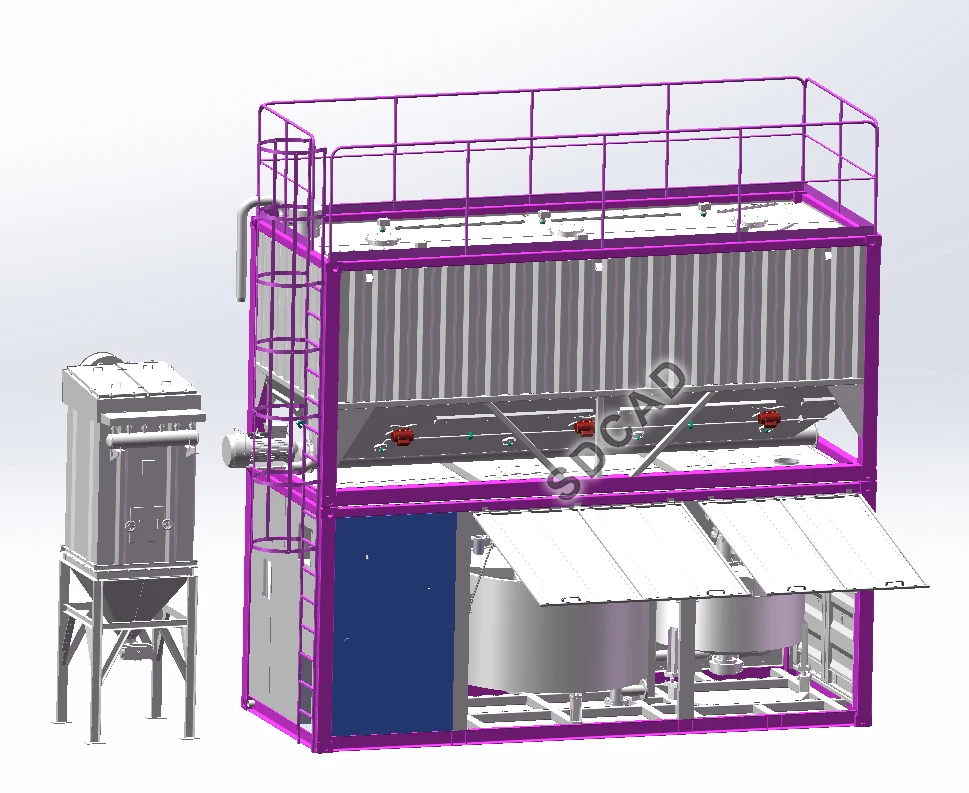

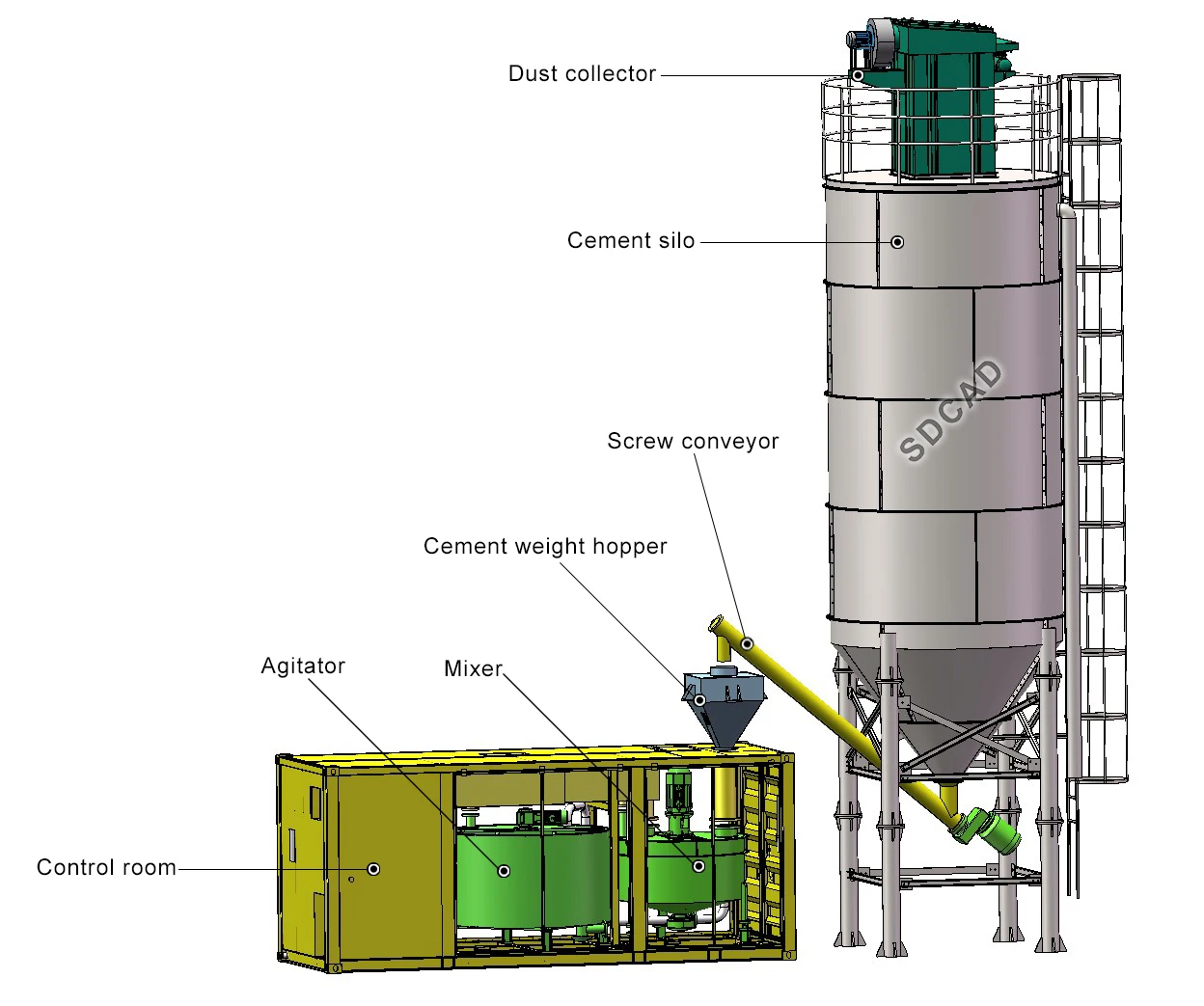

Container type Grout batching plant with bolted cement silo
GB-C2 container type grout batching plant with 1*20GP container cement silo
Jet grout batching mixer
FEATURES AT A GLANCE
Size: GB 5~100 m3/h
Type: Container-type grout mixing station, Jet Grout Plants, Application: Anchor injection, Jet grouting, Drilling, Concreting,
Cavity filling, Bottom injection
Tunnel applications, Dam applications
Customized Solution is the Core concepts of SDCAD
Full Process Solution Provider - SDCAD
1.Automatic grouting equipment is with CE, ISO certification.
2.Compact structure, a whole plant with mixing and grouting.
3.Automated mixing and grouting plant is simple operation and easy maintenance.
4. There are two operation modes: automatic mode and manual mode.
5. Less spare parts ensure low maintenance costs.

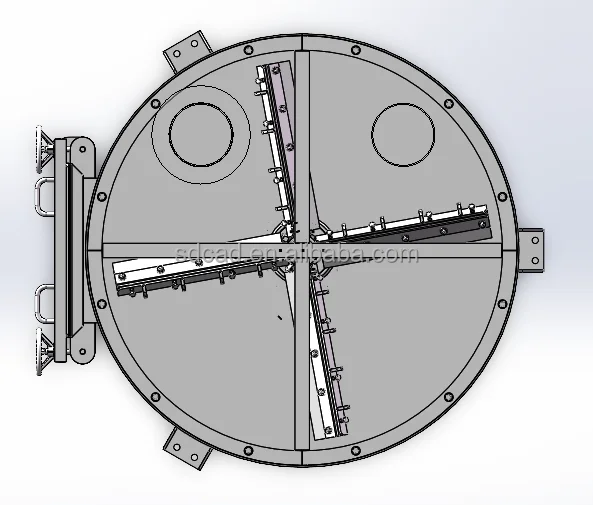

6. High speed vortex mixer ensures mix quickly and evenly.
7.The proportion of materials in the formula can be adjusted freely.
8. It can realize automatic configuration and replenishment of materials.
9. Flameproof electric cabinet,protection grade IP56.
10.Tank body manufactured by the thicker plate for more reliable work and longer use life.
2.Compact structure, a whole plant with mixing and grouting.
3.Automated mixing and grouting plant is simple operation and easy maintenance.
4. There are two operation modes: automatic mode and manual mode.
5. Less spare parts ensure low maintenance costs.
6. High speed vortex mixer ensures mix quickly and evenly.
7.The proportion of materials in the formula can be adjusted freely.
8. It can realize automatic configuration and replenishment of materials.
9. Flameproof electric cabinet,protection grade IP56.
10.Tank body manufactured by the thicker plate for more reliable work and longer use life.
11. Standard seal parts to ensure excellent seal quality.
PRODUCT SPECIFICATIONS
Model/Type | GP5 | GP10 | GP20 | GP25 | GP30 | |||||
Production Capacity (m³) | 5 | 10 | 20 | 25 | 30 | |||||
Total Power (KW) | 20 | 30 | 40 | 45 | 45 | |||||
Dimensions (m) | 1,5x2,43x1,85 | 2,43x6,05x2,59 | 2,43x6,05x2,59 | 2,43x6,05x2,59 | 2,43x6,05x2,59 | |||||
Weight (kg) | 1200 | 3000 | 6000 | 6500 | 6700 | |||||
Water Tank Capacity (lt) | 1200 | 2000 | 2400 | 2800 | 3000 | |||||
Mikser/Mixer | ||||||||||

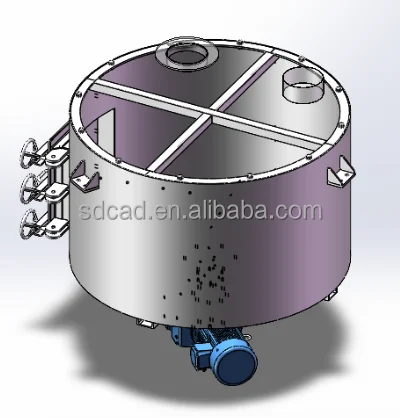

Capacity (lt) | 330 | 800 | 1500 | 1600 | 1800 | |||||
Electric Motor (KW) | 5,5 | 11 | 15 | |||||||

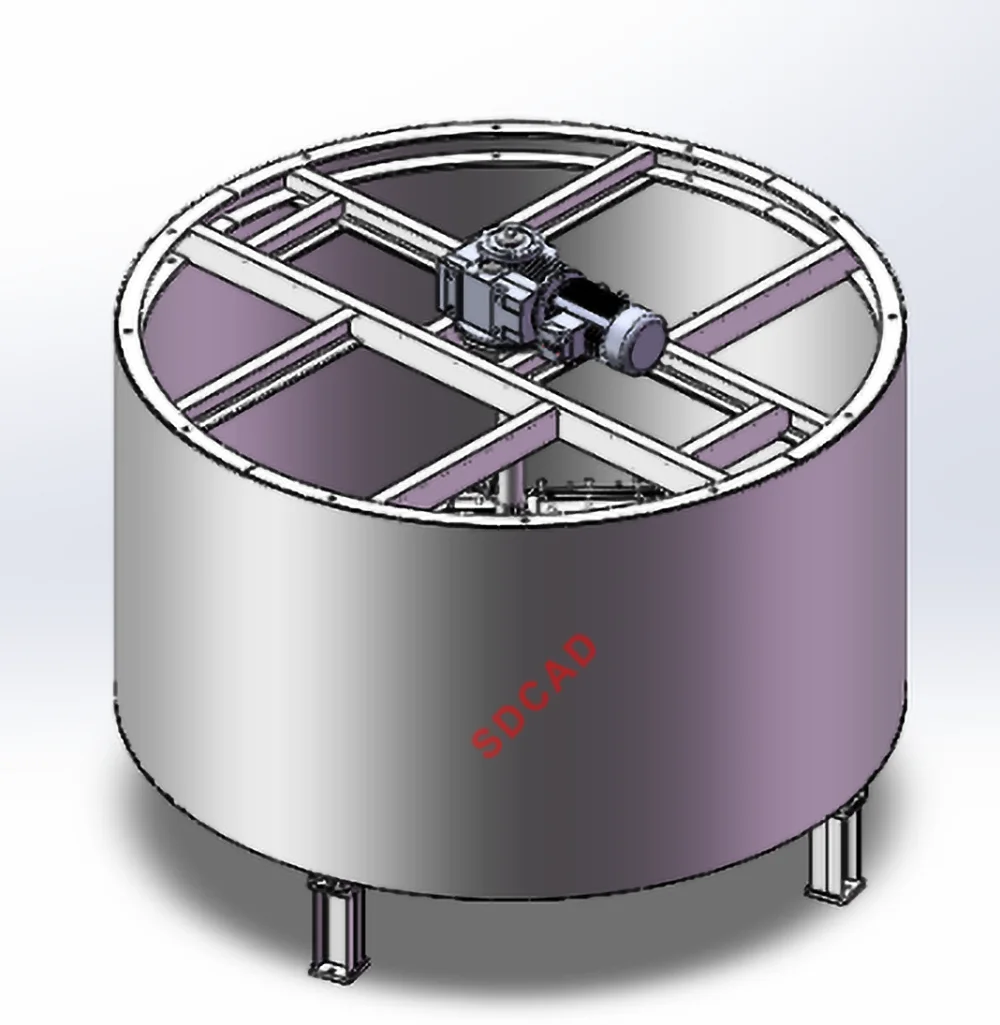

Dinlendirici/Agitator | ||||||||||
Capacity (lt) | 650 | 1200 | 2500 | 3200 | 3600 | |||||
Electric Motor (KW) | 0,75 | 2.0 | 2,2 | 2,2 | 2,2 | |||||
Material | Carbon steel (Mixing tank-8mm, Temporary hopper-6mm) | |||||||||
Control system | Full auto control system with SIEMENTS/Schneider brand PLC control | |||||||||
Transport | standard 20ft container size and can be stacked with container silo | |||||||||
Customized | SDCAD provider Device and capacity can be customized according to clients' needs. | |||||||||
Quality assurance | CE ROHS ISO etc.certifications available | |||||||||
PRODUCT CONFIGURATION
Full Process Solution Provider - SDCAD
SDCAD continuous mix batch plants are custom built and specially designed for volume proportioning of multiple powdered ingredients and fluids. These plants have built-in feed rate adjustment and are capable of providing the operator with continuous density measurements. The grout or slurry proportioning is constantly adjusted by the operator to ensure accurate component addition. The plant is specifically well suited for projects requiring very high flow rates and large volumes of grout or slurry, like cement-bentonite slurry trenching or larger soil mixing and jet Grouting projects
APPLICATIONS
1：Anchor injection
2：Jet grouting
3：Drilling
4：Concreting
5：Cavity filling
6：Bottom injection
7：Tunnel applications
8：Dam applications
1：Anchor injection
2：Jet grouting
3：Drilling
4：Concreting
5：Cavity filling
6：Bottom injection
7：Tunnel applications
8：Dam applications
Advantages of SDCADI’s Grout Mixing Plant
* Main pipeline valves are all pneumatic valves
* Mixture, cycling pump and agitator have automatic cleaning function
* Cement can be added by cement silo or screw feeder automatically
* The preparing of ternary or quaternary compound mixing is possible, with either one or two liquid components and one solid components
* Two modes of operation：fully automatic mode and manual mode
* Easy to operate and maintain
* Up to 8mm particle size
* Equipped with some ceiling lamps, for illuminating the different working areas.
* Can be placed directly in the 20ft cabinet
* High-speed Colloidal Grout Mixer
* Main pipeline valves are all pneumatic valves
* Mixture, cycling pump and agitator have automatic cleaning function
* Cement can be added by cement silo or screw feeder automatically
* The preparing of ternary or quaternary compound mixing is possible, with either one or two liquid components and one solid components
* Two modes of operation：fully automatic mode and manual mode
* Easy to operate and maintain
* Up to 8mm particle size
* Equipped with some ceiling lamps, for illuminating the different working areas.
* Can be placed directly in the 20ft cabinet

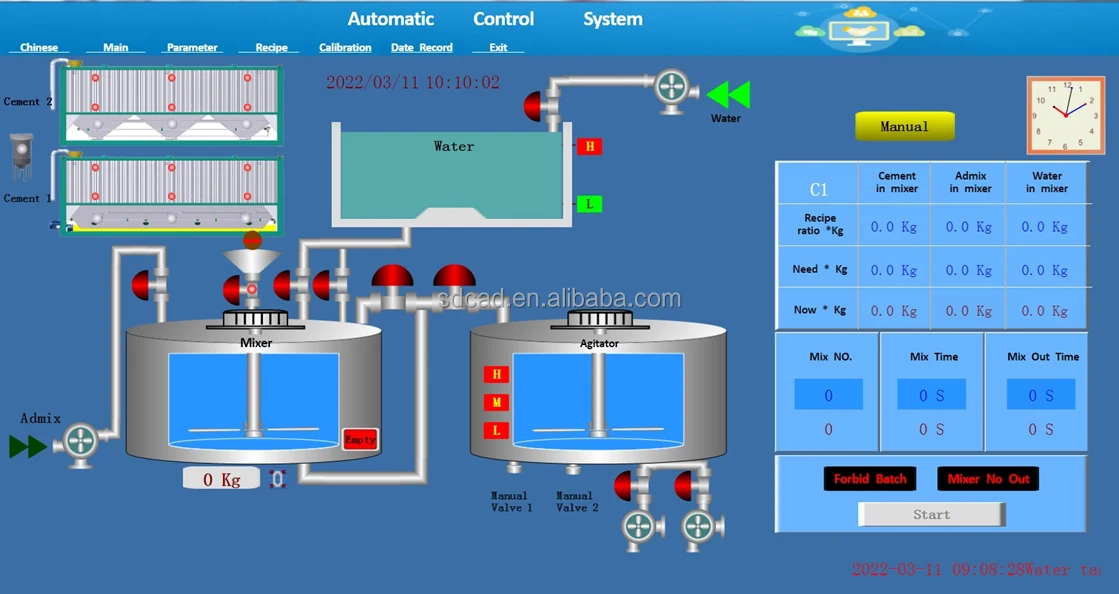

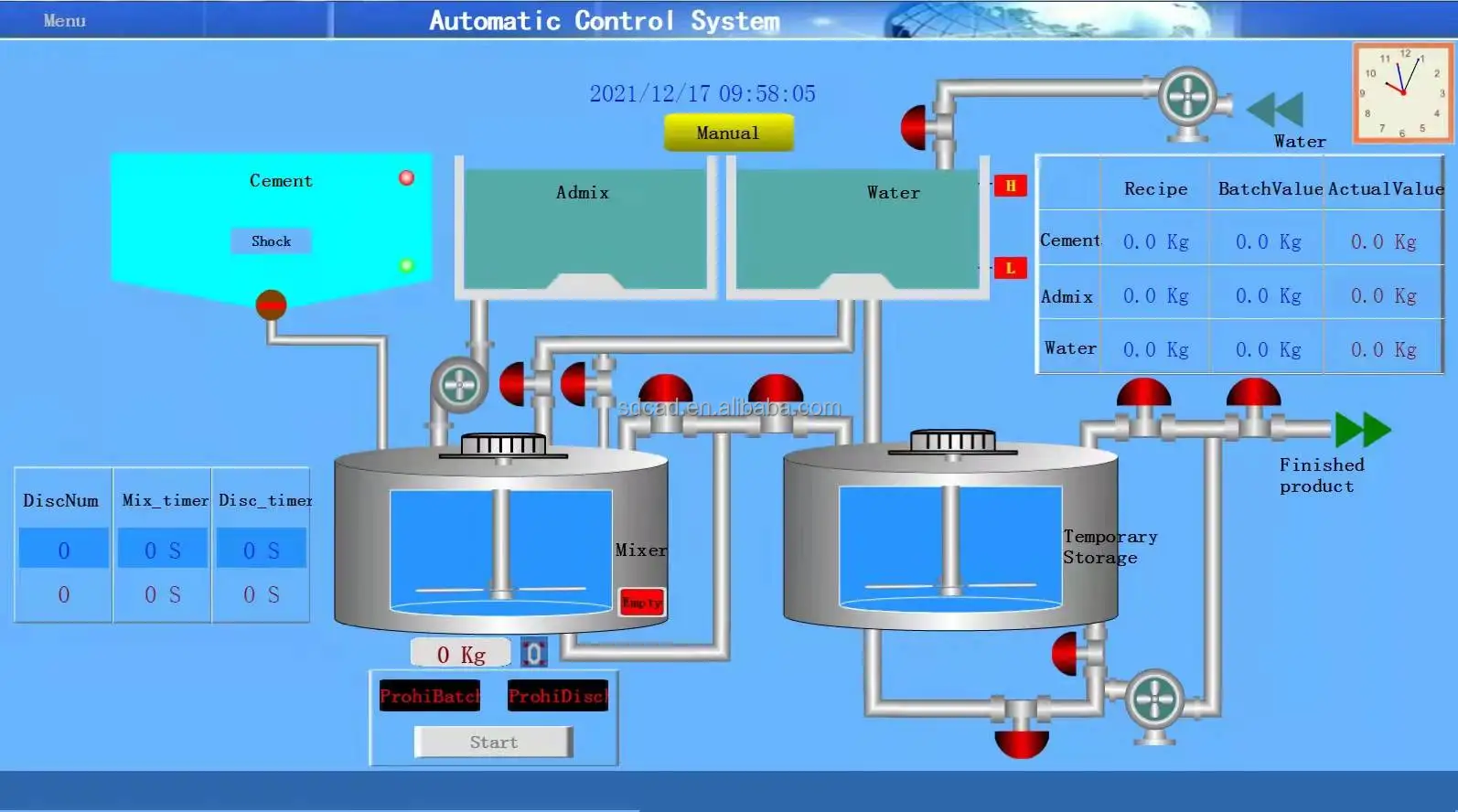

Control system
