Products Description

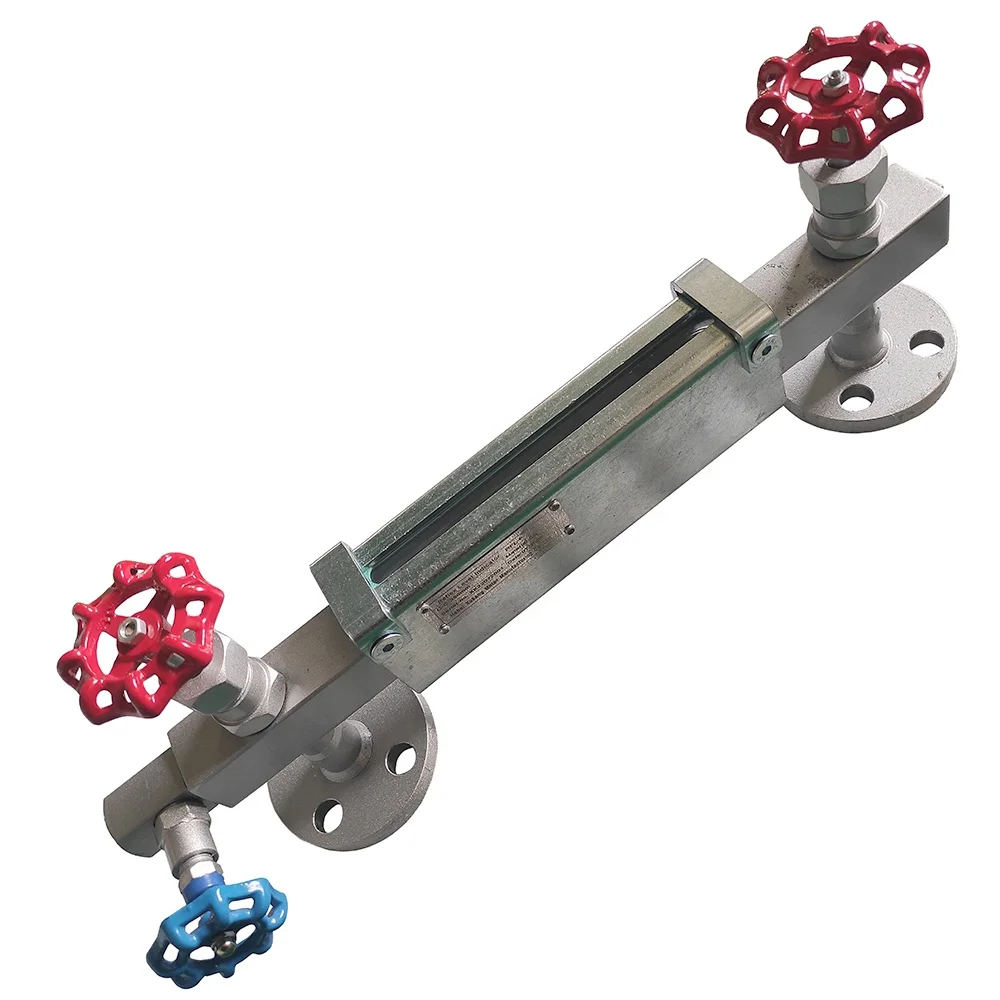

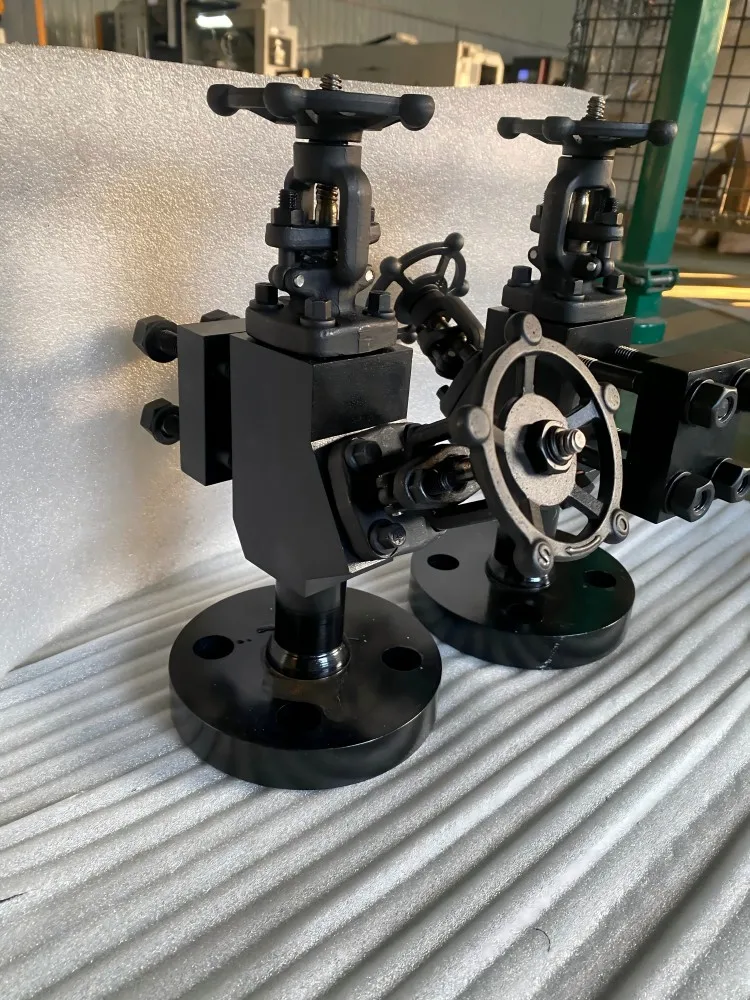

Thread or flange Transparent Glass Plate Level Gauge
Transparent level gauges are always fitted with two plate transparent glasses between which the fluid is contained. The fluid level is indicated as the result of the different transparency of the two media and in some cases (for water steam), by conveying upwards on to the surface of separation (between liquid and gaseous substances) a source of light located at the back of the gauge, the rays of which are totally reflected down to the observer.
To avoid leakage in case of glass breakage, safety ball-check device can be provided in cross-fittings or shut-off valves. This kind of indicator is suitable for water/steam. To protect glass surfaces from corrosive action of the process fluid, Transparent Level Gauges can be fitted with Mica shields or Polytrifluorochloroethilene shields. This kind of indicator is suitable for liquids colorless and very fluid.
Features:
1. They do not need electrical power to operate. This can be a great advantage in the case of a power outage.
2. Simple to install – no calibration is necessary.
3. Can be used as a reference to check, or calibrate, other level technologies.
4. Pressure rating from vacuum to 4Mpa.
5. Temperature rating from -20℃ to 450℃
7. Not affected by the chemical or electrical properties of the process liquid.
8. Specific gravity, dielectric, conductivity, surface turbulence, vapor, foam, etc. no longer needs to be considered.
The classification and scope of use of Reflex glass level gauges are as follows:
1. Heat-tracing glass plate level gauge: mainly used for the occasions where the measured medium needs heat preservation;
2. Frost-proof glass plate level gauge: mainly used for occasions where the operating temperature of the medium under test is -196~0℃ and the glass is prone to frosting;
3.Glass plate level gauge without blind area: mainly used in situations where continuous observation is required and blind areas are not allowed in the visual range;
4. Two-color glass plate level gauge: mainly used for occasions where the medium is colorless and transparent liquid and liquid level is not easily observed;
5.Uv - proof glass plate level gauge:mainly used for the occasions where the measured medium is afraid of ultraviolet light;
6. Wide liquid chamber glass plate level gauge: mainly used for occasions where the viscosity of the measured medium is relatively large or the volume of the instrument is relatively large;
7. Illuminating glass plate level gauge: mainly used for night observation.
To avoid leakage in case of glass breakage, safety ball-check device can be provided in cross-fittings or shut-off valves. This kind of indicator is suitable for water/steam. To protect glass surfaces from corrosive action of the process fluid, Transparent Level Gauges can be fitted with Mica shields or Polytrifluorochloroethilene shields. This kind of indicator is suitable for liquids colorless and very fluid.
Features:
1. They do not need electrical power to operate. This can be a great advantage in the case of a power outage.
2. Simple to install – no calibration is necessary.
3. Can be used as a reference to check, or calibrate, other level technologies.
4. Pressure rating from vacuum to 4Mpa.
5. Temperature rating from -20℃ to 450℃
7. Not affected by the chemical or electrical properties of the process liquid.
8. Specific gravity, dielectric, conductivity, surface turbulence, vapor, foam, etc. no longer needs to be considered.
The classification and scope of use of Reflex glass level gauges are as follows:
1. Heat-tracing glass plate level gauge: mainly used for the occasions where the measured medium needs heat preservation;
2. Frost-proof glass plate level gauge: mainly used for occasions where the operating temperature of the medium under test is -196~0℃ and the glass is prone to frosting;
3.Glass plate level gauge without blind area: mainly used in situations where continuous observation is required and blind areas are not allowed in the visual range;
4. Two-color glass plate level gauge: mainly used for occasions where the medium is colorless and transparent liquid and liquid level is not easily observed;
5.Uv - proof glass plate level gauge:mainly used for the occasions where the measured medium is afraid of ultraviolet light;
6. Wide liquid chamber glass plate level gauge: mainly used for occasions where the viscosity of the measured medium is relatively large or the volume of the instrument is relatively large;
7. Illuminating glass plate level gauge: mainly used for night observation.
Product Paramenters
Model | TBS-F | TBS-A | TBS-HR | TBS-HT | RFL-40C | ||||

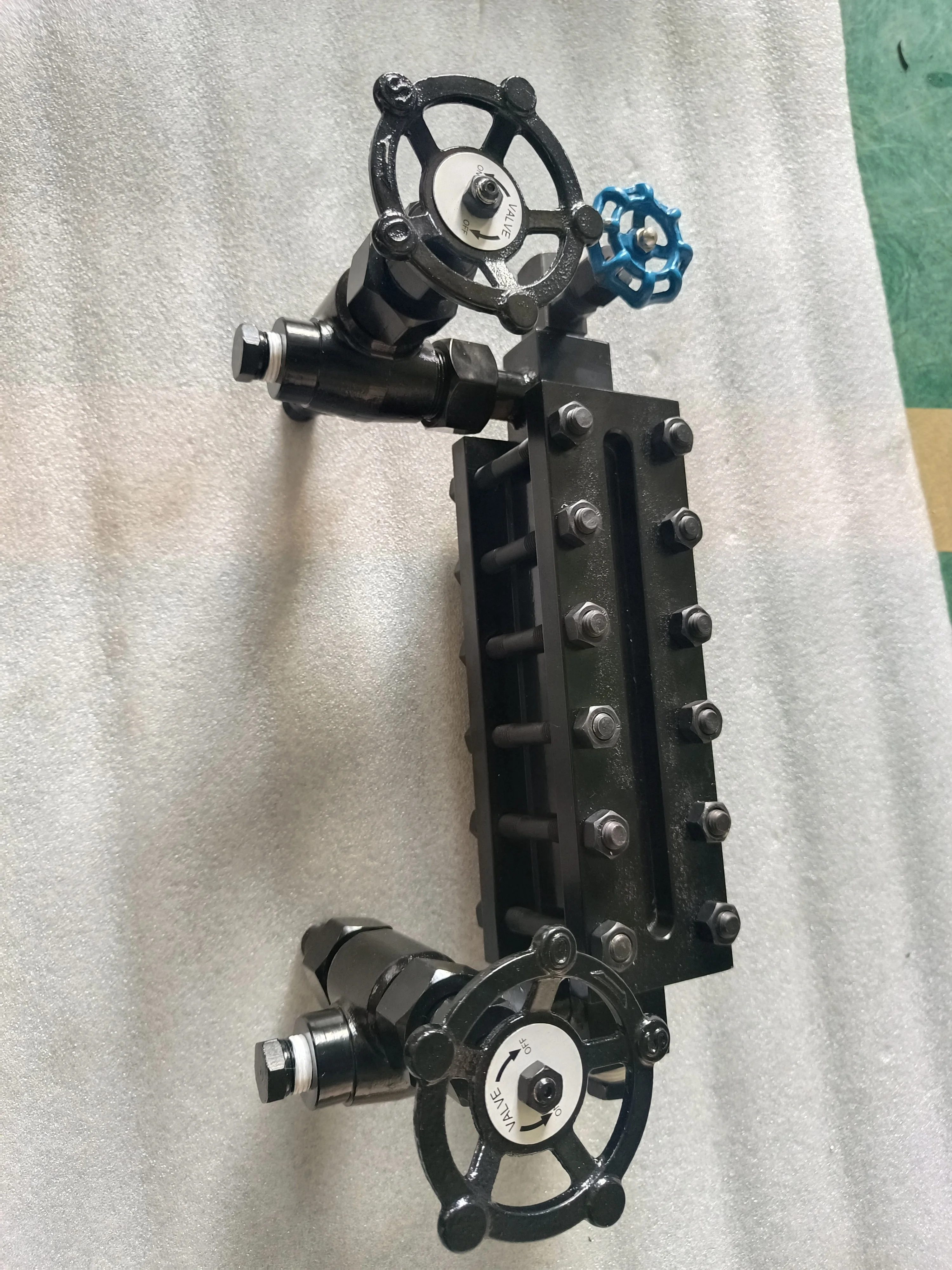

Type | Reflex type | Transparent type | High pressure reflex type | High pressure Transparent type | 90 degree Quick open/close type | ||||
C-C (mm) | 300-3600 | 285-2590 | |||||||
Visible Length (mm) | 95-3360 | 141-2433 | |||||||
Level Gauge Material | CS、SS304、SS316L、Ti、etc | Cast steel | |||||||
Glass Material | Borosilicate; Alumina-silicate | ||||||||
Gasket Type | Graphite composite gasket; non-Asbestos gasket; Mica seal components | ||||||||
Working temperature ℃ | ≤450℃ | ||||||||
Working pressure Bar | 40 (Groove glass) 100 (Plate glass) | 100 (Plate glass) | 40 (Groove glass) 160 (Plate glass) | 160 (Plate glass) | 40 (Groove glass) | ||||
Company Introduction
Our production:
We are manufacture of level gauge, sight glass, strainer and some valves.
Hebei Xukang Meter Manufacturing and Tianjin U-ideal Instrument Co., Ltd as a group, have more than 20years products research and development experience. And have 16years export experience, 5000m2 factory, tens of new machines.
Hebei Xukang Meter Manufaturing Co. Ltd adopts a combination marketing of domestic and foreign trade, having a marketing network across the country and abroad. We will try to provide customers the best quality and service through integrating the best resource and to become the excellence corporation.
Our products range:
1. Flowmeter: Electromagnetic flowmeter, ultrasonic flowmeter, vortex flowmeter, gear flowmeter, rotor flowmeter, mass flowmeter, etc

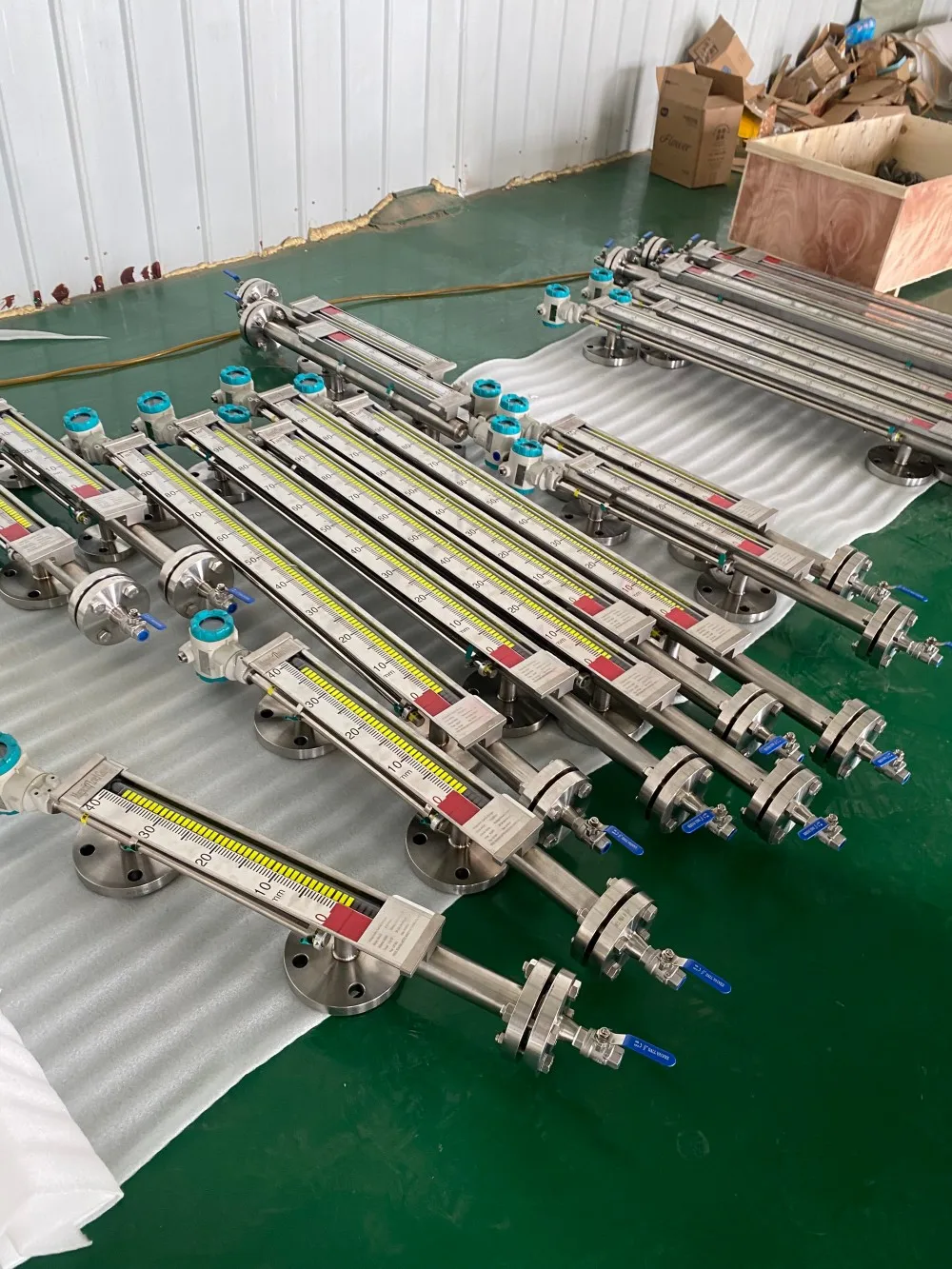

2. Level gauge: Magnetic float level gauge, glass plate level gauge, glass tube level gauge, ultrasonic level gauge, oil level gauge, float switch, radar level gauge, etc.
3. Sight Glass: Straight sight glass, tube sight glass, flange sight glass, three way sight glass etc.
4. Strainers: Quick Open Basket Filter Strainer,Y Type,T Type,Basket Strainer,Self -Cleaning Strainer,Industrial Duplex Basket Strainer,Intelligent Control Self-Cleaning Piping Strainer,etc.
5. Valves: air valve, Strainer, gate valve, check valve, globe valve, ball valve, butterfly valve, pressure reducing valve, control valve, safety valve, angle valve, Titanium alloy valve, thermostatic valve, needle valve, plug valve, etc.
6. Flanges and Pipe fittings:all kinds of flanges, elbow, tee, caps, union,plug,coupling,reducer, pipes and steels etc.
Hebei Xukang Meter Manufaturing Co. Ltd adopts a combination marketing of domestic and foreign trade, having a marketing network across the country and abroad. We will try to provide customers the best quality and service through integrating the best resource and to become the excellence corporation.
Our products range:
1. Flowmeter: Electromagnetic flowmeter, ultrasonic flowmeter, vortex flowmeter, gear flowmeter, rotor flowmeter, mass flowmeter, etc
2. Level gauge: Magnetic float level gauge, glass plate level gauge, glass tube level gauge, ultrasonic level gauge, oil level gauge, float switch, radar level gauge, etc.
3. Sight Glass: Straight sight glass, tube sight glass, flange sight glass, three way sight glass etc.
4. Strainers: Quick Open Basket Filter Strainer,Y Type,T Type,Basket Strainer,Self -Cleaning Strainer,Industrial Duplex Basket Strainer,Intelligent Control Self-Cleaning Piping Strainer,etc.
5. Valves: air valve, Strainer, gate valve, check valve, globe valve, ball valve, butterfly valve, pressure reducing valve, control valve, safety valve, angle valve, Titanium alloy valve, thermostatic valve, needle valve, plug valve, etc.
6. Flanges and Pipe fittings:all kinds of flanges, elbow, tee, caps, union,plug,coupling,reducer, pipes and steels etc.
Похожие товары
Термостатический смешанный клапан для горячей и холодной воды сброс питания выключение высокая безопасность
7,90-9,90 $

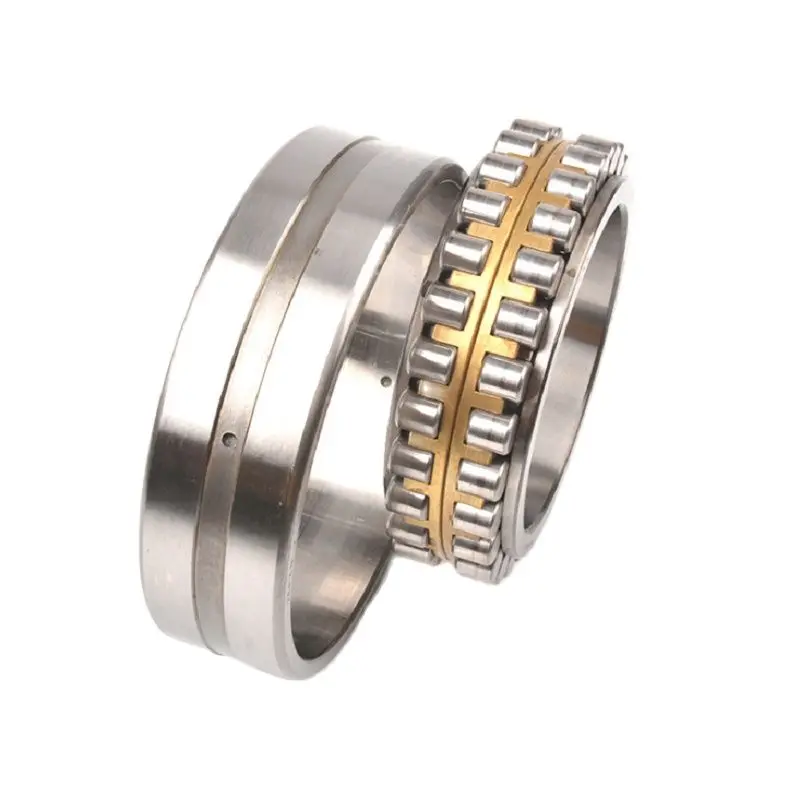

Высокое качество NNU3020 3021 3022 K MBKRCCO P5 P4 высокотемпературный упорный подшипник цилиндрический роликовый пневматический Accessori
1 748,00 $
Высокое качество нержавеющая сталь 304/316L пивоваренное оборудование мужской резьбовой клапан управления водой ручной 3-ходовой шаровой
10,00-20,00 $
Поставка VSG3621D024 воздушный клапан 100% оригинальный продукт в наличии быстрая доставка

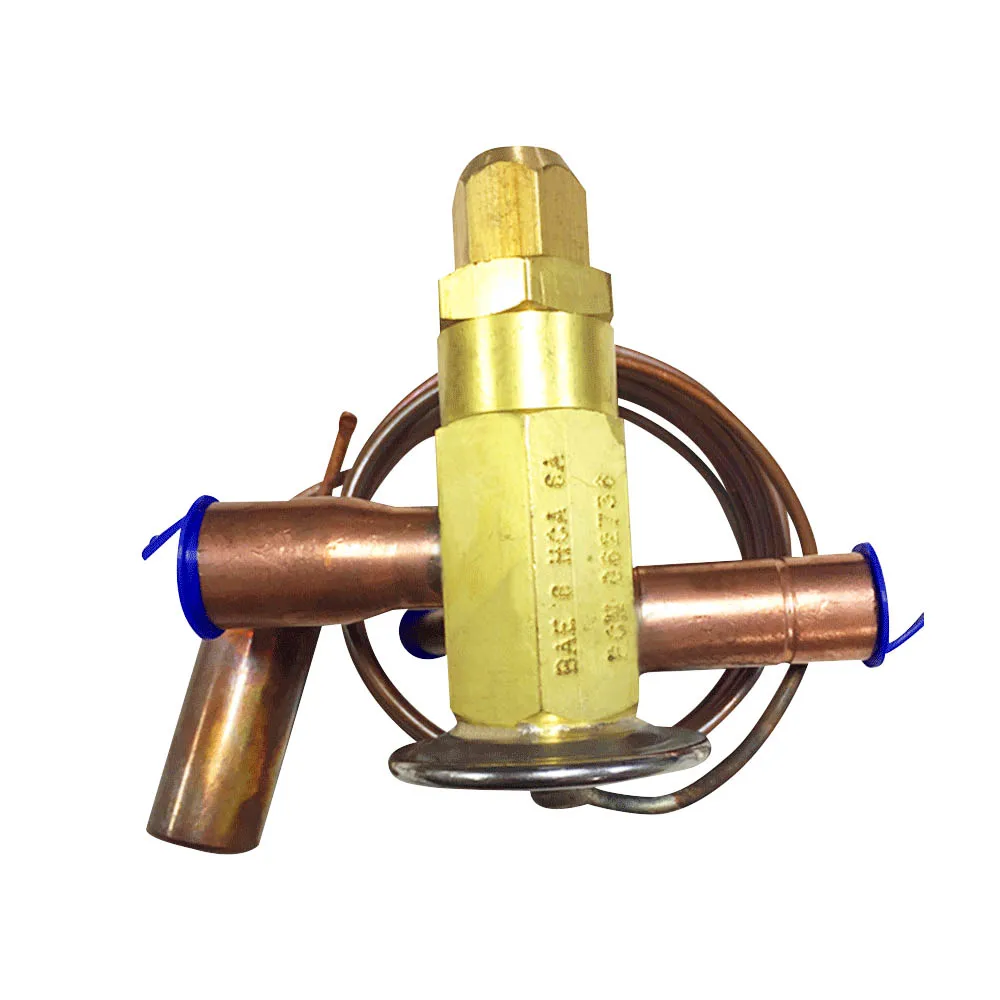

Клапан теплового расширения BAE 6HCA Для хладагентов R22 и R407C ODF 1/4
27,00-28,30 $

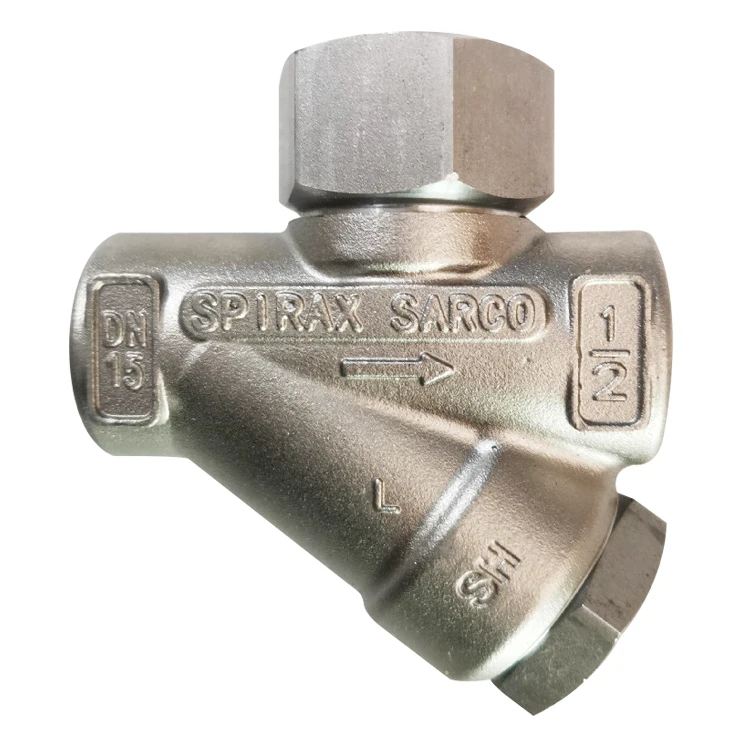

TF Spirax Sarco Термодинамический паровой ловушка кованый стальной клапан с резьбой BSP 150 фунтов
