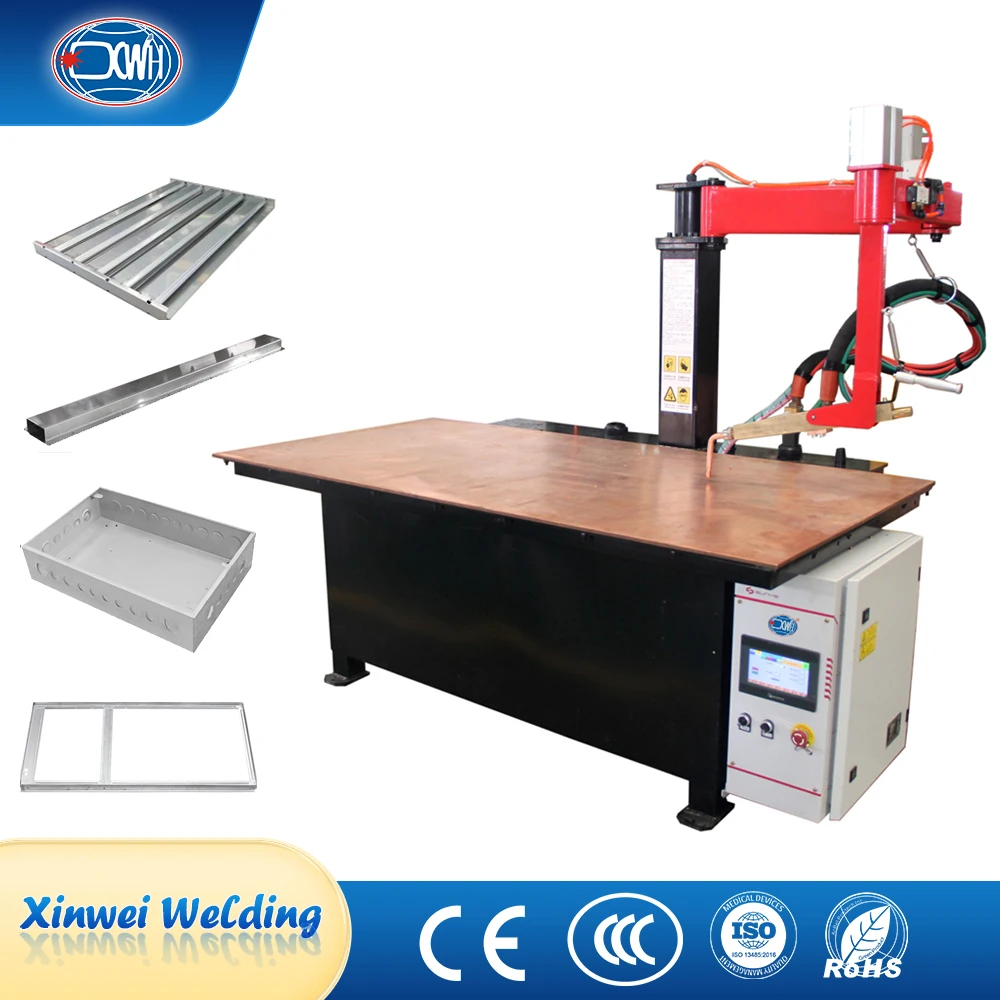

Алюминиевые сварочные аппараты постоянного тока Настольная платформа коромысло точечная сварочная машина для продажи
- Категория: >>>
- Поставщик: Chengdu Xinwei Welding Technology Co. Ltd.Chengdu Ltd.
Сохранить в закладки 1601361380122:
Описание и отзывы
Характеристики

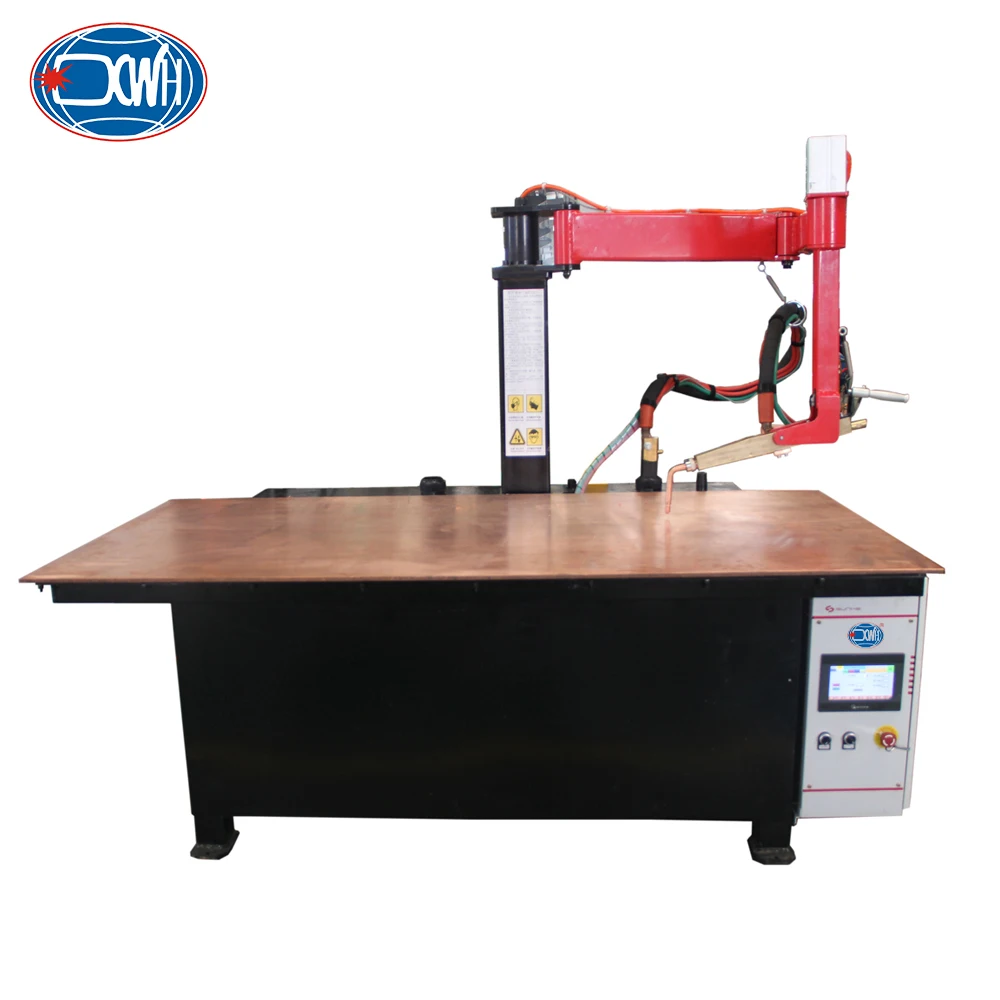

The rocker arm spot welding machine's multi joint arm structure of the welding arm has a wide range of movement and flexible operation, which can reduce the labor intensity of workers. Used for welding metal plates such as cold plates, galvanized plates, stainless steel plates, etc.
1.Easy operation: The lower electrode is a welding electrode platform, and the workpiece can be directly placed on the platform for welding.
2. Flexible activity: The upper electrode is flexible, and there is no need to move the workpiece during welding, improving production efficiency.
3. Firm welding points: During welding, the pressure is generated by the cylinder, ensuring a balanced and consistent welding pressure for the workpiece and ensuring welding strength.
4. Beautiful solder joints: After welding, there are no welding pits or marks on the front of the workpiece, improving the appearance quality of the product.
5. Reduce process: After welding the workpiece, there is no need to apply putty or polish, reducing the processing process and saving the number of workers
6. Easy to use: The operation is simple and convenient. When welding, simply press the switch, and the operator can easily operate it with or without experience.

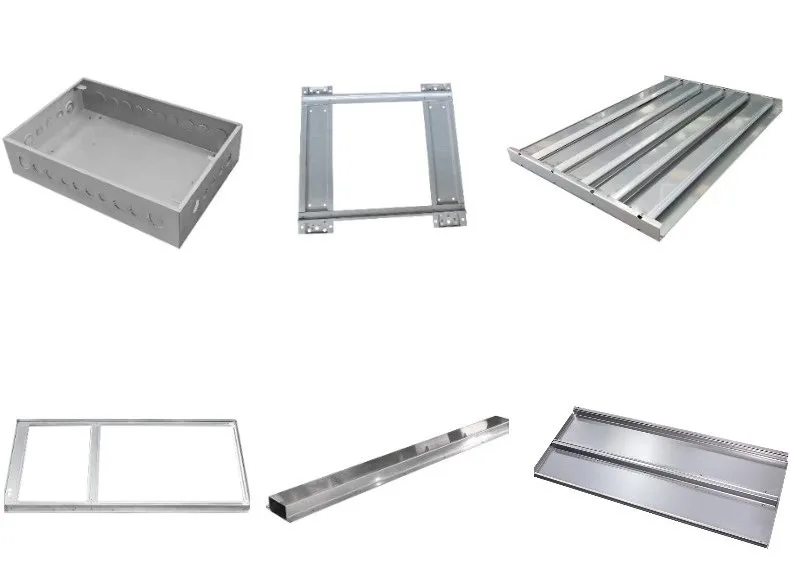

7. Scope of application: Used for welding metal plates such as cold plates, galvanized plates, stainless steel plates, etc.
8. Applicable industries: chassis cabinets, elevators, electrical cabinets, automobiles, steel and wood furniture, kitchen appliances, and other industries.
2. Flexible activity: The upper electrode is flexible, and there is no need to move the workpiece during welding, improving production efficiency.
3. Firm welding points: During welding, the pressure is generated by the cylinder, ensuring a balanced and consistent welding pressure for the workpiece and ensuring welding strength.
4. Beautiful solder joints: After welding, there are no welding pits or marks on the front of the workpiece, improving the appearance quality of the product.
5. Reduce process: After welding the workpiece, there is no need to apply putty or polish, reducing the processing process and saving the number of workers
6. Easy to use: The operation is simple and convenient. When welding, simply press the switch, and the operator can easily operate it with or without experience.
7. Scope of application: Used for welding metal plates such as cold plates, galvanized plates, stainless steel plates, etc.
8. Applicable industries: chassis cabinets, elevators, electrical cabinets, automobiles, steel and wood furniture, kitchen appliances, and other industries.
Item/Models | DN-40 | DN-63 | D(T)N-80 | D(T)N-100 | D(T)N-125 | D(T)N-160 | D(T)N-200 |
Rated Power At 50%(KVA) | 40 | 63 | 80 | 100 | 125 | 160 | 200 |
Rated Primary Power(V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
Secondary Voltage(V) | 5.2 | 6.7 | 7.9 | 8.3 | 8.6 | 9.1 | 10.6 |
Rated Frequency(HZ) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
Max.Short Circuit Curren(KA) | 14 | 15 | 16 | 18 | 20 | 28 | 34 |
Max. Weld Power(KVA) | 62 | 86 | 170 | 280 | 300 | 330 | 410 |
Throat(MM) | 400 | 400 | 400 | 450 | 450 | 450 | 450 |
Max.Froce At Electrod(N) | 6000 | 6000 | 10000 | 10000 | 10000 | 12000 | 12000 |
Working Stroke(MM) | 20 | 20 | 30 | 40 | 40 | 50 | 50 |
Cooling Water Consumpion 2.5bar(L/min) | 6 | 6 | 8 | 8 | 8 | 10 | 10 |
Electrodes Tip(MM) | Φ13*45 | Φ13*45 | Φ16*45 | Φ16*45 | Φ16*45 | Φ20*45 | Φ20*45 |
Arms(MM) | Φ50*150 | Φ50*150 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 |
Projection Clamping Plate(MM) | 125*125 | 125*125 | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 |
Max. Welding Capaciry(MM) | 2.5+2.5 | 3+3 | 4+4 | 4.5+4.5 | 5+5 | 5+5 | 6+6 |

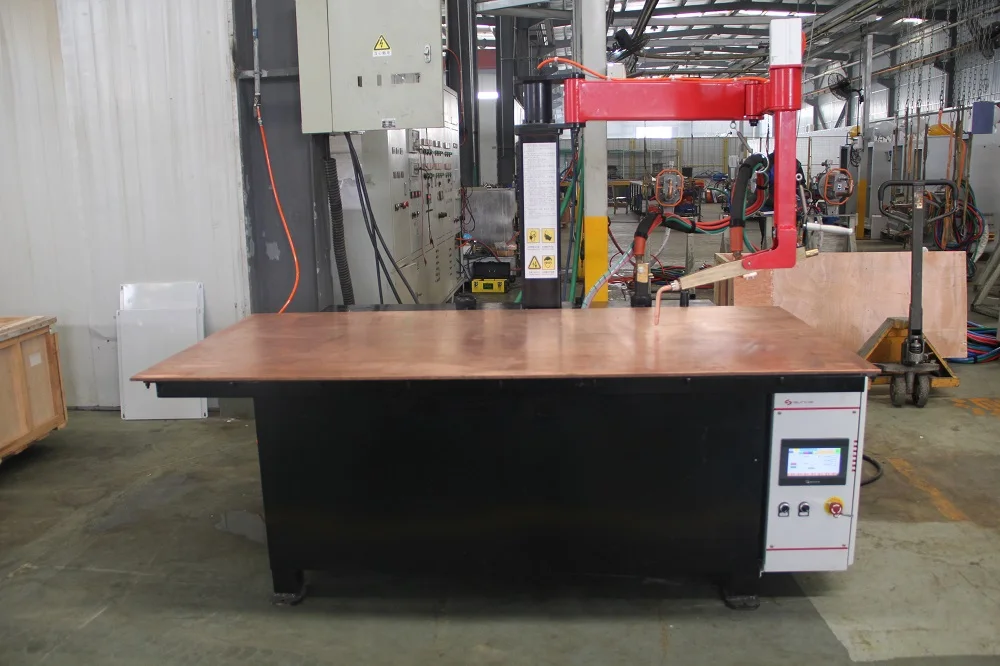

Whole copper plate electrode

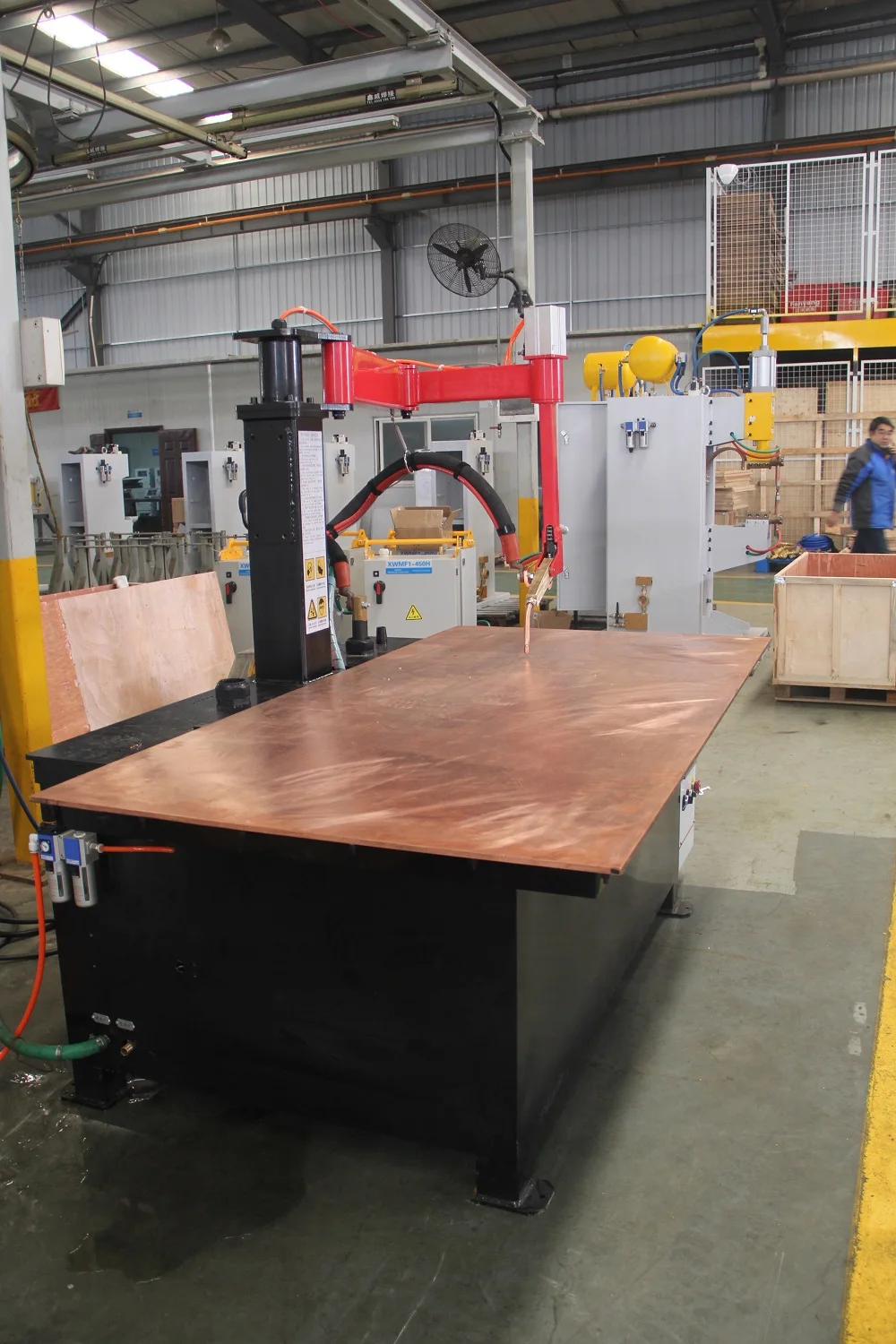

The unique large-sized welding platform of 04 provides convenience for the welding of large materials, avoids the distortion and deformation of the workpiece after welding, and reduces labor intensity.
Joint swing arm
The welding arm is a multi joint flexible welding arm, with a parallel joint structure that operates flexibly and has a larger welding range, making it easy to reach every point on the workbench.
Similar Welding Equipment
Door Edge Row Welding Machine
The automatic row gantry welding machine is suitable for the welding, cross welding, and continuous welding of multi-point carbon steel, low alloy steel, stainless steel, galvanized, nickel plated, guardrail mesh, screen mesh, and hardware wire products.
Two Arms Rocker Arm Spot Welding Machine
The rocker arm spot welding machine is cutomized with two welding guns and makes it more efficient. The platform table spot welding machine is suitable for welding sheet metal, such as door panels, metal cabinets and so on.
Metal Leaf Vertical Welding Machine
Designed for welding reinforcement hinges frame of door. Each welding head completes convex welding of 4 welding points. A total of 8 protrusions were welded in one clamping process. Easy to ensure the welding quality of each solder joint.
Metal Leaf Horizontal Welding Machine
Designed for welding reinforcement hinges frame of door. It consists of components such as frame, conductive sheet, welding head moving mechanism, electrode assembly, welding transformer, welding machine controller, air circuit system, cooling water circuit system, etc.
Похожие товары
микро-точечной сварочных аппаратов для продажи 500-2000a

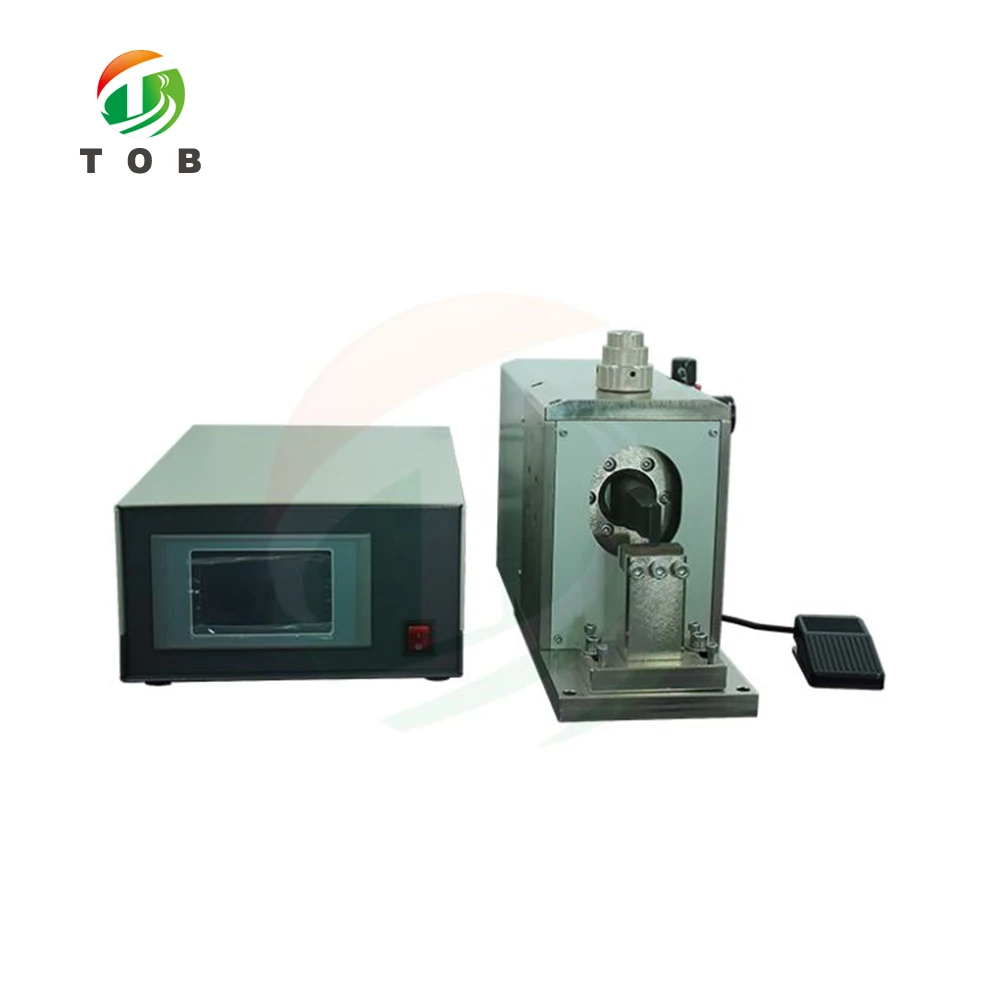

Ультразвуковой аппарат для точечной сварки металла
4 000,00 $
Сварочный аппарат лазера нержавеющей стали
7 189,00-7 389,00 $
Hwashi Автоматический Пневматический сварочный аппарат
6 000,00 $

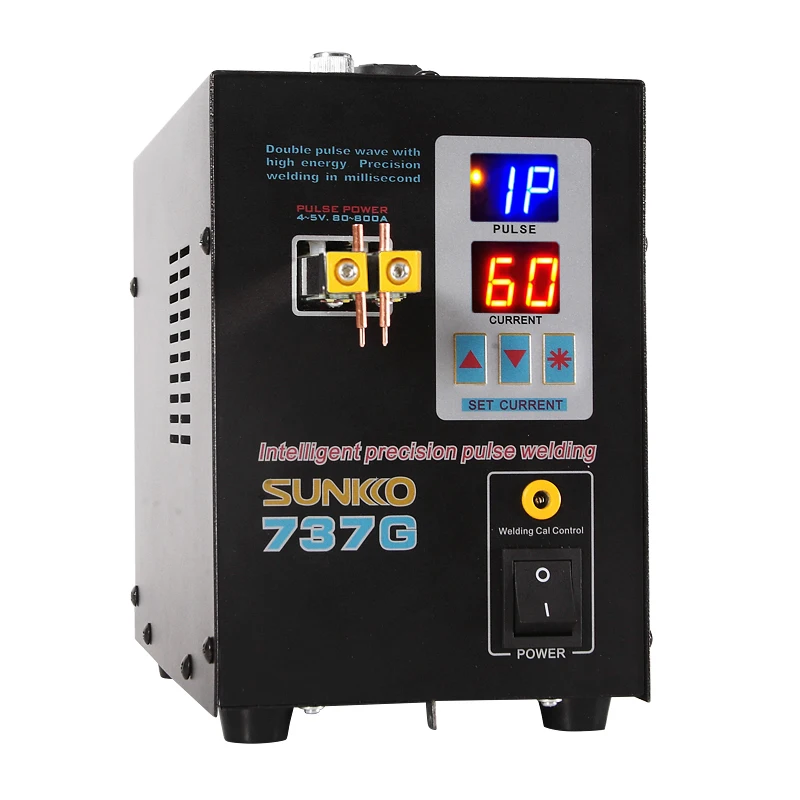

SUNKKO 737 г аккумуляторная точечная сварочная машина 1 5 кВт высокоточный импульсный точечный сварочный аппарат используемый 18650 аккумуляторной батареи
50,00-62,00 $
Автоматический Wps-20ka флюсный пистолет автоматический сварочный аппарат Ss профессиональная проволочная сетка трансформатор сопротивления инвертор точечная сварка наконечники
6 299,00-7 999,00 $

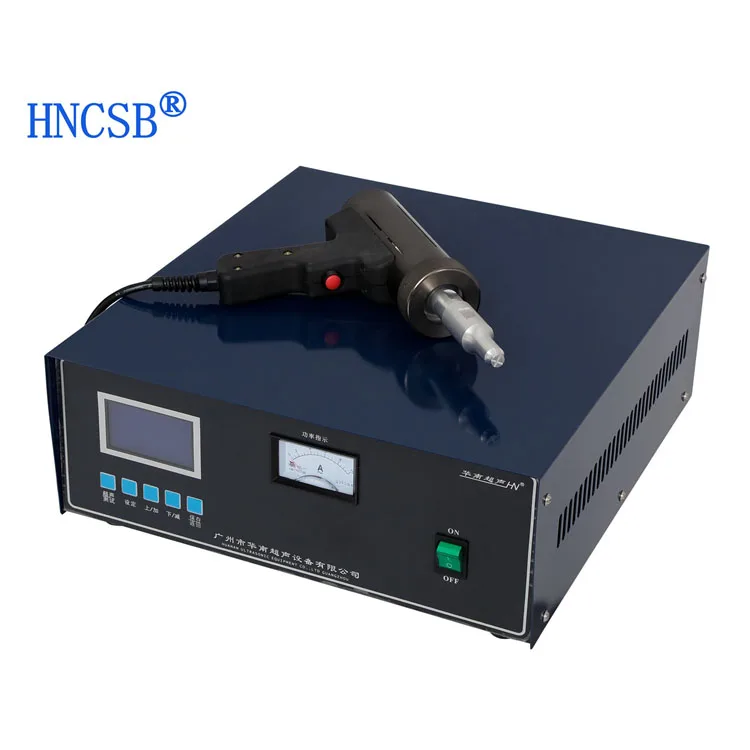

Высококачественный портативный сварочный аппарат прочный HNCSB пластиковый ультразвуковой точечный
