Вьетнамская горячая Распродажа каменная дробильная установка угольная медная базальтовая Строительная промышленная Вертикальная составная дробилка
- Категория: >>>
- Поставщик: Jiangxi Changyi Mining Machinery Co. Ltd.Jiangxi Ltd.
Сохранить в закладки 1601361869024:
Описание и отзывы
Характеристики
Product Description
Product Introduction

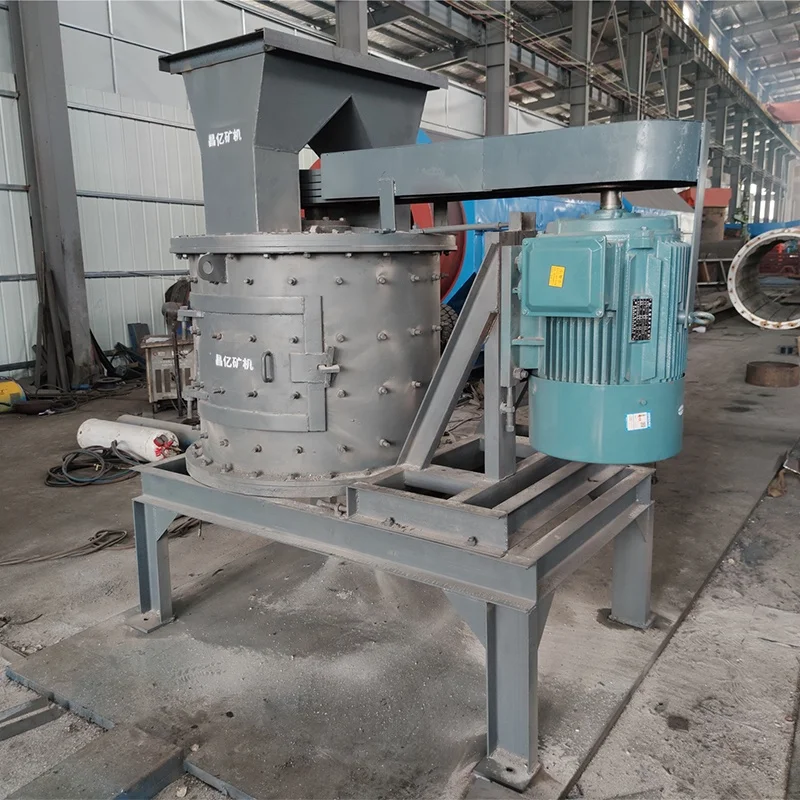

Vertical shaft sand making machine is also called compound crusher,It can be used for both raw material crushing,and clinker crushing;crushing material compressive strength of not more than 140 MPa humidity is not greater than 25%.Compound crusher is widely used in: building materials,chemical industry,metallurgy,electric power,coal,mining,other industries;it is suitable for crushing the cement clinker,granular blast furnace slag,coal briquettes,river pebbles,limestone,sandstone,shale,coal gangue,coal briquettes,luminium briquettes,gold ores,molybdenum ore,dolomite,granite and other materials.
Working Principle

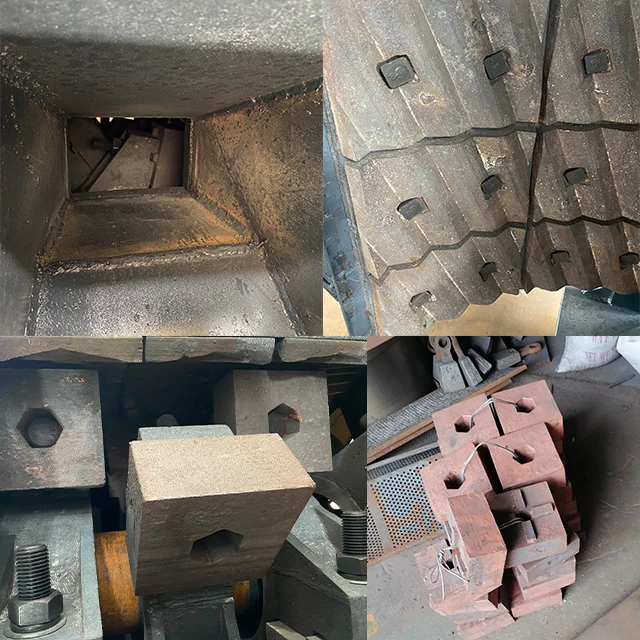

When the motor runs,it drives the central shaft;four lines of hammers are fixed on the central shaft,each line with four pieces of hammers.Materials are fed from top of the crusher;they are crushed by the high speed rotation hammers.There are liners around the crusher body to protect the crusher from damage.The materials are threw to the crushing cavity and impacted by the high rotating hammers and discharged out under the role of gravity,and the finial materials are sent from bottom of the crusher.
Technical Parameters
Model | Feeding size(mm) | Capacity(t/h) | Power(kw) |
PFL800 | 50 | 10-20 | 22 |
PFL1000 | 70 | 20-40 | 55 |
PFL1250 | 100 | 30-70 | 75 |
Features and Application
Features:
1.The compound crusher has a large crushing ratio.
2.The discharge granularity can be adjusted arbitrarily and is not affected by the wear of the plate hammer and liner.
3.It is not easy to block when crushing materials with high moisture content and large mud content.
4. The bearings are arranged horizontally and have long service life.
1.The compound crusher has a large crushing ratio.
2.The discharge granularity can be adjusted arbitrarily and is not affected by the wear of the plate hammer and liner.
3.It is not easy to block when crushing materials with high moisture content and large mud content.
4. The bearings are arranged horizontally and have long service life.
Application:
It is widely used in the medium and fine crushing fields of various ores,cement,refractory materials,emery,glass raw materials and other high-hard and extra-hard materials.It is widely used in the crushing of machine-made construction sand,stone and various metallurgical slags.

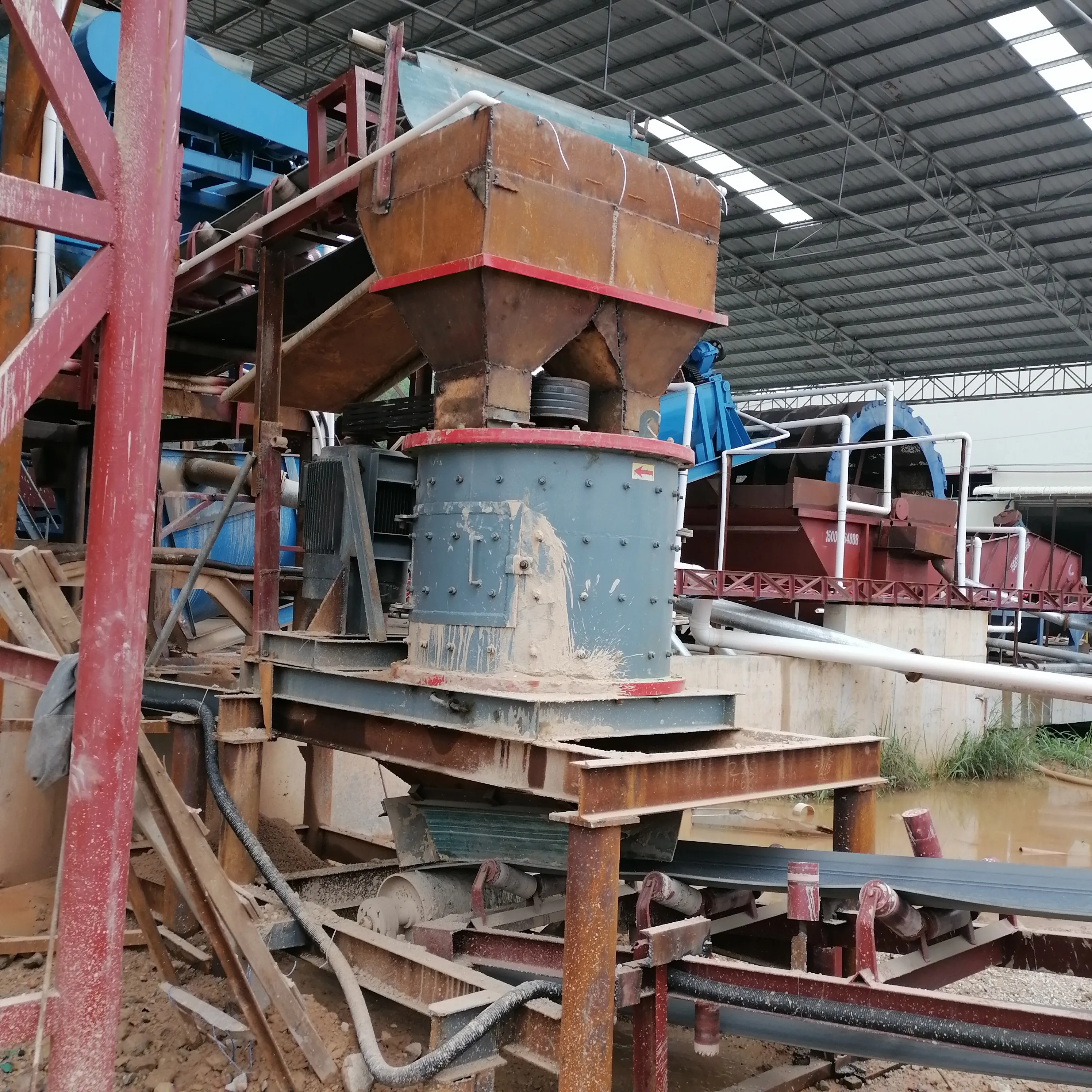

Successful Cases
With more than 10 years of experience in mining equipment production,we can provide a full set of mining machinery and equipment from crushing to beneficiation.We have professional engineers who can design the process according to your needs and provide on-site guidance and installation services.Here are some of our successful cases.Welcome to enquiry!
Packaging&Shipping
Packaging
1. Small products can be packed in wooden boxes or iron frames.
2. The whole big machine is loaded in the container.
2. The whole big machine is loaded in the container.
Company Profile
Company Introduction
Jiangxi Changyi Mining Machinery Co., Ltd,established in 2014,spans a production facility of 30,000 square meters and employs over 100 dedicated professionals.We specialize in the mining research,manufacturing,and the production of mineral processing equipment,offering comprehensive solutions that include professional workflow design for mineral processing plants,installation and technical guidance,as well as ongoing equipment maintenance.
Main Market
We specialize in customizing a wide range of mineral processing equipment tailored to meet our customers’ specific requirements.Our products are trusted by clients worldwide and have been successfully exported to numerous countries,including Africa,Nigeria,India,Indonesia, Congo,Zambia,Saudi Arabia,Malaysia,Mozambique,Turkey,Russia,Sudan, the United States, the Philippines,Zimbabwe,and many more.
Main Products
Our main products include a wide range of mineral processing equipment,such as shaking tables,ball mills,crushers,flotation machines,magnetic separators,rotary scrubbers,trommel screens,bucket sand washers,dryers, and belt conveyors.We also provide gravity separation equipments,grinding equipments,crushing equipments,flotation and magnetic separation equipments,mineral washing equipments,screening equipments,sand washing equipment, drying equipment,and various auxiliary tools to meet diverse processing needs.
Exhibition
Customer Visit
FAQ
1.How about price?
For the complete same machine,we can promise our quality is the best when the price same as other competitors,and our price can be lowest when the quality at standard level.
For the complete same machine,we can promise our quality is the best when the price same as other competitors,and our price can be lowest when the quality at standard level.
2.How is the quality of your products?
Our products are manufactured strictly according to national and international standard,and we will take a test on every product before delivery.
3.What services are available？
Professional engineer design the production line for you.
Pre-check and accept products before delivery.
Professional technical guidance for installation.
Professional technical guidance for installation.
4. How long is your delivery time?
7-10 days for the stock,15-30 days for the mass production.
5. What is your payment method?
7-10 days for the stock,15-30 days for the mass production.
5. What is your payment method?
We can accept T/T; 30% deposit,70% balance before factory delivery,which is international trade practice;Finished product pictures will be provided to customers before delivery.
6. How long is the warranty? Does your company supply the spare parts?
One year.Spare parts for you at lowest cost.
6. How long is the warranty? Does your company supply the spare parts?
One year.Spare parts for you at lowest cost.
Contact Us
Foreign sales: 0086 18370870839
Tel: 18370870839 Fax: 0797-5712436
Web: www.jxchangyi.com E-mail: sales6@jxchangyi.com
Add: Gongye 3rd Road, Guzhang Industrial Zone, Shicheng County, Ganzhou, Jiangxi, China
Web: www.jxchangyi.com E-mail: sales6@jxchangyi.com
Add: Gongye 3rd Road, Guzhang Industrial Zone, Shicheng County, Ganzhou, Jiangxi, China
Похожие товары
12-тонный улучшенный двигатель для карьерного грузовика можно настроить с сильной мощностью
13 999,00-14 999,00 $

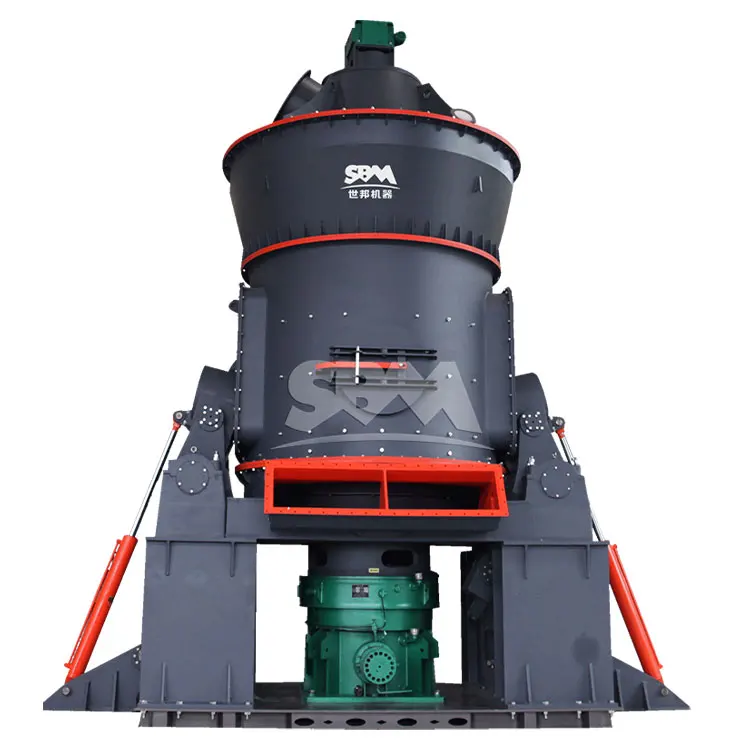

Мельница для калиевого полевого шпата шлифовальная мельница помола из пумового оксида кальция быстросъемная
Подземный Многофункциональный колесный погрузчик/скоопарм/LHD для угольной шахты
38 000,00 $

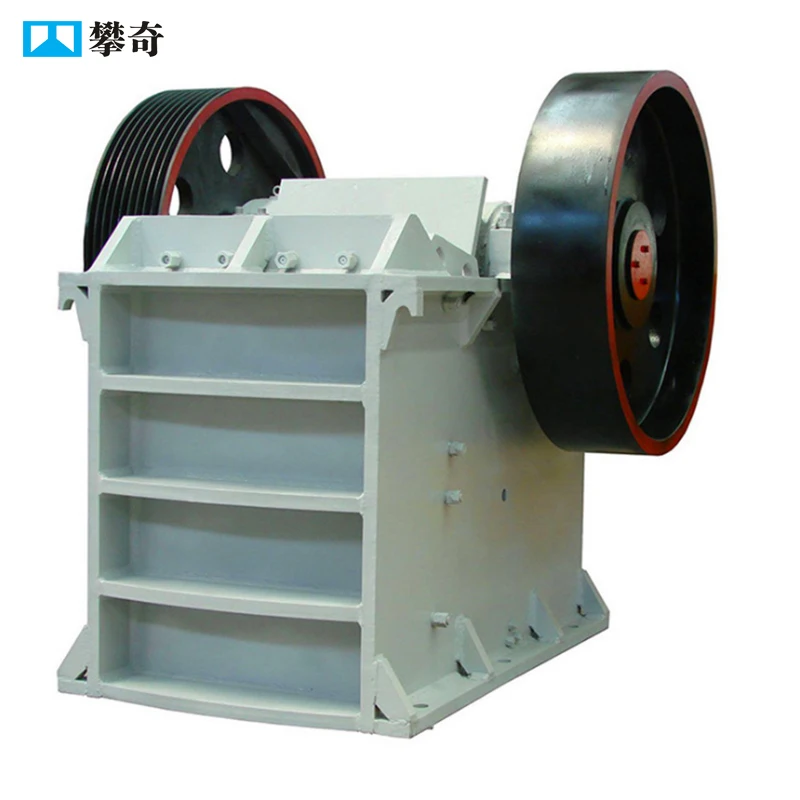

Производители Panqi продают небольшие мобильные щековые дробилки для использования на каменных заводах
