Сделано в Китае Sunergy 3 кВт 6 2 11 однофазный 15 20 30 солнечный PV автономный инвертор для домашнего использования
175,00-450,00 $
Сделано в Китае Sunergy 3 кВт 6 2 11 однофазный 15 20 30 солнечный PV автономный инвертор для домашнего использования
- Категория: >>>
- Поставщик: Chinaland Solar Energy Co. Ltd.Chinaland Ltd.
Сохранить в закладки 1601361951908:
Описание и отзывы
Характеристики

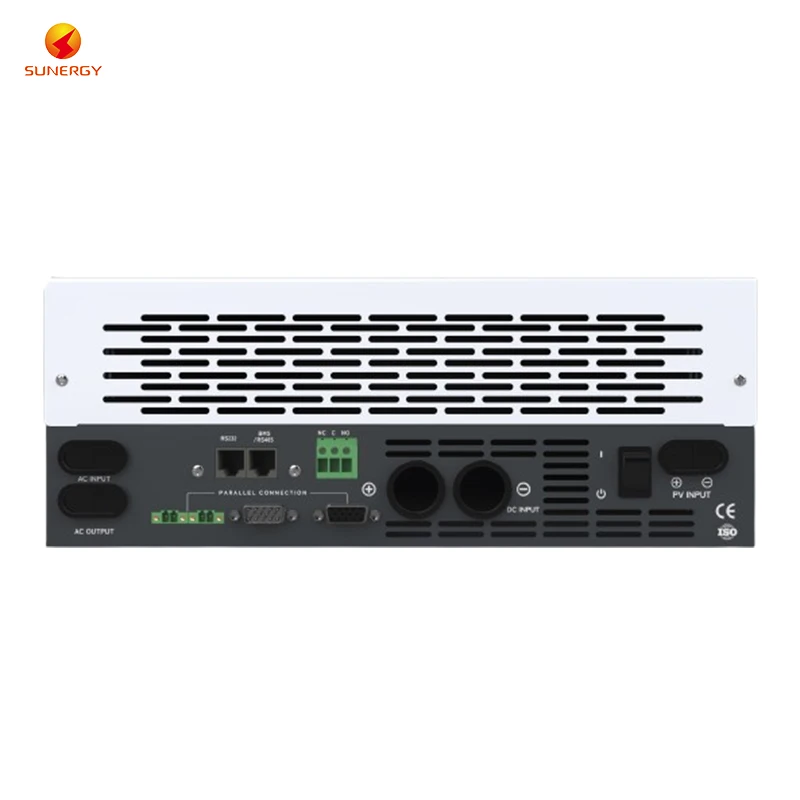

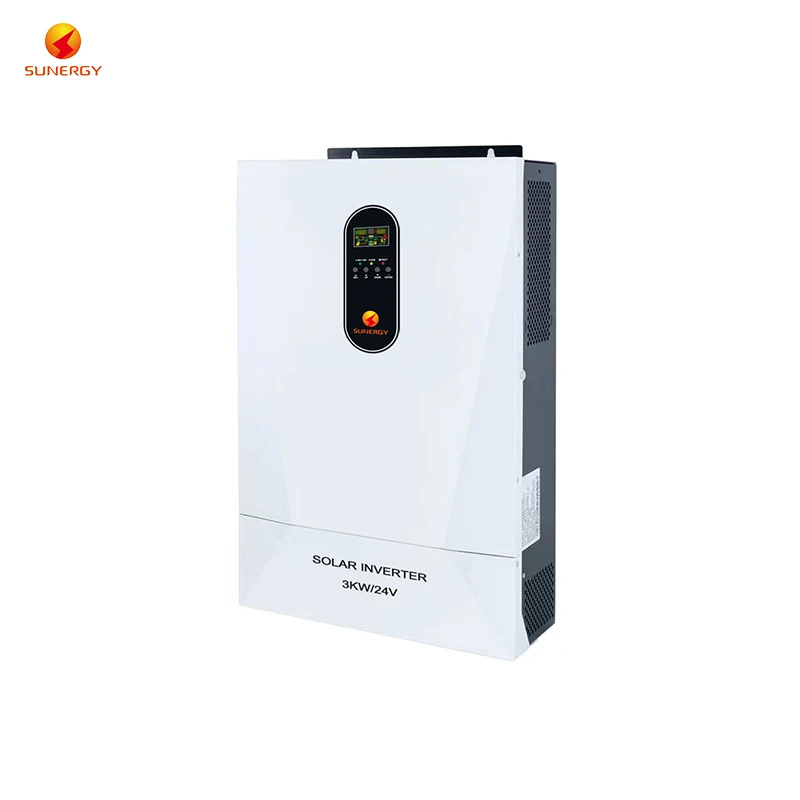

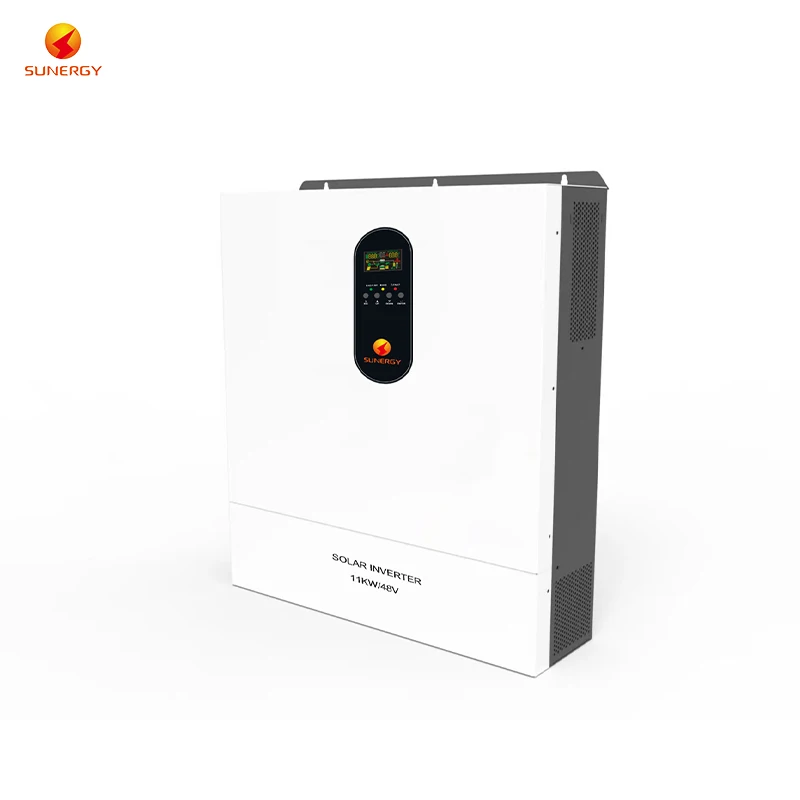

Product Description
Model | SUN3024MH | SUN6248MH | SUN11048MH | ||||
Input | Input Formation | L+N+PE | |||||
AC Input | 220/230/240VAC | ||||||
Input Voltage Range | 90-280 VAC ±3 V (Normal Mode); 170-280 VAC ±3 V (UPS Mode) | ||||||
Frequency | 50/60Hz(Adaptive) | ||||||
Output | Rated Power | 3KW | 6.2KW | 11KW | |||
Output Voltage | 220/230/240 VAC ±5% | ||||||
Output Frequency | 50/60 Hz ±0.1% | ||||||
Output Wave | Pure sine Wave | ||||||
Transfer Time(Adjustable) | 10ms for Computer Equipment,20ms for Household Equipment | ||||||
Peak Power | 6000VA | 12400VA | 22000VA | ||||
Overload Ability | Battery Mode:21s@105%~150% Load 11s@150%-200% Load，400ms@>200% Load | ||||||
Rated Voltage | 24 VDC | 48VDC | |||||
Battery | Constant Charging Voltage(Adjustable) | 28.2 VDC | 56.4 VDC | ||||
Floating Charging Voltage(Adjustable) | 27 VDC | 54 VDC | |||||
Pv Charging Method | MPPT | MPPT*2 | |||||
Interface | RS232 | 5PIN/Pitch 2.54 mm；Baud Rate：2400 | |||||
Expansion Slot Communication Interface | Lithium Battery BMS Communication Card,WlFl 2x5PIN/Pitch2.54mm | ||||||
Chargers | Max PV Input | 4.2KW | 6.2KW | 2x5.5KW | |||
MPPT Tracking Range | 120-500 VDC | 120-500 VDC | 90-500 VDC | ||||
Best VMP Working Range | 300-400 VDC | 300~400 VDC | 300~400 VDC | ||||
MAX PV Input Voltage | 500 VDC | 500 VDC | 500 VDC | ||||
MAX PV Input Current | 18A | 18 A/18 A | |||||
MAX PV Charge Current | 100 A | 100 A | 150 A | ||||
MAX AC Charge Current | 60 A | 80 A | 150 A | ||||
MAX Charge Current | 100 A | 100 A | 150 A | ||||
Display | LCD Display LCD | Display Running Mode/Loads/Input/Output etc | |||||
Environments | Operating Temperature | -10°C~50°C | |||||
Storage Temperature | -15°C~60°C | ||||||
Ork Altitude | No more than 1000m, if 1000m<,Rate power will lower, MAX 4000m, Refer to lEC62040 | ||||||
Operating Environment Humidity | 20%~95% Non Condensing | ||||||
Noise | ≤50db | ||||||
Dimension | L*W*H(mm) | 495*312*146 mm | 570*500*148 mm | ||||
Standards and Certifications | EN-IEC 60335-1.EN-IEC 60335-2-29.EC 62109-1 | ||||||
WIFI connect
Intelligent and variable-speed fan
Intelligent power supply mode
Key Feature:
◆Lithium battery auto-restart function for easier lithium battery charging.

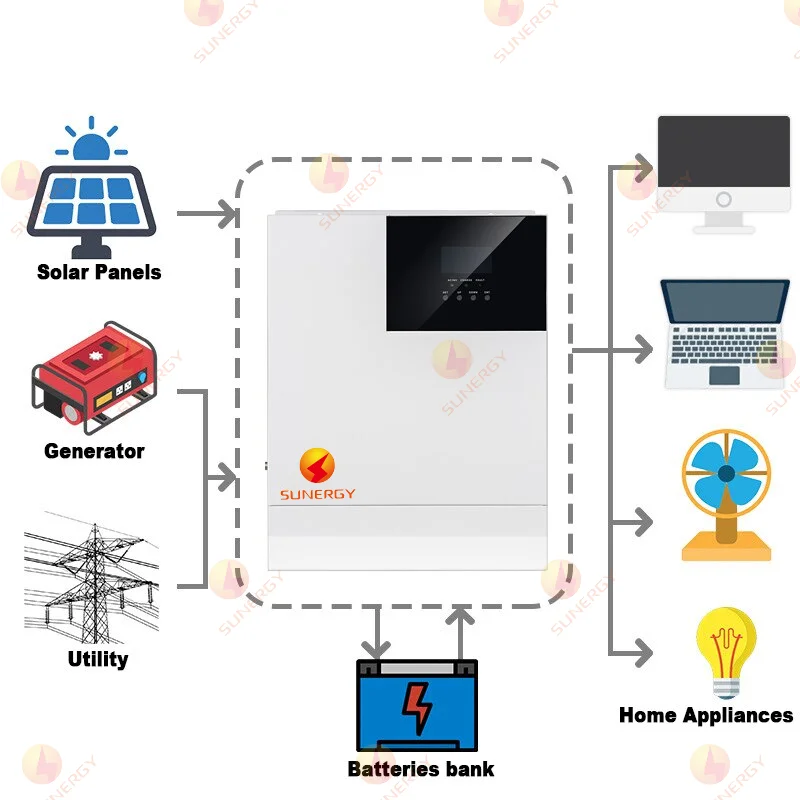

◆Intelligent power supply mode, intelligent distribution of solar panel, mains, and battery power shares.
◆Utility charging voltage and PV charging voltage adjustable to match different battery charging requirements.
◆Convenient installation and transportation.
◆Battery reverse connection protection with fuse switch for safer installation.
◆PF 1.0; high efficiency; lower consumption; energy conservation; environmental protection; electricity saving; cost saving.
◆Supports operation without a battery to reduce solar system costs.
◆Communication options include external WiFi for supervision at any time.
◆High precision output voltage (+5%) to take care of your appliances.
Packing & Delivery
Company Profile
Sunergy is a professional solar module manufacturer with 3GW produce capacity and over 10-year experience in production and quality control since 2008. Sunergy is also a provider of technical services for solar power plant (on-grid and off-grid), including technical design, installation and maintenance,for customers all over the world. With the best and most advanced production equipment in different countries, Sunergy shows a more and more competitive strength in US and EU markets with solar modules made in worldwide.

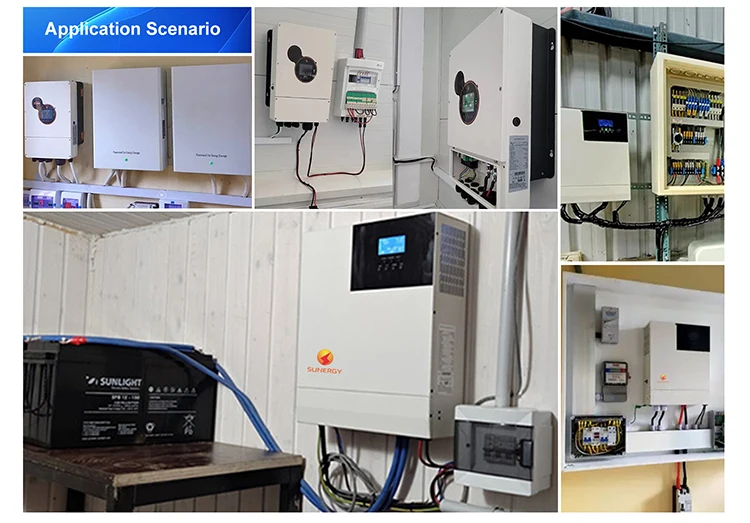

Project Case
