Внешняя Аккумуляторная Батарея 25 6 В 51 2 100Ah 200Ah литиевые батареи на складе
485,00-497,00 $
Сохранить в закладки 1601362193775:
Model | ML5.0 | |
Electrical Characteristics | ||
Nominal Voltage(Vdc) | 51.2 | |
Nominal Capacity(Ah) | 100 | |
Energy Storage(kWh) | 5.12 | |
Cycle Life | 6000 cycles @80% DOD, 0.5C | |
Design Life | 10 years+ | |
Charge/Discharge Standard | ||
Charge Voltage(V) | 56.8 | |
Discharge Voltage(V) | 44.8 | |
Recommend Charge/Discharge Current(A) | 50 | |
Max.Charge/Discharge Current(A) | 100 | |
Enviornment | ||
Charge Temperature | 0~55℃ | |
Discharge Temperature | -20℃~55℃ | |
Shelf Temperature | -20℃~60℃ | |
Relative Huidity | 5%~86%RH | |
Altitude | ≤4000m | |
Mechanical | ||
IP Protection | IP20 | |
Battery Chemistry | LiFePO4 | |
Case material | Metal | |
Case type | Rack Mount | |
Dimension(W/H/D,mm) | 475*440*133 | |
Weight(kg) | 45 | |
Features | ||
Battery Management System(BMS) | Support | |
Communication | RS485/RS232/CAN | |
Certificates | CE/IEC/UL/UN38.3/MSDS |
Model | Accessories Parts Description | Remark |
3U-LBCable150 | Battery Parallel Cable (Included) | Battery power and communication parallel connection cable (when using the 3U-bracket floor mount) |
3U-LPCable1500 | Hybrid inverter Cable (Included) | Battery power and communication cable connect with hybrid inverter |
3U-LRfe | Battery Rack Fixed Ears (Included) | Used for battery fixing with 19inch rack or cabinet |

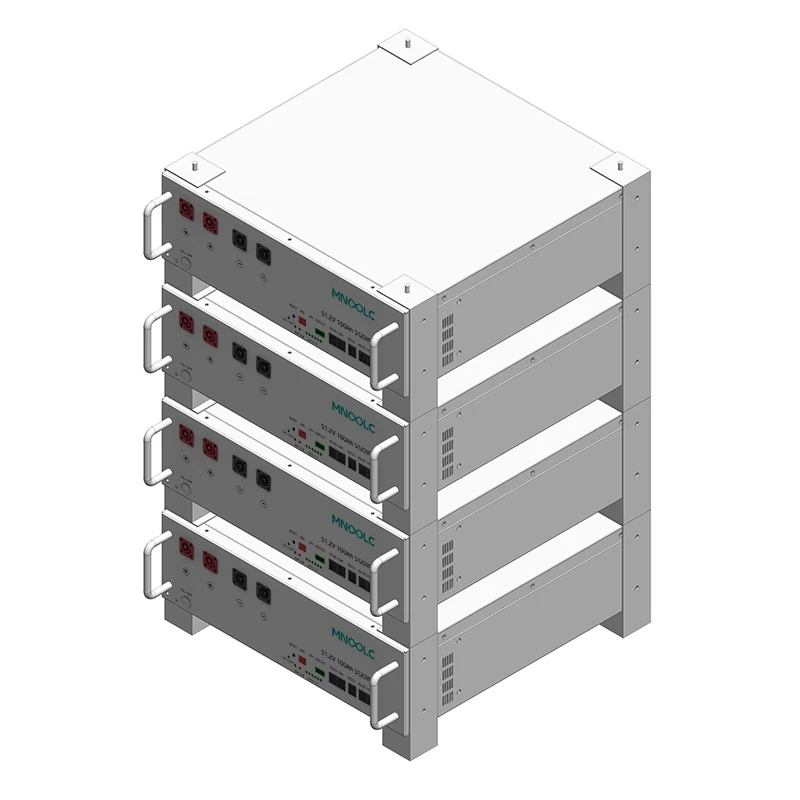

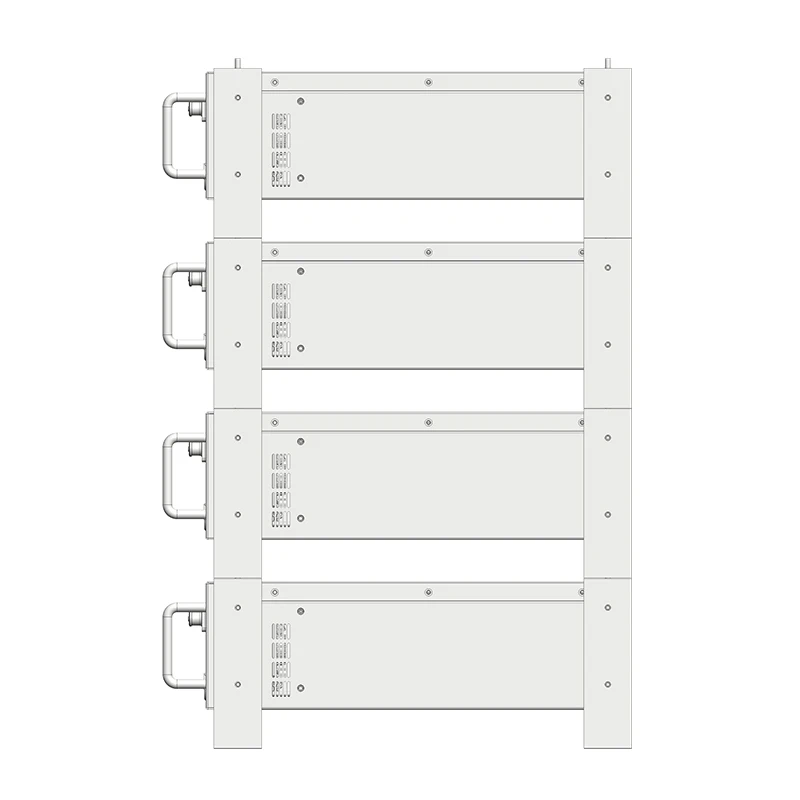

3U-Bracket | Battery Brackets (Included) | Simple stacking bracket, 1 unit including 4 pcs brackets, Max. stacking 4 floors |
3U-W-Bracket | Battery Wall-Mounted Brackets and screws (Included) | Simple wall hanging support. |
