Автоматический очиститель водорода
16 150,00-19 000,00 $
Жидкий кислород/азот/аргон/Co2 окружающий испаритель жидкий
- Категория: >>>
- Поставщик: Shandong Zhongneng Zhihua Energy Equipment Technology Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601362541354:
Описание и отзывы
Характеристики

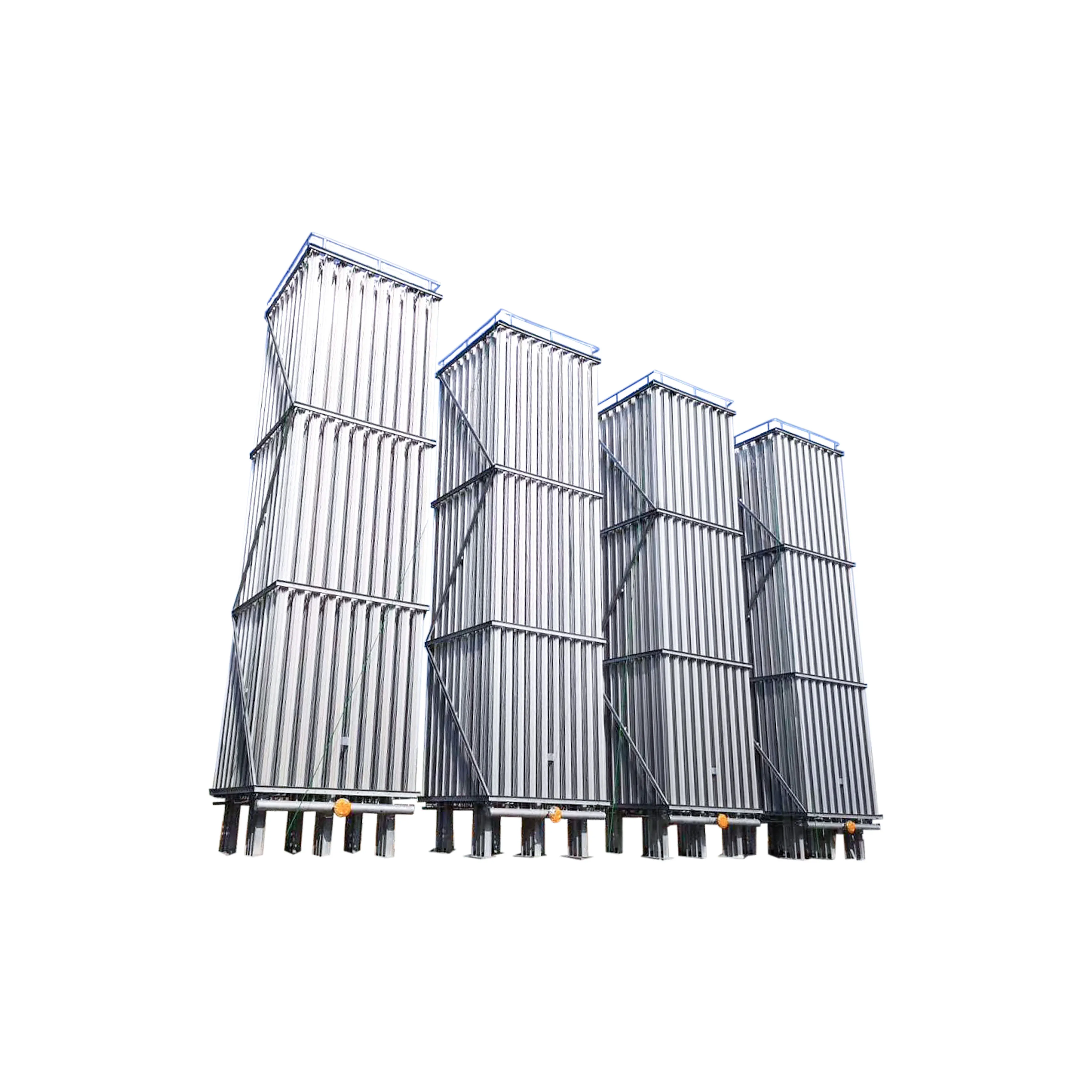

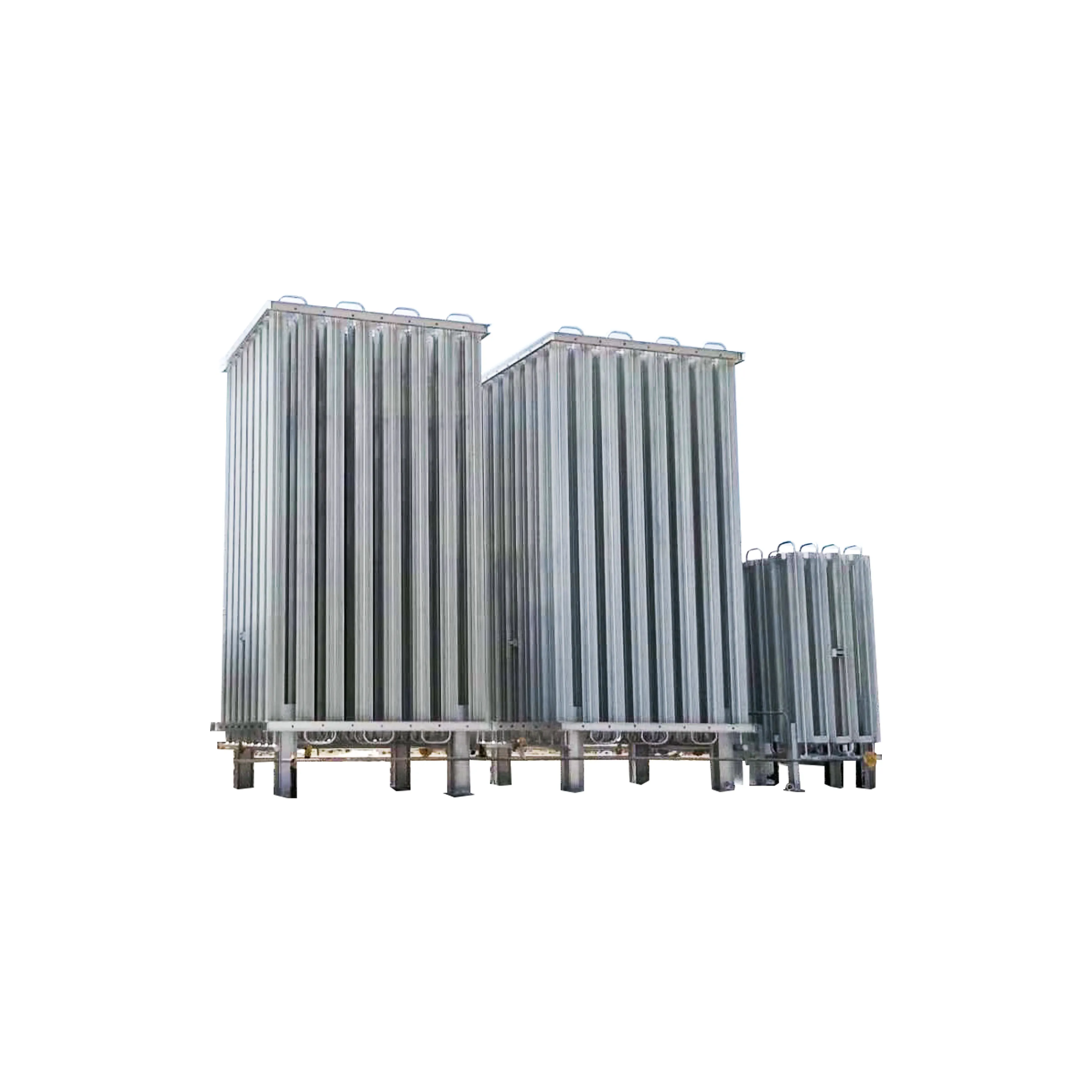

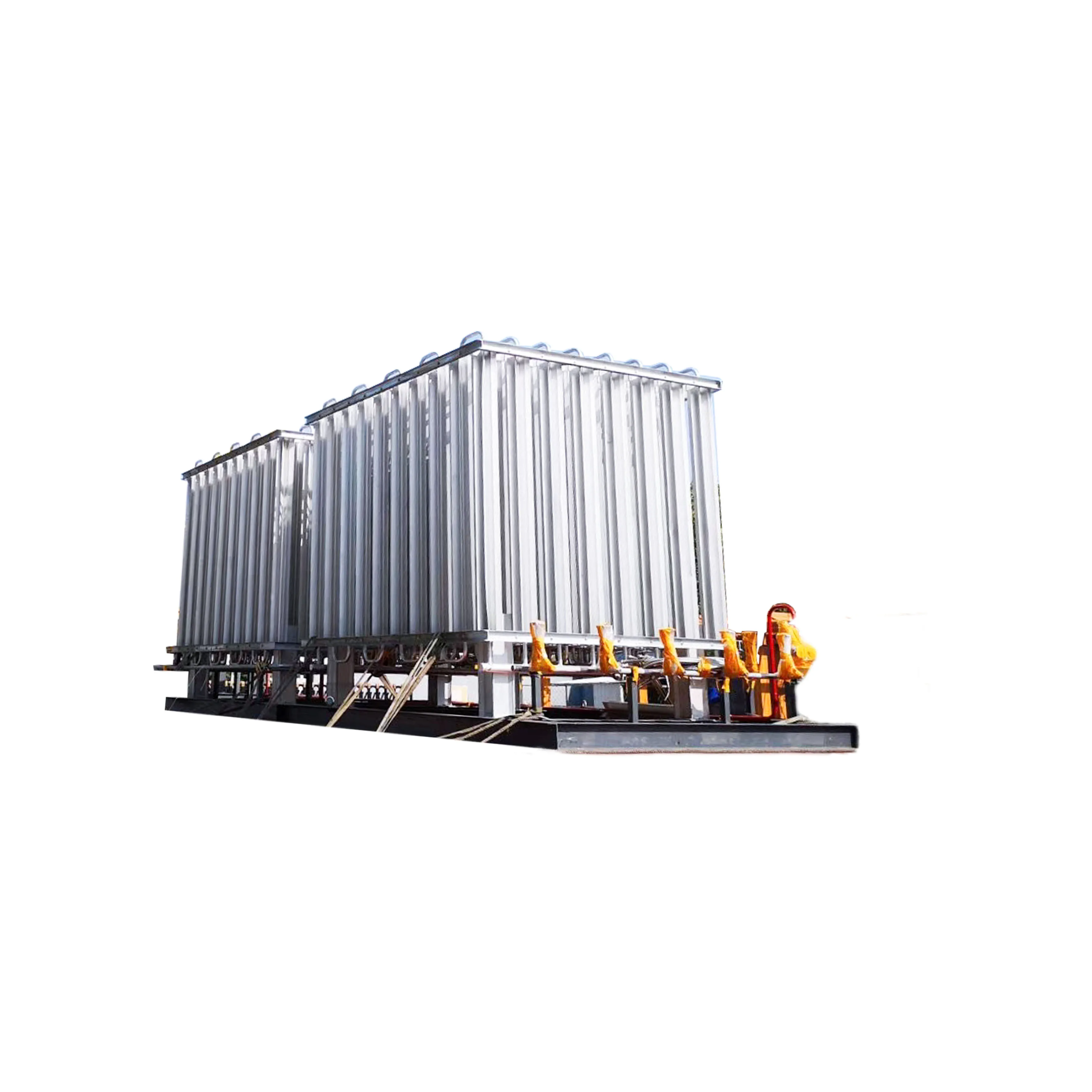

Product Overview
An Ambient Air Vaporizer (AAV) is a critical component in LNG gasification stations, designed to convert liquefied natural gas (LNG) back into its gaseous state using the natural heat from the surrounding air. This process, known as regasification, is essential for making LNG a viable and flexible energy source, especially in areas where other heating methods may be less
practical or cost-effective.
practical or cost-effective.
How It Works
1. Heat Transfer:
* The AAV consists of a series of finned tubes or coils through which the LNG flows. These tubes are exposed to the ambient air, which acts as the heat source.
* As the ambient air passes over the finned surfaces, it transfers heat to the LNG inside the tubes, causing the LNG to vaporize.
2. Flow Control:
* The flow of LNG through the AAV is controlled to ensure that the vaporization process is efficient and consistent. The design of the AAV ensures that the LNG is heated gradually, preventing any sudden temperature changes that could lead to operational issues.
3. Pressure Regulation:
* After the LNG is vaporized, the resulting natural gas is often at a lower pressure than required for distribution. Pressure regulating devices, such as valves, are used to adjust the pressure to the desired level before the gas is sent to the distribution network.
1. Heat Transfer:
* The AAV consists of a series of finned tubes or coils through which the LNG flows. These tubes are exposed to the ambient air, which acts as the heat source.
* As the ambient air passes over the finned surfaces, it transfers heat to the LNG inside the tubes, causing the LNG to vaporize.
2. Flow Control:
* The flow of LNG through the AAV is controlled to ensure that the vaporization process is efficient and consistent. The design of the AAV ensures that the LNG is heated gradually, preventing any sudden temperature changes that could lead to operational issues.
3. Pressure Regulation:
* After the LNG is vaporized, the resulting natural gas is often at a lower pressure than required for distribution. Pressure regulating devices, such as valves, are used to adjust the pressure to the desired level before the gas is sent to the distribution network.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
Model | Maximum evaporation (Nm3/h) | Maximum working pressure (Mpa) | Empty weight (kg) |
CN-50/25 | 50 | 2.3 | 100 |
CN-100/25 | 100 | 2.3 | 185 |
CN-150/25 | 150 | 2.3 | 245 |
CN-200/25 | 200 | 2.3 | 350 |
CN-500/25 | 500 | 2.3 | 610 |
CN-1200/25 | 1200 | 2.3 | 2100 |
CN-1400/25 | 1400 | 2.3 | 2250 |
CN-2000/25 | 2000 | 2.3 | 3220 |
CN-4000/25 | 4000 | 2.3 | 5500 |
Certifications
SALES AND SERVICE NETWORK

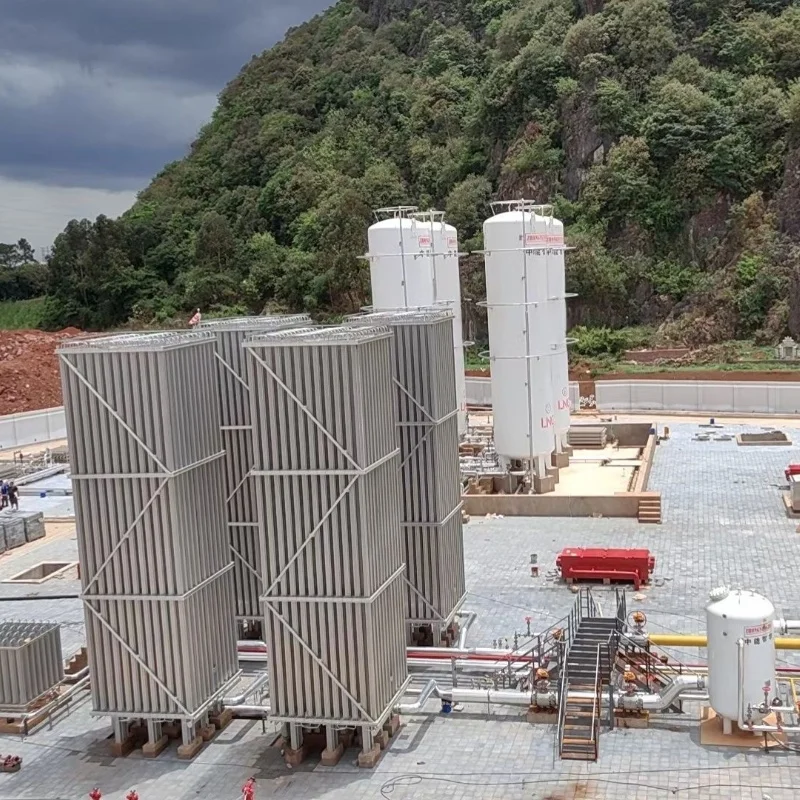

Successful Project

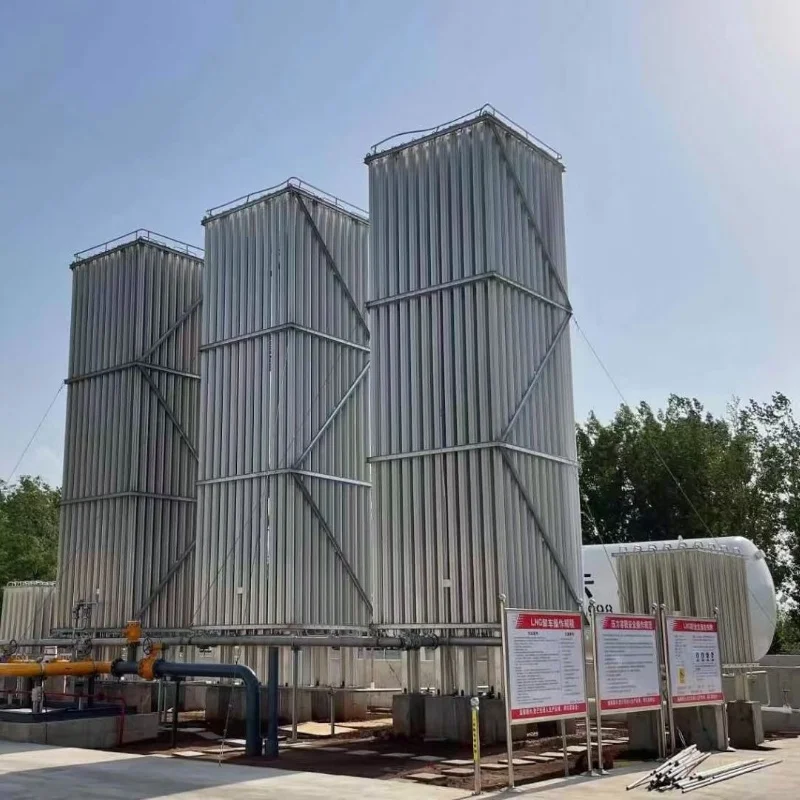

Project in Thailand
Project in India
Project in Russia

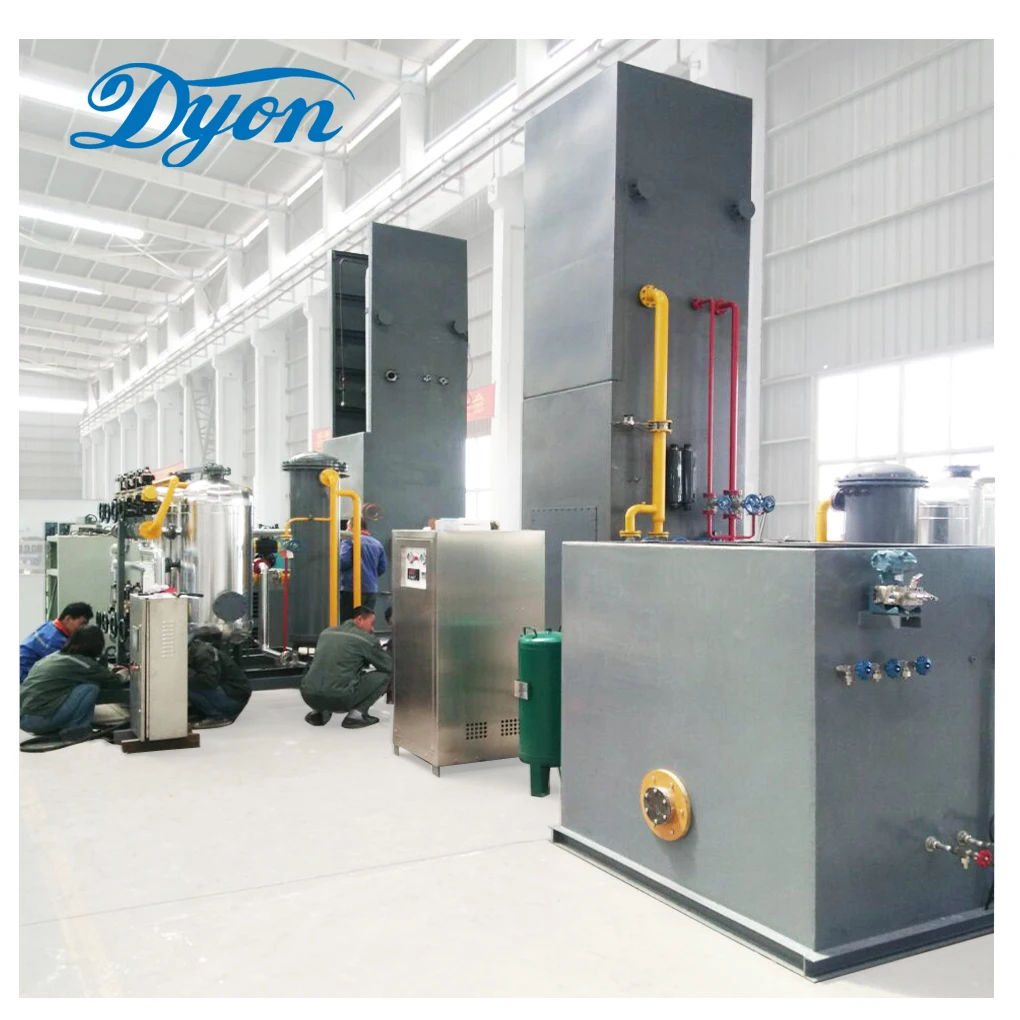

WorkShop
FAQ
1. Can you provide installation and commissioning services?
According to your requirements, we can provide you with:
(1) On-site installation and construction services;
(2) On-site technical engineer guidance service;
(3) Online technical guidance service.
Except those we will ship the related files such as "installation, commissioning and operation instructions”, graphic materials, related video and audio materials together with the equipment. Considering the cost, we recommend that you use our online technical guidance and audio-graphic guidance files to complete the equipment installation. 100% of our customers can use the instructions and online guidance to complete the equipment installation.
Except those we will ship the related files such as "installation, commissioning and operation instructions”, graphic materials, related video and audio materials together with the equipment. Considering the cost, we recommend that you use our online technical guidance and audio-graphic guidance files to complete the equipment installation. 100% of our customers can use the instructions and online guidance to complete the equipment installation.
2. Can you use English (or other languages) version of your control system panel, operating language and factory materials?
Absolutely. We can provide it in all languages according to your request.
3. Do you accept product customization?
Of course, we are running our own factory, accept OEM product customization services, you can send your specific requirements to us, we have professional design engineers to provide you with customized design services.
4. What is the service life of your product?
Designed service life is 20 years. In fact it can be extended according to the actual use situation. Some of our customers have used it for 30 years.
5. Can I put my logo on the product?
Of course, we support product painting color and logo customization.
Похожие товары
Экологически сознательное устройство для фильтрации газа 1Mpa EP H2 водородная система очистки хранения энергии
47 000,00-50 000,00 $
2000L лабораторное водородное оборудование высокого давления для производства водорода очистки двигателя
3 288,00-3 999,00 $
Автомобильный углеродный авансовый генератор водорода для автомобиля
Скользящая криогенная установка для разделения воздуха медицинская Кислородная
246 000,00 $

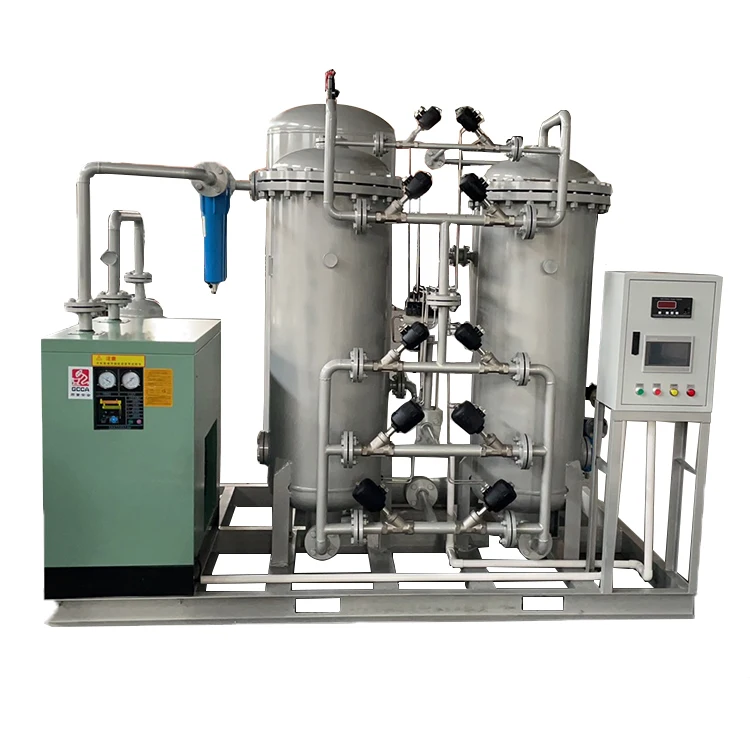

Система генерации азота PSA Подгонянный генератор для лазерной резки
