model | CPC-100 | CPC-300 | CPC-500 | CPC-800 |
Specificationsand dimensions | 2260*600*1470(mm) | 3450*950*1700(mm) | 4650*1400*2160(mm) | 5010*1600*2200(mm) 1700(mm) |
Maximum ground lift | 5.2m*0.18T | 9.2m*0.2T | 14.8m*0.3T | 16m*0.6T |
Maximumoperating radius | 20m | 45m | 65m | 80m |
Capacity | 1T | 2.95T | 5T | 8T |
Wire rope | 8mmx20m(Max) | 8mmx45m(Max) | 12mmx70m(Max) | 12mmx80m(Max) |
Boom Length | 2.1m-5.5m | 3m-9.5m | 5m-16.5m | 5m-16.8m |
BoomAngle/Time | 30sec (fully extended) | 26sec (fully extended) | 40sec (fully extended) | 50sec (fully extended) |
slewAngle/Speed | 0~70°/50sec | 0~75°/18sec | 0~78°/46sec | 0~78°/46sec |
Walking speed | 0-360°/107sec | 0-360°/45sec | 0-360°/120sec | 0-360°/120sec |
Gradeability | 20° | |||
Hydraulic OilTank Capacity | 20L | 40L | 100L | 130L |
Vehicle wight | 1200kg | 2400kg | 6300kg | 7300kg |
Customizable safety devices:
Remote control, Level Gauge, Torque Limiter,Three Color Indicator Light,
Emergency Stop Button,OutriggersBoom Interlock,
Anti Tip Device, One Touch leveling

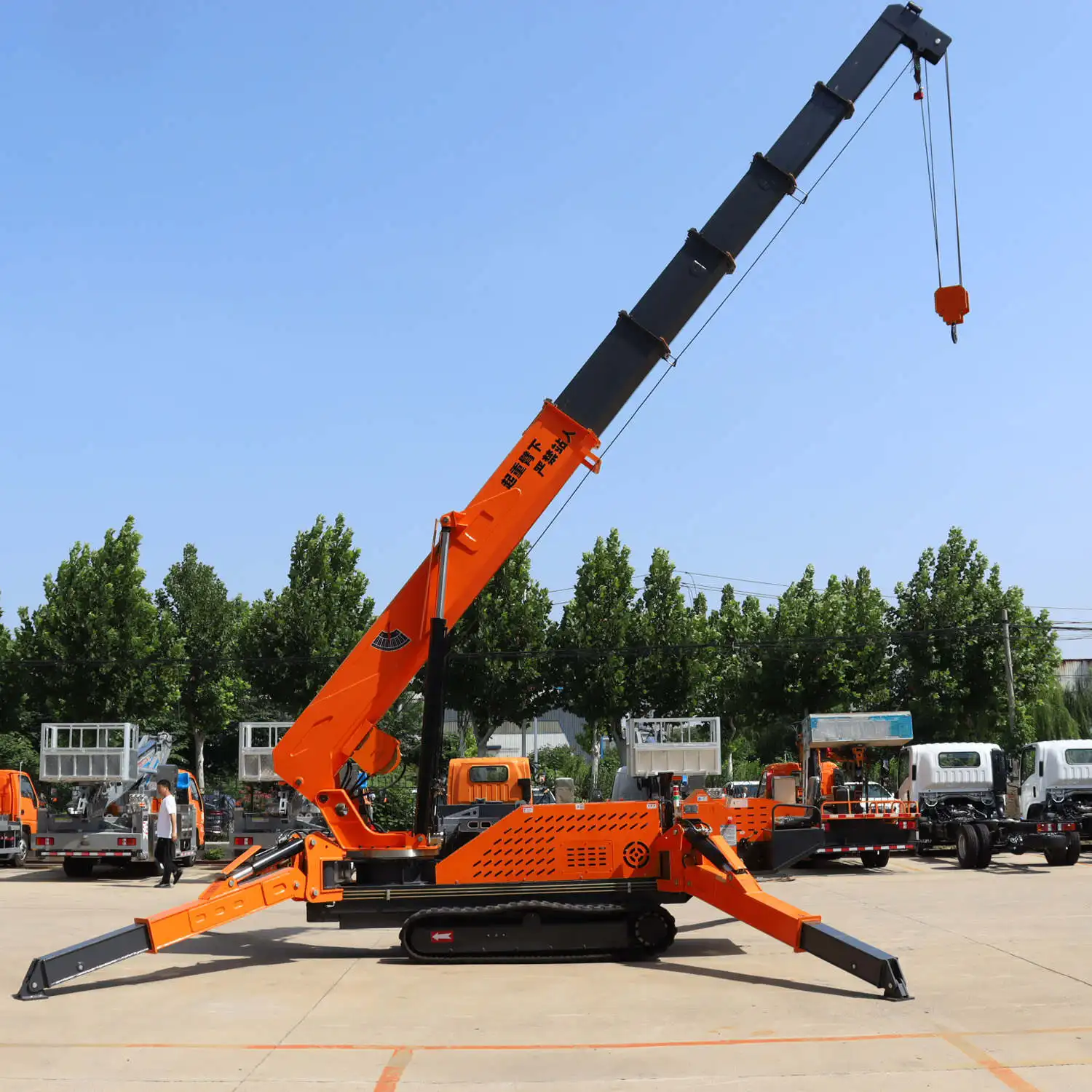

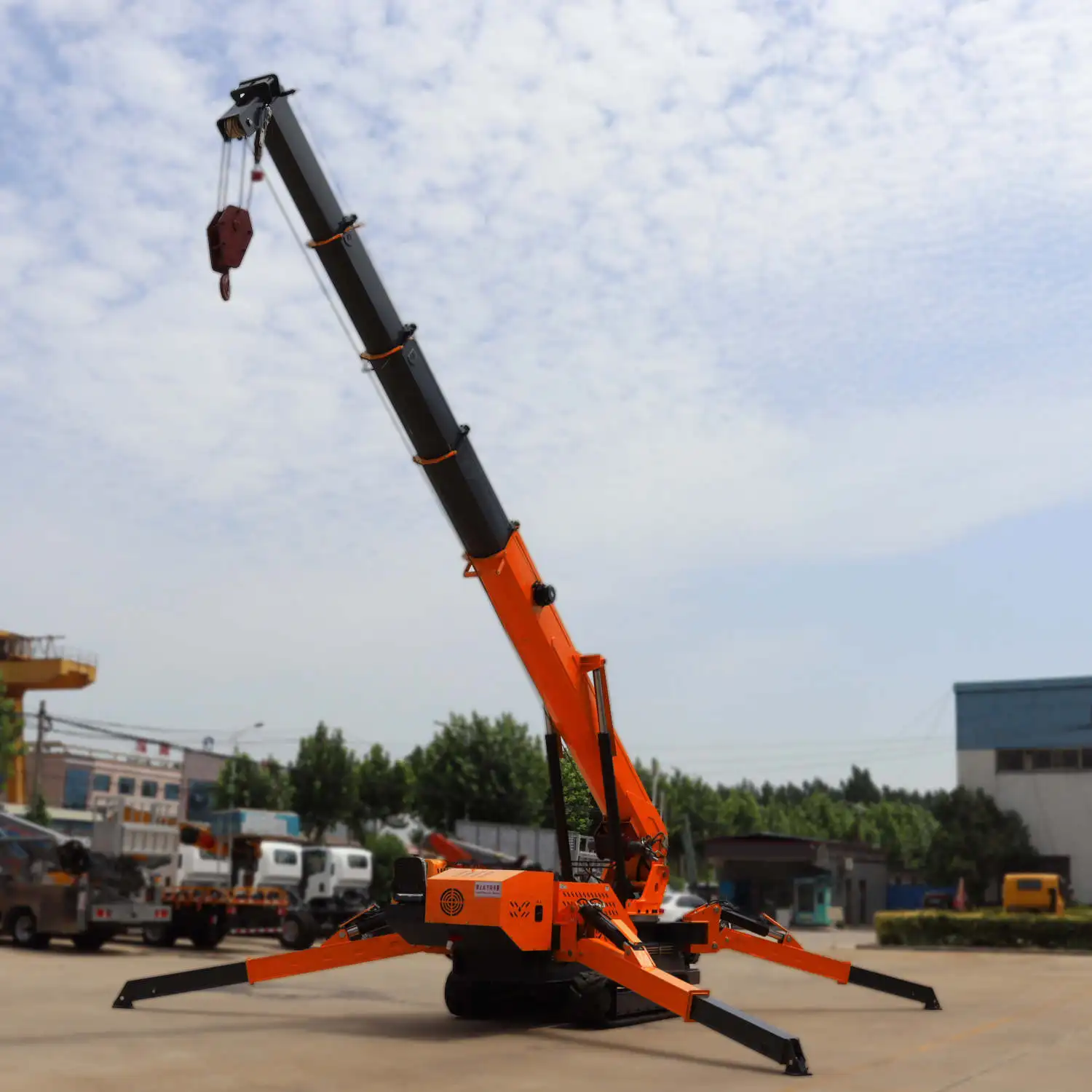

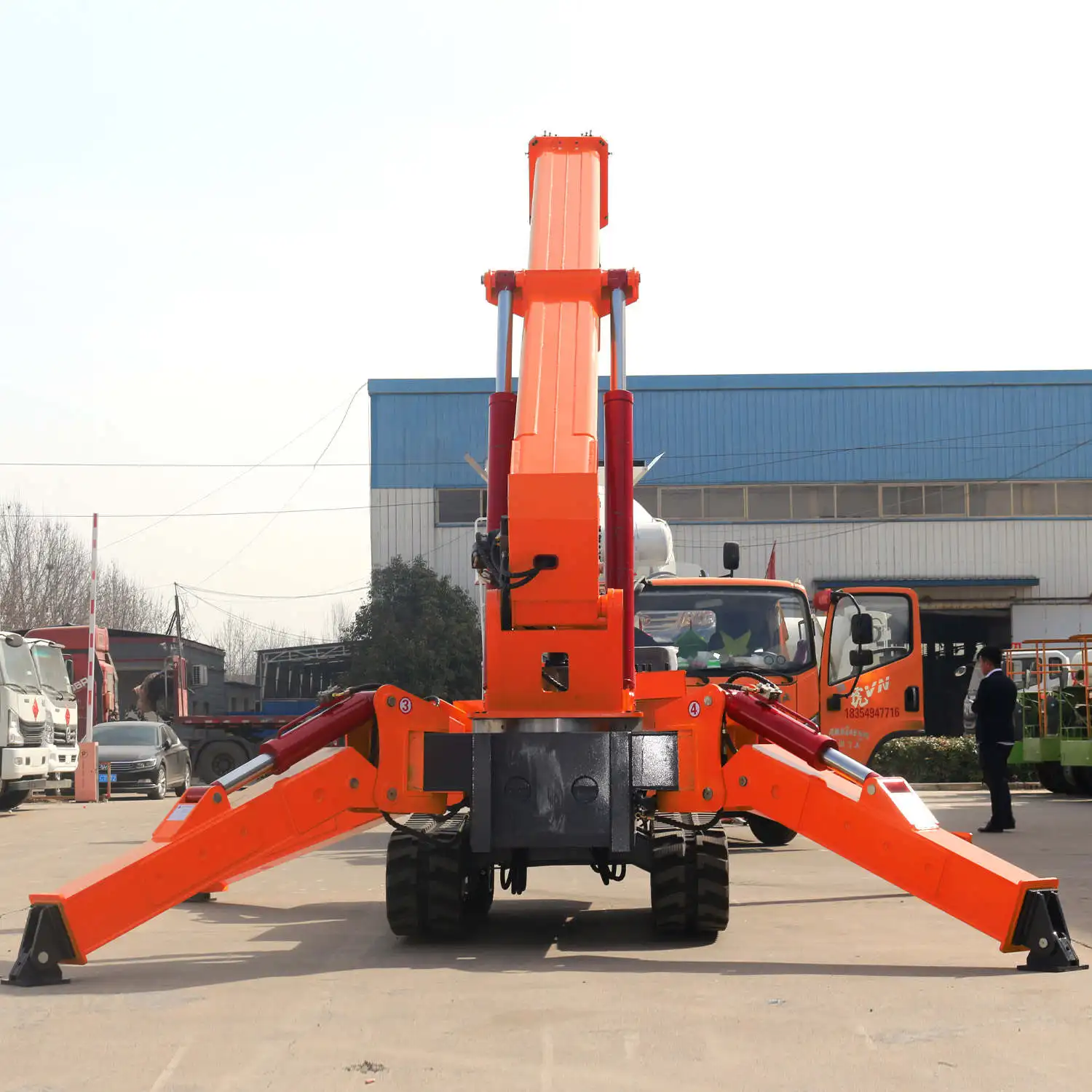

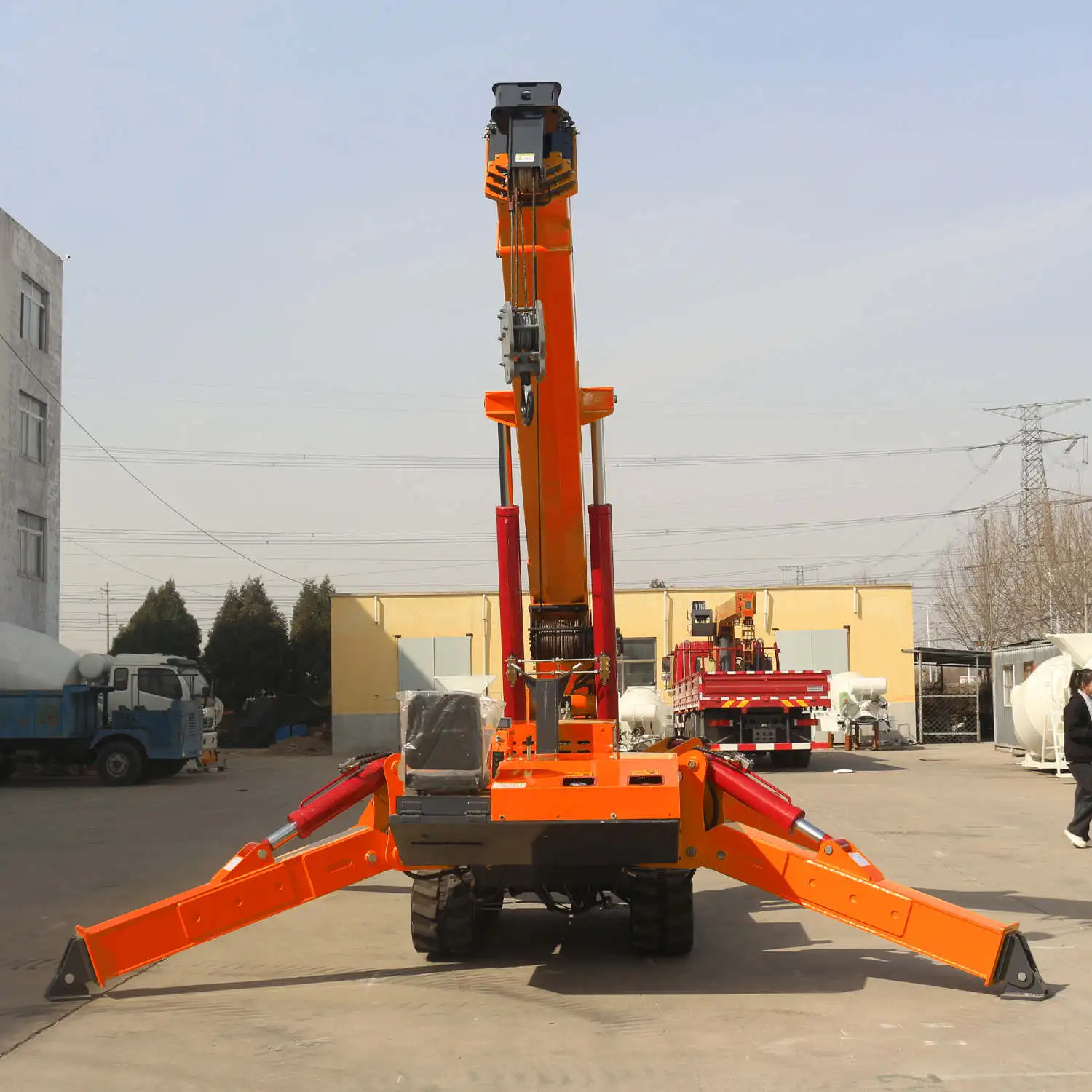

Spider crane product features:
Compact $ize:
Spider cranes are designed to be small and lightweight, making them idealfor maneuvering in narrow or
congested spaces where larger cranes cannot fit
Articulated Legs:
The extendable legs or outriggers provide stability on umeven surfacesand can be adjusted to fit various operating
conditions
High laneuverability:
These cranes can rotate and extend in multiple directions,allowing precise positioning and lifting in constrained environents.
Hydraulic Operation: Spider cranes are often equipped with hydraulic systems that
Shandong Capstone Machinery Co., Ltd. is a company in northern China specializing in the design,production, processing, and export of hoisting equipment and construction equipment.The company was established in 2015 and is located in Jining, the core industrial city of Shandong .Province, China, Economic Development Zone. At present, there are two independent production plants, covering an area of more than 10,000square meters, production R & D teams, a marketing department, and an after-sales department with more than 300 people.
Since 2015, Capstone Machinery has continuously developed and upgraded products,striving to build a high-tech industry.All products have obtained ISO9001 ISO14001 ISO 18001 CE Ro HS SGS.And obtained a number of patents, established a perfect sales network in Europe and North America.Our products are sold in large quantities to more than 100 countries and regions such asGermany, France, Italy, Spain, the United States, Canada, Mexico, Peru, Brazil, the Middle East, Southeast Asia,etc., and are highly praised by customers.
FAQ
1.0: What's your MoQ?
A: 1 Set;
2.0:What's your packaye?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
3.Q:What's your delivery periodP
A: Within 10/25/40 days after your prepayment received; exact period should be basedon detailed requirements and actual period;
4.0: What's your warranty period?
A: 12 months from cranes accepted;
5.Q: Do you have enyineer oversea installation service?
A: Yes:We have;
6.0:What kinds of produets do you have?
A: All kinds of industrial electric winch, Overhead Crane,Gantry Crane.Jib Crane.
Electric Hoist.Etc.
7.0: Could we buy spare parts in local once they are out of work?
A: Our major electrical accessories brands are sold all over the world, so it's easy to buy.But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEXAramex,etc.
8.0: Could your winches drag inclinedp
A: Yes, our electric winches could drag horizontal, drag inclined, hoisting vertical
