Высокопроизводительная материнская плата 6 гигабитный Ethernet порт GPIO шлюз брандмауэр мягкий маршрутизатор i3i5i7 сетевой коммутатор безопасности

Сохранить в закладки 1601362607229:


Цена:105,00-117,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description








Product parameter

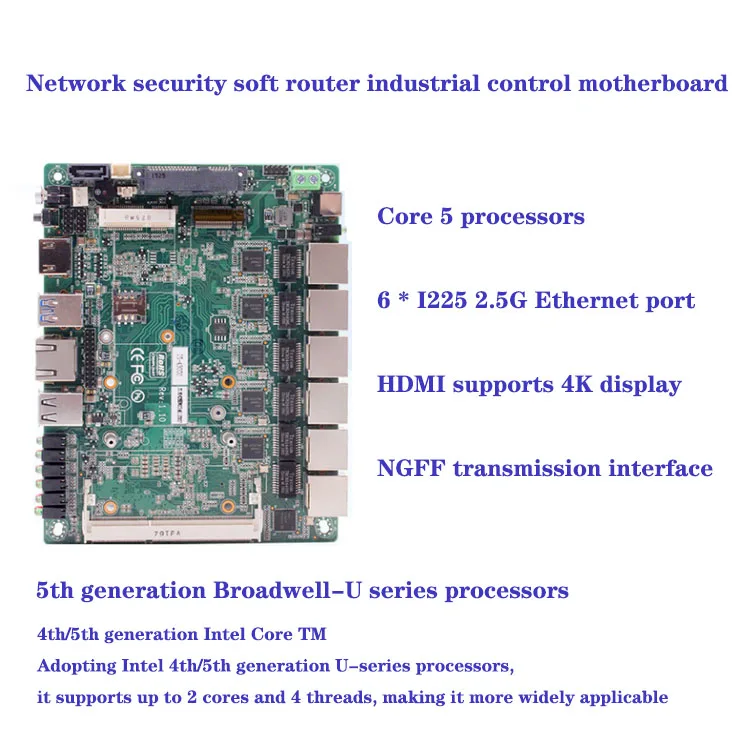

Processor system
Onboard Intel 4th/5th generation Haswell-U/Broadwell-U series processors

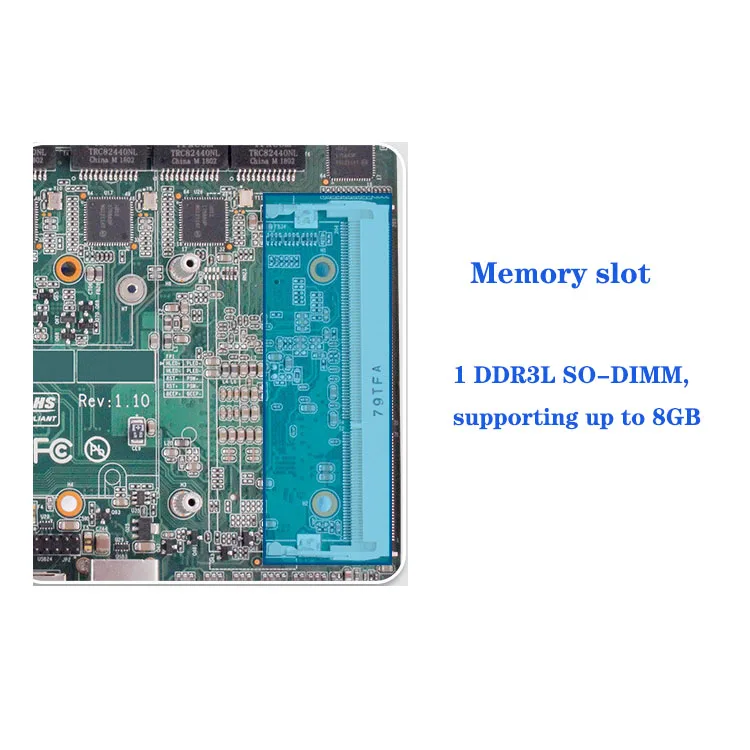

Memory
1 DDR3LSO-DIMM, maximum 8GB

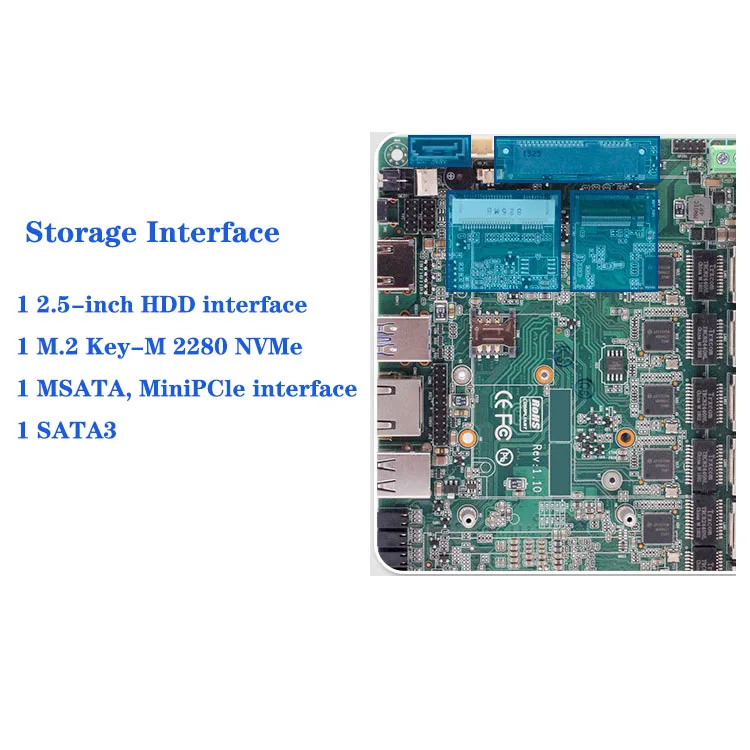

Storage
1*SATA3
1*2.5-inch HDD interface, 2Pin5V power supply
1*MSATA, MiniPCle interface
1*M.2 Key-M 2280 NVMe
Display
HDMI1.4, 1920x1080@60Hz

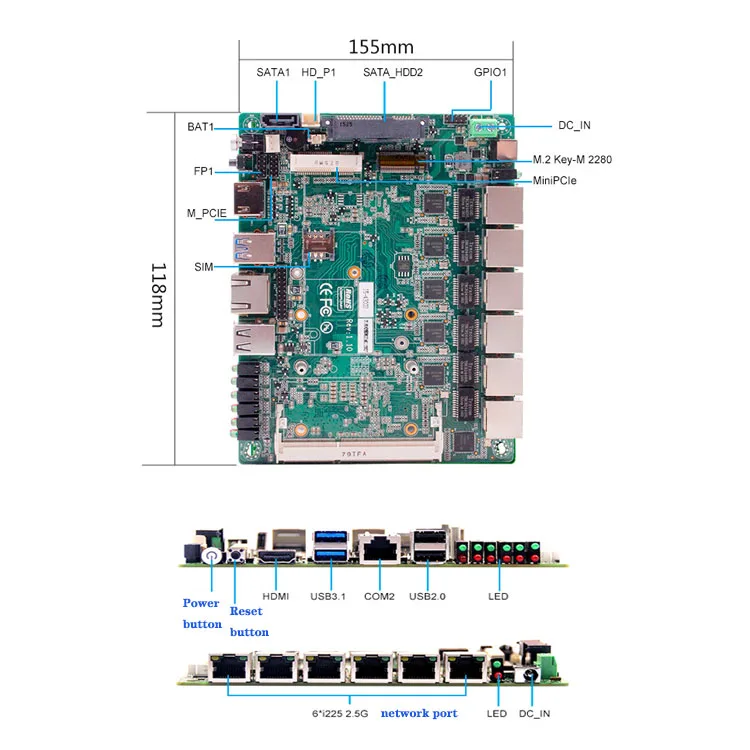

Board edgeI/O interface
1 HDMI; 6 LAN (RJ45); 2 USB3.1 and 2 USB2.0
1 RS232 (RJ45 interface); 1 power button with indicator light, 1 reset button
1 DC JACK (12-19V); 1 power indicator light, 1 hard drive indicator light
Expansion interface/function
1 MiniPCle, supporting PCle and USB 2.0 protocols, WIFI/3G/4G devices
1 RS232 pin, choose one of RS232 with RJ45 interface
1 set (2) of USB 2.0 pins, 2x5 pins, with a spacing of 2.0mm
8-bit GPIO pin, 2x5Pin, spacing 2.0mm
1 F_Panel, 2x5Pin, spacing 2.0mm; 0-255 seconds watchdog
1 3Pin CPU fan, 1 3Pin system fan
1 set of PS/2 pins, 2x5Pin, with a spacing of 2.0mm
F_Panel,2x5Pin, Distance 2.0mm
Power Supply
DC12-12V, above 60W
Work environment
working temperature
-20℃~+60℃
Storage temperature
-40℃~+85℃
Working humidity
5% 90% relative humidity, no condensation
Storage humidity
5% 90% relative humidity, no condensation
System support
Windows10, Windows7, Linux
Size
155x118mm
Net Weight
Approximately 150g without radiator, approximately 240g with radiator included
Authentication
CE,RoHS,FCC
