Бронированный силовой кабель 10 ~ 35 кВ верхний жесткий многожильный XLPE изолированный алюминиевый проводник по заводской цене
- Категория: >>>
- Поставщик: Chunbin Cable Group Co. Ltd.Chunbin Ltd.
Сохранить в закладки 1601362610567:
Описание и отзывы
Характеристики
Product Description

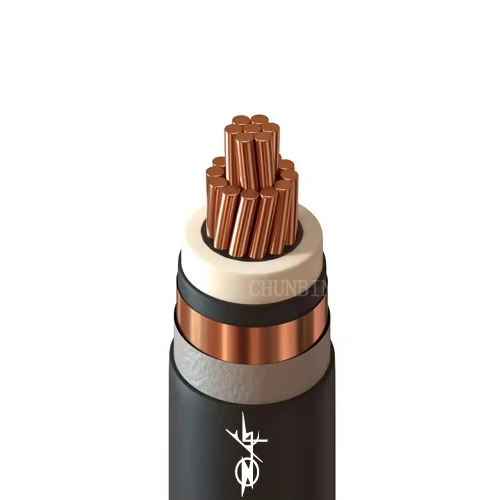

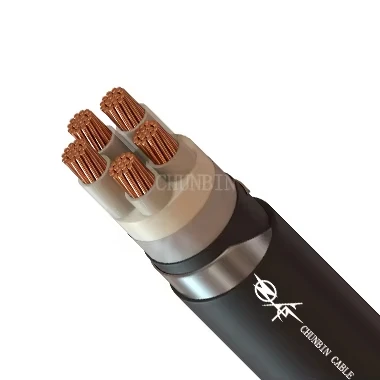

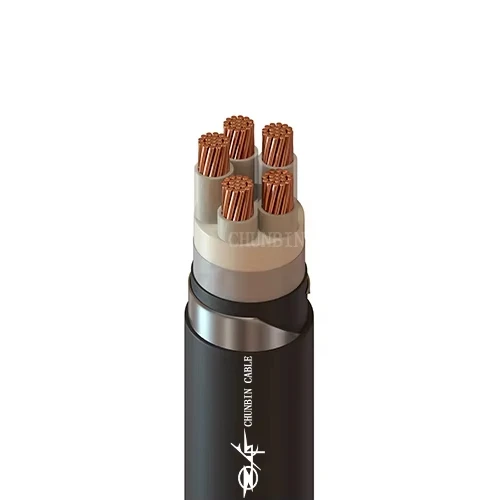

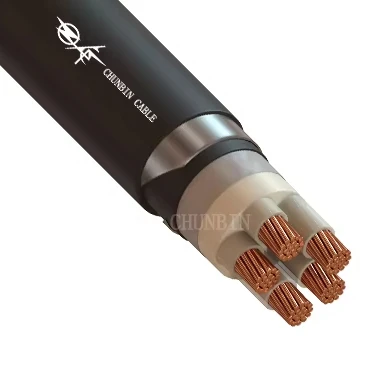

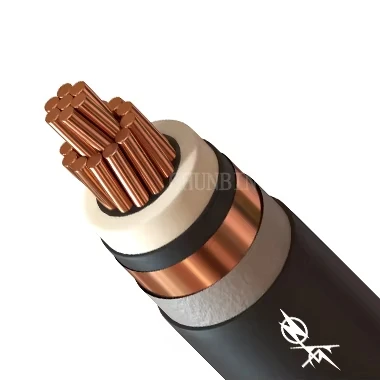

Medium Voltage IEC Standard Steel Tape Armoured Aluminum/Copper Power Cable With PVC/PE Jacket And Insulation Used For Underground
Main Features
1. Conductors: copper or aluminum.
2. Both armored and non-armored type power cables are available.
3. Voltage rating: 0.6/1kv 3.6/6kv 6/10kv 8.7/15kv 26/35kv
4. PVC or XLPE Insulated.
5. Standards: IEC, BS, ASTM, NFC, AS, GOST etc. or other special characteristics as customers request.
6. Max Long-time operating temperature of PVC insulated cable is 70°C,XLPE 90°C
7. Installing temperature of cable should not be less than 0°C
8. Max short-circuit temperature is: PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec.
9. Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)
PVC insulated cable conductor maximum temperature rating of 70 ℃, when a short circuit occurs (the longest duration of no more than 5S), the conductor temperature does not exceed 160 ℃. The maximum rated temperature of XLPE insulated cable conductor is 90 ℃, short (the longest duration of no more than 5S) occurs, the conductor temperature does not exceed 250 ℃. When installing PVC insulated or jacketed cable ambient temperature not below 0 ℃. Perfect chemical stability, resistant against acids, alkali, grease and organic solvents, and flamer retardant.
Product Application
A power cable is an electrical cable, an assembly of one or more electrical conductors, usually held together with an overall sheath. The assembly is used for transmission of electrical power. Power cables may be installed as permanent wiring within
buildings, buried in the ground, run overhead, or exposed.
Power cables are cables used to transmit and distribute electrical energy. Power cables are often used in urban underground power
grids, power station outgoing lines, internal power supply in industrial and mining enterprises, and underwater transmission lines across the river.
buildings, buried in the ground, run overhead, or exposed.
Power cables are cables used to transmit and distribute electrical energy. Power cables are often used in urban underground power
grids, power station outgoing lines, internal power supply in industrial and mining enterprises, and underwater transmission lines across the river.
Minimum bending radius | ||||||||
Iteam | Single core cables | Multi-core cables | ||||||
Unarmored | Armored | Unarmored | Armored | |||||
Minimum bending radius laying | 20D | 15D | 15D | 12D | ||||
Minimum bending radius near the connection box and termination cable | 15D | 12D | 12D | 10D | ||||
Remark: D- Overall diameter of cables | ||||||||
Related Cables
Our Factory
The Chunbin Cable Group Co,. Ltd covers an area of 68,000 square meters, with a construction area of 18,000 square meters and fixed assets of 106.8 million RMB. We own advanced production equipment and perfect testing machine. Our company mainly produces mineral insulated cable, pv cable,overhead line cable, OPLC rail transit cable, optical fiber composite cable, medium and low voltage XLPE insulated power cable, PVC insulated power cable, aluminum alloy cable, fire resistant cable, flame retardant cable, control cable, overhead insulated cable, low-smoke halogen-free cable, rubber cable, mining cable, aluminum stranded wire and steel core aluminum stranded wire, PVC insulated wire and cable, shielded monitoring line, protection More than 50 varieties, more than 1000 specifications, such as line, agricultural land embedding, anti-aging line, coaxial cable. At the same time, it can also produce British standard American standard and German standard wire and cable, and customize special type wire and cable for customers.
Packing & Delivery
Certifications
Our company strictly controls the quality of products. The products have passed the inspections of the national , provincial and municipal quality supervision departments for many years, and successfully passed the Chinese state. These certifications includes compulsory product certification, coal mine safety certification, national industrial product production license and ISO9001 international quality management system certification. It has obtained the national certificate of use of flame retardant products and is qualified as a foreign trade operator.
FAQ
Are you a factory or trade company ?
We are a professional cable manufacturer with 31 years experience. The factory is located in Luoyang, Henan province, China.
Whether these products quality assured ?
Most of cables are certificated. Also, we have strict QC, all products are tested before delivery. Quality is assured.
When I want customized products, how to do?
Contacting our customers survice, we have a professional R&D team and quality inspection team that can customize products according to customer's needs.
Can you send a sample for us to test?
If we have inventory, you can get 1-5meters sample for free, but freight cost need to be paid by your compony. If need a lot of samples , sample and freight cost have to be paid by your esteemed company. We will return the sample cost to you when we receiving your initial order.
If we want to purchase, how to pay ?
Generally we do T/T in 30% deposit before production, 70% balance against copy of B/L . Also payment terms are negotiable depending on customer's request.
When you arrange delivery after we place an order ?
Normally,we will arrange delivery in 7-15 days after order , and negotiation is allowed according to your quantity.
After I pay, what about shipping method?
Goods can be delivered by air, by express or by sea; International Express as FEDEX, UPS, DHL, TNT; You can choose the best way as you wish.
Похожие товары

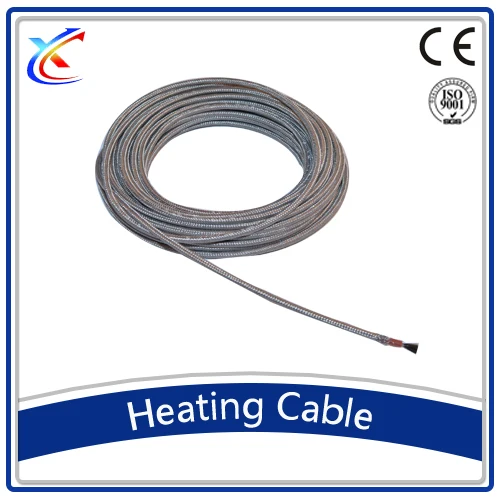

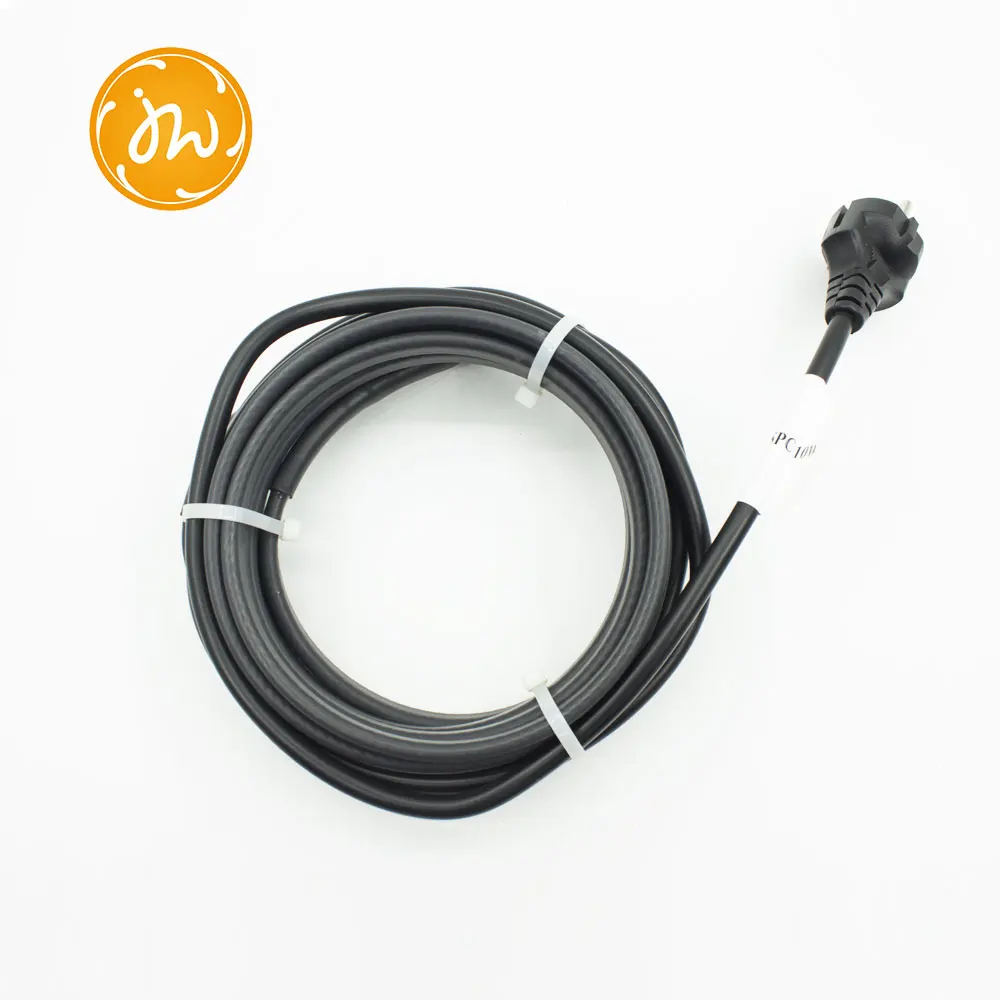

Водопроводные трубы Замораживание-Электрообогрева нагревательный кабель двойной ptc инкубатор
Термостойкие напольный кабель системы отопления
Прямая поставка с фабрики 10 проводников экг пациента магистральный кабель медицинский провод

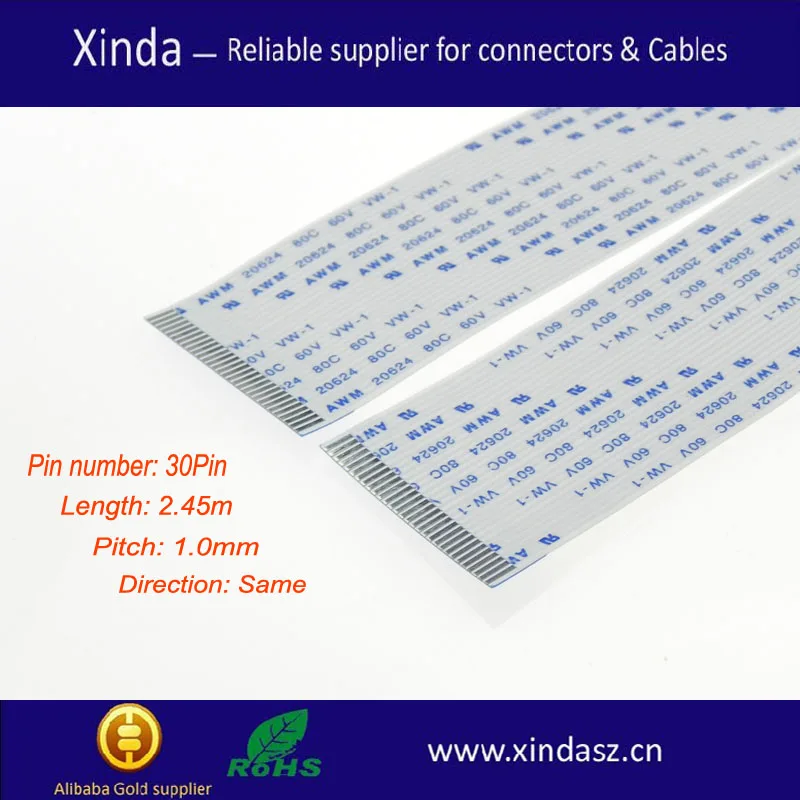

Новое поступление экранированный LVDS FFC кабель
