Product Overview

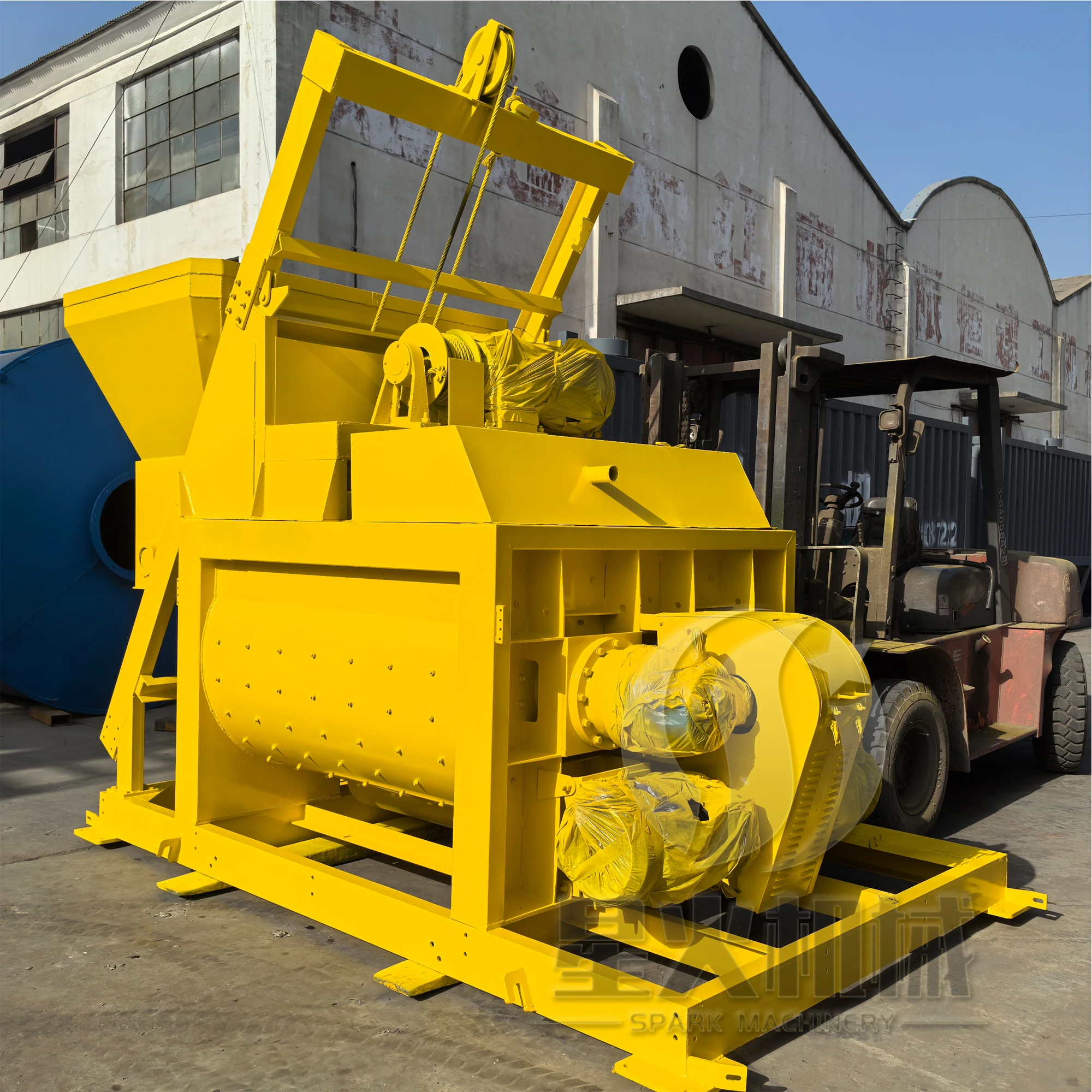

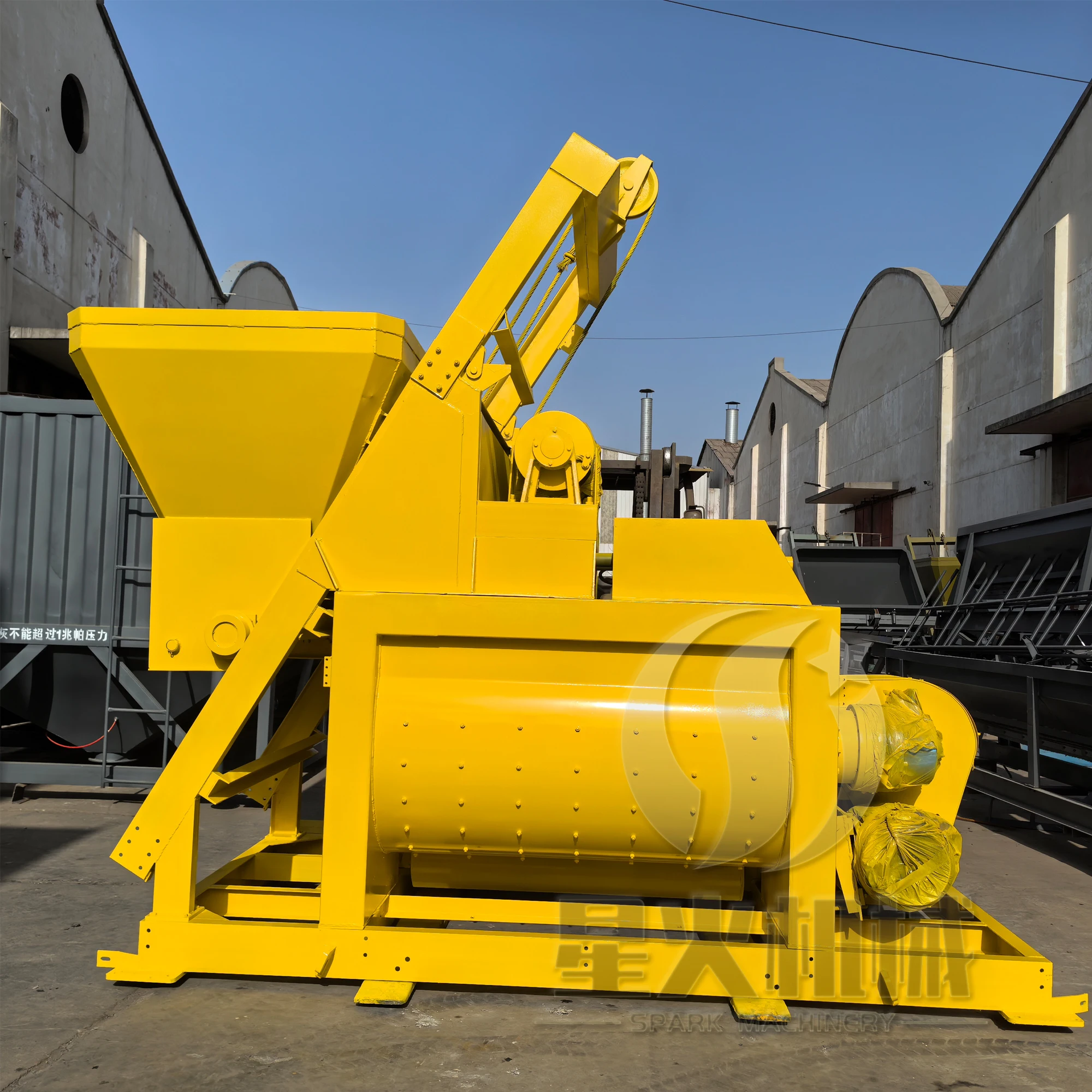

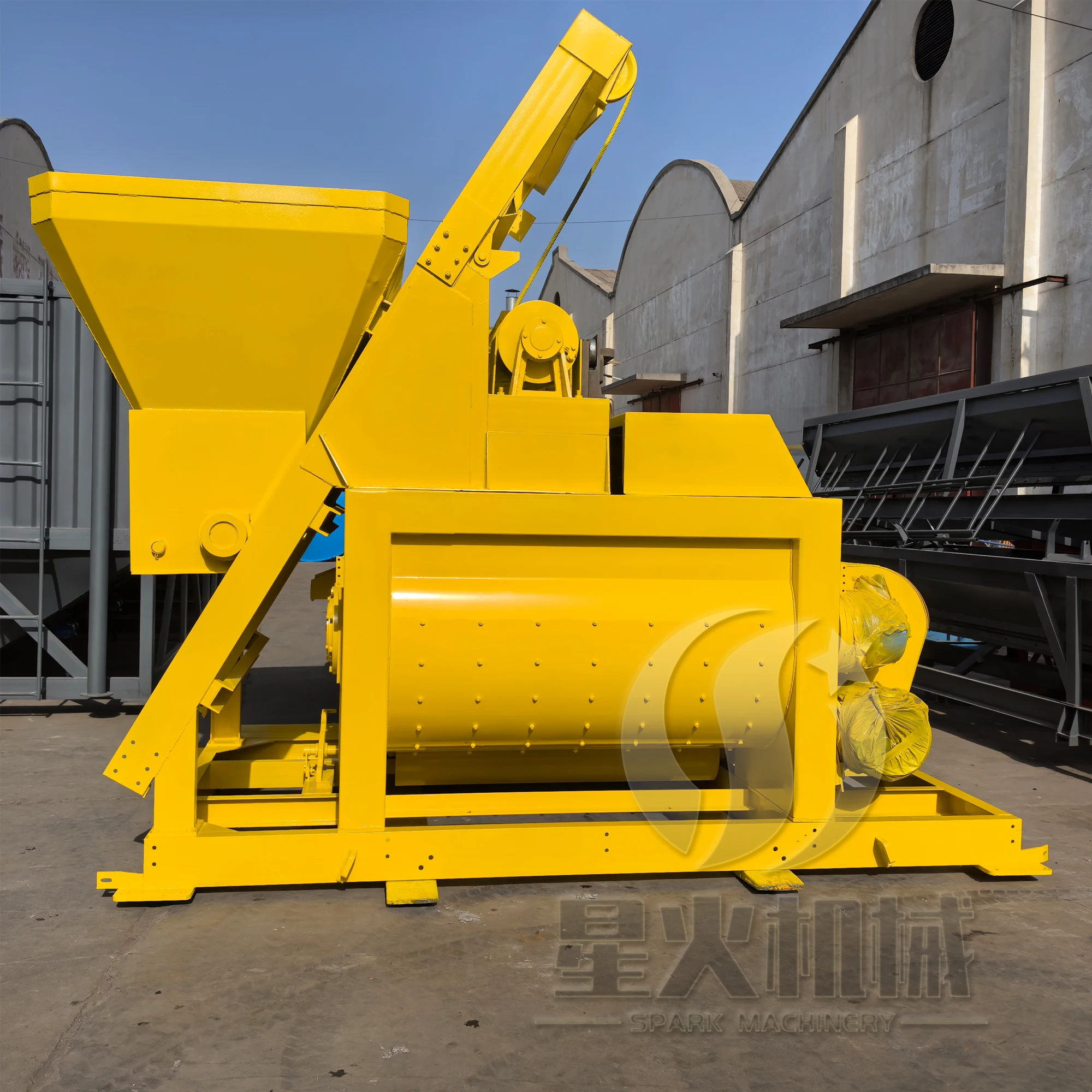

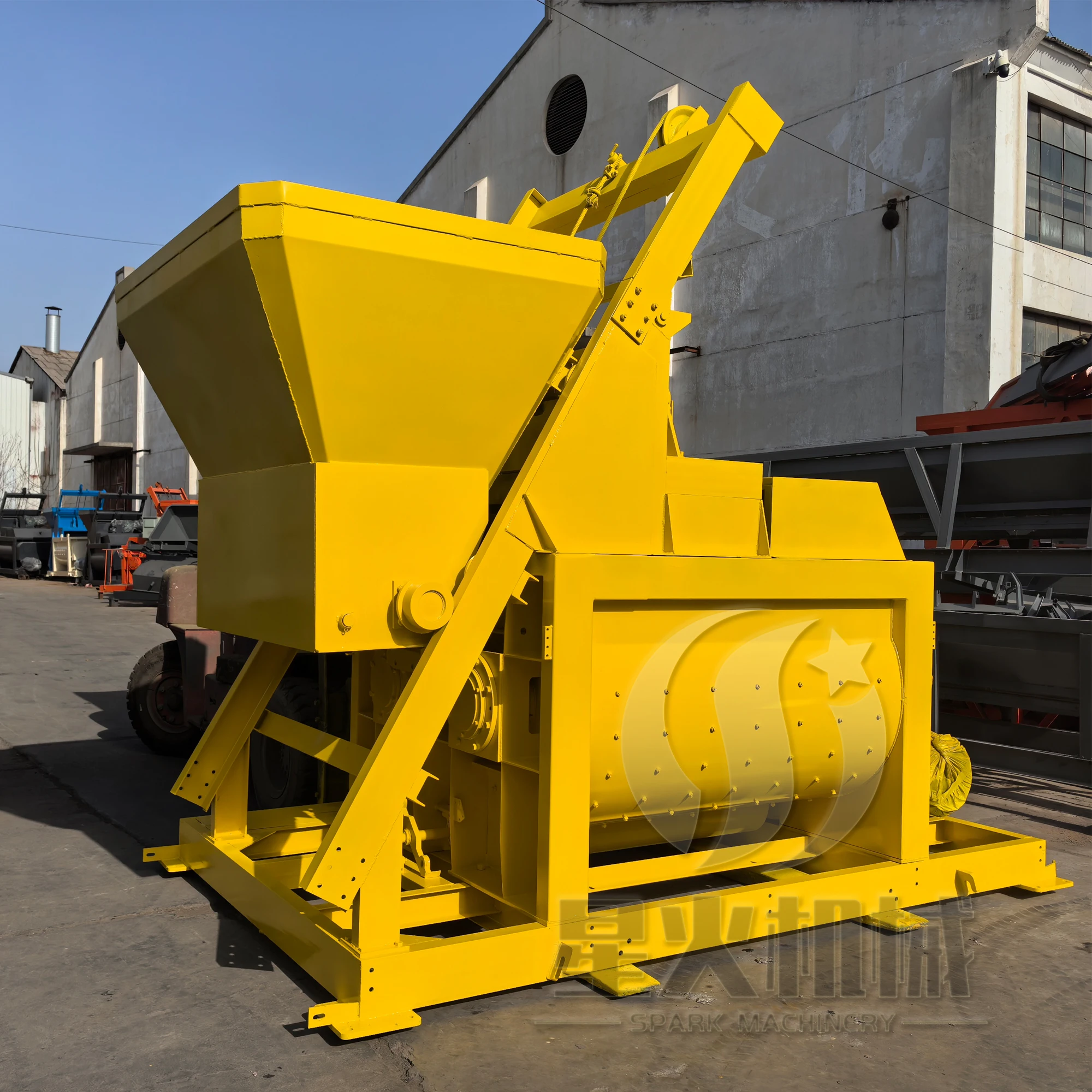

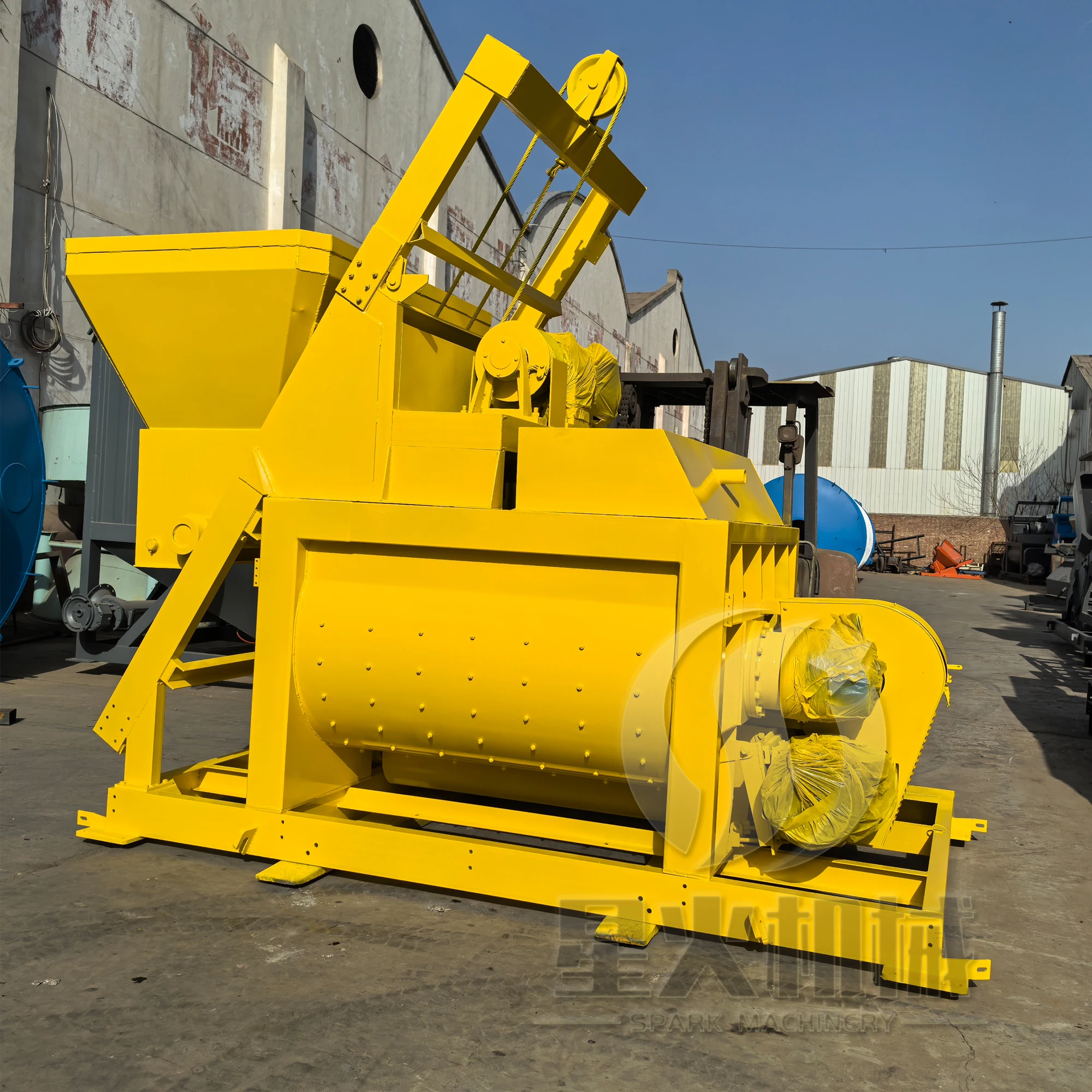

China factory concrete mixer 1m3 Mao Series Concrete Cement Mixer Machine Twin Shaft cement Concrete Mixer For Sale
JS Series Standard Twin-shaft Concrete Mixer,inspired by advanced technologies from home and abroad.Ever since it was sold into the market,its stable performance and excellent quality have quickly won the trust of majority of users.Now it has become our star products.It is mainly used in the mixing plants of high speed railways,expressways,airports, hydro-power stations,commercial concrete and so on.
FEATURES AT A GLANCE
Advantages of JS1000 Twin Shaft Concrete Mixer.
1. High mixing efficiency, good uniformity;
2. The use of new patented sealing technology, sealing effect, long service life;
3. The use of advanced imported reducer or high reliability reducer (optional);
4. The top automatic lubrication pump, centralized lubrication, to ensure that the shaft seal more durable;
5. Power "security lock" design, from the respect for life;
6. Exquisite manufacturing process.
2. The use of new patented sealing technology, sealing effect, long service life;
3. The use of advanced imported reducer or high reliability reducer (optional);
4. The top automatic lubrication pump, centralized lubrication, to ensure that the shaft seal more durable;
5. Power "security lock" design, from the respect for life;
6. Exquisite manufacturing process.
PRODUCT SPECIFICATIONS
Model | JS500 | JS750 | JS1000 | JS1500 |
Loading Volume | 800L | 1200L | 1600L | 2400L |
Unloading Volume | 500L | 750L | 1000L | 1500L |
Productivity | 25m3/h | 35m3/h | 50m3/h | 75m3/h |
Max. Aggregate Size | 60/80mm | 60/80mm | 60/80mm | 60/80mm |
Mixing Blade Speed | 35r/min | 30r/min | 25.5r/min | 25.5r/min |
Blade Quantity | 14 | 14 | 18 | 20 |
Mixing Motor | 18.5kw | 22kw | 2*18.5kw | 2*30kw |
Hopper Lifting Speed | 18m/min | 19.2m/min | 21.9m/min | 23m/min |
PRODUCT CONFIGURATION
Production Of Main Mixer.
JS1000 twin shaft concrete mixer production at the factory, all the concrete mixer after assembly, we will make the shooting blasting, remove all dust and slag, then painting.
Inside Of Mixer.
JS1000 twin shaft concrete mixer, inside with the liner, and for the shaft we will add the steel circle to help the concrete remove more easily.
Motor And Mixer.
JS1000 type concrete mixer can using the motor and the planetary mixer, the mixing working performance is more stable at the working site
Motor and Reducer Connect belt.
The motor and mixer connect will using the belt, this belt is belong spare parts, we will also supply some free spare parts for you if you need.
Water Adding Systsem.
This twin shaft concrete mixer inside have two water pipe, on the pipe we also have the pressure system, it help the water enter the mixer drum more easily.
Control System.
If you using the separately concrete mixer, we will also matched the separately control system for the twin shaft concrete mixer.
Successful Project
Delivery Photos
Delivery Photos
Delivery Photos
Delivery Photos
Delivery Photos
Delivery Photos
SIMILAR PRODUCTS
FAQ
1. Are you a manufacturer, trading company or a third party?
We are a manufacturer 30 years experience
2.Can the machine be customized as our need, such as put on our logo?
Our faithful is Get The Right Equipment for the Job ,Surely our machine can be customized as your need, Put on your logo is also available.
3. What is the delivery time of your machine?
In general, the delivery time of our machine is about 7 days, customized machine will be delivered as the negotiation with our clients as soon as possible.
3. If i will need to stay in your place for few days, is that possible to book the hotel for me?
It’s always my pleasure, hotel booking service is available.
4. As the shipping period will take long time, how can you make sure the machine won’t be broken?
Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.
5.What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company.
6. How can i get to your factory?
We can pick you up at the airport.
7. May i know which payment will be accepted by your company?
So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by L/C are available.
8. About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.
9. After we placing an order, will you arrange the installation of the machine at present?
All the machines will be tested well before delivered, so almost of them can be used directly, also our machine are easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the cost will be be
charged by you.
We are a manufacturer 30 years experience
2.Can the machine be customized as our need, such as put on our logo?
Our faithful is Get The Right Equipment for the Job ,Surely our machine can be customized as your need, Put on your logo is also available.
3. What is the delivery time of your machine?
In general, the delivery time of our machine is about 7 days, customized machine will be delivered as the negotiation with our clients as soon as possible.
3. If i will need to stay in your place for few days, is that possible to book the hotel for me?
It’s always my pleasure, hotel booking service is available.
4. As the shipping period will take long time, how can you make sure the machine won’t be broken?
Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.
5.What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company.
6. How can i get to your factory?
We can pick you up at the airport.
7. May i know which payment will be accepted by your company?
So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by L/C are available.
8. About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.
9. After we placing an order, will you arrange the installation of the machine at present?
All the machines will be tested well before delivered, so almost of them can be used directly, also our machine are easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the cost will be be
charged by you.
