Product Description
◆ Product Description
High Intensity Magnetic Separator is to lower the content of ferrous contaminants in non-magnetic materials, or upgrade the ferrous minerals. It is for dry magnetic separation, with great magnetic intensity, it is suitable to treat weakly magnetic
minerals.
Our factory produces one roller, two rollers, three rollers, four rollers dry type high intensity magnetic separator and low
intensity magnetic separator, magnetic field intensity from 800 gauss to 20000 gauss. The high gradient magnetic separator is a strong magnetic separator for the screening of weak magnetic minerals the dry magnetic separators are widely used for separate magnetic iron ore,Tin ore, ilmenite, titanium ore, hematile, manganese, cobalt, cassiterite, coltan,tantalum, niobium, zircon sand, beach black sands, Monazite ore, Rutile ore,silica purify sand and so on.
intensity magnetic separator, magnetic field intensity from 800 gauss to 20000 gauss. The high gradient magnetic separator is a strong magnetic separator for the screening of weak magnetic minerals the dry magnetic separators are widely used for separate magnetic iron ore,Tin ore, ilmenite, titanium ore, hematile, manganese, cobalt, cassiterite, coltan,tantalum, niobium, zircon sand, beach black sands, Monazite ore, Rutile ore,silica purify sand and so on.
◆ Features
1.Magnetic intensity: usually high intensity from 11000gauss to 16000gauss, if with belt, the intensity will be weaken a bit
reaching 11000 gauss to 13000 gauss, if with brush, maxi intensity can reach 13000 gauss to 16000 gauss.
2. Process method : wet or dry process available
3. Roller quantity : 1 pc or 2 pc or 3 pcs or more
4. Two types: with brush type or with belt type, brush is for help the magnetic minerals to leave the roller more easyly.
5. Feeding position: for wet process, feeding material is from side of machine and with brush, for dry process , feeding material is from top of machine, with belt or brush.
6. Adjustable intenstity: NO
7. Magnetic block: the whole roller is magnetic
8.Roller Diameter: 100-600 mm, most often used diameters are (100-140-160-180-220-240-300-320-380mm), roller length can be (600-800-1000-1200-1500-1800mm)
9. Maxi feeding size: 2 mm
10.Process capacity: Depends on Roller size and feeding size.

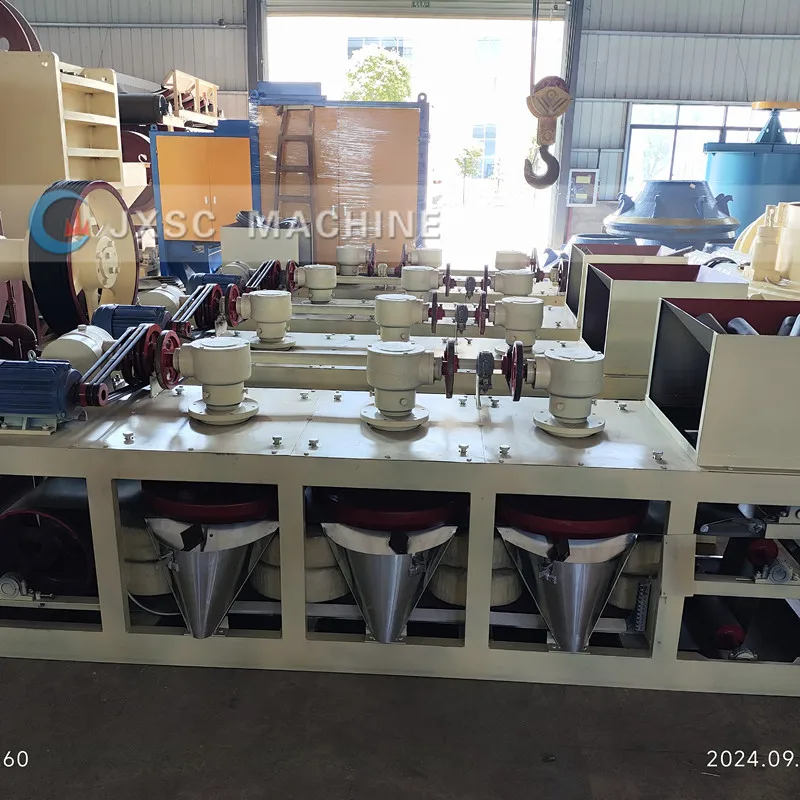

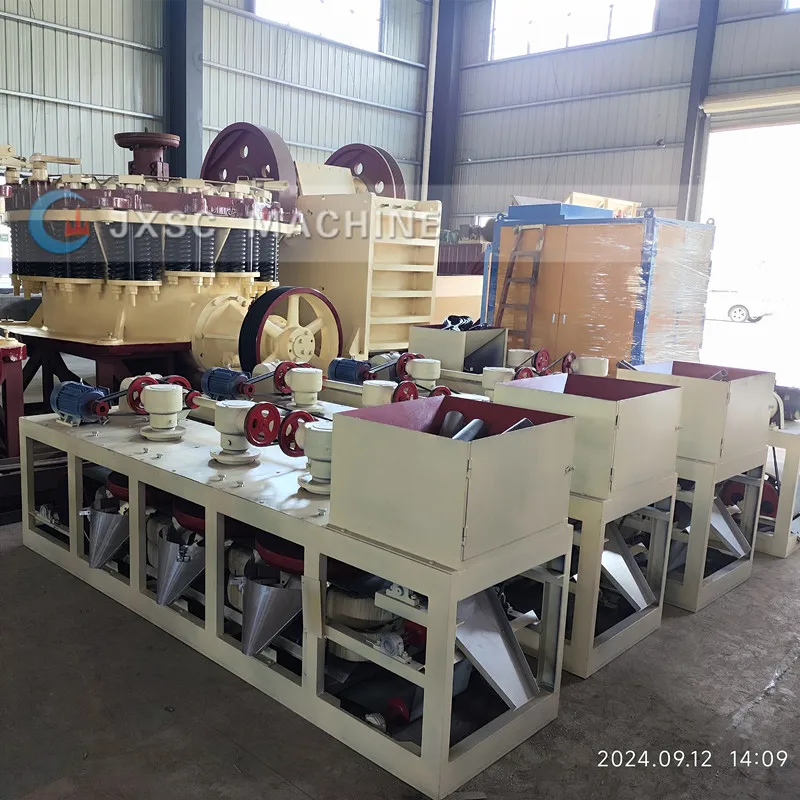

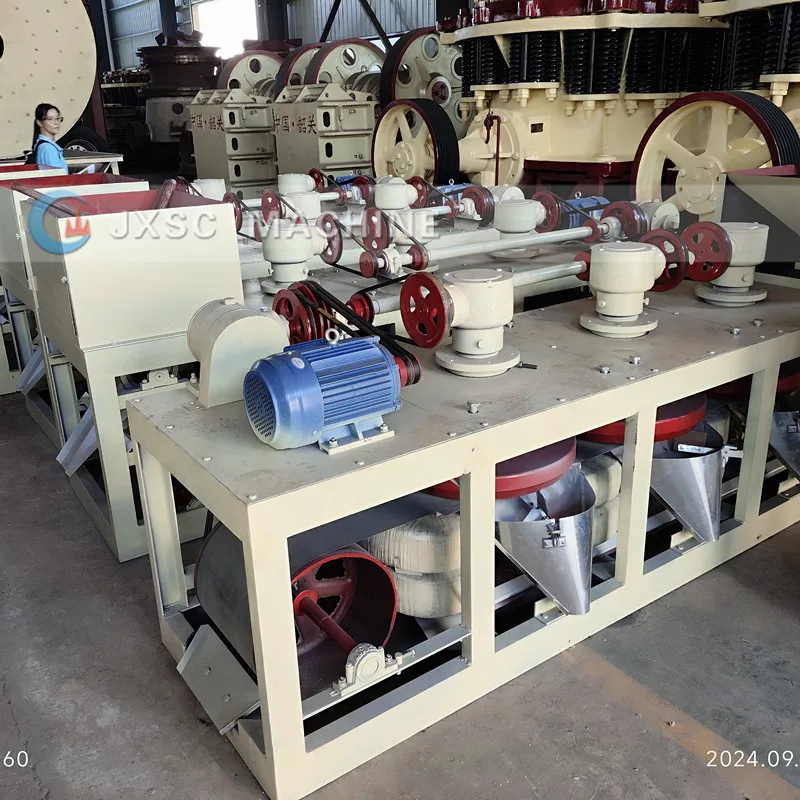

Three rollers high intensity dry type magnetic separator
One roller low&high intensity magnetic separator
Magnetic roller fittings
Technical data
Model | cylinder size(mm) | capability(t/h) | power(kw) |
HYF-1060 | D100*600 | 0.2-1 | 0.37 |
HYF-1080 | D100*800 | 0.3-1.4 | 0.37 |
HYF-1210 | D120*1000 | 0.4-2 | 0.55 |
HYF-1610 | D160*1000 | 0.6-2.5 | 0.55 |
HYF-2060 | D200*600 | 0.45-2.3 | 0.55 |
HYF-2010 | D200*1000 | 0.7-3.8 | 0.75 |
HYF-2475 | D240-750 | 0.9-4.5 | 0.75 |
HYF-2410 | D240*1000 | 1.2-5 | 1.1 |
HYF-3060 | D300*600 | 1-4.5 | 1.1 |
HYF-3010 | D300*1000 | 1.6-7 | 1.1 |
HYF-3860 | D380*1000 | 1.8-55 | 1.1 |
Successful Cases
We have provided the vacuum disc filter for many customers in Sudan,Mali, Mozambique, Nigeria, Suriname, Ghana, South
Africa,Uganda, Zambia, Tanzania, Angola, Canada, Austrialia, Chile, Peru,ect. For Alluvail gold washing plant, coltan ore mining plant,diamond washing plant, Iron ore washing plant,ect.
Africa,Uganda, Zambia, Tanzania, Angola, Canada, Austrialia, Chile, Peru,ect. For Alluvail gold washing plant, coltan ore mining plant,diamond washing plant, Iron ore washing plant,ect.
Packaging & Delivery
●Ways Of Packing
1.Small parts packed in the wooden cases.
2.Big parts packed by plastic membrane.
3.The whole big machine is loaded in the
container.
container.
● Shiping by sea/air freight
or any way the customer requires.
or any way the customer requires.
Company Introduction
JXSC Mining Equipment Manufacturer is an experienced supplier of Gold Mining Equipment including gold wash plant, stone crusher machine, gravity concentration, magnetic separation, feeder equipment, mining laboratory equipment. Our Gold Wash Plant is widely used for gold mining plant among home and abroad, whole alluvial gold production line and gold mining equipment, diamond mining equipment, silica sand mining own a good name in the international market, owing to advanced design compare to top brands like MSI MINING.
Trusted mining equipment manufacturers leader in mineral processing technologies,ISO9001: 2008 and CE certified,providing high quality manufacturing,engineering support & professional mining design since establishing in China in 1985.
JXSC mine machinery factory, is specializing in manufacturing, and uniquely provides complete range of mining equipment, mining accessories for either placer or hard rock mineral types,also,processing and recovery of various metals and minerals: Precious Metals, Precious and Semi-Precious Stones, Base Metals, Ferrous and Non-Ferrous Metals, Noble Metals, Heavy Metals.
Trusted mining equipment manufacturers leader in mineral processing technologies,ISO9001: 2008 and CE certified,providing high quality manufacturing,engineering support & professional mining design since establishing in China in 1985.
JXSC mine machinery factory, is specializing in manufacturing, and uniquely provides complete range of mining equipment, mining accessories for either placer or hard rock mineral types,also,processing and recovery of various metals and minerals: Precious Metals, Precious and Semi-Precious Stones, Base Metals, Ferrous and Non-Ferrous Metals, Noble Metals, Heavy Metals.
7*24 hours online consulting service, we provide you with the prophase plan, process flow design and
manufacturer equipment according to your special demand.
manufacturer equipment according to your special demand.
Send technicians to the job site guiding the installation and adjustment, training operators and finishing the check and accept together with you.
FAQ
1.How is the quality of your products?(mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we made before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice; Finished product pictures will be provided to customers before delivery.
If you are interested in our products, please don't hesitate to contact us. Could you tell me the following questions, so that I can give you a complete solution, including best Exw-works Price Quotation!
1. Which machine do you need? like gold washing machine, spiral chute, vibrating screen, Jig separator, Shaking table, etc.
2. What is your raw ore that you plan to process? like gold ore, diamond ore, tantalite or silica sand, etc.
3. What is the capacity you need? Like 10 tones per hour.
4. What is the feeding size to the machine? and what is the discharging-material size that you require? Sincerely welcome to send your inquiry,you can get best quotation and professional service.
Похожие товары
5TPH STLB 30 Мобильный Тип центрифуги для золота
5 650,00-19 800,00 $
3-5TPH Мобильный Тип центрифуги машина для извлечения золота
5 350,00-19 550,00 $
Горнодобывающая техника Промышленная центрифуга небольшая Центрифуга
588,00 $
Небольшое оборудование для золотодобычи магнитного сепаратора
3 000,00 $
Распродажа небольшое портативное мобильное Золотое горное оборудование для производства аллювиального песка стиральной машины цена
Передвижное горное оборудование установка по восстановлению золота
2 800,00-11 800,00 $

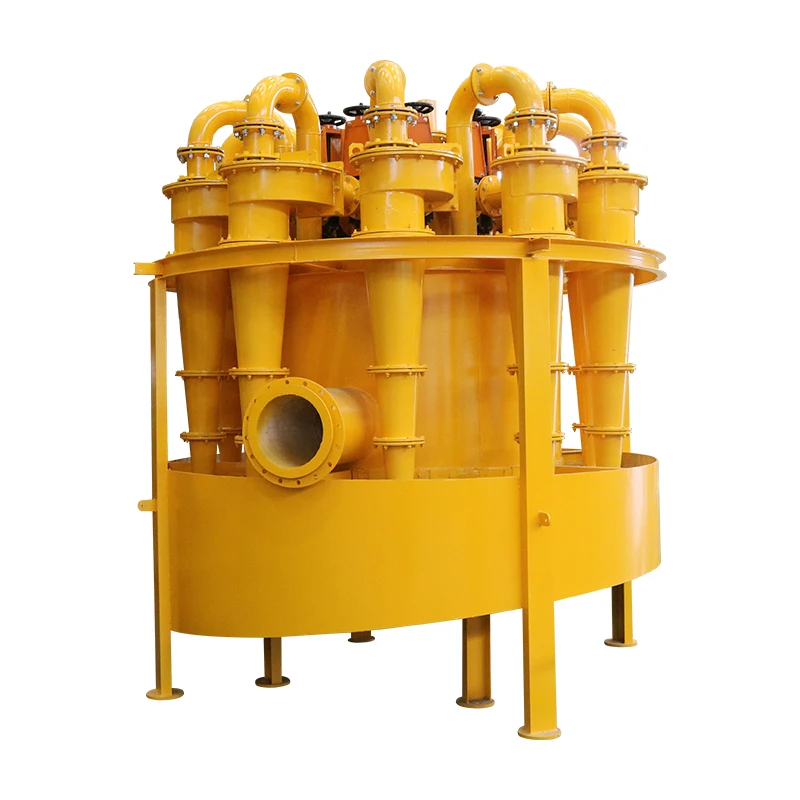

Гидроциклон для Золотого циклона
