• 8/16/24 HD (or HD plus DVB-S2/S2X/C/T/T2/ISDB-T tuner) inputs, MPEG-4 AVC/H.264/HEVC/H.265 Video encoding, satellite gateway function


• 1 ASI input for re-mux,TS files input by external USB disk


• 128 MPTS IP input over UDP and RTP via DATA port,GE,RJ45


• IP input over UDP/RTP/RTSP/HLS/HTTP/SRT


• Support 32*DVB-C/16*DVB-T/16*ATSC/16*ISDB-T Modulator output


• Support 1 ASI out as mirror of one of RF output carriers


• Support MPTS IP output over UDP/RTP/RTSP;SPTS out over UDP/RTP/RTSP/RTMP/HLS/HTTP/SRT


• Support LOGO, Caption and QR code insertion for local made channels


• Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting


• Control via web management, and easy updates via web

Advantage

Encoder/Receiver+Modulator+IP Protocol conversion in one device

Build-in protocol conversion function

IPTV1:IP input over UDP/RTP/RTSP/HLS/HTTP/SRT;IPTV2:SPTS out over UDP/RTP/RTSP/RTMP/HLS/HTTP/SRT.Optional IPTV3 and IPTV4 Port

H265 Encoder

Support H265 low bitrate encoding,Output network streaming to save bandwidth and increase modulation output programs

Powerful performance

Support more frequency modulation outputs,32ch DVB-C RF out (16ch DVB-T, 16ch ATSC, or 16ch ISDB-T out for option, as per order)

Front panel optional 1 Tuner input for re-mux

LCD/Key button for Network-Setting checking

Application

• Distribute Full-HD Video to All TVs Over Existing TV Coax


• Advertising, monitoring, training and educating


• Upgrade all your analog Head-ends to digital TV Solution


• Enterprise, Hotel, campus, hospital, Public Place


• Works with Digital TV transmitter in wireless TV broadcasting

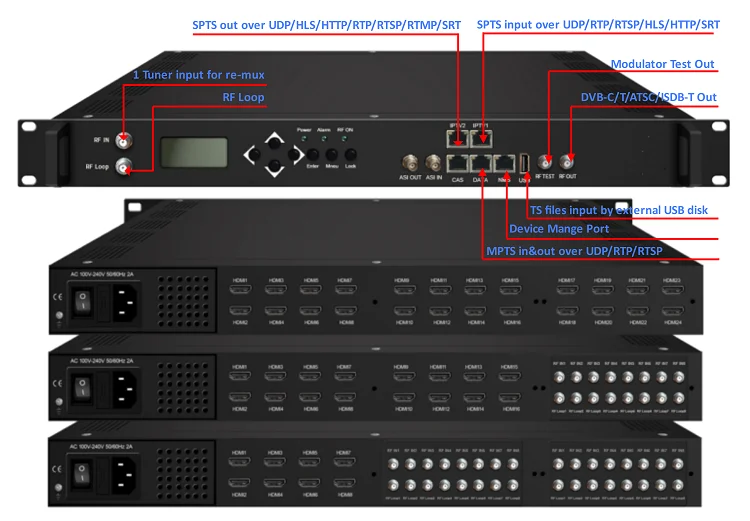

Interface display

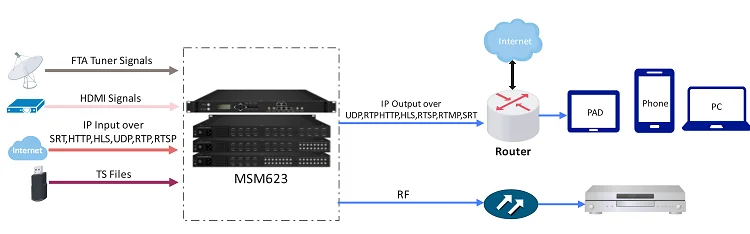

Principle Chart

Output Section

INPUT

8/16/24 HD input,

or 8HD+8*DVB-S2/S2X inputs,

or 8HD+16*DVB-S2/S2X inputs,

or 16HD+8*DVB-S2/S2X inputs

1 ASI in for re-mux

1 USB Player input for re-mux

128 MPTS IP input over UDP and RTP,DATA  port, RJ45

IP input over UDP/RTP/RTSP/HLS/HTTP/SRT,IPTV1

HD Encoder Module

Video Processing

Input Resolution :  1920×1080_60P, 1920×1080_60i,1920×1080_50P, 1920×1080_50i,1280×720_60P, 1280×720_50P,720×576_50i,720×480_60i

Output Resolution : 1920×1080_30P, 1920×1080_25P,1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P

Encoding : HEVC/H.265 & MPEG-4 AVC/H.264

Bit-rate:  1Mbps~13Mbps each channel

Rate Control : CBR,VBR

GOP Structure:  IP...P (P Frame adjustment, without B Frame )

Audio Processing

Encoding : MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through

Sampling rate : 48KHz

Resolution : 24-bit

MPEG-1 Layer2/LC-AAC Bit-rate:  48/56/64/80/96/112/128/160/192/224/256/320/384 kbps

LC-AAC Bit-rate :  48/56/64/80/96/112/128/160/192/224/256/320/384 kbps

HE-AAC Bit-rate:  48/56/64/80/96/112/128 kbps

Audio Gain:  0-255 Adjustable

Support Logo, Caption, QR Code insertion

DVB-S/S2/S2X Tuner Module

Input Frequency: 950-2150MHz
Signal Strength: -65 ~ -25dBm

DVB-S

Symbol Rate : 0.5~45 Msps

Constellation:  QPSK

FEC:  1/2, 2/3, 3/4, 5/6, 7/8

DVB-S2

Symbol Rate : QPSK/8PSK/16APSK: 0.5~45 Msps; 32APSK:0.5~40 Msps

Constellation:  QPSK/8PSK/16APSK/32APSK

FEC QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/10

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

32APSK: 3/4, 4/5, 5/6, 8/9

Max input bitrate per tuner:  ≤170 Mbps

DVB-S2X

Symbol Rate:  QPSK/8PSK/16APSK: 0.5~45 Msps;

8APSK/32APSK: 0.5~40 Msps

Constellation:  QPSK/8PSK/16APSK/8APSK/32APSK

FEC QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10,13/45,9/20, 11/20

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10, 23/36, 25/36, 13/18

8APSK: 5/9-L, 26/45-L

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10,1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/90

32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9

Max input bitrate per tuner :  ≤170 Mbps

Signal Strength : -65 ~ -25dBm

DVB-C/T/T2/ISDB-T Switchable Tuner Module

DVB-C

Standard:  J.83A(DVB-C), J.83B, J.83C

Frequency In:  60~890MHz

Constellation:  16/32/64/128/256 QAM

DVB-T/T2

Frequency In:  60~890MHz

Bandwidth:  6/7/8 M bandwidth

ISDB-T

Frequency In:  60~890MHz

Multiplexing

Maximum PID Remapping 255 input per channel

PID remapping by automatically or manually

Generate PSI/ SI table automatically

Accurate PCR adjusting

General RF Modulation out

Connector :  F-Type, 75 Ω

DVB-C Mode

QAM  Encoding:  EN300 429& ITU-T J.83 Annex A (DVB), Annex B

QAM Channel : 32 non-adjacent carriers output (maximum bandwidth 192MHz)

MER:  ≥40db

Bandwidth : 6Mhz(Annex B) or 8 Mhz (Annex A)

Symbol Rate:  5.0Msps~7.0Msps, 1ksps stepping

RF frequency : 50~960MHz, 1KHz step

QAM Constellations : 16/32/64/128/256QAM (Annex A); 64/256QAM(Annex B)

RF output level:  -20~ +1dBm, 0.1db step

DVB-T Mode

Standard :  EN300744

DVB-T channel 16 non-adjacent carriers output

(maximum bandwidth 192MHz)

FFT mode:  2K, 4K, 8K

Bandwidth:  6Mhz, 7Mhz, 8Mhz

Constellation : QPSK, 16-QAM, 64-QAM

Guard Interval:  1/4, 1/8, 1/16, 1/32

FEC : 1/2, 2/3, 3/4, 5/6, 7/8

MER:  ≥42 dB

RF frequency:  50~960MHz, 1KHz step

RF output level : -28~ -3dBm, 0.1db step

ATSC Mode

Standard : ATSC A/53

ATSC channel : 16 non-adjacent carriers output (maximum bandwidth 192MHz)

Bandwidth:  6M

Constellation : 8VSB

FEC:  RS(208 188)+Trellis

MER:  ≥40dB

ACL:  -55 dBc

RF frequency:  50~960MHz, 1KHz step

RF output level : -20~+3dbm (for all carriers), 0.5db stepping

ISDB-T Mode

Standard : ARIB STD-B31

ISDB-T channel 16 non-adjacent carriers output (maximum bandwidth 192MHz)

Bandwidth:  6M

Constellation : QPSK, 16QAM, 64QAM

Guard Interval : 1/32, 1/16, 1/8, 1/4

Transmission Mode:  2K, 4K, 8K

Code rate:  1/2, 2/3, 3/4, 5/6, 7/8

MER:  ≥40dB

RF frequency:  50~960MHz, 1KHz step

RF output level : -20~+1dbm, 0.1db stepping

Stream output

MPTS Out

ASI Out : 1*ASI output as mirror of one of RF output carriers

DVB-C OUT:  32*MPTS output over UDP and RTP/RTSP as mirror of 32*DVB-C carriers

ATSC OUT (Optional):  16*MPTS output over UDP and RTP/RTSP as mirror of 16 ATSC carriers

DVB-T OUT (Optional) : 16 MPTS output over UDP and RTP/RTSP as mirror of 16 DVB-T carriers(Optional)

ISDB-T OUT (Optional):  16*MPTS output over UDP and RTP/RTSP as mirror of 16 ISDB-T carriers(Optional)

1*1000M Base-T Ethernet interface, DATA port

SPTS Out

Support SPTS out over UDP/RTP/RTSP/RTMP/HLS/HTTP/SRT,IPTV2

System function

Web Network management

Chinese/English language

Ethernet software upgrade

Environment

Dimension(W×L×H):  482mm×328mm×44mm

Temperature:  0~45℃(Operation); -20~80℃ (Storage)

Voltage range : AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
