Product Description
This series of products are industrial-grade 5-port 10/100/1000Base-T switches with complete alarm functions. The whole machine works stably and reliably, has low power consumption, high integration, and small size. It can be wall-mounted or 35mm rail-mounted.
Specification
Product Number | FCM-074528-B |
Product Function Description | Desktop 5-port 1000M Ethernet Switch |
Service Port Description | 5-port 1000M Ethernet Switch |

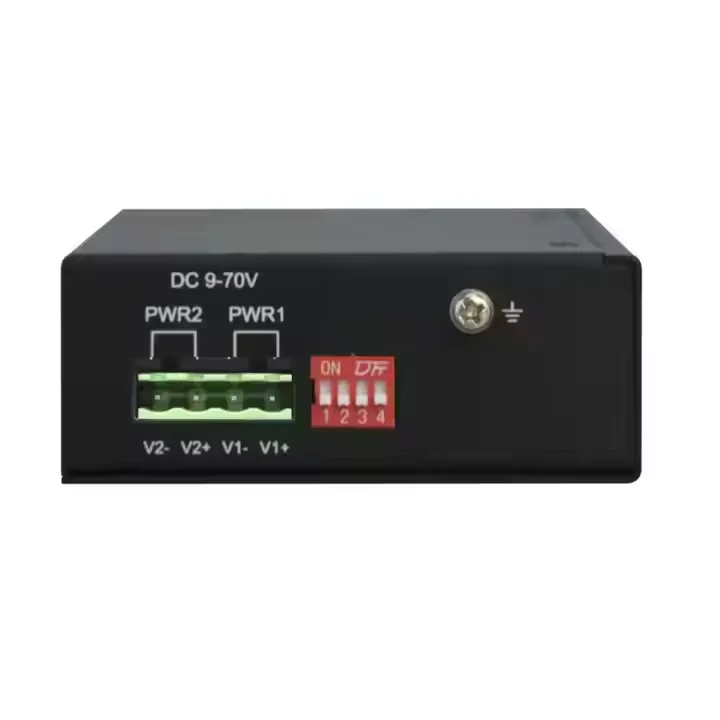

Power Supply | DC power supply: Redundant dual power input DC9-70V Overload protection: Supported; Reverse connection protection: Supported; Redundancy protection: Supported Access terminal: 4-core 5.08mm pitch plug-in terminal |
Product Size | 110mm(length) x 86mm(width) x 40mm(height) Installation method: wall-mounted |
Weight | 0.25KG/PCS |
Features
● The IP40 shell protection level can withstand the test of harsh environments;
● The device provides 5*Gigabit Ethernet electrical ports, supports the transmission of VLAN ultra-long data packets, and can be used with switch products that support the IEEE802.1Q protocol;
● The electrical interface (RJ45 interface) supports 10/100/1000M adaptive, full/half-duplex mode, and MDI/MDI-X automatic detection;
● It has functions such as broadcast storm protection, balanced traffic, isolation conflict, error detection and self-reset of
deadlock, which is suitable for large-flow data applications such as video transmission;
● The power supply supports super lightning protection function: lightning protection, anti-inductive high voltage, anti-surge, etc.; fanless and efficient heat dissipation, reducing repair time;
● When dual DC power supply (5.08 terminal block): it can be powered by a wide range of DC9-55V power supply, supports internal isolation, redundant dual power input; anti-reverse protection

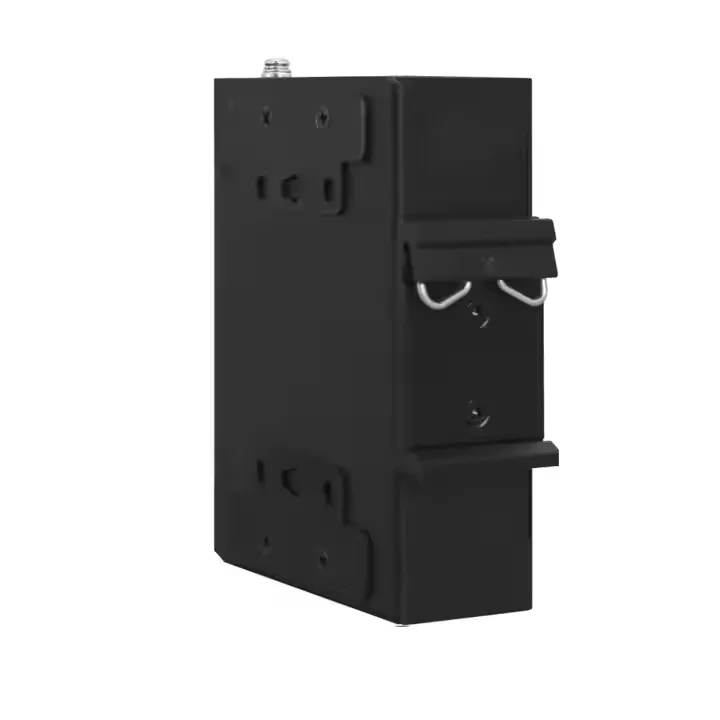

● Provide DIN 35mm rail installation or wall-mounted installation;
● Wide temperature type: working temperature -40℃~ +85℃;
● The device provides 5*Gigabit Ethernet electrical ports, supports the transmission of VLAN ultra-long data packets, and can be used with switch products that support the IEEE802.1Q protocol;
● The electrical interface (RJ45 interface) supports 10/100/1000M adaptive, full/half-duplex mode, and MDI/MDI-X automatic detection;
● It has functions such as broadcast storm protection, balanced traffic, isolation conflict, error detection and self-reset of
deadlock, which is suitable for large-flow data applications such as video transmission;
● The power supply supports super lightning protection function: lightning protection, anti-inductive high voltage, anti-surge, etc.; fanless and efficient heat dissipation, reducing repair time;
● When dual DC power supply (5.08 terminal block): it can be powered by a wide range of DC9-55V power supply, supports internal isolation, redundant dual power input; anti-reverse protection
● Provide DIN 35mm rail installation or wall-mounted installation;
● Wide temperature type: working temperature -40℃~ +85℃;
Parameters
● 10/100/1000M Ethernet Interface
Protocol: Compliant with IEEE 802.3ab, IEEE 802.3z
Rate: 10/100/1000M adaptive, full/half duplex adaptive
MAC address table: 4096 MAC addresses can be learned
Physical interface: RJ45 support Auto-MDIX
● Environmental Index
Working temperature: -40℃—+85℃
Storage temperature: -40℃—+85℃
Working humidity: 0%—95% (non-condensing)
MTBF: >100,000 hours
Protocol: Compliant with IEEE 802.3ab, IEEE 802.3z
Rate: 10/100/1000M adaptive, full/half duplex adaptive
MAC address table: 4096 MAC addresses can be learned
Physical interface: RJ45 support Auto-MDIX
● Environmental Index
Working temperature: -40℃—+85℃
Storage temperature: -40℃—+85℃
Working humidity: 0%—95% (non-condensing)
MTBF: >100,000 hours
