Флексографические принтеры большой ширины с 6 видов цветов флексографической печатной машиной для этикеток алюминиевая фольга BOPP ПВХ пленка домашних животных
19 000,00-20 000,00 $

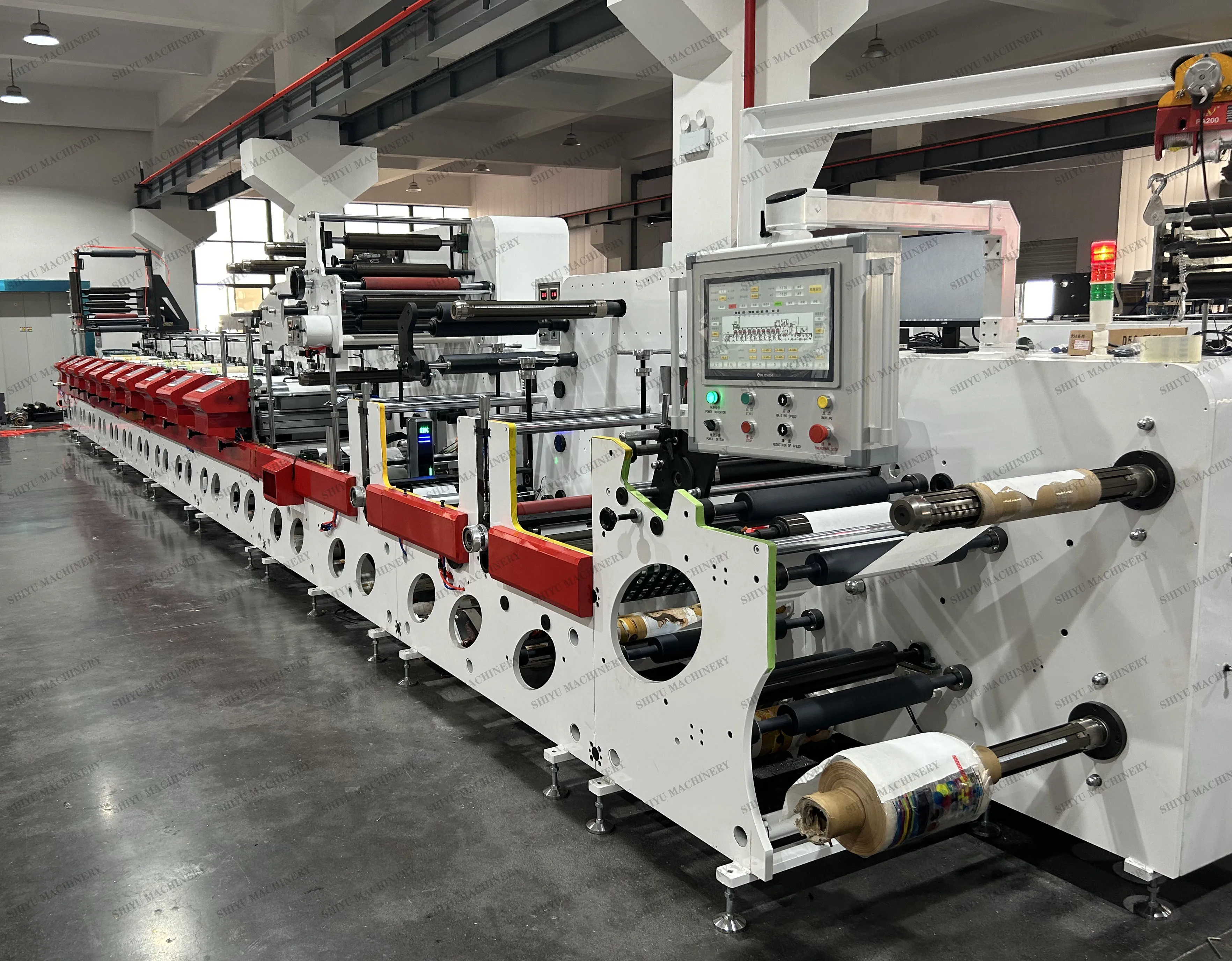

Automatic 6 8 10 Color Flexo Roll to Label Printer Sticker Machine Printing
- Категория: >>>
- Поставщик: Shanghai Shiyu Machinery Co. Ltd.Shanghai Ltd.
Сохранить в закладки 1601363686732:
Описание и отзывы
Характеристики
The maximum printing speed is 120 m / min. The control system of the whole machine adopts the latest servo control system in yaskawa, Japan. Each unit is driven by servo motor. A total of 14 servomotors are used in the whole machine, which provides guarantee for the high precision alignment of the machine in high speed operation. Plate roller used pillow type installation, aluminum alloy material, high-precision helical gear transmission, simple and fast operation
1) Ultra-short distance from feeding to receiving.
2) The ceramic stick with scraper has firm printing and clear color.
3) The repeated printing length is 190.5-635MM, which fills the gap of insufficient printing length of the laminated flexographic printing machine.
4) The use of gear color registration solves the shortcomings of the 360-degree color registration device, such as large gaps and poor assembly, which affect the accuracy of color registration and stable printing.
5) Paper feeding, printing, UV drying, and rewinding can be completed continuously at one time.
6) Water-based ink printing, pollution-free, environmentally friendly, and the printing speed varies with different network
cables. Currently, the fastest label printing speed is 90 meters per minute.
7) Printing bills, labels, cardboard, high-end stickers, clothing tags, etc.
8) Printing materials: paper, 20~250g/ ㎡ self-adhesive soft roll materials and other materials.
2) The ceramic stick with scraper has firm printing and clear color.
3) The repeated printing length is 190.5-635MM, which fills the gap of insufficient printing length of the laminated flexographic printing machine.
4) The use of gear color registration solves the shortcomings of the 360-degree color registration device, such as large gaps and poor assembly, which affect the accuracy of color registration and stable printing.
5) Paper feeding, printing, UV drying, and rewinding can be completed continuously at one time.
6) Water-based ink printing, pollution-free, environmentally friendly, and the printing speed varies with different network
cables. Currently, the fastest label printing speed is 90 meters per minute.
7) Printing bills, labels, cardboard, high-end stickers, clothing tags, etc.
8) Printing materials: paper, 20~250g/ ㎡ self-adhesive soft roll materials and other materials.
Model | SY350 |
Overprinting accuracy | 0.1mm |
Printing width | 330mm |
Printing length | 180-580mm |
Max diameter of rewinding | 800mm |
Max diameter of unwinding | 800mm |
Mechanical speed | 150m/min |
Printing Color | 1-12 colors |
Total power | 150KW |
Machine weight | about 8000KG |
Dimensions | 11000*1700*1500mm |
Power supply | 380V,3 phase,50HZ |
Details Images
control panel
1).Power Supply, Stop Button, Start Button and Emergency Stop.
2).Temperature Controller for each Heating Oven.
3).Anilox Roller Rotation Button for each Printing Station. Length Counter and Speed Controller
4)bottom roller tension control
3).Anilox Roller Rotation Button for each Printing Station. Length Counter and Speed Controller
4)bottom roller tension control
UV Oven group
Each Printing Unit comes with 1unit Infrared Heating Drying Oven (standard) Infrared heating drying oven is placed on material and after each printing station.
Imported Heating Lamb is fixed in each Infrared Heating Drying Oven.
Optional can use UV / LED UV Drying Oven.
printing unit
Printing station comes with ink rubber roller, ceramic anilox cylinder, printing plate cylinder, scrapper blade and ink
container.helical gear
container.helical gear
Movable turnbar
When the printing material needs to be printed on both sides, the turn bar can be used to achieve one-time completion.
Cold Foil Stamping
With fast cold foil stamping speed and high efficiency, the connected movable type cold foil stamping device can saturate the color and add a good decorative effect to the graphics and text.
Video Monitor
It is used to check the printing quality in real time while the machine is working.
The main purposes are to reduce waste, maximize productivity and improve printing quality
Electric Crane
It is an electric lifting device and is used to change magnetic cylinder of different specifications. It is convenient, quick, and saving time and effort.
web guide
Detection mode: Edge checking, Control paper move straightly. can control material go straightly,then output final product with good edge.
Unwinding Unit
1 set servo motor * Magnetic Powder Brake --- cooperated with Tension Control System
* Max unwinding and rewind material diameter: 600mm
* 3inch Air shaft (it can change other size Air shaft, 1inch, 1.5inch, 2inch)
* Fast inflating air gun (also can customize air inflating automatically function)
* Unwinding vector motor tension control system
* Optional: separate unwinding rack with pneumatic feed
* Max unwinding and rewind material diameter: 600mm
* 3inch Air shaft (it can change other size Air shaft, 1inch, 1.5inch, 2inch)
* Fast inflating air gun (also can customize air inflating automatically function)
* Unwinding vector motor tension control system
* Optional: separate unwinding rack with pneumatic feed
Rewinding unit
* 1 set servo motor
* Magnetic Powder Clutch -- Cooperated with tension control system
* Max unwind material diameter: 600mm
* 3inch air shaft (standard size, can optional with 1inch, 1.5inch & 2inch)
* Fast inflating air gun (can do customize air inflating automatically function)
* Rewinding vector motor tension control system
* Max unwind material diameter: 600mm
* 3inch air shaft (standard size, can optional with 1inch, 1.5inch & 2inch)
* Fast inflating air gun (can do customize air inflating automatically function)
* Rewinding vector motor tension control system
Printed samples
Company Profile
Certifications
Product packaging
Payment
FAQ
