CTS Высоковольтная аккумуляторная система 540 В 614 768 100 кВтч 200 литий-ионная батарея для инженерной строительной техники
4 000,00-4 800,00 $
CTS Высоковольтная аккумуляторная система 540 В 614 768 100 кВтч 200 литий ионная батарея для электрического экскаватора бульдозера
- Категория: >>>
- Поставщик: Hunan CTS Technology Co. LTDHunan LTD
Сохранить в закладки 1601363881252:
Описание и отзывы
Характеристики

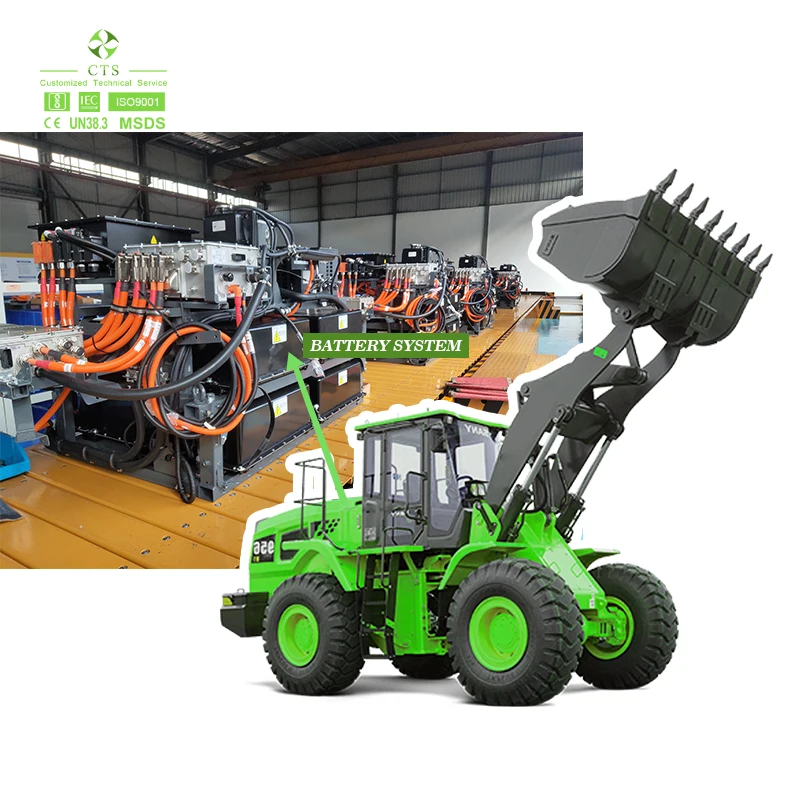

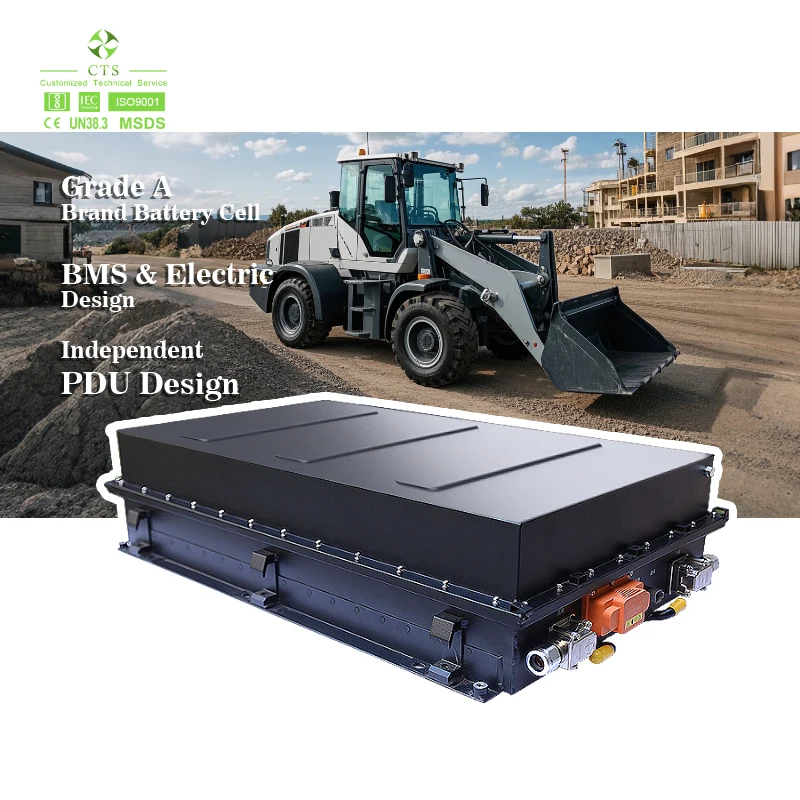

CTS lithium battery systems for Engineering Machinery Electric excavator bulldozer
╣PRODUCT DESCRIPTION
Construction machinery plays an important role in fields such as construction, roads, mining, and agriculture, and is also one of the main sources of carbon emissions. In recent years, governments around the world have encouraged the development of construction machinery towards new energy, and electrification has become the main trend in the development of the construction machinery industry.
Benefiting from improvements in core performance such as battery operating power, cycle life, charging speed and reliability, the total battery cost will gradually decrease and operating efficiency will significantly increase， significantly improving the economics of electric construction machinery and electrification penetration rate is expected to increase rapidly.
Module C
Specification | C1 Module | C2 Module | C3 Module | C4 Module | |||
Battery Cell | 3.2V 206Ah | 3.2V 230Ah | 3.2V 280Ah | 3.2V 304Ah | |||
Configuration | 1P48S | 1P48S | 1P36S | 1P36S | |||
Battery module | 153.6V 206Ah | 153.6V 230Ah | 115.2V 280Ah | 115.2V 304Ah | |||
Energy | 31.64kWh | 35.32kWh | 32.25kWh | 35.02kWh | |||
Max system configuration | 3P5S | 3P5S | 3P7S | 3P7S | |||
Charge rate | 1C | 1C | 1C | 1C | |||
Discharge rate | 1C | 1C | 1C | 1C | |||
Dimensions | 1060*630*240mm | ||||||
Cooling methonds | Natural cooling、liquid cooling | ||||||
Heating methonds | Liquid heating 、PI film | ||||||
Protection | IP67 | ||||||
Working temp | -20 ℃ -60 ℃ | ||||||
Module H Higher Capacity
Specification | H1 Module | H2 Module | H3 Module | H4 Module | |||
Battery Cell | 3.2V 230Ah | 3.2V 304Ah | 3.2V 230Ah | 3.2V 304Ah | |||
Module configuration | 1P96S | 1P72S | 1P84S | 1P63S | |||
Battery module | 307.2V 230Ah | 230.4V 304Ah | 268.8V 230Ah | 201.6V 304Ah | |||
Energy | 70.65kWh | 70.04kWh | 61.82kWh | 81.28kWh | |||
Max system configuration | 3P2S | 3P3S | 3P3S | 3P4S | |||
Charge rate | 1C | 1C | 1C | 1C | |||
Discharge rate | 1C | 1C | 1C | 1C | |||
Dimensions | 2050*630*240mm | 1850*630*240mm | |||||
Cooling methonds | Natural cooling、 liquid cooling | ||||||
Heating methonds | Liquid heating 、PI film | ||||||
Protection | IP67 | ||||||
Working temp | -20 ℃ -60 ℃ | ||||||
Some Battery Systems for reference （Using 153.6V 230Ah C2 Module）
Module Qty | Total Energy | Rated Volt | Capacity | Working Volt | Discharge Power @ 25℃ |
3S 1P | 105.9kWh | 460.8V | 230Ah | 360V-525V | 50kW rated 100kW max 200kW peak for 30 sec |
3S 2P | 211.9kWh | 460.8V | 460Ah | 360V-525V | 100kW rated 180kW max 360kW peak for 30 sec |
3S 3P | 317.7kWh | 460.8V | 690Ah | 360V-525V | 150kW rated 220kW max 440kW peak for 30 sec |
4S 1P | 141.3kWh | 614.4V | 230Ah | 480V-700V | 70kW rated 140kW max 280kW peak for 30 sec |
4S 2P | 282.4kWh | 614.4V | 460Ah | 480V-700V | 140kW rated 240kW max 480kW peak for 30 sec |
4S 3P | 423.9kWh | 614.4V | 690Ah | 480V-700V | 210kW rated 290kW max 590kW peak for 30 sec |
5S 1P | 176.6kWh | 768V | 230Ah | 600V-876V | 85kW rated 175kW max 350kW peak for 30 sec |
5S 2P | 353.2kWh | 768V | 460Ah | 600V-876V | 175kW rated 300kW max 600kW peak for 30 sec |
5S 3P | 529.8kWh | 768V | 690Ah | 600V-876V | 260kW rated 370kW max 740kW peak for 30 sec |
╣Our Advantages
High Safety
Meet ECER100, UL2580, GB/T31467
Safety testing standards for EV industry
Safety testing standards for EV industry

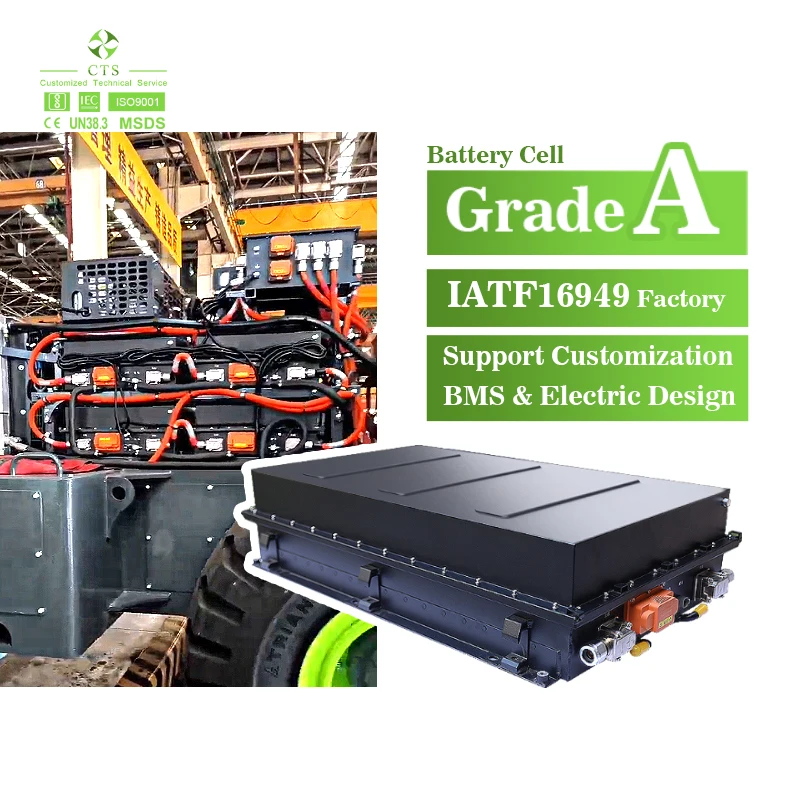

Cell Selection
Top brand Grade A cell, Long cycle life
High rate charging/discharging
Core Technology
Compact + Light weight design
Independent PDU design
Independent PDU design
Various Charging Standards
European standard CCS2,
American standard CCS1
Chinese standard GBT,
Japanese standard CHAdeMo
Cooling and Heating
Cooling method: natural/liquid
Heating method: liquid/PI film
Multiple Modules Choices
Support series and parallel connection
Support max 1000V system
Support max 1000V system
System total energy can over 700kwh
CTS have 30+ R&D team , we can provide 24/7/365 on-line service and instant technical support. We are committed to designing better battery solutions and providing one-to-one service to each domestic and foreign customer.
Electrical diagram of lithium battery system
Two way high voltage input, double gun charging, Two way high voltage output, Liquid cooling compressor output; motor driving output; Single way low volt-age output , communicate with the whole vehicle !
╣APPLICATIONS
Our standard module widely used in the heavy truck, public bus, electric boat ,industry vehicle like mining truck, Tunnel vehicle, large capacity AGV, Engineering Machinery such as electric excavator bulldozer etc..We have extensive experience in different market .
╣Company Profile
Hunan CTS established in 2011, which is a manufacturer specializing in the R & D, production, sales and service of lithium battery packs, focusing on one-stop customized lithium battery products, such as electric vehicle batteries, electric truck batteries, electric boat batteries, golf cart batteries, energy storage battery system, mobile charging station etc...
With 30 people R& D team who has rich experience, CTS focuses on power battery customization for middle and high end markets by selecting first grade lithium cells with high energy density. We always followed Strict quality control ensures the higher quality of products. With the concept of "customers the first, quality the life", we strictly follow I S O 9 0 0 1 and I A T F 16949 management system through the production of every detail, each battery must be strictly tested before its delivery. our battery products selling well in all cities and provinces around China, also exported to multiple countries around the world，such as ,America, Australia, Canada,Italy, U K, Germany, South Korea, Thailand, etc. our battery products approved MSDS, UN38.3, CE, IEC 62619 certifications...
With 30 people R& D team who has rich experience, CTS focuses on power battery customization for middle and high end markets by selecting first grade lithium cells with high energy density. We always followed Strict quality control ensures the higher quality of products. With the concept of "customers the first, quality the life", we strictly follow I S O 9 0 0 1 and I A T F 16949 management system through the production of every detail, each battery must be strictly tested before its delivery. our battery products selling well in all cities and provinces around China, also exported to multiple countries around the world，such as ,America, Australia, Canada,Italy, U K, Germany, South Korea, Thailand, etc. our battery products approved MSDS, UN38.3, CE, IEC 62619 certifications...
Похожие товары
Популярная литиевая батарея 72 В 96 144 100ah 200ah lifepo4 для электромобиля тележки гольфа
1 800,00-2 100,00 $
Аккумуляторная батарея высокого напряжения 540 В 614 768 100 кВтч 150 литий-ионный аккумулятор для инженерного оборудования
4 000,00-4 800,00 $
CTS настраивает Высоковольтную аккумуляторную систему 614 В 100kWh 150kWh литиевая аккумуляторная батарея для инженерной техники Электрический экскаватор
4 000,00-4 800,00 $

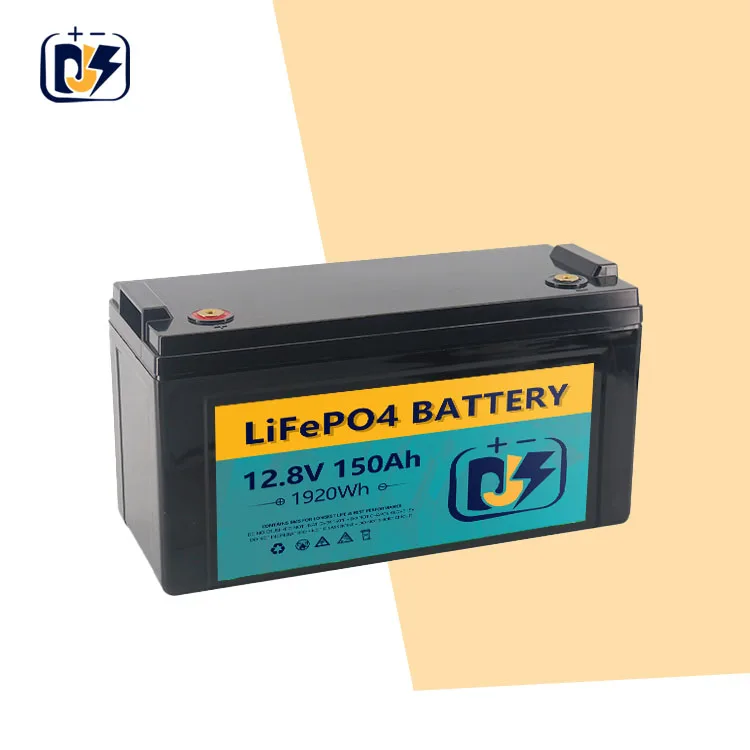

Литий-ионный аккумулятор 12 В 150 А/ч 8
219,43-260,57 $

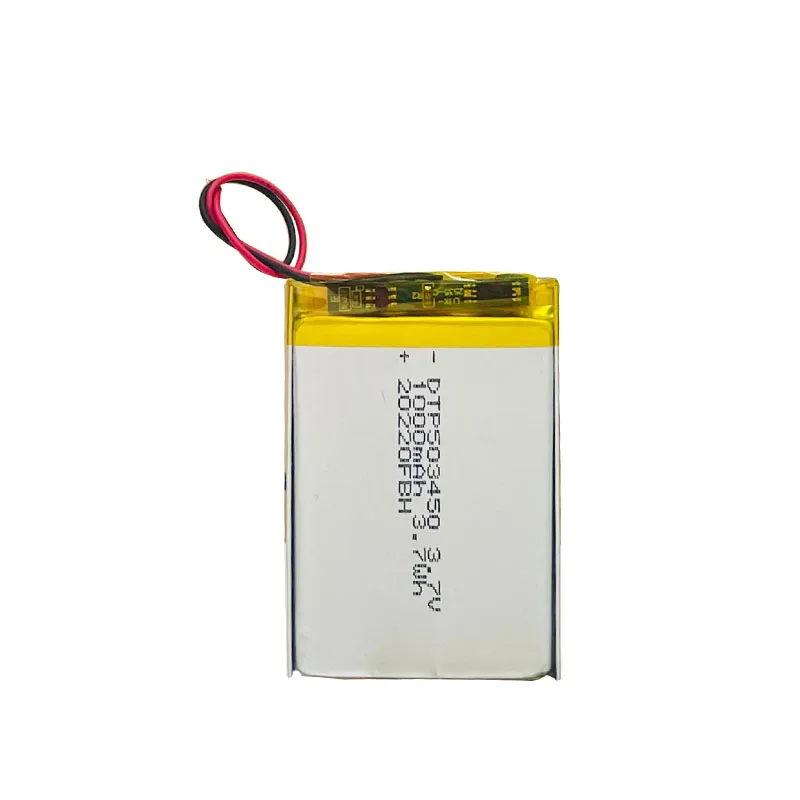

Литий-полимерные батареи одобренные KC CE ROHS 503450 3 7 В 1000 мАч перезаряжаемая 603450 903450 103450 lipo батарея с JST plug
1,45-2,00 $
Сменная литий-ионная батарея accu 18 в 3000 Ач 194205 мАч для аккумуляторной дрели-3 LXT-400 BL1830 BL1815 BL1835 bsl1830

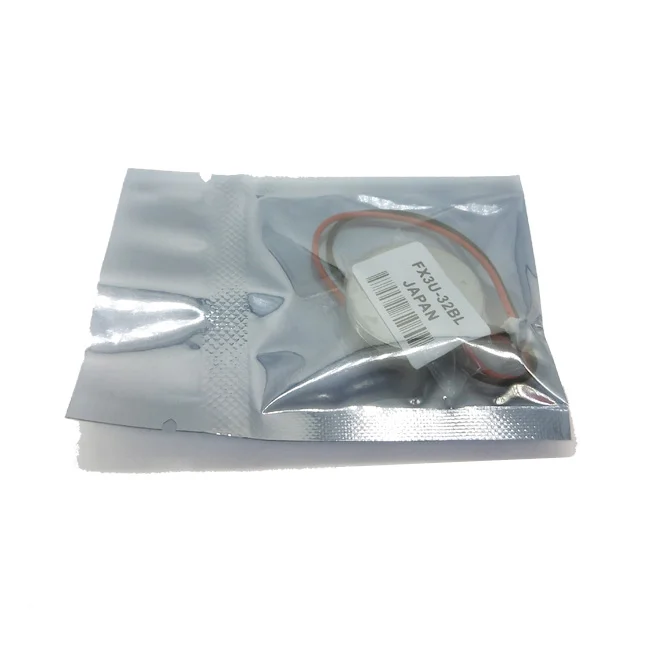

Новый FX3U-32BL CR2450HR 3V батарея таблеточного типа GT11-50BAT PLC шествие маслянистый Сенсорная панель человека компьютерный интерфейс
