Product Description

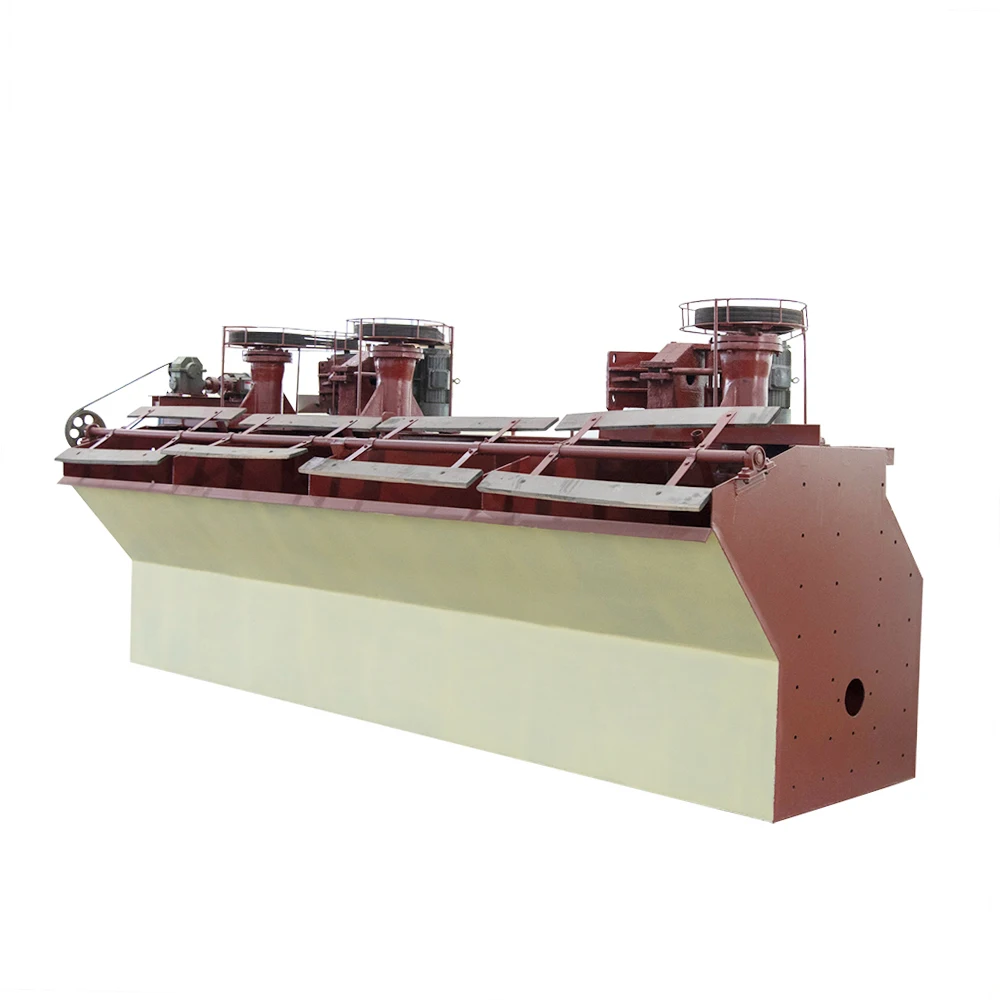

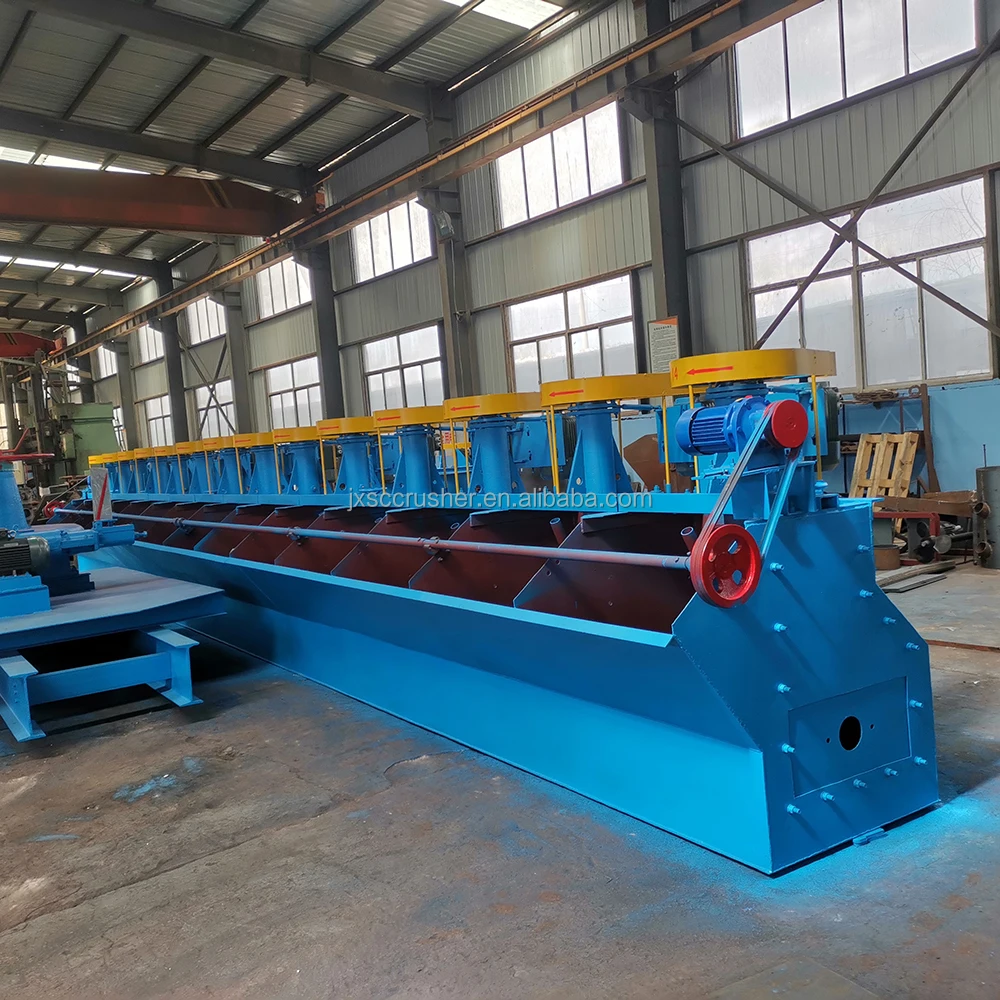

◆ Introduction

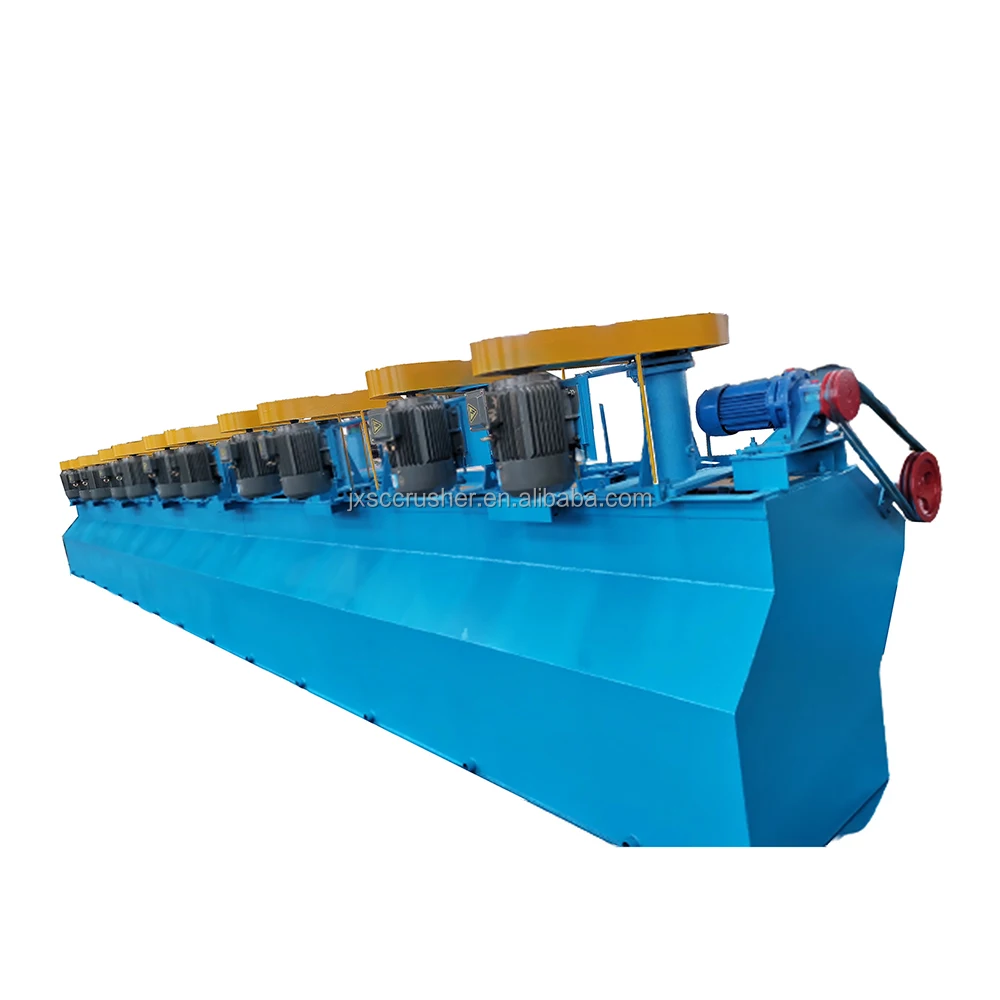

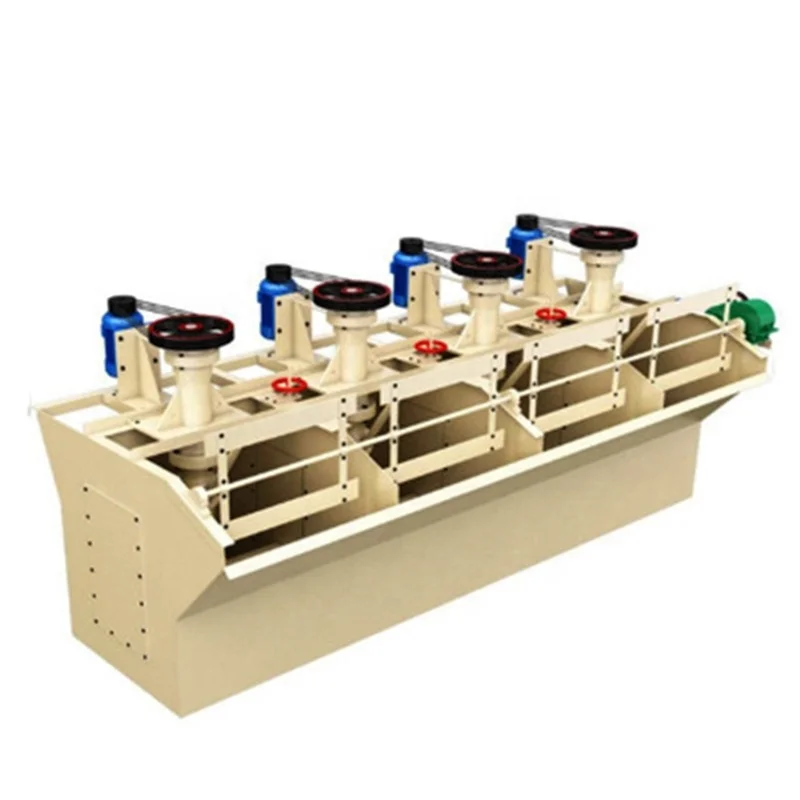

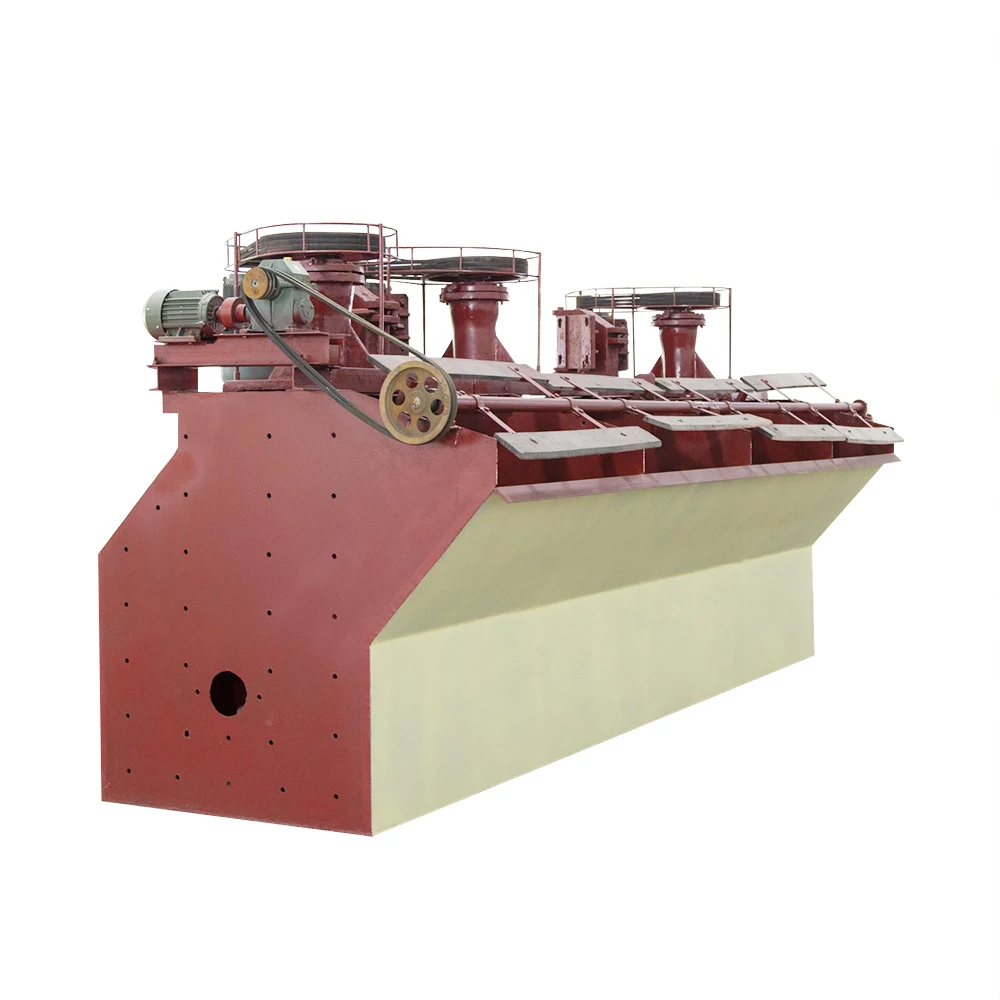

In the flotation machine, the slurry after the treatment is treated by mixing and aerating, so that some of the ore grains are selectively fixed on the bubbles. The floating surface is scraped out to form foam products, and the rest is retained in the pulp so as to achieve the purpose of separating minerals. There are many structural forms of the flotation machine, and the most commonly used one is the mechanical agitation type flotation machine.
In the flotation machine, the slurry after the treatment is treated by mixing and aerating, so that some of the ore grains are selectively fixed on the bubbles. The floating surface is scraped out to form foam products, and the rest is retained in the pulp so as to achieve the purpose of separating minerals. There are many structural forms of the flotation machine, and the most commonly used one is the mechanical agitation type flotation machine.
◆ Working principle
When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.
When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.
◆ Features
1.Large air-absorption capacity and low power consumption
2.Long service life of vulnerable parts
3.Suitable for flotation of large particle size materials
4.Can compose a joint flotation unit with JJF flotation cell
2.Long service life of vulnerable parts
3.Suitable for flotation of large particle size materials
4.Can compose a joint flotation unit with JJF flotation cell
Technical data
Model | Volume（m3） | Cell size（mm) | Impeller Dia.(mm) | Impeller speed(r/min) | Capacity(m3/min) | Motor Power (kw) | Single cell weight(kg) | ||
Agitator | Scraper Blade | ||||||||
SF-0.37 | 0.37 | 700×700×750 | 296 | 386 | 0.2-0.4 | 1.5 | 0.55 | 468 | |
SF-0.7 | 0.7 | 820×900×950 | 350 | 400 | 0.3-0.9 | 3 | 1.1 | 805 | |
SF-1.2 | 1.2 | 1100×1100×1100 | 450 | 312 | 0.6-1.2 | 5.5 | 1.1 | 1373 | |
SF-2.8 | 2.8 | 1700×1600×1150 | 550 | 268 | 1.5-3.5 | 11 | 1.5 | 2138 | |
SF-4 | 4 | 1850×2050×1200 | 650 | 220 | 2--4 | 15 | 1.5 | 2582 | |
SF-8 | 8 | 2200×2900×1400 | 760 | 191 | 4--8 | 30 | 1.5 | 4129 | |
SF-10 | 10 | 2200×2900×1700 | 760 | 191 | 5--10 | 30 | 1.5 | 4486 | |
SF-16 | 16 | 2850×3800×1700 | 760 | 191 | 5--16 | 45 | 1.5 | 8320 | |
SF-20 | 20 | 2850×3800×2000 | 760 | 191 | 5--20 | 30x2 | 1.5 | 9828 | |
Successful Cases
◆ JXSC Flotation Machine Application - 15TPH Rock Gold Processing Project in Africa
1) JXSC designed the flowchart and plants layout drawing for this Africa customer.
2) JXSC supplied Hopper, Feeder, Jaw Crusher, Hammer Crusher, Ball Mill, Flotation Machine for this Rock Gold Processing Project.
3) JXSC dispatched our Engineer Mr. Wee serviced at Rock Gold Processing Plant site.
2) JXSC supplied Hopper, Feeder, Jaw Crusher, Hammer Crusher, Ball Mill, Flotation Machine for this Rock Gold Processing Project.
3) JXSC dispatched our Engineer Mr. Wee serviced at Rock Gold Processing Plant site.
◆ JXSC Flotation Machine Application - 60TPH Copper Processing Project in Mexico
1) JXSC designed the flowchart and plants layout drawing for this customer.
2) JXSC supplied full sets of equipment for the whole processing line,including flotation machine,feeder machine,hopper,shaker table etc.
3) JXSC dispatched our Engineer Mr. Wee for guiding installation at customer's project site.
2) JXSC supplied full sets of equipment for the whole processing line,including flotation machine,feeder machine,hopper,shaker table etc.
3) JXSC dispatched our Engineer Mr. Wee for guiding installation at customer's project site.
Packaging & Delivery
◆ Ways of packing
1.Small parts packed in the wooden cases
2. Big parts packed by plastic membrane
3.The whole big machine is loaded in the container
3.The whole big machine is loaded in the container
◆ Shiping by sea/air freight
1. Usually our mining machines are shipped in 40'HQ or Flat Containers by sea.
2. Our mining equipments can be also shipped by air if customers request.
2. Our mining equipments can be also shipped by air if customers request.
Company Introduction
JXSC Mining Equipment Manufacturer is an experienced supplier of Gold Mining Equipment including gold wash plant, stone crusher machine, gravity concentration, magnetic separation, feeder equipment, mining laboratory equipment. Our Gold Wash Plant is widely used for gold mining plant among home and abroad, whole alluvial gold production line and gold mining equipment, diamond mining equipment, silica sand mining own a good name in the international market, owing to advanced design compare to top brands like MSI MINING.
Trusted mining equipment manufacturers leader in mineral processing technologies,ISO9001: 2008 and CE certified,providing high quality manufacturing,engineering support & professional mining design since establishing in China in 1985.
JXSC mine machinery factory, is specializing in manufacturing, and uniquely provides complete range of mining equipment, mining accessories for either placer or hard rock mineral types,also,processing and recovery of various metals and minerals: Precious Metals, Precious and Semi-Precious Stones, Base Metals, Ferrous and Non-Ferrous Metals, Noble Metals, Heavy Metals.
Trusted mining equipment manufacturers leader in mineral processing technologies,ISO9001: 2008 and CE certified,providing high quality manufacturing,engineering support & professional mining design since establishing in China in 1985.
JXSC mine machinery factory, is specializing in manufacturing, and uniquely provides complete range of mining equipment, mining accessories for either placer or hard rock mineral types,also,processing and recovery of various metals and minerals: Precious Metals, Precious and Semi-Precious Stones, Base Metals, Ferrous and Non-Ferrous Metals, Noble Metals, Heavy Metals.
7*24 hours online consulting service, we provide you with the prophase plan, process flow design and
manufacturer equipment according to your special demand.
manufacturer equipment according to your special demand.
Send technicians to the job site guiding the installation and adjustment, training operators and finishing the check and accept together with you.
FAQ
1.How is the quality of your products?(mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we made before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice; Finished product pictures will be provided to customers before delivery.
If you are interested in our products, please don't hesitate to contact us. Could you tell me the following questions, so that I can give you a complete solution, including best Exw-works Price Quotation!
1. Which machine do you need? like gold washing machine, spiral chute, vibrating screen, Jig separator, Shaking table, etc.
2. What is your raw ore that you plan to process? like gold ore, diamond ore, tantalite or silica sand, etc.
3. What is the capacity you need? Like 10 tones per hour.
4. What is the feeding size to the machine? and what is the discharging-material size that you require? Sincerely welcome to send your inquiry,you can get best quotation and professional service.
Похожие товары

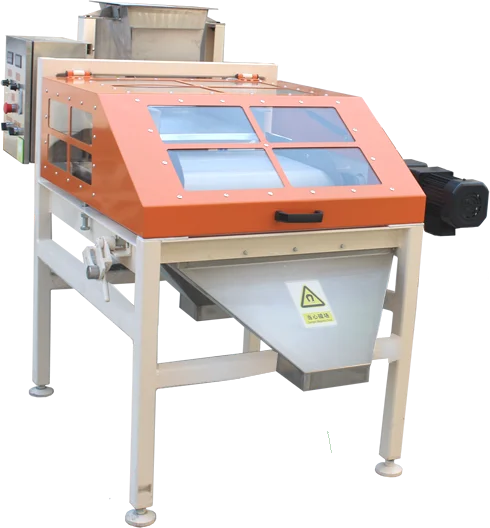

60000 В четыре ролика шесть роликов электростатический сепаратор для разделения рутил Циркон песок
2 800,00 $

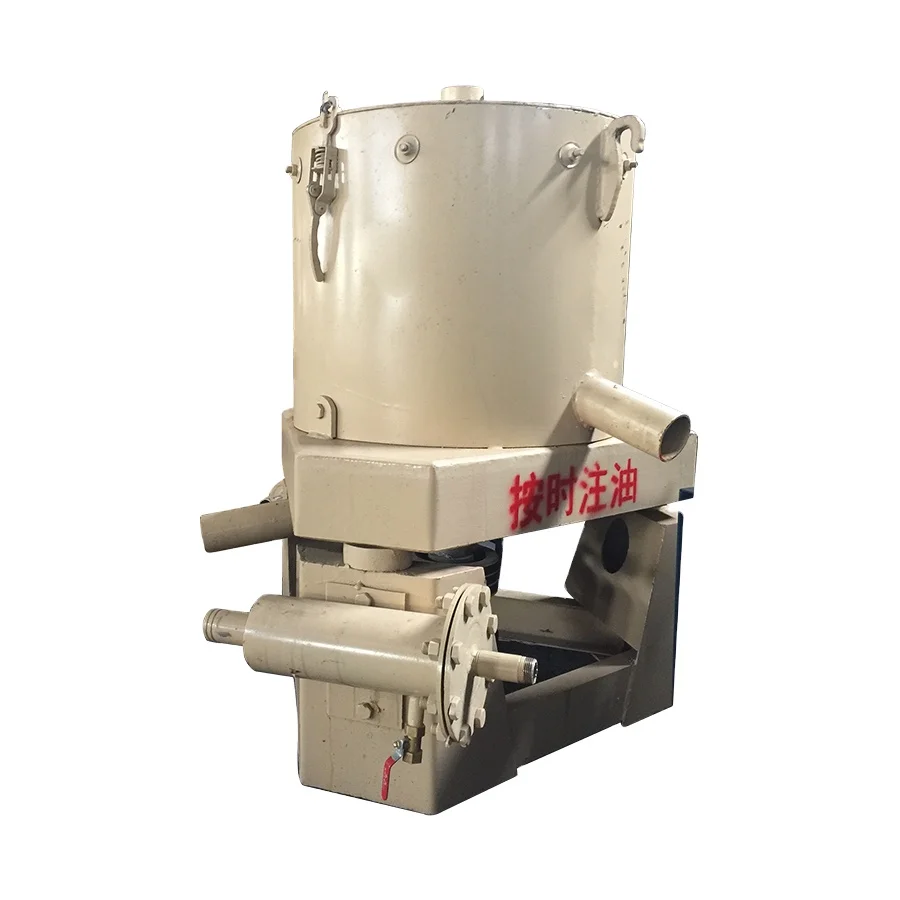

Full Automated Blue Bowl Kacha Knelson Falcon STL STLB Type Large Small Fine Gold Recovery Centrifugal Concentrators for Mineral
9 675,80-10 346,40 $

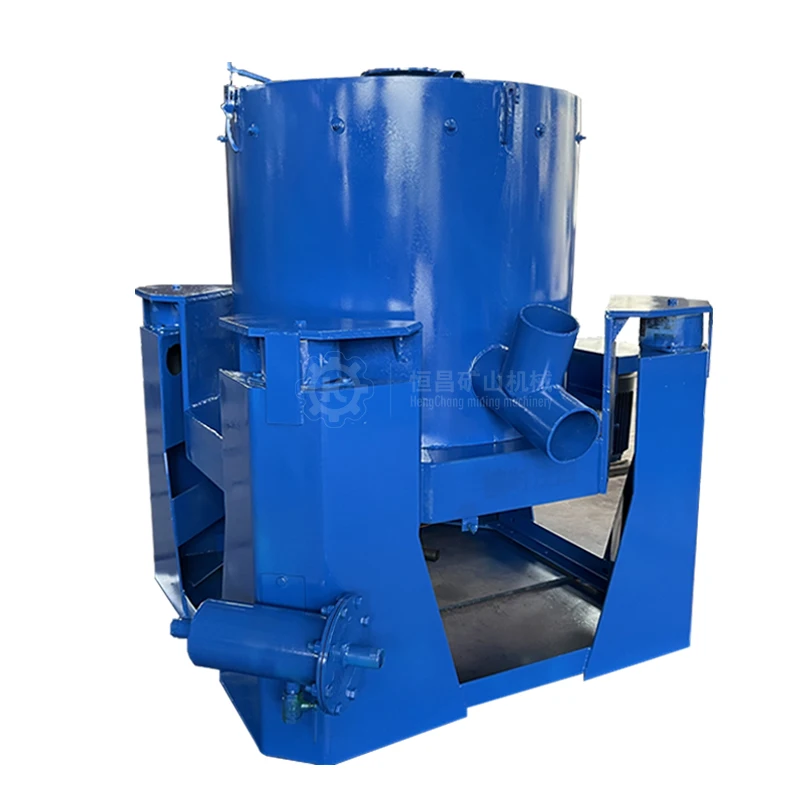

Золотой сепаратор концентраторы Гравитационный центробежный Сокол для золота
3 800,00-6 500,00 $

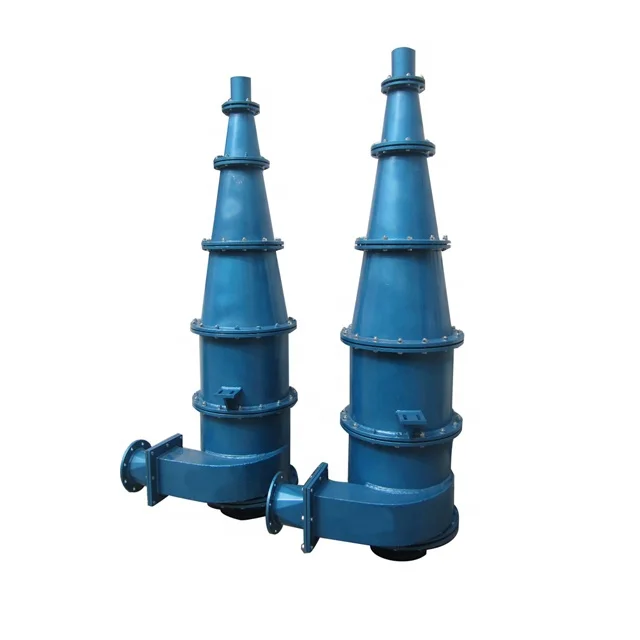

Гидроцилон сепаратор установка для мытья золота
