3-этажный дом Wellcamp сборные сэндвич-панели конструкции домов
3 850,00-5 699,00 $
Сборное здание отеля строительство стальных конструкций апартаменты сборное гостиничное
- Категория: >>>
- Поставщик: Beijing Chengdong International Modular Housing CorporationBeijing Corporation
Сохранить в закладки 1601364885708:
Описание и отзывы
Характеристики
Product Description
CDPH popular easy assembly casas prefabricadas container apartment garage dorm prefabricated mobile homes prefab houses
Due to the fixed dimensions of the length, width, and height of this type of house, it is possible to set up several fixed functional room layouts. According to different usage requirements, flexible combinations can be made between various functional houses, making it a standardized product and making mass production possible
The detailed information as follows:
Profile | 1 | L*W*H（mm） | 6055*2435*2896（Internal 5845*2225*2520） |
2 | Roof Type | Bread roof, with central drainage system for water flow via 4 columns | |
Parameter | 3 | Floor Live Load | 2.0KN/㎡ |
4 | Roof Live Load | 0.5KN/㎡ | |
5 | Wind Load | 0.5KN/㎡ | |
Frame | 6 | Corner Column | Galvanized plate, t=3.0mm, steel profile SGH340 |
7 | Roof Main Beam | Galvanized plate, t=3.0mm, steel profile SGH340 | |
8 | Floor Main Beam | Galvanized plate, t=3.0mm, steel profile SGH340 | |
9 | Roof Second Beam | Steel profile Q235B, high strength | |
10 | Floor Second Beam | Π type high strength, metal code Q345 | |
11 | Coating | Powder coating, coating thickness 80μm, grey white | |
Roof Decoration | 12 | Roof Sheet | Galvalume sheet, white color |
13 | Insulation | Glass wool, density≥14kg/m³ | |
14 | Ceiling | Galvalume sheet, white color | |
Floor Decoration | 15 | Surface | Rubber flooring sheet, marble white color |
16 | Baseplate | 18mm thickness cement board | |
17 | Insulation | Without | |
18 | Underneath Sheet | Without | |
Wall Panel | 19 | Thickness | 75mm thickness sandwich panel Decoration Options: External wall surface: marble stone, metal engraving plate, cement board, water-proof film Partition wall surface: wood plastic plate, PVC gusset plate, wallpaper |
20 | Insulation | Glass wool or rock wool | |
Door | 21 | Size（mm） | Width X Height=840*2035 |
22 | Material | Metal door (Can be aluminum alloy door as option) | |
Window | 23 | Size（mm） | Width X Height=1120*1100 (Can be aluminum alloy window or other size of PVC windows as option) |
24 | Material | PVC sliding window with security bar and window screen | |
25 | Glass | Double glazed | |
Electrics | 26 | Voltage | 220V~240V，50HZ |
27 | Electric Wire | Main circuit BVVB-3*6.0, air conditioner BVVB-3*4.0, socket BVVB-3*2.5, lamp BVVB-3*1.5 | |
28 | DB box | 10 digit unexposed PVC distribution box*1（Including high breaking circuit breaker 10A/1P, high breaking circuit breaker 20A/2P, high breaking circuit breaker 5A/2P, leakage protection circuit breaker 16A/2P, 1 piece each break） | |
29 | Lamp | LED strip lamp（LED 16.5W*2）*2 | |
30 | Socket | Industrial socket（3P/32A）*1, three-pole multi-functional socket (250V 13A)*4, one gang switch*1 | |
31 | Electrics for Units Combination | For standard, using 100*50*1.5mm galvanized metal bridge for keeping outdoor cables, the cables are 3*6mm2 for usual | |
Fittings | 32 | Female Corner | 0.5mm metal sheet, white color |
33 | Wall Channel | 0.7mm metal sheet, white color |

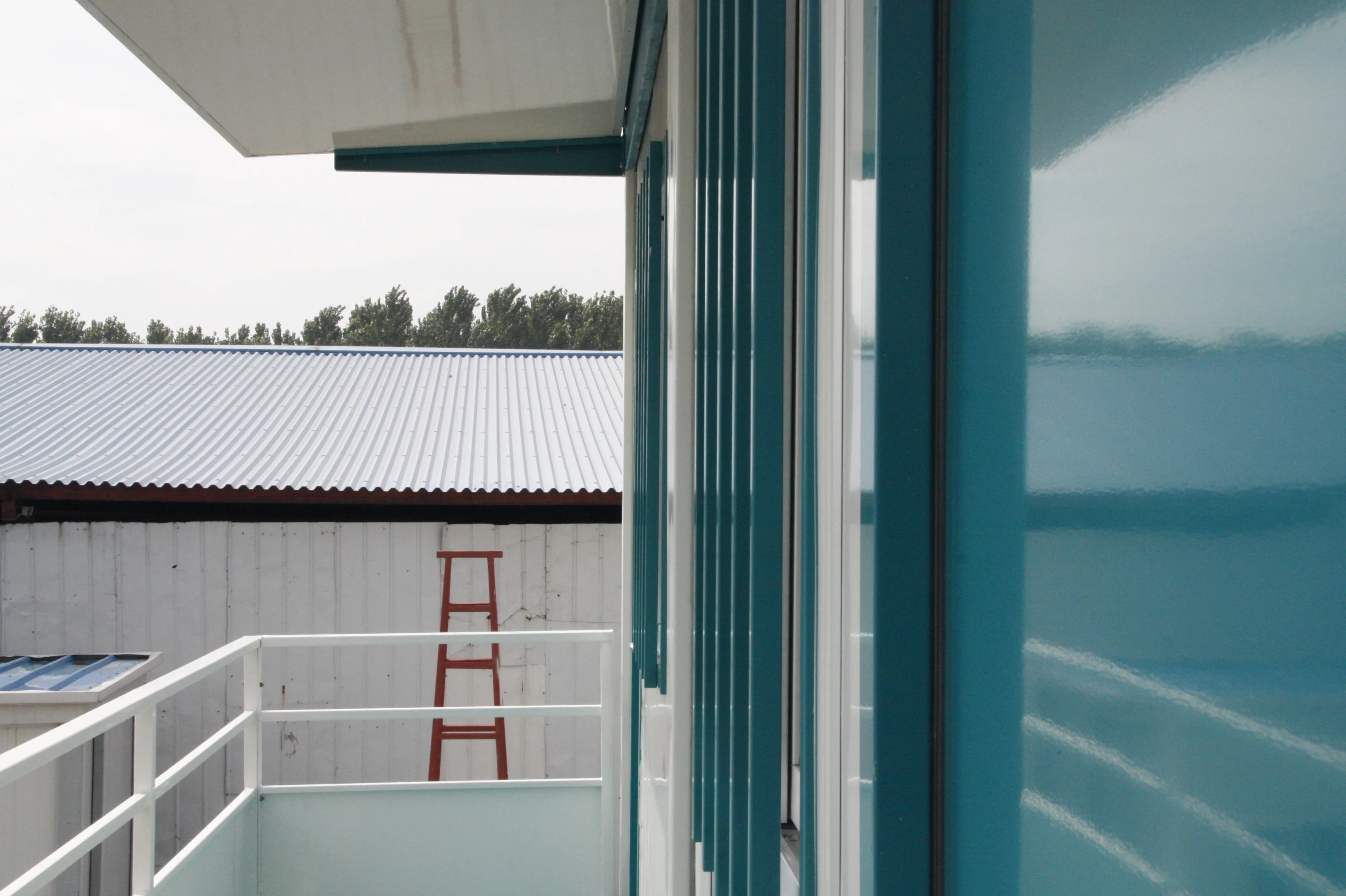

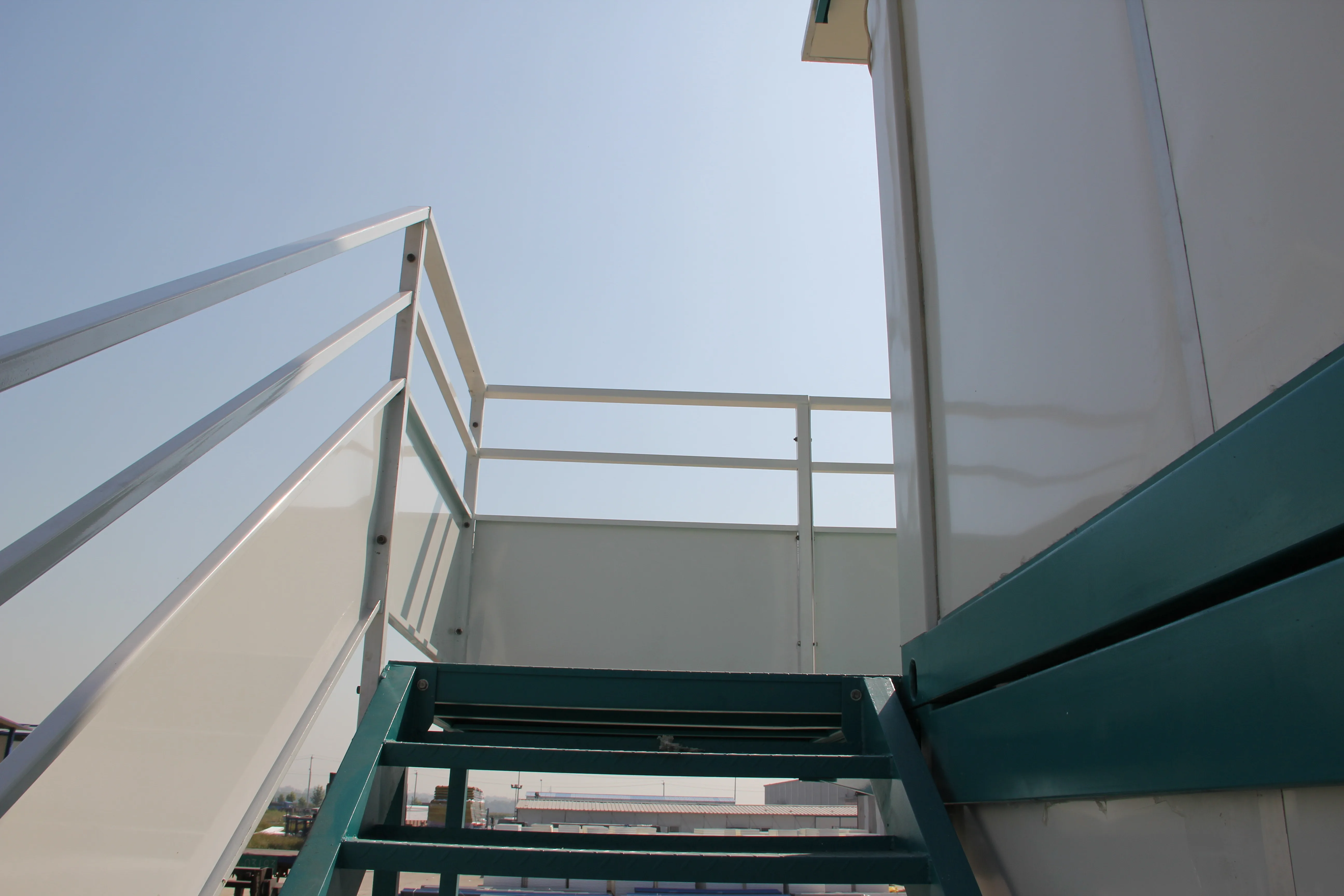

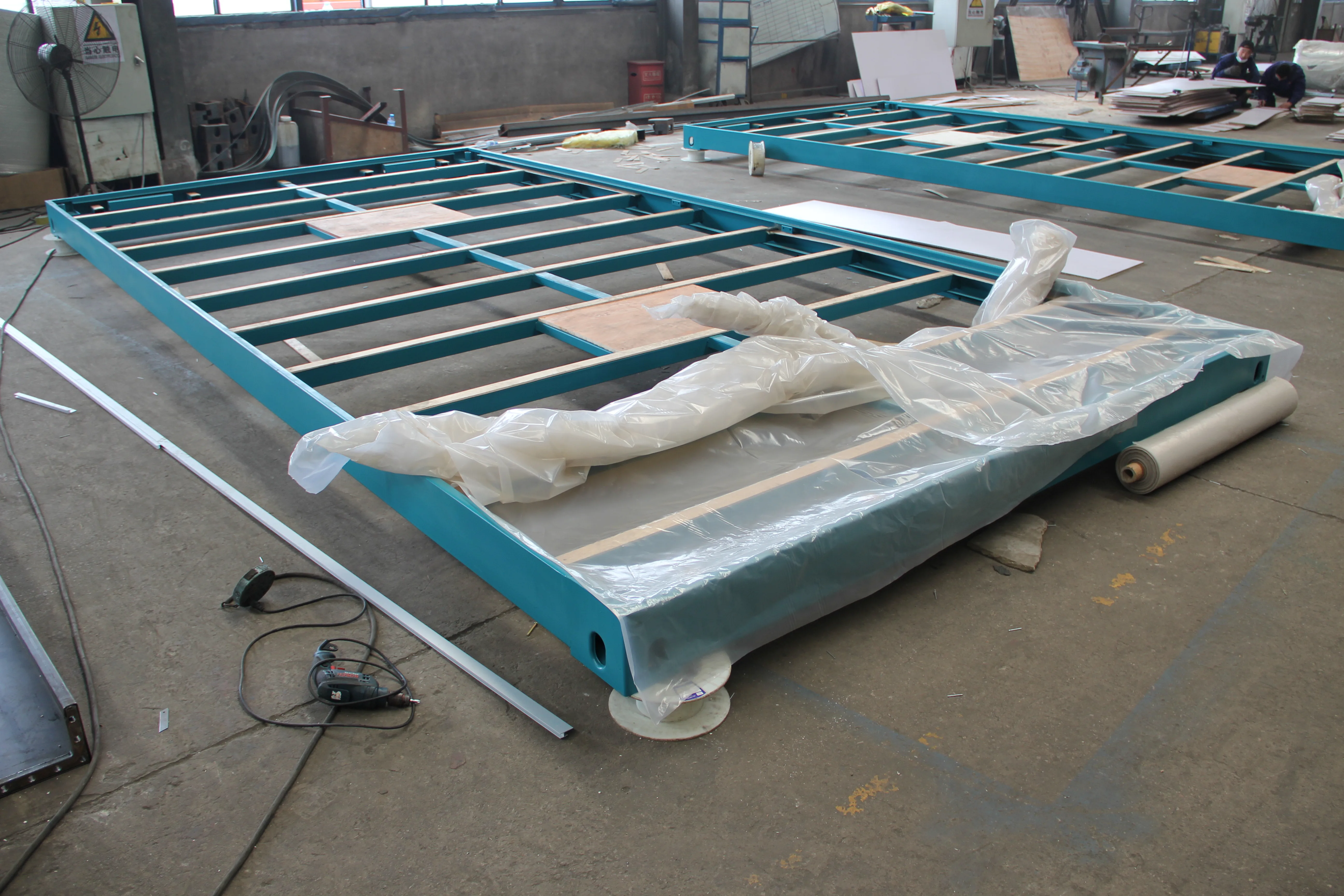

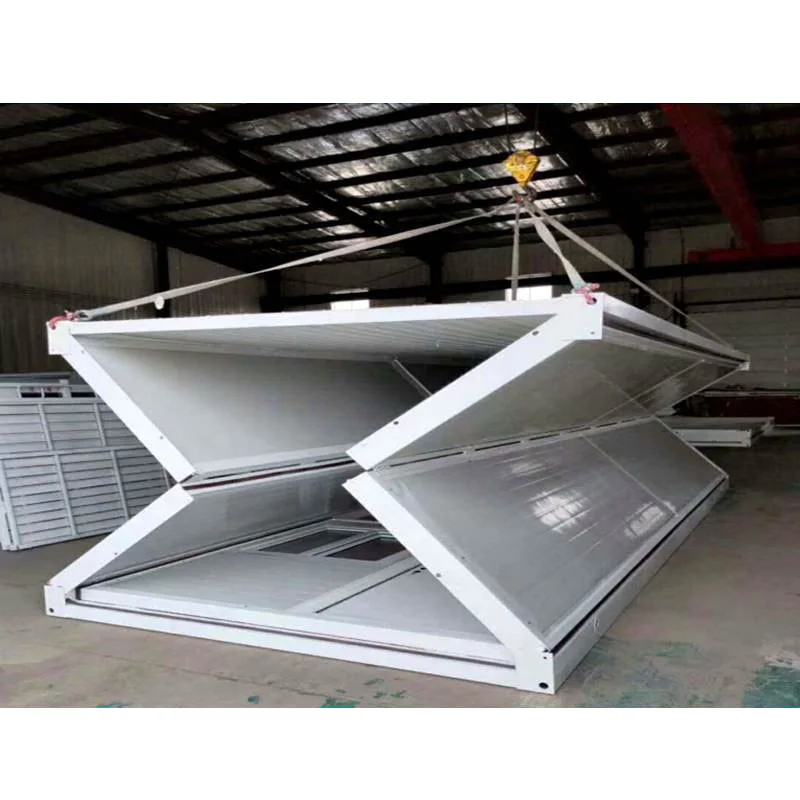

Detailed Images
Overall display of projects of the same type
Xiong'an Builders' Home Project | Sanmenxia Yellow River City Project |

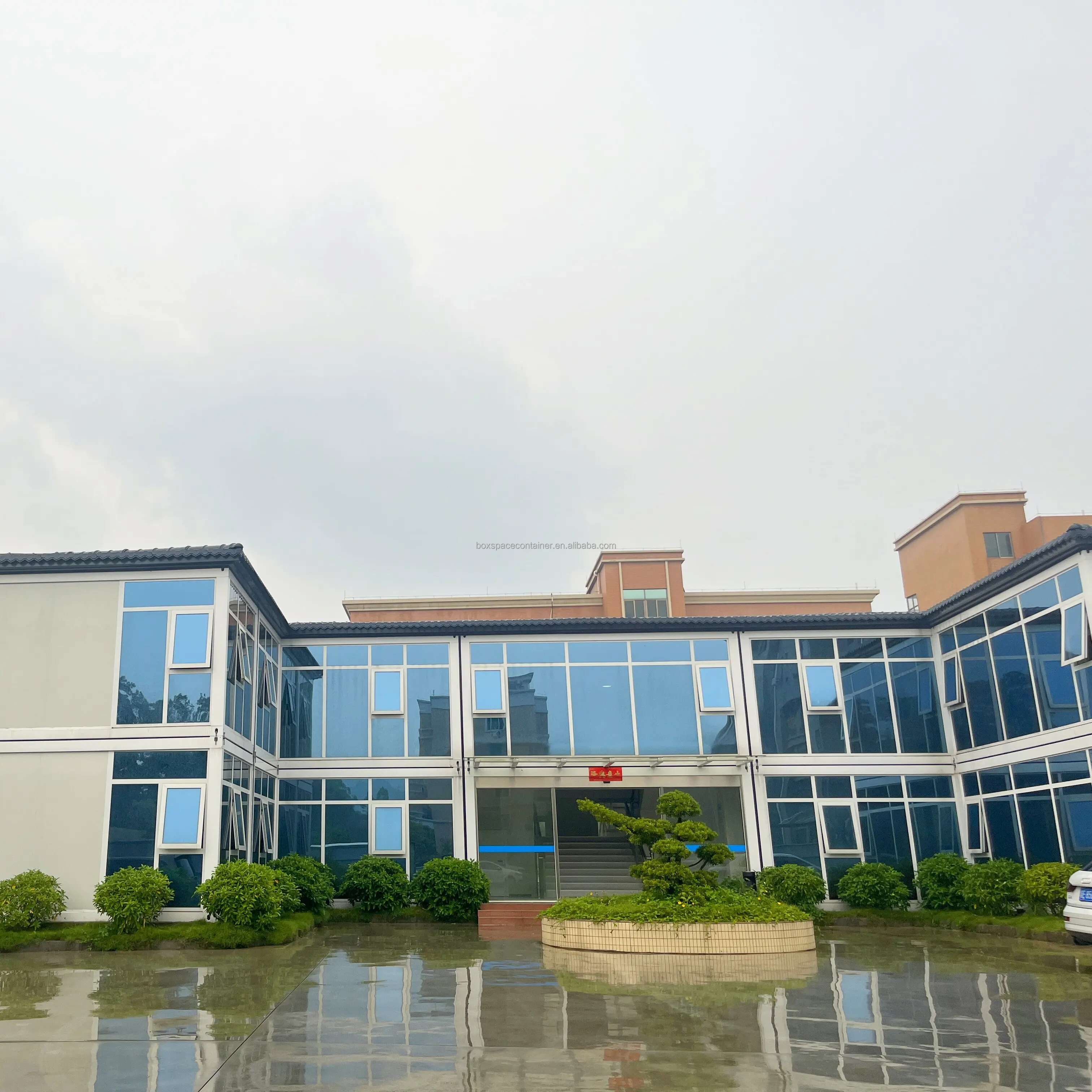

Sanmenxia Yellow River City Project | Appearance display of dormitory building |
Packing & Delivery
Packaging Details : container house:flat packing
Delivery Time : 30days
quick install mobile toilets cheap container house
container house:1.flexible design 2.low cost 3.fast installation 4.reusable structure 5.furniture available
Galvanized structure. Good anti-rust ability and long endurable time.
Can be delivered directly as flat packs, Save renting shipping containers fee..
Can be transported as a whole between sites, save disassembling and reassembling troublesome.
Easy installation, Save labor cost.
Recycle use, Save each project’s accommodation cost.
Galvanized structure. Good anti-rust ability and long endurable time.
Can be delivered directly as flat packs, Save renting shipping containers fee..
Can be transported as a whole between sites, save disassembling and reassembling troublesome.
Easy installation, Save labor cost.
Recycle use, Save each project’s accommodation cost.
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
1.\tQ: How about your delivery time?
A: Normally, the delivery time is as follows: Prefab house: 20-25days, Container house: 15-20days, Steel structure: 25-30days, Villa: 30-35days.
2.\tQ: What about the Month Capacity?
A: Prefab house: 100,000m2, Container house: 400units, Steel structure: 2000tons, Villa: 100,100m2.
3.\tQ: What’s the minimum order?
A: Prefab house: 50m2, Container house: 3units, Steel structure: 200m2, Villa: 100m2.
4.\tQ: What is your package?
A: Container house is in flat pack. Other houses will be loaded into shipping containers(main structure and panels in bulk, door/ceiling/floor tiles/furniture in cartons, sanitary/electrical/plumbing/hardware/fittings/tools in wooden case ).
5.\tQ: What’s you payment terms?
A: Wire transfer or LC.
6.\tQ: What certificate do you have?
A: We have been awarded the certificate by CE, American building Code, ISO9001, ISO14001, OHSAS18001 and China Classification Society. Meantime, we have been inspected many times by TUV, SGS and BV for the factory and products.
7.\tQ: What kind of technical drawings could you provide?
A: We could provide three-view drawing, 3D picture, blueprint, foundation, plumbing, electrical, communication, fire alarm, installation, furniture and so on.
8.\tQ: What is the lifespan and warranty period?
A: The lifespan for Prefab house is 5 to 10year, Container house is 10-15years, Steel structure is 15-20years and Villa is 20-50years. The warranty period for all the house is 12months from the delivery.
9.\tQ: What the value added service do you have?
A: We have camp/community planning design, indoor and outdoor electrical/plumbing design, communication/fire alarm/security system supply, furniture/ electric appliance offer, etc.
10.\tQ: Could you supply the service of installation?
A: Yes, we have 80 experienced supervisors who could go to guide the installation at any time. Meanwhile, we have skilled installation team who could finish some turn-key projects.
2.\tQ: What about the Month Capacity?
A: Prefab house: 100,000m2, Container house: 400units, Steel structure: 2000tons, Villa: 100,100m2.
3.\tQ: What’s the minimum order?
A: Prefab house: 50m2, Container house: 3units, Steel structure: 200m2, Villa: 100m2.
4.\tQ: What is your package?
A: Container house is in flat pack. Other houses will be loaded into shipping containers(main structure and panels in bulk, door/ceiling/floor tiles/furniture in cartons, sanitary/electrical/plumbing/hardware/fittings/tools in wooden case ).
5.\tQ: What’s you payment terms?
A: Wire transfer or LC.
6.\tQ: What certificate do you have?
A: We have been awarded the certificate by CE, American building Code, ISO9001, ISO14001, OHSAS18001 and China Classification Society. Meantime, we have been inspected many times by TUV, SGS and BV for the factory and products.
7.\tQ: What kind of technical drawings could you provide?
A: We could provide three-view drawing, 3D picture, blueprint, foundation, plumbing, electrical, communication, fire alarm, installation, furniture and so on.
8.\tQ: What is the lifespan and warranty period?
A: The lifespan for Prefab house is 5 to 10year, Container house is 10-15years, Steel structure is 15-20years and Villa is 20-50years. The warranty period for all the house is 12months from the delivery.
9.\tQ: What the value added service do you have?
A: We have camp/community planning design, indoor and outdoor electrical/plumbing design, communication/fire alarm/security system supply, furniture/ electric appliance offer, etc.
10.\tQ: Could you supply the service of installation?
A: Yes, we have 80 experienced supervisors who could go to guide the installation at any time. Meanwhile, we have skilled installation team who could finish some turn-key projects.
