Высококачественные китайские нефтехимические технологические насосы ZA ZAK ZAG type специализирующиеся в нефтехимической промышленности

Product features

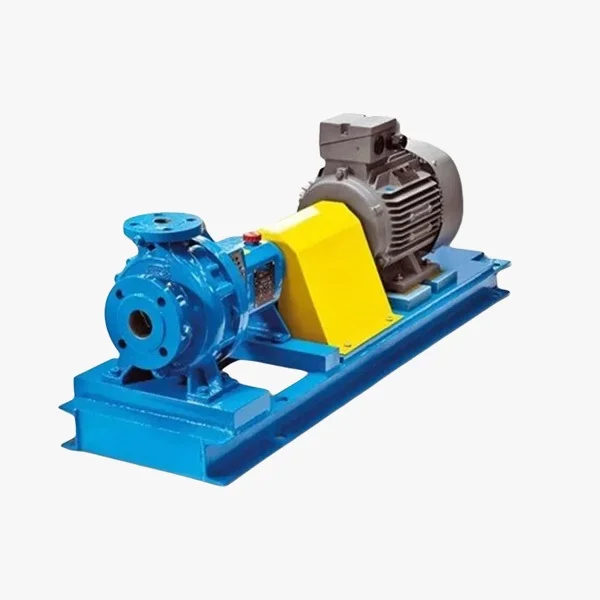

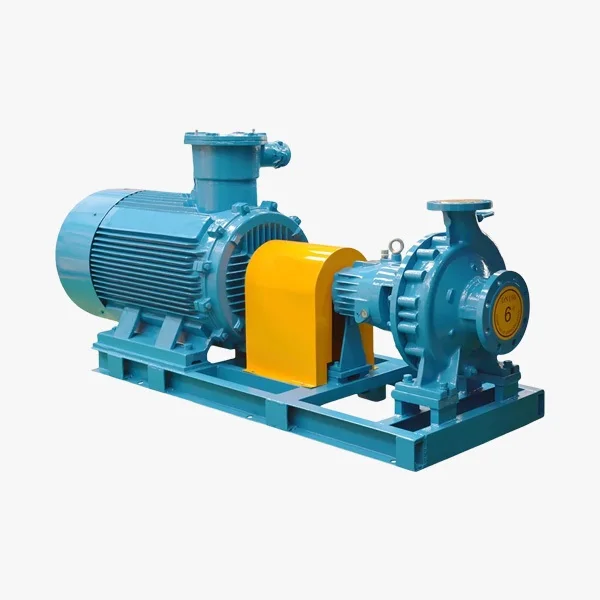

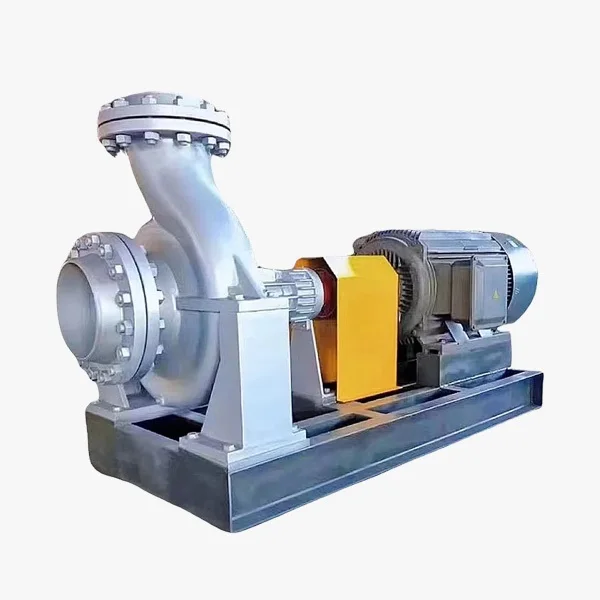

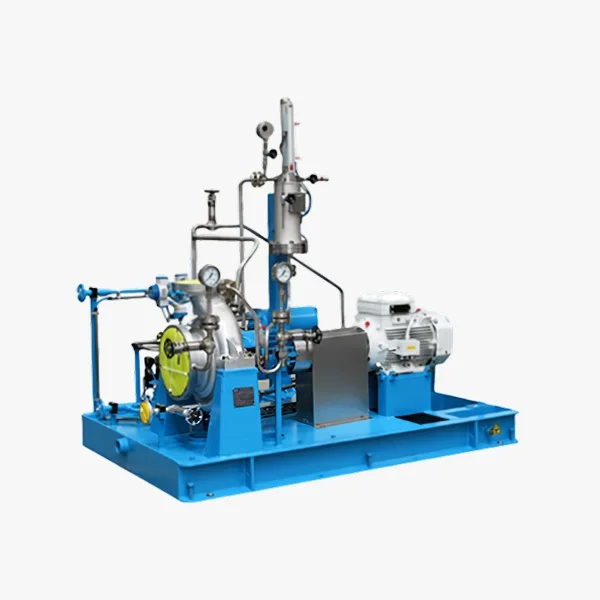

 ZA, ZAK, ZAG type high temperature and high pressure petrochemical process pumps are horizontal, single-stage, single-suction, cantilevered chemical centrifugal pumps, corrosion-resistant, leak-free, high temperature and high pressure, specialised in petrochemical industry, the products are in line with DIN24256, ISO2858, GB5662-85 standards, corrosion-resistant chemical pump manufacturer Zoomlion Pumps is designed in accordance with API610 specifications, the implementation of API The tenth edition design specification. This series of pumps closed, semi-open impeller using balance plus wear-resistant ring to balance the axial force, open impeller using back blade to balance the axial force. Pumps with outlet diameter above 80mm are designed as double worm shells to balance the radial force, thus ensuring the service life of the bearings and the perturbation at the shaft seal. The bearings are paired with cylindrical roller and tapered roller bearings according to different working conditions, which greatly improves the service life of the bearings.

 ZA, ZAK, ZAG type high-temperature and high-pressure stone petrochemical pumps are mainly used in oil refineries, petrochemicals, low-temperature engineering, coal mining, chemical and general industrial processes, power plants, large and medium-sized heating and air-conditioning installations, environmental protection installations, offshore industries and seawater desalination plants.

Product implementation standards: API610 (10th edition), VDMA24297 (medium/serious) standards.

Application

ZA petrochemical pumps are suitable for conveying clean or solid particles, low or high temperature, neutral or corrosive liquids, especially for conveying liquid petrochemical products of various temperatures, acid, alkali, salt solutions of various temperatures and concentrations and other corrosive liquids. This type of corrosion-resistant petrochemical process pump is suitable for petroleum refining, refining of petrochemical products, chemical industry engineering, electric power engineering, environmental protection engineering, offshore engineering, oil transmission engineering, water supply and heating engineering, and papermaking, sugar making, pharmaceuticals and other departments.

Performance

Flow rate (Q) 2~2600m3/h

l Lift (H) 4~250m

l Power: 1.1~315kw

lRotation speed: 1450/2900r/min
