Фабрика henan xingzhihua YXH 1 тонна 2 тонны 3 5 тонн воздушная Лебедка для подъемного строительства
- Категория: >>>
- Поставщик: Henan Xingzhihua Environmental Protection Equipment Co. Ltd.Henan Ltd.
Сохранить в закладки 1601365169096:
Описание и отзывы
Характеристики
Product Features
Application
JQH-10x24 pneumatic winch is a single drum, hand operated winch powered by TMH3.2 piston type pneumatic motor. The winch is mainly used for hauling and lifting heavy objects in metal mines, coal mines and other mining fields, construction engineering departments and other departments. Because of its small size, light weight, adjustable speed, easy handling and rapid installation, it is more suitable for underground operation in mining field, such as dispatching on loading station of digging and mining working face, hauling tramcar and lifting and pulling tools and instruments in narrow roadway underground.
Structure and working principle
JQH-10x24 pneumatic winch uses air as its power source. It drives the drum through the piston type wind power pneumatic motor and the deceleration mechanism with two sets of internal and external gear transmission pairs, so as to achieve its winding purpose. Its main structure includes pneumatic motor, gearbox, drum and brake. All the transmission parts are supported by ball or ball bearing, and the operation is flexible. The main parts are made of high strength and high quality alloy steel, and after chemical heat treatment, the parts have a long service life.
Size Information
1TON Air Winch | ||||
Pressure of compressed air (Mpa) | 0.6-0.9 | |||
Rated traction force(Kn) | 10 | |||
Wire rope velocity(m/min) | 24 | |||
Air motor | Rater power(kw) | 3.98 | ||
Piston stroke(mm) | 50 | |||
Cyinder diameter(mm) | 65 | |||
Cylinder number(pcs) | 6 | |||
Drum | Diameter(mm) | 175 | ||
Width(mm) | 199 | |||
Wheel rim diameter(mm) | 290 | |||
Rope content(m) | 120 | |||
Wire rope diameter(mm) | 8 | |||
Outer dimension | Length(mm) | 840 | ||
Width(mm) | 320 | |||
Height(mm) | 350 | |||
Weight(kg) | 180 | |||

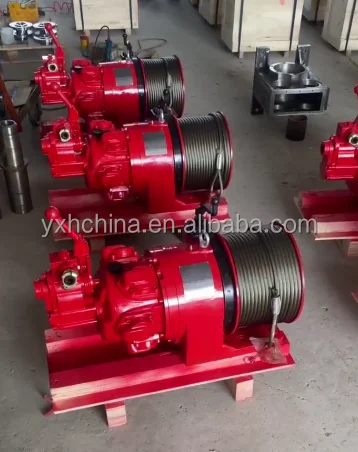

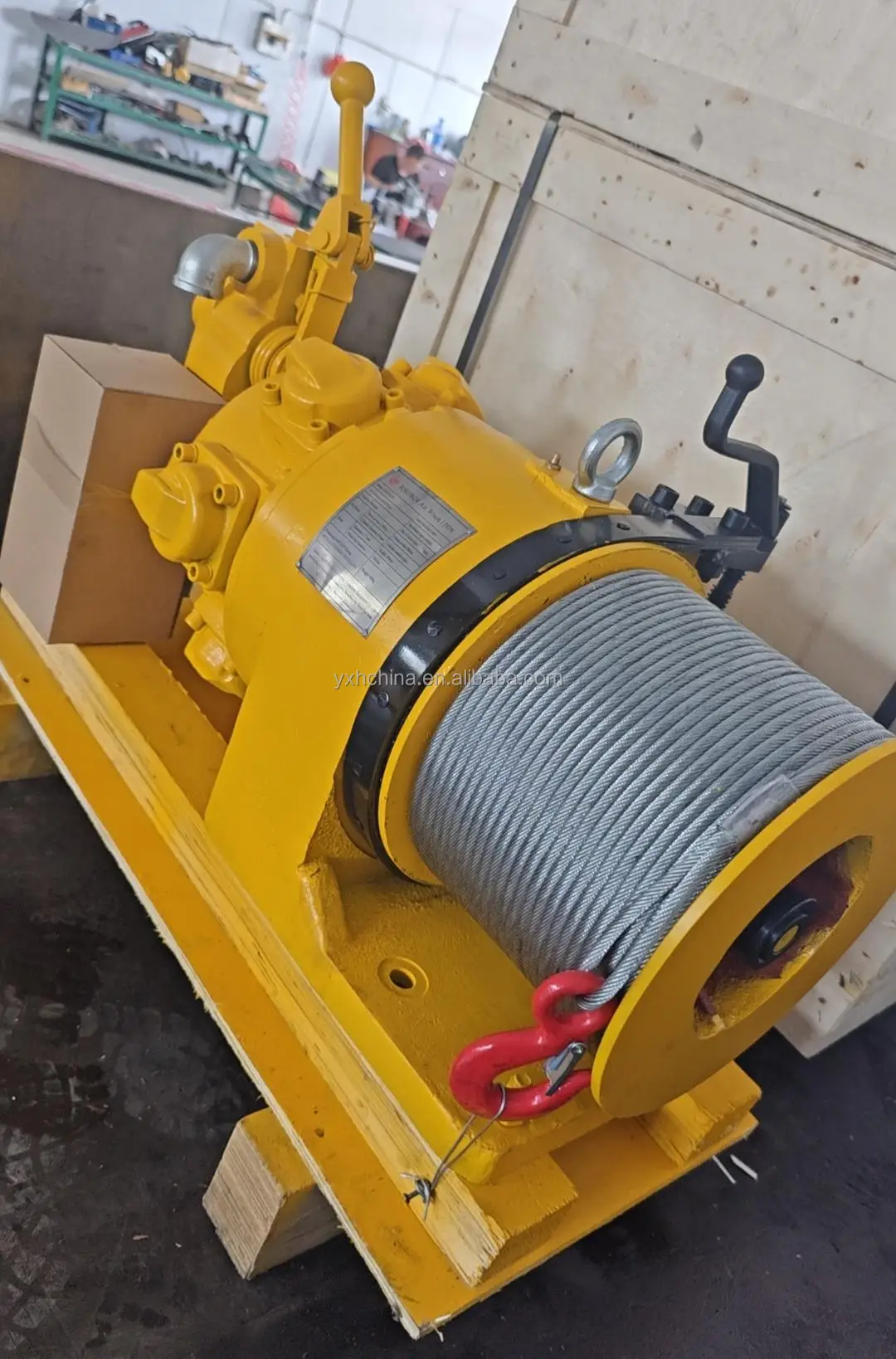

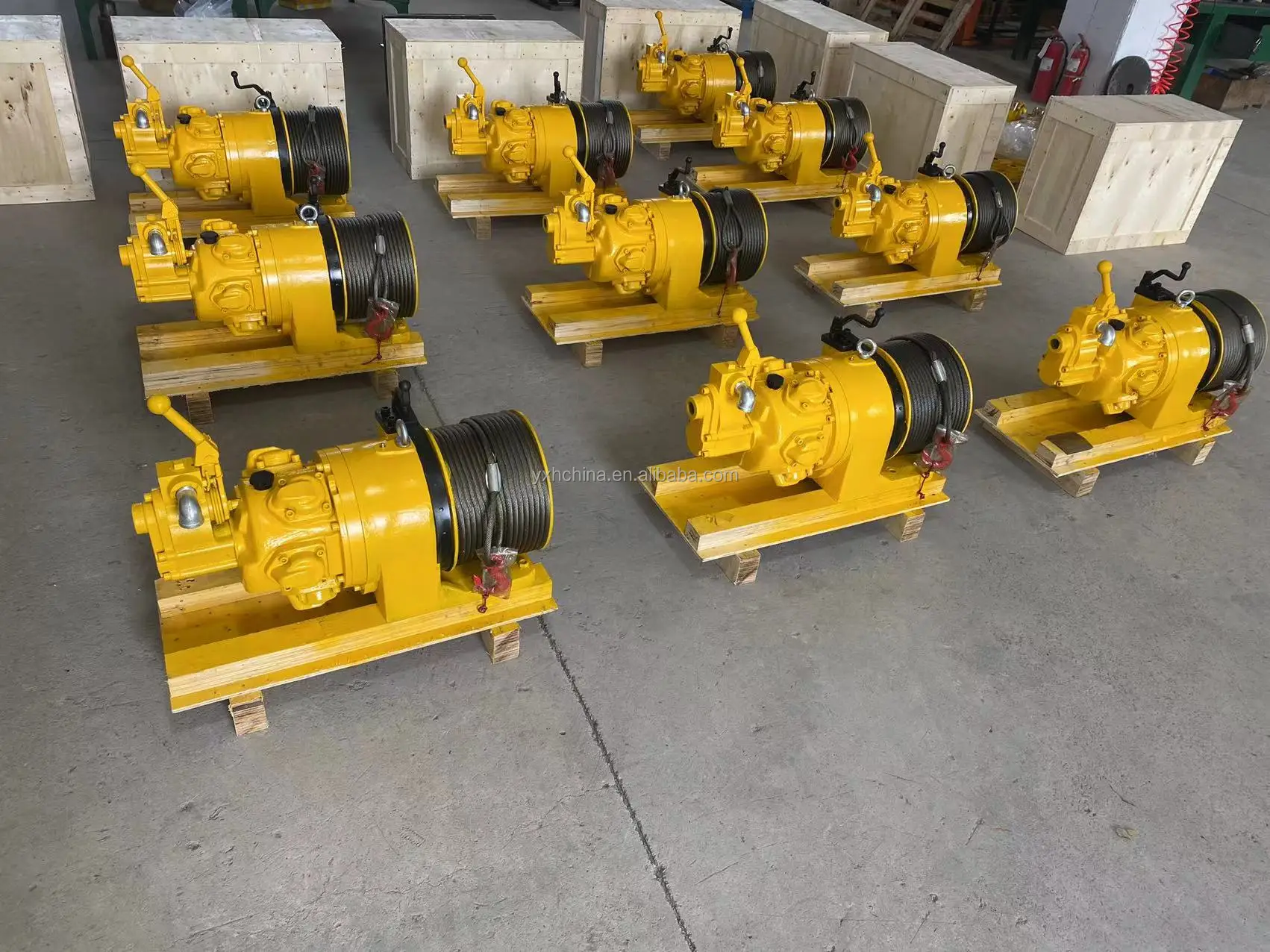

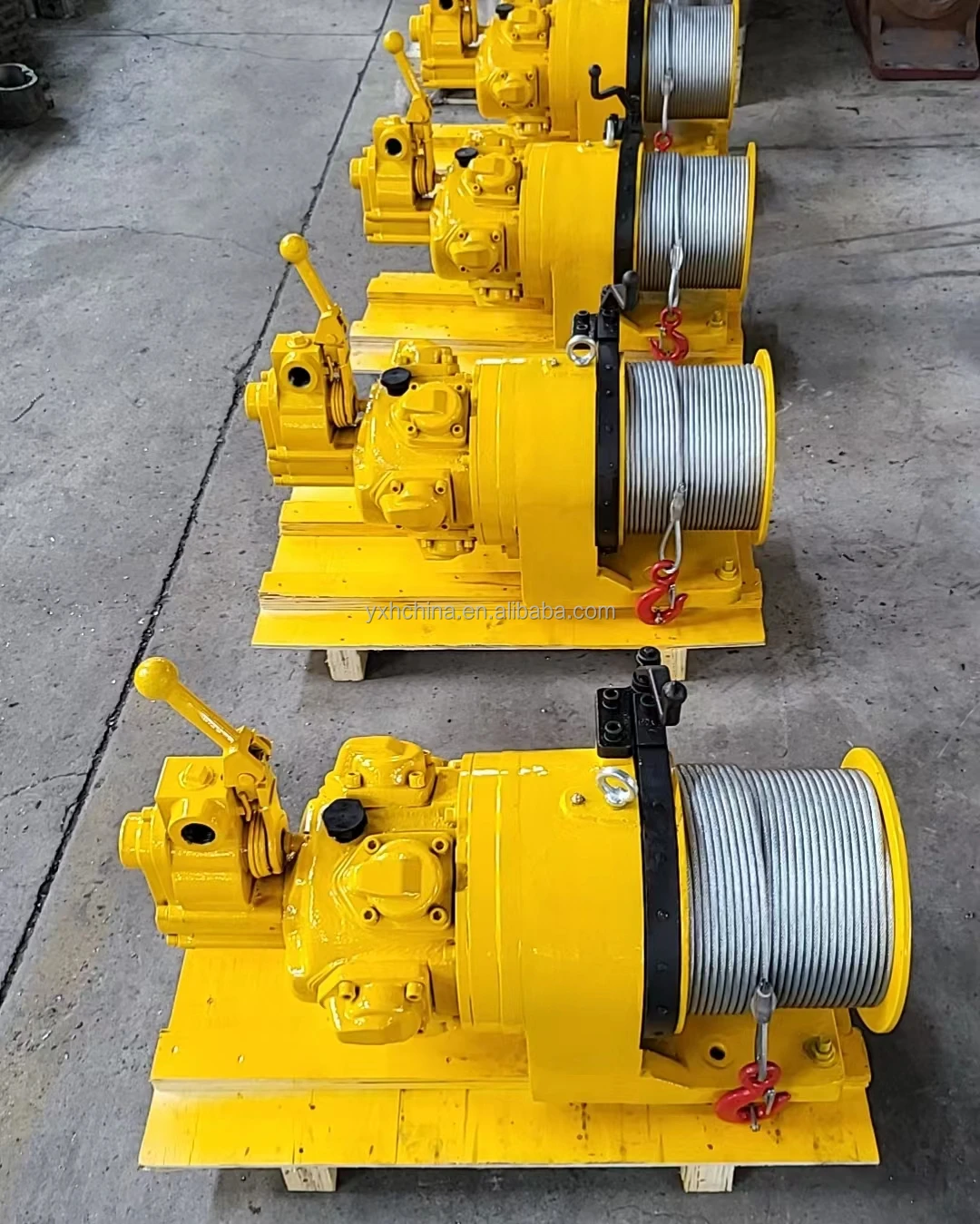

Details Images

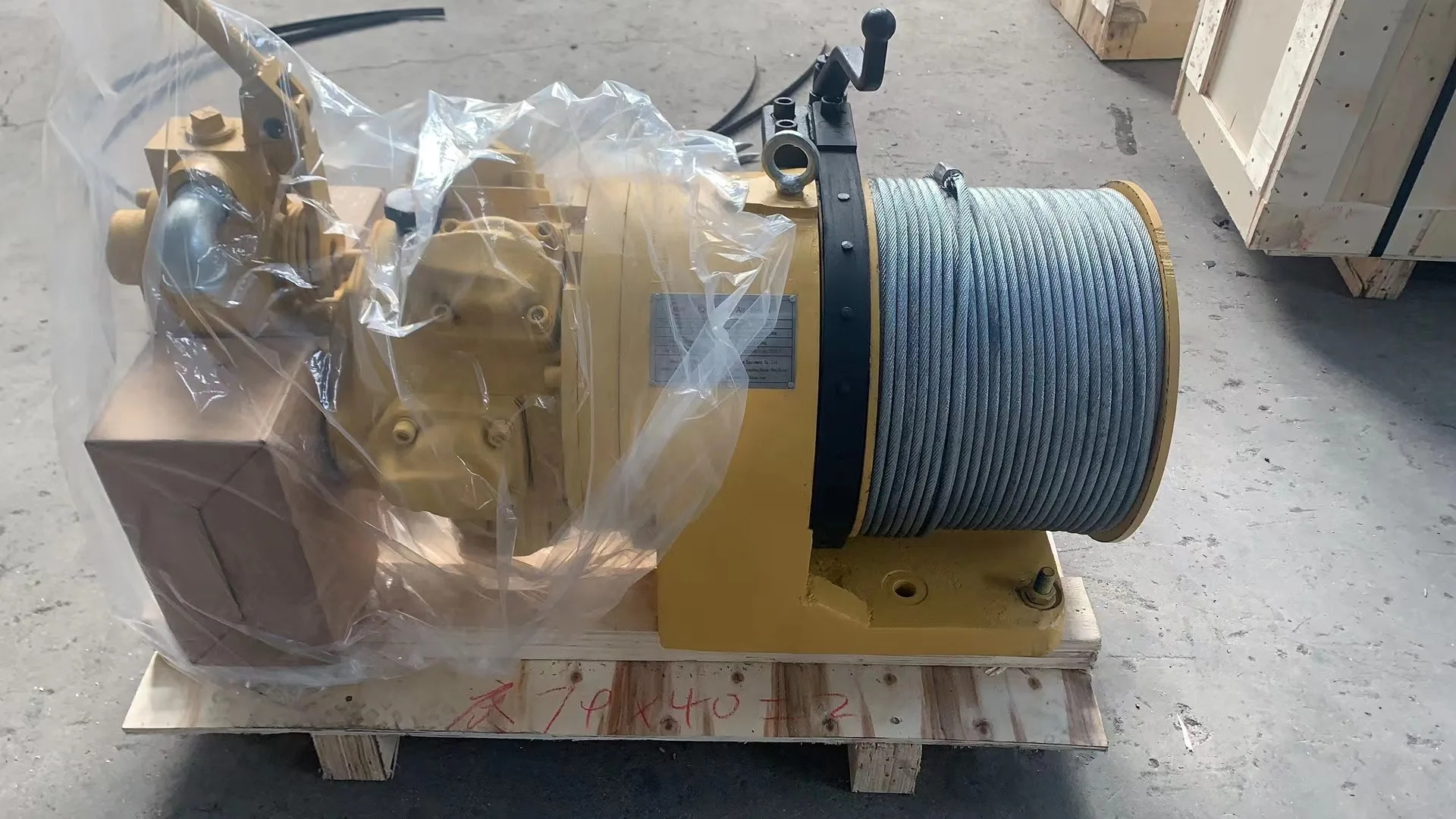

Package and Delivery
Our Company
Our factory was founded in June 1997. We have witnessed significant prosperity and has become one of the best large-scale manufactures in making air compressors and drilling machines. We currently manufactures a wide range of machines such as all kinds of piston air compressors, screw air compressors,pneumatic rock drills, pneumatic and hydraulic down hole drills, breakers, drilling wagons etc. We have exported products to Europe, South America, Middle East, Southeast Asia, South Africa etc.
Our company covers an area of 173, 160 square meters, inside there are 70,000 square meters standard workshops. We has advanced production lines, assem- bly lines, quality control center and electrostatic spray coating lines.In May 25th 2016 Our factory signed a strategic cooperation agreement with Atlas Copco (China)Investment Co., Ltd. Under the agreement, Atlas Copco and our group will jointly develop, produce and sell mining& construction equipments.
FAQ
1. How long is your air compressor & drilling rig warranty?
∗ 1 years for the whole machine after leave the factory
2. Do you provide After- sales service parts?
∗Of course, we have.
3.How long could your machine be used?
∗More than 10 years if have regular maintenance.
4. How is your machine quality?
∗All the machines must pass the strict test before leave factory.
And our factory has above 20 years manufacturing experience,can gurantee the quality.
5.Which payment term you accpet?
∗Now we will accpet TT,LC,Western Union,Trade Assurance online,Paypal,Cash,etc.
6.How about the delivery time?
∗Within about 1 week.
7.Can visit your factory?
∗Yes,welcome to our factory. We will treat you in China,and pick you up at airport.
We are near to Xinzheng International Airport.
Contact us
Name:Ms. Amy
Tel: 0371-62509608
Mob./Whatsapp:0086 18703629568
Add: Building 14, Zhengshangruizuan, Wenchang road, Longhu town, Xinzheng, Zhengzhou, Henan province,China
Web:www.yxhchina.com
Tel: 0371-62509608
Mob./Whatsapp:0086 18703629568
Add: Building 14, Zhengshangruizuan, Wenchang road, Longhu town, Xinzheng, Zhengzhou, Henan province,China
Web:www.yxhchina.com
Похожие товары
API устьевая Рождественская елка для электрического погружного насоса
4 950,00-5 000,00 $
Xingda 76 A инструменты для глубокого бурения скважин долота и
100,00 $
Горное оборудование Башня мельница машина высокого хрома износа вкладышей
5,00 $
Стержни и Бит хвостовика R25
800,00 $
Полностью резьбовой стальной самосверлильный анкерный инструмент R23 R32 R38 R51 T76 болт
69,00-79,00 $
YK20 Твердосплавные наконечники Ts30cx, пулевые зубья для траншеековывания

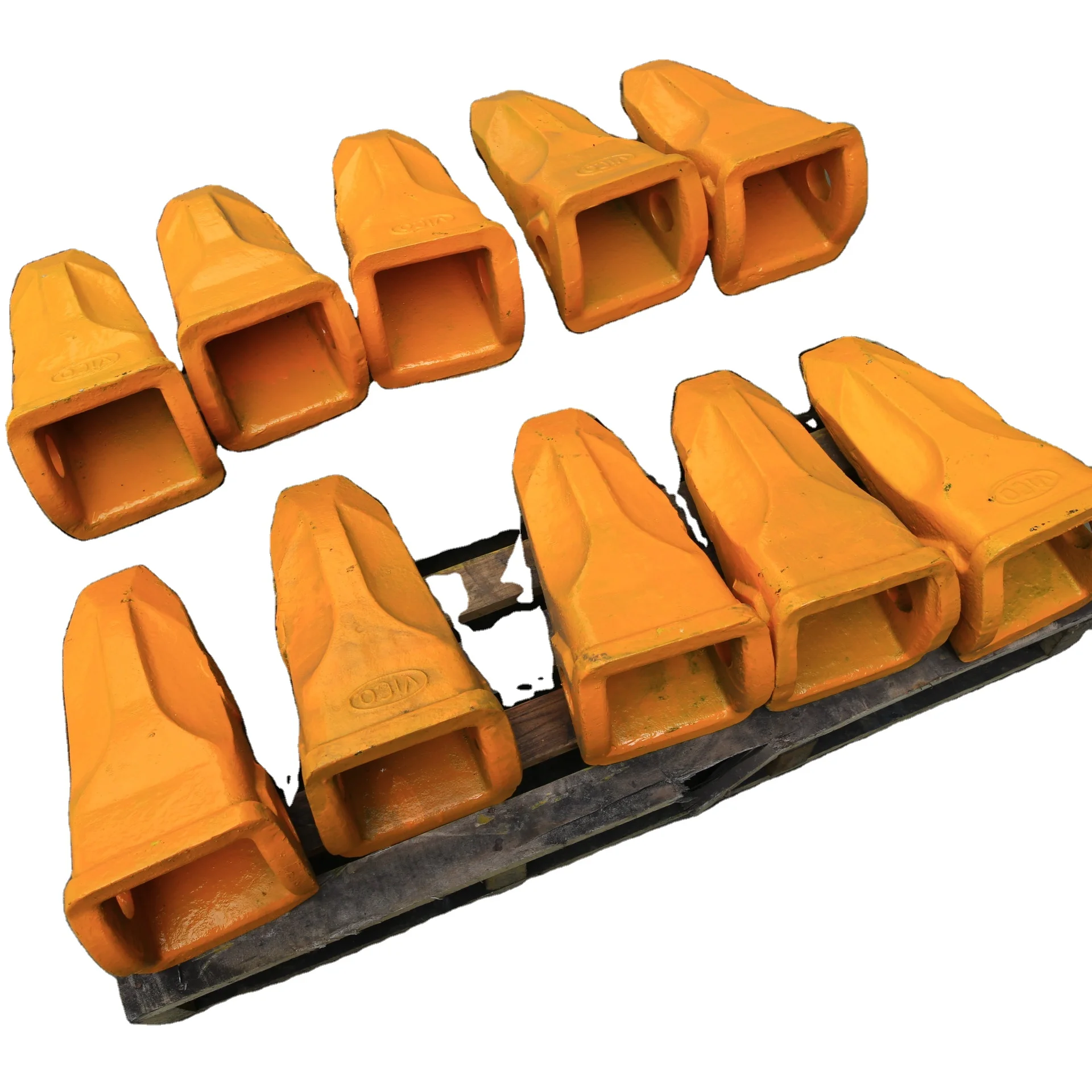

Строительная техника запасные части для экскаватора зубья ковша эффективной горнодобывающей энергетической промышленности поддержка OEM
