3.5KW DC выходной преобразователь частоты 3 фазы 60 Гц/50 Гц ROHS Сертифицированный переменного/постоянного тока инвертор настраиваемый мощности
- Категория: >>>
- Поставщик: Shenzhen Auxo Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601365658095:
Описание и отзывы
Характеристики
Product Description
Specification
model | 3kw | 3.6kw | 5.5kw | 6.2kw | 11kw | |||||
Input Formation | L+N+PE | |||||||||
AC Input | 220/230/240VAC | |||||||||
Input Voltage Range | 90-280VAC±3V (Normal Mode) 170-280VAC±3V (UPS Mode) | |||||||||
Frequency | 50/60Hz (Adaptive) | |||||||||
Rated Power | 3000W | 3600W | 5500W | 6200W | 11000W | |||||
Output Voltage | 220/230/240VAC±5% | |||||||||
Output Frequency | 50/60Hz±0.1% | |||||||||
Output Wave | Pure Sine Wave | |||||||||
Transfer Time(Adjustable) | 10ms for Computer Equipment,20ms for Household Equipment | |||||||||
Peak Power | 6000VA | 7200VA | 10000W | 12400W | 22000W | |||||
Overload Ability | Battery Mode：21s@105%-150% Load 11s@150%-200% Load 400ms@>200% Load | |||||||||
Rated Voltage | 24VDC | 24VDC | 48VDC | 48VDC | 48VDC | |||||
Battery | ||||||||||
Constant Charging Voltage (Adjustable) | 28.2VDC | 28.2VDC | 56.4VDC | 56.4VDC | 56.4VDC | |||||
Float Charging voltage (Adjustable) | 27VDC | 27VDC | 54VDC | 54VDC | 54VDC | |||||
PV Charging Method | MPPT | MPPT | MPPT | MPPT | MPPT*2 | |||||
Charger | ||||||||||
Max PV Input | 4200W | 4200W | 5500W | 6200W | 5500W*2 | |||||
MPPT Tracking Range | 120-500VDC | 90-500VDC | ||||||||
Best VMP Working Range | 300-400VDC | |||||||||
MAX PV Input Voltage | 500VDC | |||||||||
MAX PV Input Current | 18A | 18A*2 | ||||||||
MAX PV Charge Current | 100A | 150A | ||||||||
MAX AC Charge Current | 60A | 80A | 60A | 80A | 100A | |||||
MAX Charge Current | 100A | 120A | 100A | 120A | 150A | |||||
LCD | Can display operating mode/load/input/output | |||||||||
Dimension | 495*312*146mm | 570*500*148mm | ||||||||

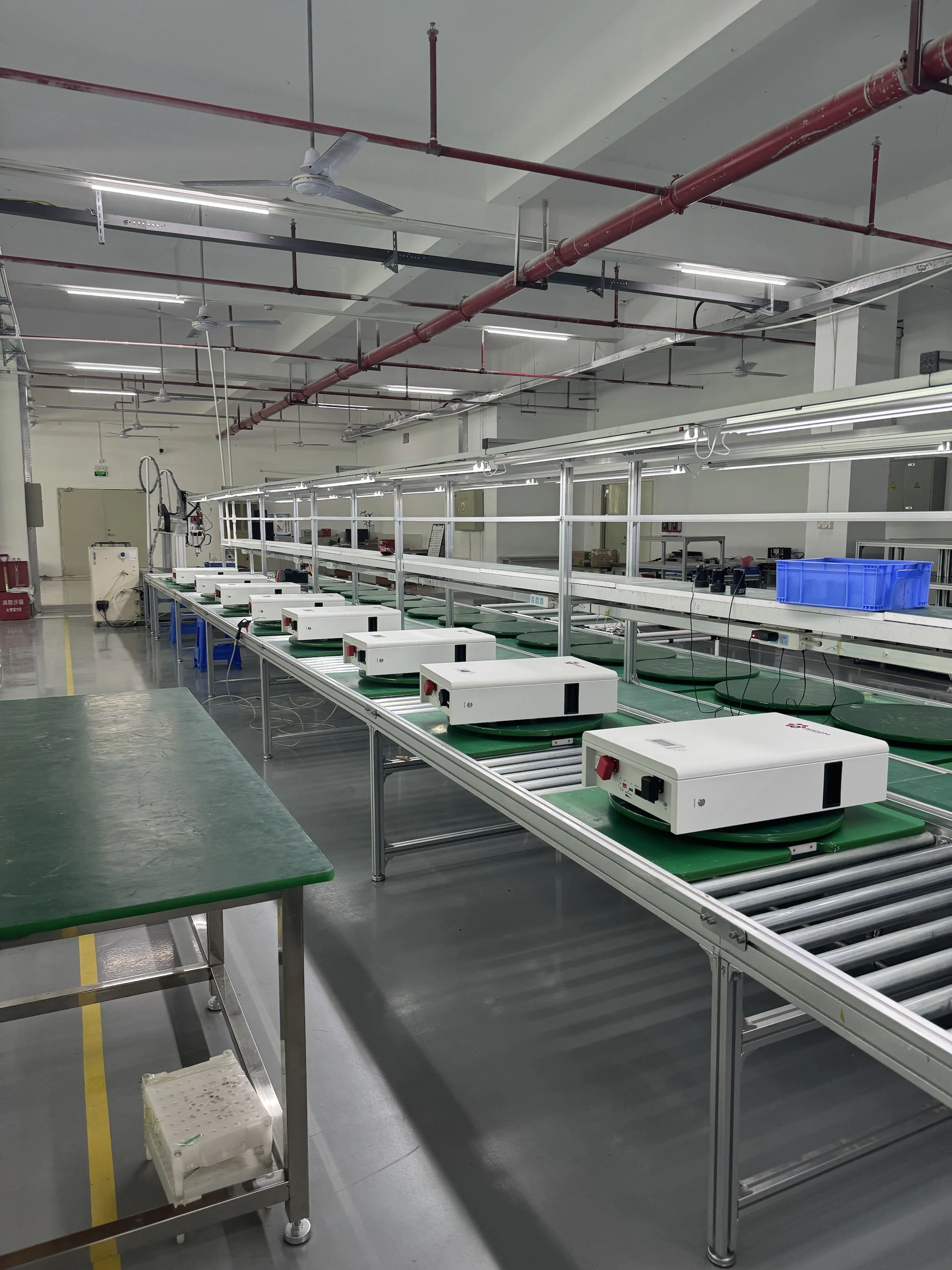

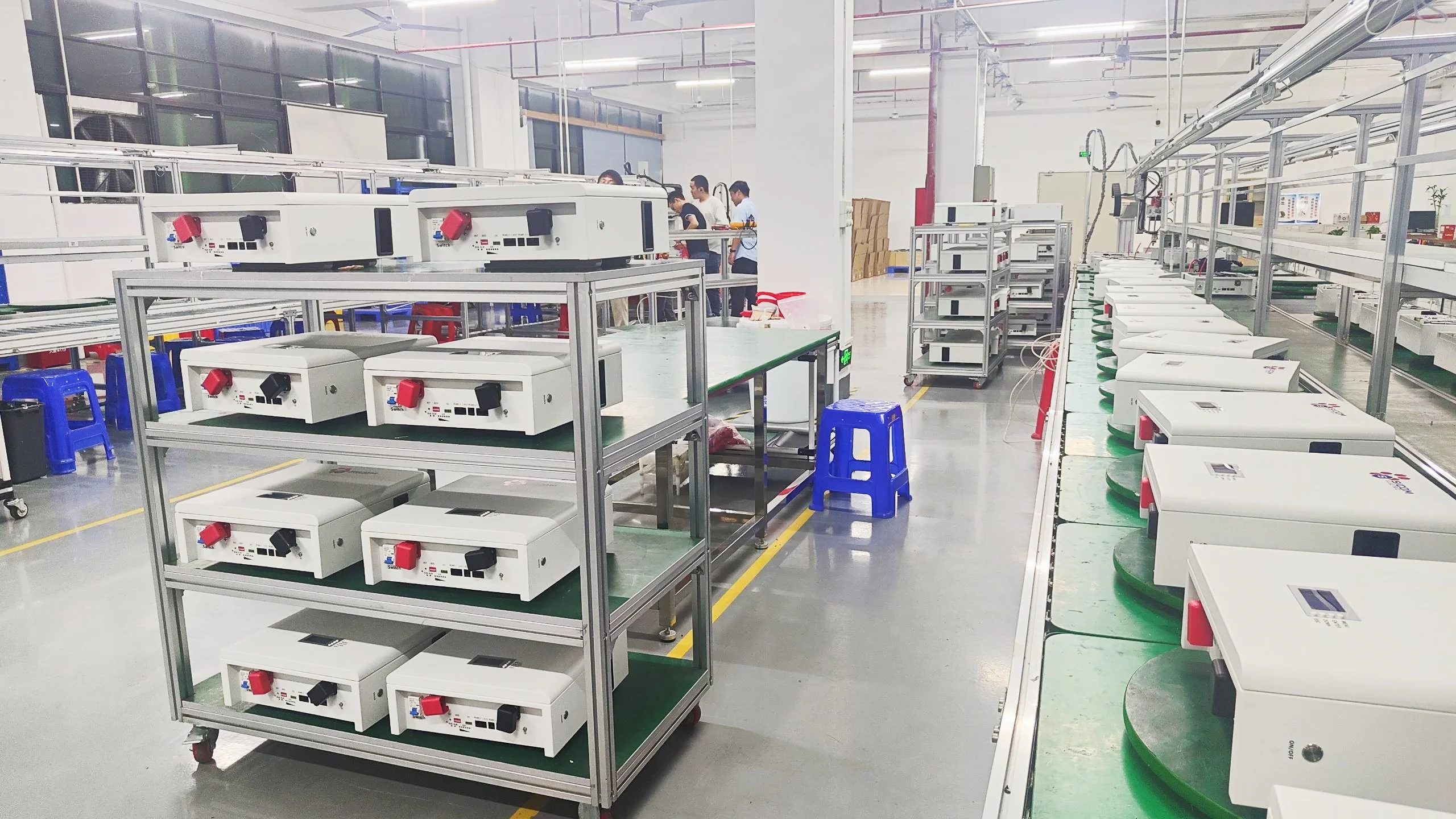

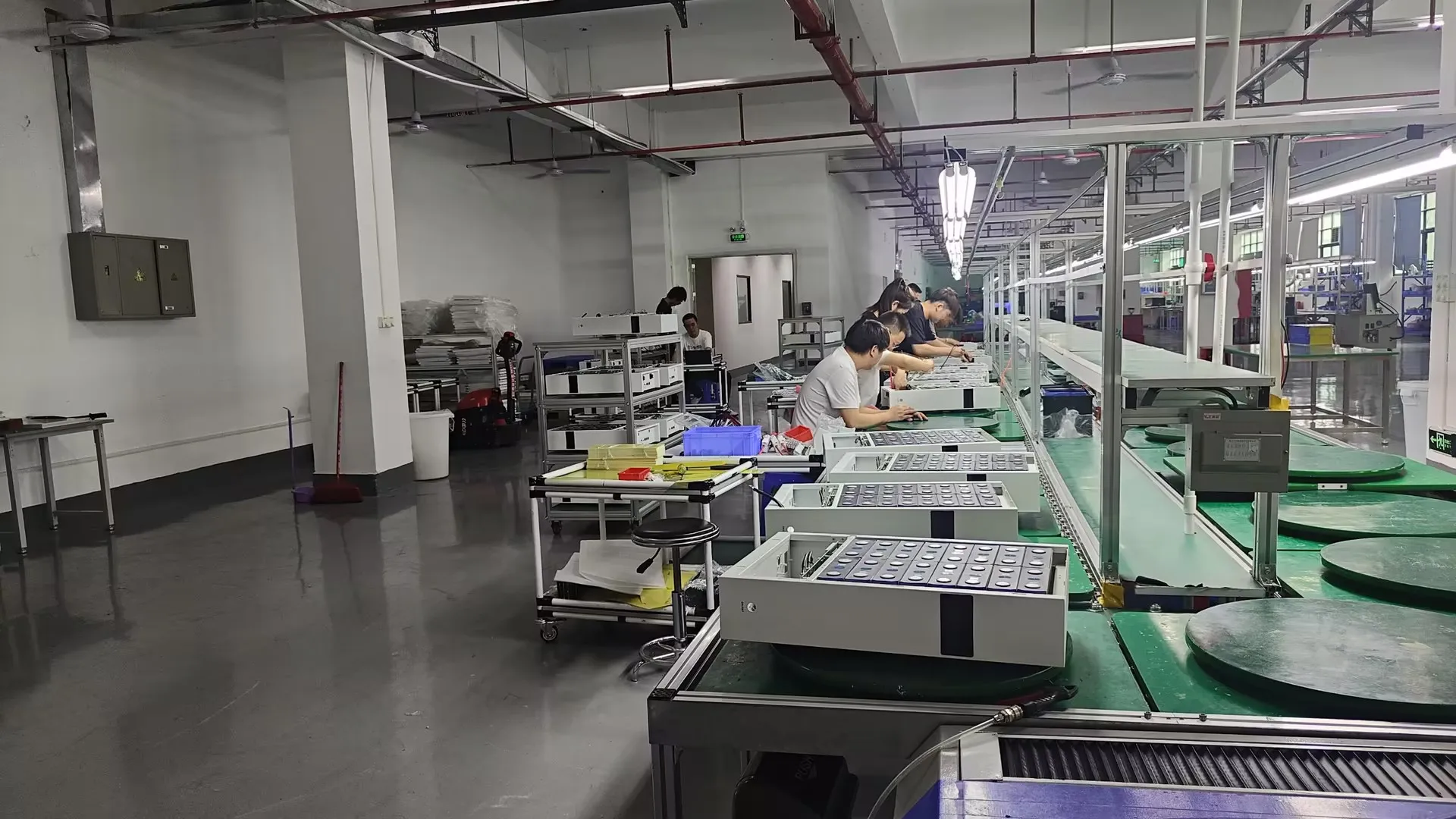

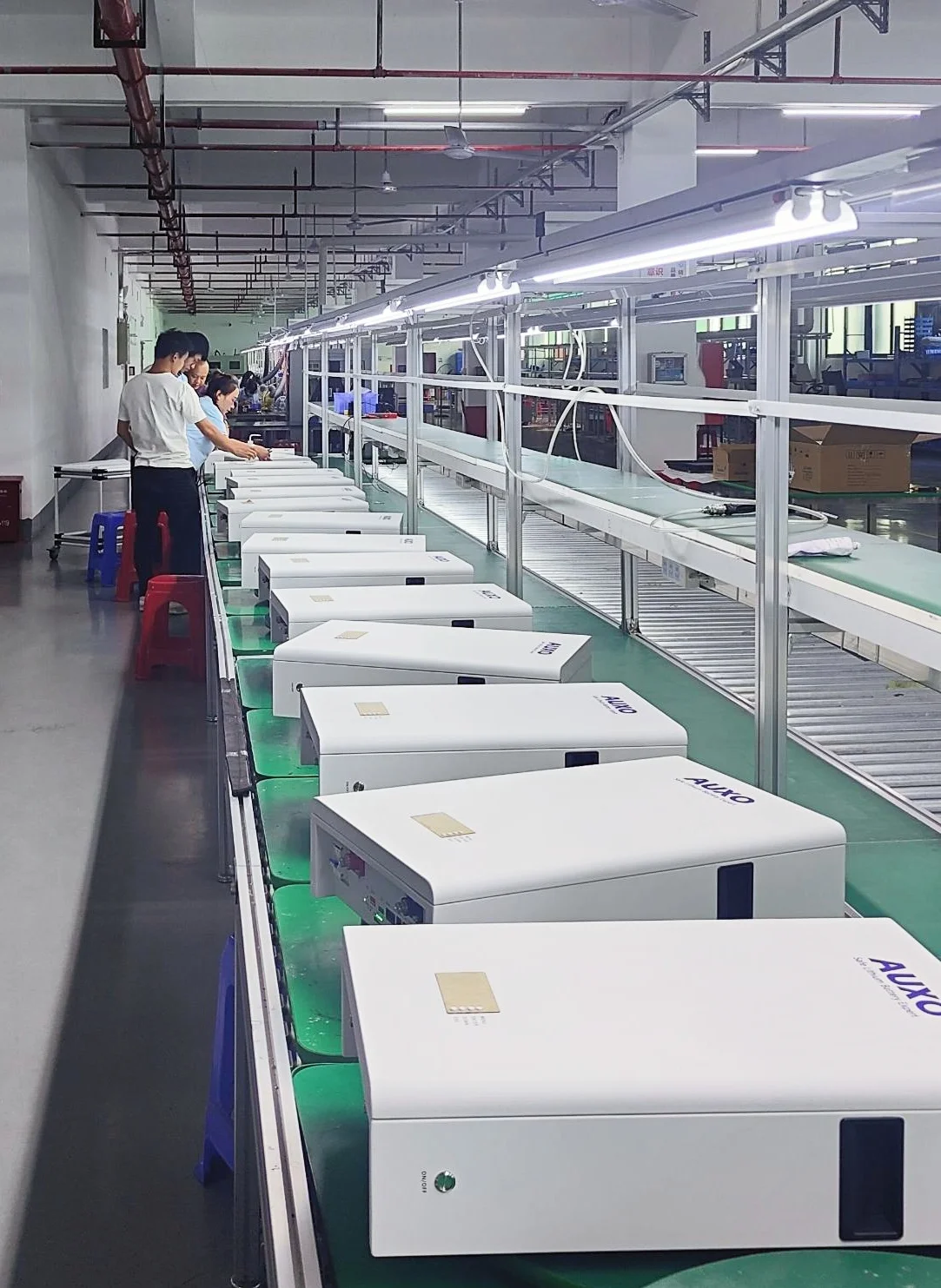

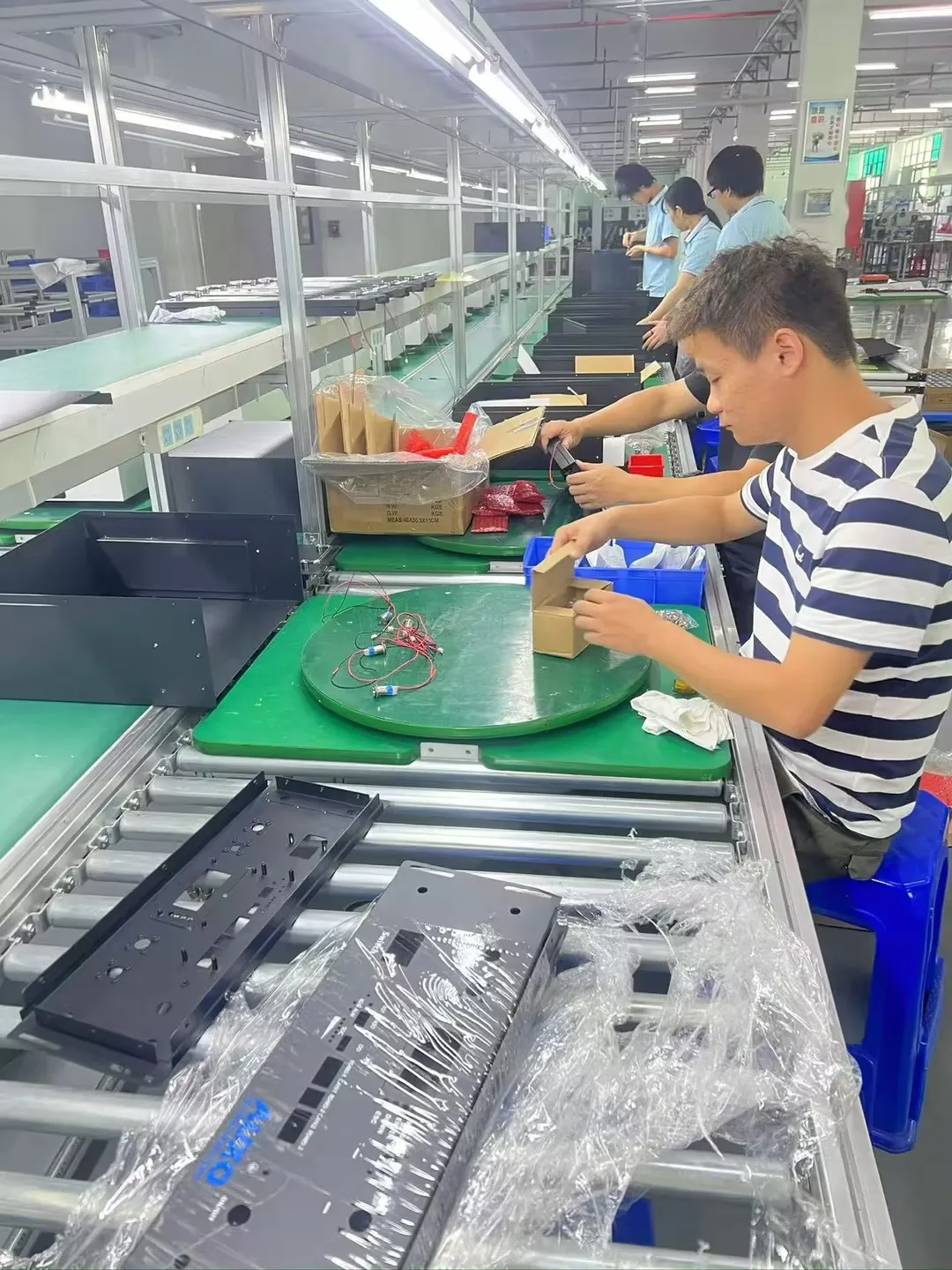

Company Profile
In 2008, Shenzhen JAKA Technology Co., Ltd. is a TOP 10 safe lithium battery manufacturer for energy storage in Shenzhen, with 15 years of production experience and rich PV supply chain resources.
Here are the reasons for choosing us as your supplier:
1. We have specialized in manufacturing energy storage batteries for 15 years and have our own R&D team.
2. We can provide quick one-stop solutions for home energy storage PV systems and ancillary products at competitive prices.
3. We can provide one-to-one, 24-hour online consulting services.
4. For every order you make, we have more than 10 colleagues at your service.
5. Our battery packs use 100% A grade batteries.
6. Each battery pack has 6 production tests, 1 transport test and 100% full inspection.
7. We provide a mature and fast visual logistics tracking service.
8. We provide perfect after-sales service support and technical guidance for installation.
We are passionate about providing our customers with the right battery solutions for energy, innovation and quality.
It is the mission of each and every one of our employees to help our customers make more profit and to be their most valuable consultant supplier in China.
1. We have specialized in manufacturing energy storage batteries for 15 years and have our own R&D team.
2. We can provide quick one-stop solutions for home energy storage PV systems and ancillary products at competitive prices.
3. We can provide one-to-one, 24-hour online consulting services.
4. For every order you make, we have more than 10 colleagues at your service.
5. Our battery packs use 100% A grade batteries.
6. Each battery pack has 6 production tests, 1 transport test and 100% full inspection.
7. We provide a mature and fast visual logistics tracking service.
8. We provide perfect after-sales service support and technical guidance for installation.
We are passionate about providing our customers with the right battery solutions for energy, innovation and quality.
It is the mission of each and every one of our employees to help our customers make more profit and to be their most valuable consultant supplier in China.
FAQ
Q1: How to install and use the solar inverter?
A1: We have the English teaching manual, All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
Q2:What if I don't have export experience ? A2: We have reliable
forwarder agent which can ship items to you by sea/air/Express to your door. Any way, we will help you choose the most suitable shipping service.
forwarder agent which can ship items to you by sea/air/Express to your door. Any way, we will help you choose the most suitable shipping service.
Q3: We want to know month capacity.
A3: 20000-30000PCS per Month.
Q4: How is your technical support?
A4: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime.
Q5: How can I make sure it's a secure transaction ?
A5: Alibaba can protect buyers' interest, all of our transaction will go through Alibaba platform. As you do the payment, the money will go directly to Alibaba bank account. After we send your the items and you confirm the detailed information, Alibaba will release us the money.
Q6: Can you get the the solar inverter customized for us ?
A6: Of course, brand name, machine color, designed unique patterns available for customization.
Q7:How to become your agent?
A7:Contact us through Alibaba, we will give you the best price and look forward to your greetings

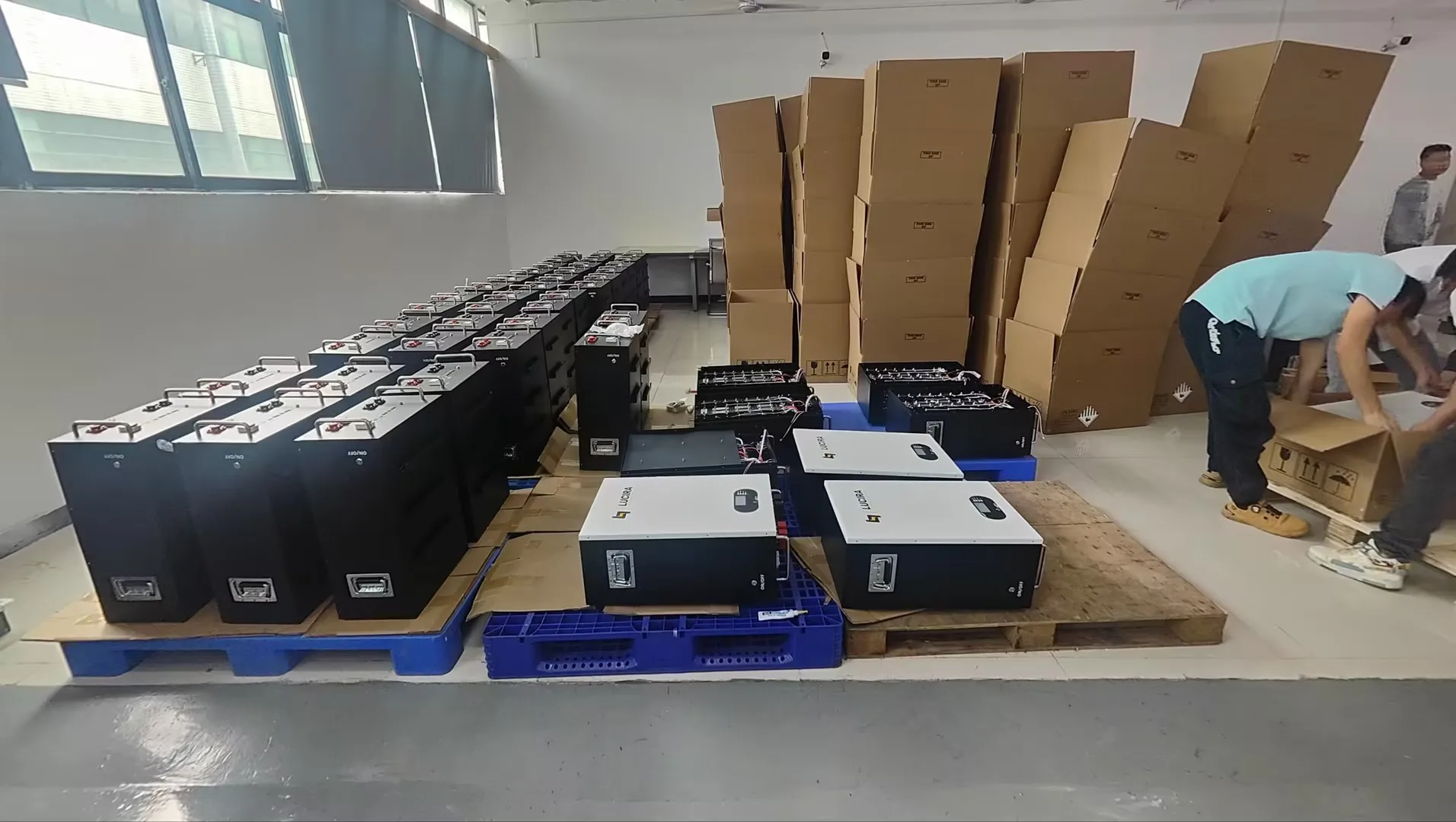

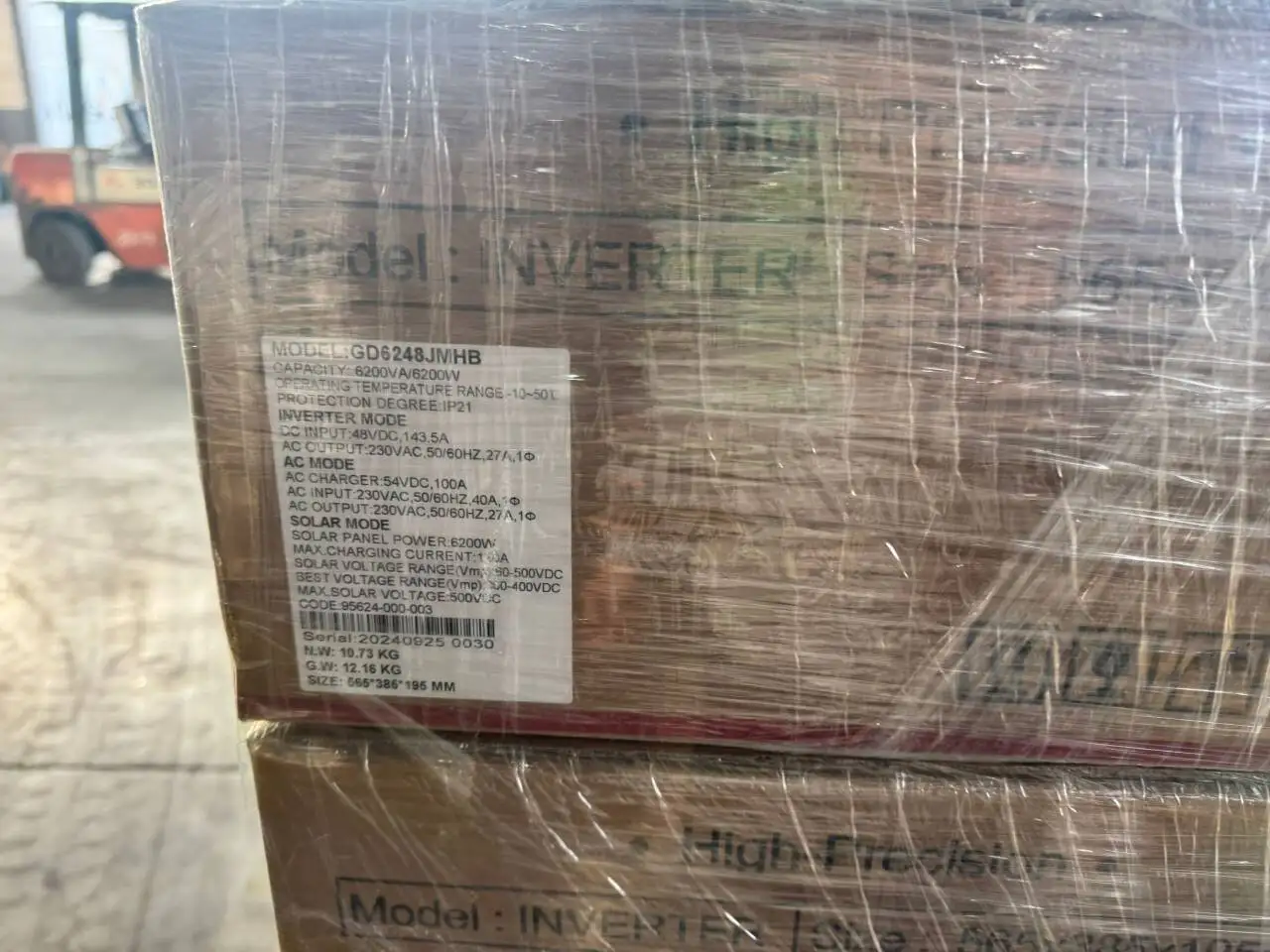

Customer Photos
