Машина для производства искусственного песка Vsi 7611 установка продажа Непал
- Категория: >>>
- Поставщик: Henan KLZ Intelligent Equipment Co. Ltd.Henan Ltd.
Сохранить в закладки 1601365838066:
Описание и отзывы
Характеристики
Products Description

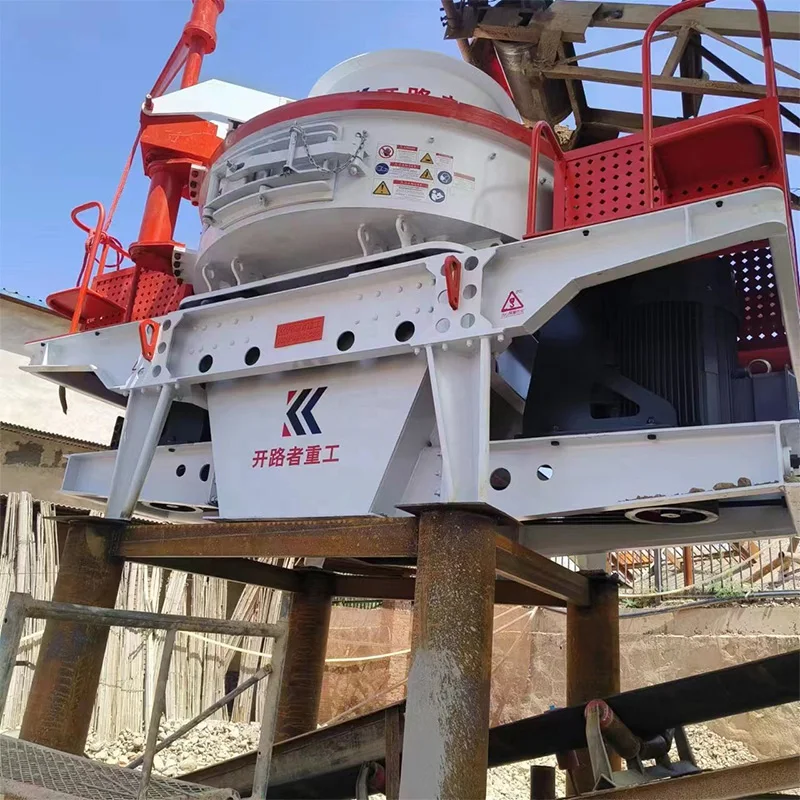

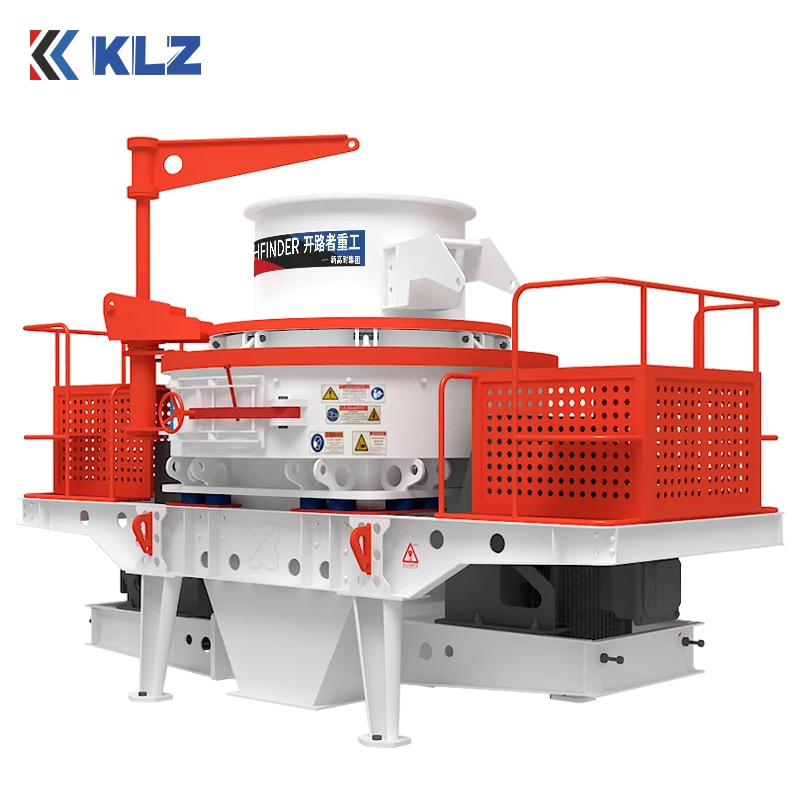

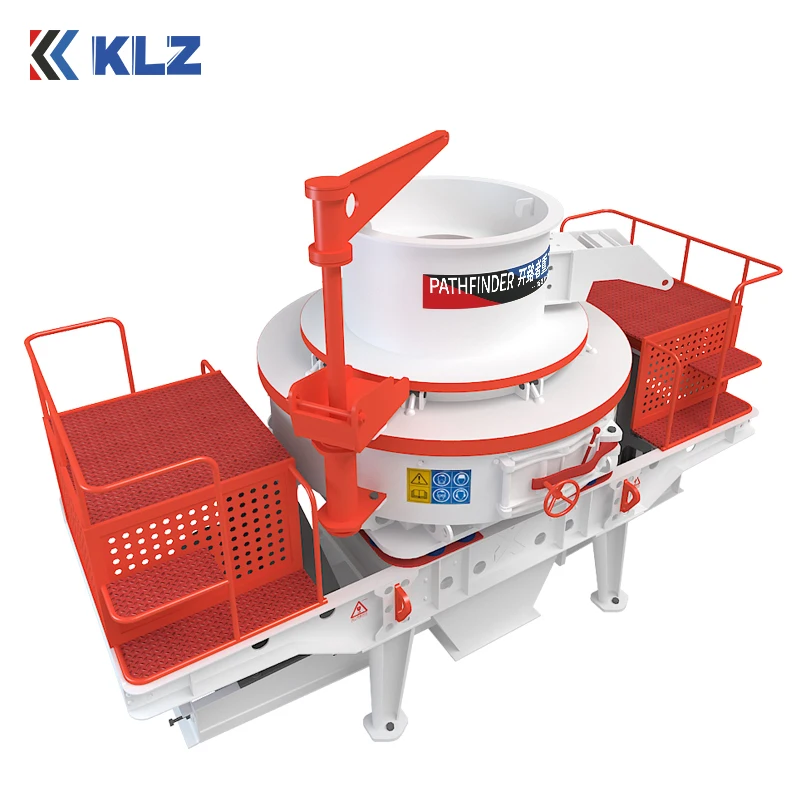

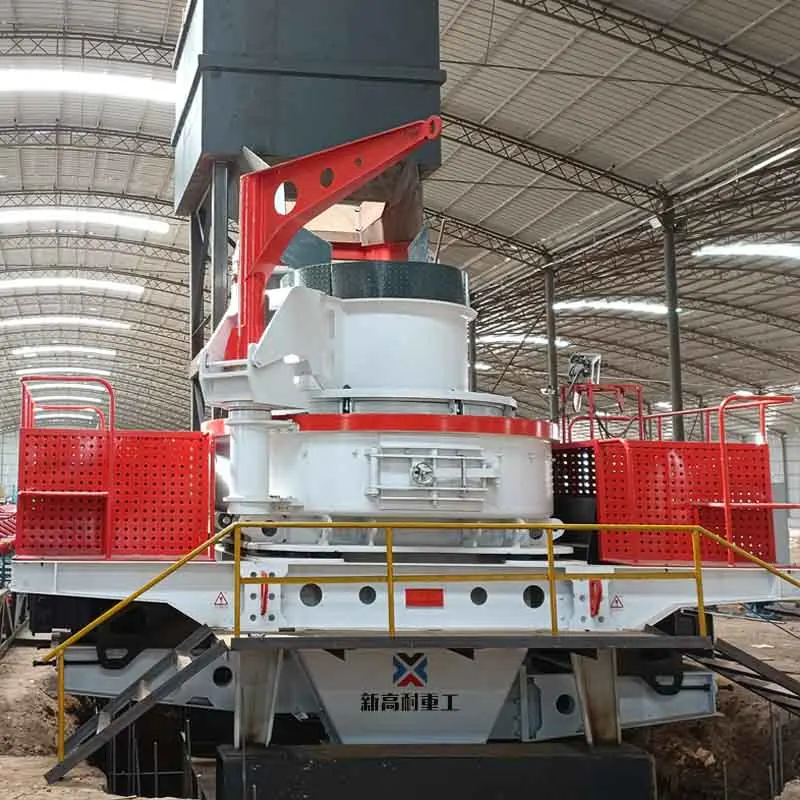

What is a Vertical Shaft Impact Crusher
VSI Vertical Shaft Impact Crusher is a new type of sand-making machine with the advantages of high efficiency, energy saving, and environmental protection. It is mainly used to crush various raw materials (such as river pebbles, limestone, iron ore, etc.) and plastically shape them into the required artificial sand.
Advantages of VSI Sand Making Machine
(1)the maximum output can be 500 tph. Compared with the traditional equipment under the same power, the output is increased by 45%, 50% higher than traditional sand making equipment and shaping effect;
(2)The new type sand making machine adopts imported original thin oil lubrication station, installed with automatic lubrication and maintenance system, which keeps the spindle bearing at constant temperature, no manual maintenance is needed, and the service life is longer;
(3)There is less friction between the material and the wear-resistant parts in the crushing cavity, which is 40% lower than the operating cost of traditional equipment, which greatly reduces the cost of equipment;
(4)The most advanced automatic detection device in the world is adopted.
Application
Application of VSI Sand Making Machine
Application areas: VSI series vertical shaft impact crushers are widely used in the crushing and sand making of materials in mining, construction, abrasives, metallurgy and other fields.
Applicable materials: VSI series vertical shaft impact crushers are suitable for fine crushing and sand making operations of various hard stone materials such as granite, diabase, basalt, iron ore, etc.
Machine Structure And Working Principle
Process flow of VSI crusher
the material falls into the feed hopper of the sand making machine, enters the high-speed spinning wheel through the central feeding hole, and is rapidly accelerated in the wheel, its acceleration can reach dozens of times of gravity acceleration, and then the high-speed from the wheel Internal throw, firstly collide with another part of the material that falls freely after rebound, and then impact on the material lining (stone hitting stone) or the counter-attack block (stone hitting iron), Stones impacted by the rebound obliquely upward to the top of the vortex cavity, and changes again Its movement direction, deflection and downward movement, and collide with the material emitted from the impeller flow channel to form a continuous material curtain. In this way, a material in the vortex crushing chamber is subject to two or more chances of impact, friction and grinding and crushing, and the crushed material is discharged through the lower discharge port.
Product Paramenters
Model | VSI7615 | VSI8522 | VSI9532 | VSI1145 | VSI1150 | VSI1263 |
Capacity no center feeding(tph) | 150-280 | 240-380 | 350-540 | 500-640 | 413-442 | 545-583 |
Capacity center feeding(tph) | 70-140 | 120-200 | 180-280 | 250-360 | 344-368 | 454-486 |
The best feed size soft(mm) | 35 | 40 | 45 | 50 | 55 | 60 |
The best feed size hard(mm) | 30 | 35 | 40 | 45 | 45 | 50 |
Rotating speed(r/min) | 1700-1900 | 1530-1700 | 1380-1660 | 1200-1390 | 1000-1300 | 900-1200 |
Dual motor power(kw) | 150 | 220 | 320 | 440 | 500 | 630 |
Dimensions (mm) | 4100*2320*2300 | 4140*2600*2700 | 4800*2571*2893 | 5450*2850*3335 | 5500*2750*3950 | 5750*2980*3410 |
Weight(t) | 12.1 | 14.8 | 18.6 | 21.5 | 23 | 24.5 |
Company Profile
Henan KLZ Intelligent Equipment Co., Ltd. is committed to building a world-leading integrated service provider of mining machinery and equipment, specializing in the research and development and manufacturing of complete sets of crushing, screening, feeding and conveying equipment. The company mainly sells complete sets of equipment such as hard rock crusher equipment, sand making and washing equipment required for production lines with an output of 100-3000 tons per hour, with a full range of models and superior quality.
Certifications
FAQ
1. Are you manufacturer or trading company?
We are manufacturer, and we have 3 factories.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
Похожие товары
Телескопическая ленточная конвейерная система в высоком качестве для продажи высокоточных минеральных ресурсов
135 000,00 $
Горячая распродажа горно-шахтное оборудование камнедробилка дробилка 250*400 щековая для добычи золота
1 100,00-1 500,00 $
Оборудование для дробления щебня / Все о дробилках Дробильное оборудование по производству 5 тонн в час
Горячая распродажа в России установка для дробления 500 т/ч камня линия по производству песочного
2 000,00 $

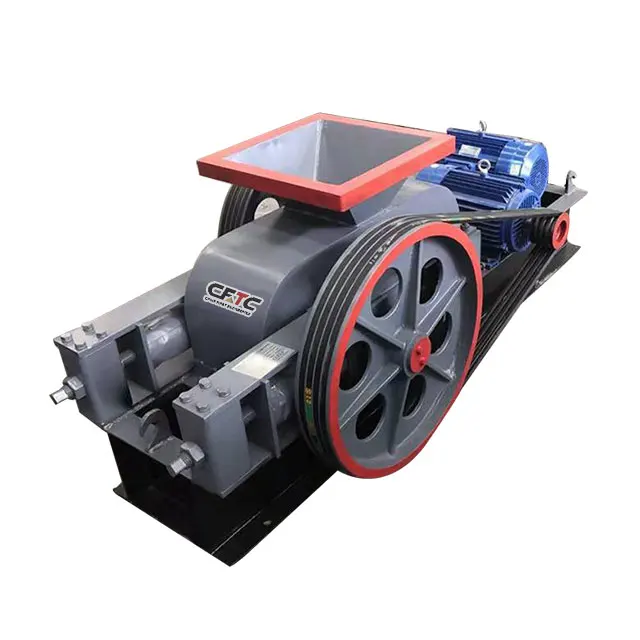

Мини двухроликовая дробилка цена 5-10tph двойная роликовая 2 для глины на продажу
4 500,00-5 500,00 $

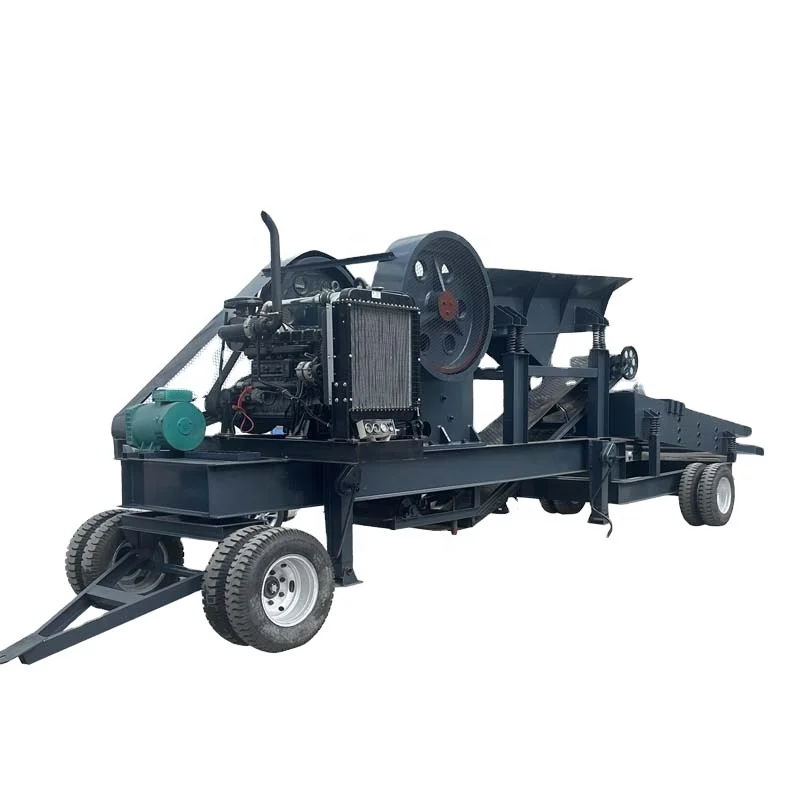

Портативная стальная 900x600 щековая дробилка вторичная каменная для добычи и дробления руды характеристики компонентов сердечника двигателя
