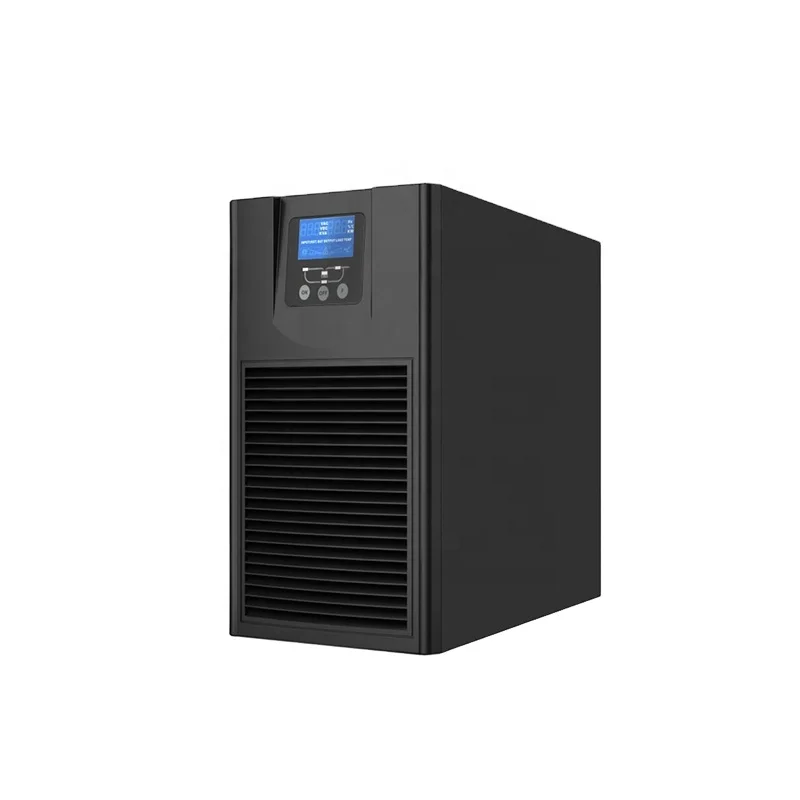

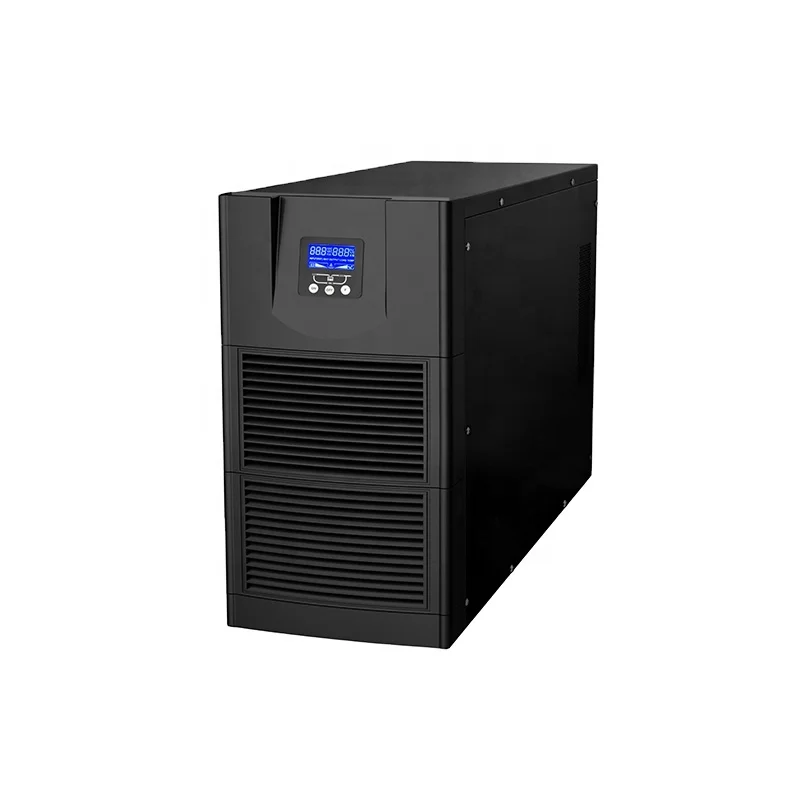

UPS 30kva 40kva UPS Price Online High Frequency Uninterruptible Power Supplyal
Three phase input three phase output
PRODUCT SPECIFICATION ADVANCED POINTS
1 Large input voltage range: full load: 275Vac-475Vac; no-load:210Vac-475Vac
2 Large input frequency range: The UPS can work in mains INV mode if the input ranges from 40 to 70Hz.
3 High output accuracy:±1% output voltage error
PRODUCT FEATURES
High-frequency online three-in and three-out UPS, the output can be connected to unbalanced load, and the input three-phase always keeps the load balanced.
Fully digital control,more stable performance.
Energy-saved and environmental protection, eficiency is up to 93%
Support N+X parallel redundancy
The most optimized tower structure design has the smallest volume compared to similar products on the market
A single set of battery supplies power to the system, reducing the number of batteries and save cost.
10-20K standard machine integrated design with battery built-in, easy to install and use.
Visualized LCD display interface, clear and intuitive display of three-phase working information.
Itelligent mobile monitoring cards are supported to monitor UPS data in real time through mobile apps.
Model | ST3310KS | ST3310KVA | ST33 20KS | ST33 20KVA | ST33 30Ks | ST3340KS | ||
Rated Power | 10kVA/9kW | 20kVA/18kW | 30kVA/27kW | 40kVA/36kW | ||||
Input | Voltage Range | 207-475Vac 3P4W+G | ||||||
working Frequency Range | 40-7OHz(settable) | |||||||
Input Power Factor | ≥0.99 | |||||||
ZHENGFU | Rated Voltage and Accuracy | 380Vac(1±1%)3P4W+G | ||||||
output Frequency | 46-54Hzsynchronize with mains power;50Hz(Mains power between 40-46Hz and 54-60Hz );50Hz(Battery) | |||||||
Rated Current | 15A | 30A | 45A | 61A | ||||
output Power Factor | 0.9 | |||||||
Output Harmonic Wave | ≤3% | |||||||
Crest Factor | 3:1 | |||||||
output Overload | 105%±5%<Load≤125%±5%:Convert to bypass output and alarm after1min; 125%±5%%<Load≤150%±5%:Convert to bypass output and alarm after 30s; Load>150%±5%:Convert to bypass output and alarm after 300ms. | |||||||
Corversion time bctween Mains Power and Battery | 0ms | |||||||
Efficiency | >929% | >91% | ||||||
Battery | Rated Voltage | 192Vdc | ±192Vdc | |||||
Quantity | 16 | 32 | ||||||
Charging Current | 5.5A | 1A | 7.5A | 1A | 5.5A | |||
Dimension(LxWxH) mm | 533*260*501 | 560*260*717 | 710*260*717 | 710*260*717 | ||||
weight | 26kg | 72kg | 57.5kg | 98kg | 58.5kg | |||
Working Temperature | 0°℃~40°℃ | |||||||
Working Humidity | 20%~95% | |||||||
Noise | ≤60dB |
Packing&Shipping
1.All of products have been test by 3 times befor ship out.
2.Support imprint your logo on products and let your logo shine anywhere
3.OEM/ODM orders available
4.We own the best after-sale service. If any problem happen, our team will do our best to solve
5.We can ship products to you by SEA,by AIR and by Courier
Company information
Shenzhen Zhongyuan Chuangda Technology Co. Ltd (ZYUPS), with our brand IWELL, was founded in 1997. we are a professional high-tech high precision and high quality enterprise with international trade experience specialized in the development manufacture sale and after-sales service of UPS (Uninterrupted Power System), solar inverter and Storage Lead Acid Battery.
FAQ
1. What's the payment term?
We accept TT.Western Union and Paypal,30% deposit and 70% balance before shippment
2.What's your MOQ?
Our MOQ can be 1pc or more,it depends on real product u need.
3. How's the delivery time ?
It usually will take about 15 days for production
4.What's your standard package?
For small capacity,we use just carton,while for big capacity, we should use strong wooden case for protection.
5. Can you print the product with our logo ?
Yes,we can make OEM/ODM service,can print your own logo.
6.Can you tell us your month production capacity?
It depends on item you need.if small capacity,month capacity can reach near 20000pcs,if big capacity near 3000pcs.
