Product Description
SS316L Sanitary Expansion Vertical Quick Loading Thermostatic Clean Steam Trap For Food Grade General Application
The COMPASS make sanitary balanced pressure thermostatic steam trap is designed to remove condensate from clean and pure steam applications with minimal condensate retention. Manufactured in 316L material, the crevice free body design of UCT-10 incorporates a 12-15 degree angled seat to ensure full drain ability.
Steam Trap is a type of automatic valve that filter out condensate and non-condensable gases (such as air) without letting steam escape.It opens, closes or modulates automatically, discharging condensate as soon as it is formed in an energy efficient manner.Our steam trap is a maintainable balanced pressure thermostatic trap used for systems.Large nozzle design can quickly exhaust air,shorten start-up time and avoid blockage.Compact structure,convenient installation and easy maintenance.Internal polishing to prevent bacterial derivation.
Standard | SMS,3A | |||||||
Material Contact Parts | SS316L | Provided with material inspection report | ||||||
Size | 1/2”, 3/4”, 1” | |||||||
Connection | TC Ends | |||||||
Seal Material | PTFE, seals material comply with FDA21CFR117.2600 | |||||||
Max. Pressure | ≤10bar(145psi) at 104°F(40℃) | |||||||
Working Pressure | 6bar(87psi) | |||||||
Temperature Range | -13 ~329°F(-25 ~ 165℃) | |||||||
External Surface Treatment | Ra32~64uin(o.8~1.6um) or Electropolish | |||||||
Internal Surface Treatment | Ra16~32uin(0.4~0.6um) or Electropolish | |||||||
feel free to contact wenzhou compass machinery company | ||||||||
Specification
External dimensions(mm) | ||||||||||||
Size inch | Tube OD | H | H1 | L | D | d | ||||||
1/2” | 12.7 | 66 | 17.3 | 89 | 9.4 | 25.2 | ||||||
3/4” | 19.05 | 66 | 17.3 | 89 | 15.75 | 25.2 | ||||||
3/4” | 19.05 | 66 | 17.3 | 89 | 15.75 | 50.5 | ||||||
1” | 25.4 | 66 | 17.3 | 89 | 22.1 | 50.5 | ||||||
S/N | Name | Qty | Unit | Material |
1 | Upper Valve Body | 1 | pc | SS316L |
2 | Filter Screen | 1 | pc | SS316L |
3 | Clamp | 1 | pc | SS316L |
4 | Seal Material | 1 | pc | PTFE |
5 | Spring | 1 | pc | SS316L |
6 | Thermostatic Butterfly Shaped Liquid Sac | 1 | pc | SS316L |
7 | Bottom Valve Body | 1 | pc | SS316L |
Technical Specifications:
Max. pressure: ≤10bar(145psi) at 104°F(40℃)
Working Pressure: 6bar(87psi)
Temperature range：-13 ~329°F(-25 ~ 165℃)
Discharge capacity: 1300kg/hr at different pressure 5barg
Feature and Advantage
1.The free flow of condensed water and its seamless design in true sense maximize the inhibition of bacterial aggregation.
2.The feature of "normally open due to faults" minimizes the possibility of shutdown under critical operating conditions
3.The valve nozzle design with a large opening can quickly discharge a large amount of air, ensuring fast start-up, preventing blockage, and ensuring continuous operation
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
If small order and choose by express , the items are packed by shrink wrap and secondly carton cases.
If heavy weight of cargo ,which be packed by strongly seaworthy ply-wooden cases .
In order to protective items , which will be packed by safety and resistance to shock in ply-wooden cases
Contact Us
If you have any inquiry or question for ComPass valves, please kindly do not hesitate to let us know soon.
Company Profile
COMPASS are manufacturer and supplied with sanitary valves, pumps, pipe fittings, tanks, tube. They are widely used for food,beer, beverage, chemical,biological, pharmacy and so on. Totally 112nos of workers and the factory Covers 4035m2,our warehouse covers 1000m2. We have 29 sets of LG Mazak machines and other CNC machine from Japan ; Meanwhile,we have 2 sets of automatic machining unit. Here is our range of products as below.
Professional & Communicate easily.
Huge warehouse & Delivering shortly.
Strong team & Better after-sale.
A. Sanitary valve includes of butterfly valve, mix-proof valve, division valve, diaphragm valve, ball valve, check valve, safety valve, air relief valve, angle seat valve, constant pressure valve, bottom tank valve, racking arms valve, float valve, breather valve, and so on.
B. Sanitary pumps includes of centrifugal pump, rotary lobe pump, CIP self priming pump, mixing pump, vacuum pump, Emulsion Pump, screw pump, and so on.
C. Sanitary tank component includes of manhole cover, cleaning ball, filter,sight glass.
D. Sanitary pipe fitting has union, ferrule, clamp, solid end cap, pipe holder, nipple, coupling, adapter,elbow, tee, reducer.
E. Sanitary tanks includes of storage tank, mixing tank, fermentation beer tank, and so on.
F. Sanitary tube has seamless and weld type
14 years experiences in design and good solution in food grade production line. Competitive prices & High quality products to achieve win-win mutual benefits.
Professional & Communicate easily.
Huge warehouse & Delivering shortly.
Strong team & Better after-sale.
FAQ
Q1. Who are we?
We are based in ZHEJIANG, China, Founded in 2011,sell to Southeast Asia(30.00%),North America(10.00%),Domestic Market(10.00%),South Asia(5.00%),South America(5.00%),Western Europe(5.00%),Southern Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Africa(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Eastern Asia(3.00%),Oceania(2.00%).
Q2. Are you a trading company or factory?
We are a manufacturing factory.
Q3. Why should you buy from us not from other suppliers?
We are 14 years professional valves & fittings manufacturer. Warranty:Any question or problem will be respond within 24 hours. Quality control:All the products are calibrated with real working condition, and tested before shipping as qualified product.
Q4. May I have free sample before ordering?
Yes, our company is very pleased to send you free sample for quality test as long as freight cost being paid by buyers themselves.
Q5. What's the payment terms?
For small testing orders, we accept Paypal, Western Union, T / T and credit Card. For mass orders, we accept T/T and L/C.
Q6. How do you control the quality?
Quality control is very important to avoid material mixing and poor quality,We control the quality from begining to the end. We only have 304 and 316L two different material.100% inspection on raw material.During production, different materials in different place. After materials are finished, we choose 10% for inspection.If there is 0.1% problem in 10%, then no excuse to go ahead for inspecting 100% of the materials.
Q7. If there is any quality problem, how do you solve it?
We are proud that we never let one customer leave us. We are not 100% perfect,there is some quality problem.We try our best to provide the correct materials in the begining, so we need less time for quality problem.If there is an quality problem,we take the responsibility, customer will leave us.If we always take our responsibility, we keep our customers with us.
Q8. How long is your delivery time?
For normal production in 7-10 days.For bullk order in 15-25 days.
Q9. Warranty
One year warranty for all of our stainless steel products.Gaskets are not included due to the different application for customers.
Q10. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery. Accepted Payment Currency:USD,EUR,CNY. Accepted Payment Type: T/T,L/C,D/P D/A,Credit.
How to Order ?
How to order Sanitary Thermostatic Steam Trap?
1. What size ? 1/2",3/4",1"
2. What's size for TC ? Such as TC 25.2mm or TC 50.5MM ?
2. What's size for TC ? Such as TC 25.2mm or TC 50.5MM ?
3. What's material ？Only SS316L
4. Seal Material is only for PTFE.
Похожие товары
ANSI JIS DN100 Энергоэффективная литая сталь нержавеющая внутренняя резьба термостатическая Регулируемая ТБ полосатая биметаллическая Паровая ловушка
40,00-48,88 $

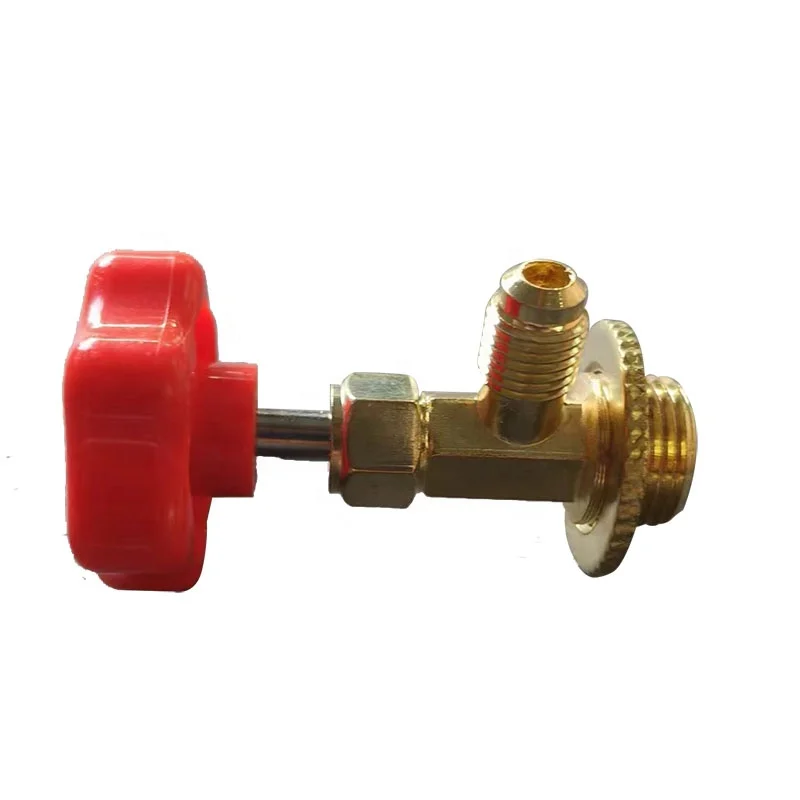

Ручной предохранительный клапан CT-339 хладагента R134a OEM поддерживает общее управление может коснуться клапана запасные части холодильника

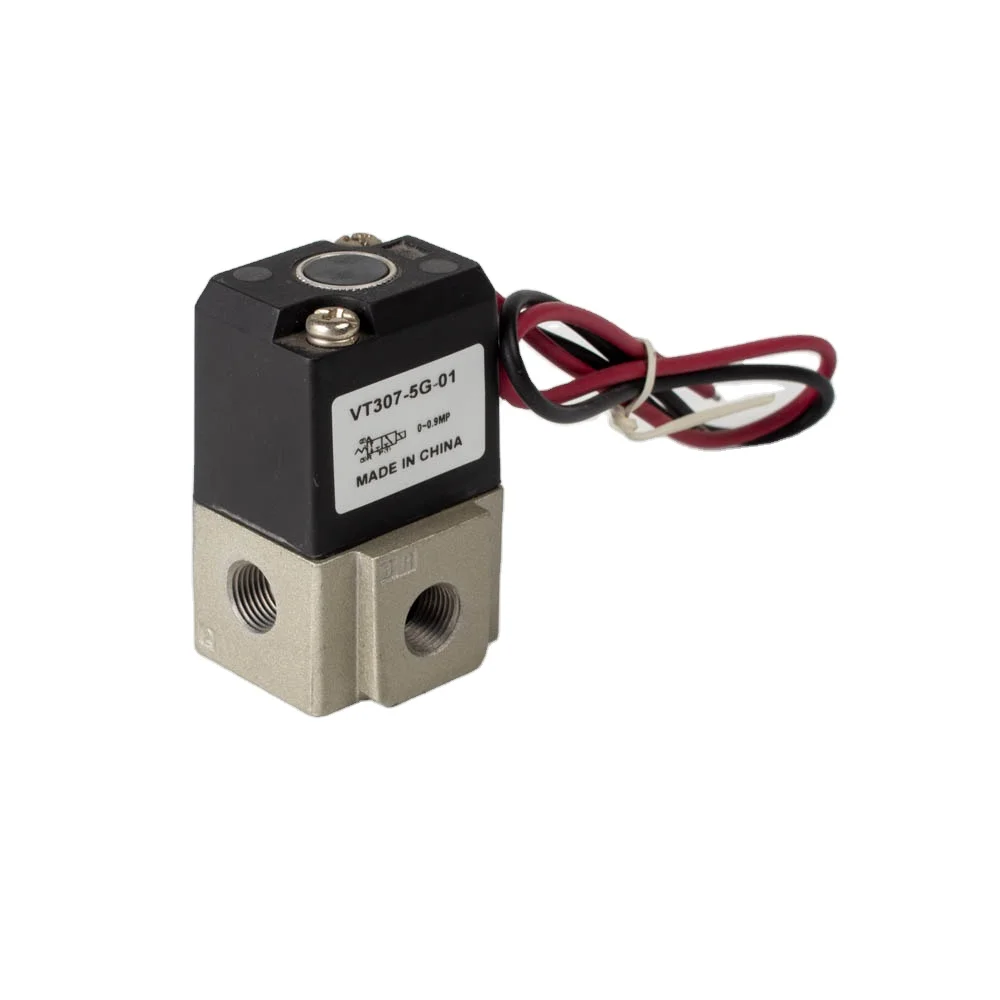

VT307 трехпортовый вакуумный электромагнитный клапан SMC типа высокочастотный прямого действия нижнего клапана
10,00-11,00 $
Mindman Электромагнитный клапан MVSC-22-4E1 регулирующий направленного действия MVSC серия соленоид
10,00-12,00 $

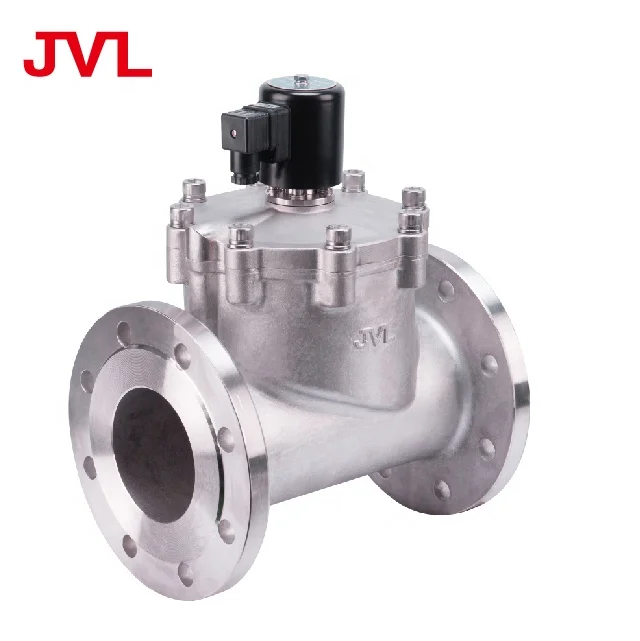

1 дюйм воды 24v пилот высокого давления Электромагнитный клапан цена высокая температура электромагнитный

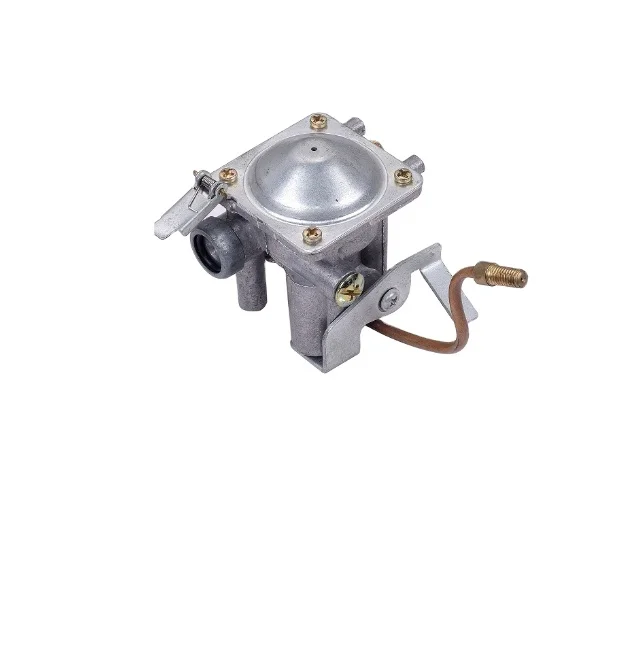

Выключатель зажигания для газовой плиты кемпинга запчасти Высококачественная газовая горелка клапан

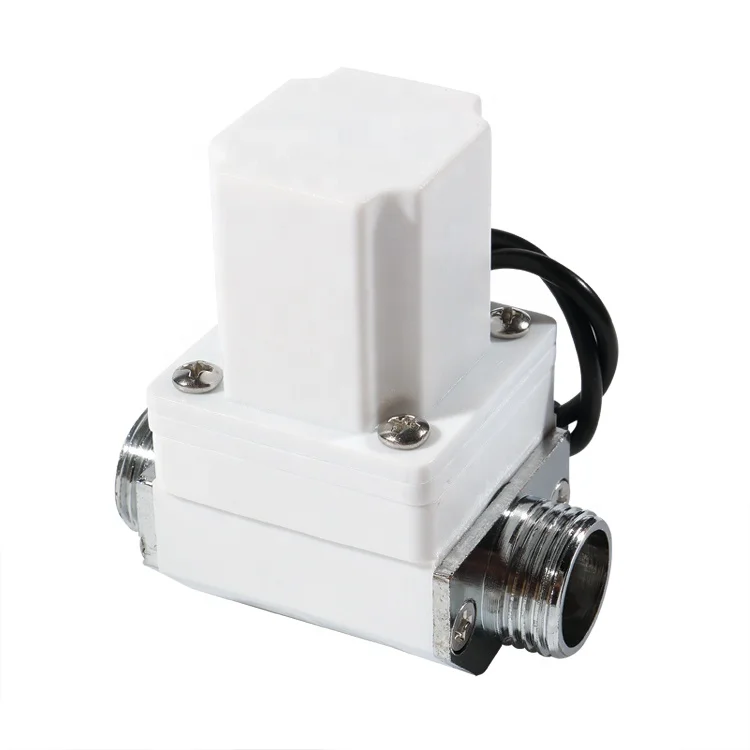

Морской SDF-308B2 Высокое качество Новый 1/2 'наружная резьба двухстороннее солнечной энергии с фиксацией импульсный пластиковый электромагнитный клапан латунные трубы
