Токарный станок GT DMTG CK6150 Ck6150 Cnc Torno токарный Ck6140 решить завод

Сохранить в закладки 1601366472067:


Цена:4 700,00-4 800,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



VR


Product Details










Specification
Unit
CNC Lathe CK6150
CNC Lathe CK6180
Max. swing diameter over bed
mm
Φ500
Φ800
Max. swing diameter over cross slide
mm
Φ500
Φ490
Max. workpiece length
mm
750/1000/1500/2000
1000/1500/2000/3000/4000/5000
Max. cutting length
mm


680/930/1430/1930
795/1245/1845/2745/3785/4745
(Vertical 4-position)
690/1140/2740/2640/3680/4640
(Horizontal 6-position)
700/1150/2750/2650/3690/4650
(Horizontal 8-position)
Max. turning length
Vertical 4-position
mm
Φ500
Φ800
Opt:Horizonta 6-position
mm
Φ400
Φ620
Opt:Horizonta 8-position
mm
Φ370
Φ620
Spindle center height
mm
250
400
Bed guideway width
mm
400
550

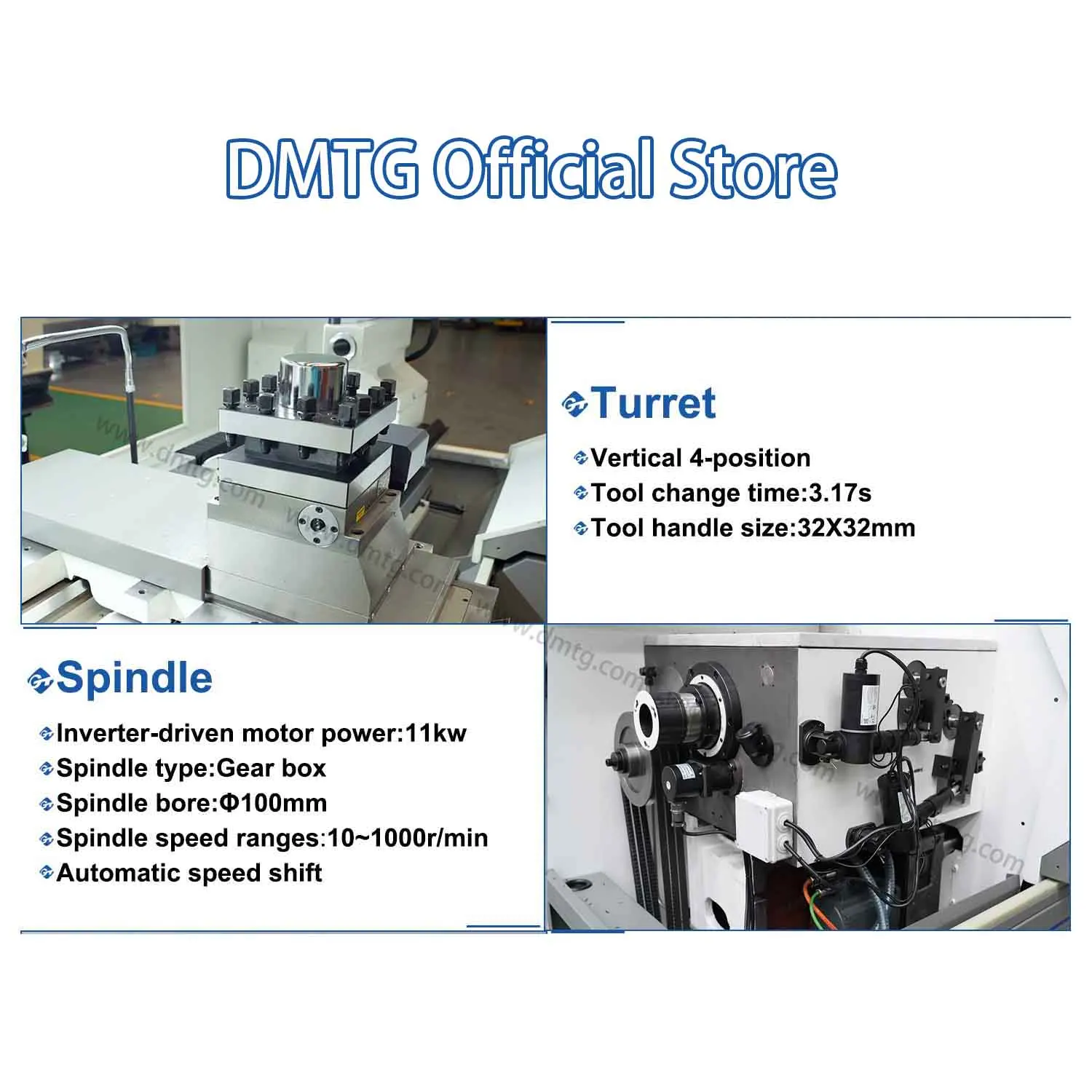

Spindle motor power
kw
7.5/11(Servo motor)
11 (inverter-driven motor)
Spindle type
r/min
Gear box
Gear box
Spindle bore
mm
Φ82
Φ100

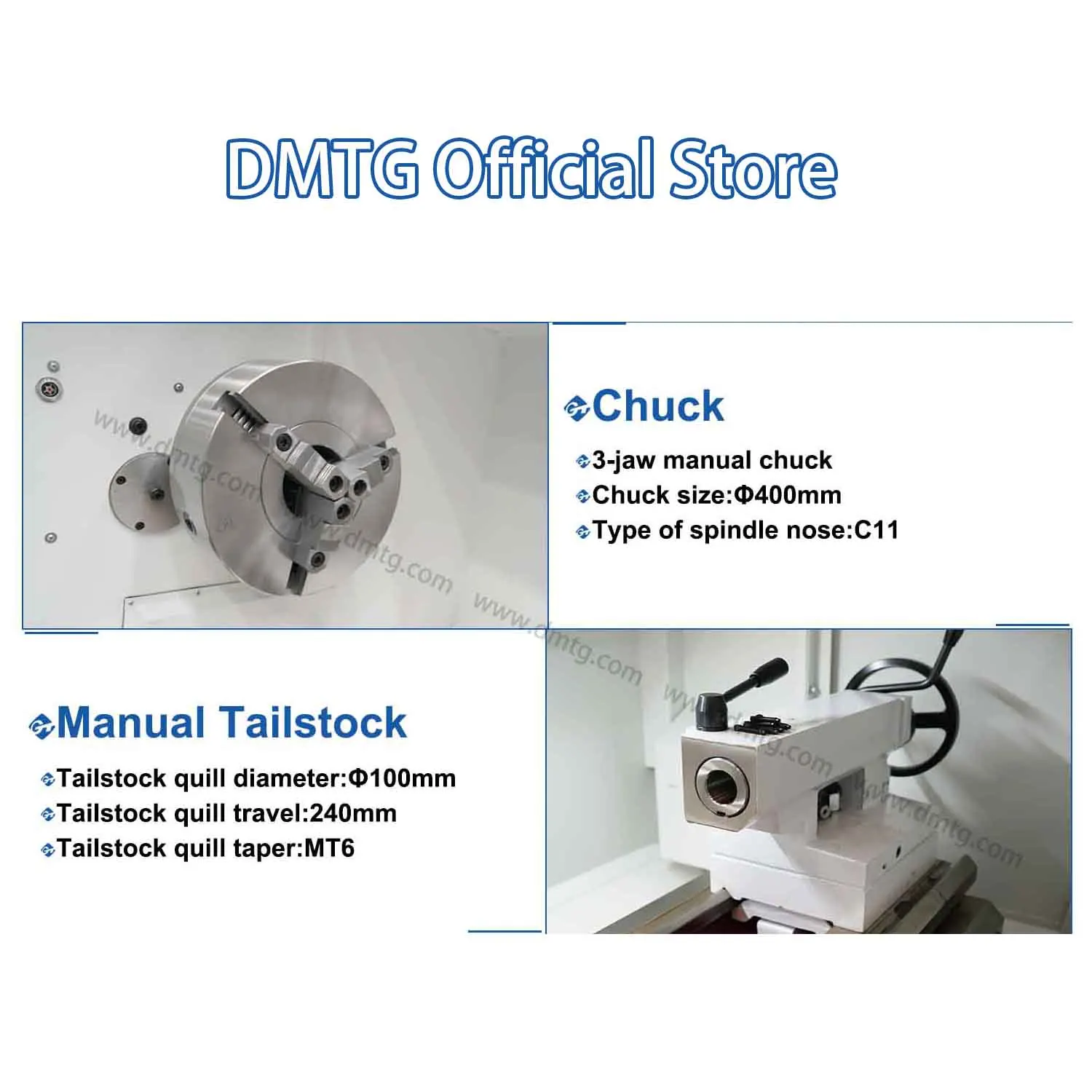

Chuck size
mm
Φ250
Φ400
Taper of spindle bore
Front end Φ90 1:20
Front end Φ120 1:20
Type of spindle nose
D8
C11
Spindle speed ranges
r/min
*7~2200 3 range manual(auto)
10~1000 4 range
manual(auto)
Tailstock quill diameter
mm
Φ75
Φ100
Tailstock quill travel
mm
150
240
Tailstock quill taper
MT 5
MT 6
Max. travel of X-axis
mm
280
400
Max. travel of Z-axis
mm
685/935/1435/1935
800/1250/1850/2750/3790/4750
Rapid traver of X/Z axis
m/min
4/8 (750、1000、1500)4/6 (2000)
4/7.5(1000、1500、2000)、
4/4(3000)、4/3.5(4000、 5000)
Tool shank size (Vertical 4-positon)
mm
25X25
32 X32
(32 X 25 Horizontal 8 position)
X/Z axis positioning accuracy
mm
0.018/0.021(750)
0.024(1000)0.026(1500、2000)
0.018/0.024(1000)
0.026(1500、2000)
0.030(3000、4000、5000)
X/Z axis repeatability accuracy
mm
0.006/0.008(750)0.011(1000) 0.014(1500、2000)
0.006/0.011(1000) 0.014(1500、2000、3000、4000、5000)
Machine dimensions(L×W×H)
mm
2580×1750×1620(750)
2830×1750×1620(1000)
3330×1750×1620(1500)
3830×1750×1620(2000)
3455×2020×1805(1000)
3905×2020×1805(1500)
4505×2020×1805(2000)
5405×2020×1805(3000)
6455×2020×1805(4000)
7535×2020×1805(5000)
Machine weight
kg
2550(750)2600(1000)
2700(1500)2800(2000)
5300(1000)/5600(1500)/6100(2000)/6400(3000)/7600(4000)/8600(5000)




After-Sales Service






Company Profile










Exhibition

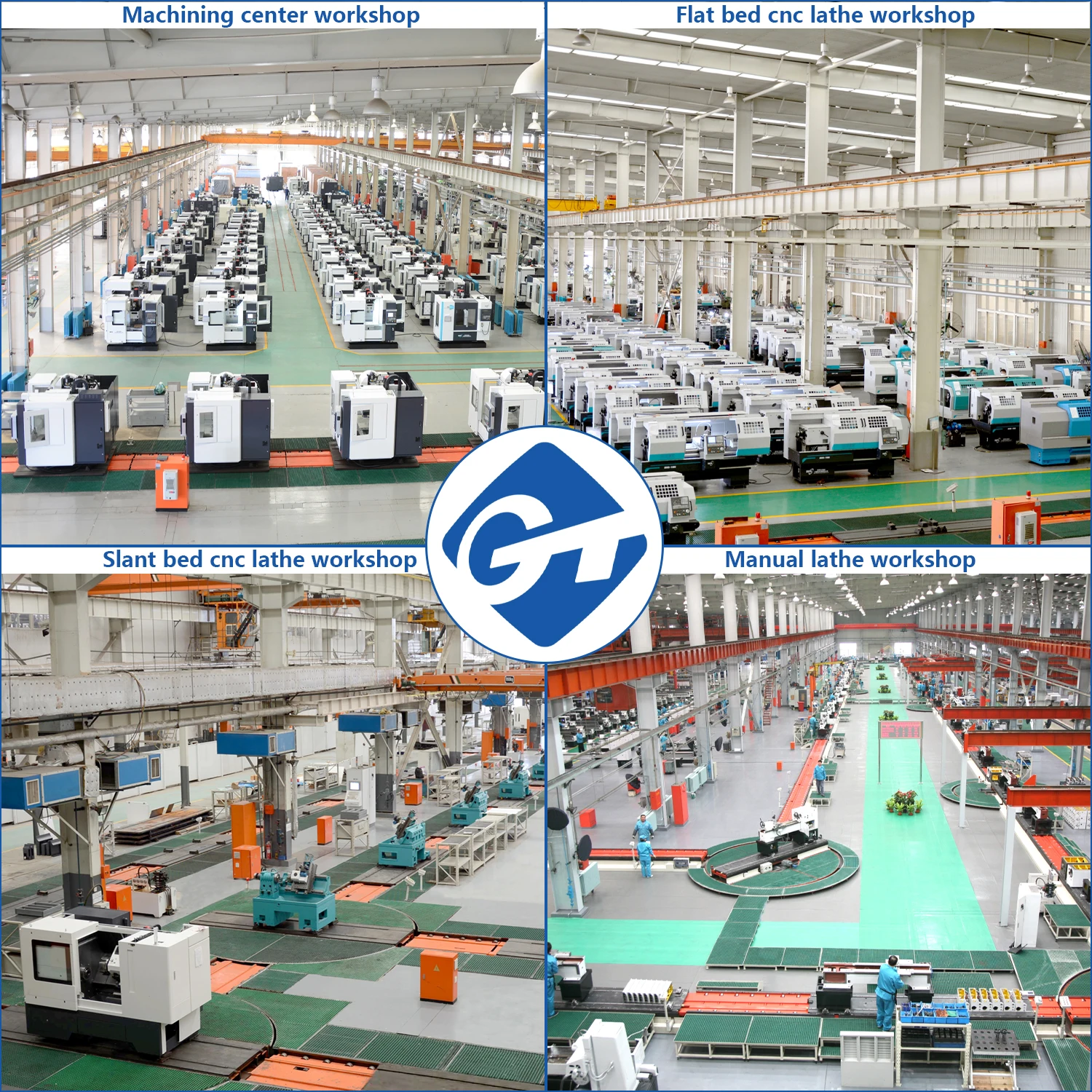

7 Production Bases
