24 дюйма широкий 610x152 4x42 положительный тип сельскохозяйственная ферма резиновый гусеничный ремень для John Deere 8rx сзади R571656 R571659

Сохранить в закладки 1601366841592:


Цена:3 800,00-4 380,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики

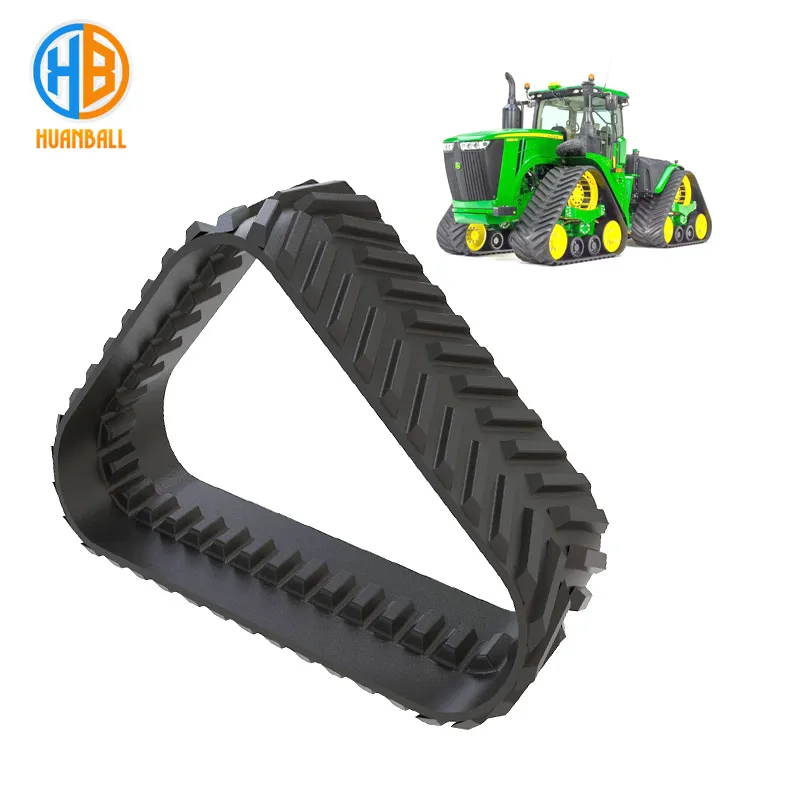

24" Wide 610x152.4x42 Positive Type Agriculture Farm Rubber Track Belt for John Deere 8rx Rear R571656 R571659


1_tractor-rubber-track












2_tractor-rubber-track

AGRICULTURAL RUBBER


TRACKS FROM HUANBALL


---------------------------------------------------


Our agri tracks start with quality materials engineered specifically for agricultural use. While the outside of the track is both functional and beauitful with its one-piece molded carcass and dense track blocks, it's the inside of the track where the magic happens. That's where you will find galvanized steel cables surrounded by multiple layers of wire plies that provide strength, stability, and duribility.



  3_tractor-rubber-track












































1.Product Name:Agricultural Tractor Rubber Track
2.Color:Black
3.Material:Natural Rubber & Alloy Steel
4.Product Price:Best price(Consult customer service for detailed quotes)
5.Product Type:Undercarriage Parts Rubber Track For Agricultural Machinery
6.Application:Agriculture Harvester;Farm Tractor(confirm with me about other machine)
7.Specification:Customizable(please contact customer service to provide Size)
8.Warranty:Normal Use For 1 Year Guarantee
9.Feature:Wear-Resistant, Heat-Resistant,Corrosion-Resistance, Tear-Resistant,High precision,Long Life























4_tractor-rubber-track

MATERIAL FORMULA
__________________________



. Special rubber formula for tread pattern provides high wear resistance and durability
. Built with a thicker carcass for improved tear resistance



MULTIPLE WIRE LAYERS
_______________________________



. Three wire plies placed at different angles above steel cables to improve the stability of the track body
. Additional wire ply added under steel cables to protect them from wear caused by the driving wheels


5_tractor-rubber-track
6_tractor-rubber-track

GALVANIZED STEEL CABLES
_____________________________________



. Galvanized steel cables with patented cable structureProvides high strength along the length
of the track



REINFORCED DRIVE LUGS
___________________________________



. Reinforced drive lugs use a unique rubber compound with high hardness and tensile strength
. Additional drive lugs per track to help prevent
de-tracking


7_tractor-rubber-track




8_tractor-rubber-track

































































































































































































































































































BrandModelTrack SizeLengthNumber of
Tread lugs
Tread
Pitch
Tread Lug
Height
Tread Bar
Tip Width
Number of Guide Lugs
for Cat
Challenger
 35/56/55 24"x6"x53 319" 106 6" 2" 38 53
 65/75/85/95 25"x7"x48 336" 96 7" 2.5" 57 48
 25"x9"x37 336" 74 9" 2.75" 63 37
 30"x7"x48 339" 96 7" 2.7" 40 48
 30"x9"x37 339" 74 9" 2.75" 63 37
for Agco
Challenger
 MT735/745/
755/765
 18"x7.6"x46 351" 92 7.6" 2.75" 45 46
 24"x6"x58 348" 116 6" 2" 44 58
 30"x7.7"x46 353" 92 7.7" 2.75" 48 46
 MT835/845/
855/865/875
 30"x6"x66 396" 88 9" 2.75" 63 66
 36"x6"x66 396" 88 9" 2.75" 63 66
 for Case
Ih

 ROW CROP


/NH T8


 16"x6"x44 265" 88 6" 1.7" 42 44
 18"x6"x44 265" 88 6" 1.7" 58 44
 C-N-H 9300 30"x6"x39 234" 78 6" 2" 38 39
 C-N-H STX Quad 30"x6"x42 252" 84 6" 2" 38 42
 36"x6"x42 252" 84 6" 2" 44 42
 for John
Deere
 8RT 18"x7.8"x46 358" 92 7.8" 2.8" 63 46
 25"x7.8"x46 358" 92 7.8" 2.75" 62 46
 30"x7.8"x46 358" 92 7.8" 2.75" 62 46
 9RT 30"x7.8"x50 392" 100 7.8" 2.8" 50 50
 36"x7.8"x50 392" 100 7.8" 2.8" 50 50
 8000T 18"x6.75"x48 324" 96 6.75" 2.5" 57 48
 24"x6"x54 324" 72 9" 2.75" 63 54
 9000T  30"x9"x42 378" 84 9" 2.75" 63 42
 36"x9"x42 378" 84 9" 2.75" 63 42
 S690 26"x6"x39 234" 78 6" 2" 45 39
 for ClaasClaass 25"x7"x38 264" 76 7" 2.44" 34 38
 29"x7"x38 264" 76 7" 2.44" 34 38
 35"x7"x38 264" 76 7" 2.75" 38 38




9_tractor-rubber-track





Cooperative Brands and Model:







10_tractor-rubber-track





Ningbo Huanball Rubber & Plastic Co., Ltd.


focuses on the application of power transmission in the field of industry and agriculture. So far, it has many series and more than 2,000 different specifications, covering almost all fields of rubber tracks, rubber track pad, timing belts, transmission belts .Since the establishment of the company, we have been adhering to the tenet of excellent quality and professional service, and relying on diversified technical support, to provide mainstream cutting-edge products for the international market, and have won the trust of many large construction machinery manufacturers and agricultural machinery manufacturers at home and abroad.Our factory applies "3D simulation technology" to the structural design of the rubber track, which greatly improves the design and development capabilities and shortens the product development cycle , and also provides customers with better services. We have competitive prices and flexible and diverse transaction forms, to help more and more customers in the global market. we will continue to follow the core philosophy, with more professional and reliable technology, comprehensively enhance innovation, and become close strategic partners with customers to create more value for our customers.





11_tractor-rubber-track





12_tractor-rubber-track





 We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.

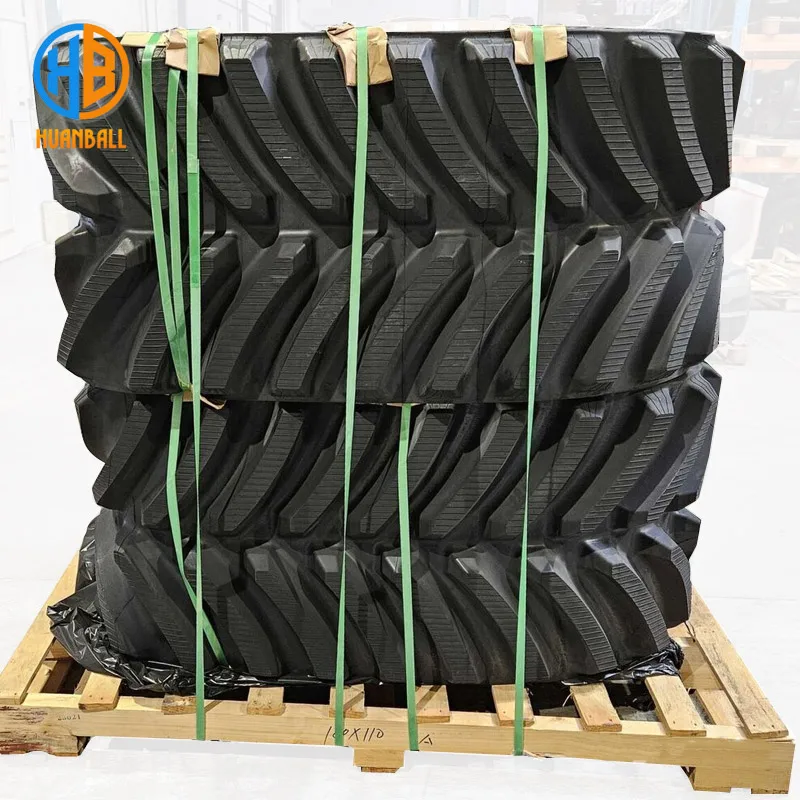

Packaging: Standard wooden pallet,PE film to protect





Transportation: ocean shipping, air freight, land transportation.





13_tractor-rubber-track





14_tractor-rubber-track





1) Q: I haven't done business with you before, how can i trust your company?


A: Our company are alibaba golden supplier and passed Field certification by alibaba. What's more,we've got authority certificates for ISO9001.





2) Q: How is quality ensured?


A: All our processes strictly adhere to ISO9001:2008 procedures, we have strict quality control from producing to delivery, 100% inspection by professional testing centre. Small samples could be provided to you for testing.





3) Q: Can i get 1 or more samples?


A: Yes, sample orders welcomed.





4) Q: Do you give any discounts?


A: Yes, we'll surely try my best to help you get the best price and best service at the same time.





5) Q: How to Custom-made(OEM/ODM)?


A: Please send you product drawings or samples to us if you have, and we can custom-made as you requirements.We will also provide professional advices of the products to make the design to be maximize the performance.
