Vanfun Factory Price Ultra-Bright 3mm Round LED Diode Multi-Color Lamp Emitting Red Green Yellow Blue Orange
0,01-0,02 $
5 мм 3 В Rgb светодиодный Диод 2 контактный светоизлучающий диод с изменяющимся цветом отверстием в случае сигнала диода Макс обратная Вольта Dip Led Тип
- Категория: >>>
- Поставщик: Shenzhen Brilliant Led Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601367007920:
Описание и отзывы
Характеристики

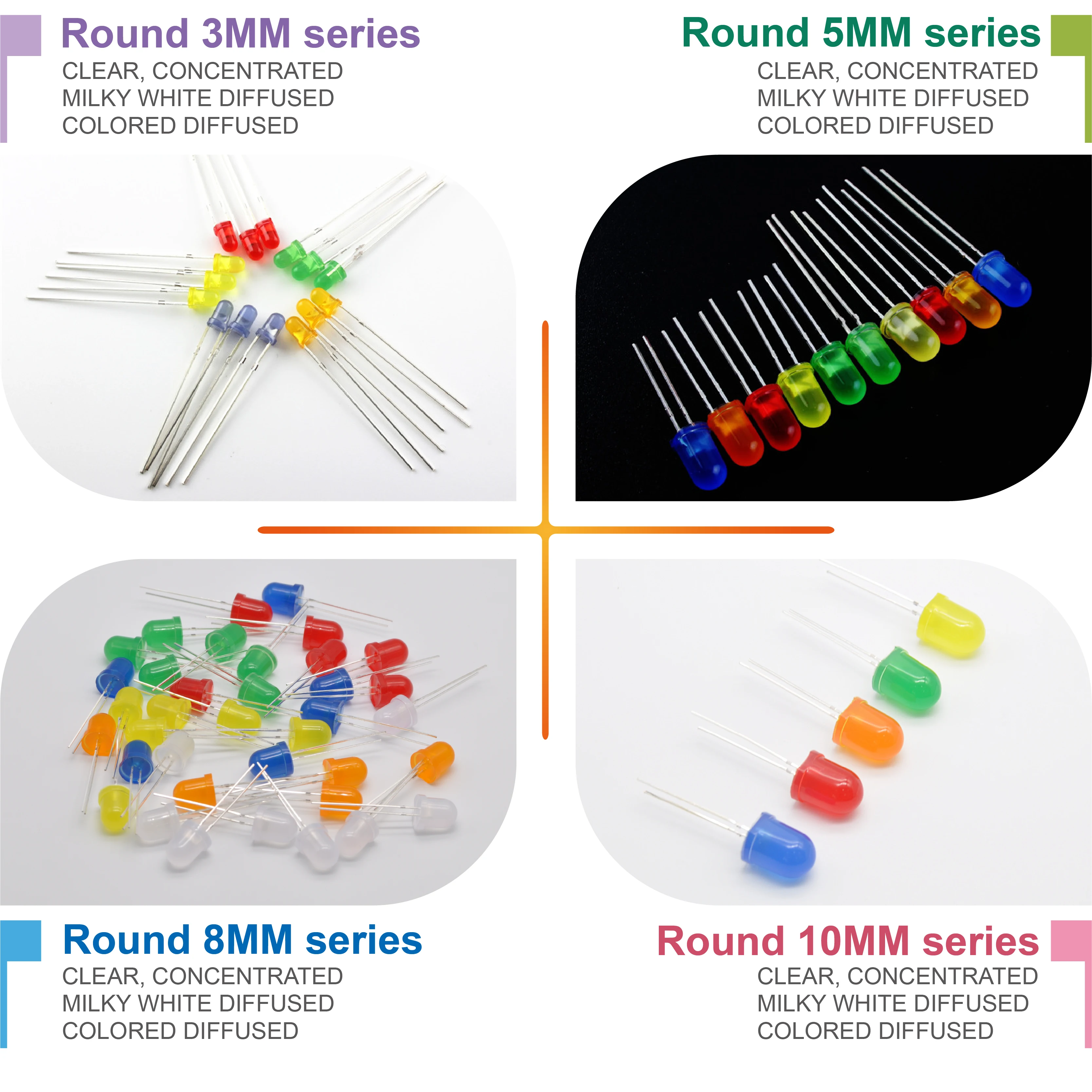

Round 3MM LED DIFFUSED | ||||||||||||
P/N | P/M | COLOR | WL/CCT (NM/K) | IF (mA) | IV (MCD) | VF (V) | ||||||
ZYW-3ACD4UR | 3MM R/R | RED | 620-625 | 20 | 400-600 | 1.8-2.2 | ||||||
ZYW-3ACD4UO | 3MM O/O | ORANGE | 600-610 | 20 | 400-600 | 1.8-2.2 | ||||||
ZYW-3ACD4UY | 3MM Y/Y | YELLOW | 588-592 | 20 | 400-600 | 1.8-2.2 | ||||||
ZYW-3ACD4UYG | 3MM G/YG | YELLOW Green | 568-572 | 20 | 50-100 | 1.8-2.2 | ||||||
ZYW-3ACD4UPG | 3MM G/PG | PURE GREEN | 515-530 | 20 | 2000-3000 | 2.8-3.2 | ||||||
ZYW-3ACD4UB | 3MM B/B | BLUE | 460-470 | 20 | 1000-1500 | 2.8-3.2 | ||||||
ZYW-3ACW4UW | 3MM W/W | WHITE | 7000-9000 | 20 | 2000-3000 | 2.8-3.2 | ||||||
ZYW-3ACW4UWW | 3MM W/WW | WARM WHITE | 2800-3200 | 20 | 2000-3000 | 2.8-3.2 | ||||||
ZYW-3ACW4CW | 3MM W/CW | COOL WHITE | 10000-20000 | 20 | 6000-8000 | 2.8-3.2 | ||||||
ZYW-3ACW4UIB | 3MM W/WW | IEC BULE | 475-485 | 20 | 5000-6000 | 2.8-3.2 | ||||||
ZYW-3ACW4UP | 3MM W/P | PINK | X:0.28-0.29 Y:0.11-0.13 | 20 | 3000-5000 | 2.8-3.2 | ||||||
ZYW-3ACW4UVB | 3MM W/V | VIOLET | X:0.28-0.29 Y:0.11-0.13 | 20 | 3000-5000 | 2.8-3.2 | ||||||
ZYW-3ACW4UVA | 3MM W/UVA | UVA | 395-405 | 20 | 1000-1500 | 3.0-3.4 | ||||||
Round 5MM LED DIFFUSED | ||||||||||||
P/N | P/M | COLOR | WL/CCT (NM/K) | IF (mA) | IV (MCD) | VF (V) | ||||||
ZYW-5ACD4UR | 5MM R/R | RED | 620-625 | 20 | 600-800 | 1.8-2.2 | ||||||
ZYW-5ACD4UO | 5MM O/O | ORANGE | 600-610 | 20 | 600-800 | 1.8-2.2 | ||||||
ZYW-5ACD4UY | 5MM Y/Y | YELLOW | 588-592 | 20 | 600-800 | 1.8-2.2 | ||||||
ZYW-5ACD4UYG | 5MM G/YG | YELLOW Green | 568-572 | 20 | 100-200 | 1.8-2.2 | ||||||
ZYW-5ACD4UPG | 5MM G/PG | PURE GREEN | 515-530 | 20 | 3000-5000 | 2.8-3.2 | ||||||
ZYW-5ACD4UB | 5MM B/B | BLUE | 460-470 | 20 | 1000-2000 | 2.8-3.2 | ||||||
ZYW-5ACW4UW | 5MM W/W | WHITE | 7000-9000 | 20 | 2500-3500 | 2.8-3.2 | ||||||
ZYW-5ACW4UWW | 5MM W/WW | WARM WHITE | 2800-3200 | 20 | 2500-3500 | 2.8-3.2 | ||||||
ZYW-5ACW4CW | 5MM W/CW | COOL WHITE | 10000-20000 | 20 | 2500-3500 | 2.8-3.2 | ||||||
ZYW-5ACW4UIB | 5MM W/WW | IEC BULE | 475-485 | 20 | 2000-3000 | 2.8-3.2 | ||||||
ZYW-5ACW4UP | 5MM W/P | PINK | X:0.28-0.29 Y:0.11-0.13 | 20 | 2000-3000 | 2.8-3.2 | ||||||
ZYW-5ACW4UVB | 5MM W/V | VIOLET | X:0.28-0.29 Y:0.11-0.13 | 20 | 2000-3000 | 2.8-3.2 | ||||||
ZYW-5ACW4UVA | 5MM W/UVA | UVA | 395-405 | 20 | 300-400 | 3.0-3.4 | ||||||
Round 8MM LED DIFFUSED | ||||||||||||
P/N | P/M | COLOR | WL/CCT (NM/K) | IF (mA) | IV (MCD) | VF (V) | ||||||
ZYW-8ACD4UR | 8MM R/R | RED | 620-625 | 20 | 800-1000 | 1.8-2.2 | ||||||
ZYW-8ACD4UO | 8MM O/O | ORANGE | 600-610 | 20 | 800-1000 | 1.8-2.2 | ||||||
ZYW-8ACD4UY | 8MM Y/Y | YELLOW | 588-592 | 20 | 800-1000 | 1.8-2.2 | ||||||
ZYW-8ACD4UYG | 8MM G/YG | YELLOW Green | 568-572 | 20 | 100-200 | 1.8-2.2 | ||||||
ZYW-8ACD4UPG | 8MM G/PG | PURE GREEN | 515-530 | 20 | 4000-6000 | 2.8-3.2 | ||||||
ZYW-8ACD4UB | 8MM B/B | BLUE | 460-470 | 20 | 1500-2500 | 2.8-3.2 | ||||||
ZYW-8ACW4UW | 8MM W/W | WHITE | 7000-9000 | 20 | 4000-5000 | 2.8-3.2 | ||||||
ZYW-8ACW4UWW | 8MM W/WW | WARM WHITE | 2800-3200 | 20 | 4000-5000 | 2.8-3.2 | ||||||
ZYW-8ACW4CW | 8MM W/CW | COOL WHITE | 10000-20000 | 20 | 4000-5000 | 2.8-3.2 | ||||||
ZYW-8ACW4UIB | 8MM W/WW | IEC BULE | 475-485 | 20 | 3000-4000 | 2.8-3.2 | ||||||
ZYW-8ACW4UP | 8MM W/P | PINK | X:0.28-0.29 Y:0.11-0.13 | 20 | 3000-4000 | 2.8-3.2 | ||||||
ZYW-8ACW4UVB | 8MM W/V | VIOLET | X:0.28-0.29 Y:0.11-0.13 | 20 | 3000-4000 | 2.8-3.2 | ||||||
ZYW-8ACW4UVA | 8MM W/UVA | UVA | 395-405 | 20 | 400-600 | 3.0-3.4 | ||||||
Round 10MM LED DIFFUSED | ||||||||||||
P/N | P/M | COLOR | WL/CCT (NM/K) | IF (mA) | IV (MCD) | VF (V) | ||||||
ZYW-10ACD4UR | 10MM R/R | RED | 620-625 | 20 | 800-1000 | 1.8-2.2 | ||||||
ZYW-10ACD4UO | 10MM O/O | ORANGE | 600-610 | 20 | 800-1000 | 1.8-2.2 | ||||||
ZYW-10ACD4UY | 10MM Y/Y | YELLOW | 588-592 | 20 | 800-1000 | 1.8-2.2 | ||||||
ZYW-10ACD4UYG | 10MM G/YG | YELLOW Green | 568-572 | 20 | 100-200 | 1.8-2.2 | ||||||
ZYW-10ACD4UPG | 10MM G/PG | PURE GREEN | 515-530 | 20 | 5000-6000 | 2.8-3.2 | ||||||
ZYW-10ACD4UB | 10MM B/B | BLUE | 460-470 | 20 | 2000-2500 | 2.8-3.2 | ||||||
ZYW-10ACW4UW | 10MM W/W | WHITE | 7000-9000 | 20 | 4000-5000 | 2.8-3.2 | ||||||
ZYW-10ACW4UWW | 10MM W/WW | WARM WHITE | 2800-3200 | 20 | 4000-5000 | 2.8-3.2 | ||||||
ZYW-10ACW4CW | 10MM W/CW | COOL WHITE | 10000-20000 | 20 | 4000-5000 | 2.8-3.2 | ||||||
ZYW-10ACW4UIB | 10MM W/WW | IEC BULE | 475-485 | 20 | 3000-4000 | 2.8-3.2 | ||||||
ZYW-10ACW4UP | 10MM W/P | PINK | X:0.28-0.29 Y:0.11-0.13 | 20 | 3000-4000 | 2.8-3.2 | ||||||
ZYW-10ACW4UVB | 10MM W/V | VIOLET | X:0.28-0.29 Y:0.11-0.13 | 20 | 3000-4000 | 2.8-3.2 | ||||||
ZYW-10ACW4UVA | 10MM W/UVA | UVA | 395-405 | 20 | 600-800 | 3.0-3.4 | ||||||
LUMINOUS DISPLAY
PRODUCT APPLICATION
Products are widely used in PCBA, LED light belt, Bluetooth speaker, small household appliances, digital backlight display, traffic lights, smart home products, new energy storage, urban landscape lighting engineering and other related production industries
Company Profile
ABOUT US
SHENZHEN BRILLANT LED TECHNOLOGY CO.，LTD.Founded in 2014. It is a R & D and production company A high-techenterprise.integrating sales and service Focus on the production of high quality LED packaging, Plant area of 5,000 square meters Owns more than 100 production and testing equipment, 6 fully automated high-speed production lines Create from solid crystal-welding wire-dispensing-spectroscopy-baking-Taping-inspection-Perfect mature production process Annual output value 20 billion.Established its own brand "BRILLANT ating LED with SMD CHIP、DIP in-line luminous LED、TOP backlighting LED、 imitation lumens Imitation lumen high-power LED and other.Products Strictly follow the ISO9001 quality management system ISO14001 environmental management system certification production, All have passed ROHS, REACH, CE, SGS SGS certification. Products are widely used in LED light、strips Smart Home Lighting、Traffic light、 LED digital display、 New energy vehicle instrumentation etc. In the world's largest electronic trading center Huaqiang North Electronic Industry Belt Set up a physical display store Can provide you with professional LED lighting personalization differentiated customized service.
Customer Photos
Certificate
Shipping
FAQ
Q1： | Do you supply OEM,ODM service? | ||||||
A1： | YES,absolutely it can be realized. | ||||||
Q2: | All the pictures are real photo? | ||||||
A2: | Yes, the pictures of all products on this page are 100% real shoot by us. | ||||||
Q3: | How can I get a quotation from you? | ||||||
A3: | Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon(mostly within 6 hours). | ||||||
Q4: | Can I have a sample order for led light? | ||||||
A4: | Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. | ||||||
Q5: | How to place an order? | ||||||
A5: | If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online, we will reply you within 6hours(working day). | ||||||
Q6: | What about the lead time? | ||||||
A6: | Enter your answer | ||||||
Q7: | How do you ship the goods and how long does it take to arrive? | ||||||
A7: | We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5days to arrive. Airline and sea shipping also optional. | ||||||
Q8: | Is it OK to print my logo on led light product? | ||||||
A8: | Yes. Please inform us formally before our production and confirm the designfirstly based on our sample.More questions please contact us | ||||||
