Карьер кварцевый портативный мобильный песок Производственная линия PCL серии дробилка для продажи
212 600,00-213 600,00 $

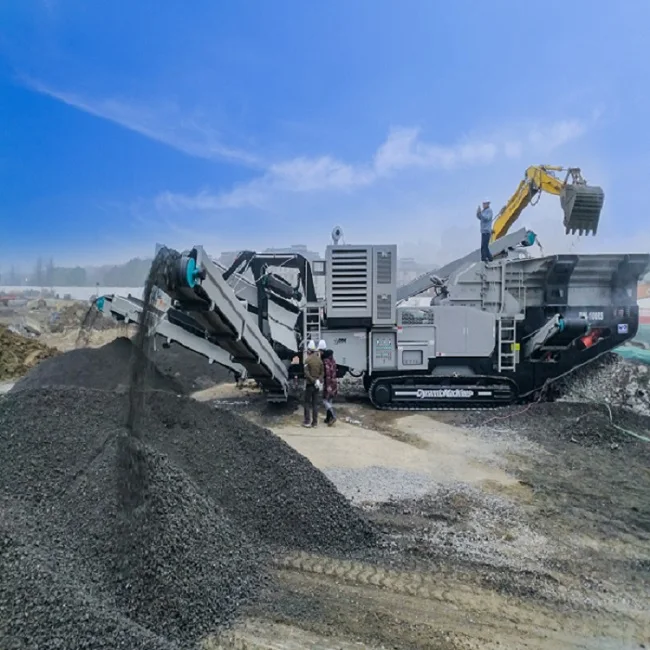

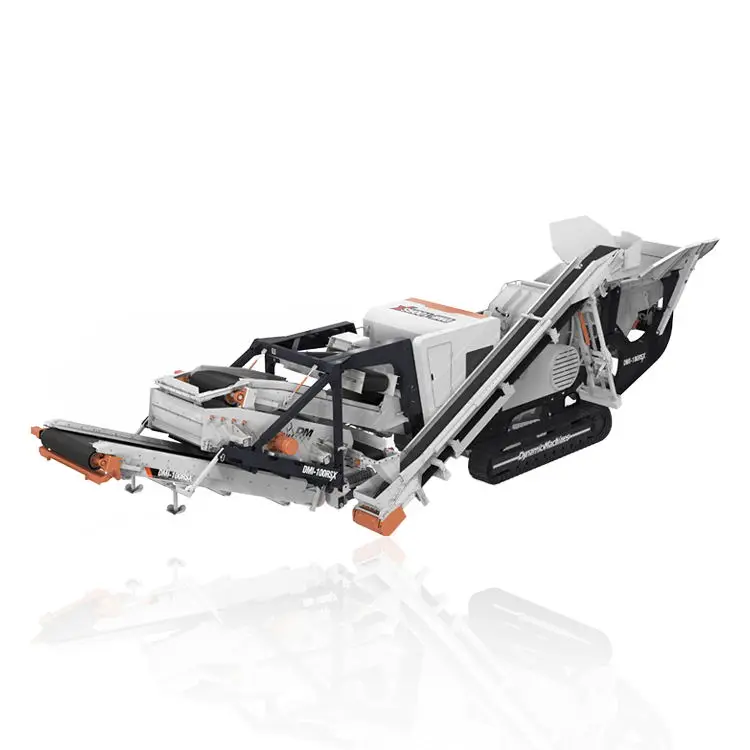

Мобильная ударная Дробилка для изготовления песка и гравия
- Категория: >>>
- Поставщик: Shanghai Dongmeng Road & Bridge Machinery Co. Ltd.Shanghai Ltd.
Сохранить в закладки 1601367218209:
Описание и отзывы
Характеристики
Shanghai DM Complete Crawler quarry crushing plants mobile Crusher granite limestone gravel rock stone jaw crusher
DM Tracked Mobile Crusher Plant Working Principle:
The mobile crushing plant includes vibrating feeder, stone crusher, vibrating screen, belt conveyor, magnetic separator etc. When gravel stone is fed to vibrating feeder by the loader, then crushed by crusher. The crusher materials will go to vibrating screen by foldable belt conveyor. After screen, the unqualified stone will go to crush again, the other qualified aggregates will be piled for further processing, such as removing iron, separating wood chips, cleaning etc.
Model Selection Guide:
1, For primary crushing, both Soft&Hard but Large Stone:

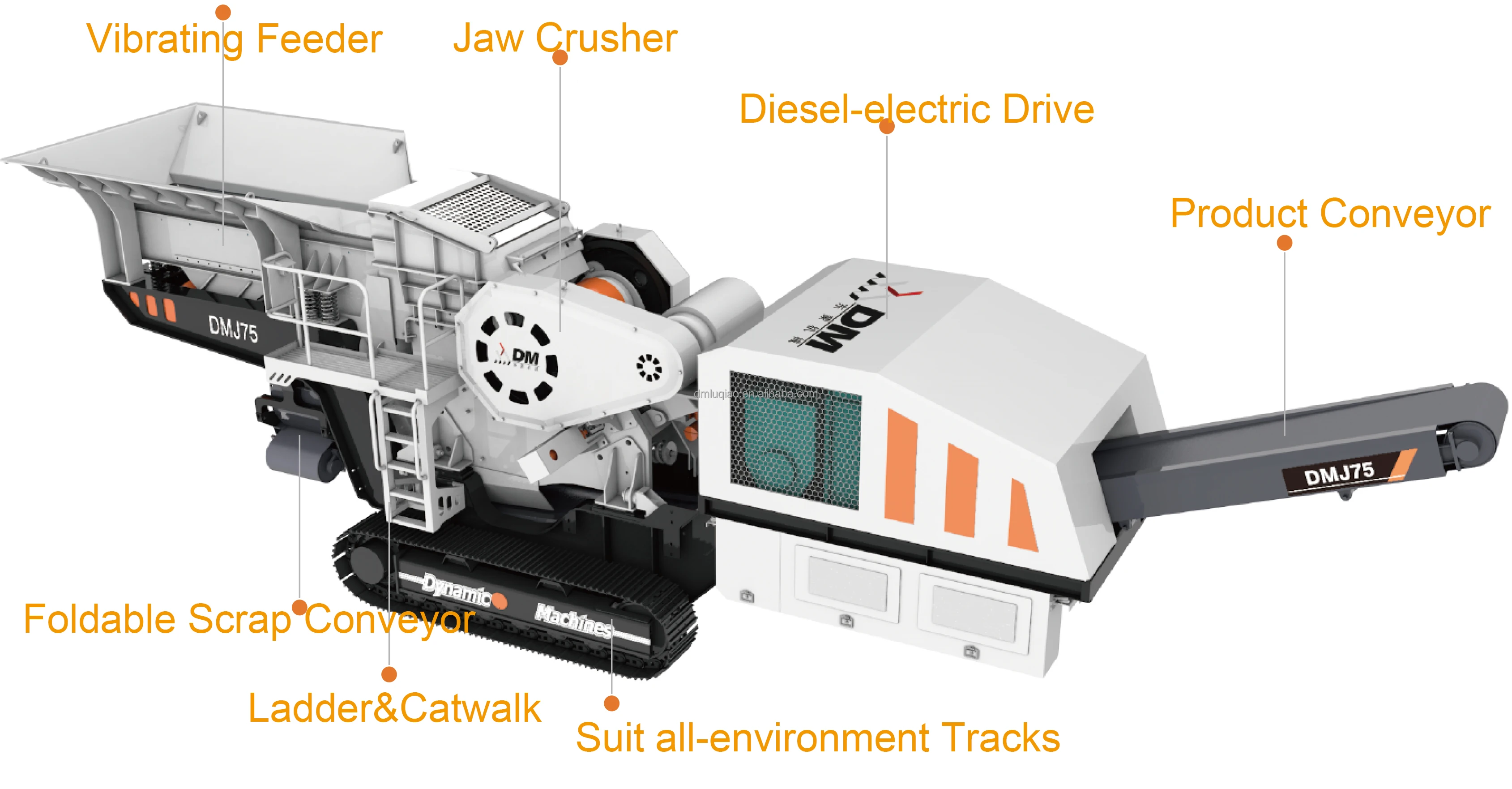

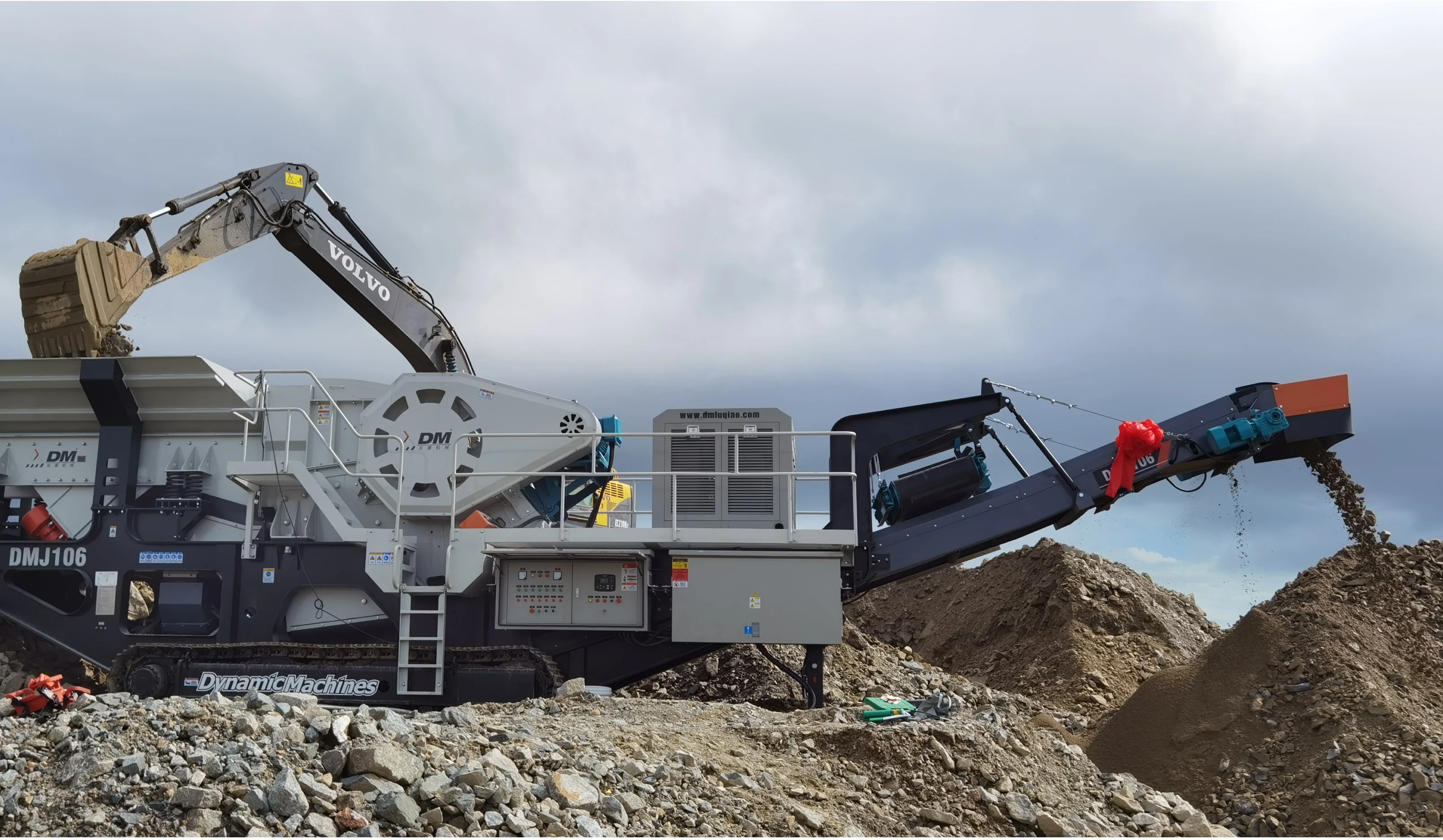

Crawler MOBILE JAW CRUSHER
Large Feed Size: Max. to 700mm.
Application conditions: Apply to coarse and medium crushing, out-put size between 50-250mm.Can be used to crushing both soft and hard materials, recycling waste mixed with rebar, bitumen and slag.
Model | DMJ75H | DMJ106 | DMJ106H | DMJ140 |
Capacity(tph) | 80-180 | 100-260 | 100-260 | 200-400 |
Jaw Crusher Power(kw) | 55-75 | 110-132 | 110-132 | 160 |
Feed Opening(mm) | 750x500 | 1060*750 | 1060*750 | 1400*760 |
Max. Feed Size(mm) | 400 | 630 | 630 | 700 |
Engine Power(kw) | 100 | 93 | 280 | 93 |
External Power(kw) | 66-86 | 141-163 | 141-163 | 200 |
Transport Size(L*W*H,M) | 11.3x2.2x3.2 | 17*3.5*3.8 | 17*3.5*3.8 | 18*3.6*3.8 |
Weight(tons) | 30 | 55 | 57 | 70 |
2, For Soft Stone,eg. Limestone:

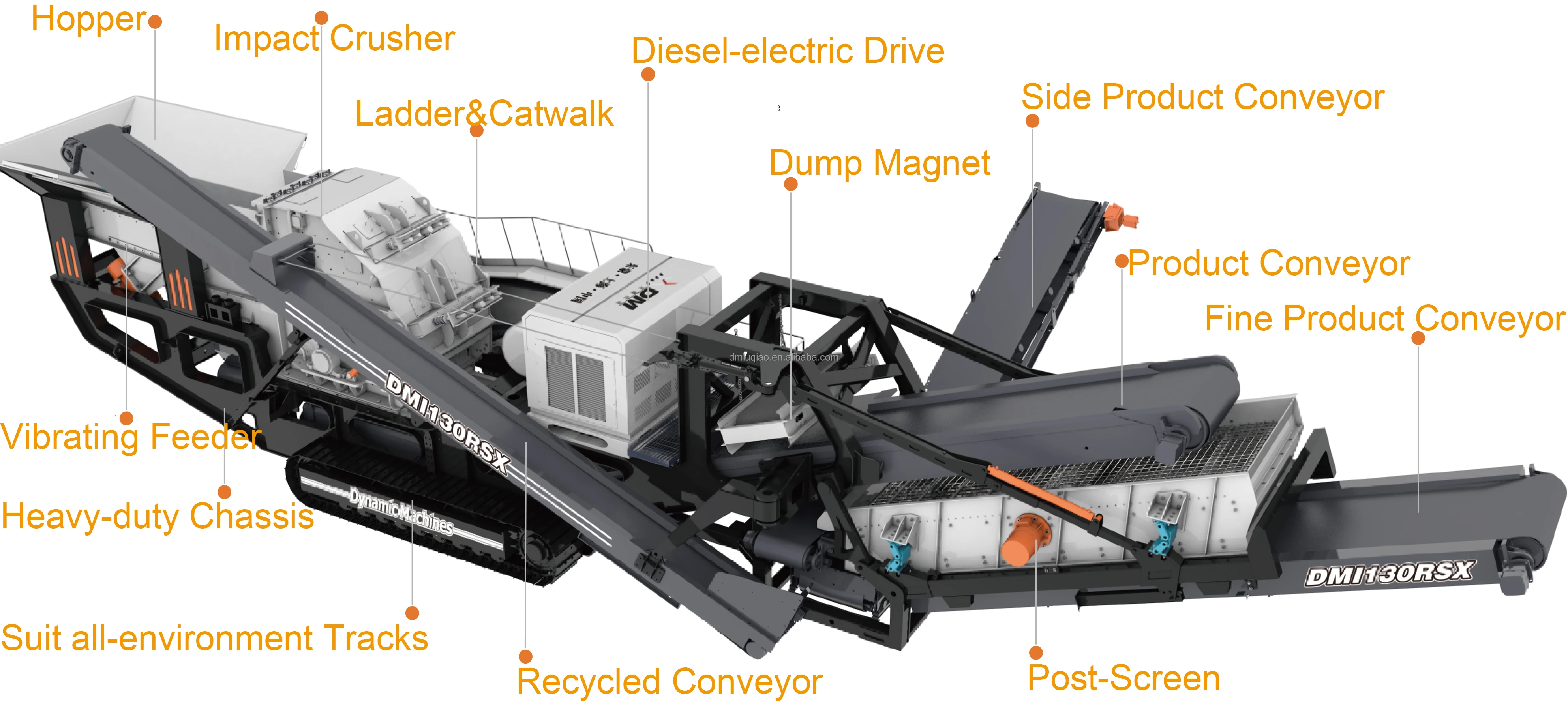

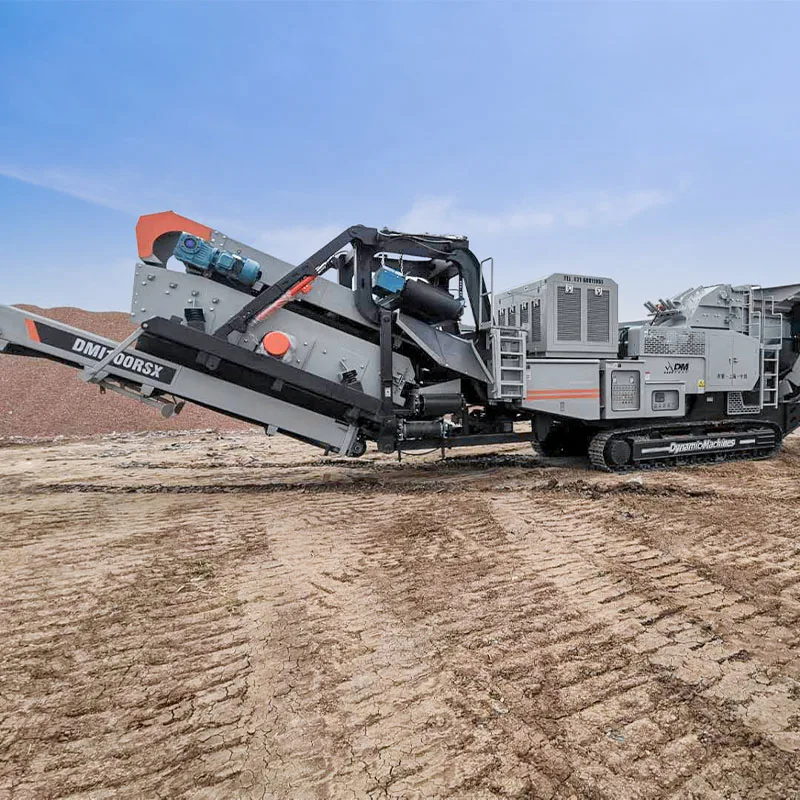

MOBILE IMPACT CRUSHER
Max. Feed Size: Up to 600mm.
Application Conditions: Can be used for primary, secondary, tertiary and recycling applications, for coarse and medium crushing. Put out good grain shape products. Suitable for crushing soft and brittle materials, such as limestone, dolomite, and construction waste. Use Contraindications: Not suitable for high hardness, high abrasive materials. (Usually, the abrasive content of the applicable material is less than 15%)
Main Technical Parameters:
Model | DMI100RS | DMI100RSH | DMI130RS | DMI130RSH | DMI160RS | DMI160RSH |
Capacity(tph) | 80 - 220 | 80 - 220 | 150 - 300 | 150 - 300 | 180 - 360 | 180 - 360 |
Crusher power(kw) | 132 - 160 | 132 - 160 | 200 - 250 | 200 - 250 | 250 - 280 | 250 - 280 |
Max. Feed size(mm) | 500 | 500 | 550 | 550 | 600 | 600 |
Engine power(kw) | 93 | 280 | 93 | 360 | 93 | 420 |
External power(kw) | 213 - 220 | 213 - 220 | 273 - 303 | 273 - 303 | 303 - 363 | 303 - 363 |
Transport size(LxWxH, M) | 17 x 3.75 x 3.8 | 17 x 3.75 x 3.8 | 19.5 x 3.75 x 3.8 | 19.5 x 3.75 x 3.8 | 19.5 x 3.75 x 3.8 | 19.5 x 3.75 x 3.8 |
Weight(tons) | 53 | 55 | 58 | 60 | 60 | 62 |
3, For Hard Stone,eg. Granite, Pebble River Stone:

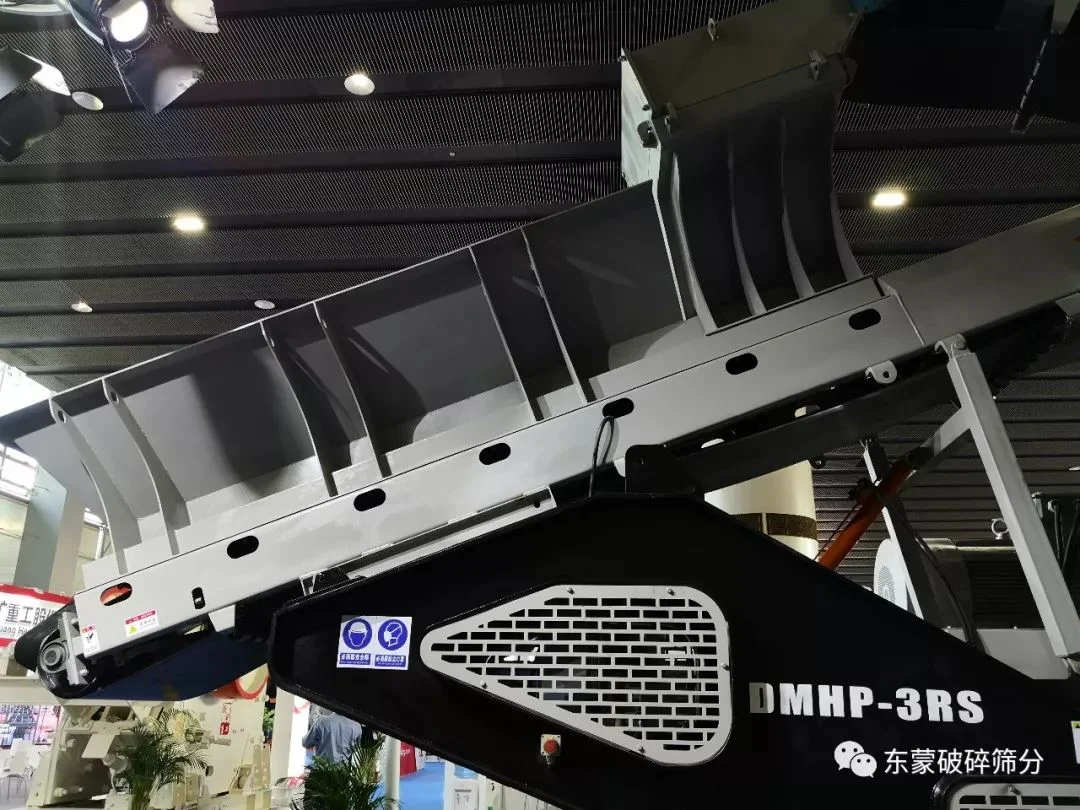

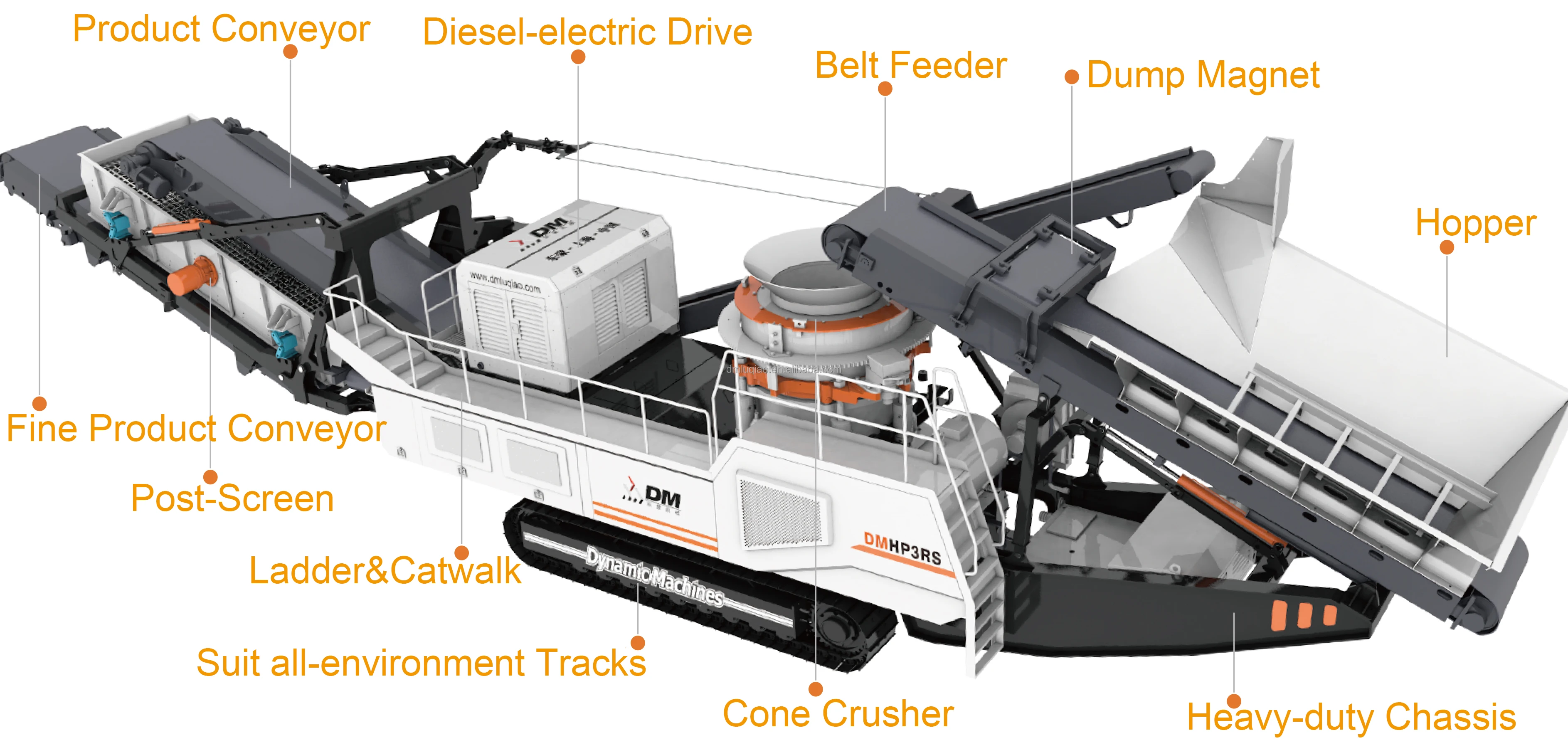

DMHP Tracked Mobile Cone&Screen Crusher
Max. feed size to 215mm. Apply to medium crushing. Or provide pre-materials for grinding process. Out-put size from 13 to 51mm. Suitable for crushing hard and high abrasive materials. Such as granite, basalt, andesite, ect. Put out good grain shape products.
Model | DMHP3RS | DMHP3RSH | DMCH250RS | DMCH250RSH |
Capacity(tph) | 115 - 400 | 115 - 400 | 115 - 380 | 115 - 380 |
CSS range(mm) | 13 - 51 | 13 - 51 | 13 - 44 | 13 - 44 |
Max. Feed size(mm) | 200 | 200 | 215 | 215 |
Engine power(kw) | 93 | 420 | 93 | 420 |
External power(kw) | 273 - 333 | 273 - 333 | 273 - 333 | 273 - 333 |
Transport size(LxWxH, M) | 20 x 3.65 x 3.8 | 20 x 3.65 x 3.8 | 20 x 3.65 x 3.8 | 20 x 3.65 x 3.8 |
Weight(tons) | 55 | 57 | 55 | 57 |
Our advantages:
Dongmeng dual-power mobile plant operates with low-cost electricity in areas with electricity, and uses diesel power to work in places without electricity, achieved flexible transitions and never stop.
1, No external power supply required;
2, Oil-electric dual power, high efficiency and energy saving;
3, Easy to move, transition at any time, never stop.
DM Tracked Mobile Crushers' 5 Big Advantages:
1, Excavator-like track mounted, quite suit for walking on wet muddy roads. The wheel crusher will get stuck in the mud.
2, Convenient transportation, Moving flexible between different work environments.
3, Modular assembly, compact structure, quite save working space.
4, Shorter transportation time and lower installation cost
5, Equipped with generator systems. Conveyor angle can be adjusted, can be flipped and folded

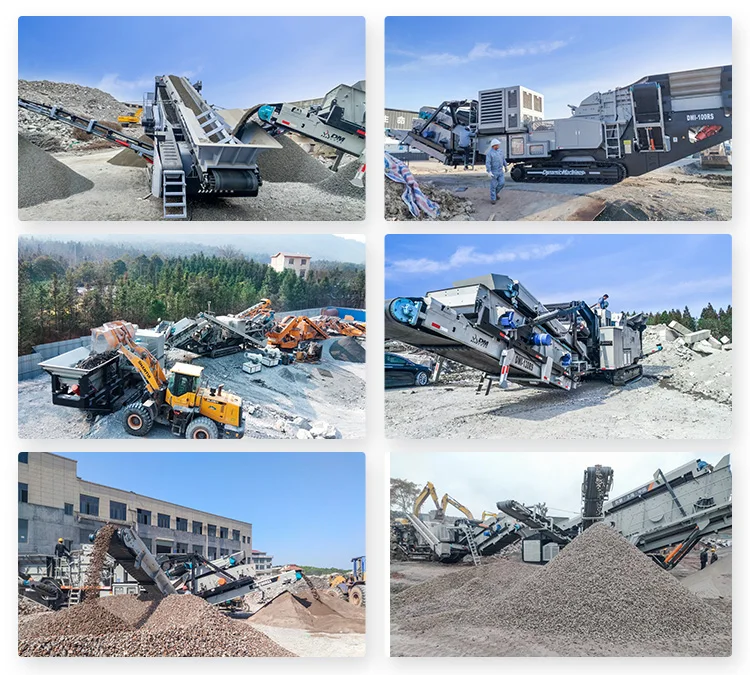

Wide Range of Applications, suitable for more than 200 kinds of Stones:
Our Service
1) Pre-sale service:
1) Inquiry and consulting support.
2) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
3) View our Factory. Field trips to sell products.
2) Medium-sales service:
Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export.
3) After-sales service:
1) On-site Service: We sent engineer to the scene to guide installation, debugging and training operators.
2) On-line Service: We also support remote service (parts delivery, troubleshooting, online guidance)
Company Information
Company Information
Shanghai Dongmeng Road&Bridge Machinery Co., Ltd. is a high technology company specializing in R&D and manufacturing large crusher, screen and crawler mobile crushing and screening
plants for more than ten years.We have more than 200 employees, 30 technical staff, with factory area of more than 20,000 square meters.
plants for more than ten years.We have more than 200 employees, 30 technical staff, with factory area of more than 20,000 square meters.
Q1:Installation?
Answer:At the client’s request, DongMeng can provide installation Technicians to supervise and assist in the assembly and commissioning of the equipment. Travel and accommodation costs.
Q2:Payment?
Answer:30% by TT as deposit on signing the contract, 70% by as final payment of balance after the client’s satisfactory inspection of the equipment prior to the goods leaving the DongMeng factory.
Q3:What about Warranty? what will we do if the machine is broken down?
Answer:The warranty period for all of DongMeng’s structural and mechanical equipment is one year. The warranty period for all electric motors is half one year. Wear parts are not covered by warranty unless the component part is found to be flawed.
Q4:What should we need to do for if we want to get a best quotation?
Answer:Hi, if you want us recommend a suitable type for you ,please let us know as follows:
1).the capacity (tons per hour )?
2).output size?
3).Max.Input Size?
4).stone type?
Q5:What could you help me to do for the business?
Answer:Many thanks for your trust , we can provide you with proposal chart for complete production lines ,
spot inspection and operator traning according to your demands and the conditions of applied spot , we can help you
choose the right equipments ,drilling rig ,loader ,trucks ,excavators and so on .
Q6:What's your After sales Service?
Answer:All equipment manufactured by DongMeng is of the highest standard and very rarely have our clients experienced any mechanical problems. Should any problems occur, our team of Engineers and Technicians will respond within12 hours of notice by the client.
Q7:Delivery time?
Answer:Standard delivery time for stationary crusher plant is 30 days from receipt of deposit,the mobile crusher plant is 45 days.
Answer:At the client’s request, DongMeng can provide installation Technicians to supervise and assist in the assembly and commissioning of the equipment. Travel and accommodation costs.
Q2:Payment?
Answer:30% by TT as deposit on signing the contract, 70% by as final payment of balance after the client’s satisfactory inspection of the equipment prior to the goods leaving the DongMeng factory.
Q3:What about Warranty? what will we do if the machine is broken down?
Answer:The warranty period for all of DongMeng’s structural and mechanical equipment is one year. The warranty period for all electric motors is half one year. Wear parts are not covered by warranty unless the component part is found to be flawed.
Q4:What should we need to do for if we want to get a best quotation?
Answer:Hi, if you want us recommend a suitable type for you ,please let us know as follows:
1).the capacity (tons per hour )?
2).output size?
3).Max.Input Size?
4).stone type?
Q5:What could you help me to do for the business?
Answer:Many thanks for your trust , we can provide you with proposal chart for complete production lines ,
spot inspection and operator traning according to your demands and the conditions of applied spot , we can help you
choose the right equipments ,drilling rig ,loader ,trucks ,excavators and so on .
Q6:What's your After sales Service?
Answer:All equipment manufactured by DongMeng is of the highest standard and very rarely have our clients experienced any mechanical problems. Should any problems occur, our team of Engineers and Technicians will respond within12 hours of notice by the client.
Q7:Delivery time?
Answer:Standard delivery time for stationary crusher plant is 30 days from receipt of deposit,the mobile crusher plant is 45 days.
