Электрическая компактная трансформаторная подстанция 400 кВА 500 630 10 кВ
- Категория: >>>
- Поставщик: Tianjin Kechang International Trade Co. Ltd.Tianjin Ltd.
Сохранить в закладки 1601367608977:
Описание и отзывы
Характеристики
Product Description
Specification
Product name | Compact substation |
Rated voltage | 10KV |
Application | Electric Power Transmission |
Material | Metal |
Colar | Customized |
Size | 2700*1550*2550mm |
Usage | Outdoor |
Frequency | 50HZ |
Brand | Kechang Electric |
Packing & Delivery
Packaging details | Wooden Case or as per customer requirements. | ||
Port | Tianjin | ||
Product description
1. Layout type

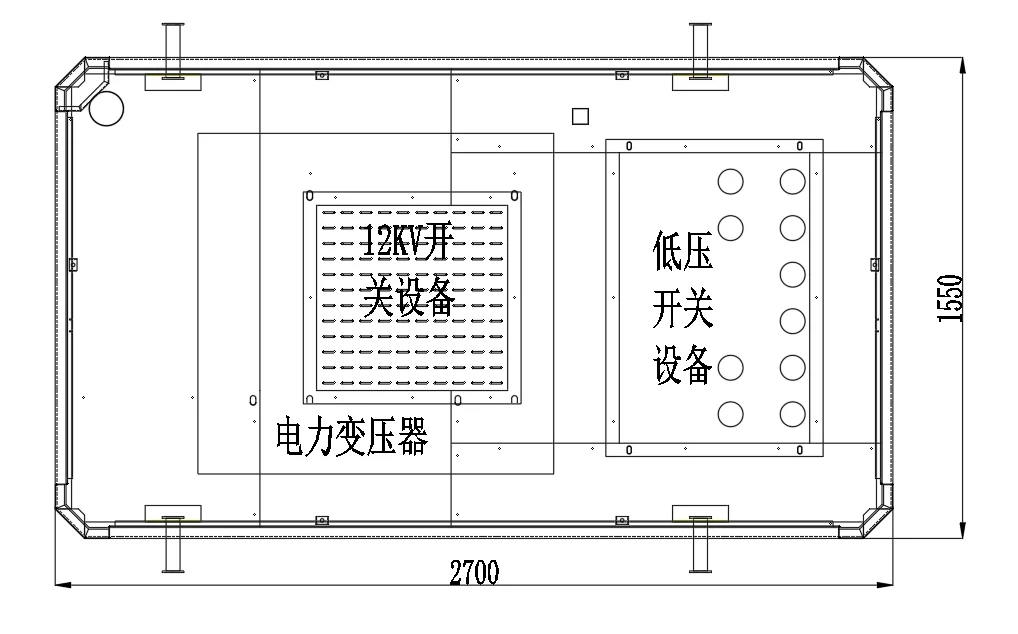

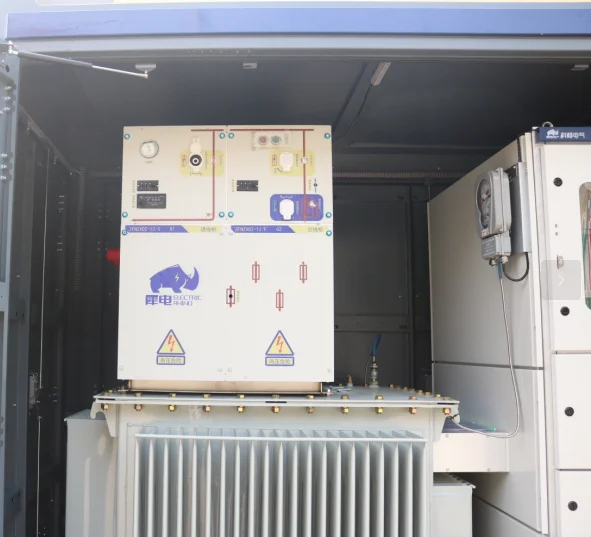

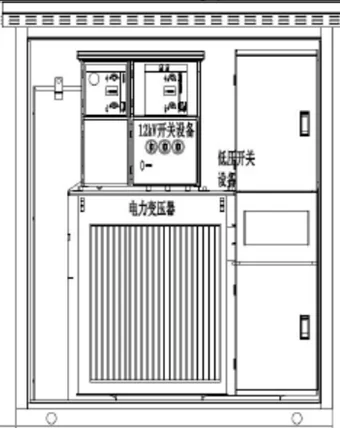

The 12kV switchgear is installed above the power transformer, and the low-voltage switchgear is located on the side of the power transformer and the 12kV switchgear. The layout is shown in the figure.
The 12kV switchgear is installed above the power transformer, and the low-voltage switchgear is located on the side of the power transformer and the 12kV switchgear. The layout is shown in the figure.
2. High-voltage cabinet
The high-voltage cabinet adopts a common box type SF6 gas insulated combined electrical cabinet, and the pressure relief channel of the high-voltage cabinet should be oriented towards the cable trench.
3. Transformer
3.1 Transformer type It is recommended to use energy-saving and environmentally friendly, fully sealed oil-immersed transformers. Specific parameters should meet the requirements of GB 1094, GB/T 6451, and GB 20052.
3.2 Rated capacity: 400kVA, 500kVA, 630kVA.

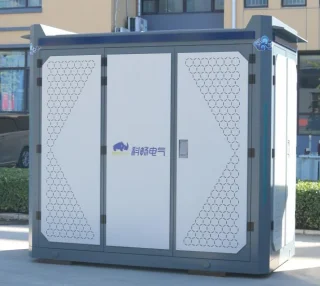

4. External appearance of the box transformer
Structural design and dimensions:
(1) The box body is made of metal.
(2) The box body width (excluding the top cover) is 2700 mm, the depth (excluding the top cover) is 1550 mm, and the height (including the top cover) is 2550 mm. The dimensions of the low-voltage cabinet are 1050 mm × 700 mm × 2000 mm (width × depth × height).

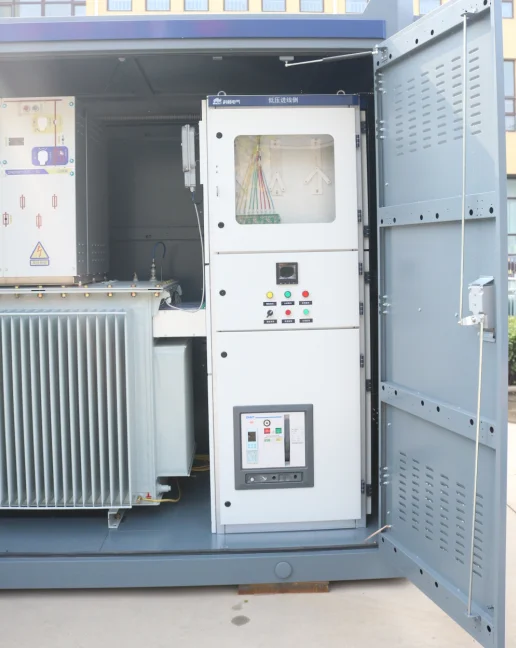

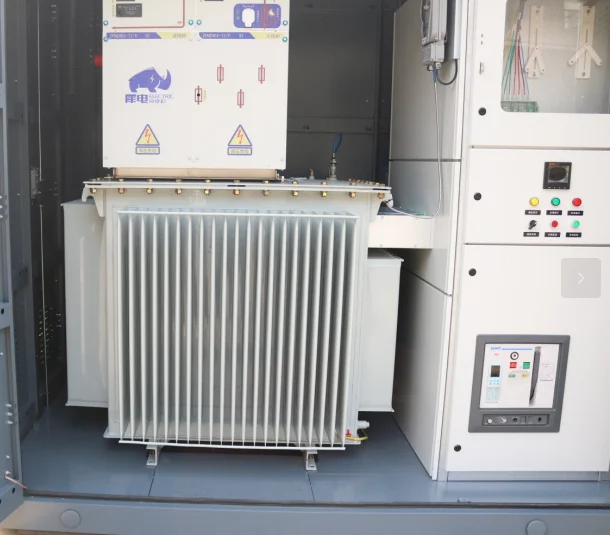

(3) A fully sealed oil-immersed distribution transformer is placed inside the box body, and a touchable elbow-type cable plug is used on the high-voltage side.
(4) The box transformer door should be designed with a windproof hook.
(1) The box body is made of metal.
(2) The box body width (excluding the top cover) is 2700 mm, the depth (excluding the top cover) is 1550 mm, and the height (including the top cover) is 2550 mm. The dimensions of the low-voltage cabinet are 1050 mm × 700 mm × 2000 mm (width × depth × height).
(3) A fully sealed oil-immersed distribution transformer is placed inside the box body, and a touchable elbow-type cable plug is used on the high-voltage side.
(4) The box transformer door should be designed with a windproof hook.
Company Profile
Specification
Company Profile
FAQ
Q1: What products do you have?
A1: Our main products include 16 categories, including oil-immersed transformers, dry-type transformers, substations, high and low voltage switchgear, circuit breakers, reactors, isolation transformers, etc., as well as some supporting electrical products.
Q2：Can your products be customized?
A2: Our products can be customized according to your actual needs based on the voltage, capacity, frequency and other technical specification of your country's products.
Q3: Do you provide OEM/ODM?
A3: We support OEM and ODM. We have professional senior engineers with 20 years of experience in the industry, who can design and produce various electrical equipment according to your requirements.
Q4: Can you provide samples? Are the samples free?
A4: Yes, we can provide different samples. But you have to pay for the samples and shipping.
Q5: How much is the shipping cost in our country?
A5: We have a number of cooperative logistics companies to select the most reasonable transportation costs for you.
A1: Our main products include 16 categories, including oil-immersed transformers, dry-type transformers, substations, high and low voltage switchgear, circuit breakers, reactors, isolation transformers, etc., as well as some supporting electrical products.
Q2：Can your products be customized?
A2: Our products can be customized according to your actual needs based on the voltage, capacity, frequency and other technical specification of your country's products.
Q3: Do you provide OEM/ODM?
A3: We support OEM and ODM. We have professional senior engineers with 20 years of experience in the industry, who can design and produce various electrical equipment according to your requirements.
Q4: Can you provide samples? Are the samples free?
A4: Yes, we can provide different samples. But you have to pay for the samples and shipping.
Q5: How much is the shipping cost in our country?
A5: We have a number of cooperative logistics companies to select the most reasonable transportation costs for you.
