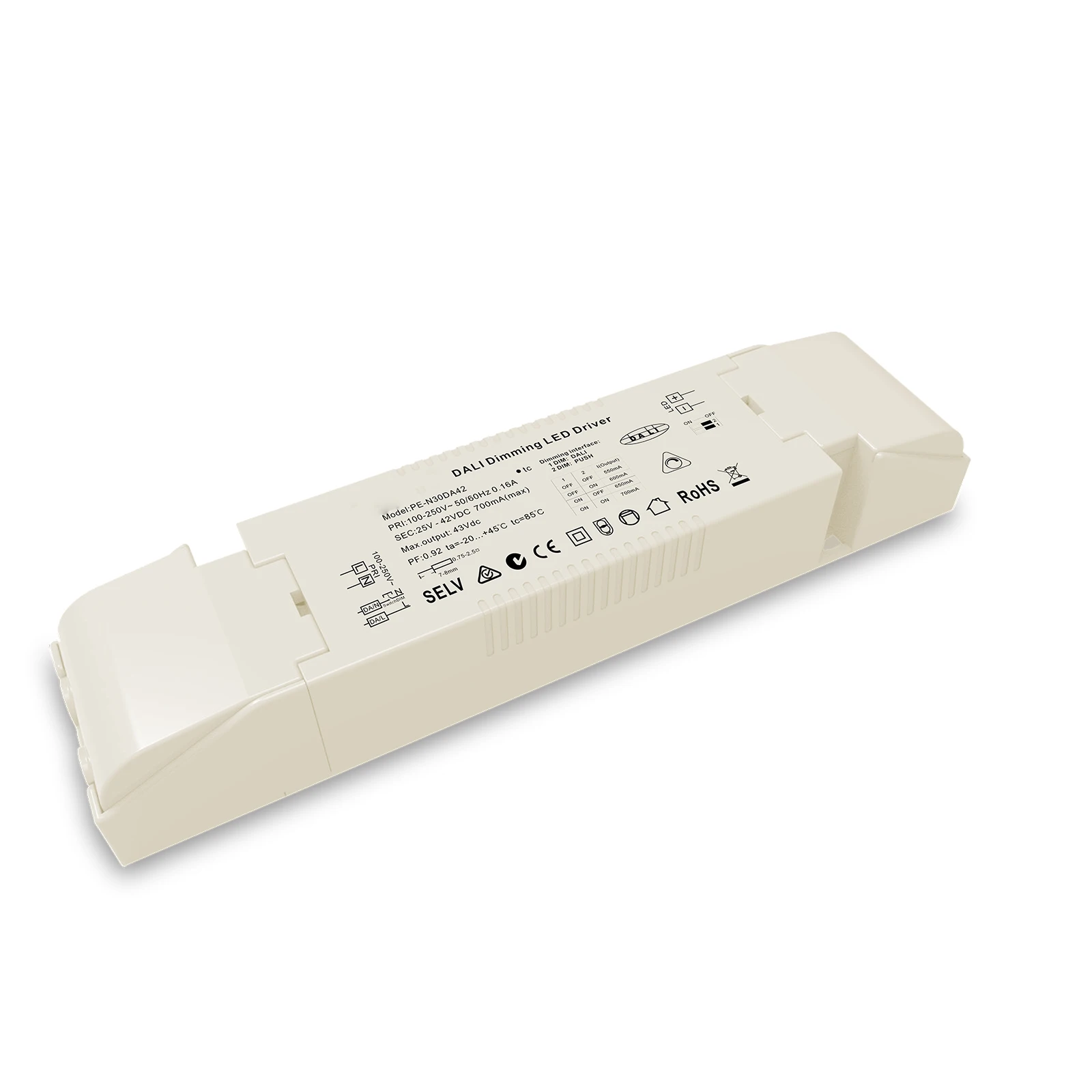

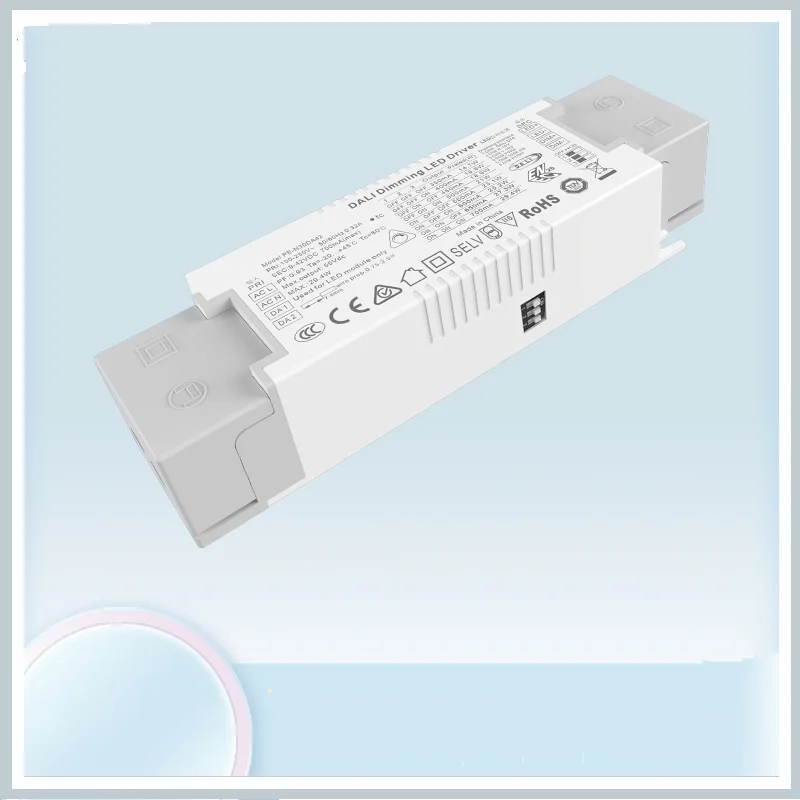

Zegbee wifi nfc dali светодиодный драйвер PE N30DA24 постоянного тока DALI с регулируемой яркостью 30 Вт функцией push 9 42 В 700mA

Model

PE-N30DA42

PE-N45DA42

OUTPUT

Output Voltage

9-42Vdc

9-42Vdc

Max Output Voltage

42Vdc

42Vdc

Non-load Output Voltage

55Vdc

55Vdc

Output Current

550/600/650/700mA

900/950/1000/1050mA

Output Power

4.95W~29.4W

8.1W~44.1W

Strobe Level

No Flicker

Dimming Range

0~100%,LEDstart at 0.03%possible.

PWM Dimming Frequency

>3600Hz

Current Accuracy

±3%

Ripple & Noise

≤2V (No dimming)

INPUT

Dimming Interface

DALI (IEC62386), Push /0-10V/1-10V/PWM/100KR DIM Signal control current < 0.1mA

Input Voltage Range

100-250Vac

Frequency

50/60Hz

Input Current

<0.37A

<0.56A

Power Factor

PF>0.95/100Vac, at full load

PF>0.95/100Vac, at full load

THD

230Vac@THD ≤15% (full load)

Efficiency(tys.)

88% full load

88% full load

Inrush Current(typ.)

Cold start 3.7A@230Vac

Cold start 5.6A@230Vac

Anti Surge

L-N: 2kV

Leakage Current

<0.25mA/230Vac

ENVIRONMENT

Working Temperature

ta: 45°C tc: 80°C

Working Humidity

20 ~ 95%RH, non-condensing

Storage Temp., Humidity

-40 ~ 80°C, 10~95%RH

Temp. Coefficient

±0.03%/°C(0-50) °C

Vibration

10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.

PROTECTION

Over-heat Protection

Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, , auto recovers.

Over Load Protection

Shut down the output when rated power≥102%, auto recovers.

Short Circuit Protection

Shut down automatically if short circuit occurs, auto recovers.

Non-load Protection

output Constant Voltage.

SAFETY & EMC

Withstand Voltage

I/P-O/P: 3750Vac

Isolation Resistance

I/P-O/P: 100MΩ/500VDC/25°C/70%RH

Safety Standards

IEC/EN61347-1, IEC/EN61347-2-13

EMC Emission

EN55015, EN61000-3-2 Class C, IEC61000-3-3

EMC Immunity

EN61000-4-2,3,4,5,6,8,11, EN61547

Strobe Test Standard

IEEE 1789

OTHERS

Dimension

147.5(117)×43×30mm(L×W×H)

Packing

PE bag

Weight(G.W.)

187g/245g±10g
