S5751 L8T2HJ RUA 98012491 коммутатора ethernet 8 портов с портами 8*10/100/1000BASE T 2 * гибридных 5G SFP

S5751 L8T2HJ RUA 98012491 коммутатора ethernet 8 портов с портами 810/100/1000BASE T 2 гибридных 5G SFP

Категория: >>>
Поставщик: Chongqing Yujia Technology Co. Ltd.Chongqing Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

Part Number	98012491
Model	S5751-L8T2HJ-RUA
Description	S5751-L8T2HJ-RUA (810/100/1000BASE-T ports, 2Hybrid 2.5G SFP ports, PoE via hybrid cable, Fanless)

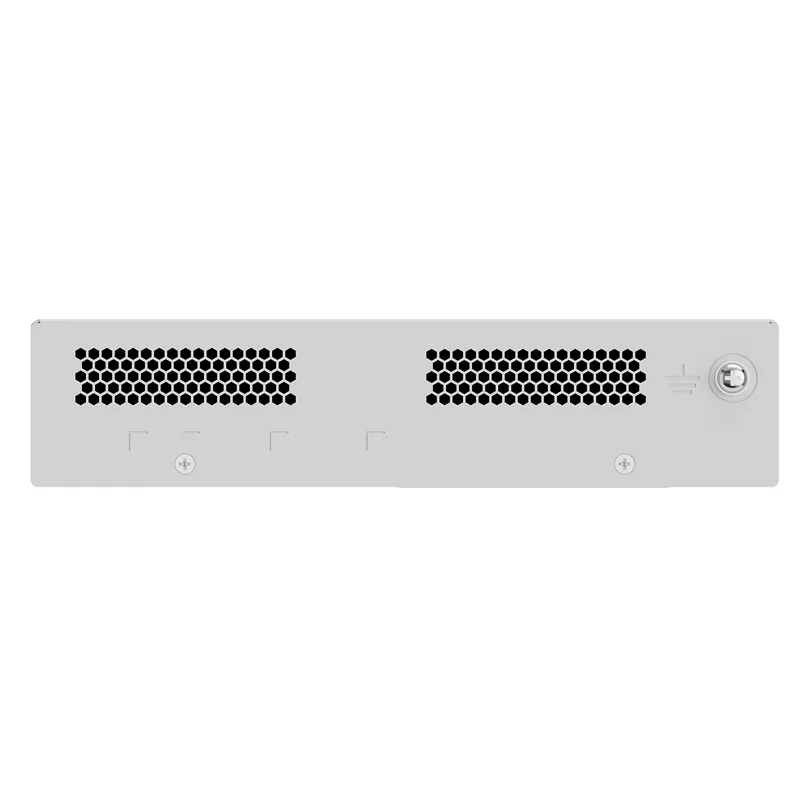

Details Images

Specification

Remarks	The RU itself does not have a software version. Instead, the first supported version of the RU depends on the software version of the central switch and varies for central switches running V200 and V600.
Chassis material	Metal
Height [mm]	43.6 mm
Depth [mm]	160 mm
Wide [mm]	195 mm
Chassis height [U]	1
Weight with packaging [kg(lb)]	1.69 kg (3.73 lb)
Weight without packaging [kg(lb)]	1.2 kg (2.65 lb)
Maximum power consumption [W]	- Power adapter: 10.00 W (device), 11.87 W (device + adapter) - Hybrid cable: 17.57 W
Typical power consumption [W]	- 11.14 W (via a power adapter) - 13.14 W (via a hybrid cable)
Heat dissipation mode	Natural heat dissipation
Maximum heat dissipation [BTU/hour]	- Power adapter: 34.12 (device), 40.49 (device + adapter) - Hybrid cable: 59.96
Typical heat dissipation [BTU/hour]	- 34.12 (via a power adapter) - 44.82 (via a hybrid cable)
Power supply mode	Power adapter,PoE_IN
Input voltage range [V]	Power adapter HW-120100C9W (China), part number 02221791: - Power adapter input: 170 V AC to 270 V AC; 47 Hz to 63 Hz Power adapter AD-120100E0W (Europe), part number 02221933: - Power adapter input: 90 V AC to 264 V AC; 45 Hz to 65 Hz Power adapter AD-120100B0W (UK), part number 02221936: - Power adapter input: 90 V AC to 264 V AC; 45 Hz to 65 Hz Power adapter AD-120100U0W (USA), part number 02221932: - Power adapter input: 90 V AC to 264 V AC; 47 Hz to 63 Hz Hybrid cable (PoE): 54 V DC to 57 V DC
Rated input voltage [V]	Power adapter HW-120100C9W (China), part number 02221791: - Power adapter input: 170 V AC to 240 V AC; 50/60 Hz - Power adapter output: 12 V DC Power adapter AD-120100E0W (Europe), part number 02221933: - Power adapter input: 100 V AC to 240 V AC; 50/60 Hz - Power adapter output: 12 V DC Power adapter AD-120100B0W (UK), part number 02221936: - Power adapter input: 100 V AC to 240 V AC; 50/60 Hz - Power adapter output: 12 V DC Power adapter AD-120100U0W (USA), part number 02221932: - Power adapter input: 100 V AC to 240 V AC; 50/60 Hz - Power adapter output: 12 V DC Hybrid cable (PoE): 56 V DC
Maximum input current [A]	1 A
Number of power slots	0
Number of card slots	0
Memory	-
Flash memory	-
Redundant power supply	The uplink hybrid optical-electrical port and adapter back up each other. The power adapter is not provided by default and can be purchased as required. 02221791: power adapter (China) 02221933: power adapter (Europe) 02221936: power adapter (UK) 02221932: power adapter (USA)
Types of fans	None
Noise at normal temperature (acoustic power) [dB(A)]	Noise-free (no fans), < 30
Noise at normal temperature (acoustic pressure) [dB(A)]	Noise-free (no fans), < 20
Airflow direction	-
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5906 ft.) When the power adapter AD-120100E0W (Europe) (part number: 02221933) is used, the long-term operating temperature of the device ranges from –5°C to +40°C (23°F to 104°F).
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F).
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
MTBF [year]	84.12
MTTR [hour]	2
Availability	> 0.99999
Maximum number of physical ports on the entire device	10
Maximum number of 100GE ports	0
Maximum number of 40GE ports	0
Maximum number of 25GE ports	0
Maximum number of 10GE ports	0
Maximum number of GE ports	10
Maximum number of FE ports	10
1000M electrical interface	8
USB	Not supported
Console port	Not supported
Eth Management port	Not supported
Power supply surge protection	Differential mode: ±4 kV; common mode: ±6 kV
RPS input	Not supported
PoE	Not supported

Packing & Delivery

Company Profile

Chongqing Yujia Technology Co., Ltd. was established in 2010, we have been engaged in this industry more than 10 years. In order to meet the needs of customers, we have eatablished a perfect supply chain system to provide super products with reliable quality and reasonable price. we are devoted to offering Switches, Routers, OLTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless AP etc. our long-term aim is to provide users high-quality, efficient, economic, timely services. The rich experience of our wealth, serious and responsible attitude is our responsibility. Looking forward to establish long-term and win-win business relations with you.

Why Choose Us

A)Stable and Wide Supply Chain System
we have established a perfect supply chain system to provide a wide range of products with reliable quality and reasonable price.

B)Competitive Price
We ensure the most competitive price. Warm reminders here, telecommunications equipment configuration is quite different, the
price shown on the website is only for reference. After configuration and quantity been confirmed, we will give the final most
competitive discounted price.

C) Safe and Easy Payment Solutions
We support a variety of payment methods, such as T/T, credit card, et

D)Fast Delivery and Shipping
Fast, professional and reliable delivery.

E)Complete and powerful pre-sales and after-sales service system
To provide customers with professional pre-sales service, as well as after-sales technical services

F)More Than 10 Years Industry Experience
we have been engaged in this industry more than 12 years, we have rich industry experience.

FAQ

1. Why choose us?
We are the leading Chinese supplier of quality networking equipments and we have over 10 years experience in this field.

2. What's the quality of the products?
All the items are brand original.

3. How to place an order?
After customer confirm the order , we will create an order as your request. We accept many terms of trade such as T/T,
Wester,Union, Alibaba Orders, Alipy and etc.

4. How about the shipment?
We deliver products by FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Air shipping & Ocean transportation. We are also able to deliver goods to your forwarder in China if you need.

5. How about the warranty?
1 Year warranty.

6. Do you test all your goods?
A: Yes, we have professional engineer to test all devices before shipping.

7. What if machine not work during warranty?
Technical support avaliable,if can't fixed, replacement or return with full refund acceptable.

8. How about your main products?
Our product lines include Switches, Routers, SFP Modules, OLTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless AP etc.

9. What brand of products do you offer?
A: We can supply all the brands you need.
