Заводской прямой настенный фильтр 150A AHF активный гармонический

Заводской прямой настенный фильтр 150A AHF активный гармонический

Категория: >>>
Поставщик: Shanghai Yingtong Electric Co. Ltd.Shanghai Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

YTPQC-AHF Active Harmonic Filter is a perfect comprehensive solution to power quality problems with power grid such as harmonic wave, reactive power, and three-phase load unbalance. YTPQC-AHF Active Harmonic Filter is connected in parallel in power grid, to detect the harmonic wave in power grid in real time, generate the reverse-phase compensation current through the converter, and dynamically filter the harmonic wave in power grid. The operation of YTPQC-AHF is unaffected by power grid structure and load type, and it will not produce harmonic oscillation with the system, thus perfectly realizing harmonic wave control of various loads. YTPQC-AHF Active Filter can also realize dynamic reactive compensation, and control the capacitor switching, to improve the power factor of power grid. Meanwhile, YTPQC-AHF Active Harmonic Filter has the function of controlling the three-phase load current unbalance, thus comprehensively solving various power quality problems with power grid.

YTPQC-AHF based on 3-level topology, is an Active Harmonic Filter (AHF) system designed to eliminate harmonic oscillations and reduce costs consequently. YTPQC- AHF is a versatile solution, easily tailored to deliver power factor improvement, voltage variation control, flicker mitigation and load balancing functionality, and highly improved power quality in networks while reducing harmonic pollution.

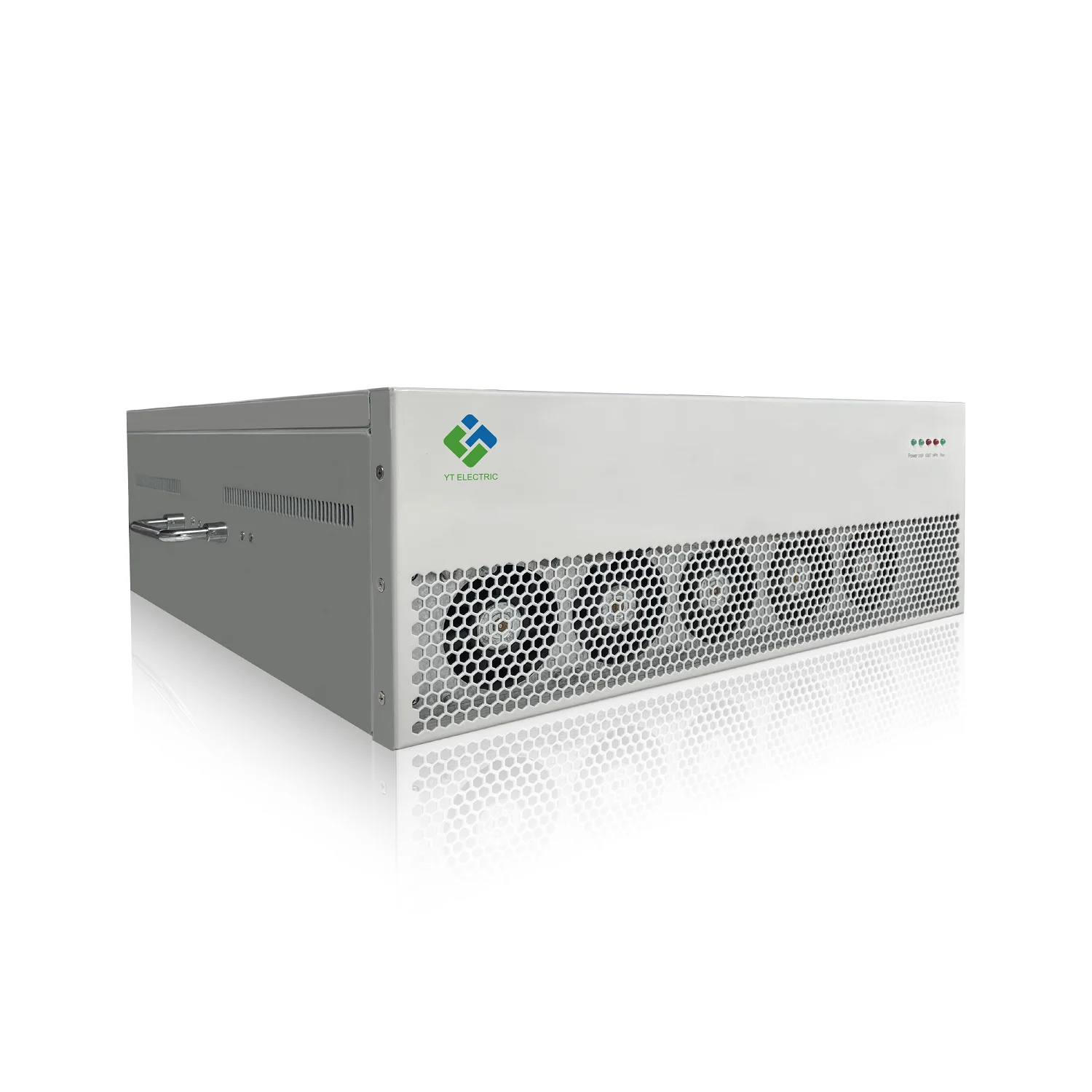

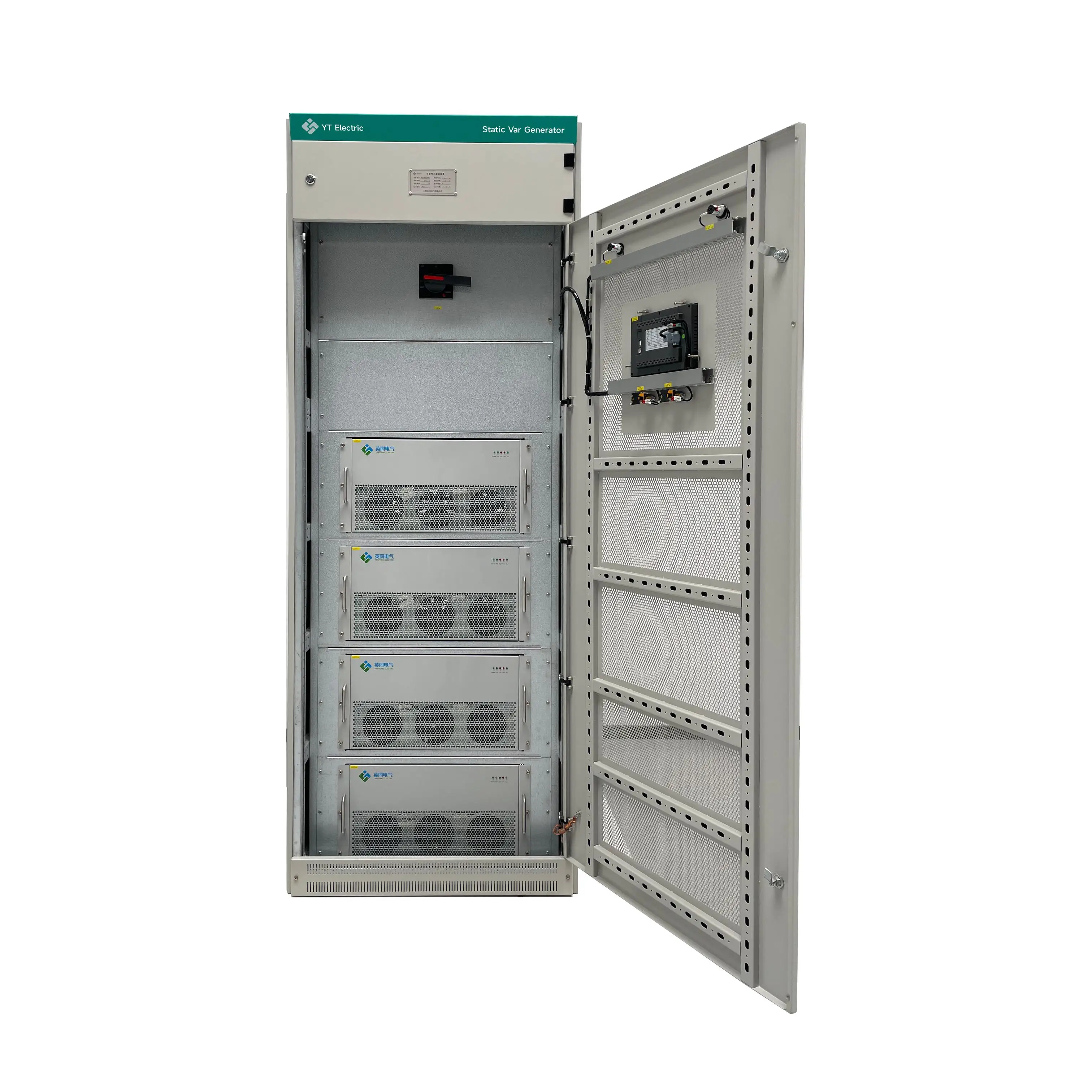

YTPQC Active Harmonic Filter has a advanced modular design. Usually YTPQC-AHF consists of one or several AHF modules and an optional touched LCD Human Machine Interface. Each AHF module is an independent harmonic filtering system, and users can change the harmonic filtering system rating by adding or removing AHF modules.

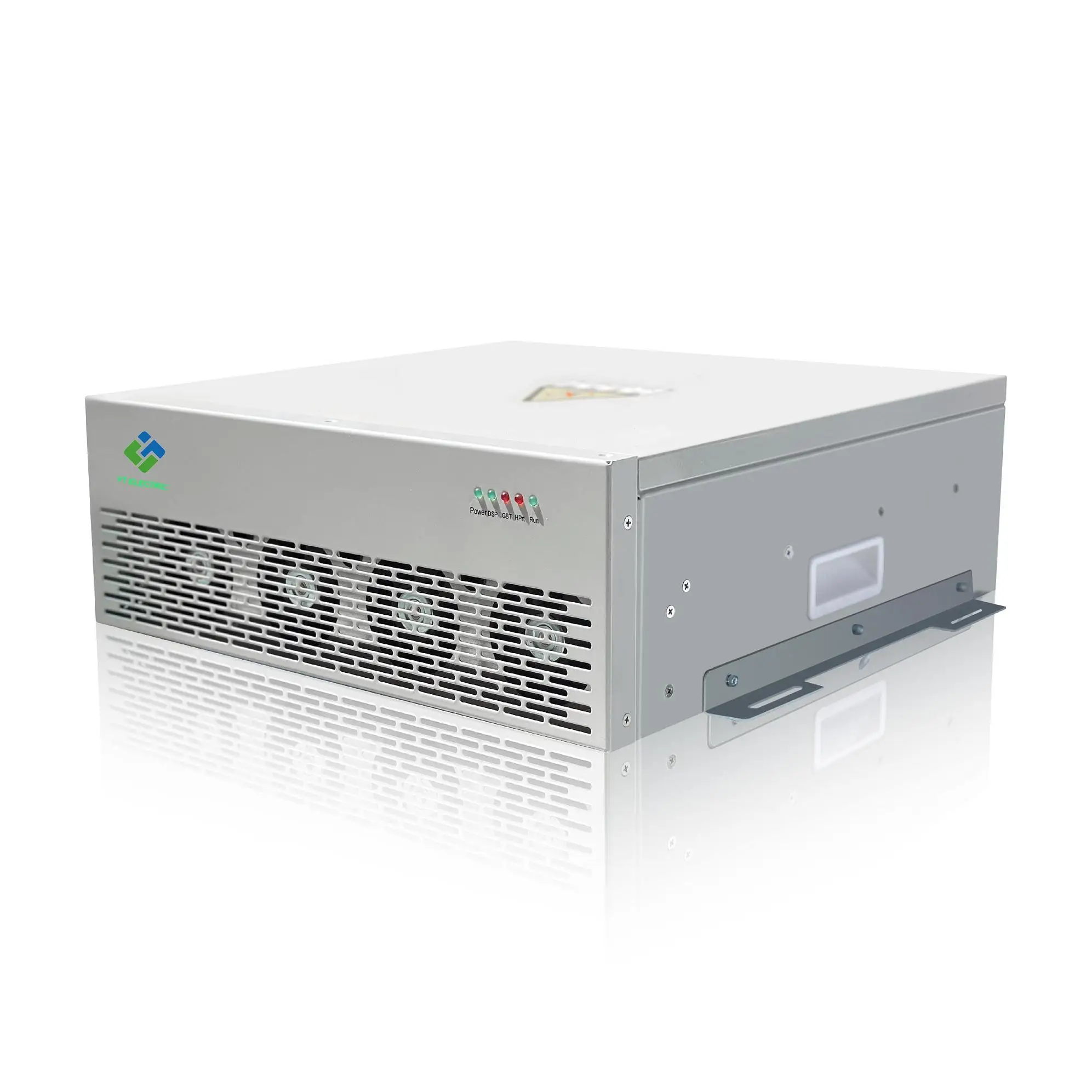

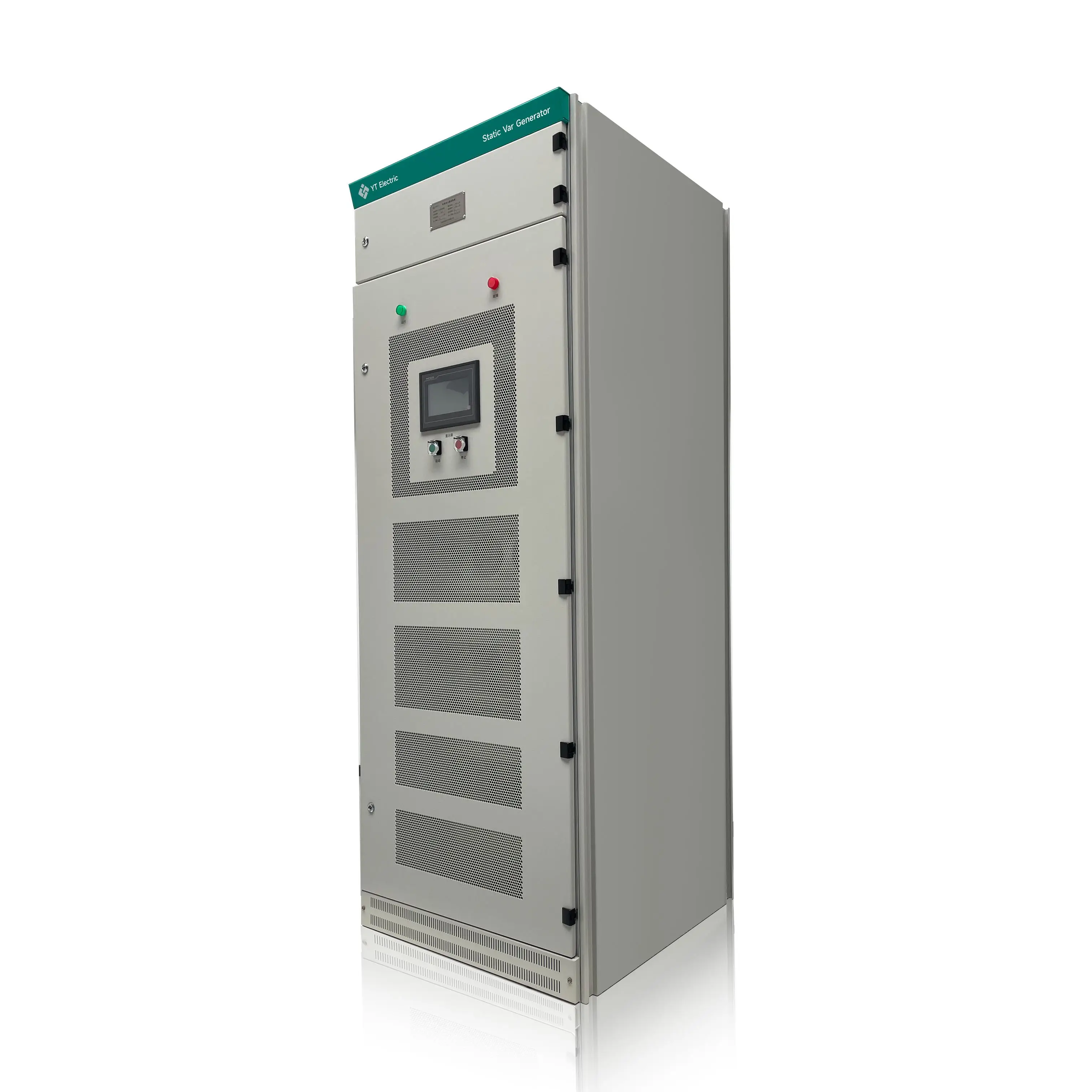

According to the mounting type, YTPQC-AHF can be divided into Rack Modular, Wall-mounted and free landing AHF.

AHF Features and Benefits

YTPQC Active Harmonic Filter has advanced features like active harmonic filtering, reactive power compensation, load balancing and capacitors controlling, as a one-stop solution for power quality management. YTPQC-AHF helps to make installations compliant with prevailing power quality regulations by mitigating harmonic distortion, load unbalance and reactive power.

Leading Technology

* Three level topology
* Ultra-compact Modular design
* Fastest switching frequency 25.6kHz
* Lowest power consumption ≤ 2.5%
* Leading dissipation technology

Optical Harmonic Filter

* Self-adaptive algorithm(ADALINE)
* THDi less than 5% at rated load
* High filtering efficiency up to 98%
* Fast Response time less than 5ms
* Selective or Full compensation

Best Power Quality Control

* Continuous power factor correction
* Both capacitive and inductive control
* Precise PF maintain -1.0 ≤ CosΦ ≤ 1.0
* 3 phase load balance less than 5%
* Mitigates neutral current

High Quality Assurance

* TI DSP, Infineon or Semikron IGBT
* High Stability,avoids resonance
* Both Hardware and software protection
* High Reliability Test
* Good Environmental adaptability

YTPQC-AHF Data Sheet

Specifications	Rated voltage	AC 200V~480V ±15%
		Working frequency	50/60Hz ±5%
		Circuit topology	Three-level
		Wiring mode	3P3W,3P4W
		Scope of filters	2nd to 50th odd harmonics (the order can be chosen)
		Effect of smoothing governance	Rate of Harmonic filtering ≥97%; THDi<5% after systematic control
		Compensation mode	Harmonic compensation, Reactive compensation, Three-phase load unbalance compensation
		Effect of reactive compensation	COSΦ≥0.99(after compensation)
		Effect of Three-phase unbalance compensation	The unbalance degree of three-phase active current is less than 5% after compensation within the rated capacity.
		Initial response time	<50us
		Response time	<5ms
		Active loss of system	<2.5%
		Output current limit	Automatically restricted within 100% of rated capacity when outputting
		Number of units (connected in parallel)	≤12 units (single CT)
		MTBT	>100,000 hours
Control characteristics	Controller	DSP+FPGA
		Control algorithm	Self-adaptive control algorithm
		Communication mode	Modbus remote communication protocol is adopted, RS485 and Can Bus are used for communication interface, which supports mobile phone app operation.
		Control connection	Fiber or electrical connection
Structural characteristics	Weight	Refer to the model selection table.
		Level of protection	IP20
		Cooling method	Forced air-cooling
		Noise	<60db (<45db during low-speed operation)
		Installation method	Module embedded installation
Environmental requirements	Ambient temperature	-20~55℃
		Relative humidity	Maximum 95%, without condensation
		Mounting height above sea level	≤2,000m at rated capacity; appropriately reduce the capacity if it is greater than 2,000m

Successful Projects

In the manufacturing plants, the Variable Frequency Drives (VFDs) have extensively been used for the motor control purposes to save energy. However, they are one of the major sources of harmonic distortions in the network. YTPQC-AHF Active Harmonic Filters can effectively cancel the harmonic distortions created by variable speed drives in industrial applications. YTPQC-AHF bring power quality benefits to variety of industries including the following,

• Food & beverage industry

• Automotive industry
• Oil & gas industry
• Paper & Chemical industry
• Pharmaceutical industry
• Textile & clothing industry
• Steel industry
• Cement industry
• Microelectronic manufacturers
• Other industries with AC or DC drives
