Серводвигатель изоляционный стеклянный станок вертикальный двойной стеклопакет делая машину двойное остекление изолированное стекло производственная линия
28 000,00-36 000,00 $
Лидер продаж автоматическая машина для производства двойного остекления ведущая технология DGU IG IGU Line суперпрокладка строительный насос
- Категория: >>>
- Поставщик: Shandong Truetec Machinery Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601368636373:
Описание и отзывы
Характеристики
Automatic Double Glass Production Line Deep Processing Insulating Glass Machine
Equipment Features:
1. PLC control touch screen human-machine interface.2. Automatic identification of coated glass and LOW-E glass film layer.
3. The application of imported vacuum generator and suction cup make better glass catching effect.
4. Three pairs of glass cleaning hairbrushes rotation speed can be driven by frequency conversation.
5. Big small sized and three layer hallow glass can be produced according to constomer requirements.
6. Digital controlled assembling line to save production time and improve efficiency.
7. The production panel has been processed with plastic spraying to achieve beautiful appearance and durable service life.
8. Cleaning machine is made with stainless steel and resistance material.
9. All electric appliance are selected from famous international brand.
10. The press section can be pushed to 450mm with big stroke to make it convenience for maintenance. (Optional)
11. When for exterior conjunction the plate press adopts central location way.
12. Free alternative between interior and exterior cunjunction.
13. The press section adopts opening-door style to convenient overhaul and maintenance.
Technical Data | ||||||||||||
Model | JYW-2500 | JYW-2200 | JYW-2000 | JYW-1800 | JYN-2000 | JYN-1800 | ||||||
Power Supply | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | ||||||
Power | 28KW | 28KW | 23KW | 23KW | 21KW | 21KW | ||||||
Work pressure | 0.5-0.8MPa | 0.5-0.8MPa | 0.5-0.8MPa | 0.5-0.8MPa | 0.5-0.8MPa | 0.5-0.8MPa | ||||||
Max glass size | 2500*3000 mm | 2200*3000mm | 2000*2500mm | 1800*2500 mm | 2000*2500mm | 1800*2500mm | ||||||
Min glass size | 280*450mm | 280*450mm | 280*450mm | 280*450mm | 280*450mm | 280*450 mm | ||||||
Working direction | Right to left or Left to right | Right to left or Left to right | Right to left or Left to right | Right to left or Left to right | Right to left or Left to right | Right to left or Left to right | ||||||
Glass thickness | 3-18mm | 3-18mm | 3-18mm | 3-18mm | 3-18mm | 3-18mm | ||||||
Transfer speed | 8-45m/min | 8-45m/min | 8-45m/min | 8-45m/min | 8-45m/min | 8-45m/min | ||||||
Total weight | 7000kg | 6000kg | 4500kg | 4500kg | 4500kg | 4000kg | ||||||
Boundary dimension | 22200*2000*3700mm | 22200*2000*3400mm | 18900*2100*3200mm | 18900*2100*3000mm | 15900*2400*3200mm | 15700*2400*3200mm | ||||||
Machine Details
This section including two parts
1, all two parts are made by stainless steel.
2, with 3 pairs of brushes 2 pairs of air knives.
Two pairs of soft brushes for Low-E glass and coated glass, one pair of hard brush for normal float glass.
2, with 3 pairs of brushes 2 pairs of air knives.
Two pairs of soft brushes for Low-E glass and coated glass, one pair of hard brush for normal float glass.

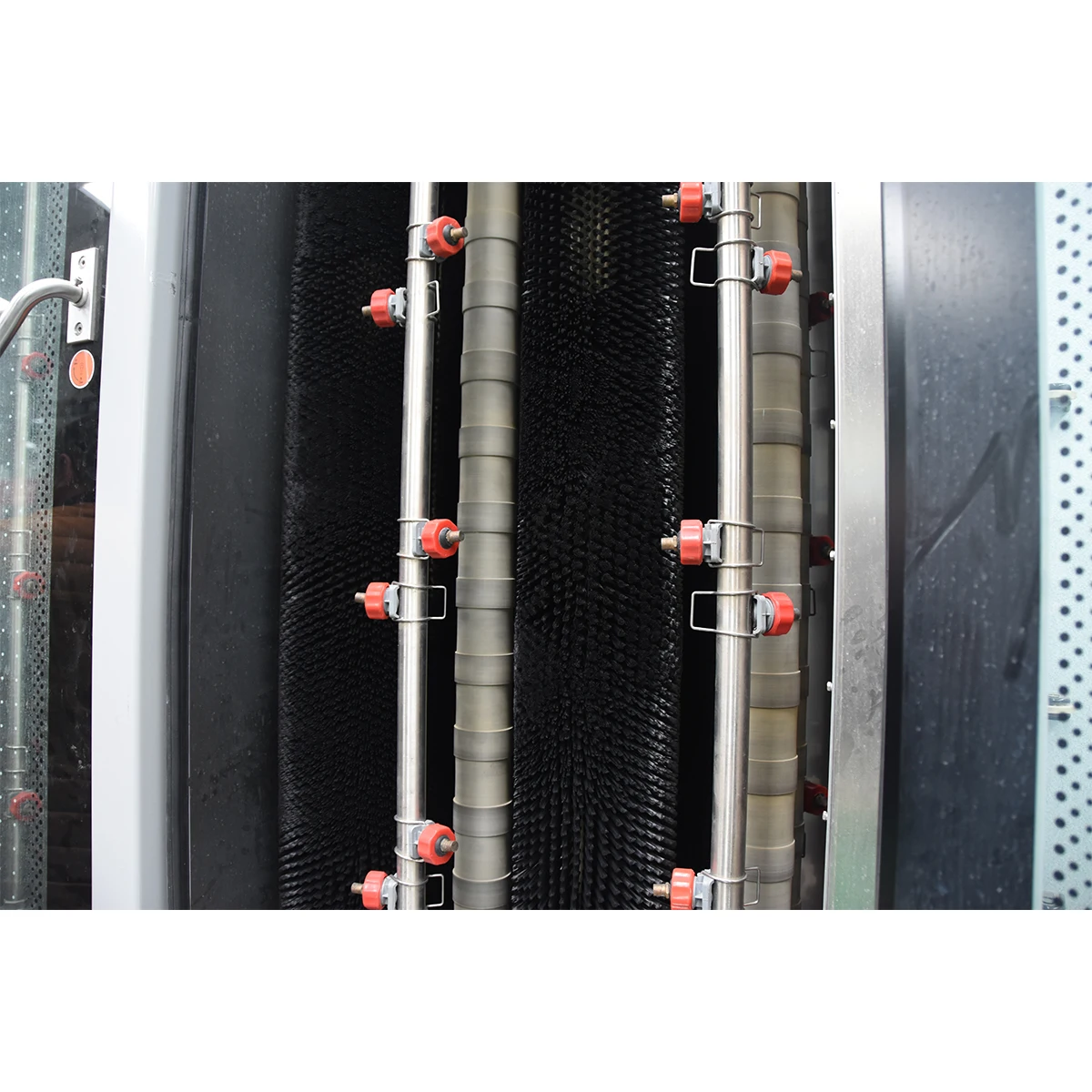

The brushes and rollers
with 3 pairs of brushes 2 pairs of air knives.
Two pairs of soft brushes for Low-E glass and coated glass, one pair of hard brush for normal float glass.
Two pairs of soft brushes for Low-E glass and coated glass, one pair of hard brush for normal float glass.
The drying parts with two pair air knives

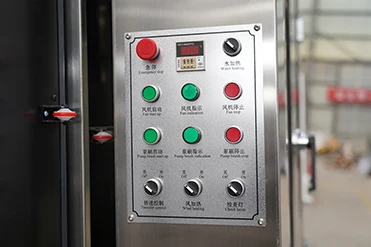

English panel of washing and drying part
(We can customized in different language)
(We can customized in different language)
The water spraying nozzle
It can be open by hand which makes it easy to clean.
The beautiful stainless tell and structure
The blower behind the washing and drying section

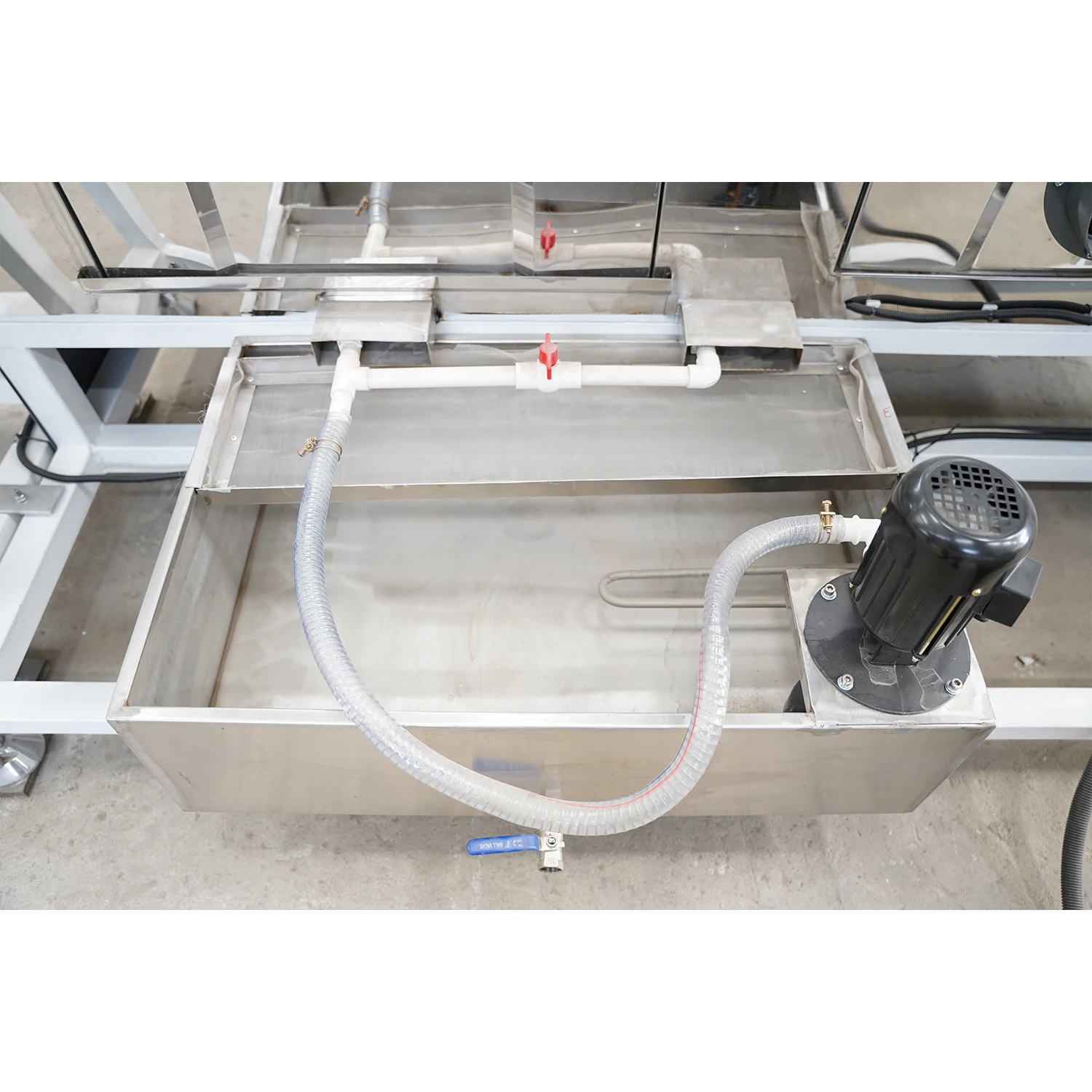

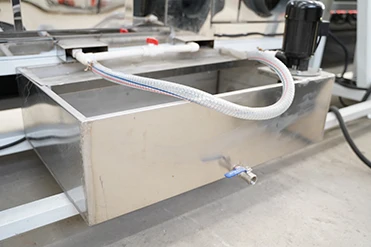

Water tank behind the washing and drying section
Sensors at the front of the washing and drying section identify the type and thickness of the glass, and the brushes inside will automatically spread to the appropriate width
The structure in the aluminum spacer location part can adjust the in width according to
the aluminum spacer width
the aluminum spacer width
The body of the machine is thickened
Beautiful looking after powder painting
Touch screen for the pressing section with different language can be choose
The press section can be pushed to 450mm with big stroke to make it convenience for maintenance (This function is optional)

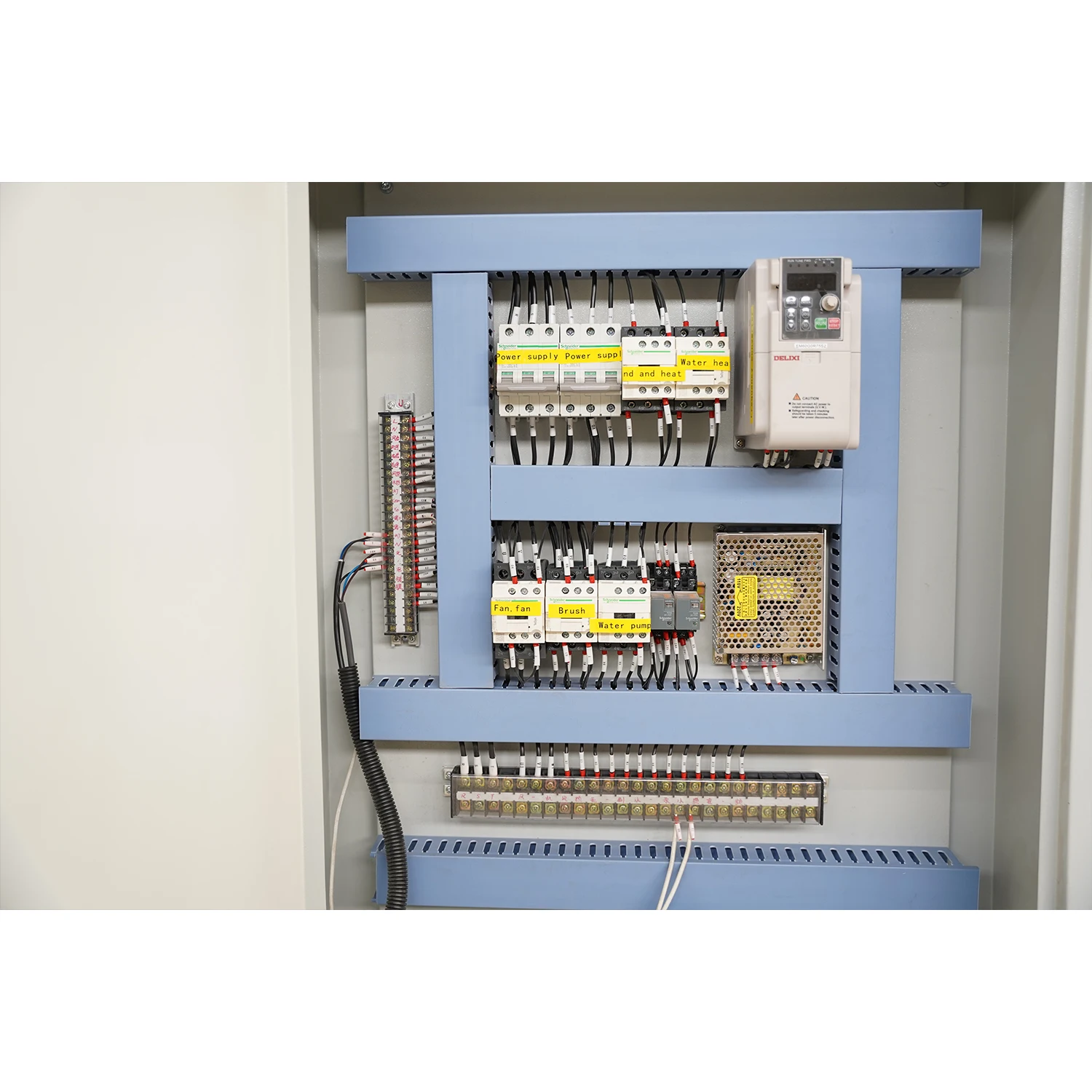

Control box is produced by ourselves
This is the core of the whole machine
It is including PLC, electric components, etc
It is including PLC, electric components, etc
Packed with film and load into a full container
Sample
Packing Details :
1.Simple stretch film packaging;
2.Professional export wooden packing.
Delivery Details : 15-20 Days after receive the first deposit.
2.Professional export wooden packing.
Delivery Details : 15-20 Days after receive the first deposit.
Shandong Truetec Company is a manufacturer of glass processing machines, such as insulating glass making machines, glass edging and beveling machines, glass cutting machines, tempered glass furnace, etc, with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries.
We believe that "IT'S THE BEST THAT FITS MOST".
Every machines can be customized to meet your special requirements.
Hope we can cooperate with you.
Pre-sales Service
1. Fastly and professional reply to you about your questions for our napkin folding paper production machine.
2. Expert sales person will provide you professional suggestion to you based on your correct needs for the configurations of the machines.
3. Detailed and clearly explain to you when you come to our factory for visiting before contract.
In-sales service
1. One-stop and customize service for you, all napkin paper processing related machines are available from us.
2. 24 Hours online service, 7 Days one week support for you if any technical questions or problems about toilet tissue paper making machine.
After sales service
1.Engineers overseas installation and training, all our engineers are rich experience for overseas working
2.Guarantee you steady supply for the spare parts with the lower prices
1. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
4.If our price is higher than another company or factories ?
A:Please check, what is different with the machine,service and guarantee,especially the machine inner electric parts, sometimes, if machine is breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.
We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
4.If our price is higher than another company or factories ?
A:Please check, what is different with the machine,service and guarantee,especially the machine inner electric parts, sometimes, if machine is breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.
The following machine you may also interested
Похожие товары

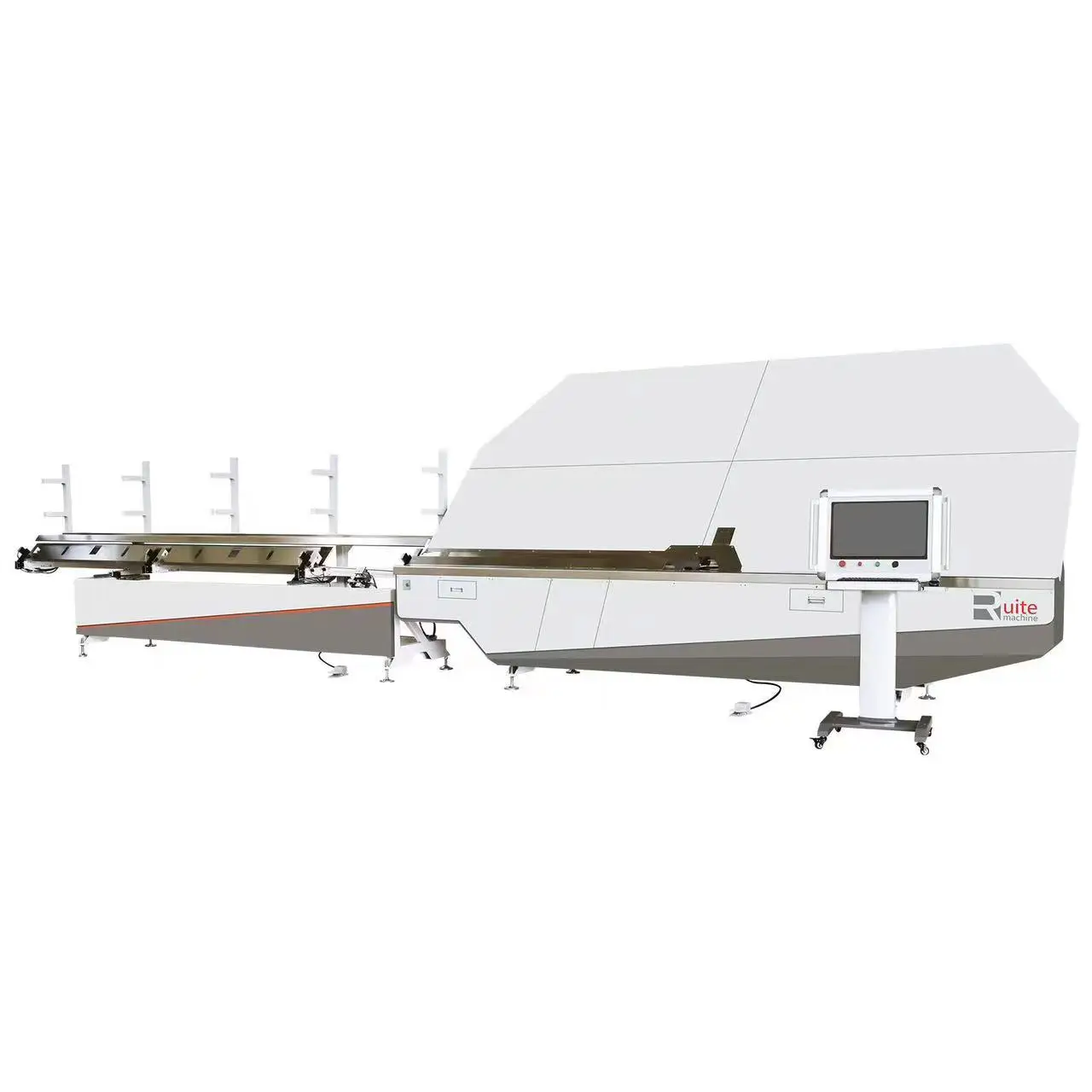

Максимизация производительности в двойном остеклении с помощью автоматизированной технологии разделителей
