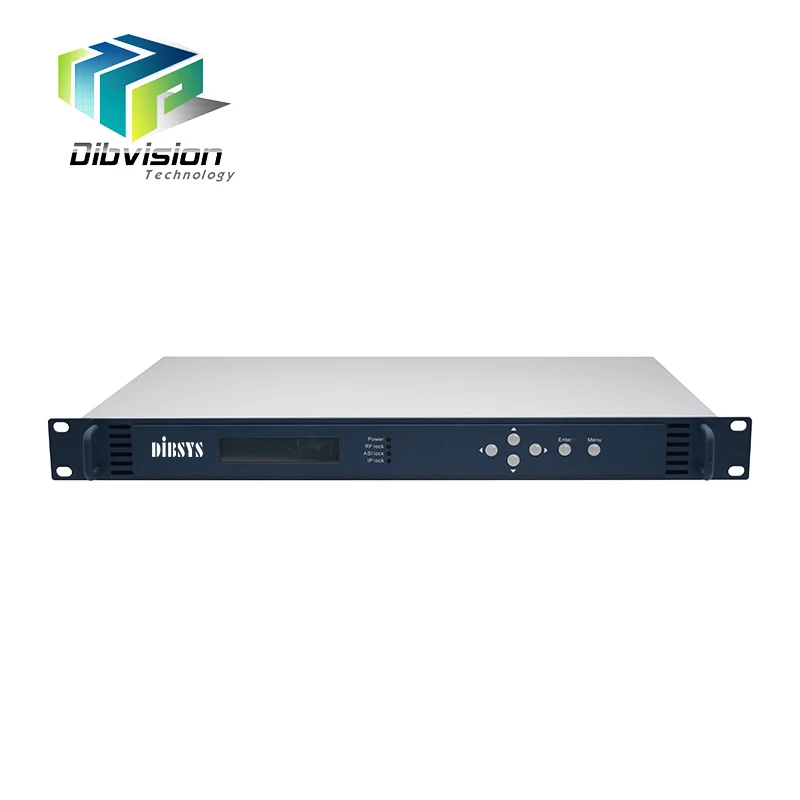

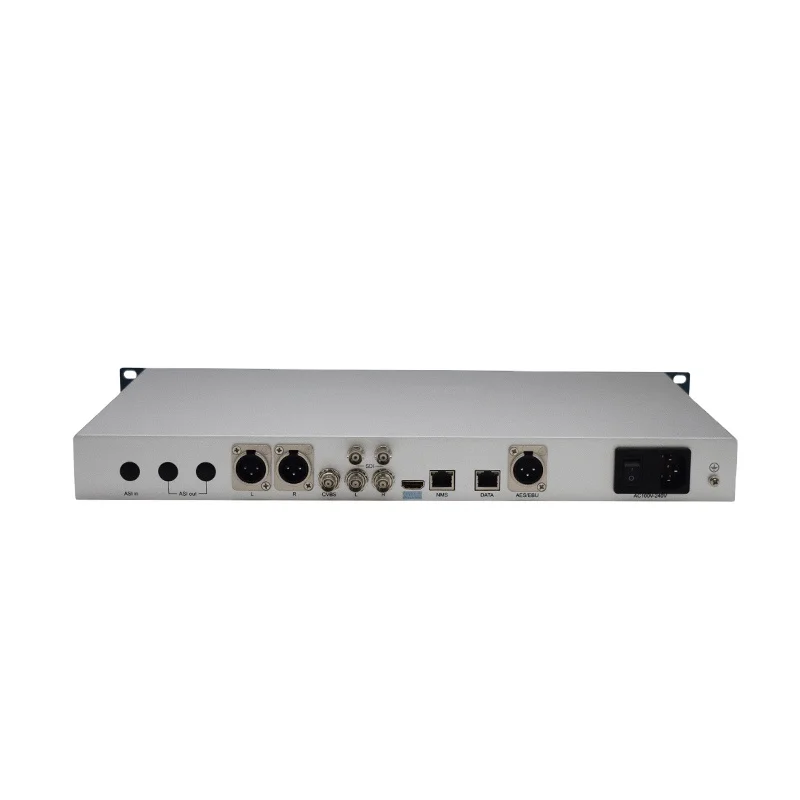

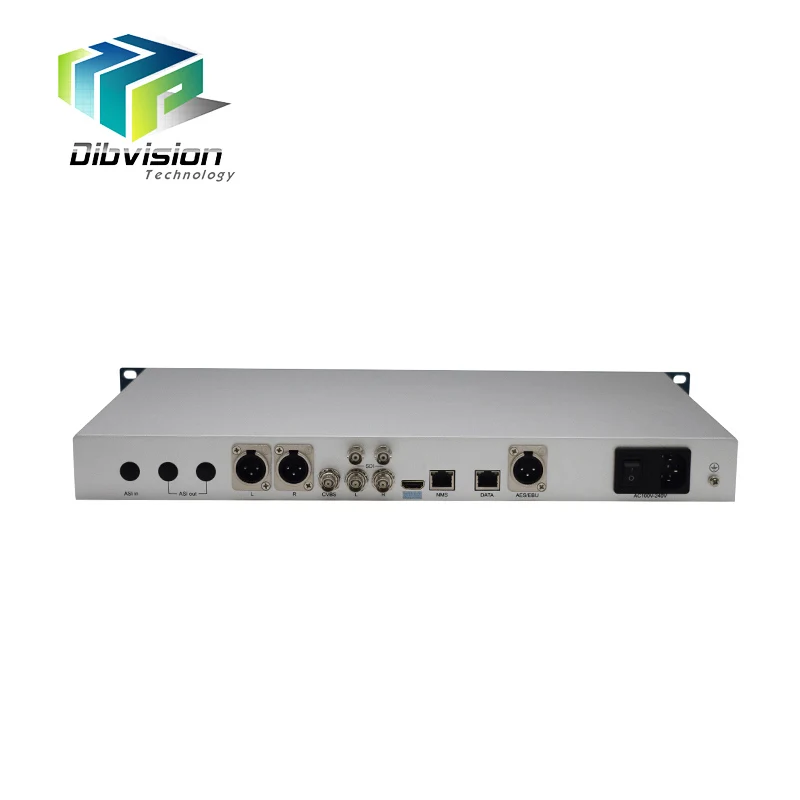

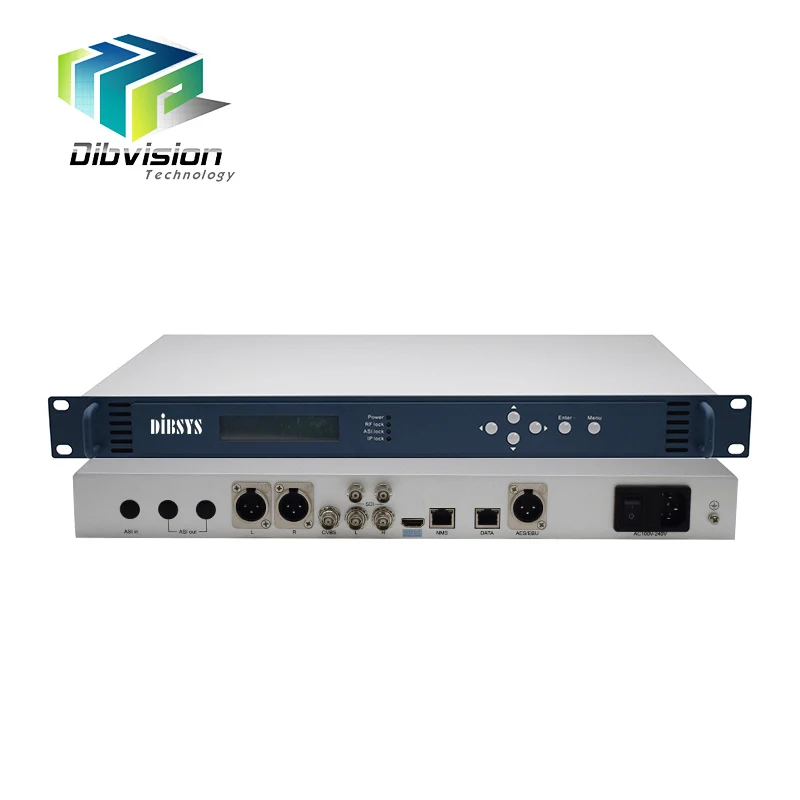

(iDEC) Updated single channel ip to sdi decoder converter with h.265 hevc video

TS in/output interfaces

DVB-ASI optional

1xASI input, 2x ASI outputs. ≤120Mbps

Impedance 75Ω

Output Ports

HD-MI Output

Implementation

standards

1 * HDMI 2.0a with HDCP2.2/1.4

Resolution

up to 1080p @60fps, 1080i @60fps,
1080i @50fps, 720p, 480i, 576i

Embed Audio

One Channel Decoded

SD/HD SDI Output

Interface

1 pair of BNCs (mirrored) , female, 75Ω

Resolution

1080p, 1080i,720p,576i,480i

SD-SDI output

SMPTE 259M, 270 Mb/s (10bit)

HD-SDI output

SMPTE 292M, 1.485 Gbit/s (20bit)

Output level

800mV+-20 p-p

Frame rate

60, 50, 30, 29.97, 25 fps

Embed Audio

Analog Audio Output

Connector Type

2×port with XLR adaptor cable

Audio Output mode

Mode Left, Right, Dual Mono, Stereo

Output Impedance

600Ω (balanced)

Number of Output

2 pairs of stereo audio outputs
(2 Audio PIDs or 4 channels are decoded).

Cross Talk Among Channels

>70dB

THD

<0.3% @ 400Hz, 1KHz test tone

Frequency Response

±0.5dB over 20Hz ~ 18KHz

Analog Video Output

Connector Type

1* CVBS , 1 pairs of  R/L analog, RCA, 75Ω,

Output level

I.0 Vp-p±5% Standard test stream

CVBS Standard

PALBDGHI, PALN, NTSCM, PALN-C, NTSCM, NTSCM443, PALM, SECAM, NTSCMJ

SNR

≥ 56dB

synchronizing

amplitude

300±20mVP-P

frequency

characteristic

±0.8 dB ( 4.8MHz); ±1 dB ( 4.8-5MHz );

+0.5/-4 dB`( 5.5 MHz)

Output amplitude

700±30mVP-P

Differential gain

≤ 8%

Digital audio output

Output Format

1*AES/EBU

Connector Type

3pin Female with XLR adaptor cables

Number of Output

Up to 2 audios are decoded

Video Decoding

Video Standard

MPEG-2; MPEG 4 AVC/H.264; H.265; AVS+

Chroma Sample

4:2:0

Bit Depth

8-bit, 10-bit

Decoding Latency

low latency mode: 300-1000ms

HEVC (H.265/MPEG-H)

Main @ L4.1 & L5.1

Main 10 @ L4.1 & L5.1

Main 10 422 @ L4.1 & L5.1

H.264 Profiles

H.264 BP/MP/HP@ level 5.0

MPEG2 Profiles

MPEG2 SP@ML,MP@HL

AVS+ Profiles

AVS-P16(AVS+)

Audio Decoding

Audio Standard

MPEG-1 Audio Layers I & II

AAC-LC, HE AAC V1/V2 , AC3/E-AC3

DD/DD Plus

DD Passthrough

DRA

Dual Audio Tracks

1 by default,  2 optional

Data output

Subtitle

DVB/EBU/Teletext

Closed Caption

EIA 608, EIA 708, EIA 608-to-708

Control & Monitoring

Interface

1*RJ-45, 10/100 Base-T, for equipment IP Control

Remote Control

Web management

Local Control

LCD display and keypad

Environment

Power Supply

AC 90V~250V, 50/60Hz

Power consumption

24W

Dimension

450*350*44mm

Operating temperature

0 ~ 45℃

Storage temperature

-10 ~ 60℃

Humidity

10 ~ 90% non-condensed

Weight

5KG
